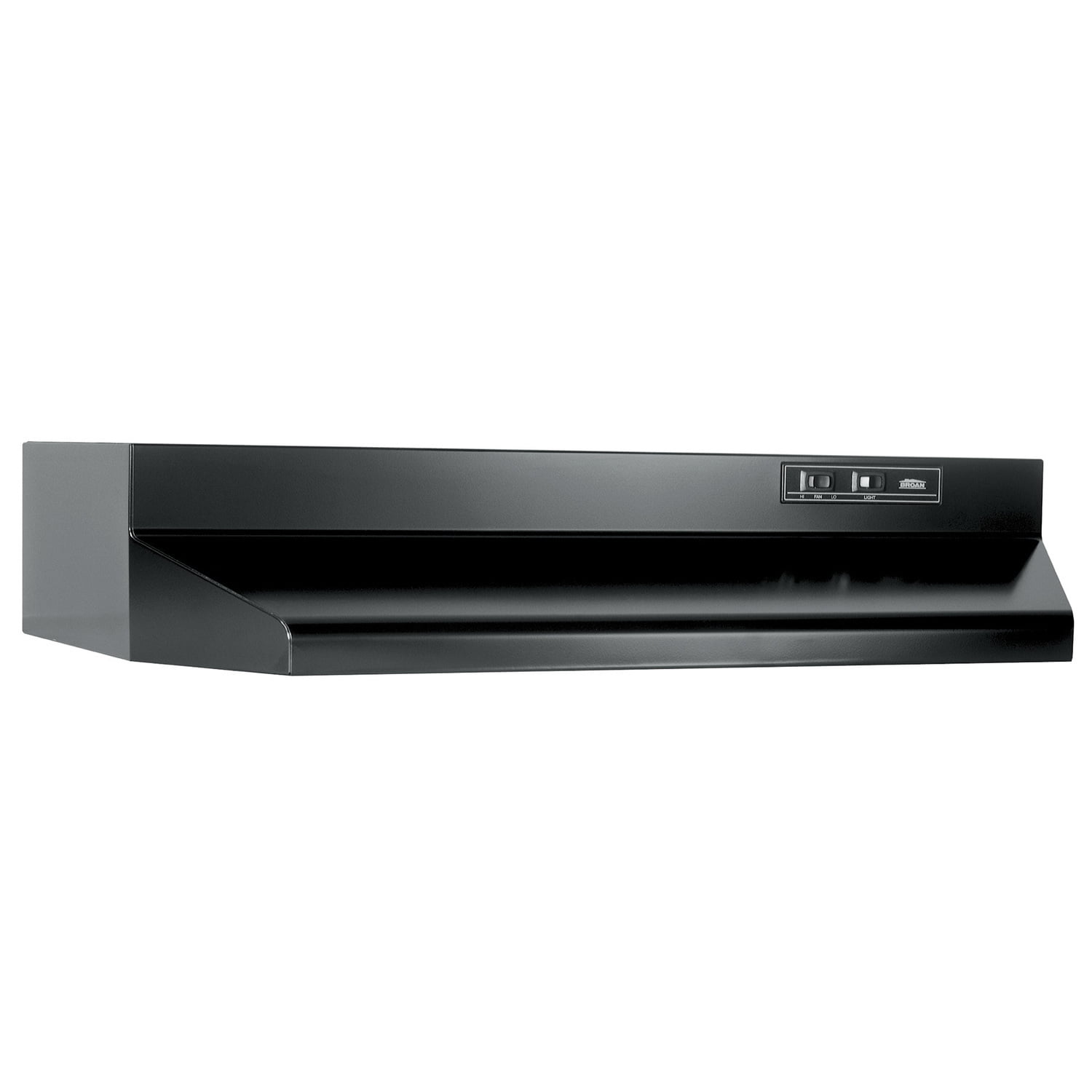

  • Broan 403023 Broan® 30-Inch Ducted Under-Cabinet Range Hood, 160 Cfm, Black

    The Broan 40000 30 In. Series Is Made For A Wide Range Of Installations And Comes In A Variety O... Read more...

    Regular price
    Our Price: $99.52
    Sale price
    Our Price: $99.52
    Regular price
    Unit price
    per

    Availability : Not Currently in Stock

    - +
    Apply For Financing
    Extended protection

    2 year plan

    $40.00

    3 year plan

    $74.00

    5 year plan

    $155.00

    Extended Protection

    Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.

    This Protection Plan includes:

    - Full parts and labor coverage during the whole period of the extension plan.
    - Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
    - Food loss protection (click here for details)
    - 24/7 toll-free number for support (1-877-879-6395)

    Additional Services
  • Where will services be needed?

    Delivery Time
    The Broan 40000 30 In. Series Is Made For A Wide Range Of Installations And Comes In A Variety Of Appliance Matching Colors. The Durable Under Cabinet Hood Installs As 3-1/4 In. X 10 In. Ducted Opening Only And Ducts Either Vertically Or Horizontally. The Hood Features A Fan Designed For Years Of Trouble Free Service, An Easy To Clean Grease Filter, A Protective Lamp Lens That Distributes Light Evenly Over The Cook-Top, And Control Switches For Fan Speed And Light Activation. Includes Duct Adapter With Built-In Damper.
    • Externally vented range hood offers powerful performance for your cooking needs

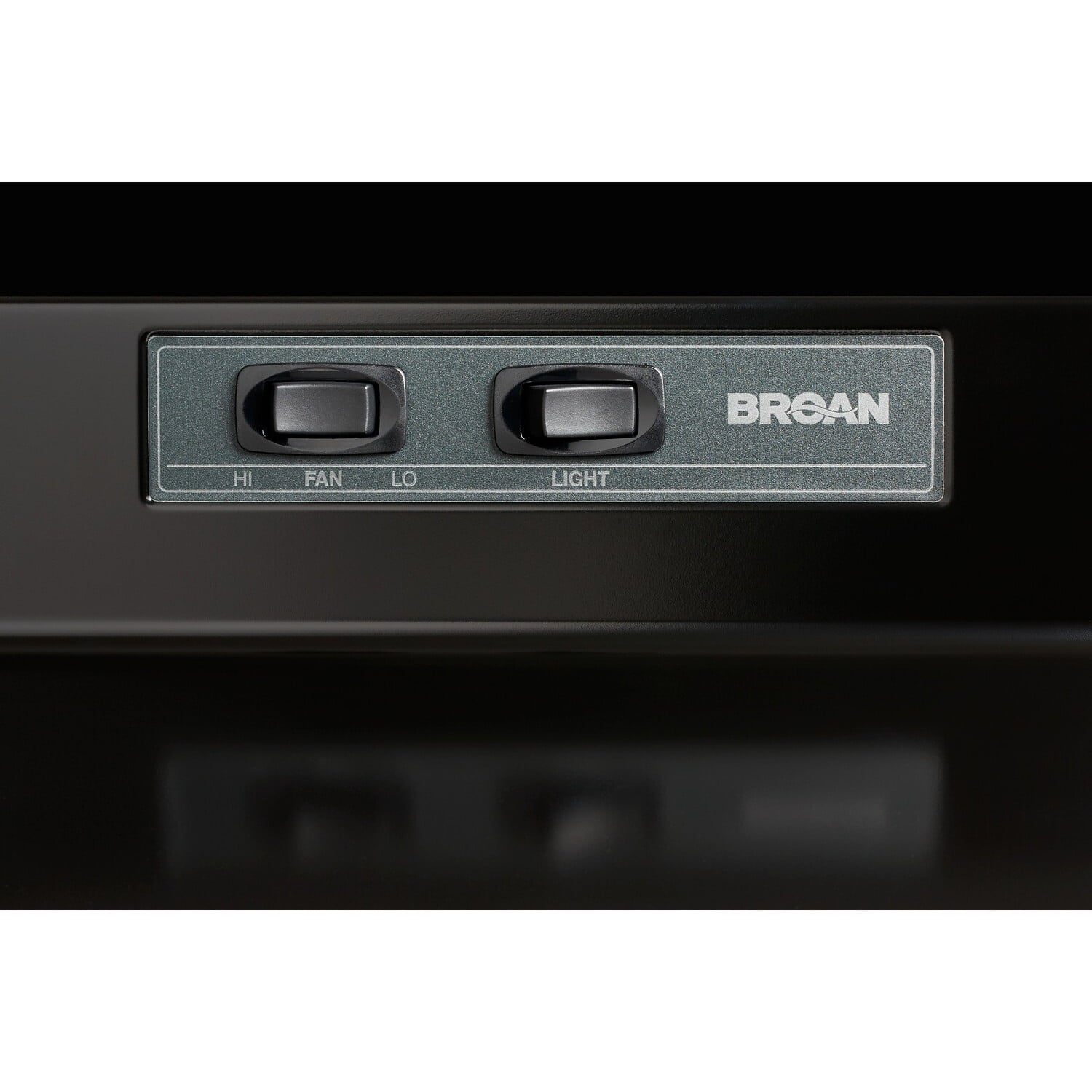

    • Simple to use rocker fan switch and separate rocker light switch offer easy control
    • 2 speed fan helps you tackle a variety of venting jobs
    • 160 CFM fan helps quickly remove smoke and cooking odors from the air
    • Top or rear exhaust option lets you connect the ductwork in the most convenient way for you

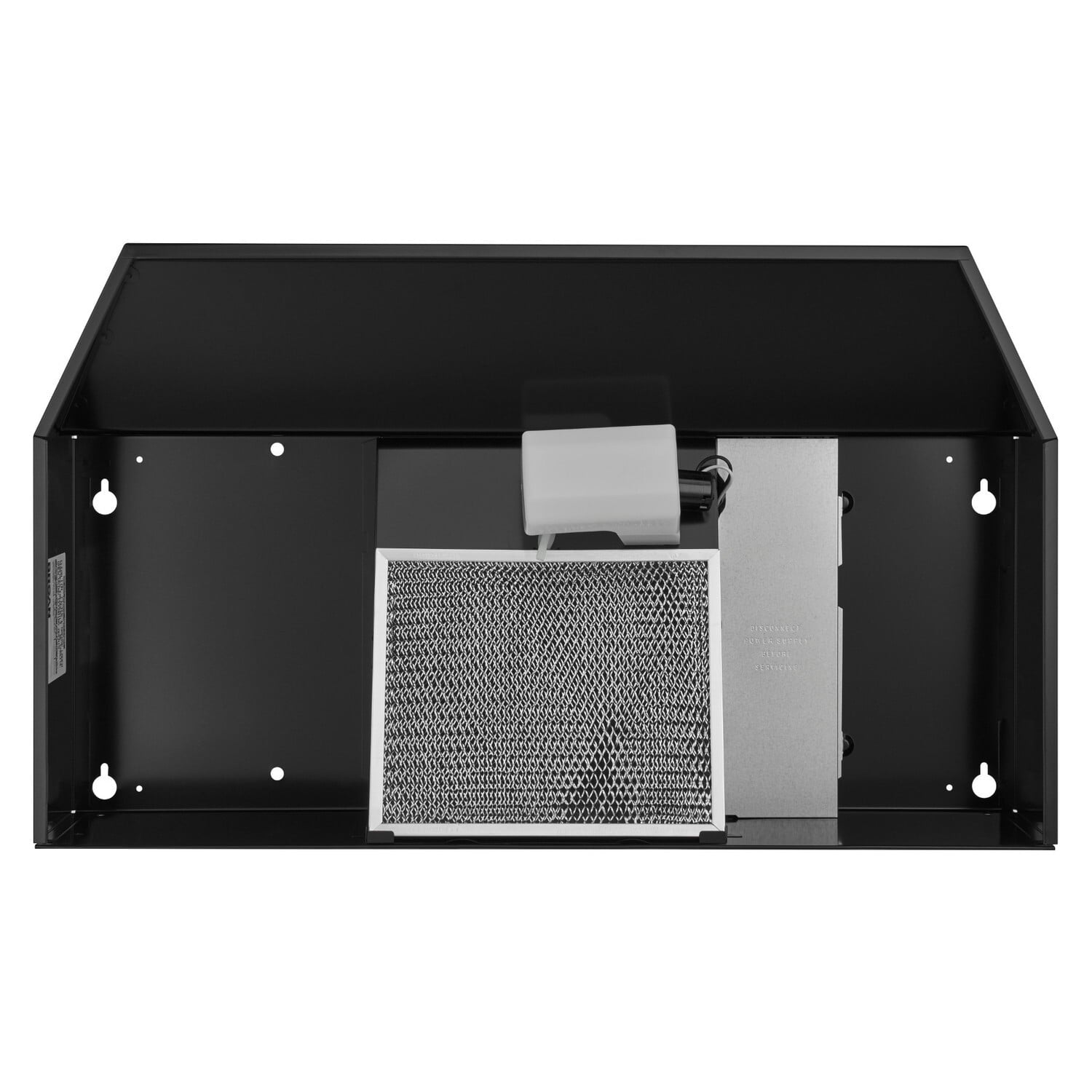

    • Aluminum mesh filter is removable and dishwasher safe for easy cleaning and maintenance
    • Uses up to a 75-Watt in incandescent light to brightly illuminate the cooking area (bulb sold separately)
    • Installs as 3-1/4 in. x 10 in. ducted with included duct connector and built-in damper
    • Mitered sides and hemmed bottom for safety and good looks
    • Limited 1-year warranty
    • UL listed and HVI-2100 certified for your safety and protection
    Filter Type Aluminum
    Heat Sentry No
    HVI Certified Yes
    Lighting Type Incandescent
    UL Listed Yes
    ADA Compliance Yes
    Damper Included No
    ENERGY STAR® certified No
    Light Bulbs Included No
    Light Levels 1
    Material Steel
    Nightlight Or Nighlight Setting No
    Ductless Recirculation Capable No
    Ductless Filter Or Kit Included No
    Remote Operation Capable No
    Speed Levels 2
    Switch Control Type Rocker
    Rated Voltage 120
    Boost Mode No
    Country of Origin United States
    Color Finish Black
    Rated Amps 2
    Product Depth 17.5
    Product Height 6'
    Product Width 30'
    Built-In Timer No
    CFM 160
    Vent Type Ducted Only
    Duct Direction Horizontal/Vertical
    Bulb (Recommended Type) A19
    Manufacturer Warranty 1 Year
    Wattage 240

    Broan-NuTone Range Hood & Ventilation Fans Tip - Check Terminations of Ventilation Ducts

    Can I install a range hood without venting it? - Danny Lipford

    Cleaning a Range Hood Filter

    Does an Over the Range microwave provide adequate Capture? - Danny Lipford

    Give Your Kitchen A 72 Hour Facelift

    How do I determine the size of the range hood I need? - Danny Lipford

    How To Ventilate The Whole House

    Importance of a Range Hood for Indoor Air Quality

    Island Range Hoods for Kitchen Upgrades - Danny Lipford

    Is there any regular maintenance needed on my range hood? - Danny Lipford

    Kitchen Renovation Includes Adding Range Hood with Danny Lipford

    Proper Use of a Range Hood

    Proper Ventilation Equals a Healthy Home

    What are CFMs? - Danny Lipford

    Description

    The Broan 40000 30 In. Series Is Made For A Wide Range Of Installations And Comes In A Variety Of Appliance Matching Colors. The Durable Under Cabinet Hood Installs As 3-1/4 In. X 10 In. Ducted Opening Only And Ducts Either Vertically Or Horizontally. The Hood Features A Fan Designed For Years Of Trouble Free Service, An Easy To Clean Grease Filter, A Protective Lamp Lens That Distributes Light Evenly Over The Cook-Top, And Control Switches For Fan Speed And Light Activation. Includes Duct Adapter With Built-In Damper.

    Specifications

    Filter Type Aluminum
    Heat Sentry No
    HVI Certified Yes
    Lighting Type Incandescent
    UL Listed Yes
    ADA Compliance Yes
    Damper Included No
    ENERGY STAR® certified No
    Light Bulbs Included No
    Light Levels 1
    Material Steel
    Nightlight Or Nighlight Setting No
    Ductless Recirculation Capable No
    Ductless Filter Or Kit Included No
    Remote Operation Capable No
    Speed Levels 2
    Switch Control Type Rocker
    Rated Voltage 120
    Boost Mode No
    Country of Origin United States
    Color Finish Black
    Rated Amps 2
    Product Depth 17.5
    Product Height 6'
    Product Width 30'
    Built-In Timer No
    CFM 160
    Vent Type Ducted Only
    Duct Direction Horizontal/Vertical
    Bulb (Recommended Type) A19
    Manufacturer Warranty 1 Year
    Wattage 240
