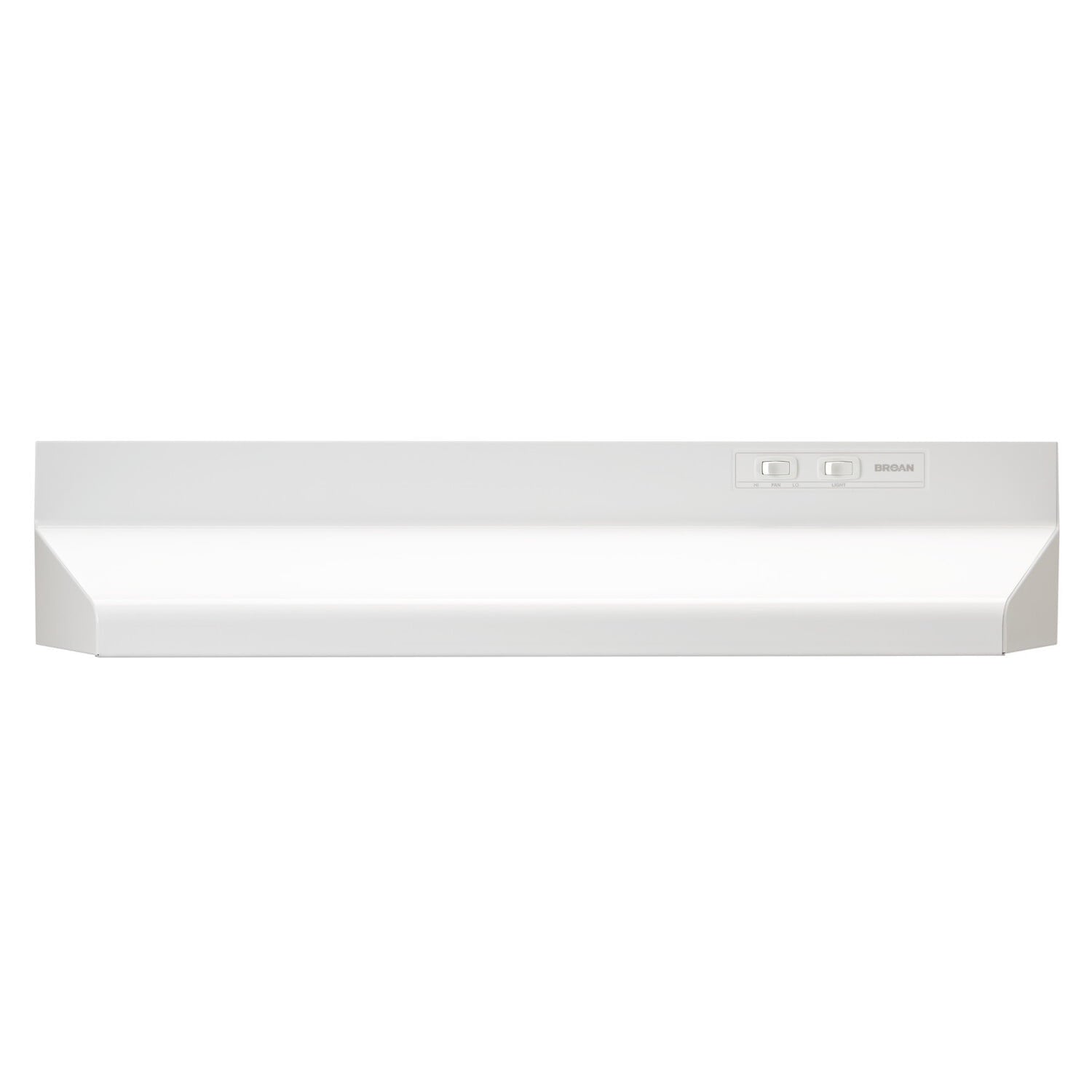

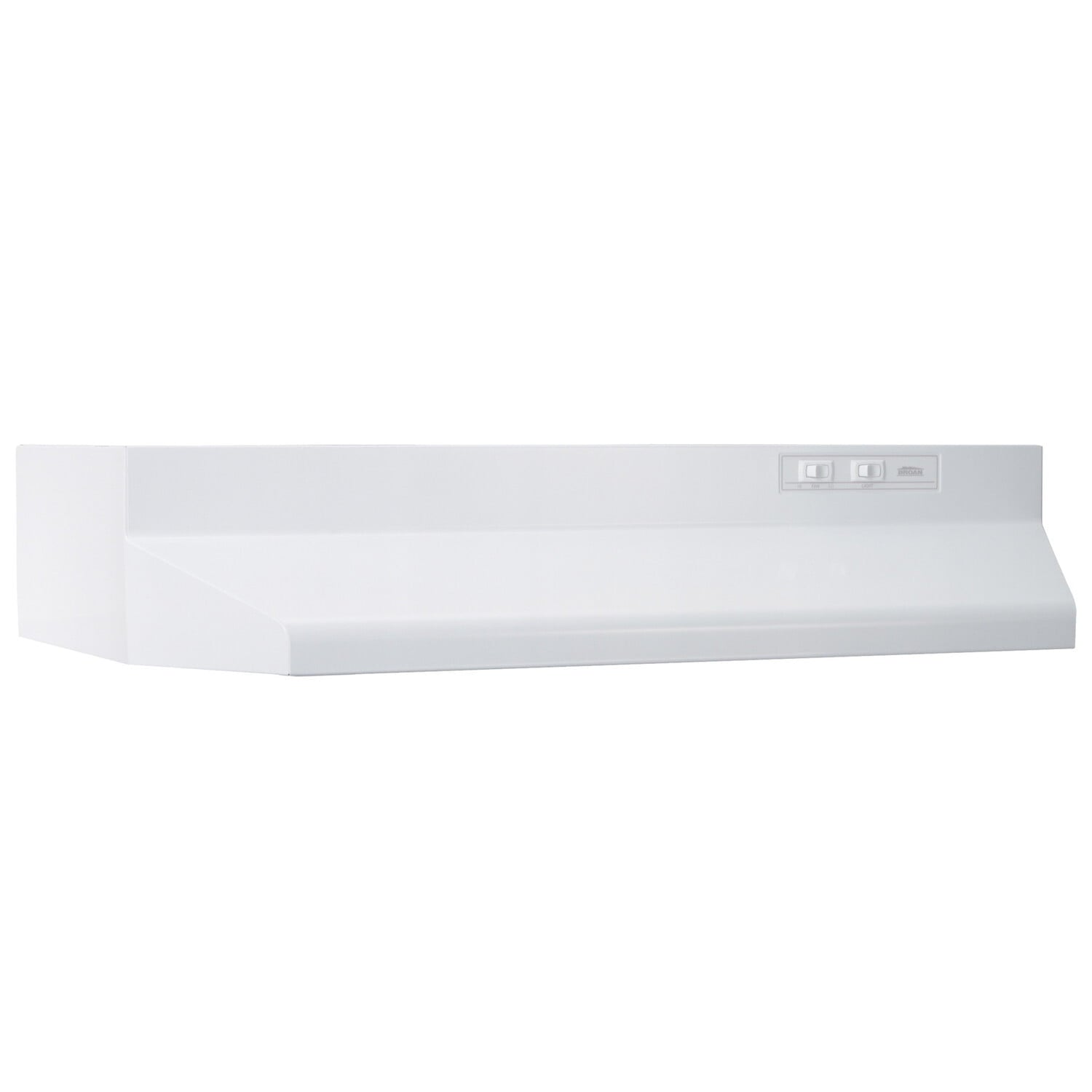

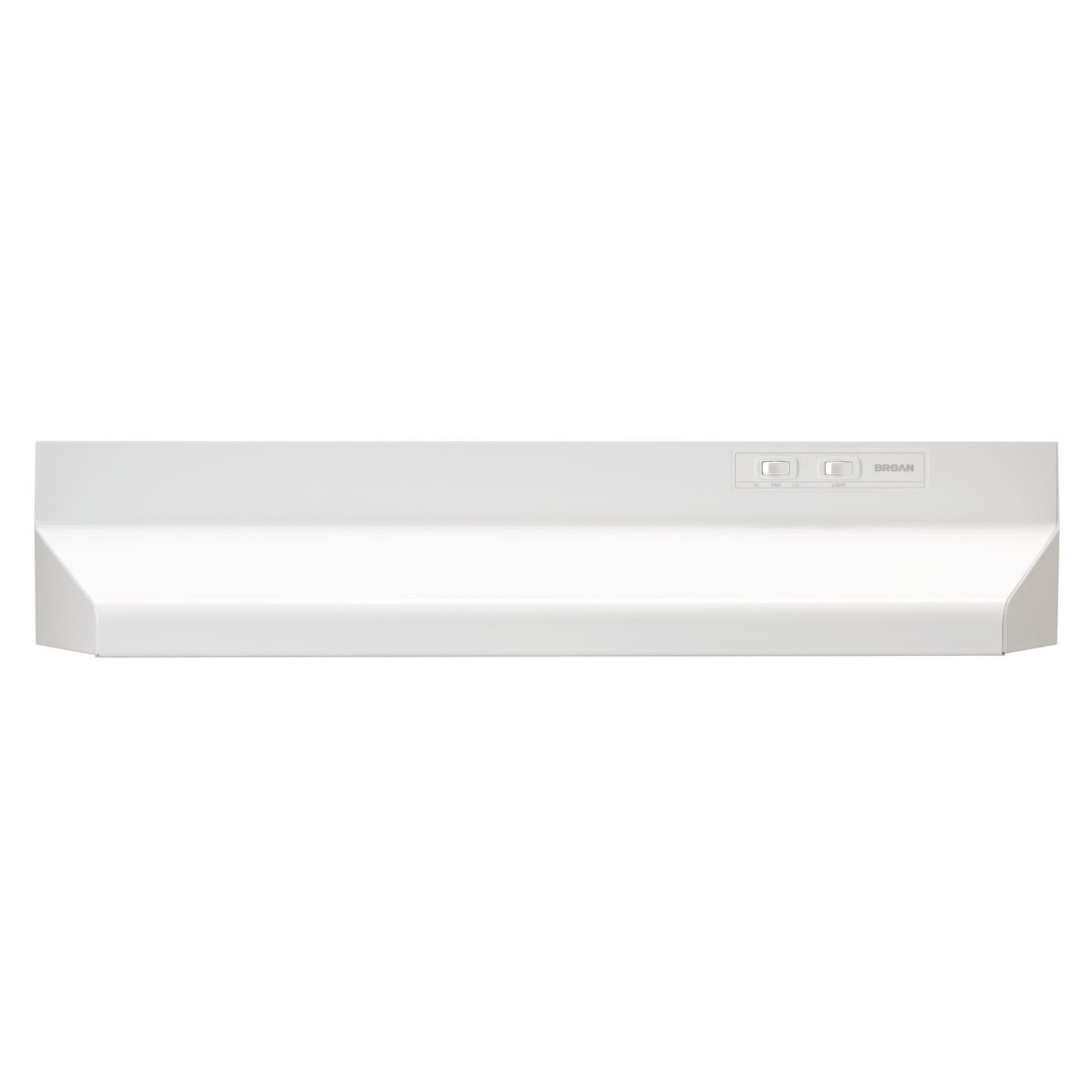

Broan 403001 Broan® 30-Inch Ducted Under-Cabinet Range Hood, 160 Cfm, White
The Broan 40000 30 In. Series Is Made For A Wide Range Of Installations And Comes In A Variety Of Appliance Matching Colors. The Durable Under Cabinet Hood Installs As 3-1/4 In. X 10 In. Ducted Opening Only And Ducts Either Vertically Or Horizontally. The Hood Features A Fan Designed For Years Of Trouble Free Service, An Easy To Clean Grease Filter, A Protective Lamp Lens That Distributes Light Evenly Over The Cook-Top, And Control Switches For Fan Speed And Light Activation. Includes Duct Adapter With Built-In Damper.
- Externally vented range hood offers reliable performance for your cooking needs
- Simple to use rocker fan switch and separate rocker light switch offer easy control
- 2 speed fan helps you tackle a variety of venting jobs
- 160 CFM fan helps quickly remove smoke and cooking odors from the air
- Top or rear exhaust option lets you connect the ductwork in the most convenient way for you

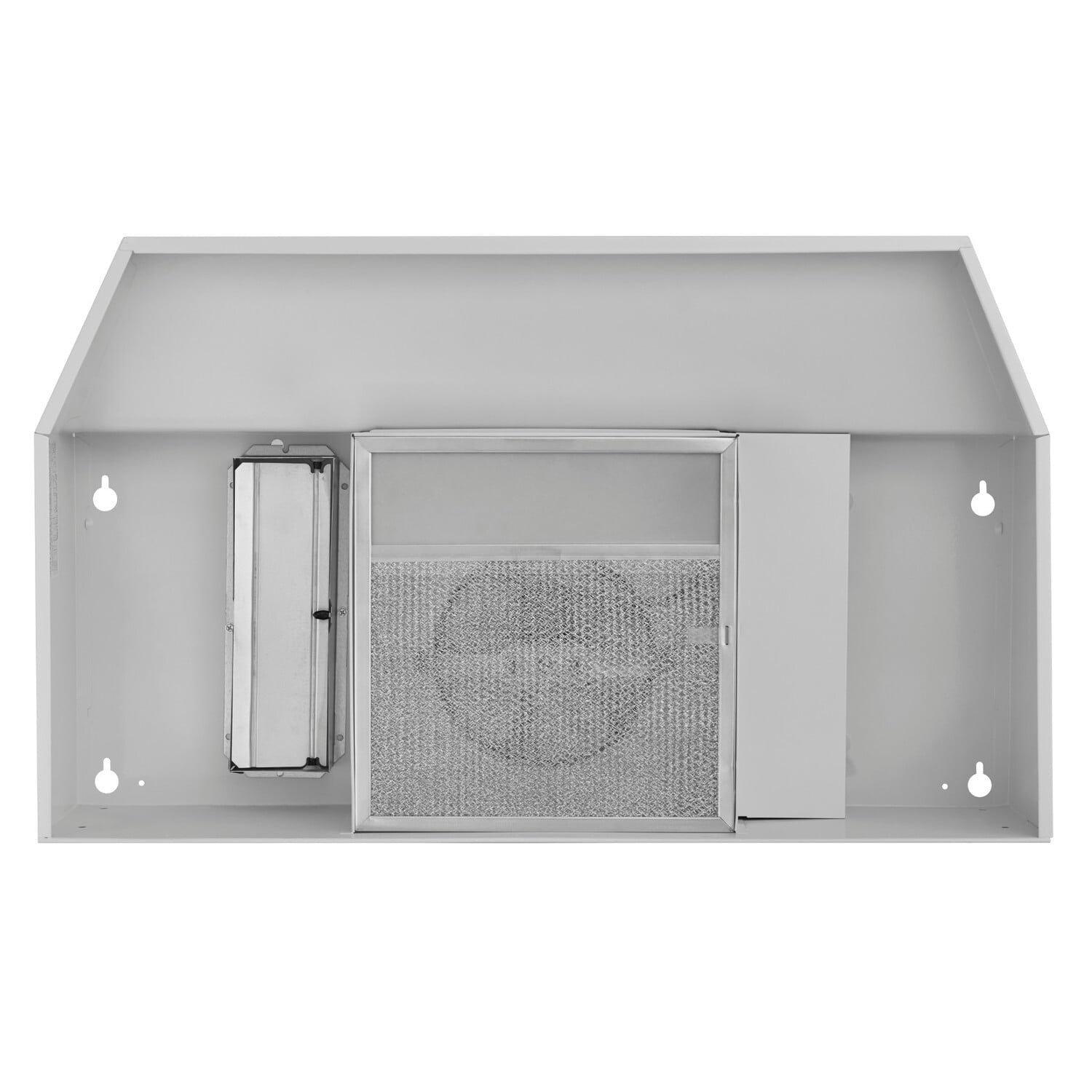

- Aluminum mesh filter is removable and dishwasher safe for easy cleaning and maintenance
- Uses up to a 75-Watt in incandescent light to brightly illuminate the cooking area (bulb sold separately)

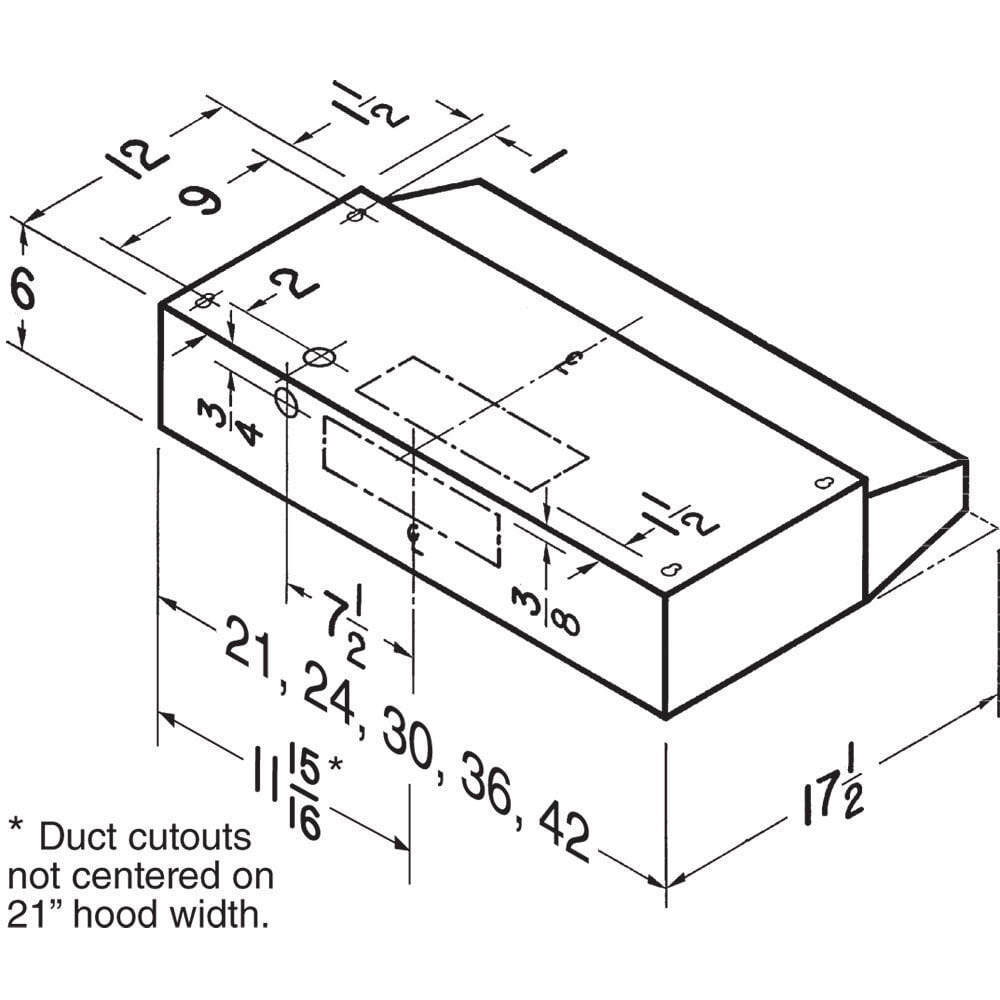

- Installs as 3-1/4 in. x 10 in. ducted with included duct connector and built-in damper
- Mitered sides and hemmed bottom for safety and good looks
- Limited 1-year warranty
- UL listed and HVI-2100 certified for your safety and protection
Filter Type | Aluminum |
Heat Sentry | No |
HVI Certified | Yes |
Lighting Type | Incandescent |
UL Listed | Yes |
ADA Compliance | Yes |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulbs Included | No |
Light Levels | 1 |
Material | Steel |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | No |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | 2 |
Switch Control Type | Rocker |
Rated Voltage | 120 |
Boost Mode | No |
Country of Origin | United States |
Color Finish | White |
Rated Amps | 2 |
Product Depth | 17.5 |
Product Height | 6' |
Product Width | 30' |
Built-In Timer | No |
CFM | 160 |
Vent Type | Ducted Only |
Duct Direction | Horizontal/Vertical |
Bulb (Recommended Type) | A19 |
Manufacturer Warranty | 1 Year |
Wattage | 240 |
