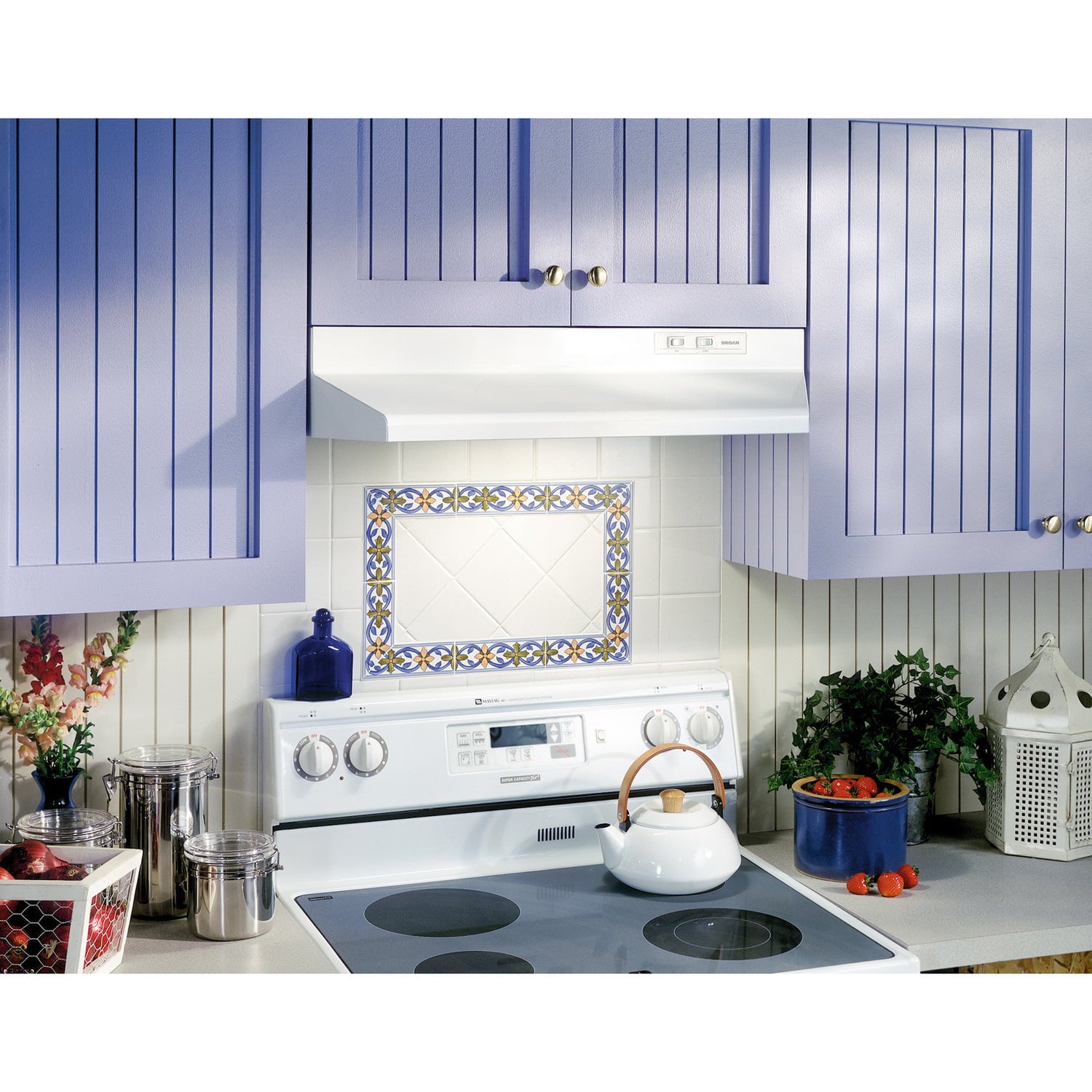

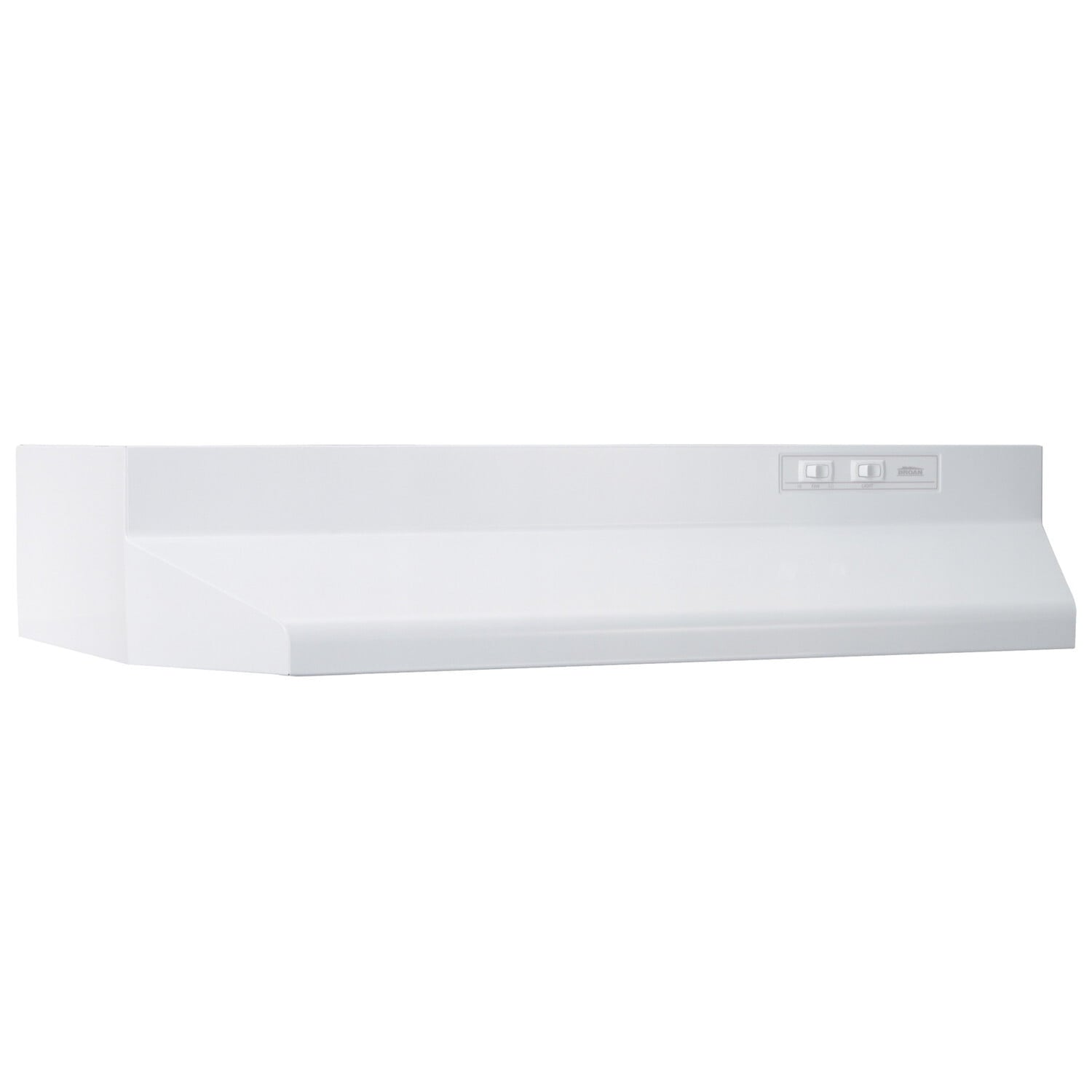

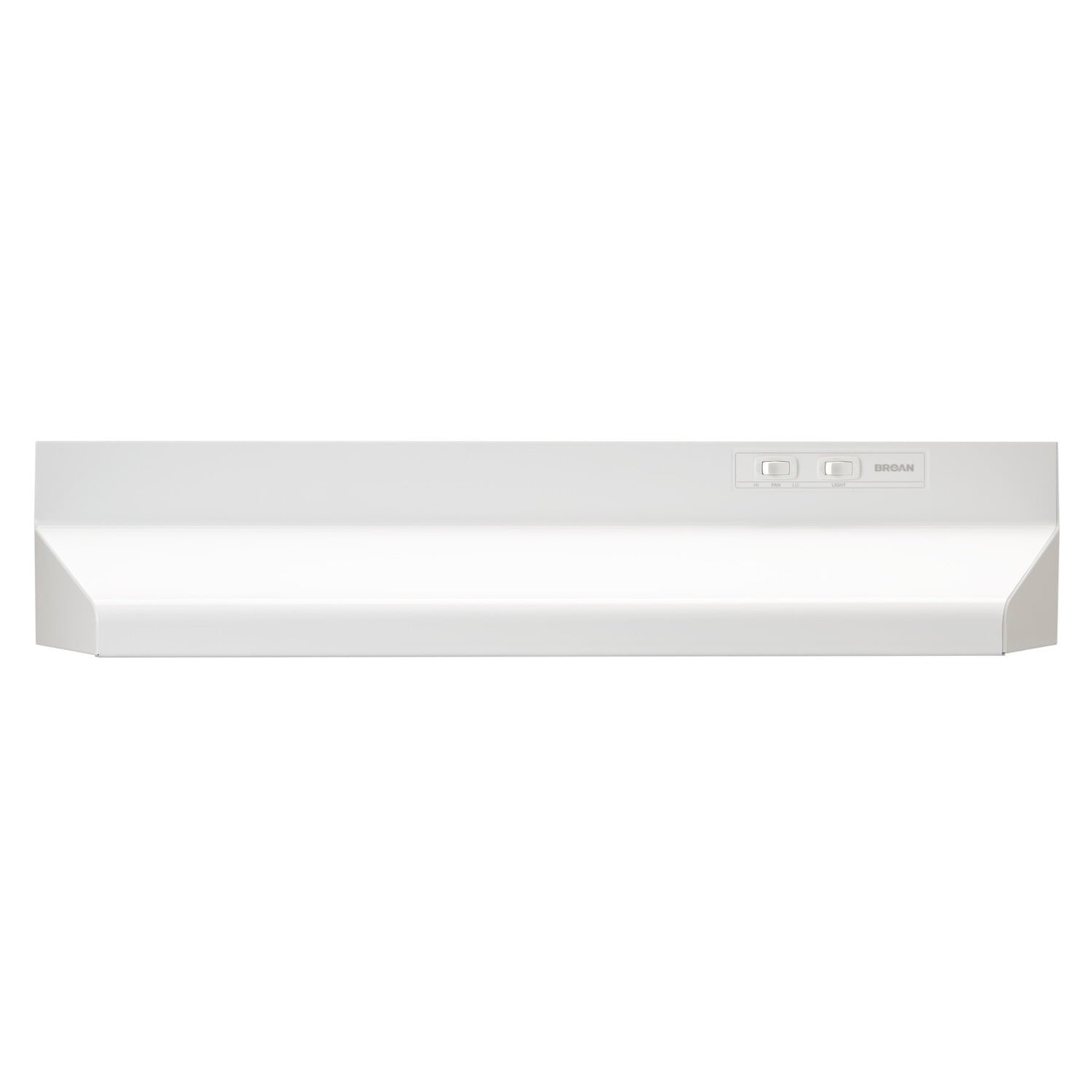

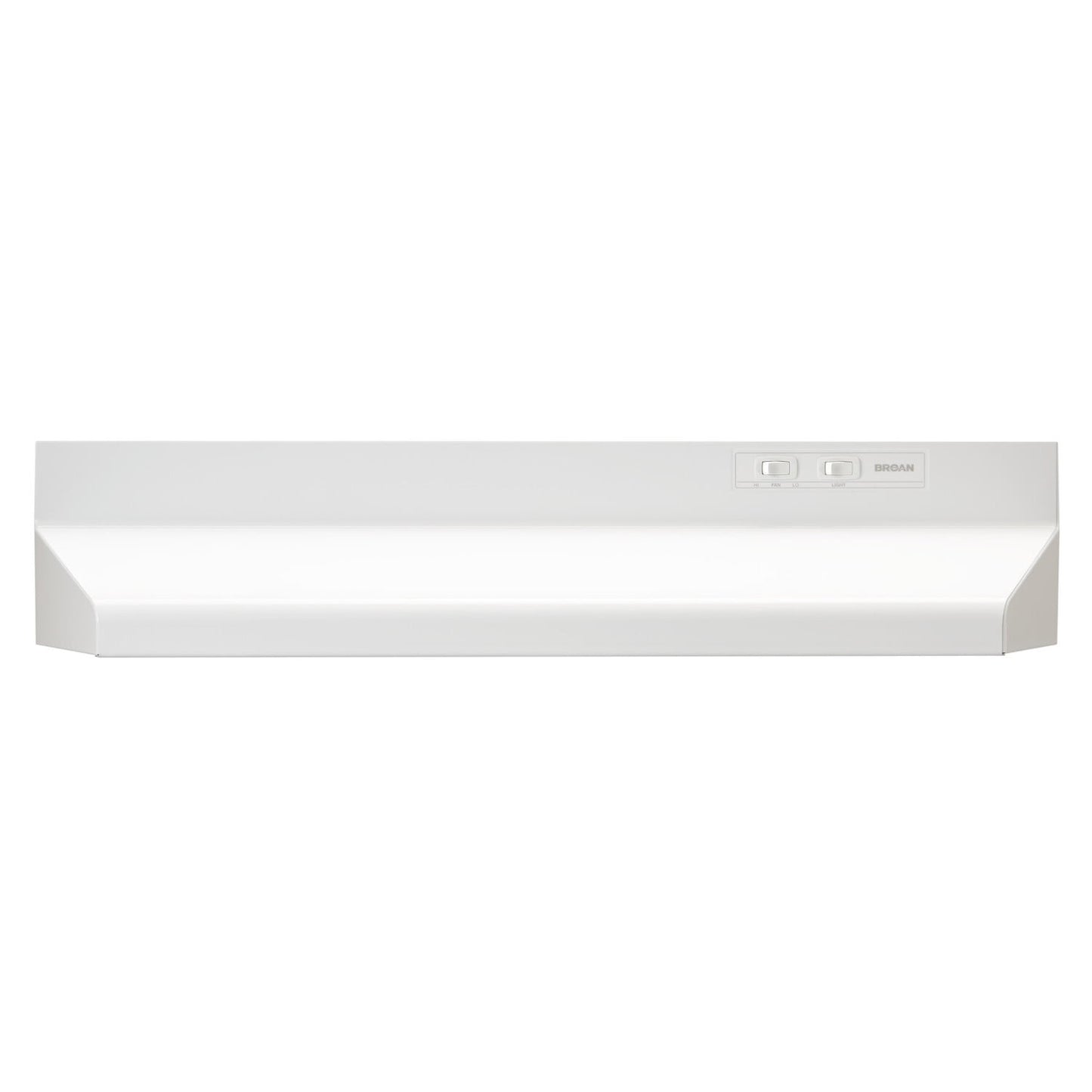

Broan 402101 Broan® 21-Inch Ducted Under-Cabinet Range Hood, 160 Cfm, White
The Broan 40000 21 In. Series Is Made For A Wide Range Installations And Comes In A Variety Of Appliance Matching Colors And Widths. The Durable Under Cabinet Hood Installs As 3-1/4 In. X 10 In. Ducted Opening Only And Ducts Either Vertically Or Horizontally. The Hood Features A Fan Designed For Years Of Trouble Free Service, An Easy To Clean Grease Filter, A Protective Lamp Lens That Distributes Light Evenly Over The Cook-Top And Control Switches For Fan Speed And Light Activation. Includes Duct Adapter With Built-In Damper.
- Externally vented range hood offers powerful performance for your cooking needs
- Simple to use rocker fan switch and separate rocker light switch offer easy control
- 160 CFM fan helps quickly remove smoke and cooking odors from the air
- Top or rear exhaust option lets you connect the ductwork in the most convenient way for you

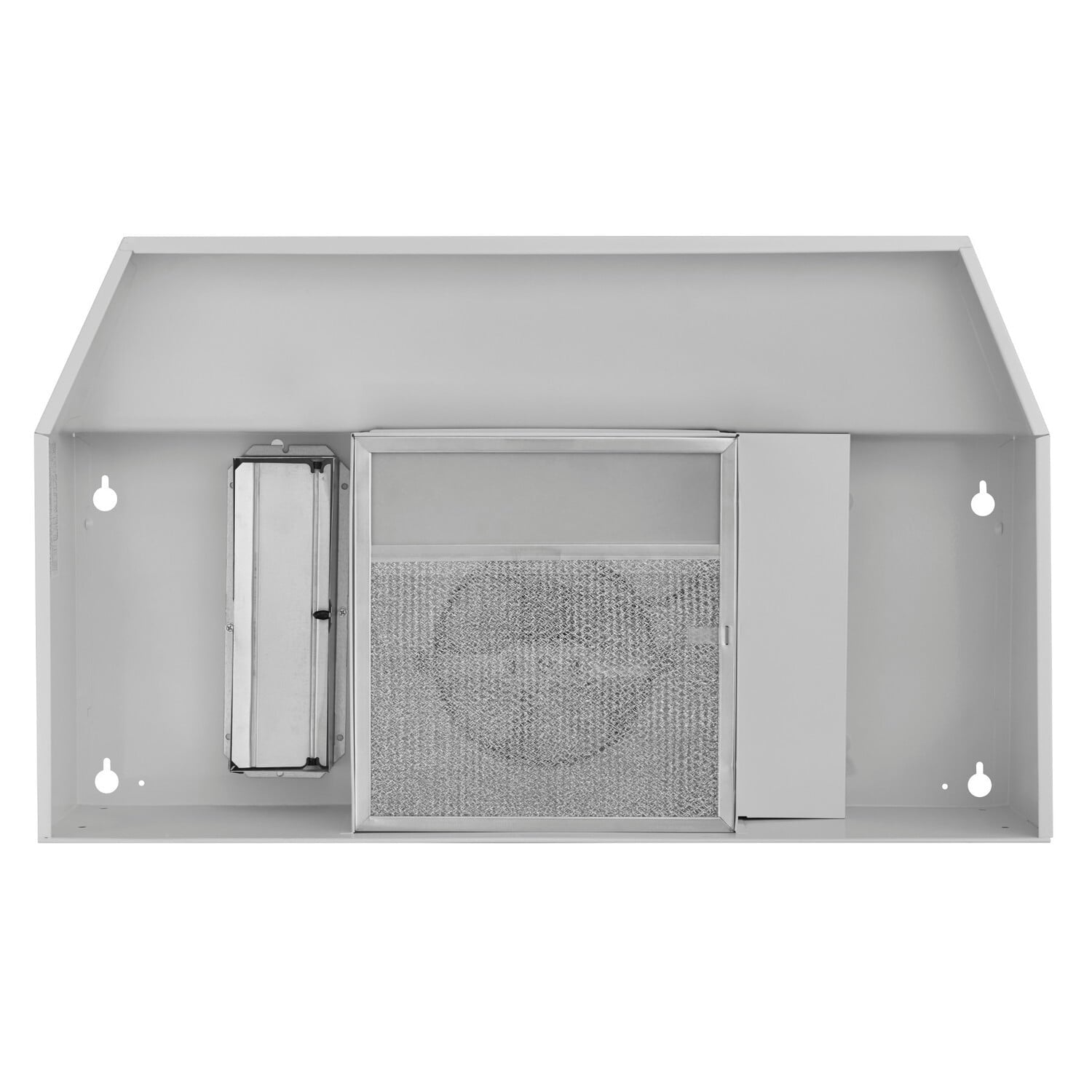

- Aluminum mesh filter is removable and dishwasher safe for easy cleaning and maintenance
- Uses up to a 75-Watt in incandescent light to brightly illuminate the cooking area (bulb sold separately)

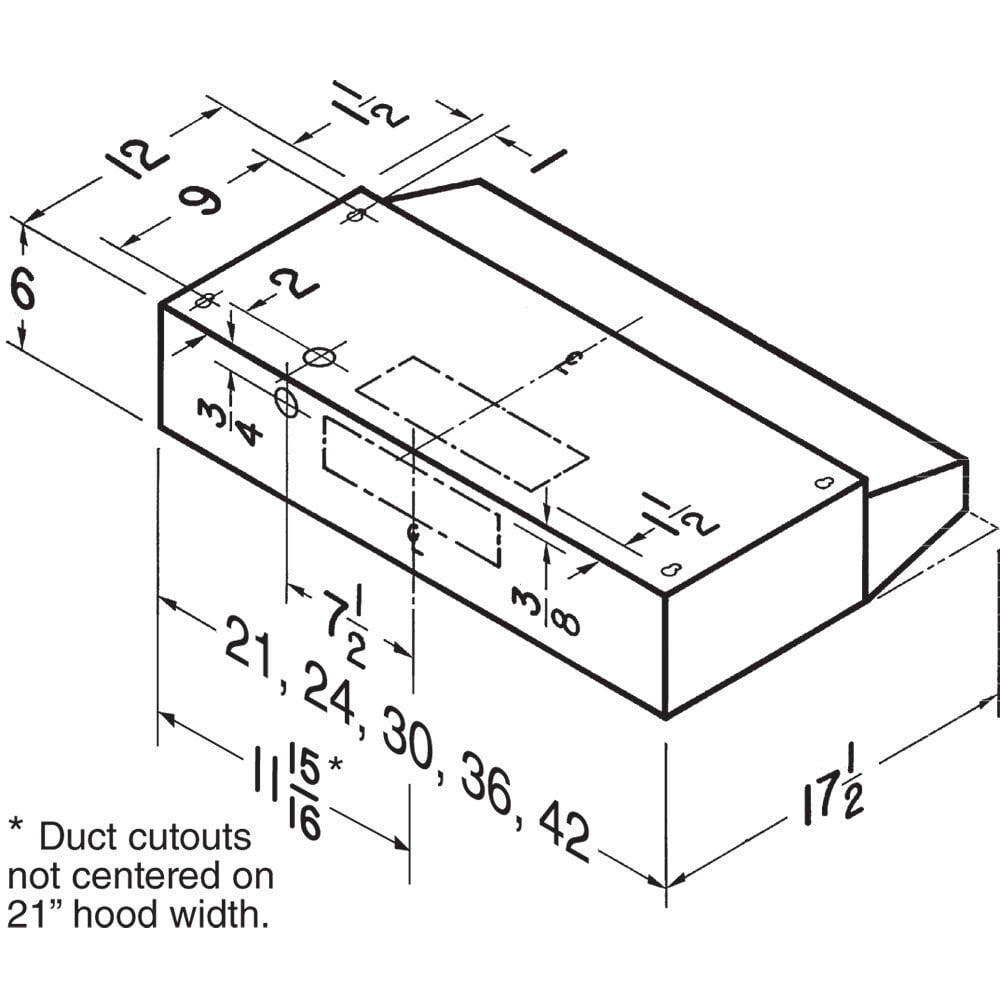

- Installs as 3-1/4 in. x 10 in. ducted with included duct connector and built-in damper
- Mitered sides and hemmed bottom for safety and good looks
- Limited 1 year warranty
- UL listed and HVI-2100 certified for your safety and protection
| Filter Type | Aluminum |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | Incandescent |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulbs Included | No |
| Light Levels | 1 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | No |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 2 |
| Switch Control Type | Rocker |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | United States |
| Color Finish | White |
| Rated Amps | 2 |
| Product Depth | 17.5 |
| Product Height | 6' |
| Product Width | 21' |
| Built-In Timer | No |
| CFM | 160 |
| Vent Type | Ducted Only |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | A19 |
| Manufacturer Warranty | 1 Year |
| Wattage | 240 |
