Broan 170 Broan® Wall Heater, 500/1000W 120Vac, 750W 208Vac, 1000W 240 Vac
Broan 170 Broan® Wall Heater, 500/1000W 120Vac, 750W 208Vac, 1000W 240 Vac
SKU: 170
UPC: 026715004430
Call us at (800) 288-1647 for expert assistance in finding the perfect alternative.
Couldn't load pickup availability
When Will I Get My Order?
x
Broan 170 Broan® Wall Heater, 500/1000W 120Vac, 750W 208Vac, 1000W 240 Vac
Broan® Wall Heater, 500/1000W 120Vac, 750W 208Vac, 1000W 240 Vac The 12-7/64 In. X 9-19/64 In. 1,000-Watt White Wall Heater Is A Front-Mountable Unit With A Lubricated Motor That Provides Years Of Maintenance-Free Use. Featuring A Color-Coordinated Knob, This Wall Heater Comes With A Built-In, Adjustable Thermostat That Automatically Maintains A Desired Temperature.
- 1,000-watt heater at 120 volts can be converted to produce 500 watts at 120 VAC, 750 watts at 208 VAC or 1,000 watts at 240 VAC
- Built-in, adjustable thermostat automatically maintains desired temperature and features a color-coordinated knob
- Factory wired
- Lubricated motor helps provide years of trouble-free operation
- Front-mounted design
- UL listed
| Auto Shut-off | Yes |
| cUL Listed | No |
| Heater Type | Fan-Forced Wall |
| Number Of Heat Settings | Variable (Infinite) |
| Project Pack | No |
| Thermostat | Yes |
| UL Listed | No |
| Coverage Area (sq ft) | 65-100 |
| BTU/hr at 120 Volts | 3413 |
| BTU/hr at 208 Volts | 2560 |
| BTU/hr at 240 Volts | 3413 |
| Color Finish | White Enamel Steel |

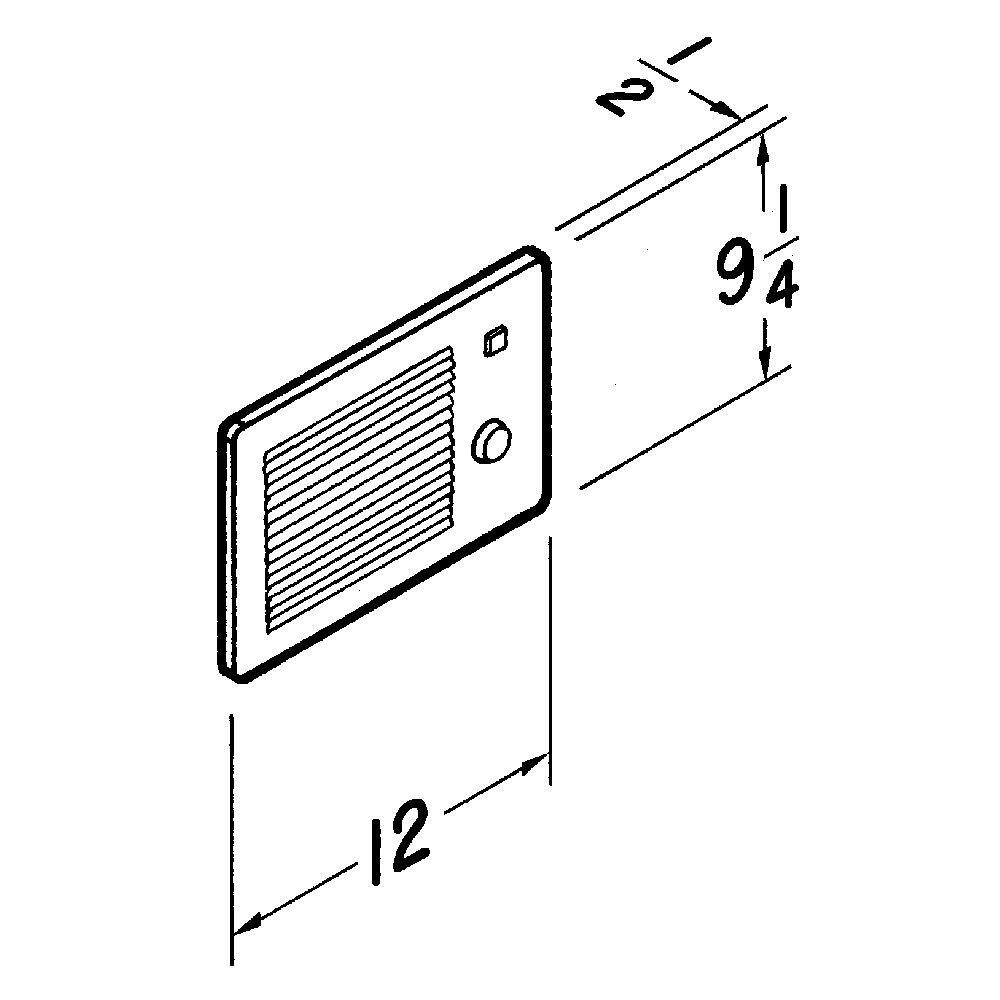

| Grille Dimensions - Width | 12 |

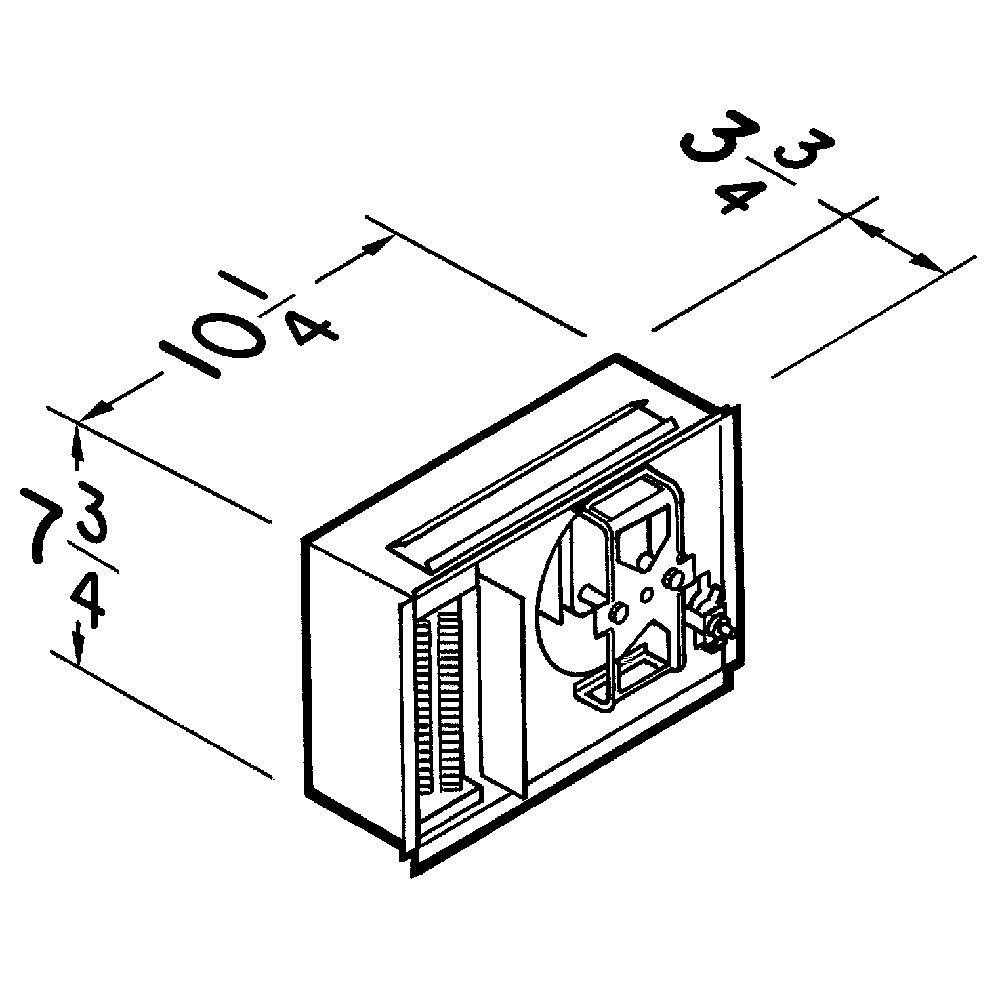

| Housing Length/Depth | 3.75 |
| Watts And Amps At 120 Volts | 8.33 |
| Watts And Amps At 208 Volts | 3.61 |
| Watts And Amps At 240 Volts | 4.16 |
| Watts at 120 VAC | 1000 |
| Watts at 208 VAC | 750 |
| Watts at 240 VAC | 1000 |
| Manufacturer Warranty | 1 Year |
