Broan 124 Broan® Heater, 750/1500W 120Vac, 1125W 208Vac, 1500W 240Vac

Call us at (800) 288-1647 for expert assistance in finding the perfect alternative.

Product variants

When Will I Get My Order?

Broan 124 Broan® Heater, 750/1500W 120Vac, 1125W 208Vac, 1500W 240Vac

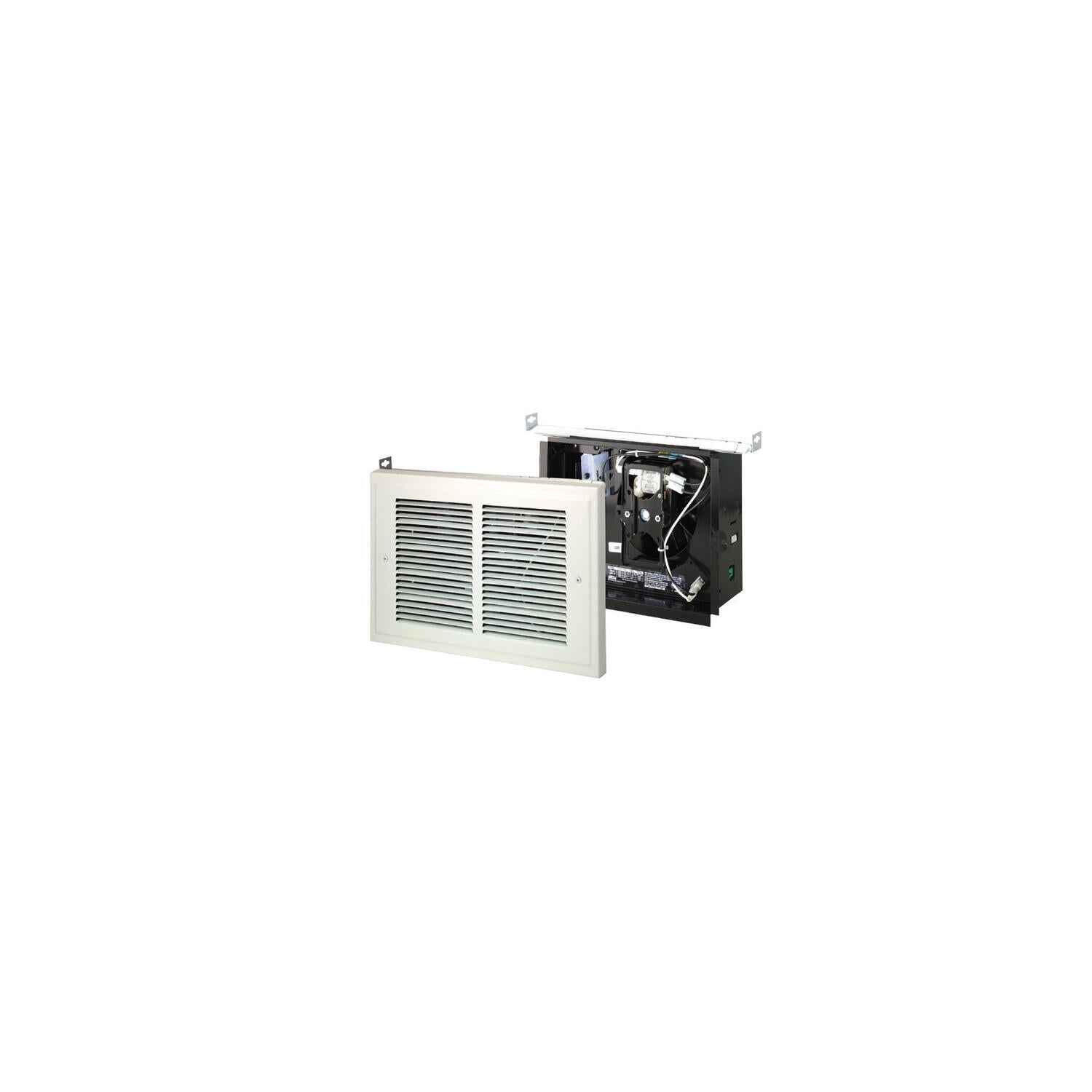

Broan® Heater, 750/1500W 120Vac, 1125W 208Vac, 1500W 240Vac The 14-19/64 In. X 9-19/64 In. 1,500-Watt White Wall Heater Is A Convertible Unit That Can Produce 750 Watts At 120 Volts, 1,125 Watts At 208 Vac Or 1,500 Watts At 240 Vac. This Wall Heater Features Louvers That Direct Air Down Towards The Floor To Distribute Heat Evenly. The Factory-Wired Design Of This Heater Provides Thermal Over-Load Protection.

1,500-watt heater at 120 volts can be converted to produce 750 watts at 120 volts, 1,125 watts at 208 VAC or 1,500 watts at 240 VAC
Manual reset
Operates from convenient wall-mounted line-voltage Broan model 87W thermostat (not included)
Thermal over-load protection
Factory wired

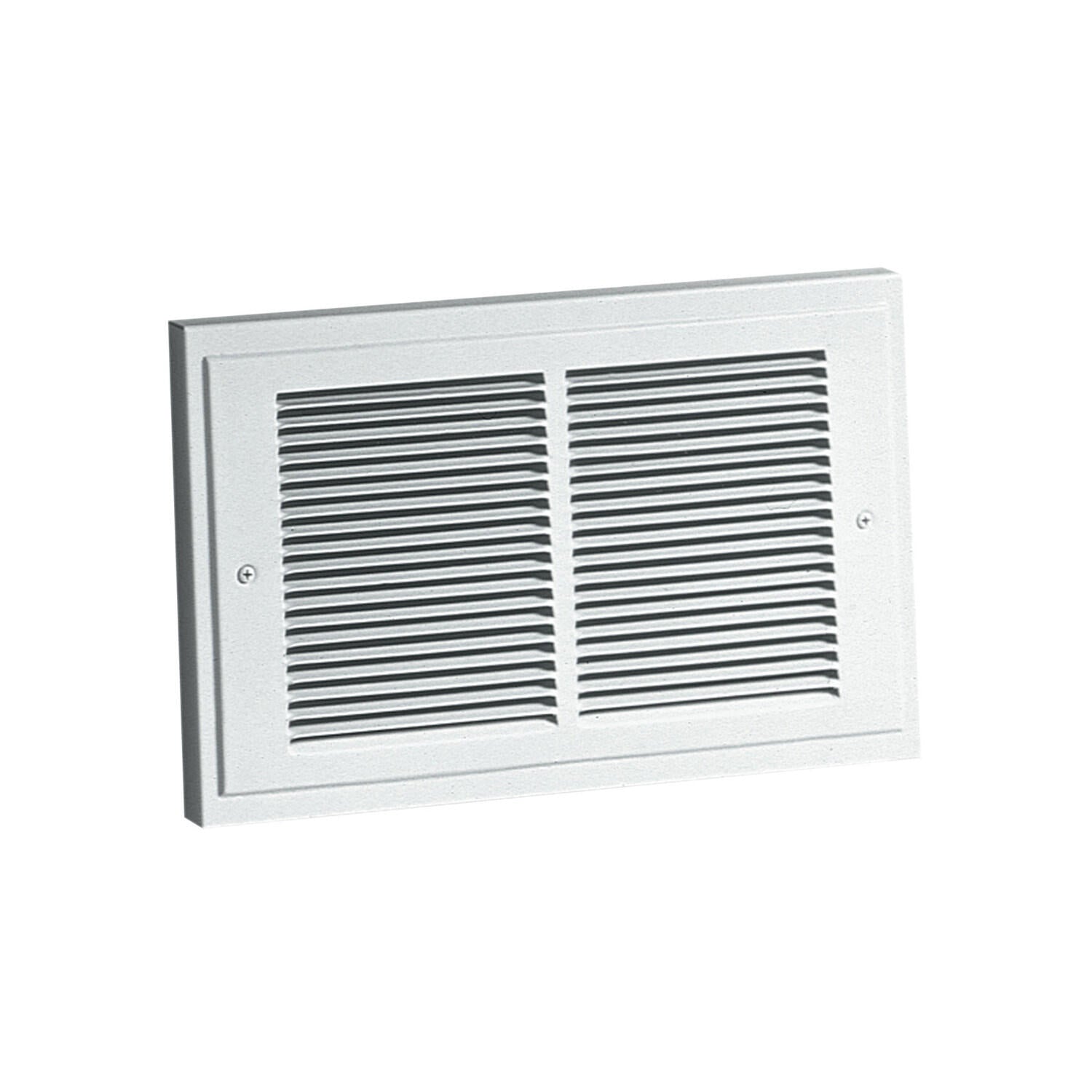

Sturdy, 1-piece steel grille
Louvers direct air downward for even heat distribution
UL listed

Auto Shut-off	Yes
cUL Listed	No
Heater Type	Fan-Forced Wall
Number Of Heat Settings	On-Off
Project Pack	No
Thermostat	No
UL Listed	No
Coverage Area (sq ft)	100-150
BTU/hr at 120 Volts	5120
BTU/hr at 208 Volts	3840
BTU/hr at 240 Volts	5120
Color Finish	White Enamel Steel

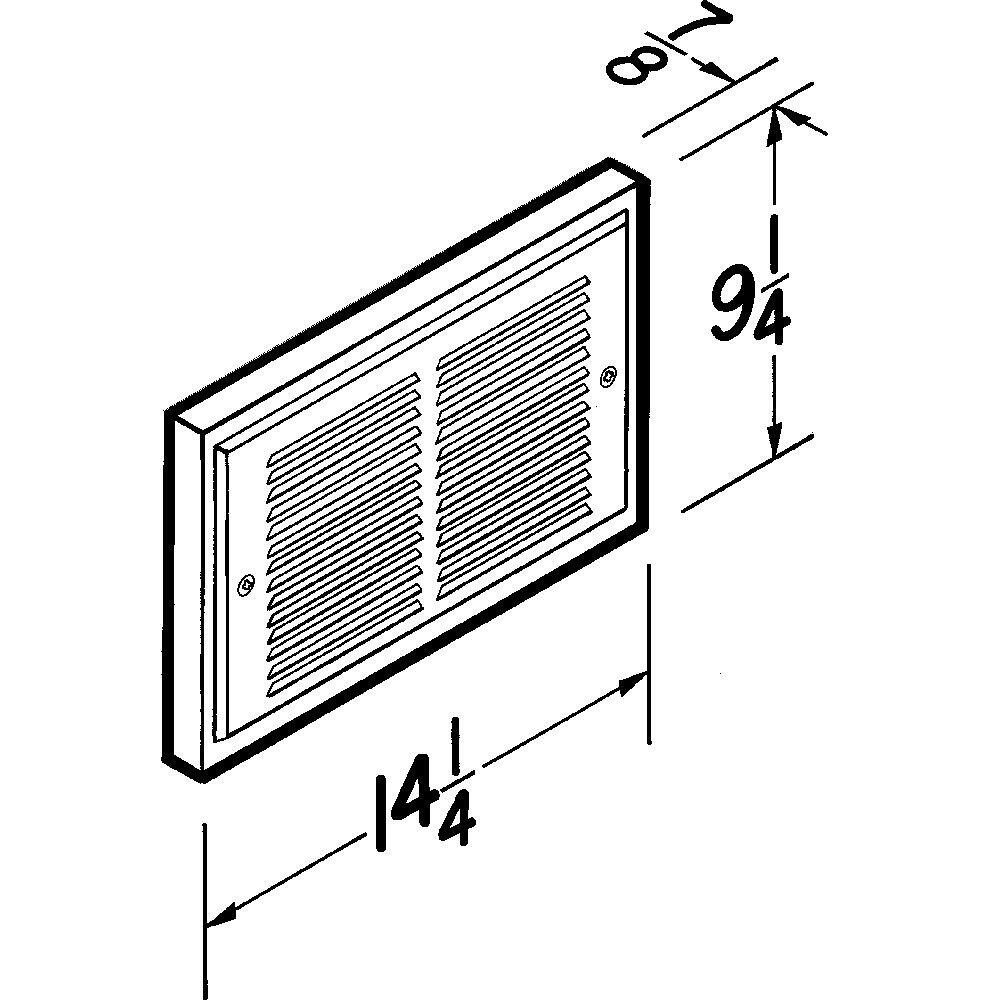

Grille Dimensions - Width	14.25

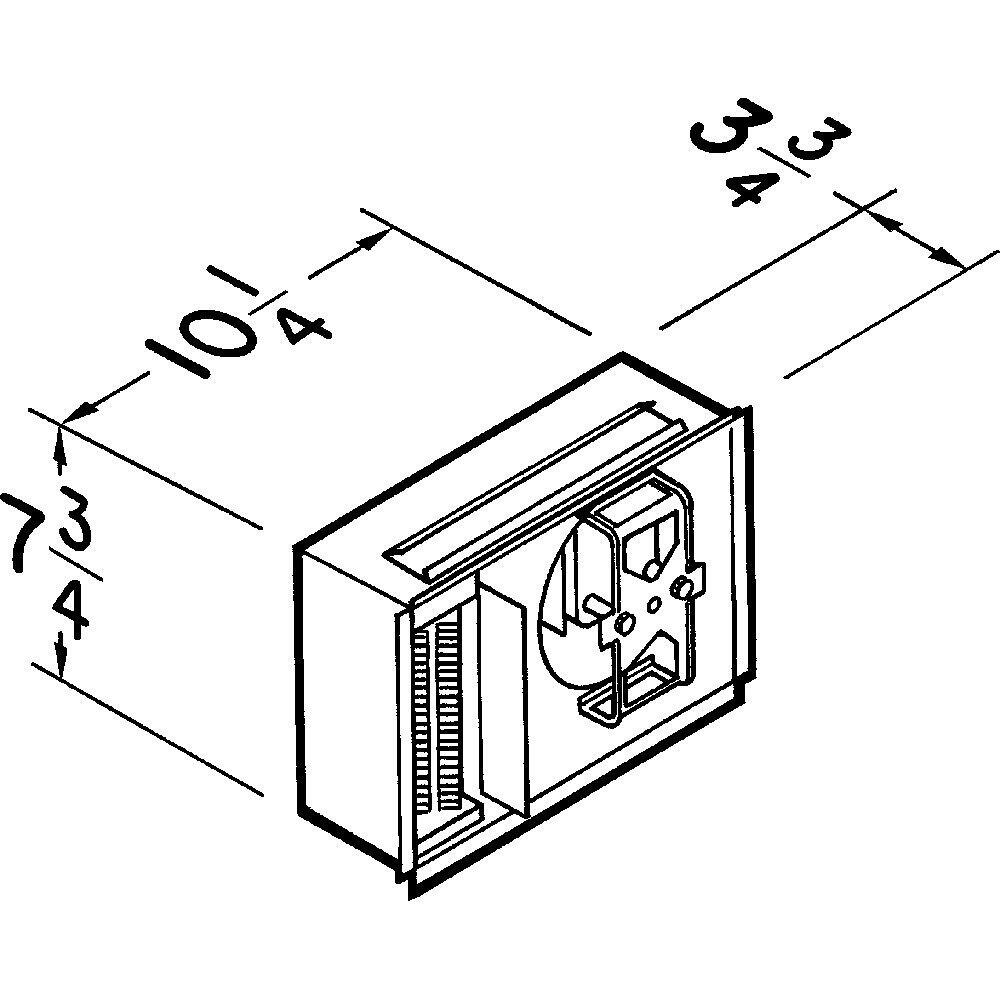

Housing Length/Depth	3.75
Watts And Amps At 120 Volts	12.5
Watts And Amps At 208 Volts	5.41
Watts And Amps At 240 Volts	6.25
Watts at 120 VAC	1500
Watts at 208 VAC	1125
Watts at 240 VAC	1500
Manufacturer Warranty	1 Year
