Broan 120 Broan® Heater, 500/1000W 120Vac, 750W 208Vac, 1000W 240Vac
Broan® Heater, 500/1000W 120Vac, 750W 208Vac, 1000W 240Vac The 14-19/64 In. X 9-19/64 In. 1,000-W... Read more...
SKU:120
UPC:000000000345
Broan® Heater, 500/1000W 120Vac, 750W 208Vac, 1000W 240Vac The 14-19/64 In. X 9-19/64 In. 1,000-Watt White Wall Heater Features Louvers That Direct Heated Air Downward For Even Distribution Throughout An Area. This Wall Heater Can Be Operated From A Convenient Wall-Mounted Line-Voltage Thermostat By Using The Broan Model 86W. The Thermal Overload Protection Feature Helps Provide Safe Use.
- 2,000-watt heater at 240 volts can be converted to 1,000 watts at 240 volts
- Operates from a convenient wall-mounted line-voltage Broan model 86W thermostat (not included)
- Manual reset
- Thermal overload protection
- Sturdy, 1-piece steel grille
- Louvers direct air downward for even heat distribution
- UL listed
| Auto Shut-off | Yes |
| cUL Listed | No |
| Heater Type | Fan-Forced Wall |
| Number Of Heat Settings | On-Off |
| Project Pack | No |
| Thermostat | No |
| UL Listed | No |
| Coverage Area (sq ft) | 65-100 |
| BTU/hr at 120 Volts | 3413 |
| BTU/hr at 208 Volts | 2560 |
| BTU/hr at 240 Volts | 3413 |
| Color Finish | White Enamel Steel |

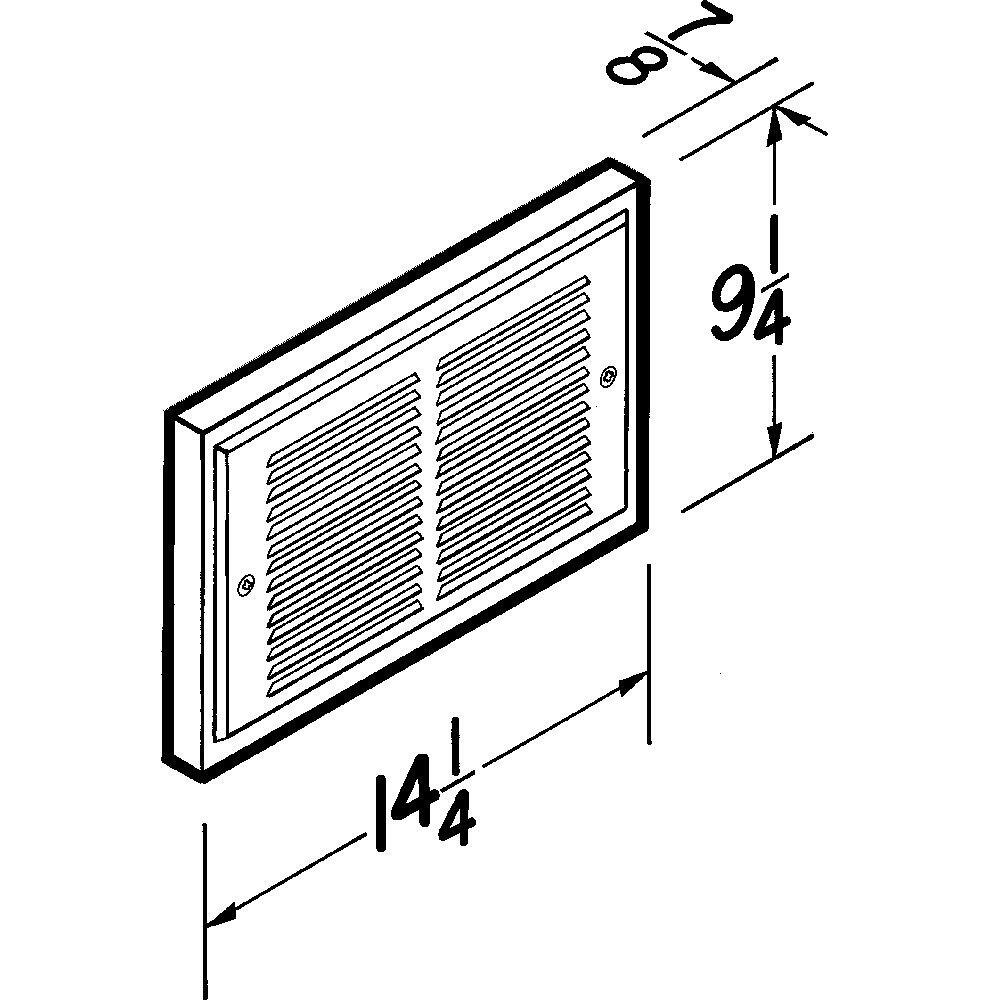

| Grille Dimensions - Width | 14.25 |

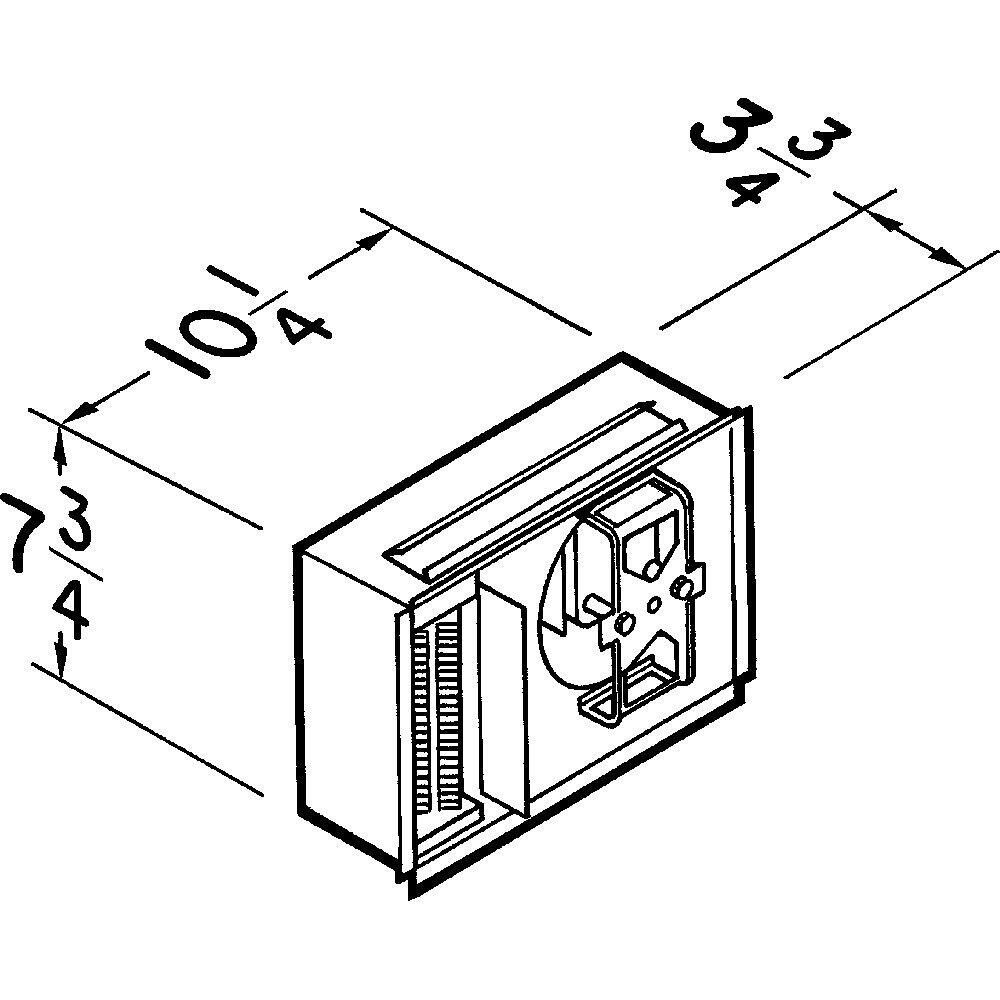

| Housing Length/Depth | 3.75 |
| Watts And Amps At 120 Volts | 8.33 |
| Watts And Amps At 208 Volts | 3.61 |
| Watts And Amps At 240 Volts | 4.16 |
| Watts at 120 VAC | 1000 |
| Watts at 208 VAC | 750 |
| Watts at 240 VAC | 1000 |
| Manufacturer Warranty | 1 Year |
Description
Broan® Heater, 500/1000W 120Vac, 750W 208Vac, 1000W 240Vac The 14-19/64 In. X 9-19/64 In. 1,000-Watt White Wall Heater Features Louvers That Direct Heated Air Downward For Even Distribution Throughout An Area. This Wall Heater Can Be Operated From A Convenient Wall-Mounted Line-Voltage Thermostat By Using The Broan Model 86W. The Thermal Overload Protection Feature Helps Provide Safe Use.
Features
- 2,000-watt heater at 240 volts can be converted to 1,000 watts at 240 volts
- Operates from a convenient wall-mounted line-voltage Broan model 86W thermostat (not included)
- Manual reset
- Thermal overload protection
- Sturdy, 1-piece steel grille
- Louvers direct air downward for even heat distribution
- UL listed
Specifications
| Auto Shut-off | Yes |
| cUL Listed | No |
| Heater Type | Fan-Forced Wall |
| Number Of Heat Settings | On-Off |
| Project Pack | No |
| Thermostat | No |
| UL Listed | No |
| Coverage Area (sq ft) | 65-100 |
| BTU/hr at 120 Volts | 3413 |
| BTU/hr at 208 Volts | 2560 |
| BTU/hr at 240 Volts | 3413 |
| Color Finish | White Enamel Steel |
| Grille Dimensions - Width | 14.25 |
| Housing Length/Depth | 3.75 |
| Watts And Amps At 120 Volts | 8.33 |
| Watts And Amps At 208 Volts | 3.61 |
| Watts And Amps At 240 Volts | 4.16 |
| Watts at 120 VAC | 1000 |
| Watts at 208 VAC | 750 |
| Watts at 240 VAC | 1000 |
| Manufacturer Warranty | 1 Year |
