Rebates
Bosch Benchmark Kitchen Package Rebate - Receive up to a $1500 rebate with purchase of qualifying Bosch Kitchen Appliances. Download Valid: 01/01/2022-06/30/2022

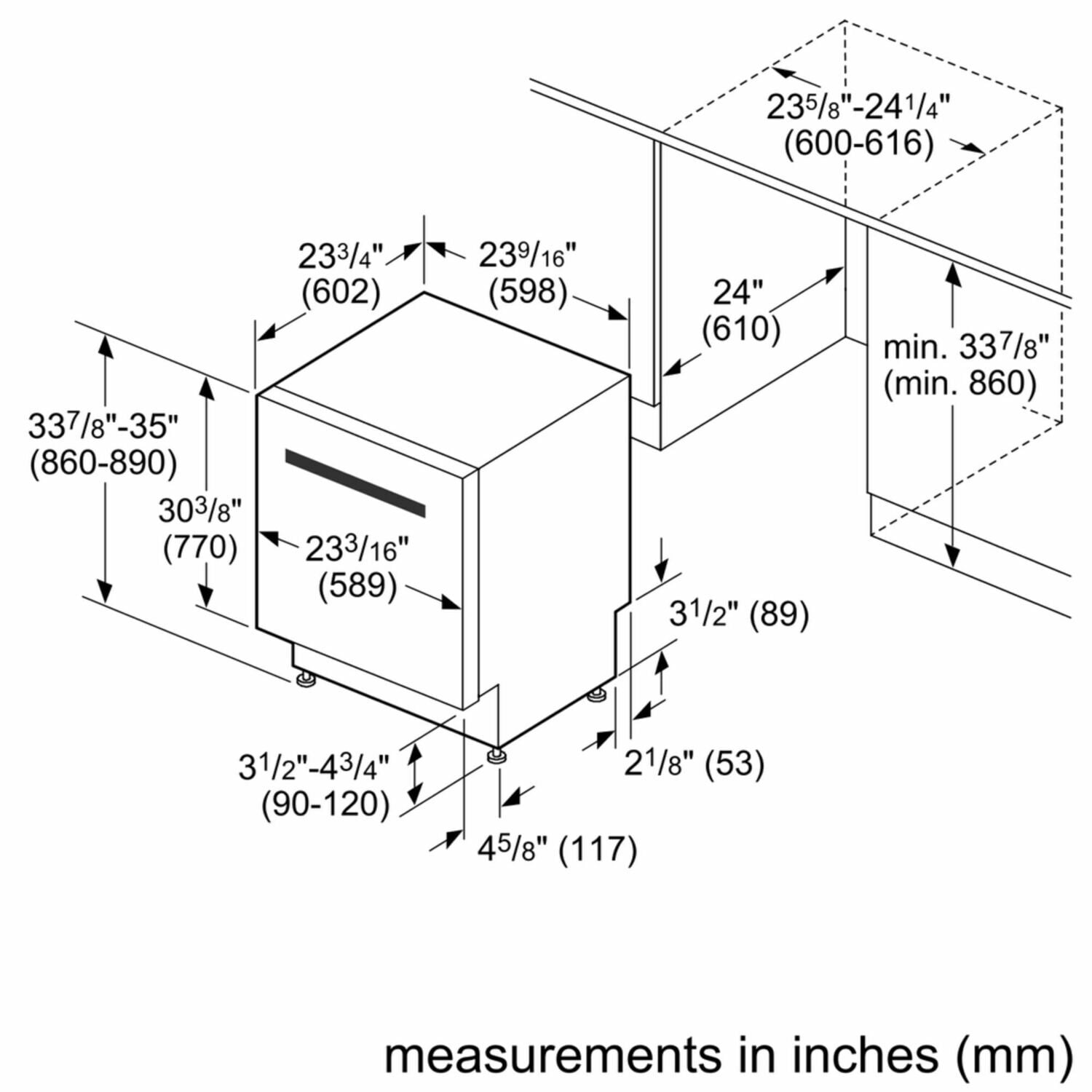

Dimensions
width
23.563"height
33.875"depth
23.75"ENERGY STAR

ENERGY STAR is a U.S. Environmental Protection Agency voluntary program that helps businesses and individuals save money and protect our climate through superior energy efficiency.

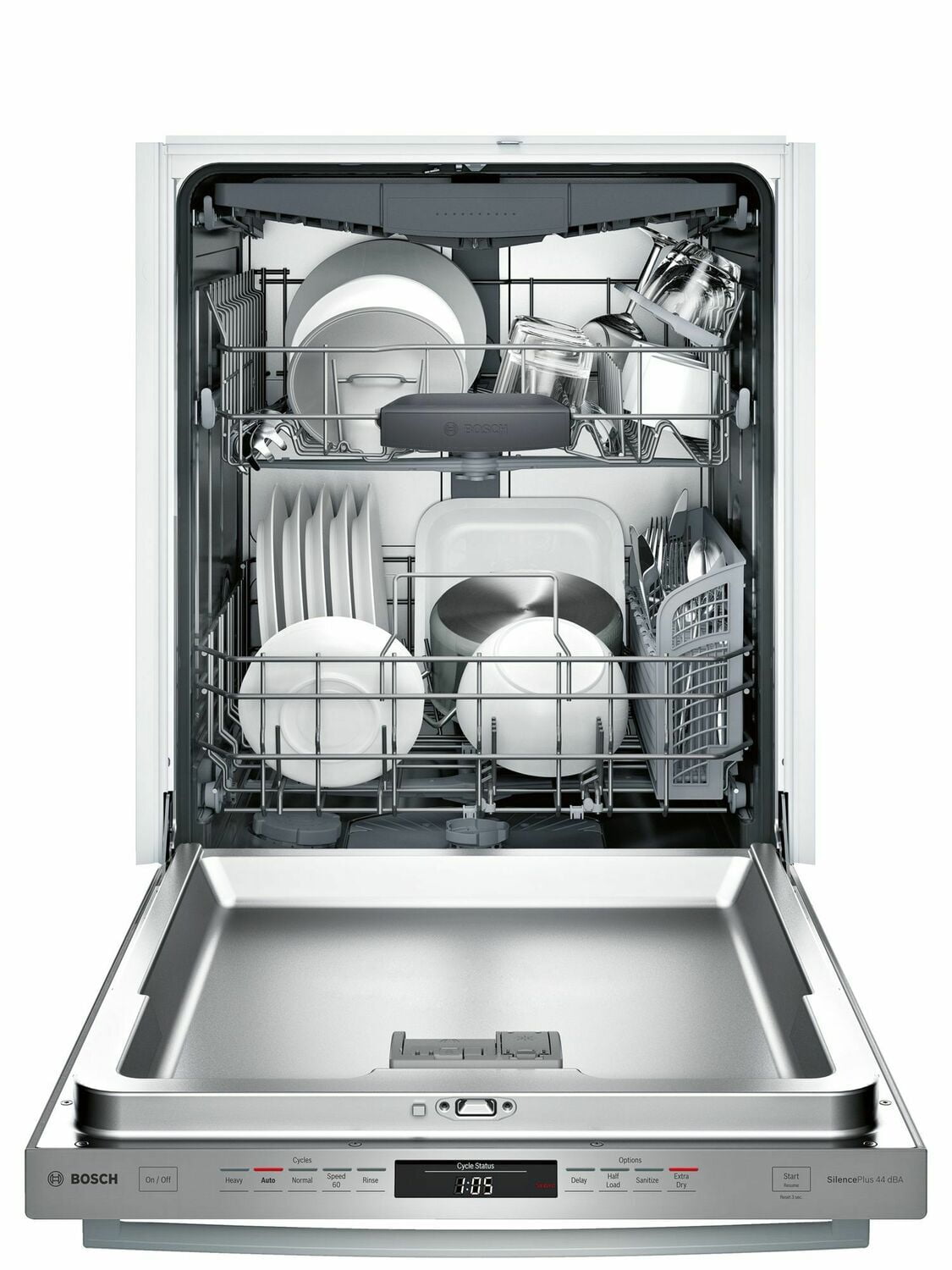

A 3rd rack to meet your loading needs.

With 30% more loading area*, the 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items. *Compared to a Bosch dishwasher with 2 racks
RackMatic Adjustable Upper Rack

The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
When your dishes are done, so are you.

With Bosch PrecisionWash , intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
InfoLight(R) -a light that tells you when your dishwasher is running

InfoLight(R) projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready.
Quality is in the details.

Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.
The quietest dishwasher brand in the U.S.*

Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2017.
- Key Features
- 44 dBA- Quietest Dishwasher Brand.
- 3rd Rack for Additional Loading Capacity
- InfoLight(R) Beams on Floor to Indicate Dishwasher is Running
- RackMatic(R) on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
- AquaStop(R) Leak Protection Works 24/7
- Design
- Full Size Stainless Steel Tall Tub Installs Perfectly Flush
- 3rd Rack for Additional Loading Capacity
- 16 Place Setting Capacity
- LED Remaining Time Display
- RackMatic(R) on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
- Performance
- 44 dBA- Quietest Dishwasher Brand.
- 5 Wash Cycles and 4 Options
- Detergent Tray Optimizes Detergent Dissolving
- Speed60(R) gets your dishes from dirty to dry in about an hour.
- Extra Dry Option for Better Drying Results
- Load Size Sensor Automates Wash Temperature
- Sanitize Option Eliminates Bacteria and Enhances Drying Results
- Efficiency
- 269 kwh/yr - Energy Star(R)
- Convenience
- 24 h Delay Start Timer
- AquaStop(R) Leak Protection Works 24/7
- Self-Latching Door
Technical Specifications | |
General | |
Installation Type | Built-under |
Number of place settings | 16 |
List of programmes | 1 Hour, Auto, Normal, Pots & Pans, Rinse |
Cycle Options | Extra dry, half load, Sanitation |
Display | |
Silence level (dBA) | 44 |
Third Rack | Standard Third Rack |
Interior Light | |
Removable top | |
Power Cord Length | 67'' |
Connectivity | |
Home Connect | |
Connectivity type | Not applicable |
Size and weight | |
Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 3/4'' |
Adjustable plinth | |
Net weight (lbs) | 95 lbs |
Programmes | |
Status indicator | End of program audible, InfoLight red, sanitized LED US, Time remaining indic. internal |
List of programmes | 1 Hour, Auto, Normal, Pots & Pans, Rinse |
Program 1 | Pots & Pans |
Program 2 | Auto |
Program 3 | Normal |
Program 5 | Rinse |
Programme duration, programme1 (min.) | 110-135 |
Programme duration, programme2 (min.) | 105-129 |
Programme duration, programme3 (min.) | 130-135 |
Programme duration, programme4 (min.) | 60 |
Programme duration, programme5 (min.) | 9 |
Reference programme | Regular US |
Temperature program 1 | 150-160 °F |
Temperature program 2 | 127-150 °F |
Temperature program 3 | 113-131 °F |
Temperature program 4 | 122 °F |
Safety | |
Glass protection | |
Surge-back protect. installed | |
Leak protection system | Aqua Stop |
Consumption values | |
Glass protection | |
Water consumption program 1 | 4.9-6.4 gal |
Water consumption program 2 | 3.5-6.5 gal |
Water consumption program 3 | 2.4-5.5 gal |
Water consumption program 4 | 3.8 gal |
Water consumption program 5 | 1.1 gal |
Total annual water consumption (g) | 624 gallons |
Maximum temperature for water intake (°C) | 60 °C |
Connection | |
Watts (W) | 1,300 W |
Power Cord Length | 67'' |
Current (A) | 12 A |
Plug type | Nema5-15P |
Construction type | |
Color / Material housing | Lacquered |
Color / Control Panel | Black |
Construction type | Built-in |
Panel ready | Not possible |
Drying system | Inherent heat |
Concealed heating element | |
Installation Type | Built-under |
Tub material | Stainless steel |
Water Softener |
Brand Quality Video

Brand Anthem Video
Bosch & Curtis Stone Intro Video

Curtis Stone Dinner and Dishes Dinner Party Video
Loading Flexibility Dishwasher Video
PrecisionWash/Wash Performance Video
Quiet Video
Leak protection Video
Dish Quality Video

Overview
ENERGY STAR

ENERGY STAR is a U.S. Environmental Protection Agency voluntary program that helps businesses and individuals save money and protect our climate through superior energy efficiency.
A 3rd rack to meet your loading needs.

With 30% more loading area*, the 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items. *Compared to a Bosch dishwasher with 2 racks
RackMatic Adjustable Upper Rack

The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
When your dishes are done, so are you.

With Bosch PrecisionWash , intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
InfoLight(R) -a light that tells you when your dishwasher is running

InfoLight(R) projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready.
Quality is in the details.

Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.
The quietest dishwasher brand in the U.S.*

Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2017.
Description
Features
- 44 dBA: Quietest Dishwasher Brand in the U.S.
- A 3rd rack adds versatility and offers 30% more loading capacity.
- FlexSpace Tines fold back to fit your larger pots & pans.
- Water softener ensures optimally spot-free and shiny dishes.
- Speed60(R) gets your dishes from dirty to dry in about an hour.
Specifications
Technical Specifications | |
General | |
Installation Type | Built-under |
Number of place settings | 16 |
List of programmes | 1 Hour, Auto, Normal, Pots & Pans, Rinse |
Cycle Options | Extra dry, half load, Sanitation |
Display | |
Silence level (dBA) | 44 |
Third Rack | Standard Third Rack |
Interior Light | |
Removable top | |
Power Cord Length | 67'' |
Connectivity | |
Home Connect | |
Connectivity type | Not applicable |
Size and weight | |
Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 3/4'' |
Adjustable plinth | |
Net weight (lbs) | 95 lbs |
Programmes | |
Status indicator | End of program audible, InfoLight red, sanitized LED US, Time remaining indic. internal |
List of programmes | 1 Hour, Auto, Normal, Pots & Pans, Rinse |
Program 1 | Pots & Pans |
Program 2 | Auto |
Program 3 | Normal |
Program 5 | Rinse |
Programme duration, programme1 (min.) | 110-135 |
Programme duration, programme2 (min.) | 105-129 |
Programme duration, programme3 (min.) | 130-135 |
Programme duration, programme4 (min.) | 60 |
Programme duration, programme5 (min.) | 9 |
Reference programme | Regular US |
Temperature program 1 | 150-160 °F |
Temperature program 2 | 127-150 °F |
Temperature program 3 | 113-131 °F |
Temperature program 4 | 122 °F |
Safety | |
Glass protection | |
Surge-back protect. installed | |
Leak protection system | Aqua Stop |
Consumption values | |
Glass protection | |
Water consumption program 1 | 4.9-6.4 gal |
Water consumption program 2 | 3.5-6.5 gal |
Water consumption program 3 | 2.4-5.5 gal |
Water consumption program 4 | 3.8 gal |
Water consumption program 5 | 1.1 gal |
Total annual water consumption (g) | 624 gallons |
Maximum temperature for water intake (°C) | 60 °C |
Connection | |
Watts (W) | 1,300 W |
Power Cord Length | 67'' |
Current (A) | 12 A |
Plug type | Nema5-15P |
Construction type | |
Color / Material housing | Lacquered |
Color / Control Panel | Black |
Construction type | Built-in |
Panel ready | Not possible |
Drying system | Inherent heat |
Concealed heating element | |
Installation Type | Built-under |
Tub material | Stainless steel |
Water Softener |
Videos
Brand Quality Video

Brand Anthem Video
Bosch & Curtis Stone Intro Video

Curtis Stone Dinner and Dishes Dinner Party Video
Loading Flexibility Dishwasher Video
PrecisionWash/Wash Performance Video
Quiet Video
Leak protection Video
Dish Quality Video
