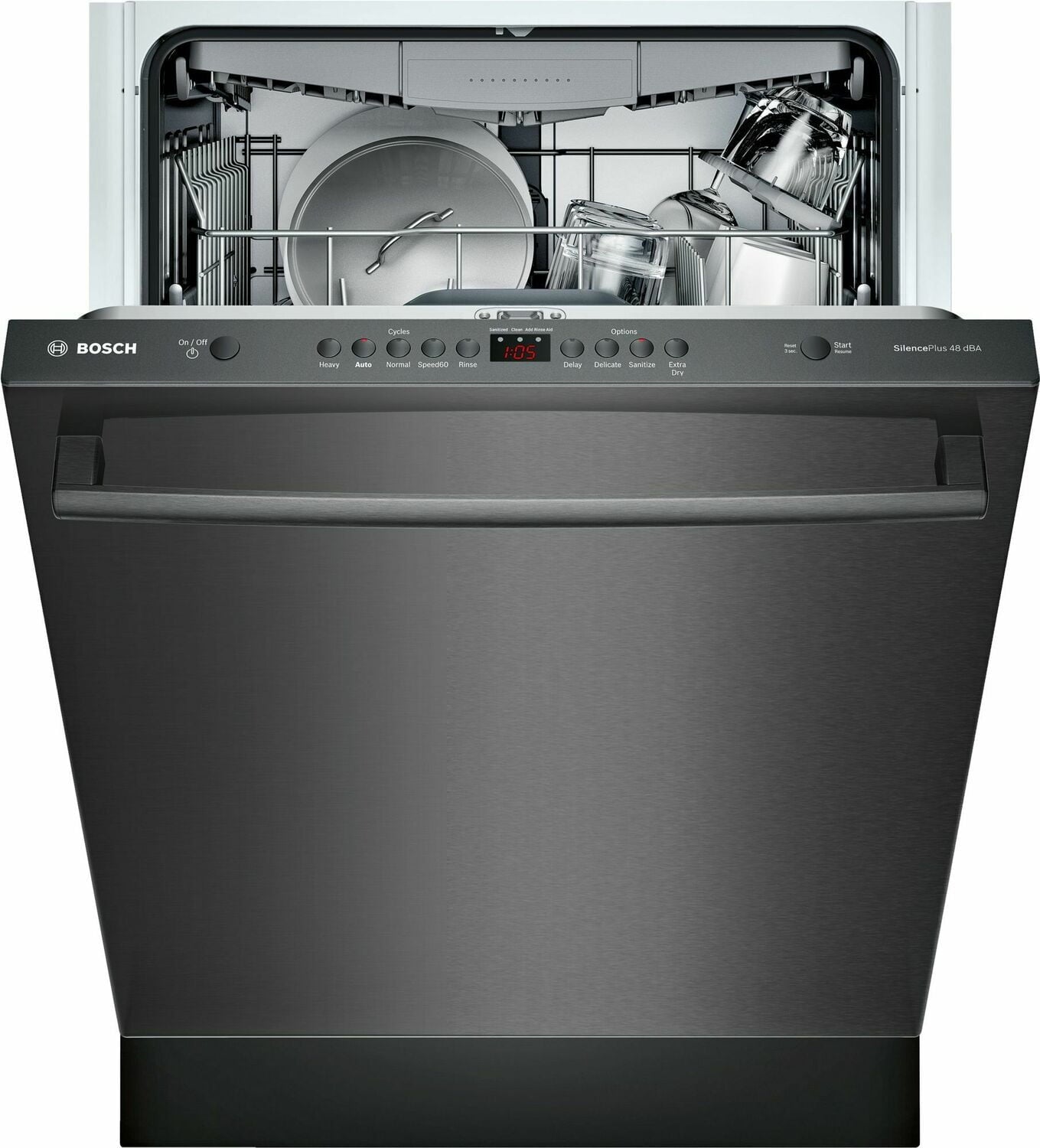

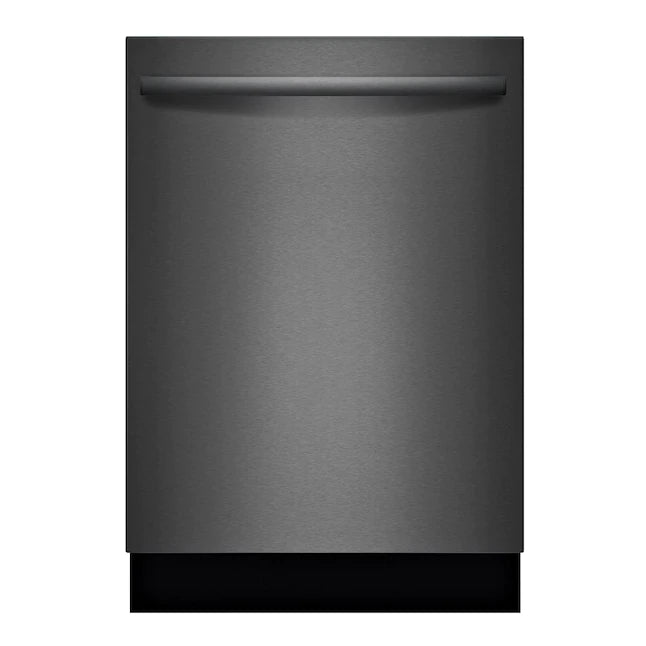

Bosch SHXM4AY54N 100 Series Dishwasher 24'' Black Stainless Steel, Xxl Shxm4Ay54N

Bosch SHXM4AY54N 100 Series Dishwasher 24'' Black Stainless Steel, Xxl Shxm4Ay54N

Bosch dishwashers are so quiet, you may forget they're on. InfoLight® projects a red light onto t... Read more...


When Will I Get My Order?


Shipping calculated at checkout.
Click to Call

To order or learn more please call us at: 866-739-3982

View full details

When Will I Get My Order?


Bosch SHXM4AY54N 100 Series Dishwasher 24'' Black Stainless Steel, Xxl Shxm4Ay54N
Bosch SHXM4AY54N 100 Series Dishwasher 24'' Black Stainless Steel, Xxl Shxm4Ay54N

Rebates &

Bosch Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Bosch appliances. Download Valid: 03/07/2024-07/10/2024

When your dishes are done, so are you

With Bosch PrecisionWash®, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.


RackMatic® adjustable upper rack easily adjusts to 9 different positions to allow taller items like stemware to fit in the middle rack while leaving room for pots and pans below.

Quality in every detail

Every dishwasher must pass 485 quality checks--including running every single one with water-before leaving the factory. So you can rest assured that your dishwasher is built to withstand whatever life throws your way.

The dishwasher that removes more than food

The Sanitize option provides you with a thorough, hygienic clean, wash after wash. It can be selected with many wash programs and increases the final rinse temperature to remove remaining bacteria.


A light that tells you when your dishwasher is running. InfoLight® projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready.

The quietest dishwasher brand in the U.S.*

Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2019.

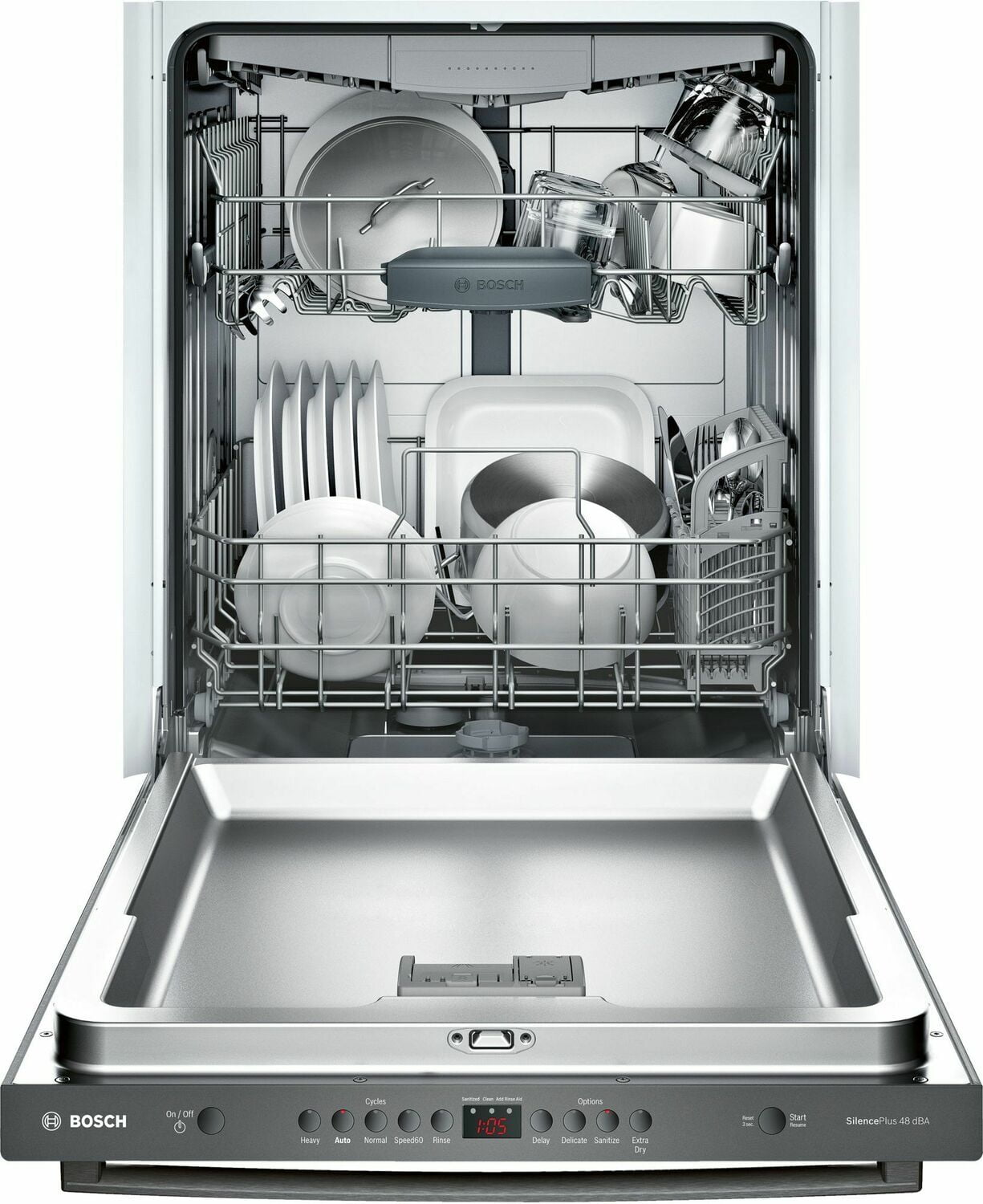

A 3rd rack to meet your loading needs

With 30% more loading area (compared to a Bosch dishwasher with 2 racks) the 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items.

24h Delay Start Timer

Have your dishwasher start when you want it to. Delay Start delays the dishwasher's start time by up to 24 hours.

Bosch dishwashers are so quiet, you may forget they're on. InfoLight® projects a red light onto the floor to let you know it's on. Key Features InfoLight® Beams on Floor to Indicate Dishwasher is Running

RackMatic® on Upper Rack - 3 Height Adjustments

24/7 Overflow Protection System® Design Stainless Steel Tall Tub with Polypropylene

15 Place Setting Capacity

LED Remaining Time Display

Long Silverware Basket Can be Placed Anywhere in the Dishwasher, Adding Space for Other Items Performance 5 Cycles and 4 Options

Detergent Tray Optimizes Detergent Dissolving

Load Size Sensor Automates Wash Temperature

Sanitize Option Eliminates Bacteria and Enhances Drying Results

Extra Dry Option for Better Drying Results Efficiency 269 kWh/yr - Energy Star®

Convenience 24 h Delay Start Timer

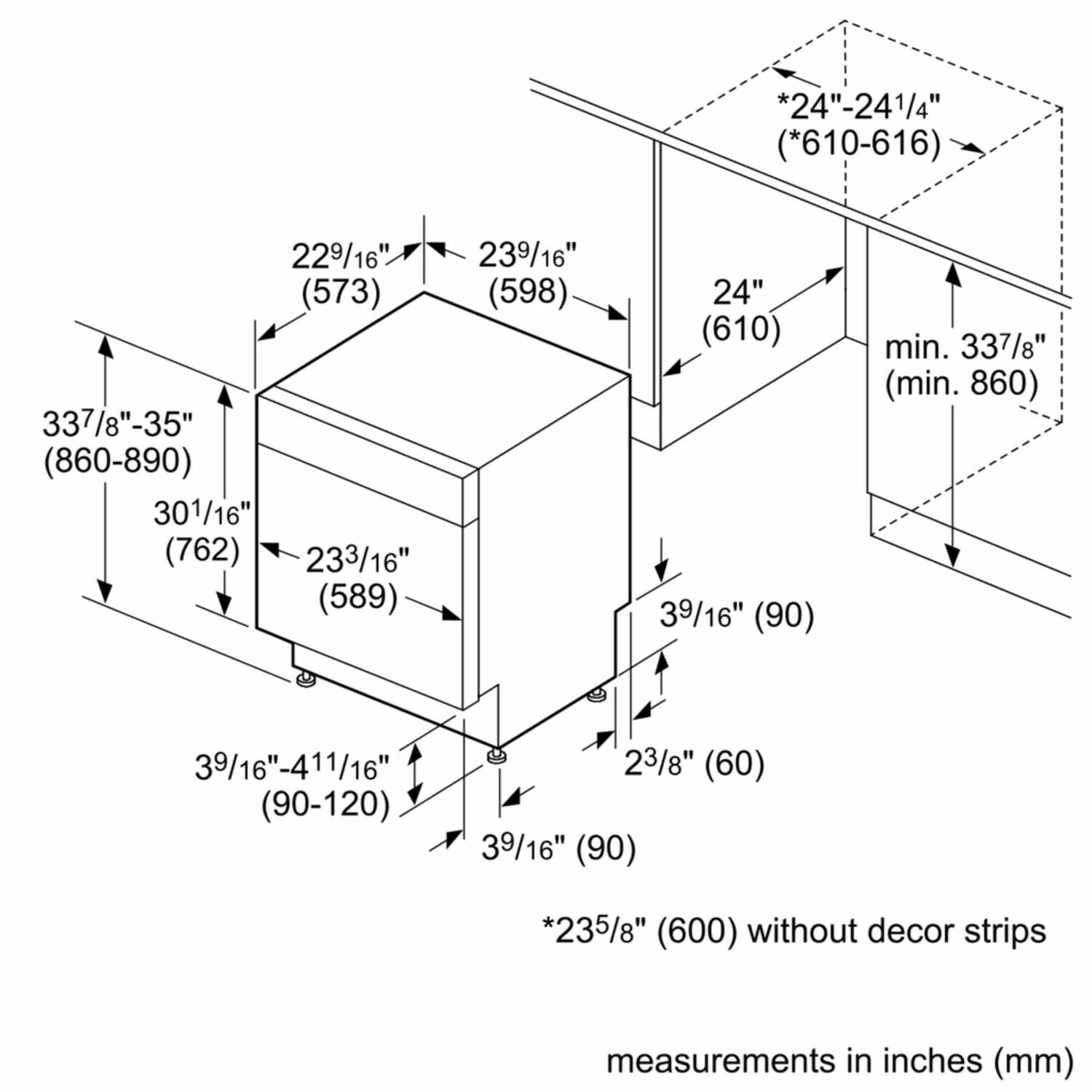

Self-Latching Door Dimensions & Capacity Width: 23.563"
Height: 33.875”
Depth: 22.563"

  • 15 Place Settings
  • Silent Operation: 48 dBA
  • 5 Programs
  • 4 Functions
  • PrecisionWash®
  • RackMatic®
  • 24/7 Overflow Protection
  • InfoLight®
  • Standard Third Rack
  • Five-level wash
  • Concealed water heating element
  • Stainless steel/ polypropylene tub
  • ENERGY STAR® Certified

Technical Specifications
Installation Type Built-under
Number of place settings 15
List of programmes Economy, Intensive, Pre-Rinse, Quick L
Cycle Options Chrystal Protect, Extra dry, Sanitation
Silence level (dBA) 48
Third Rack Standard Third Rack
Interior Light
Removable top
Home Connect
Connectivity type Not applicable
Size and weight
Overall appliance dimensions (HxWxD) (in) 33 7/8'' x 23 9/16'' x 22 9/16''
Adjustable plinth both horizontal and vertical
Net weight (lbs) 75 lbs
Status indicator End of program audible, Time remaining indic. internal
List of programmes Economy, Intensive, Pre-Rinse, Quick L
Program 1 Intensive
Program 2 Auto
Program 3 Economy
Program 5 Pre Rinse
Programme duration, programme1 (min.) 110-130
Programme duration, programme2 (min.) 105-130
Programme duration, programme3 (min.) 130-135
Programme duration, programme4 (min.) 60
Programme duration, programme5 (min.) 9
Reference programme Eco
Number of different wash temperatures 5
Temperature program 1 151-160 °F
Temperature program 2 127-131 °F
Temperature program 3 122-131 °F
Temperature program 4 122 °F
Glass protection
Surge-back protect. installed
Leak protection system Aqua Stop
Consumption values
Glass protection
Water consumption program 1 4.9-7.4 gal
Water consumption program 2 2.6-5.5 gal
Water consumption program 3 2.4-5.5 gal
Water consumption program 4 3.8 gal
Water consumption program 5 1.1 gal
Total annual water consumption (g) 688 gallons
Maximum temperature for water intake (°C) 50 °C
Watts (W) 1,440 W
Current (A) 12 A
Plug type fixed connection
Construction type
Color / Material housing Tin grey
Color / Control Panel Black
Construction type Built-in
Panel ready Not possible
Drying system Inherent heat
Concealed heating element
Installation Type Built-under
Tub material Plastic
Water Softener

Quiet Dishwashers
