  • Bosch SHXM4AY52N 100 Series Dishwasher 24'' White, Xxl Shxm4Ay52N

    InfoLight® Beams on Floor to Indicate Dishwasher is Running Read more...

    Colors:

    Click to Call

    To order or learn more please call us at: 800-288-1647

    When Will I Get My Order?
    %

    Rebates

    Bosch Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Bosch appliances. Download Valid: 01/09/2023-02/28/2023
    A 3rd rack to meet your loading needs. Key Features InfoLight® Beams on Floor to Indicate Dishwasher is Running

    RackMatic® on Upper Rack - 3 Height Adjustments

    24/7 Overflow Protection System® Design Stainless Steel Tall Tub with Polypropylene

    15 Place Setting Capacity

    LED Remaining Time Display

    Long Silverware Basket Can be Placed Anywhere in the Dishwasher, Adding Space for Other Items Performance 5 Cycles and 4 Options

    Detergent Tray Optimizes Detergent Dissolving

    Load Size Sensor Automates Wash Temperature

    Sanitize Option Eliminates Bacteria and Enhances Drying Results

    Extra Dry Option for Better Drying Results Efficiency 269 kWh/yr - Energy Star®

    Convenience 24 h Delay Start Timer

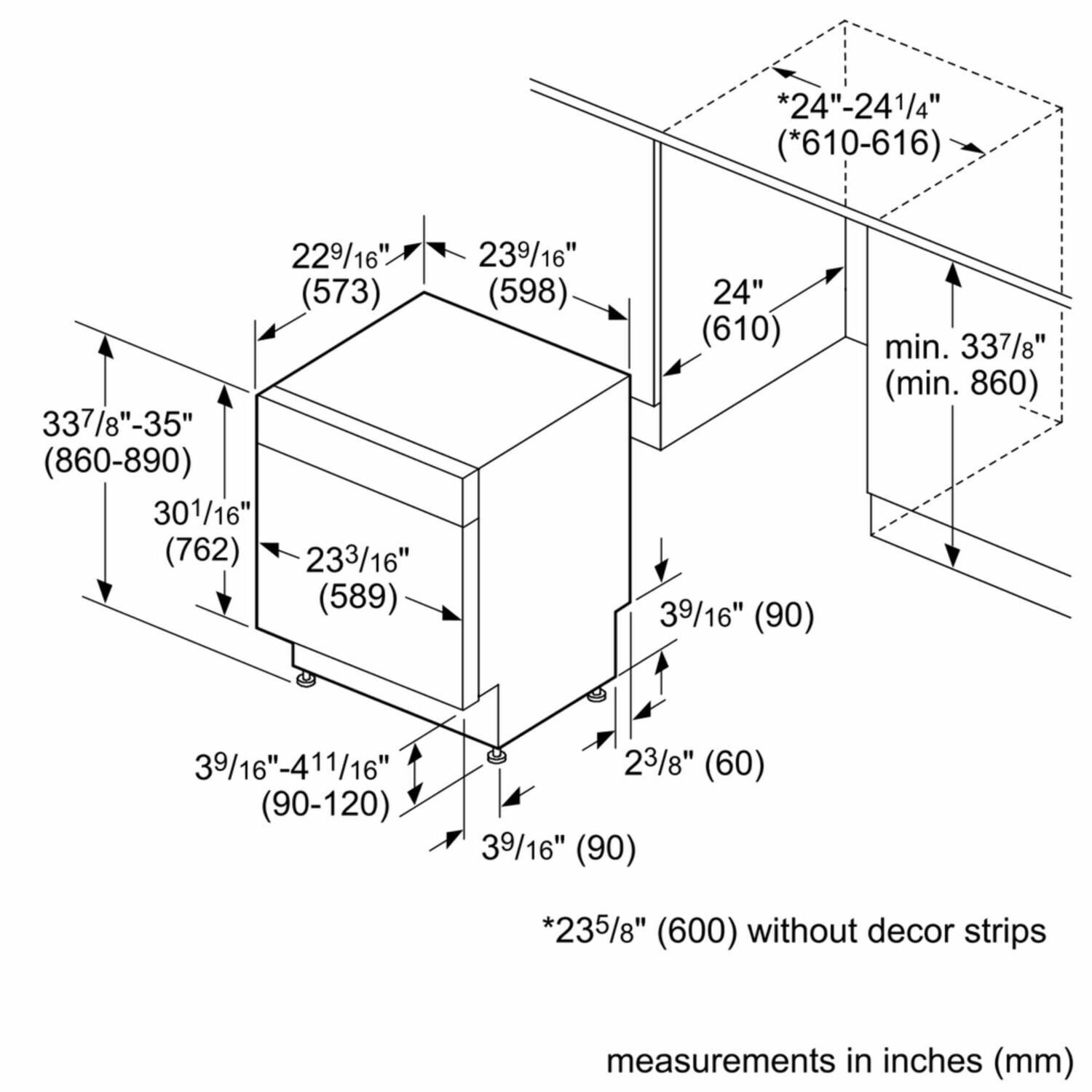

    Self-Latching Door Dimensions & Capacity Width: 23.563"
    Height: 33.875”
    Depth: 22.563"

    When your dishes are done, so are you

    With Bosch PrecisionWash®, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.

    RackMatic®

    RackMatic® adjustable upper rack easily adjusts to 9 different positions to allow taller items like stemware to fit in the middle rack while leaving room for pots and pans below.

    Quality in every detail

    Every dishwasher must pass 485 quality checks--including running every single one with water-before leaving the factory. So you can rest assured that your dishwasher is built to withstand whatever life throws your way.

    The dishwasher that removes more than food

    The Sanitize option provides you with a thorough, hygienic clean, wash after wash. It can be selected with many wash programs and increases the final rinse temperature to remove remaining bacteria.

    InfoLight®

    A light that tells you when your dishwasher is running. InfoLight® projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready.

    The quietest dishwasher brand in the U.S.*

    Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2019.

    A 3rd rack to meet your loading needs

    With 30% more loading area (compared to a Bosch dishwasher with 2 racks) the 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items.

    24h Delay Start Timer

    Have your dishwasher start when you want it to. Delay Start delays the dishwasher's start time by up to 24 hours.

    • Key Features
    • RackMatic(R) on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
    • NO_FEATUREA- Quietest Dishwasher Brand.
    • InfoLight(R) Beams on Floor to Indicate Dishwasher is Running
    • 24/7 Overflow Protection System(R)
    • Design
    • Stainless Steel Tall Tub with Polypropylene
    • 14 Place Setting Capacity
    • LED Remaining Time Display
    • RackMatic(R) on Upper Rack - 3 Height Adjustments
    • Long Silverware Basket Can be Placed Anywhere in the Dishwasher, Adding Space for Other Items
    • Performance
    • NO_FEATUREA- Quietest Dishwasher Brand.
    • 5 Wash Cycles and 4 Options
    • Detergent Tray Optimizes Detergent Dissolving
    • Load Size Sensor Automates Wash Temperature
    • Sanitize Option Eliminates Bacteria and Enhances Drying Results
    • Extra Dry Option for Better Drying Results
    • Efficiency
    • 269 kwh/yr - Energy Star(R)
    • Half Load Option for Small Loads
    • Convenience
    • InfoLight(R) Beams on Floor to Indicate Dishwasher is Running
    • 24/7 Overflow Protection System(R)
    • 24 h Delay Start Timer
    • Self-Latching Door
    Technical Specifications
    General
    Installation Type Built-under
    Number of place settings 15
    List of programmes 1 Hour, Auto, Normal, Pots & Pans, Rinse
    Cycle Options Chrystal Protect, Extra dry, Sanitation
    Display
    Silence level (dBA) 48
    Third Rack Standard Third Rack
    Interior Light
    Removable top
    Connectivity
    Home Connect
    Connectivity type Not applicable
    Size and weight
    Overall appliance dimensions (HxWxD) (in) 33 7/8'' x 23 9/16'' x 22 9/16''
    Adjustable plinth both horizontal and vertical
    Net weight (lbs) 75 lbs
    Programmes
    Status indicator End of program audible, InfoLight red, sanitized LED US, Time remaining indic. internal
    List of programmes 1 Hour, Auto, Normal, Pots & Pans, Rinse
    Program 1 Pots & Pans
    Program 2 Auto
    Program 3 Normal
    Program 5 Rinse
    Programme duration, programme1 (min.) 110-130
    Programme duration, programme2 (min.) 105-130
    Programme duration, programme3 (min.) 130-135
    Programme duration, programme4 (min.) 60
    Programme duration, programme5 (min.) 9
    Reference programme Regular US
    Number of different wash temperatures 5
    Temperature program 1 151-160 °F
    Temperature program 2 127-131 °F
    Temperature program 3 122-131 °F
    Temperature program 4 122 °F
    Safety
    Glass protection
    Surge-back protect. installed
    Leak protection system Aqua Stop
    Consumption values
    Glass protection
    Water consumption program 1 4.9-7.4 gal
    Water consumption program 2 2.6-5.5 gal
    Water consumption program 3 2.4-5.5 gal
    Water consumption program 4 3.8 gal
    Water consumption program 5 1.1 gal
    Total annual water consumption (g) 688 gallons
    Maximum temperature for water intake (°C) 50 °C
    Connection
    Watts (W) 1,440 W
    Current (A) 12 A
    Plug type fixed connection
    Construction type
    Color / Material housing Tin grey
    Color / Control Panel Black
    Construction type Built-in
    Panel ready Not possible
    Drying system Inherent heat
    Concealed heating element
    Installation Type Built-under
    Tub material Plastic
    Water Softener

    Quiet Dishwashers

    RackMatic™

    PrecisionWash™

    Overview

    When your dishes are done, so are you

    With Bosch PrecisionWash®, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.

    RackMatic®

    RackMatic® adjustable upper rack easily adjusts to 9 different positions to allow taller items like stemware to fit in the middle rack while leaving room for pots and pans below.

    Quality in every detail

    Every dishwasher must pass 485 quality checks--including running every single one with water-before leaving the factory. So you can rest assured that your dishwasher is built to withstand whatever life throws your way.

    The dishwasher that removes more than food

    The Sanitize option provides you with a thorough, hygienic clean, wash after wash. It can be selected with many wash programs and increases the final rinse temperature to remove remaining bacteria.

    InfoLight®

    A light that tells you when your dishwasher is running. InfoLight® projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready.

    The quietest dishwasher brand in the U.S.*

    Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2019.

    A 3rd rack to meet your loading needs

    With 30% more loading area (compared to a Bosch dishwasher with 2 racks) the 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items.

    24h Delay Start Timer

    Have your dishwasher start when you want it to. Delay Start delays the dishwasher's start time by up to 24 hours.

    Description

    A 3rd rack to meet your loading needs. Key Features InfoLight® Beams on Floor to Indicate Dishwasher is Running

    RackMatic® on Upper Rack - 3 Height Adjustments

    24/7 Overflow Protection System® Design Stainless Steel Tall Tub with Polypropylene

    15 Place Setting Capacity

    LED Remaining Time Display

    Long Silverware Basket Can be Placed Anywhere in the Dishwasher, Adding Space for Other Items Performance 5 Cycles and 4 Options

    Detergent Tray Optimizes Detergent Dissolving

    Load Size Sensor Automates Wash Temperature

    Sanitize Option Eliminates Bacteria and Enhances Drying Results

    Extra Dry Option for Better Drying Results Efficiency 269 kWh/yr - Energy Star®

    Convenience 24 h Delay Start Timer

    Self-Latching Door Dimensions & Capacity Width: 23.563"
    Height: 33.875”
    Depth: 22.563"

    Features

    • 15 Place Settings
    • Silent Operation: 48 dBA
    • 5 Programs
    • 4 Functions
    • PrecisionWash®
    • RackMatic®
    • 24/7 Overflow Protection
    • InfoLight®
    • Standard Third Rack
    • Five-level wash
    • Concealed water heating element
    • Stainless steel/ polypropylene tub
    • ENERGY STAR® Certified

    Specifications

    Technical Specifications
    General
    Installation Type Built-under
    Number of place settings 15
    List of programmes 1 Hour, Auto, Normal, Pots & Pans, Rinse
    Cycle Options Chrystal Protect, Extra dry, Sanitation
    Display
    Silence level (dBA) 48
    Third Rack Standard Third Rack
    Interior Light
    Removable top
    Connectivity
    Home Connect
    Connectivity type Not applicable
    Size and weight
    Overall appliance dimensions (HxWxD) (in) 33 7/8'' x 23 9/16'' x 22 9/16''
    Adjustable plinth both horizontal and vertical
    Net weight (lbs) 75 lbs
    Programmes
    Status indicator End of program audible, InfoLight red, sanitized LED US, Time remaining indic. internal
    List of programmes 1 Hour, Auto, Normal, Pots & Pans, Rinse
    Program 1 Pots & Pans
    Program 2 Auto
    Program 3 Normal
    Program 5 Rinse
    Programme duration, programme1 (min.) 110-130
    Programme duration, programme2 (min.) 105-130
    Programme duration, programme3 (min.) 130-135
    Programme duration, programme4 (min.) 60
    Programme duration, programme5 (min.) 9
    Reference programme Regular US
    Number of different wash temperatures 5
    Temperature program 1 151-160 °F
    Temperature program 2 127-131 °F
    Temperature program 3 122-131 °F
    Temperature program 4 122 °F
    Safety
    Glass protection
    Surge-back protect. installed
    Leak protection system Aqua Stop
    Consumption values
    Glass protection
    Water consumption program 1 4.9-7.4 gal
    Water consumption program 2 2.6-5.5 gal
    Water consumption program 3 2.4-5.5 gal
    Water consumption program 4 3.8 gal
    Water consumption program 5 1.1 gal
    Total annual water consumption (g) 688 gallons
    Maximum temperature for water intake (°C) 50 °C
    Connection
    Watts (W) 1,440 W
    Current (A) 12 A
    Plug type fixed connection
    Construction type
    Color / Material housing Tin grey
    Color / Control Panel Black
    Construction type Built-in
    Panel ready Not possible
    Drying system Inherent heat
    Concealed heating element
    Installation Type Built-under
    Tub material Plastic
    Water Softener
