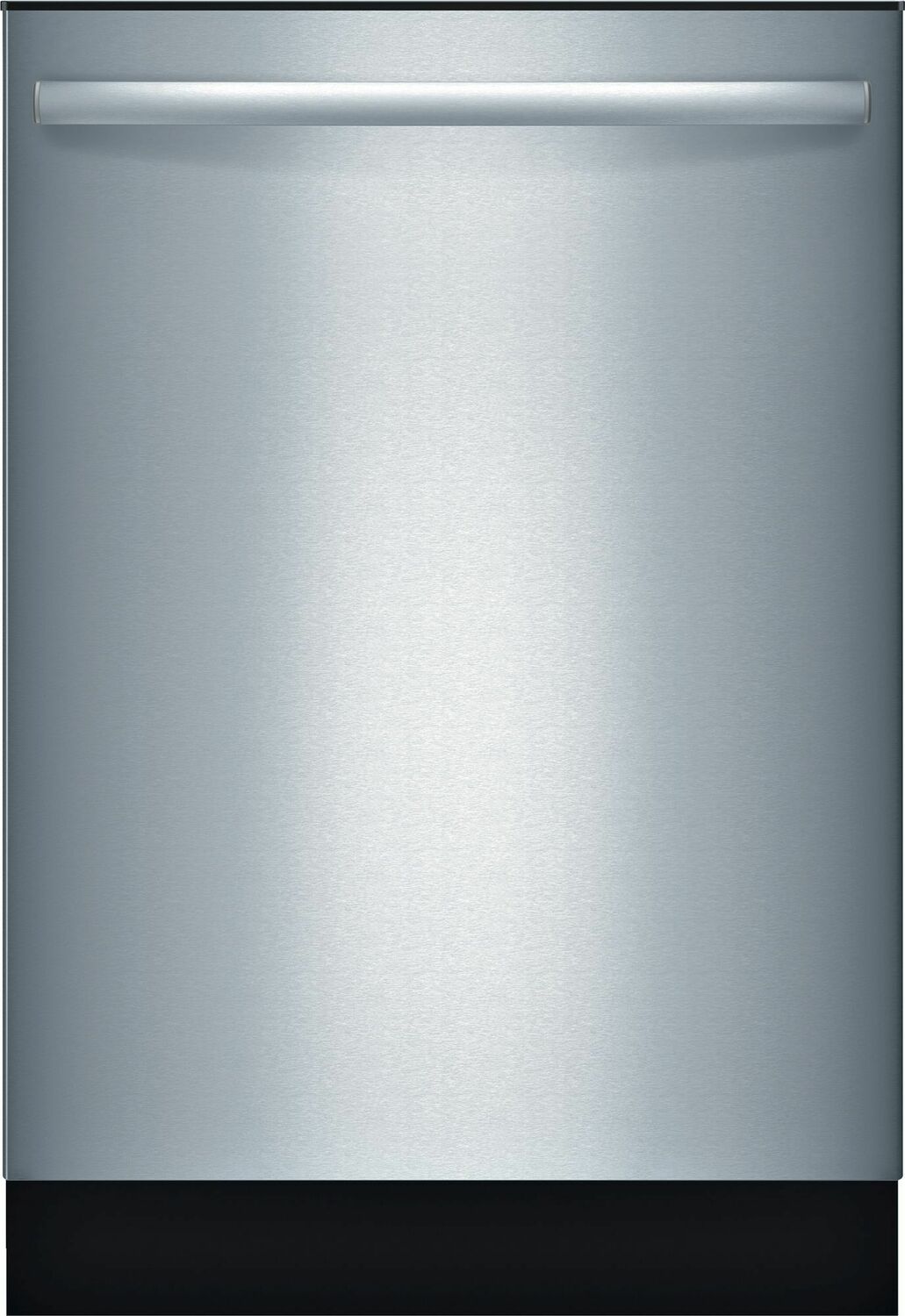

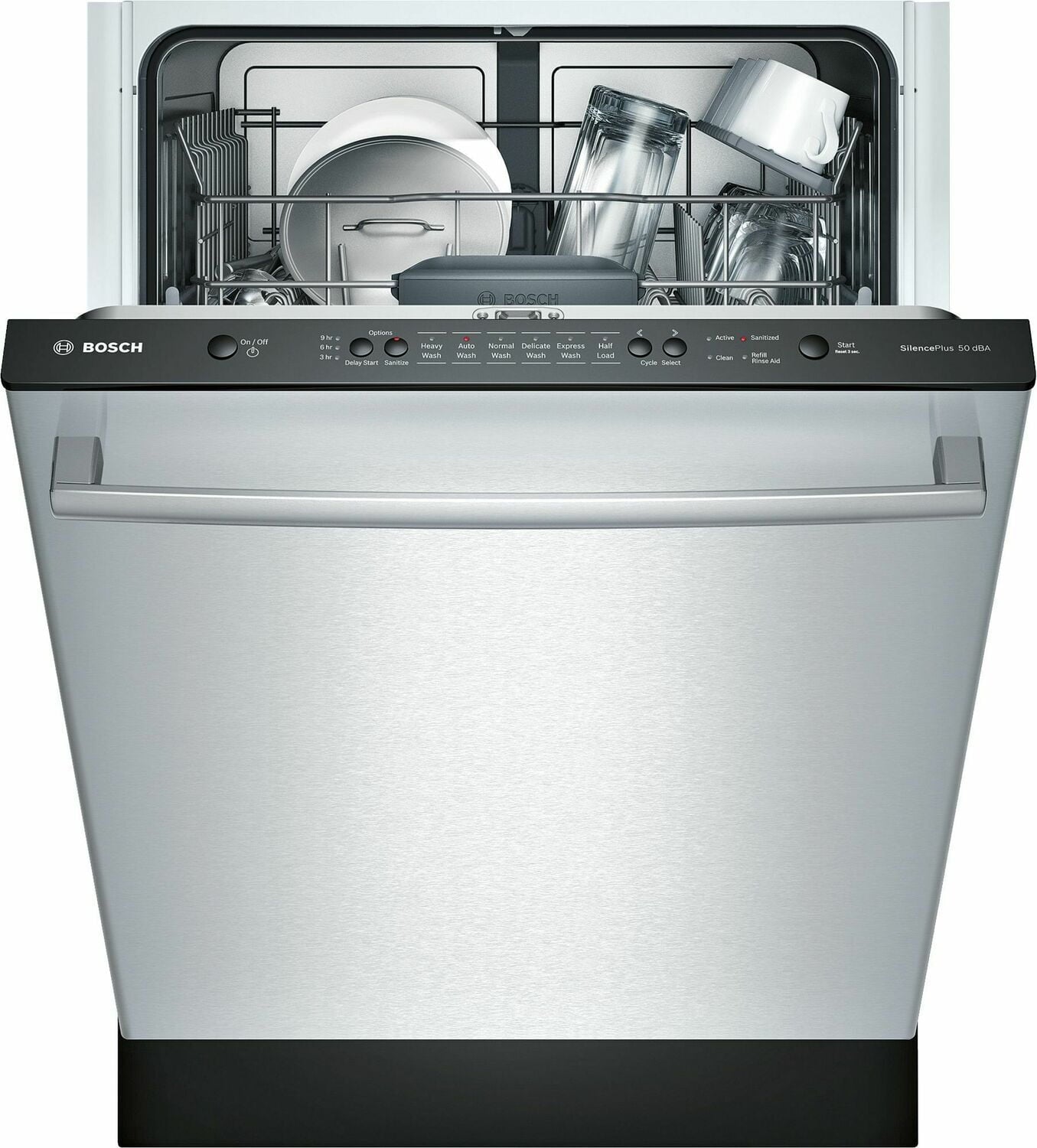

Bosch SHX3AR75UC Ascenta Bar Hndl, 6/2 Cycles, 50 Dba, Adj Rack - Ss
When you don't have a full load of dishes
The Half Load Option reduces cycle time and water consumption so you conserve water when you only need to wash small, lightly soiled loads that fill half or less of the dishwasher's capacity.
The dishwasher that removes more than food
The Sanitize option provides you with a thorough, hygienic clean, wash after wash. It can be selected with many wash programs and increases the final rinse temperature to remove remaining bacteria.
The quietest dishwasher brand in the U.S.*
Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2019.
Quality is in the details
Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.
When your dishes are done, so are you
With Bosch PrecisionWash®, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
Self-Latching Door Stays Put and Latches
Delicate Wash for Fine China Design Stainless Steel TallTub w/ *PP Performance 6 Wash Cycles and 2 Options
Sanitize Option eliminates bacteria and enhances drying results
Variable Spray Pressure Efficiency 269 kWh/yr - Energy Star®
Exceeds ENERGY STAR Requirements for Water by 69%
EcoSense™ Reduces Energy Usage by up to 20% Convenience Bosch Exclusive 24/7 Overflow Leak Protection
9 h Delay Start Timer

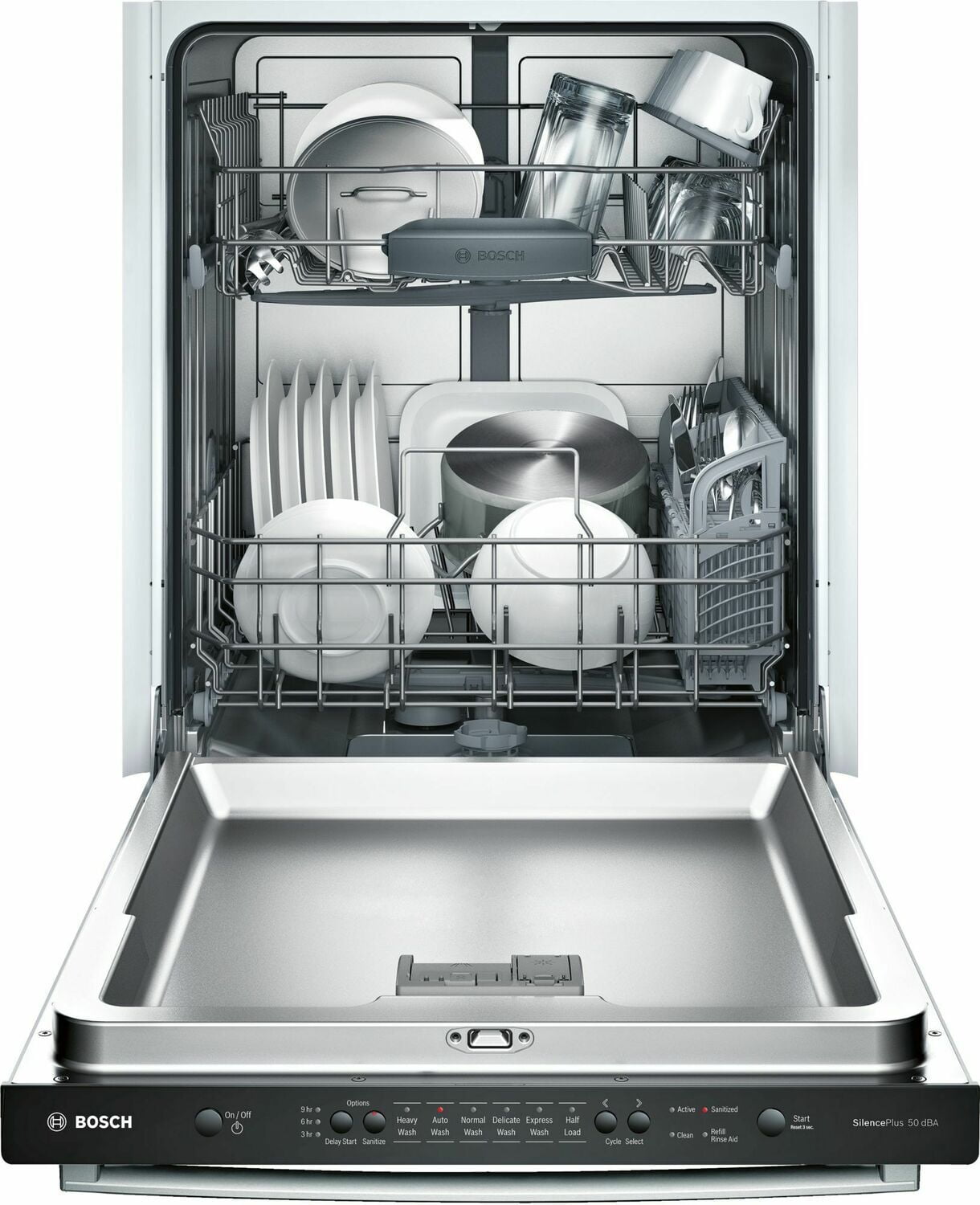

Express Wash - In 30 Minutes or Less Capacity 14 Place Setting Capacity

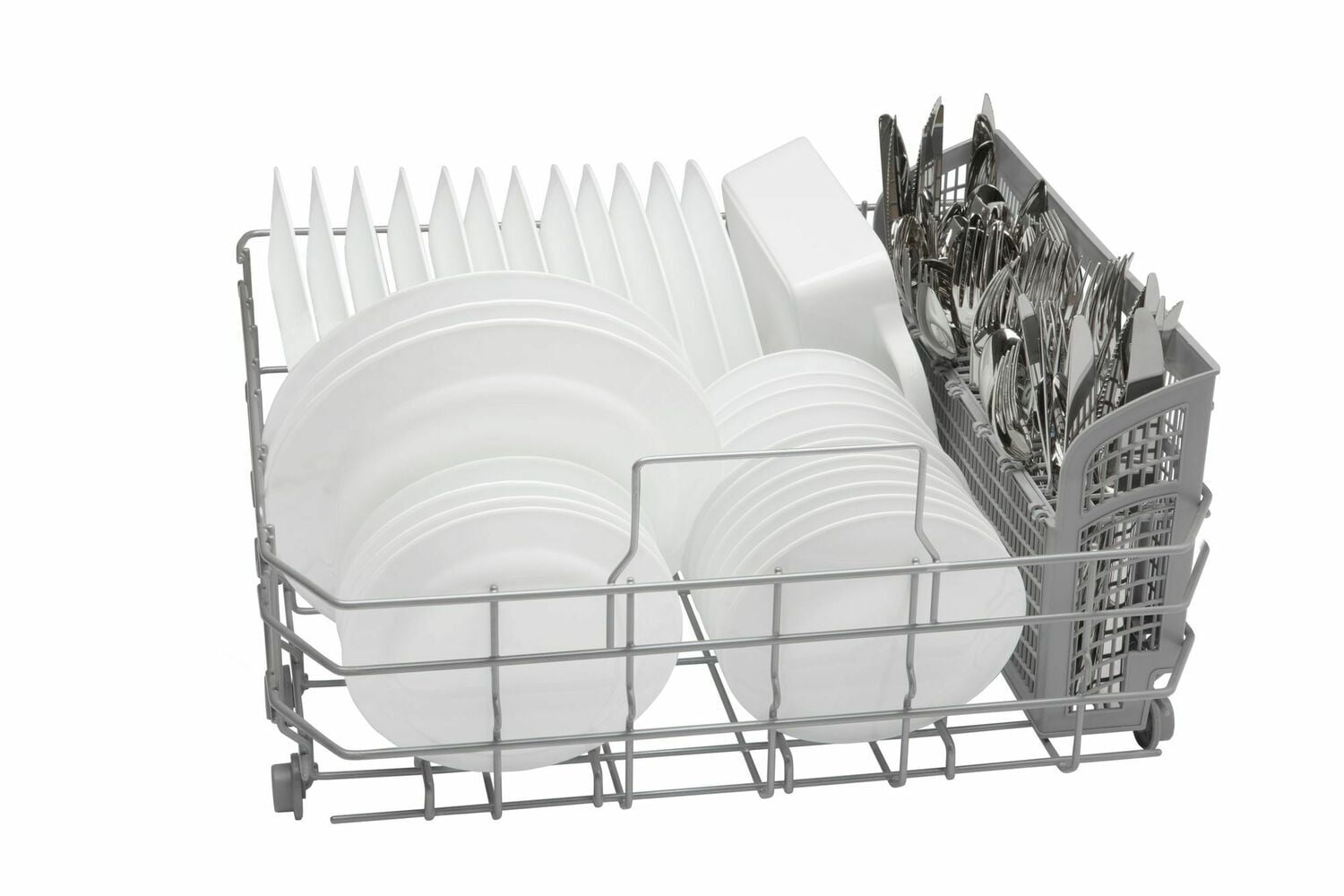

100 Series Racks
Manual Height Adjustment for Upper Rack

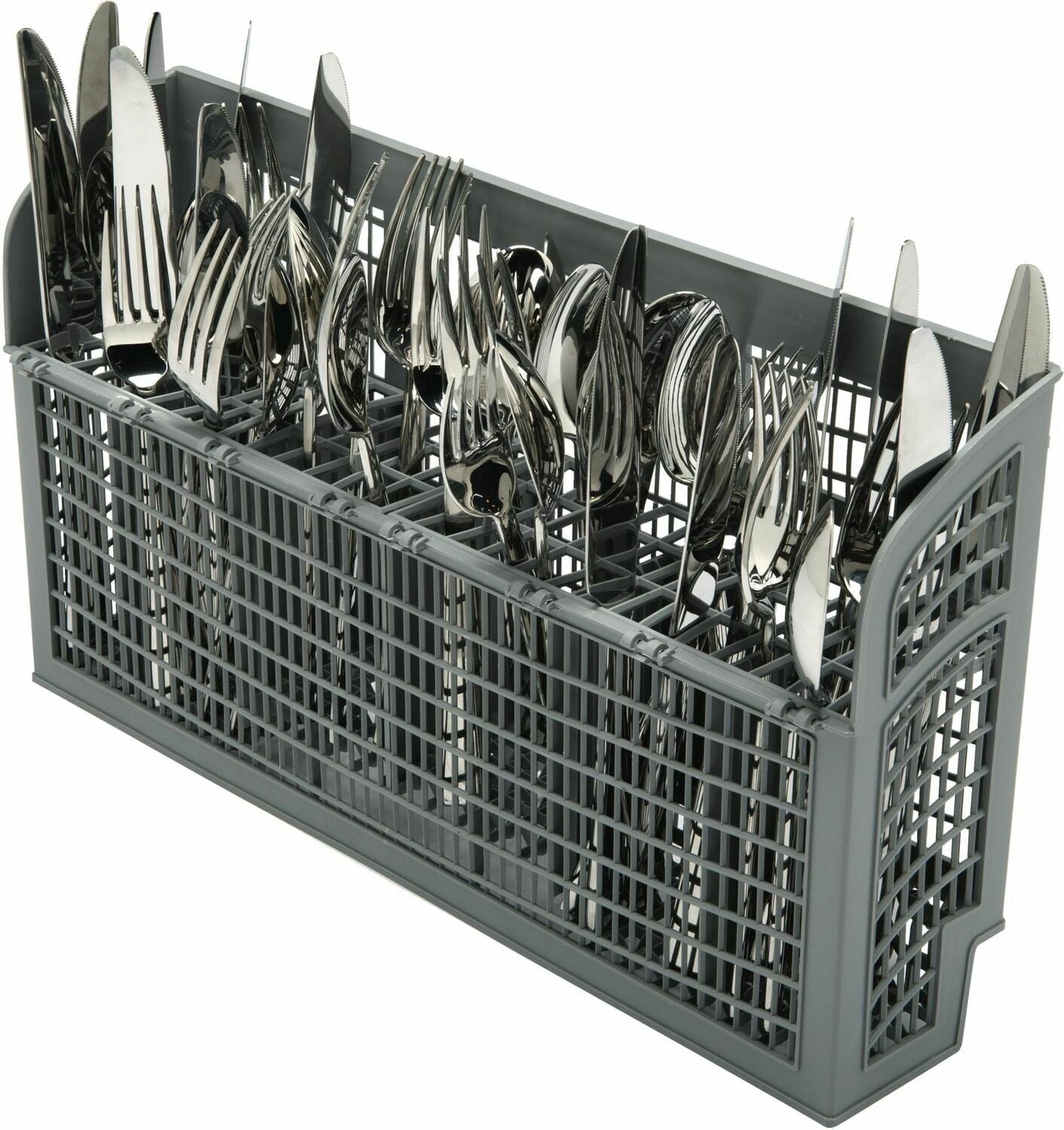

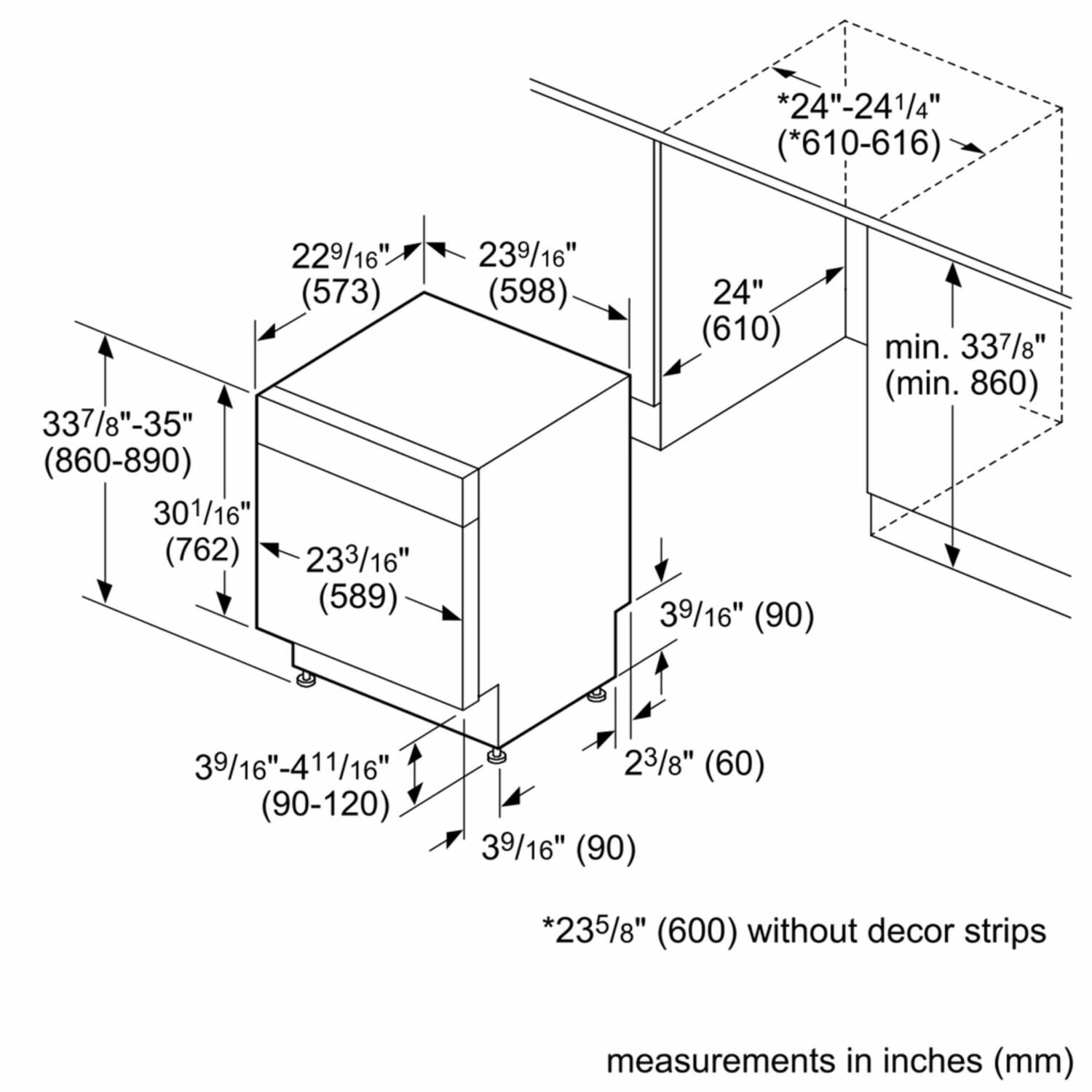

Long Silverware Basket Dimensions & Capacity Width: 23.563"
Height: 33.875"
Depth: 23.75"
- 14 Place Settings
- Silent Operation: 50 dBA
- 6 Programs
- 2 Functions
- PureDry drying system
- PrecisionWash®
- Five-level wash
- Concealed water heating element
- 24/7 Overflow Protection
- Stainless steel/ polypropylene tub
- ENERGY STAR® Certified
Technical Specifications | |
General | |
Installation Type | Built-under |
Number of place settings | 14 |
List of programs | Auto, Delicate/Economy Wash US, Half Load, Power Scrub Plus US, Quick Wash US, Regular US |
Cycle Options | Sanitation |
Display | |
Silence level (dBA) | 50 |
Third Rack | None |
Interior Light | |
Removable top | |
Power Cord Length | 67' |
Connectivity | |
Home Connect | |
Connectivity type | Not applicable |
Size and weight | |
Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 22 9/16'' |
Adjustable plinth | both horizontal and vertical |
Net weight (lbs) | 78.000 |
Programmes | |
Status indicator | End of program audible, Programme status, sanitized LED US |
List of programs | Auto, Delicate/Economy Wash US, Half Load, Power Scrub Plus US, Quick Wash US, Regular US |
Program 1 | Power Scrub Plus US |
Program 2 | Auto |
Program 3 | Regular US |
Program 4 | Delicate/Economy Wash US |
Program 5 | Quick Wash US |
Programme duration, programme1 (min.) | 110-130 |
Programme duration, programme2 (min.) | 115-130 |
Programme duration, programme3 (min.) | 130-135 |
Programme duration, programme4 (min.) | 80-85 |
Programme duration, programme5 (min.) | 30 |
Programme duration, programme6 (min.) | 95-115 |
Reference programme | Regular US |
Number of different wash temperatures | 5 |
Temperature program 1 | 150-160 |
Temperature program 2 | 125-130 |
Temperature program 3 | 122-131 |
Temperature program 4 | 113-122 |
Temperature program 5 | 113 |
Temperature program 6 | 125-130 |
Safety | |
Glass protection | |
Surge-back protect. installed | |
Leak protection system | Aqua Stop |
Consumption values | |
Glass protection | |
Water consumption program 2 | 3.8-6.5 |
Water consumption program 3 | 3-5.7 |
Water consumption program 4 | 3-4.4 |
Water consumption program 5 | 3.5 |
Water consumption program 6 | 2.9-4.6 |
Total annual water consumption (g) | 688 |
Maximum temperature for water intake (°C) | 50 |

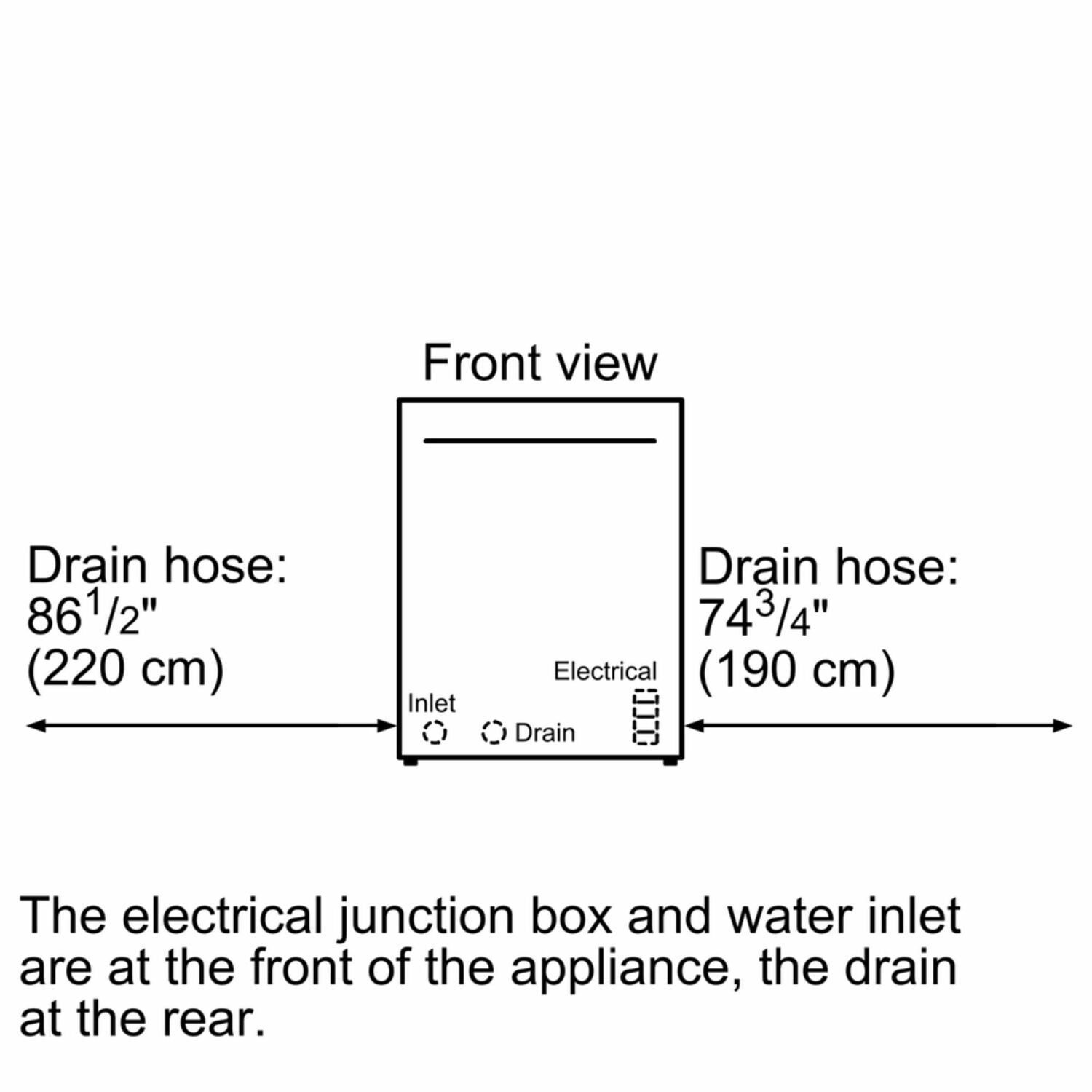

Connection | |
Watts (W) | 1,440 |
Power Cord Length | 67' |
Current (A) | 12 |
Plug type | Nema5-15P |
Construction type | |
Color / Material housing | Tin grey |
Color / Control Panel | Black |
Construction type | Built-in |
Panel ready | Not possible |
Drying system | Inherent heat |
Concealed heating element | |
Installation Type | Built-under |
Tub material | Plastic |
Water Softener |
