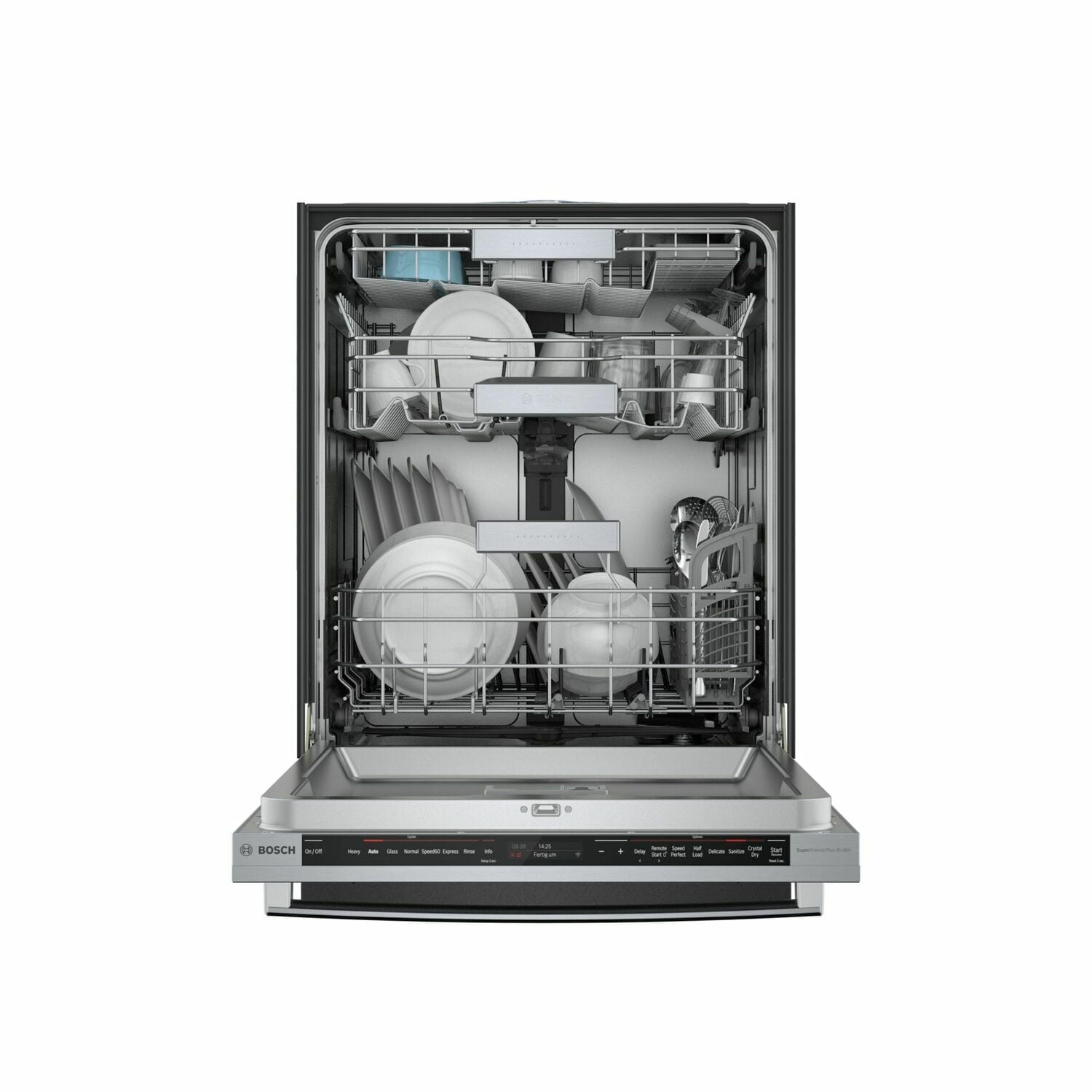

Bosch SHV88PZ63N Benchmark® Dishwasher 24'' Xxl Shv88Pz63N
Patented CrystalDry™ technology transforms moisture into heat to get dishes, including plastics, ... Read more...
Colors:

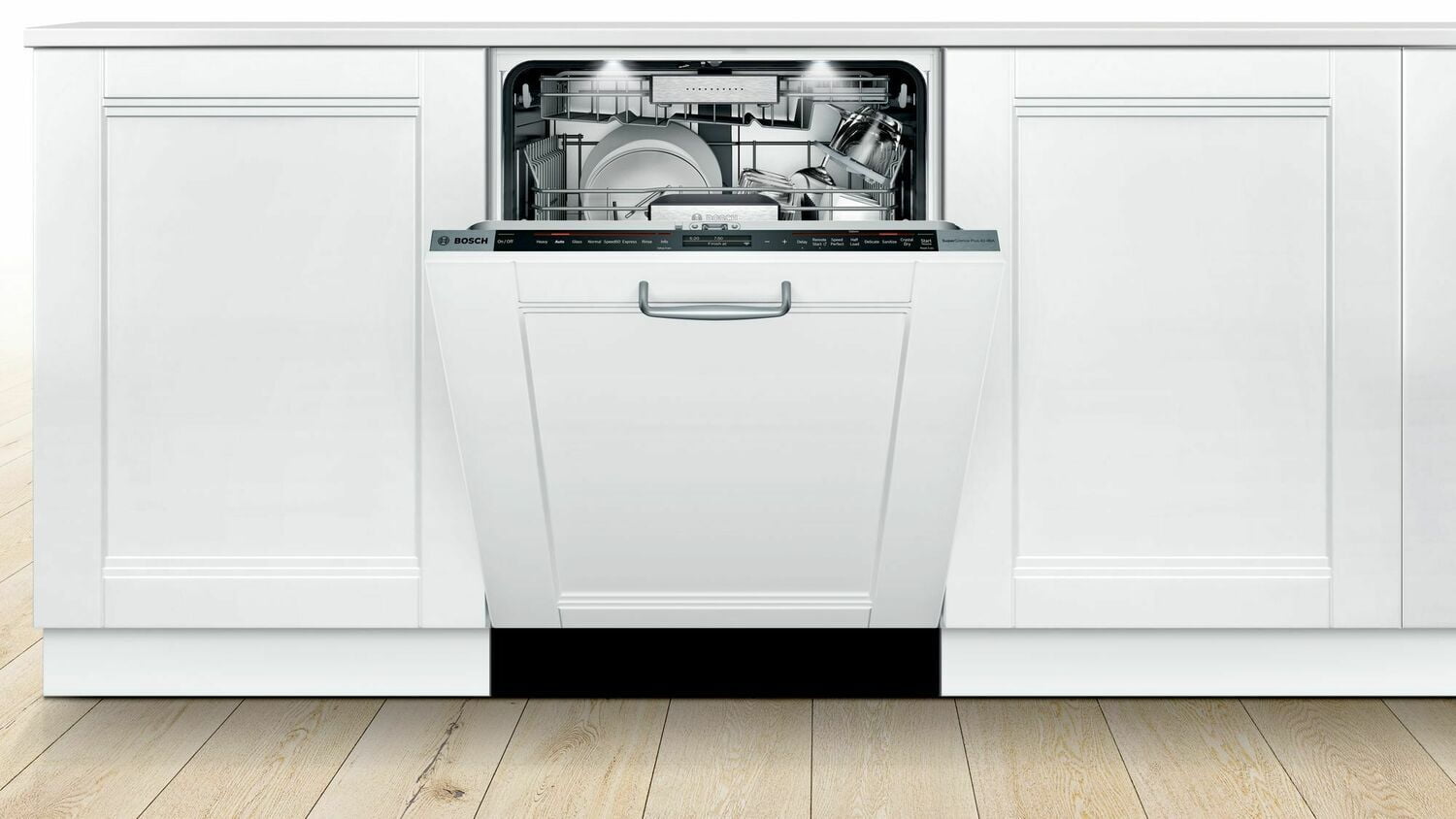

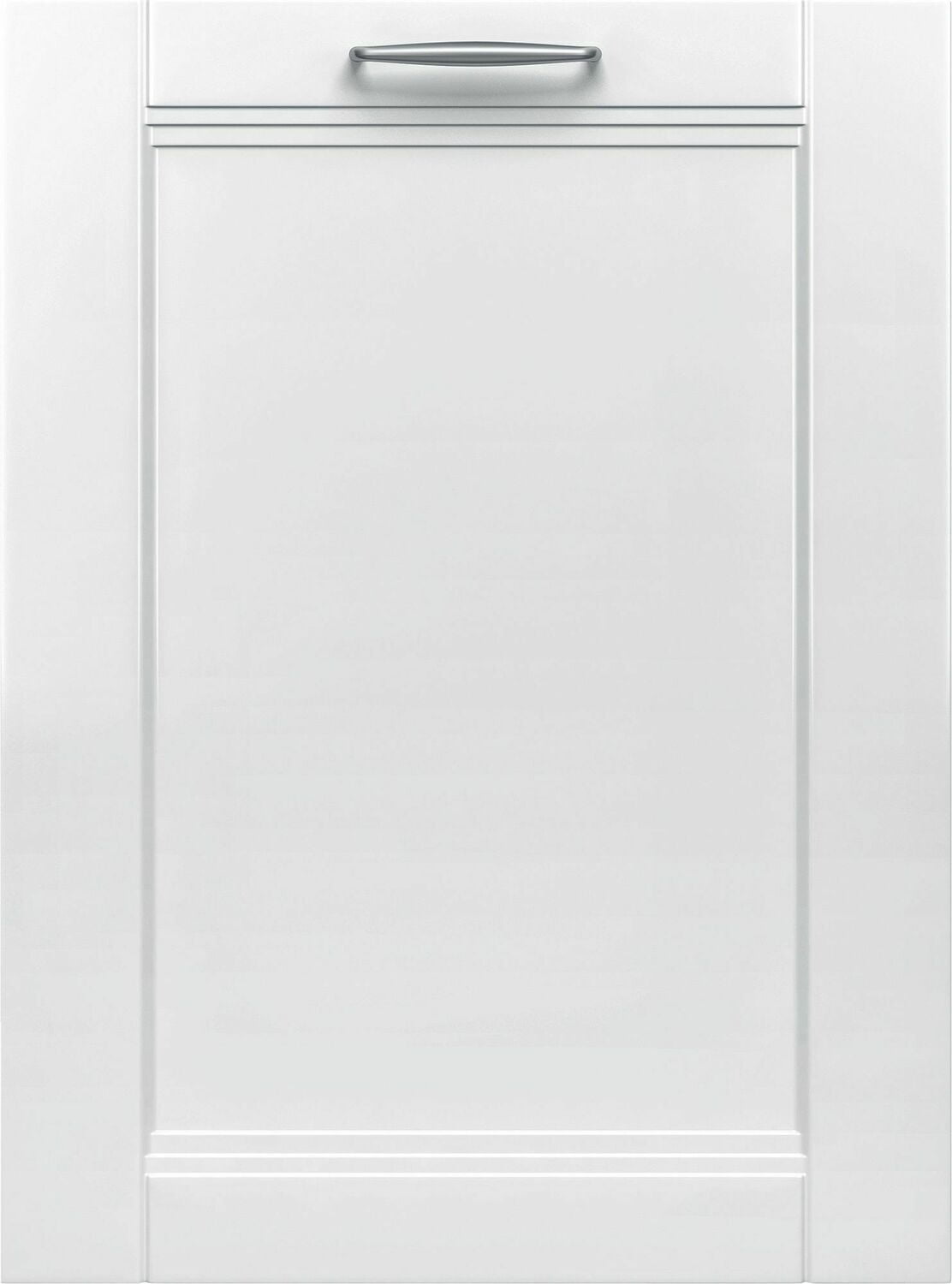

Panel ReadyInfoLight® Beams on Floor to Indicate Dishwasher is Running
RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
AquaStop® Leak Protection Works 24/7 Design Full Size Stainless Steel Tall Tub Installs Perfectly Flush
16 Place Setting Capacity

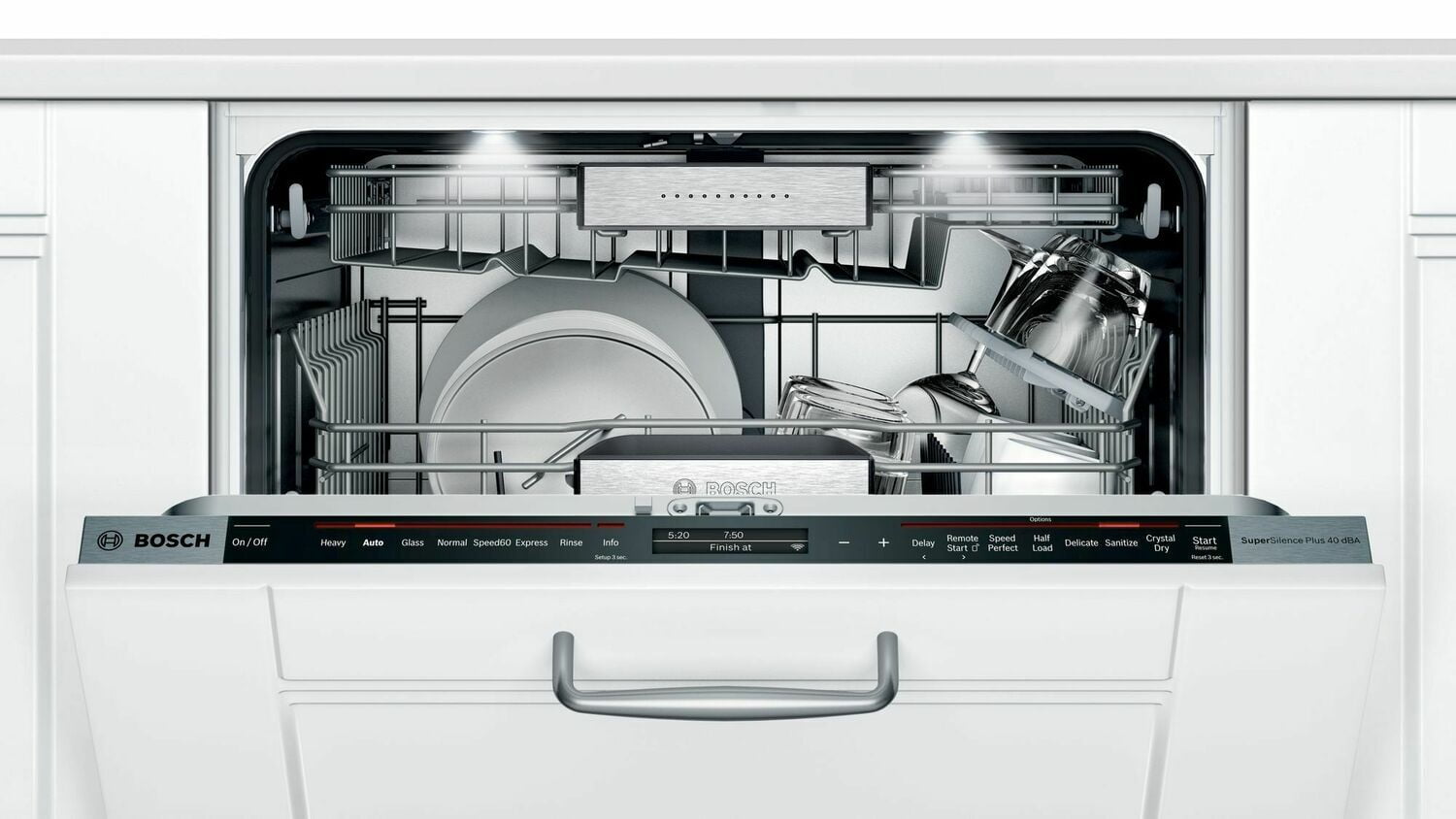

TFT - Full-Color Clear Text Display Performance 7 Cycles and 7 Options
Detergent Tray Optimizes Detergent Dissolving
Speed60® gets your dishes from dirty to dry in about an hour
Extra Dry Option for Better Drying Results
Load Size Sensor Automates Wash Temperature
Sanitize Option Eliminates Bacteria and Enhances Drying Results Efficiency 269 kWh/yr - Energy Star® Convenience 24 h Delay Start Timer
Self-Latching Door Dimensions & Capacity Width: 23 9/16”
Height: 33 7/8”
Depth: 23 1/6”
AquaStop®
Our 24/7 AquaStop® system contains leaks through a precisely engineered tub and a solid molded base. Sensors detect leaks and pump out water, even when the system is off. So you never have to worry about leaks whether you're at home or away.
CrystalDry™
Patented new CrystalDry™ technology transforms moisture into heat up to 176 F to get dishes 60% drier,* for the ultimate dry. *Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry™ on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry™. Drying performance may vary by dish type.

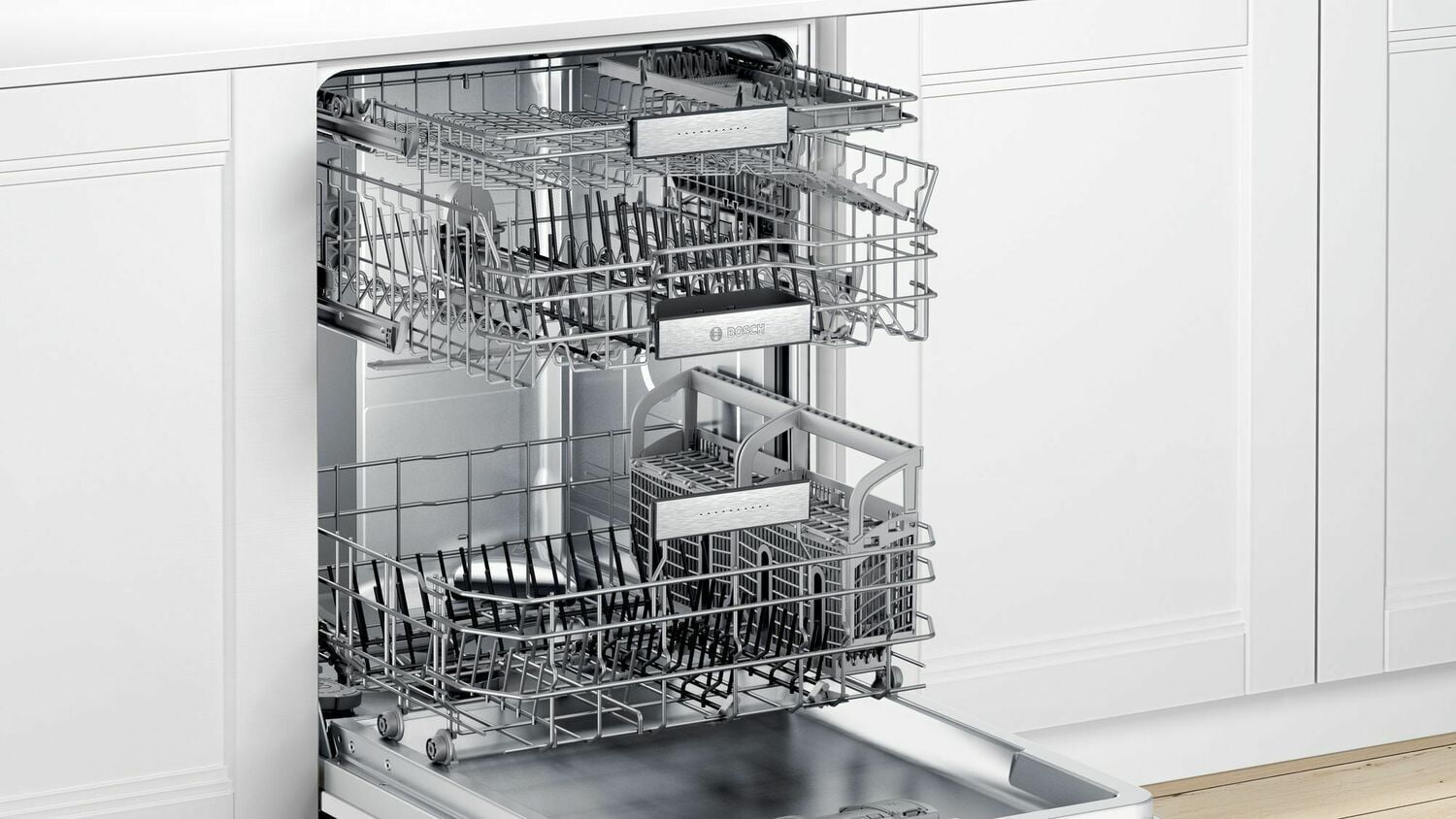

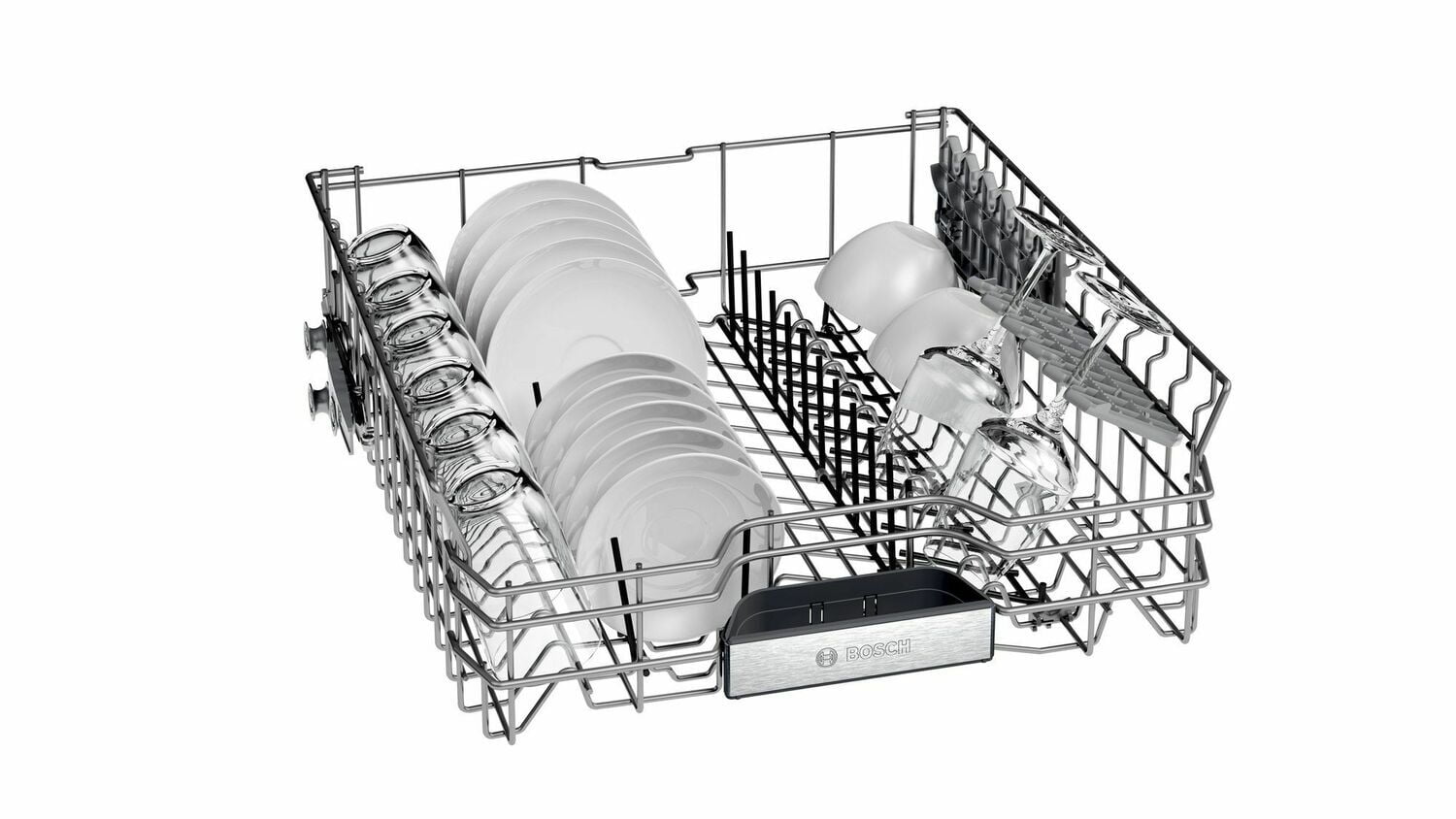

RackMatic®
RackMatic® adjustable upper rack easily adjusts to 9 different positions to allow taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
Quality is in the details
Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.
When your dishes are done, so are you
With Bosch PrecisionWash®, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
Master your day with Home Connect™
With Home Connect™, you can receive notifications once your dishwasher's cycle is complete, when it begins to run low on detergent tabs, or if there's ever a leak that occurs.
The dishwasher that removes more than food
The Sanitize option provides you with a thorough, hygienic clean, wash after wash. It can be selected with many wash programs and increases the final rinse temperature to remove remaining bacteria.
24h Delay Start Timer
Have your dishwasher start when you want it to. Delay Start delays the dishwasher's start time by up to 24 hours. 24h Delay Start Timer lets you run your dishwasher at off-peak times.

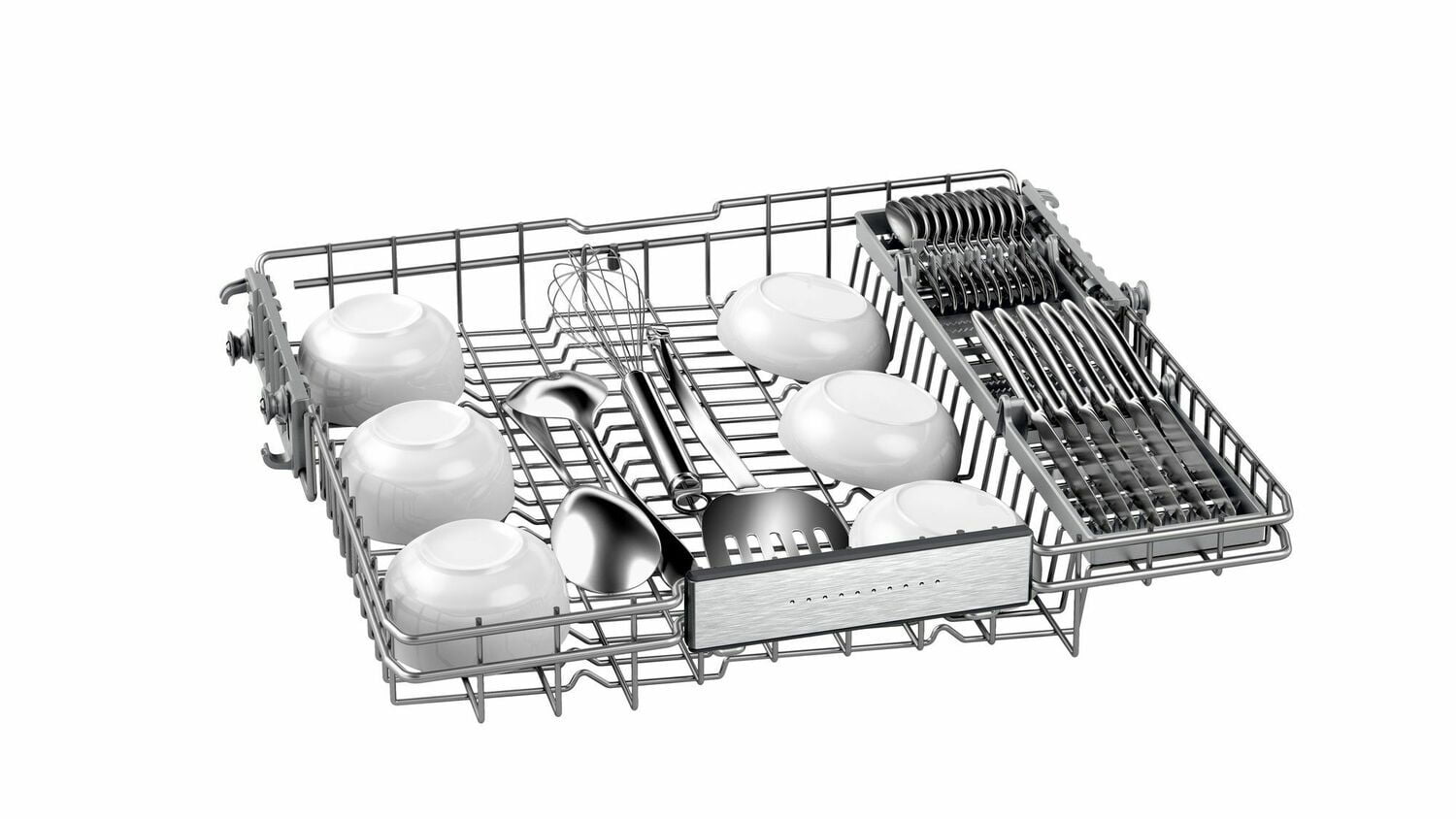

MyWay™
MyWay™ 3rd Rack easily fits larger & deeper items like cereal bowls and large utensils, freeing up extra space for pots & pans in the other racks.
The quietest dishwasher brand in the U.S.*
Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2019.

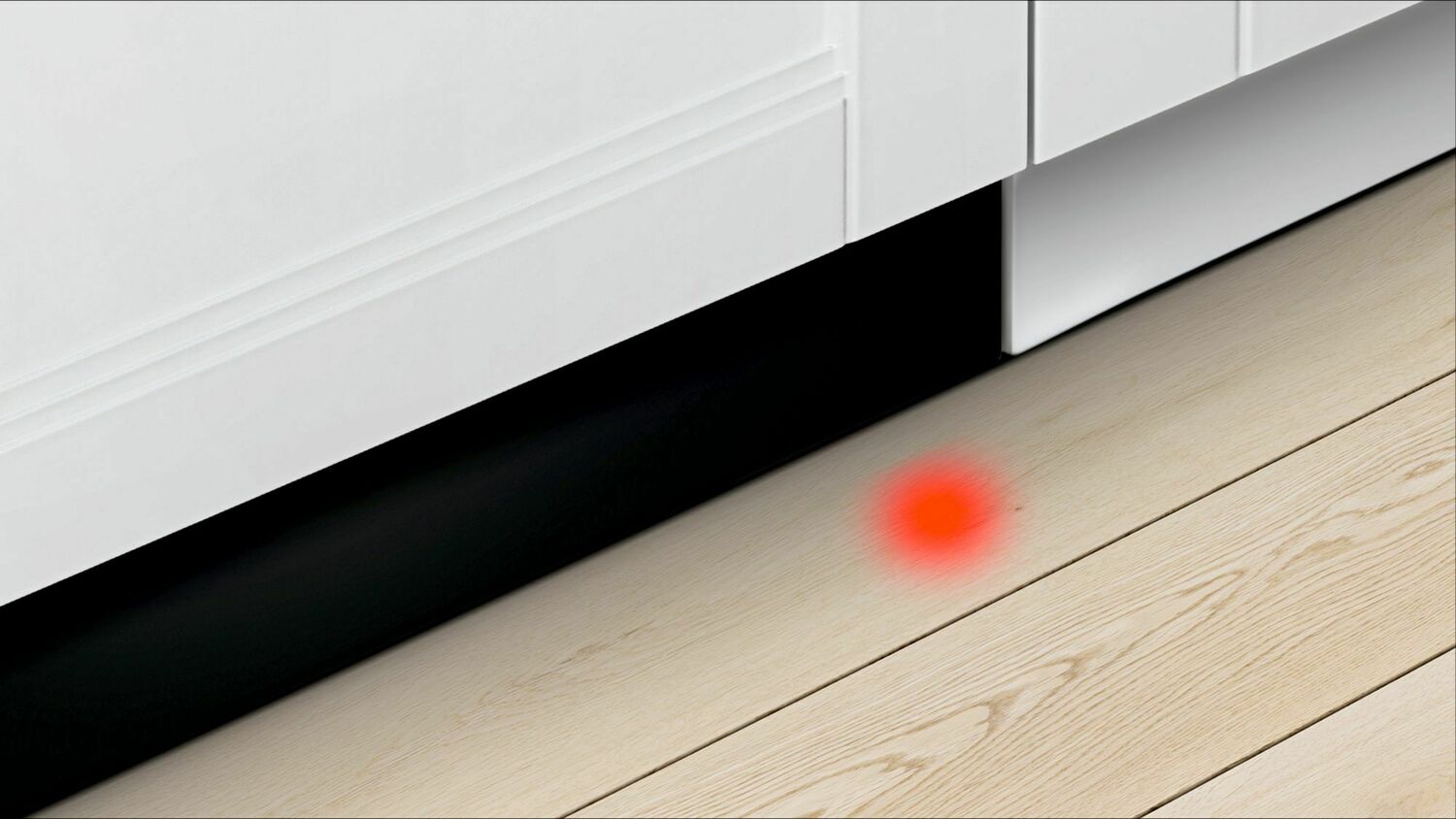

InfoLight®
A light that tells you when your dishwasher is running. InfoLight® projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready.
When you don't have a full load of dishes
The Half Load Option reduces cycle time and water consumption so you conserve water when you only need to wash small, lightly soiled loads that fill half or less of the dishwasher's capacity.
Water Softener
Our water softener removes hard water spots caused by lime deposits and softens water to the appropriate level for superior washing results.
- Key Features
- The MyWay Rack gives you the industrys largest 3rd rack loading capacity.
- InfoLight® Beams on Floor to Indicate Dishwasher is Running
- RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
- AquaStop® Leak Protection Works 24/7
- Design
- Full Size Stainless Steel Tall Tub Installs Perfectly Flush
- The MyWay Rack gives you the industrys largest 3rd rack loading capacity.
- 16 Place Setting Capacity
- TFT - Full-Color Clear Text Display
- RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
- Performance
- 7 Cycles and 7 Options
- Detergent Tray Optimizes Detergent Dissolving
- Speed60® gets your dishes from dirty to dry in about an hour.
- Extra Dry Option for Better Drying Results
- Load Size Sensor Automates Wash Temperature
- Sanitize Option Eliminates Bacteria and Enhances Drying Results
- Efficiency
- 269 kWh/yr - Energy Star®
- Convenience
- 24 h Delay Start Timer
- AquaStop® Leak Protection Works 24/7
- Self-Latching Door
| Technical Specifications | |
| General | |
| Installation Type | Full-integrated |
| Number of place settings | 16 |
| List of programmes | Auto 53-60°C, Delicate, Economy, Intensive, Pre-Rinse, Quick L |
| Cycle Options | Chrystal Protect, half load, HygienePlus, Remote Start, VarioSpeed, Zeo Dry |
| Display | |
| Silence level (dBA) | 40 |
| Third Rack | MyWay Rack |
| Interior Light | |
| Removable top | |
| Power Cord Length | 67'' |
| Connectivity | |
| Home Connect | |
| Home Connect Features | iService Remote, Remote Monitoring and Control |
| Connectivity type | Wi-Fi |
| Size and weight | |
| Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 1/16'' |
| Adjustable plinth | |
| Net weight (lbs) | 100 lbs |
| Programmes | |
| Status indicator | End of program audible, InfoLight red, sanitized LED US, water inlet |
| List of programmes | Auto 53-60°C, Delicate, Economy, Intensive, Pre-Rinse, Quick L |
| Program 1 | Intensive |
| Program 2 | Auto |
| Program 4 | Economy |
| Program 7 | Pre Rinse |
| Programme duration, programme1 (min.) | 110-135 |
| Programme duration, programme2 (min.) | 105-129 |
| Programme duration, programme3 (min.) | 75-85 |
| Programme duration, programme4 (min.) | 130-145 |
| Programme duration, programme5 (min.) | 65 |
| Programme duration, programme6 (min.) | 35 |
| Programme duration, programme7 (min.) | 9 |
| Reference programme | Eco |
| Temperature program 1 | 151-160 °F |
| Temperature program 2 | 127-140 °F |
| Temperature program 3 | 113-122 °F |
| Temperature program 4 | 113-136 °F |
| Temperature program 5 | 122 °F |
| Temperature program 6 | 113 °F |
| Safety | |
| Glass protection | |
| Surge-back protect. installed | |
| Leak protection system | Aqua Stop |
| Consumption values | |
| Glass protection | |
| Water consumption program 1 | 4.9-6.4 gal |
| Water consumption program 2 | 3.4-6.4 gal |
| Water consumption program 3 | 2.4-3.9 gal |
| Water consumption program 4 | 2.5-5.5 gal |
| Water consumption program 5 | 3.8 gal |
| Water consumption program 6 | 2.8 gal |
| Water consumption program 7 | 1.1 gal |
| Total annual water consumption (g) | 624 gallons |
| Maximum temperature for water intake (°C) | 60 °C |
| Connection | |
| Watts (W) | 1,440 W |
| Power Cord Length | 67'' |
| Current (A) | 12 A |
| Plug type | Nema5-15P |
| Construction type | |
| Color / Control Panel | Grey |
| Construction type | Built-in |
| Panel ready | Possible and included |
| Concealed heating element | |
| Installation Type | Full-integrated |
| Tub material | Stainless steel |
| Water Softener | |
CrystalDry™
RackMatic™
Aquastop®
PrecisionWash™
Overview
AquaStop®
Our 24/7 AquaStop® system contains leaks through a precisely engineered tub and a solid molded base. Sensors detect leaks and pump out water, even when the system is off. So you never have to worry about leaks whether you're at home or away.
CrystalDry™
Patented new CrystalDry™ technology transforms moisture into heat up to 176 F to get dishes 60% drier,* for the ultimate dry. *Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry™ on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry™. Drying performance may vary by dish type.
RackMatic®
RackMatic® adjustable upper rack easily adjusts to 9 different positions to allow taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
Quality is in the details
Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.
When your dishes are done, so are you
With Bosch PrecisionWash®, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
Master your day with Home Connect™
With Home Connect™, you can receive notifications once your dishwasher's cycle is complete, when it begins to run low on detergent tabs, or if there's ever a leak that occurs.
The dishwasher that removes more than food
The Sanitize option provides you with a thorough, hygienic clean, wash after wash. It can be selected with many wash programs and increases the final rinse temperature to remove remaining bacteria.
24h Delay Start Timer
Have your dishwasher start when you want it to. Delay Start delays the dishwasher's start time by up to 24 hours. 24h Delay Start Timer lets you run your dishwasher at off-peak times.
MyWay™
MyWay™ 3rd Rack easily fits larger & deeper items like cereal bowls and large utensils, freeing up extra space for pots & pans in the other racks.
The quietest dishwasher brand in the U.S.*
Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2019.
InfoLight®
A light that tells you when your dishwasher is running. InfoLight® projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready.
When you don't have a full load of dishes
The Half Load Option reduces cycle time and water consumption so you conserve water when you only need to wash small, lightly soiled loads that fill half or less of the dishwasher's capacity.
Water Softener
Our water softener removes hard water spots caused by lime deposits and softens water to the appropriate level for superior washing results.
Description
InfoLight® Beams on Floor to Indicate Dishwasher is Running
RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
AquaStop® Leak Protection Works 24/7 Design Full Size Stainless Steel Tall Tub Installs Perfectly Flush
16 Place Setting Capacity
TFT - Full-Color Clear Text Display Performance 7 Cycles and 7 Options
Detergent Tray Optimizes Detergent Dissolving
Speed60® gets your dishes from dirty to dry in about an hour
Extra Dry Option for Better Drying Results
Load Size Sensor Automates Wash Temperature
Sanitize Option Eliminates Bacteria and Enhances Drying Results Efficiency 269 kWh/yr - Energy Star® Convenience 24 h Delay Start Timer
Self-Latching Door Dimensions & Capacity Width: 23 9/16”
Height: 33 7/8”
Depth: 23 1/6”
Features
- 16 Place Settings
- Silent Operation: 40 dBA
- 7 Programs
- 7 Functions
- PrecisionWash®
- AquaStop®
- Rackmatic®
- CrystalDry™
- Five-level wash
- Water softener
- Concealed water heating element
- TFT Display
- Interior Light
- InfoLight®
- MyWay® Rack
- EasyGlide™ rack system
- Stainless steel tub
- ENERGY STAR® Certified
Specifications
| Technical Specifications | |
| General | |
| Installation Type | Full-integrated |
| Number of place settings | 16 |
| List of programmes | Auto 53-60°C, Delicate, Economy, Intensive, Pre-Rinse, Quick L |
| Cycle Options | Chrystal Protect, half load, HygienePlus, Remote Start, VarioSpeed, Zeo Dry |
| Display | |
| Silence level (dBA) | 40 |
| Third Rack | MyWay Rack |
| Interior Light | |
| Removable top | |
| Power Cord Length | 67'' |
| Connectivity | |
| Home Connect | |
| Home Connect Features | iService Remote, Remote Monitoring and Control |
| Connectivity type | Wi-Fi |
| Size and weight | |
| Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 1/16'' |
| Adjustable plinth | |
| Net weight (lbs) | 100 lbs |
| Programmes | |
| Status indicator | End of program audible, InfoLight red, sanitized LED US, water inlet |
| List of programmes | Auto 53-60°C, Delicate, Economy, Intensive, Pre-Rinse, Quick L |
| Program 1 | Intensive |
| Program 2 | Auto |
| Program 4 | Economy |
| Program 7 | Pre Rinse |
| Programme duration, programme1 (min.) | 110-135 |
| Programme duration, programme2 (min.) | 105-129 |
| Programme duration, programme3 (min.) | 75-85 |
| Programme duration, programme4 (min.) | 130-145 |
| Programme duration, programme5 (min.) | 65 |
| Programme duration, programme6 (min.) | 35 |
| Programme duration, programme7 (min.) | 9 |
| Reference programme | Eco |
| Temperature program 1 | 151-160 °F |
| Temperature program 2 | 127-140 °F |
| Temperature program 3 | 113-122 °F |
| Temperature program 4 | 113-136 °F |
| Temperature program 5 | 122 °F |
| Temperature program 6 | 113 °F |
| Safety | |
| Glass protection | |
| Surge-back protect. installed | |
| Leak protection system | Aqua Stop |
| Consumption values | |
| Glass protection | |
| Water consumption program 1 | 4.9-6.4 gal |
| Water consumption program 2 | 3.4-6.4 gal |
| Water consumption program 3 | 2.4-3.9 gal |
| Water consumption program 4 | 2.5-5.5 gal |
| Water consumption program 5 | 3.8 gal |
| Water consumption program 6 | 2.8 gal |
| Water consumption program 7 | 1.1 gal |
| Total annual water consumption (g) | 624 gallons |
| Maximum temperature for water intake (°C) | 60 °C |
| Connection | |
| Watts (W) | 1,440 W |
| Power Cord Length | 67'' |
| Current (A) | 12 A |
| Plug type | Nema5-15P |
| Construction type | |
| Color / Control Panel | Grey |
| Construction type | Built-in |
| Panel ready | Possible and included |
| Concealed heating element | |
| Installation Type | Full-integrated |
| Tub material | Stainless steel |
| Water Softener | |
