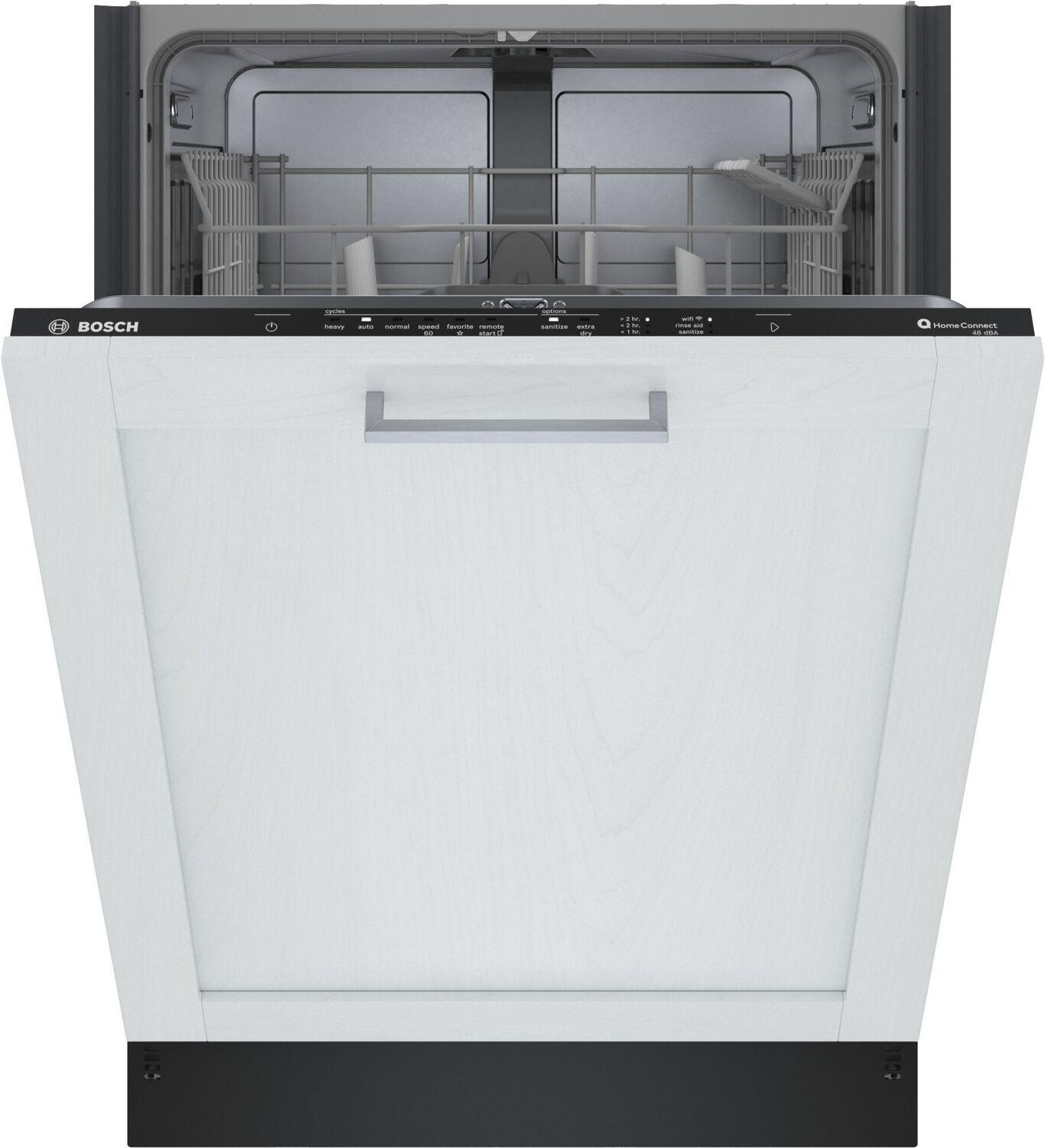

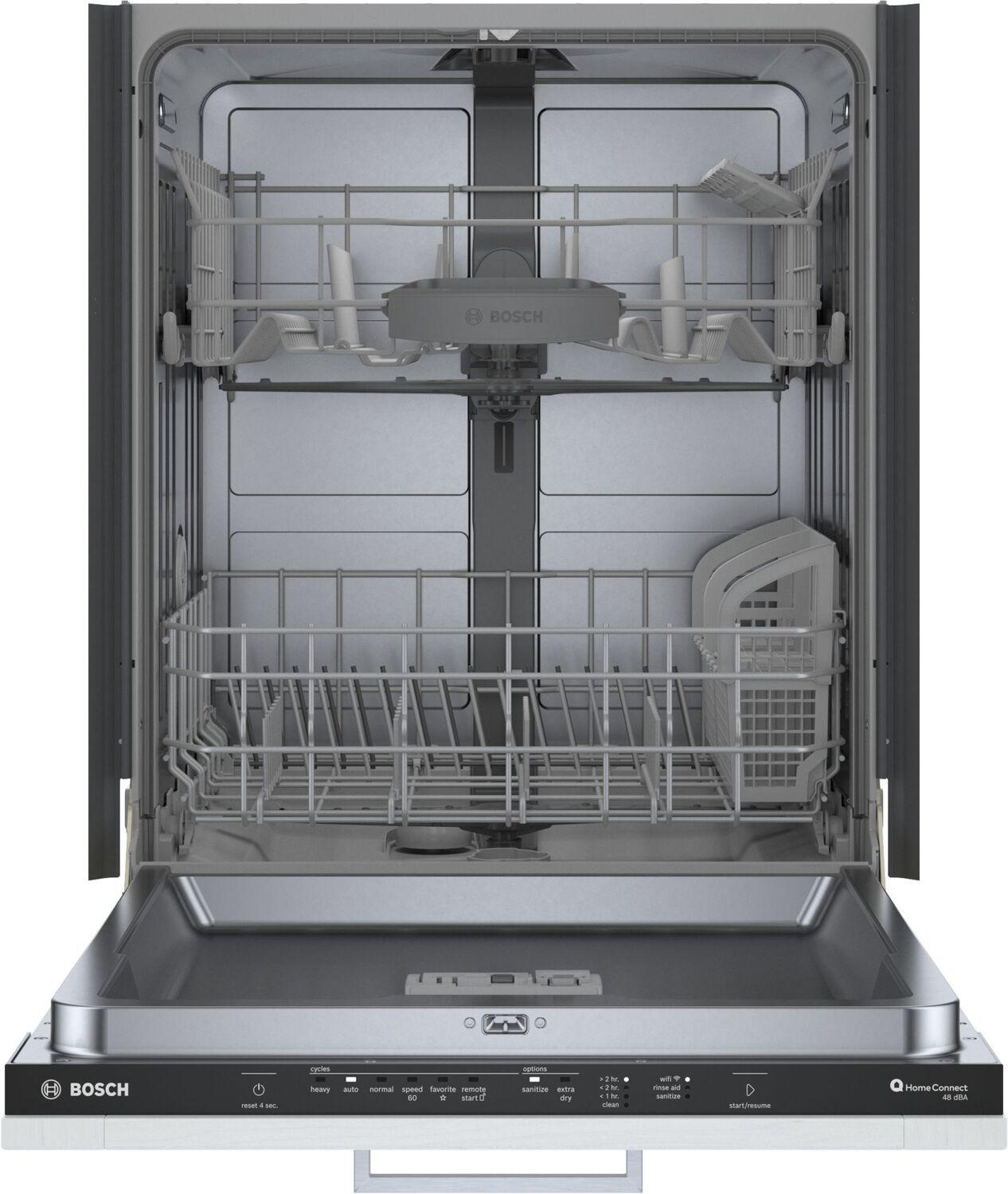

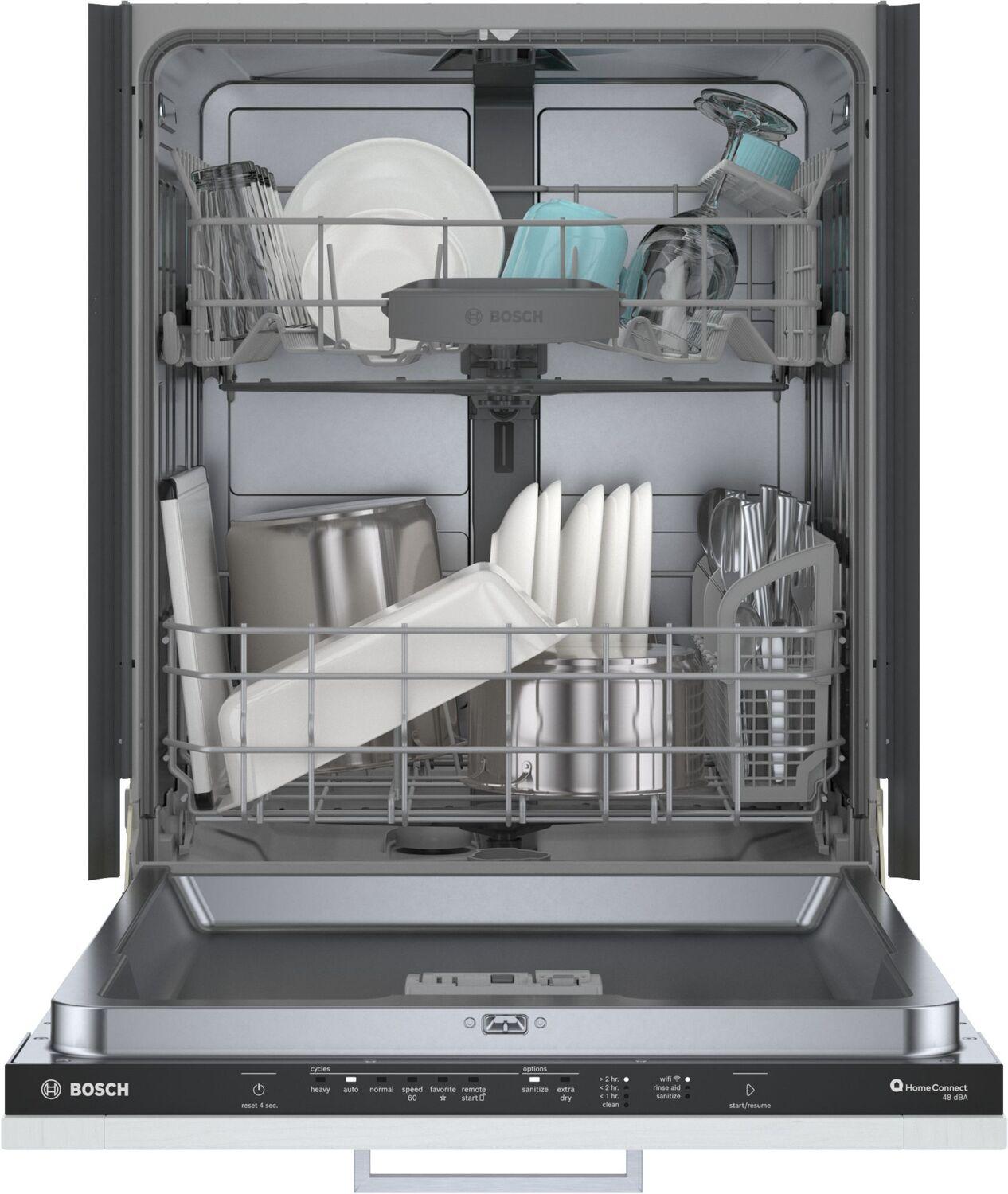

Bosch SHV4AEB3N 100 Plus Dishwasher 24"
Rebates &
Promotions
Receive up to a $4000 rebate with purchase of 2 or more qualifying Bosch products plus eligible cooking bonuses. - Receive up to a $4000 rebate with purchase of 2 or more qualifying Bosch products plus eligible cooking bonuses. Download Valid: 07/10/2025-12/31/2025
Bosch Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Bosch appliances. Download Valid: 11/01/2025-12/10/2025

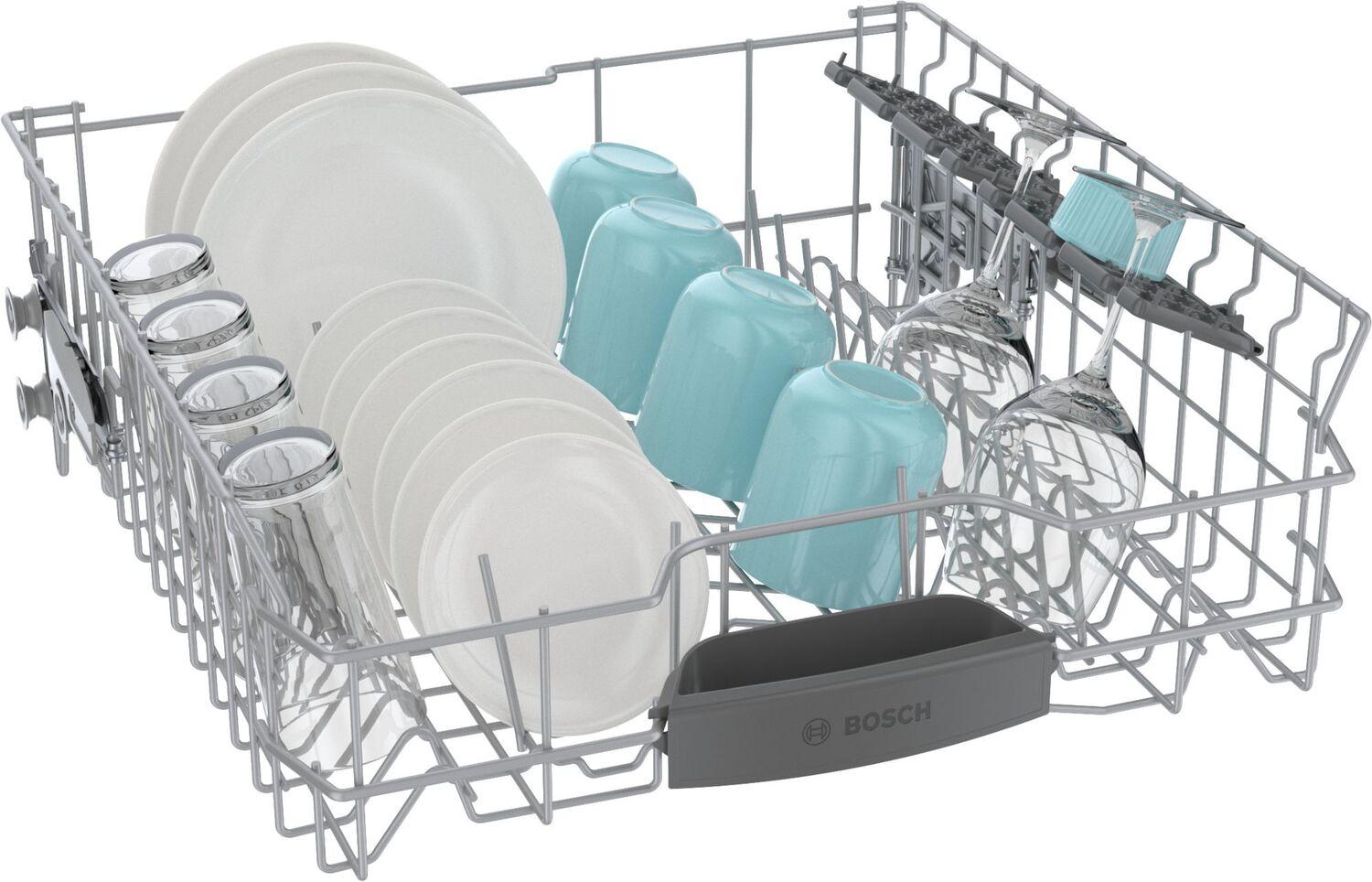

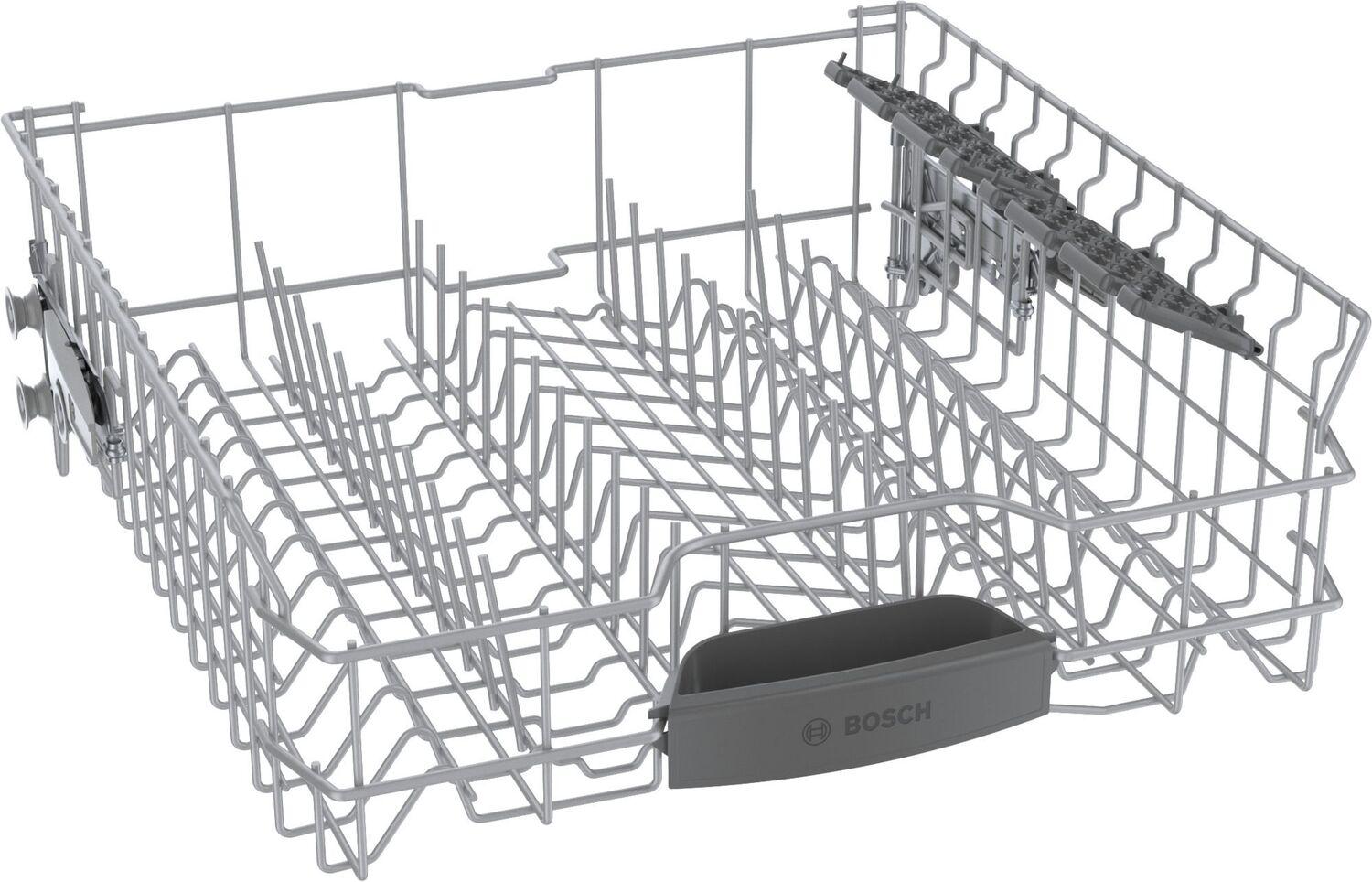

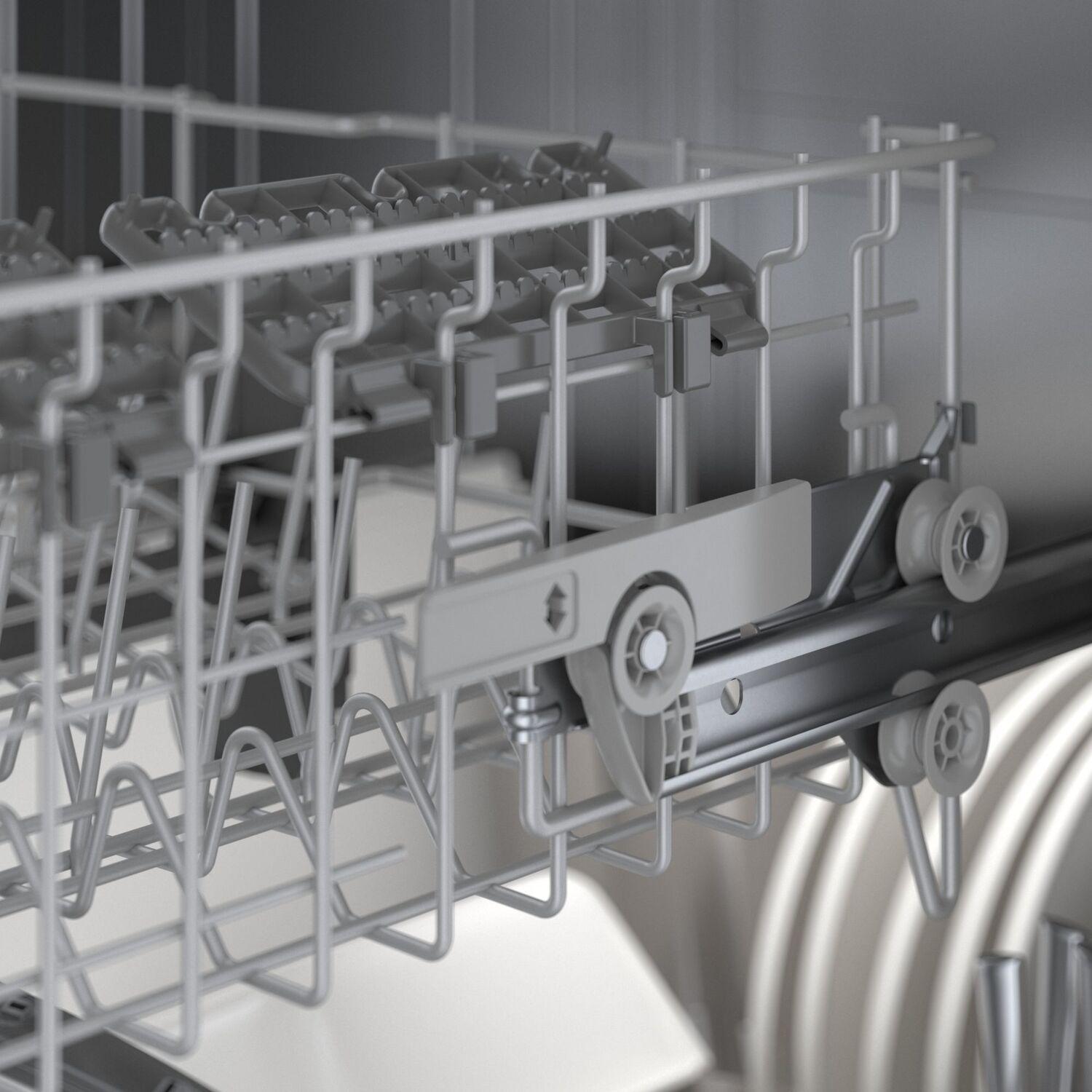

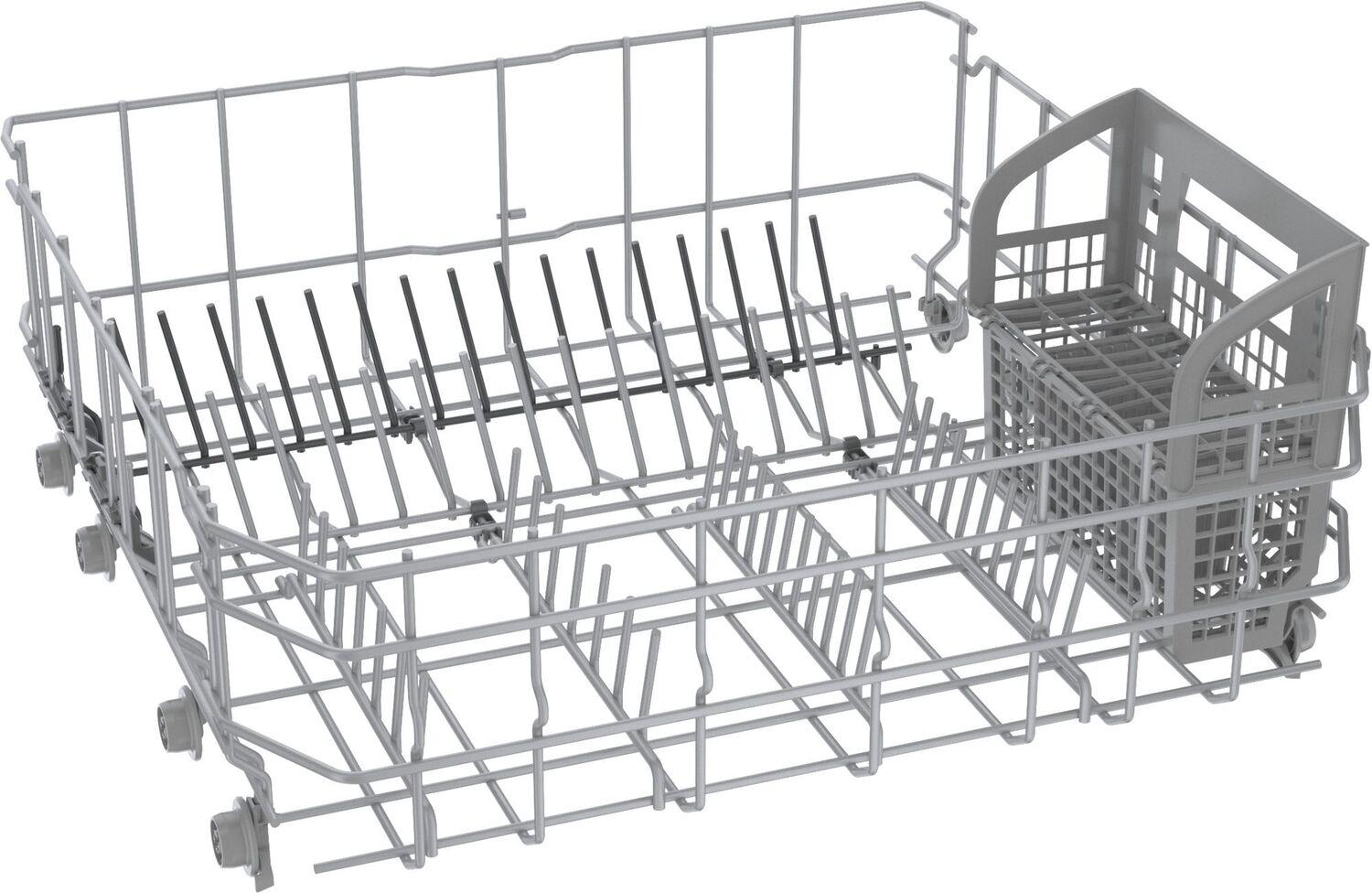

Newly redesigned EasyGlide™ rack system for a smooth glide on all three racks
The EasyGlide™ rack system is redesigned to give you a smooth glide on all three racks-even when it s fully loaded.
10-Year Rust-Through Warranty.
We take much care of the quality of our dishwashers. The production processes and material used for the interior of our dishwashers allow to provide a special 10-year warranty against the rusting-through of the cavity from the inside (conditions apply).

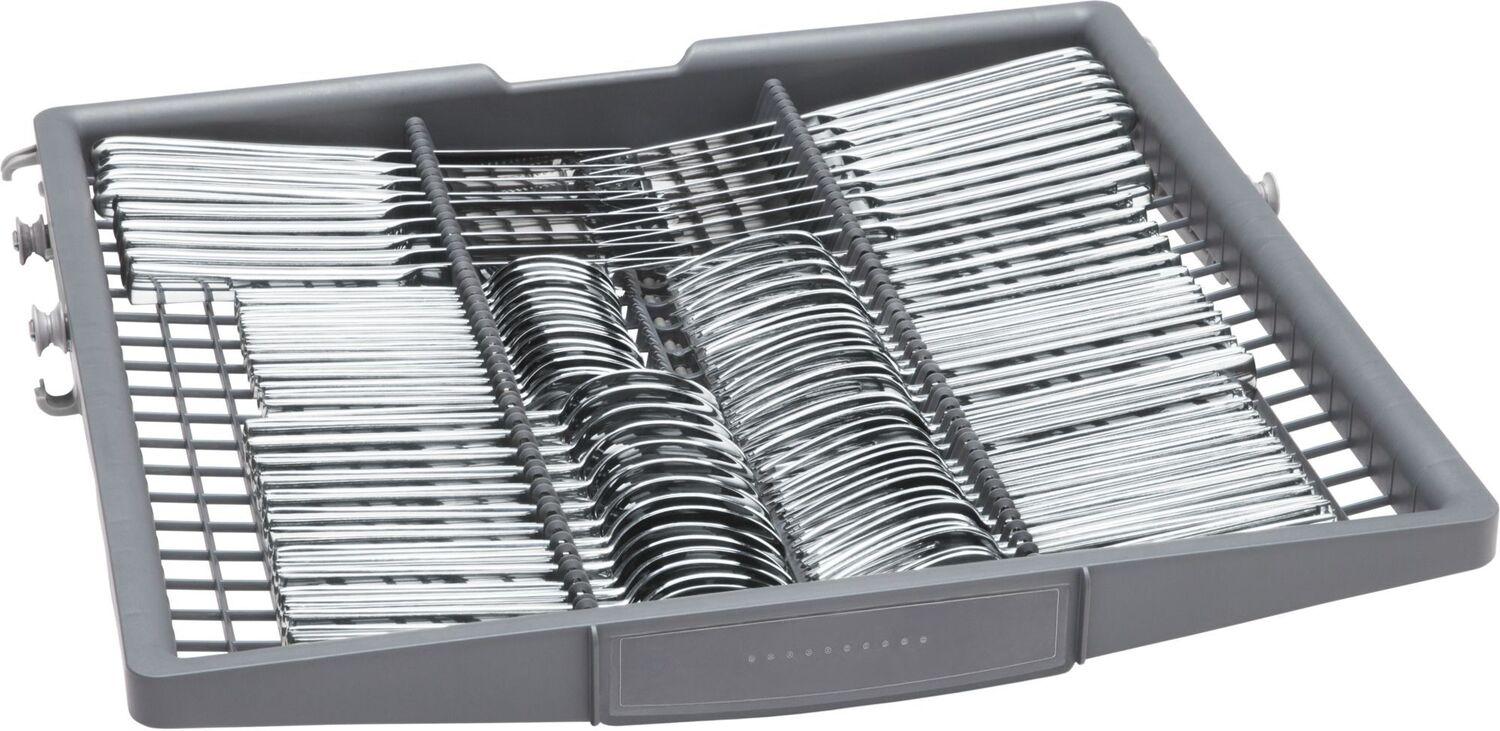

The Flexible 3rd Rack provides a versatile space for utensils
The Flexible 3rd Rack has expandable wings that easily lower to accommodate more of your deeper items. Meanwhile adjustable tines let you customize the rack s loading space to fit awkward or bulky utensils.

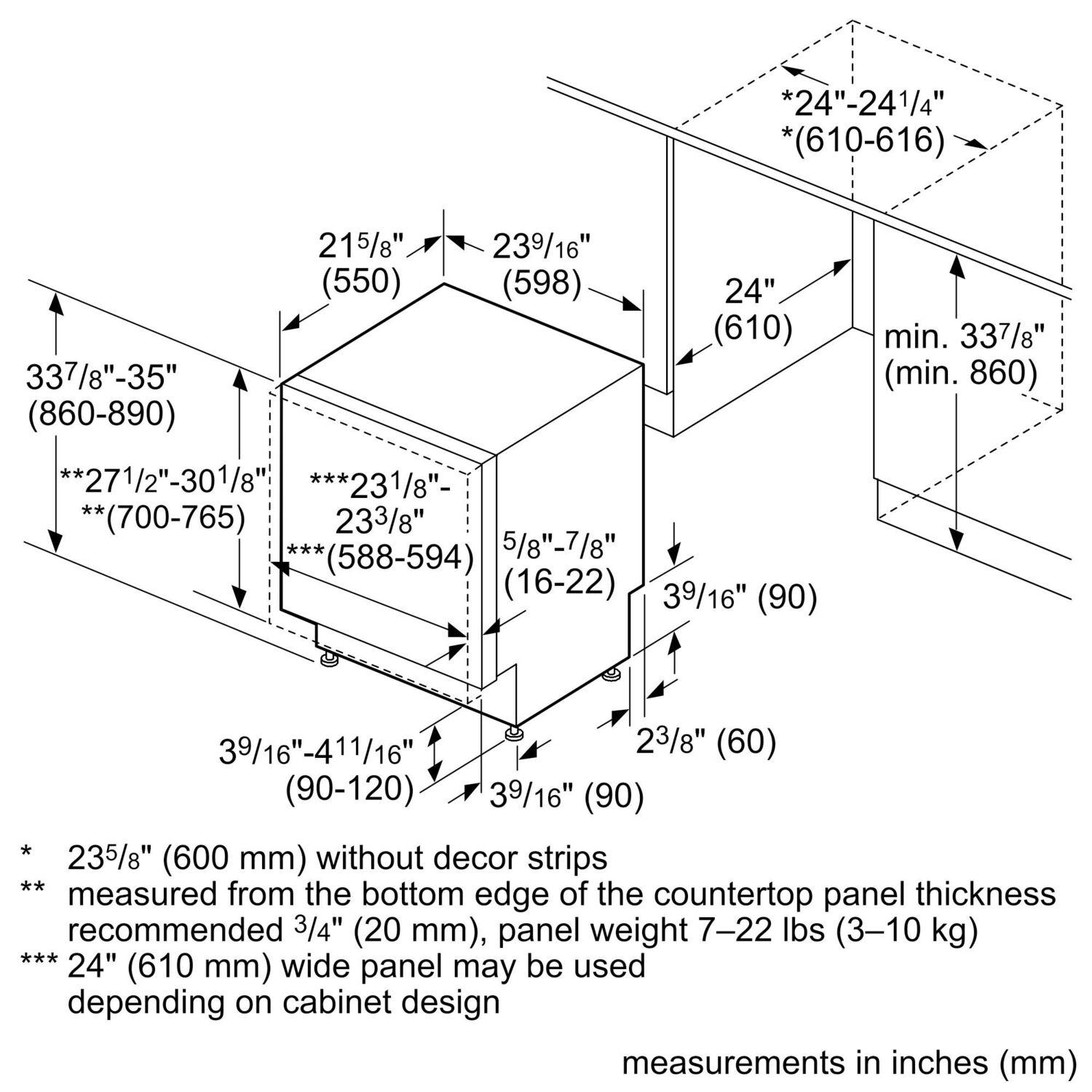

Dimensions & Capacity Width: 23.56"
Height: 33.875"
Depth: 23.75"
- Enhance your cleaning experience with Wi-Fi enabled Home Connect®

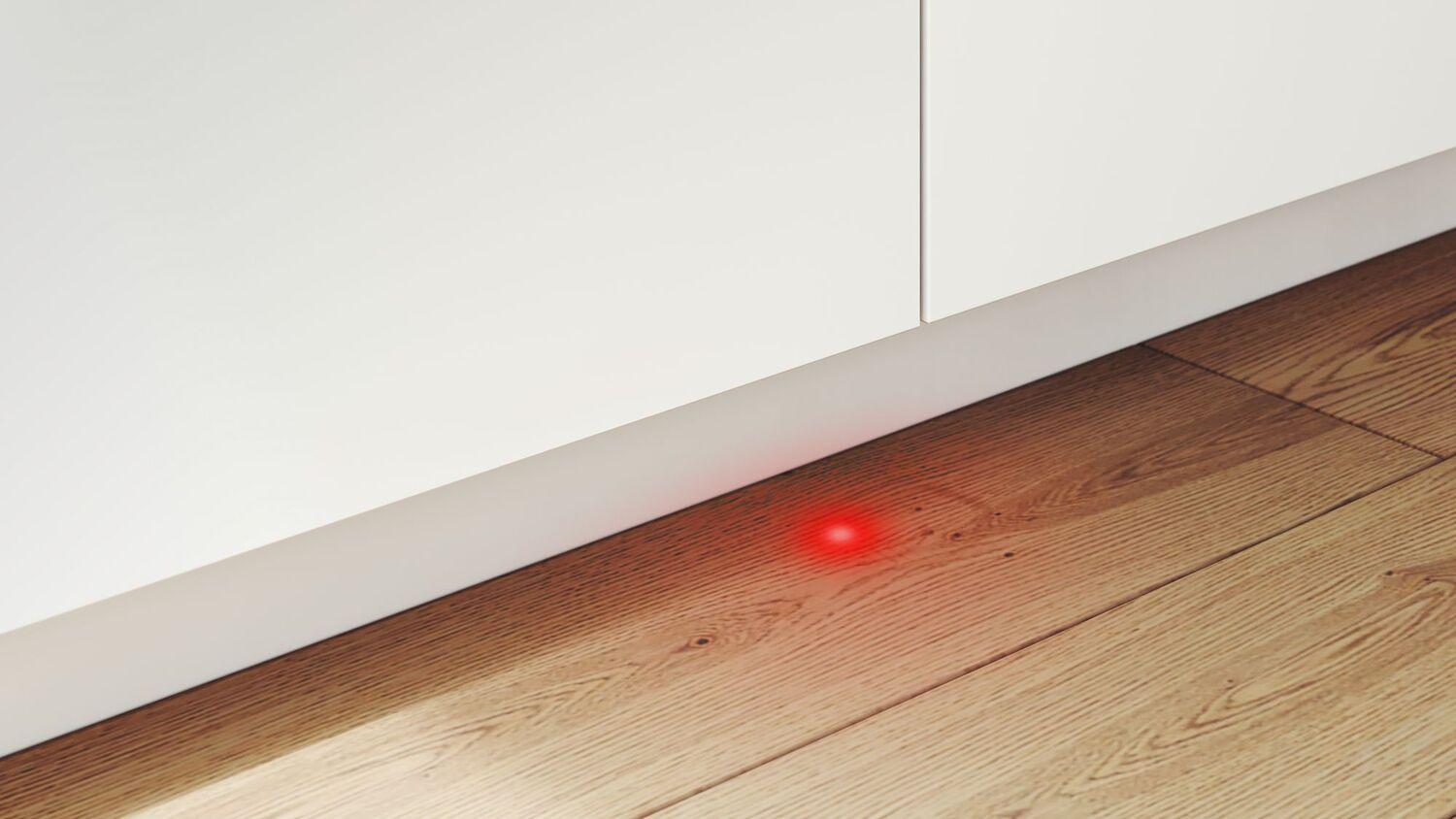

- Know when your dishwasher is running with InfoLight®

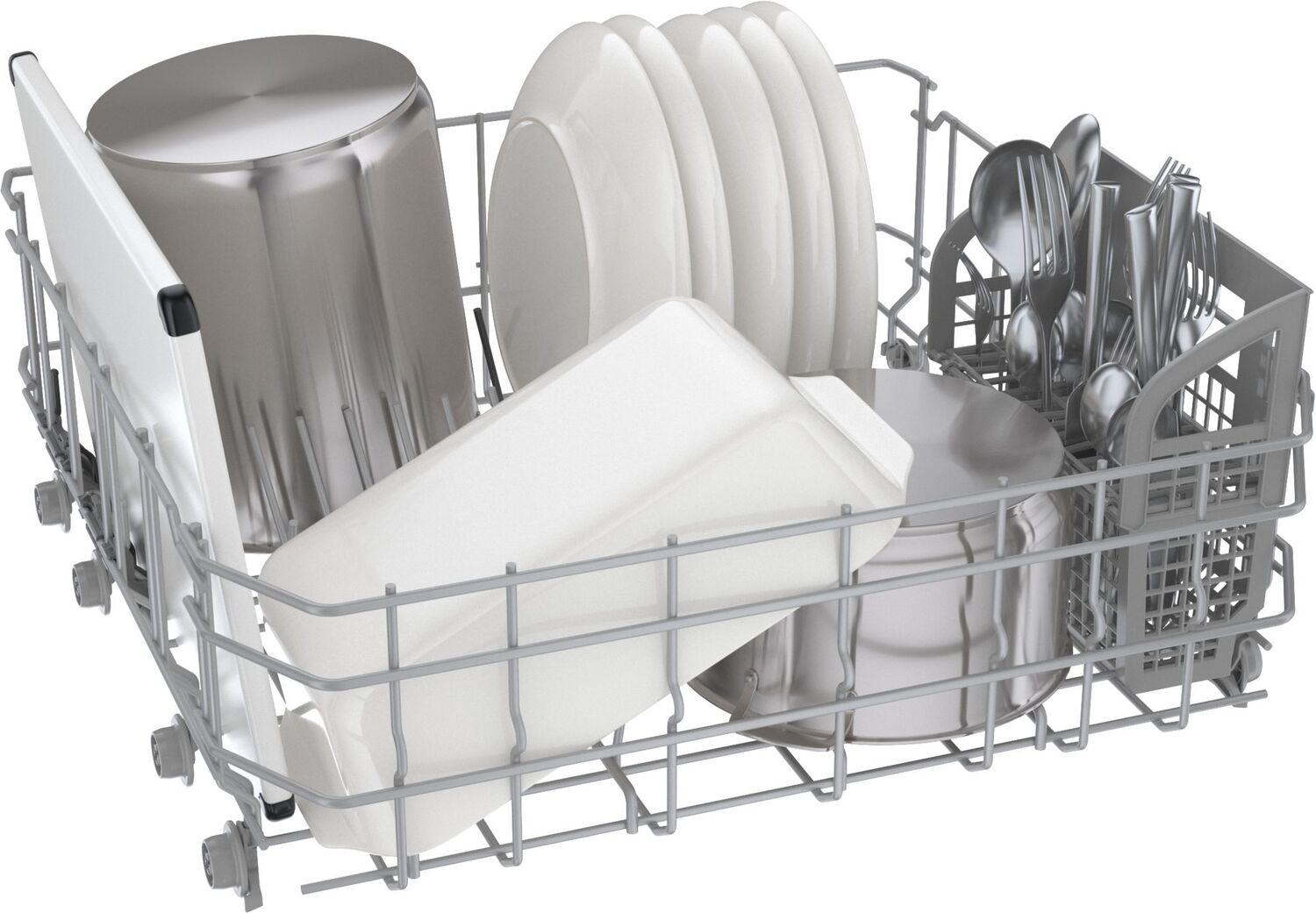

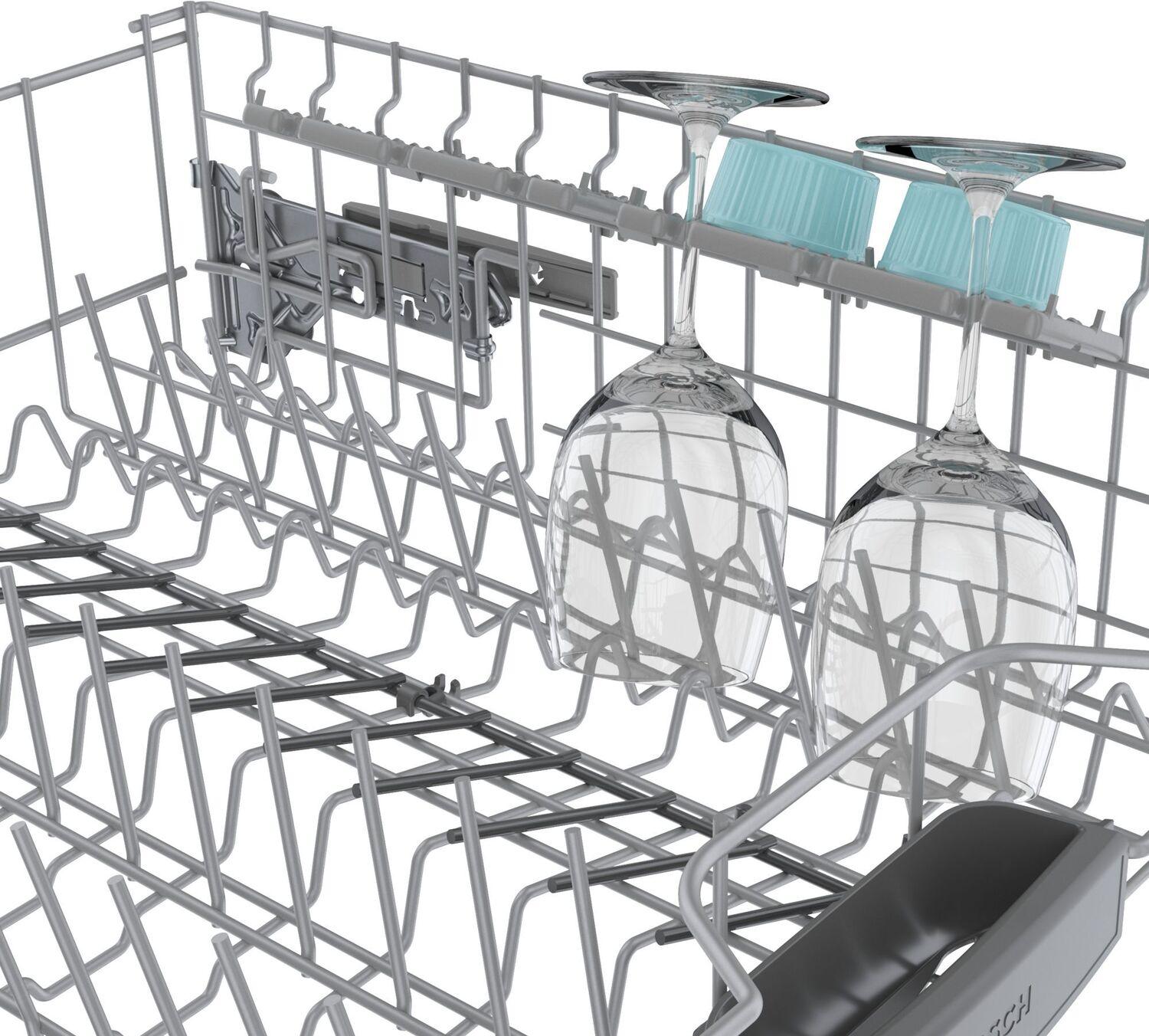

- Fit in tall items with RackMatic®
- 485 quality checks on every dishwasher
- Not just dry, but PureDry®
- A smarter clean with PrecisionWash®
- Protect your kitchen with the 24/7 Overflow Protection System®
- 48 dBA -- the quietest dishwasher brand in the U.S.*
- Enhance your cleaning experience with Wi-Fi enabled Home Connect.

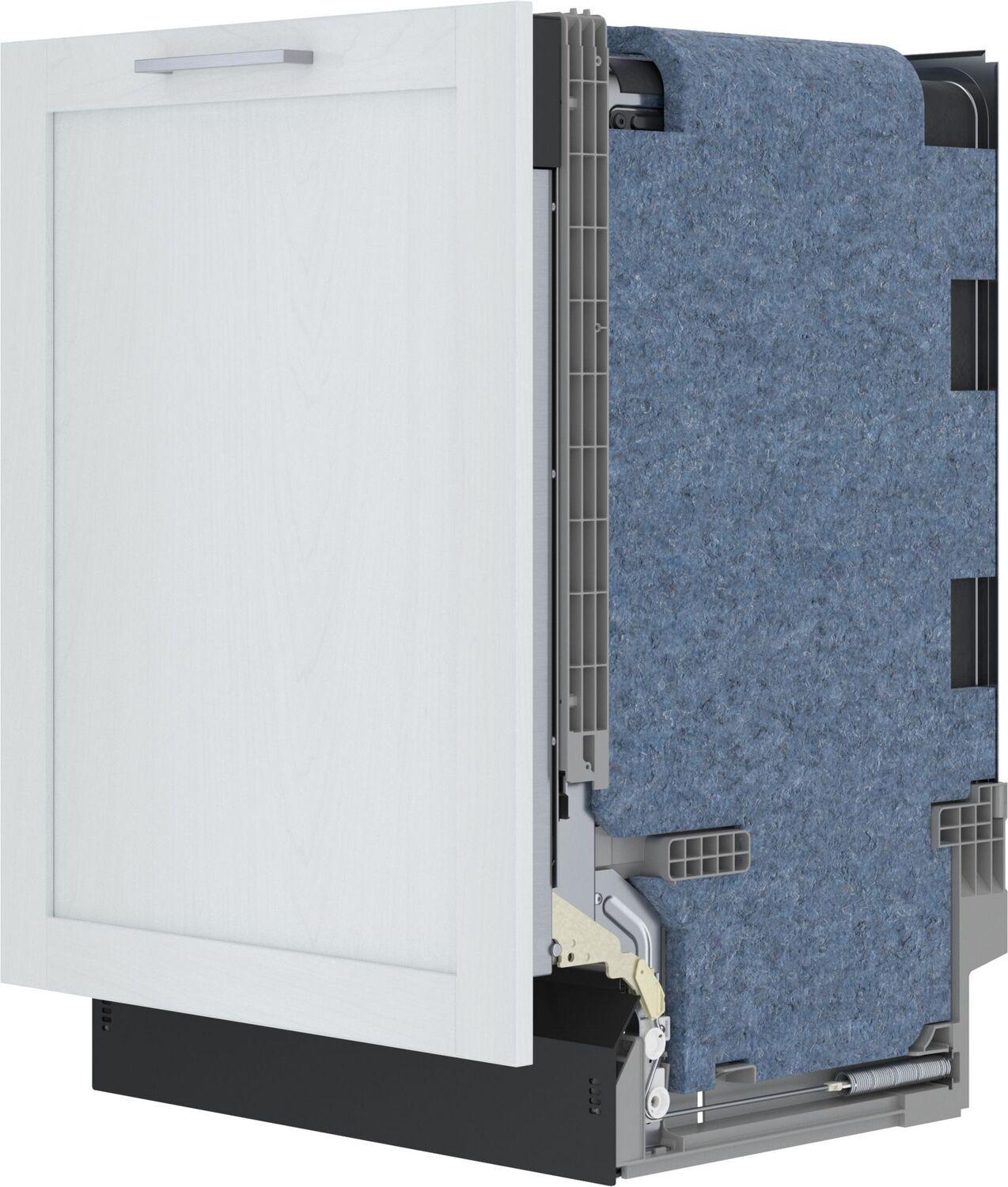

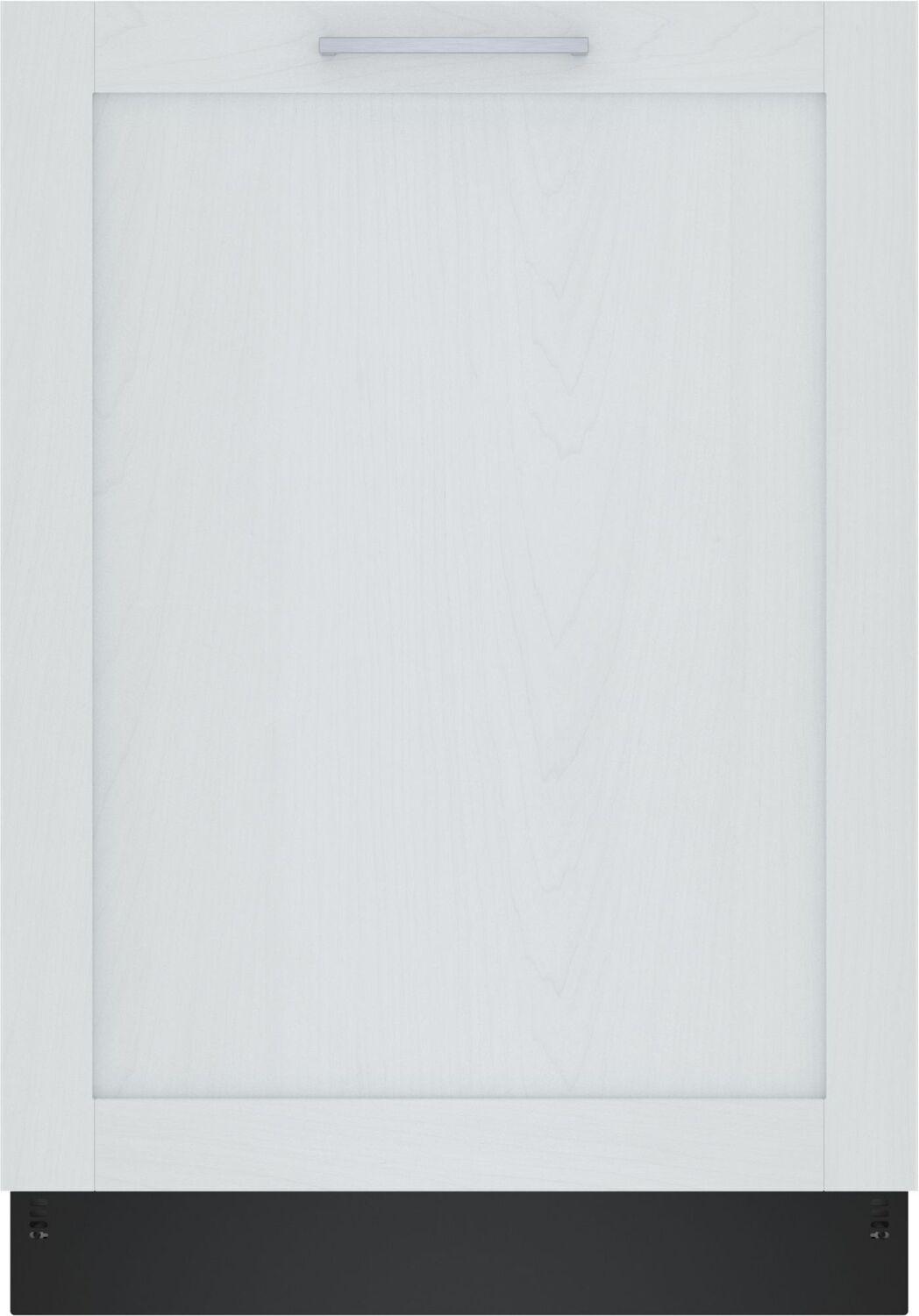

- Custom Panel Dishwashers
| Features and Specifications | |
| General | |
| Appliance Width (in) | 23 9/16 |
| Height | 33 7/8 |
| Installation Type | Full-integrated |
| Number of Place Settings | 14 |

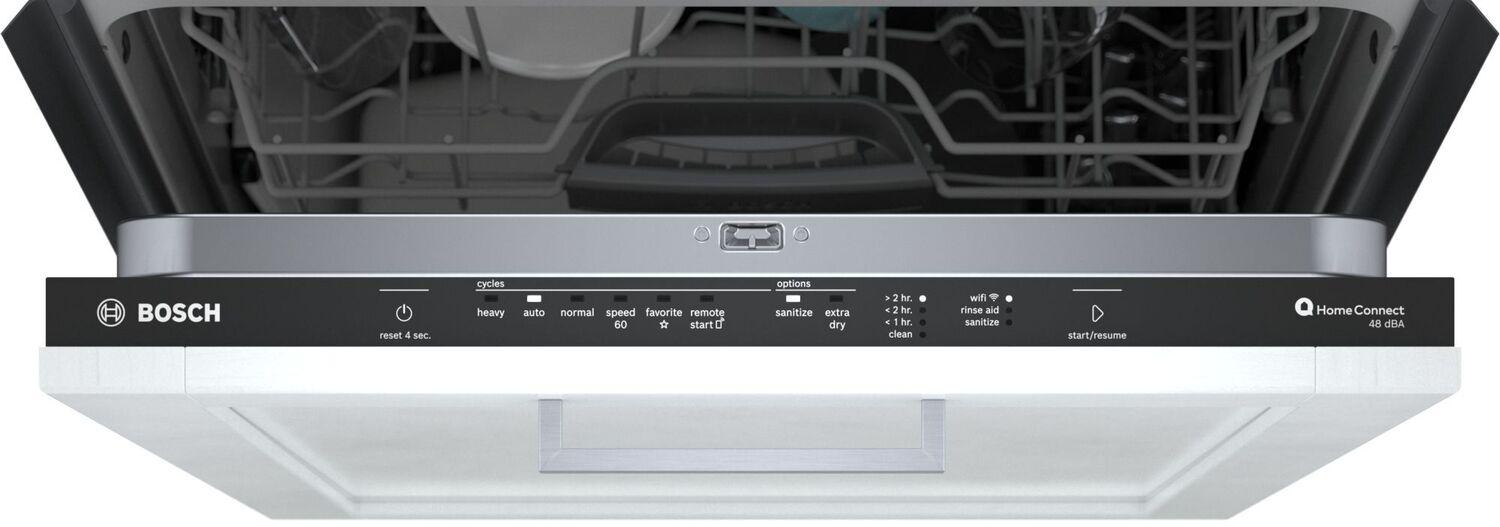

| List of Programs | Favorite, Heavy, Normal, Speed 60 |
| Cycle Options | Extra dry, Remote Start, Sanitize |
| Display | Yes |
| Silence Level | 48 dB(A) re 1 pW |
| 3rd rack | None |
| Interior Light | No |
| Removable top | No |
| Power Cord Length | 67' |
| Connectivity | |
| Home Connect™ | Yes |
| Home Connect Features | Remote Monitoring and Control |
| Size and weight | |
| Overall Appliance Dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 21 5/8' |
| Adjustable plinth | No |
| Net Weight | 73.000 lbs |
| Weight furniture front (min - max) | 3 - 10 kg |
| Programmes | |
| Status indicator | End of program audible, Time remaining indic. internal |
| List of Programs | Favorite, Heavy, Normal, Speed 60 |
| Program 1 | Heavy |
| Program 2 | Auto |
| Program 3 | Normal |
| Program 4 | Speed 60 |
| Program 5 | Favorite |
| Reference program | Eco |
| Number of different wash temperatures | 5 |
| Temperature program 1 | 151-160 °F |
| Temperature program 2 | 131-151 °F |
| Temperature program 3 | 113-131 °F |
| Temperature program 4 | 122 °F |
| Temperature program 5 | 131-151 °F |
| Safety | |
| ChildLock | No |
| Consumption values | |
| Glass protection | No |
| Water consumption program 1 | 4.9-6.4 gal |
| Water consumption program 2 | 3.4-6.3 gal |
| Water consumption program 3 | 2.4-5.5 gal |
| Water consumption program 4 | 3.8 gal |
| Water consumption program 5 | 3.4-6.3 gal |
| Total Annual Water Consumption | 688 gal |
| Maximum temperature for water intake (°C) | 60 °C |
| Connection | |
| Watts | 1,440 W |
| Power Cord Length | 67' |
| Fuse protection | 12 A |
| Plug type | Nema5-15P |
| Construction type | |
| Construction Type | Built-in |
| Drying System | Inherent heat |
| Height | 33 7/8 |
| Concealed heating element | Yes |
| Installation Type | Full-integrated |
| Tub material | Plastic |
| Water Softener | No |
| Appliance Width (in) | 23 9/16 |
Enhance your cleaning experience with Wi-Fi enabled Home Connect®
46 dBA - the quietest dishwasher brand in the U.S.*
A smarter clean with PrecisionWash®
Fit in tall items with RackMatic®
Not just dry, but PureDry®
Prevent leaks with AquaStop®
