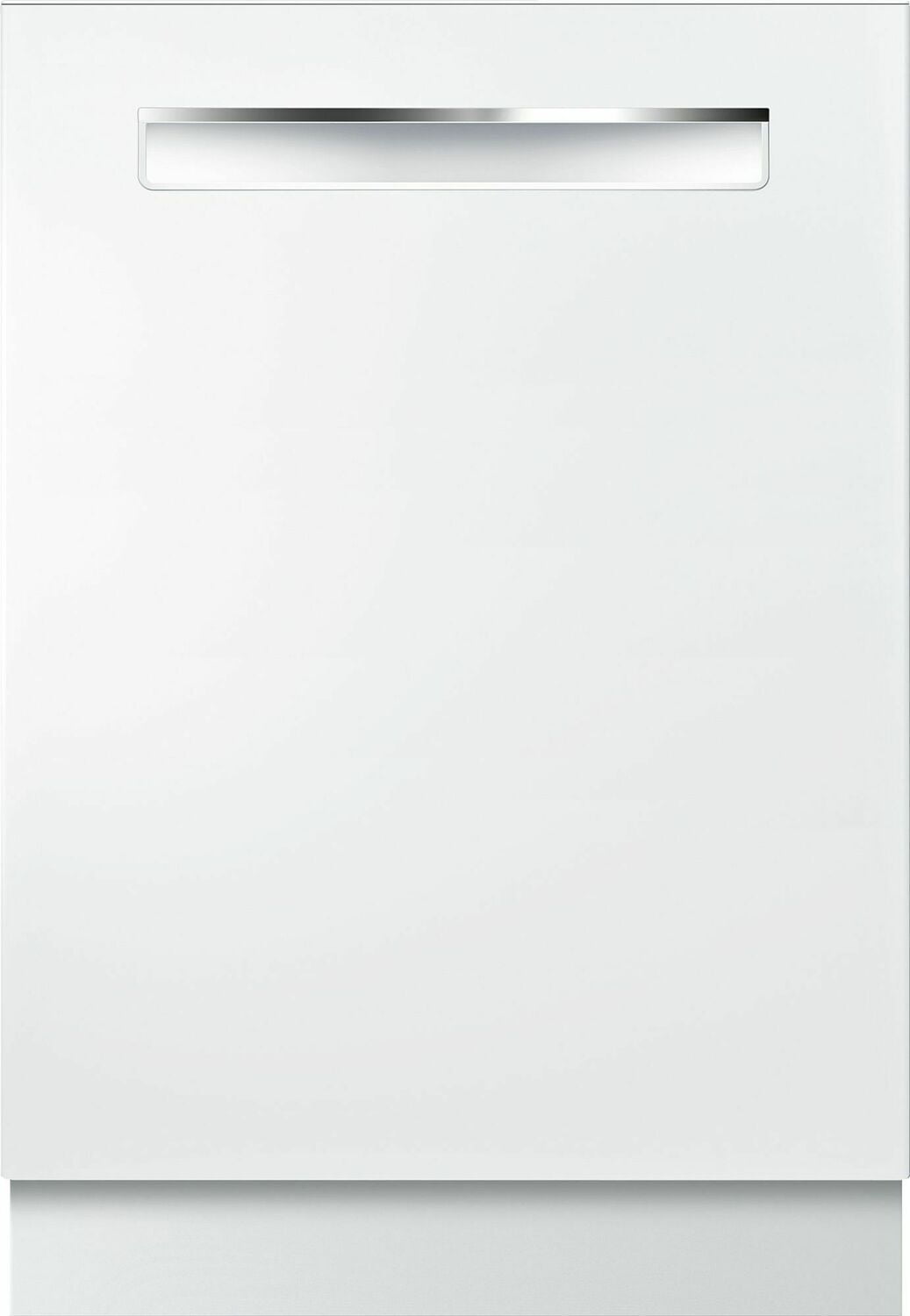

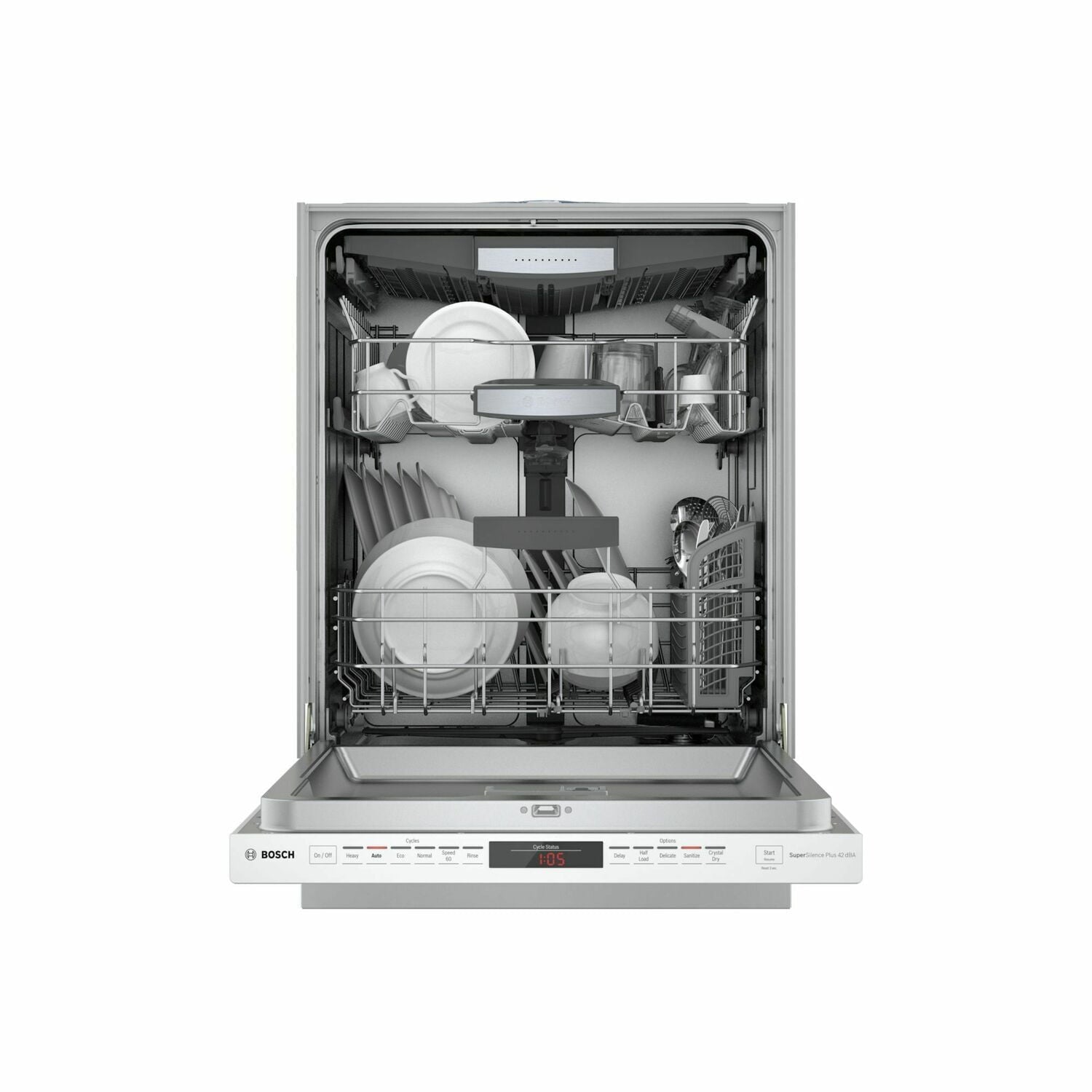

Bosch SHPM78Z52N 800 Series Dishwasher 24'' White, Xxl Shpm78Z52N

Bosch SHPM78Z52N 800 Series Dishwasher 24'' White, Xxl Shpm78Z52N

Patented CrystalDry™ technology transforms moisture into heat to get dishes, including plastics, ... Read more...

Colors:

When Will I Get My Order?

x

THIS ITEM QUALIFIES FOR FREE DELIVERY!

EXTENDED PROTECTION

3 year plan

$120.99

5 year plan

$228.99
Shipping calculated at checkout.

Availability : DISCONTINUED

View full details

When Will I Get My Order?

x

Bosch SHPM78Z52N 800 Series Dishwasher 24'' White, Xxl Shpm78Z52N
Bosch SHPM78Z52N 800 Series Dishwasher 24'' White, Xxl Shpm78Z52N

Rebates &
Promotions

Bosch Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Bosch appliances. Download Valid: 03/07/2024-07/10/2024

CrystalDry™

Patented new CrystalDry™ technology transforms moisture into heat up to 176 F to get dishes 60% drier,* for the ultimate dry. *Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry™ on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry™. Drying performance may vary by dish type.

AquaStop®

Our 24/7 AquaStop® system contains leaks through a precisely engineered tub and a solid molded base. Sensors detect leaks and pump out water, even when the system is off. So you never have to worry about leaks whether you're at home or away.

RackMatic®

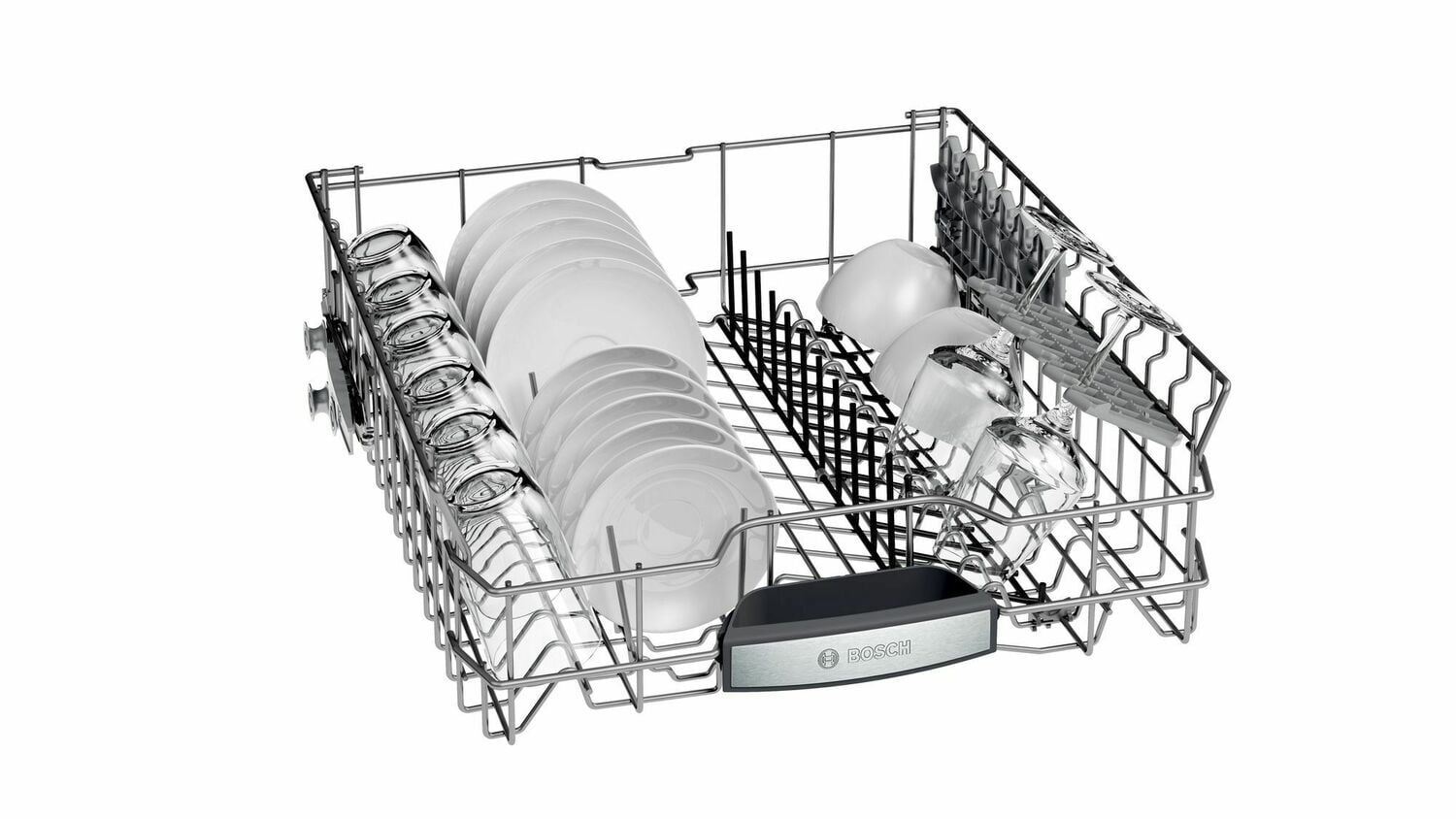

RackMatic® adjustable upper rack easily adjusts to 9 different positions to allow taller items like stemware to fit in the middle rack while leaving room for pots and pans below.

When your dishes are done, so are you

With Bosch PrecisionWash®, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.

Quality is in the details

Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.

AquaStop® Plus

A leak is the last thing you want to happen to your kitchen floors. AquaStop® Plus features additional sensors to ensure that any potential leaks are quickly detected and contained.

The dishwasher that removes more than food

The Sanitize option provides you with a thorough, hygienic clean, wash after wash. It can be selected with many wash programs and increases the final rinse temperature to remove remaining bacteria.

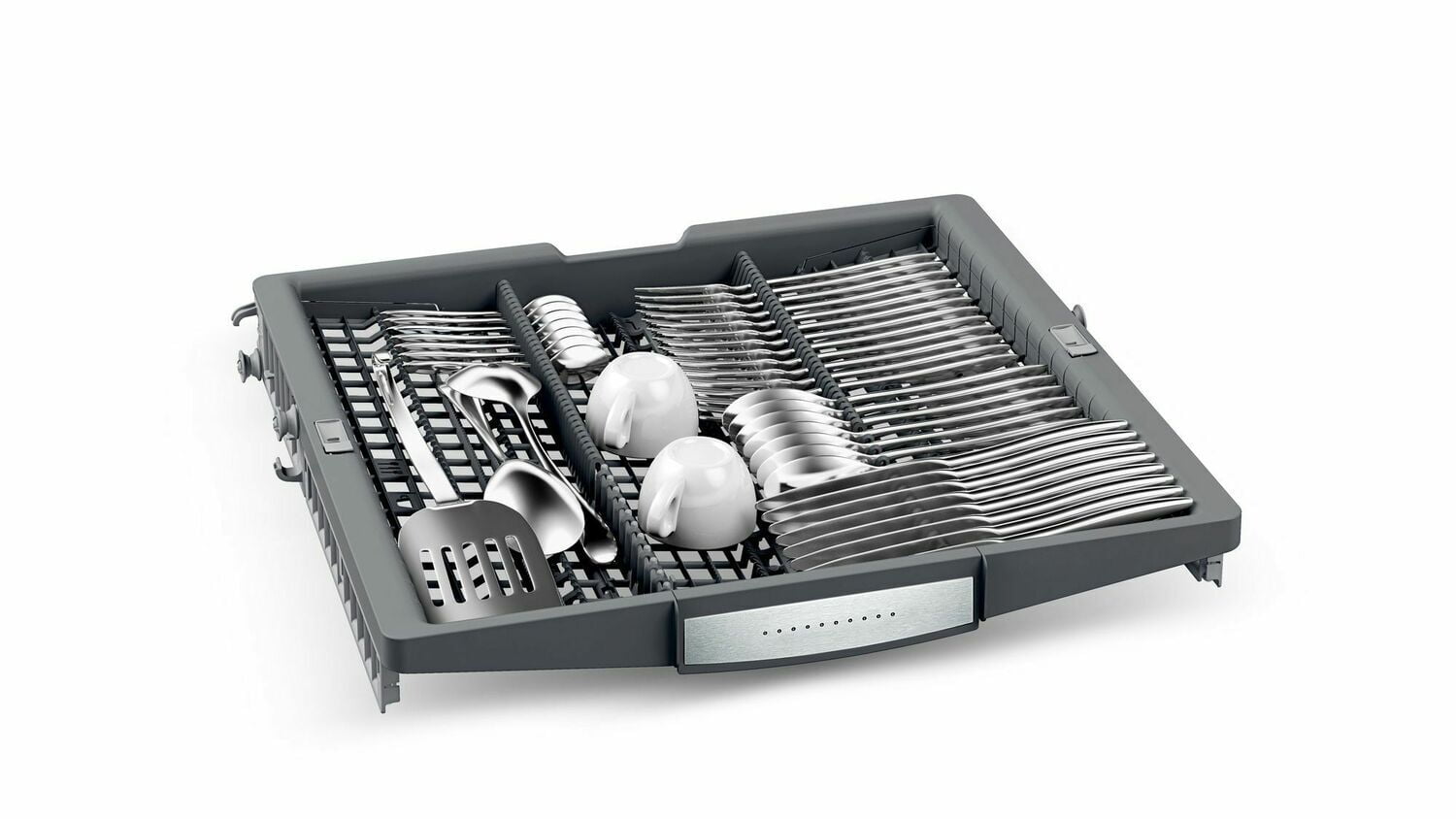

Flexible 3rd Rack

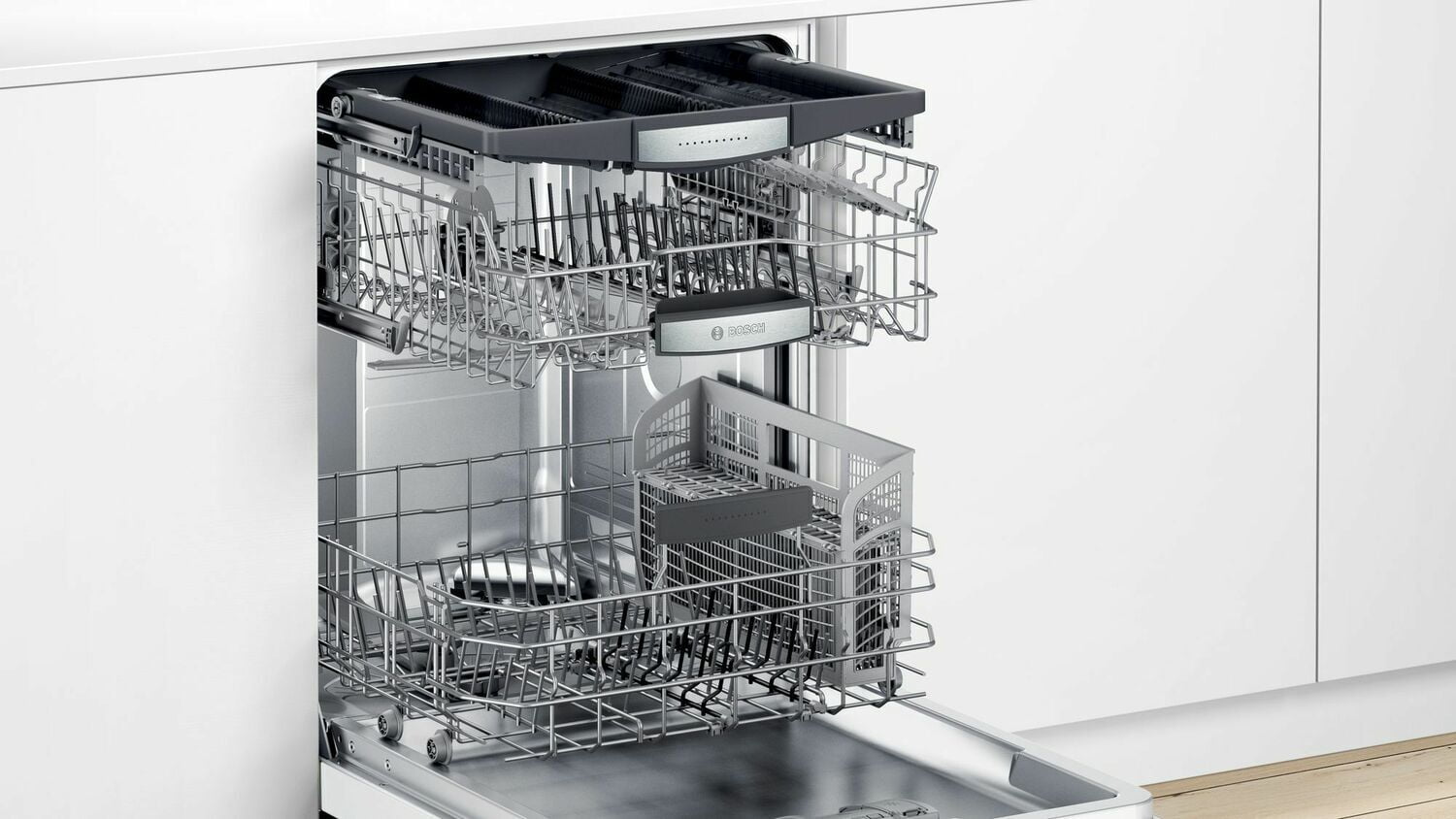

Our Flexible third rack features expandable wings that easily lower to accommodate more of your deeper items, while adjustable tines let you customize the rack’s loading space to fit awkward bulky items.

24h Delay Start Timer

Have your dishwasher start when you want it to. Delay Start delays the dishwasher's start time by up to 24 hours. 24h Delay Start Timer lets you run your dishwasher at off-peak times.

The quietest dishwasher brand in the U.S.*

Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2019.

InfoLight®

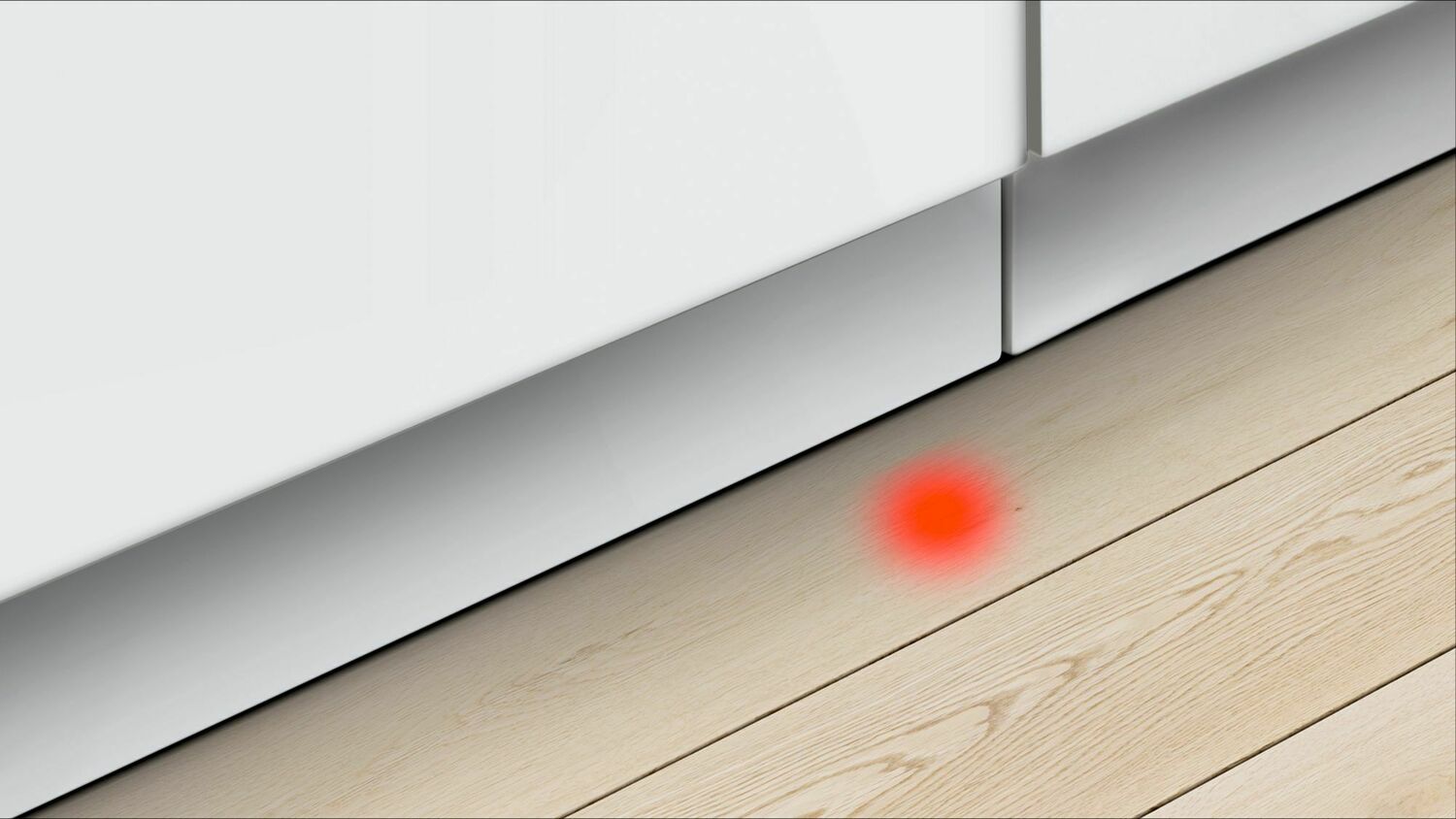

A light that tells you when your dishwasher is running. InfoLight® projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready.

When you don't have a full load of dishes

The Half Load Option reduces cycle time and water consumption so you conserve water when you only need to wash small, lightly soiled loads that fill half or less of the dishwasher's capacity.


Patented CrystalDry™ technology transforms moisture into heat to get dishes, including plastics, 60% drier. Key Features A flexible 3rd rack with fold down sides adds 30% more loading area

InfoLight® Beams on Floor to Indicate Dishwasher is Running

RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions

AquaStop® Leak Protection Works 24/7 Design Full Size Stainless Steel Tall Tub Installs Perfectly Flush

16 Place Setting Capacity

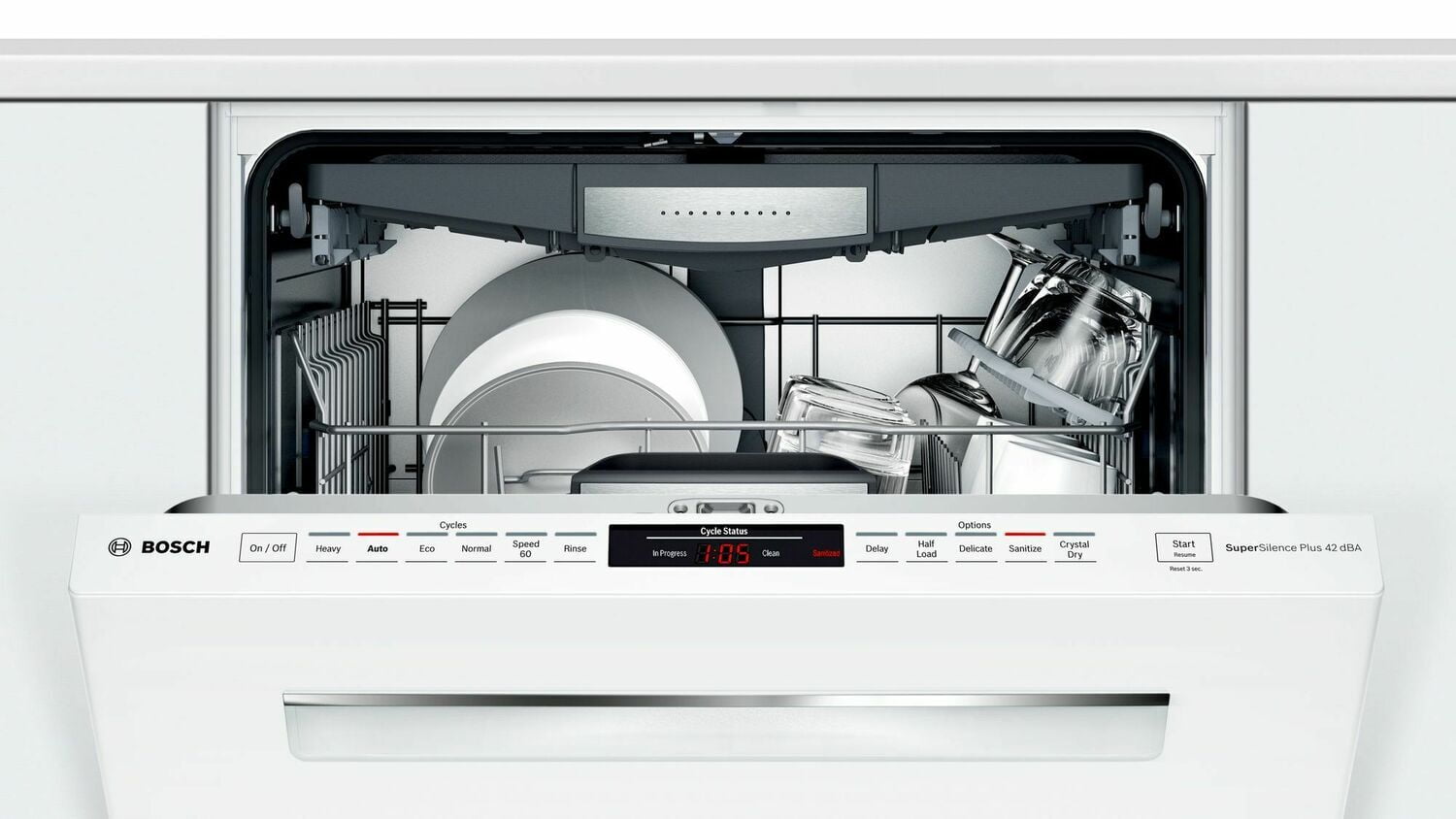

LED Remaining Time Display Performance 6 Programs and 5 Options

Detergent Tray Optimizes Detergent Dissolving

Speed60® gets your dishes from dirty to dry in about an hour

Extra Dry Option for Better Drying Results

Load Size Sensor Automates Wash Temperature

Sanitize Option Eliminates Bacteria and Enhances Drying Results Efficiency 269 kWh/yr - Energy Star® Convenience 24 h Delay Start Timer

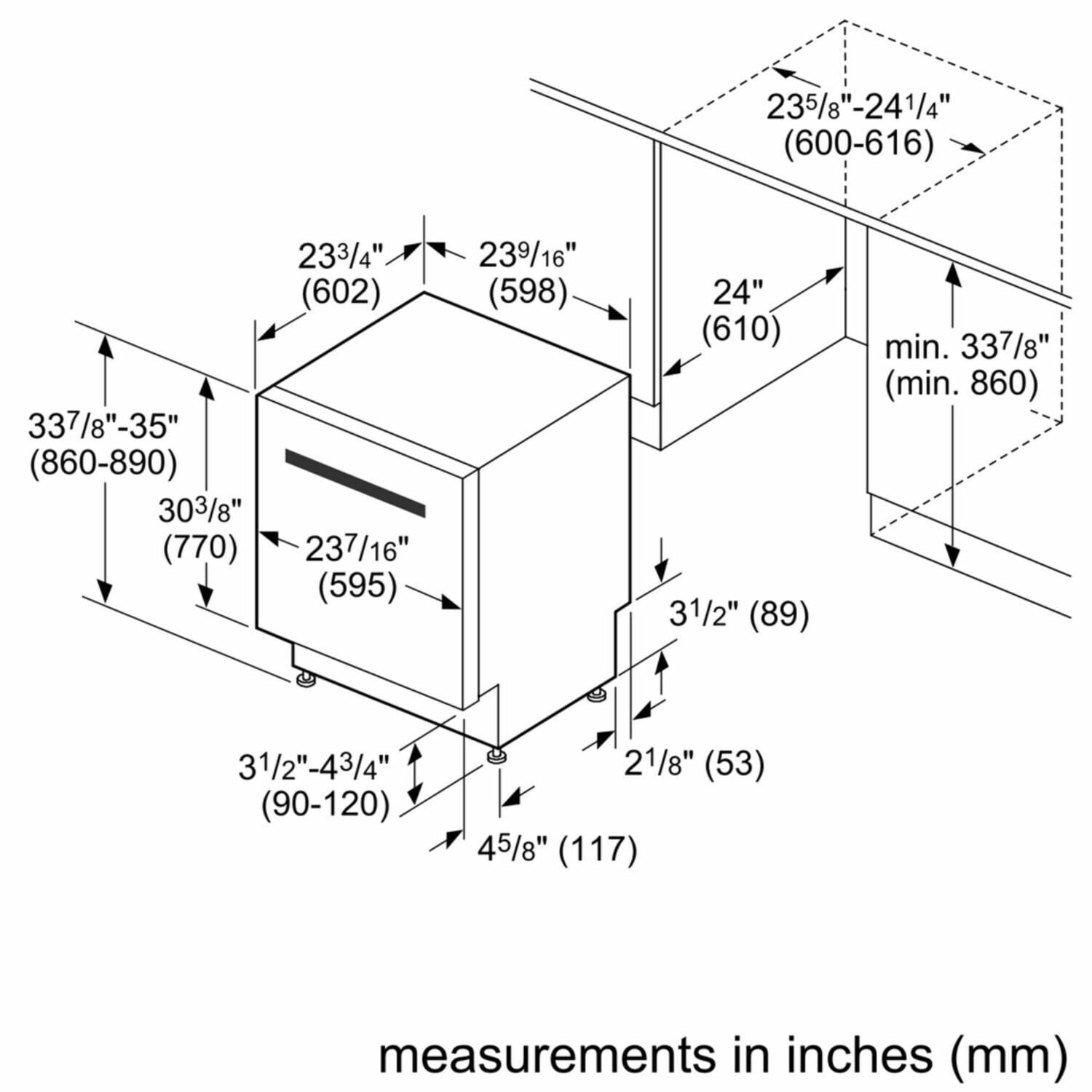

Self-Latching Door Dimensions & Capacity Width: 23 9/16"
Height: 33 7/8"
Depth: 23 3/4”

  • 16 Place Settings
  • Silent Operation: 42 dBA
  • 6 Programs
  • 5 Functions
  • PrecisionWash®
  • AquaStop®
  • Rackmatic®
  • CrystalDry™
  • Five-level wash
  • InfoLight®
  • Flexible 3rd Rack
  • Stainless steel tub
  • ENERGY STAR® Certified

Technical Specifications
General
Installation Type Built-under
Number of place settings 16
List of programmes Auto 53-60°C, Delicate, Economy, Intensive, Pre-Rinse, Quick L
Cycle Options Chrystal Protect, half load, HygienePlus, Zeo Dry
Display
Silence level (dBA) 42
Third Rack Flexible Third Rack
Interior Light
Removable top
Power Cord Length 67''
Connectivity
Home Connect
Connectivity type Not applicable
Size and weight
Overall appliance dimensions (HxWxD) (in) 33 7/8'' x 23 9/16'' x 23 3/4''
Adjustable plinth
Net weight (lbs) 95 lbs
Programmes
Status indicator End of program audible, InfoLight red, sanitized LED US, Time remaining indic. internal
List of programmes Auto 53-60°C, Delicate, Economy, Intensive, Pre-Rinse, Quick L
Program 1 Intensive
Program 2 Auto
Program 4 Economy
Program 6 Pre Rinse
Programme duration, programme1 (min.) 110-135
Programme duration, programme2 (min.) 105-129
Programme duration, programme3 (min.) 75-85
Programme duration, programme4 (min.) 130-135
Programme duration, programme5 (min.) 65
Programme duration, programme6 (min.) 9
Reference programme Eco
Temperature program 1 151-160 °F
Temperature program 2 127-140 °F
Temperature program 3 113-122 °F
Temperature program 4 113-131 °F
Temperature program 5 122 °F
Safety
Glass protection
Surge-back protect. installed
Leak protection system Aqua Stop
Consumption values
Glass protection
Water consumption program 1 4.9-6.4 gal
Water consumption program 2 3.4-6.4 gal
Water consumption program 3 2.4-3.9 gal
Water consumption program 4 2.4-5.5 gal
Water consumption program 5 3.8 gal
Water consumption program 6 1.1 gal
Total annual water consumption (g) 624 gallons
Maximum temperature for water intake (°C) 60 °C
Connection
Watts (W) 1,440 W
Power Cord Length 67''
Current (A) 12 A
Plug type Nema5-15P
Construction type
Color / Material housing Lacquered
Color / Control Panel Black
Construction type Built-in
Panel ready Not possible
Concealed heating element
Installation Type Built-under
Tub material Stainless steel
Water Softener

CrystalDry™

RackMatic™

Aquastop®

PrecisionWash™
