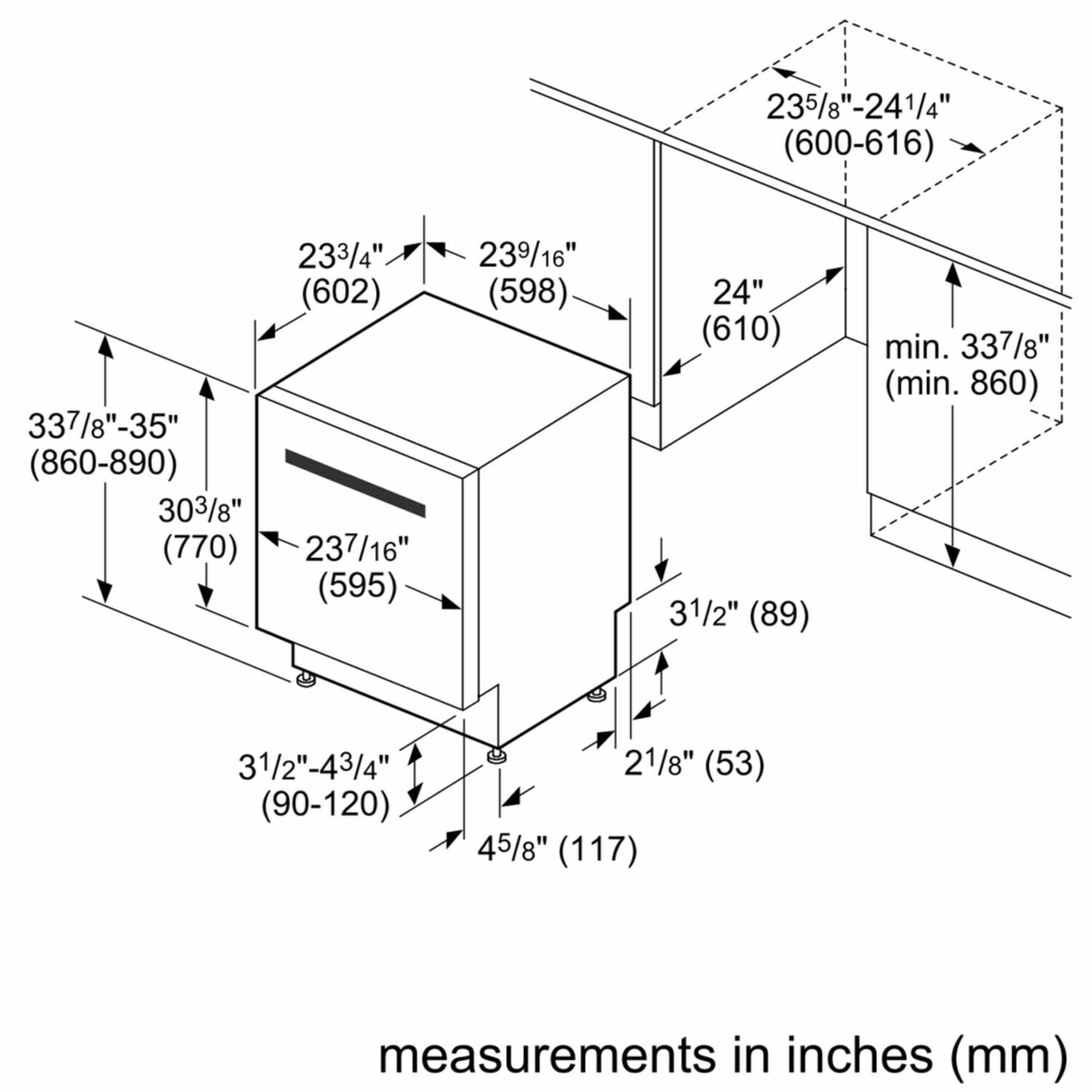

Dimensions
width
23 9/16""height
33 7/8""depth

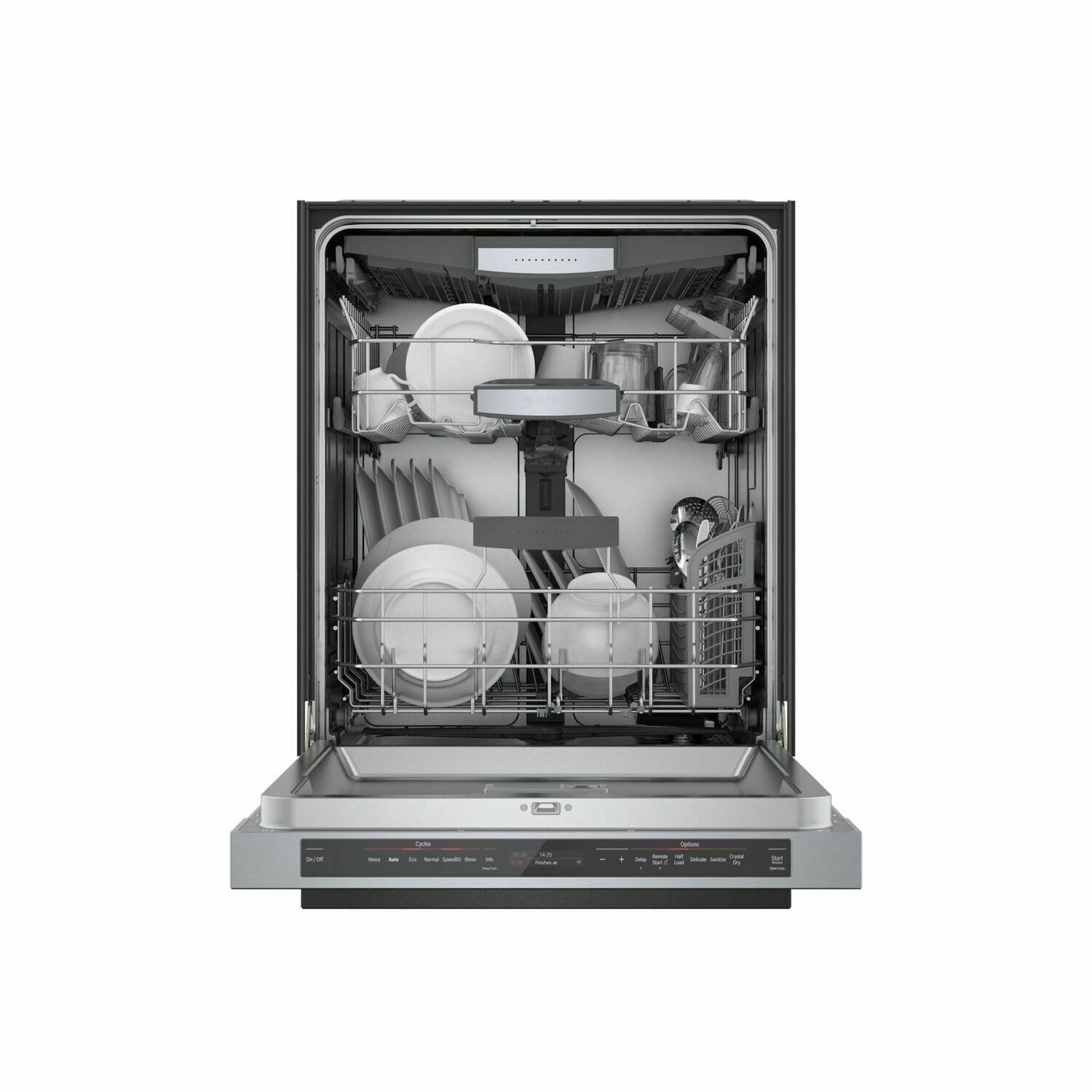

23 3/4""RackMatic Adjustable Upper Rack

The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
Master your day with Home Connect

With Home Connect , you can receive notifications once your dishwasher's cycle is complete, when it begins to run low on detergent tabs, or if there's ever a leak that occurs.
When your dishes are done, so are you.

With Bosch PrecisionWash , intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
Quality is in the details.

Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.
The ultimate dry with CrystalDry , including plastics.

Patented new CrystalDry technology transforms moisture into heat up to 176 F to get dishes 60% drier,* for the ultimate dry. *Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry . Drying performance may vary by dish type.
The dishwasher that removes more than food.

The Sanitize option provides you with a thorough, hygienic clean, wash after wash. It can be selected with many wash programs and increases the final rinse temperature to remove remaining bacteria.
The quietest dishwasher brand in the U.S.*

Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2019.
Flexible 3rd Rack

Our Flexible 3rd Rack features expandable wings that easily lower to accommodate more of your deeper items while adjustable tines let you customize the rack's loading space to fit awkward bulky items.
Standard Silverware Basket

The silverware basket is removable and is perfect for loading utensils and cutlery.

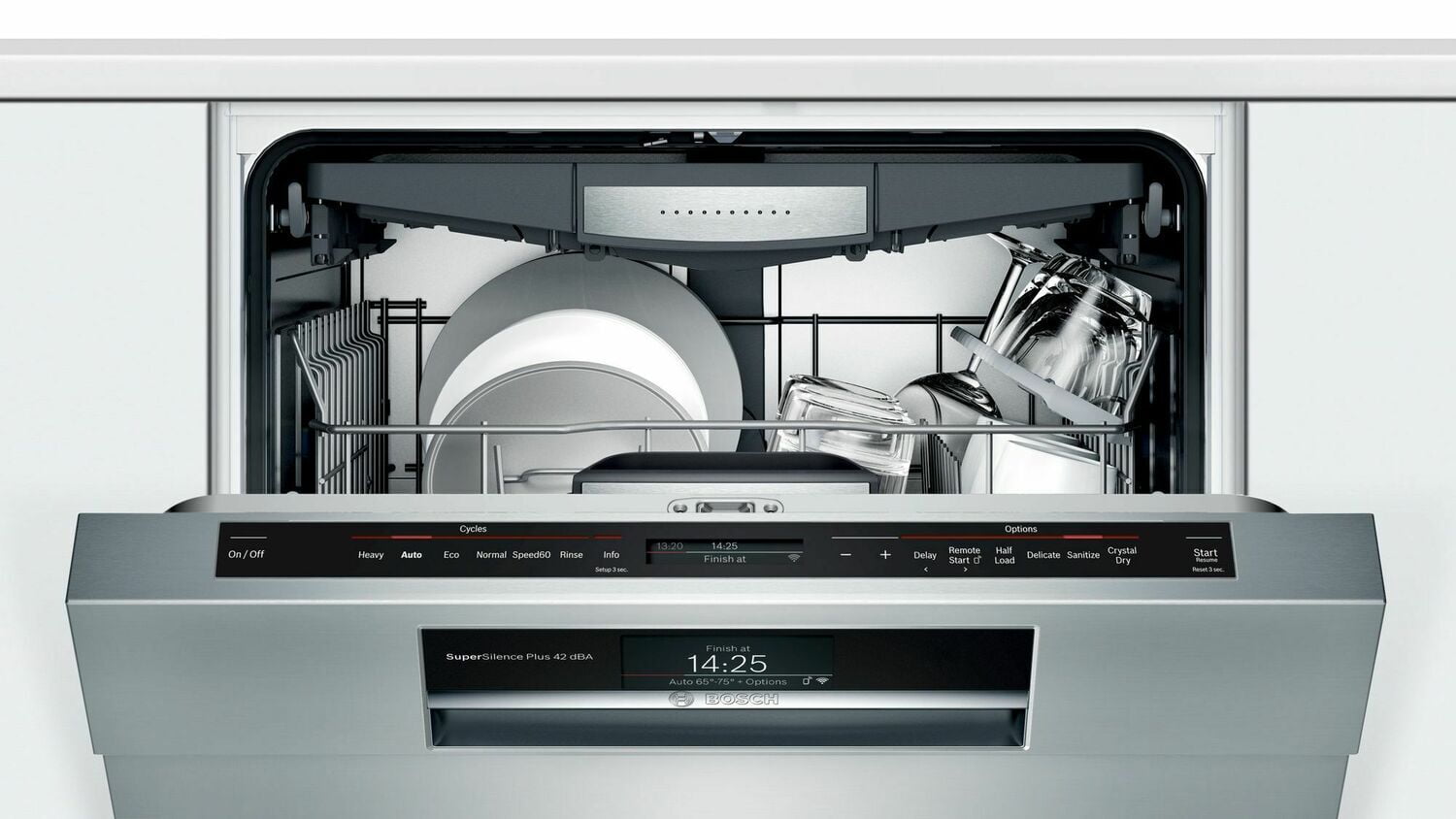

TFT Display

Our high definition color TFT display features extra sharp images and large, easy-to-read text. It provides cycle status information and maintenance reminders.
- Key Features
- A flexible 3rd rack with fold down sides adds 30% more loading area.
- AquaStop(R) Plus 4-Part Leak Protection Works 24/7
- Design
- Full Size Stainless Steel Tall Tub Installs Perfectly Flush
- 16 Place Setting Capacity
- LED Remaining Time Display
- RackMatic(R) on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
- Performance
- 7 programs and 7 options
- Detergent Tray Optimizes Detergent Dissolving
- Speed60(R) gets your dishes from dirty to dry in about an hour.
- Extra Dry Option for Better Drying Results
- Load Size Sensor Automates Wash Temperature
- Sanitize Option Eliminates Bacteria and Enhances Drying Results
- Efficiency
- 269 kWh/yr - Energy Star(R)
- Convenience
- 24 h Delay Start Timer
- Self-Latching Door
Technical Specifications | |
General | |
Installation Type | Built-under |
Number of place settings | 16 |
List of programs | Auto 53-60°C, Delicate, Economy, Heavy, Rinse, Speed 60 |
Cycle Options | Crystal Dry, Delicate, half load, Remote Start, Sanitize |
Display | |
Silence level (dBA) | 42 |
Third Rack | Flexible Third Rack |
Interior Light | |
Removable top | |
Power Cord Length | 67' |
Connectivity | |
Home Connect | |
Home Connect Features | iService Remote, Remote Monitoring and Control |
Connectivity type | Wi-Fi |
Size and weight | |
Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 3/4'' |
Adjustable plinth | |
Net weight (lbs) | 100.000 |
Programmes | |
Status indicator | End of program audible, sanitized LED US, TFT Display front, water inlet |
List of programs | Auto 53-60°C, Delicate, Economy, Heavy, Rinse, Speed 60 |
Program 1 | Heavy |
Program 2 | Auto |
Program 4 | Economy |
Program 6 | Rinse |
Programme duration, programme1 (min.) | 110-135 |
Programme duration, programme2 (min.) | 105-129 |
Programme duration, programme3 (min.) | 75-85 |
Programme duration, programme4 (min.) | 130-135 |
Programme duration, programme5 (min.) | 65 |
Programme duration, programme6 (min.) | 9 |
Reference programme | Eco |
Temperature program 1 | 151-160 |
Temperature program 2 | 127-140 |
Temperature program 3 | 113-122 |
Temperature program 4 | 113-131 |
Temperature program 5 | 122 |
Safety | |
Glass protection | |
Surge-back protect. installed | |
Leak protection system | Aqua Stop |
Consumption values | |
Glass protection | |
Water consumption program 1 | 4.9-6.4 |
Water consumption program 2 | 3.4-6.4 |
Water consumption program 3 | 2.4-3.9 |
Water consumption program 4 | 2.4-5.5 |
Water consumption program 5 | 3.8 |
Water consumption program 6 | 1.1 |
Total annual water consumption (g) | 624 |
Maximum temperature for water intake (°C) | 60 |
Connection | |
Watts (W) | 1,440 |
Power Cord Length | 67' |
Current (A) | 12 |
Plug type | Nema5-15P |
Construction type | |
Color / Material housing | Lacquered |
Color / Control Panel | Stainless steel |
Construction type | Built-in |
Panel ready | Not possible |
Concealed heating element | |
Installation Type | Built-under |
Tub material | Stainless steel |
Water Softener |
Brand Quality Video

Brand Anthem Video
Bosch & Curtis Stone Intro Video

Curtis Stone Dinner and Dishes Dinner Party Video
Loading Flexibility Dishwasher Video
PrecisionWash/Wash Performance Video
Quiet Video
Leak protection Video
Dish Quality Video

Overview
RackMatic Adjustable Upper Rack

The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
Master your day with Home Connect

With Home Connect , you can receive notifications once your dishwasher's cycle is complete, when it begins to run low on detergent tabs, or if there's ever a leak that occurs.
When your dishes are done, so are you.

With Bosch PrecisionWash , intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
Quality is in the details.

Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.
The ultimate dry with CrystalDry , including plastics.

Patented new CrystalDry technology transforms moisture into heat up to 176 F to get dishes 60% drier,* for the ultimate dry. *Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry . Drying performance may vary by dish type.
The dishwasher that removes more than food.

The Sanitize option provides you with a thorough, hygienic clean, wash after wash. It can be selected with many wash programs and increases the final rinse temperature to remove remaining bacteria.
The quietest dishwasher brand in the U.S.*

Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2019.
Flexible 3rd Rack

Our Flexible 3rd Rack features expandable wings that easily lower to accommodate more of your deeper items while adjustable tines let you customize the rack's loading space to fit awkward bulky items.
Standard Silverware Basket

The silverware basket is removable and is perfect for loading utensils and cutlery.
TFT Display

Our high definition color TFT display features extra sharp images and large, easy-to-read text. It provides cycle status information and maintenance reminders.
Description
Features
- The ultimate dry with CrystalDry , including plastics.
- 42 dBA: Quietest Dishwasher Brand in the U.S.
- Home Connect allows access to your dishwasher via a smart phone or tablet.
- A flexible 3rd rack with fold down sides adds 30% more loading capacity.
- 24h Delay Start Timer lets you run your dishwasher at off-peak times.
Specifications
Technical Specifications | |
General | |
Installation Type | Built-under |
Number of place settings | 16 |
List of programs | Auto 53-60°C, Delicate, Economy, Heavy, Rinse, Speed 60 |
Cycle Options | Crystal Dry, Delicate, half load, Remote Start, Sanitize |
Display | |
Silence level (dBA) | 42 |
Third Rack | Flexible Third Rack |
Interior Light | |
Removable top | |
Power Cord Length | 67' |
Connectivity | |
Home Connect | |
Home Connect Features | iService Remote, Remote Monitoring and Control |
Connectivity type | Wi-Fi |
Size and weight | |
Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 3/4'' |
Adjustable plinth | |
Net weight (lbs) | 100.000 |
Programmes | |
Status indicator | End of program audible, sanitized LED US, TFT Display front, water inlet |
List of programs | Auto 53-60°C, Delicate, Economy, Heavy, Rinse, Speed 60 |
Program 1 | Heavy |
Program 2 | Auto |
Program 4 | Economy |
Program 6 | Rinse |
Programme duration, programme1 (min.) | 110-135 |
Programme duration, programme2 (min.) | 105-129 |
Programme duration, programme3 (min.) | 75-85 |
Programme duration, programme4 (min.) | 130-135 |
Programme duration, programme5 (min.) | 65 |
Programme duration, programme6 (min.) | 9 |
Reference programme | Eco |
Temperature program 1 | 151-160 |
Temperature program 2 | 127-140 |
Temperature program 3 | 113-122 |
Temperature program 4 | 113-131 |
Temperature program 5 | 122 |
Safety | |
Glass protection | |
Surge-back protect. installed | |
Leak protection system | Aqua Stop |
Consumption values | |
Glass protection | |
Water consumption program 1 | 4.9-6.4 |
Water consumption program 2 | 3.4-6.4 |
Water consumption program 3 | 2.4-3.9 |
Water consumption program 4 | 2.4-5.5 |
Water consumption program 5 | 3.8 |
Water consumption program 6 | 1.1 |
Total annual water consumption (g) | 624 |
Maximum temperature for water intake (°C) | 60 |
Connection | |
Watts (W) | 1,440 |
Power Cord Length | 67' |
Current (A) | 12 |
Plug type | Nema5-15P |
Construction type | |
Color / Material housing | Lacquered |
Color / Control Panel | Stainless steel |
Construction type | Built-in |
Panel ready | Not possible |
Concealed heating element | |
Installation Type | Built-under |
Tub material | Stainless steel |
Water Softener |
Videos
Brand Quality Video

Brand Anthem Video
Bosch & Curtis Stone Intro Video

Curtis Stone Dinner and Dishes Dinner Party Video
Loading Flexibility Dishwasher Video
PrecisionWash/Wash Performance Video
Quiet Video
Leak protection Video
Dish Quality Video

Manuals / Guides
Reviews
Your Selected Items

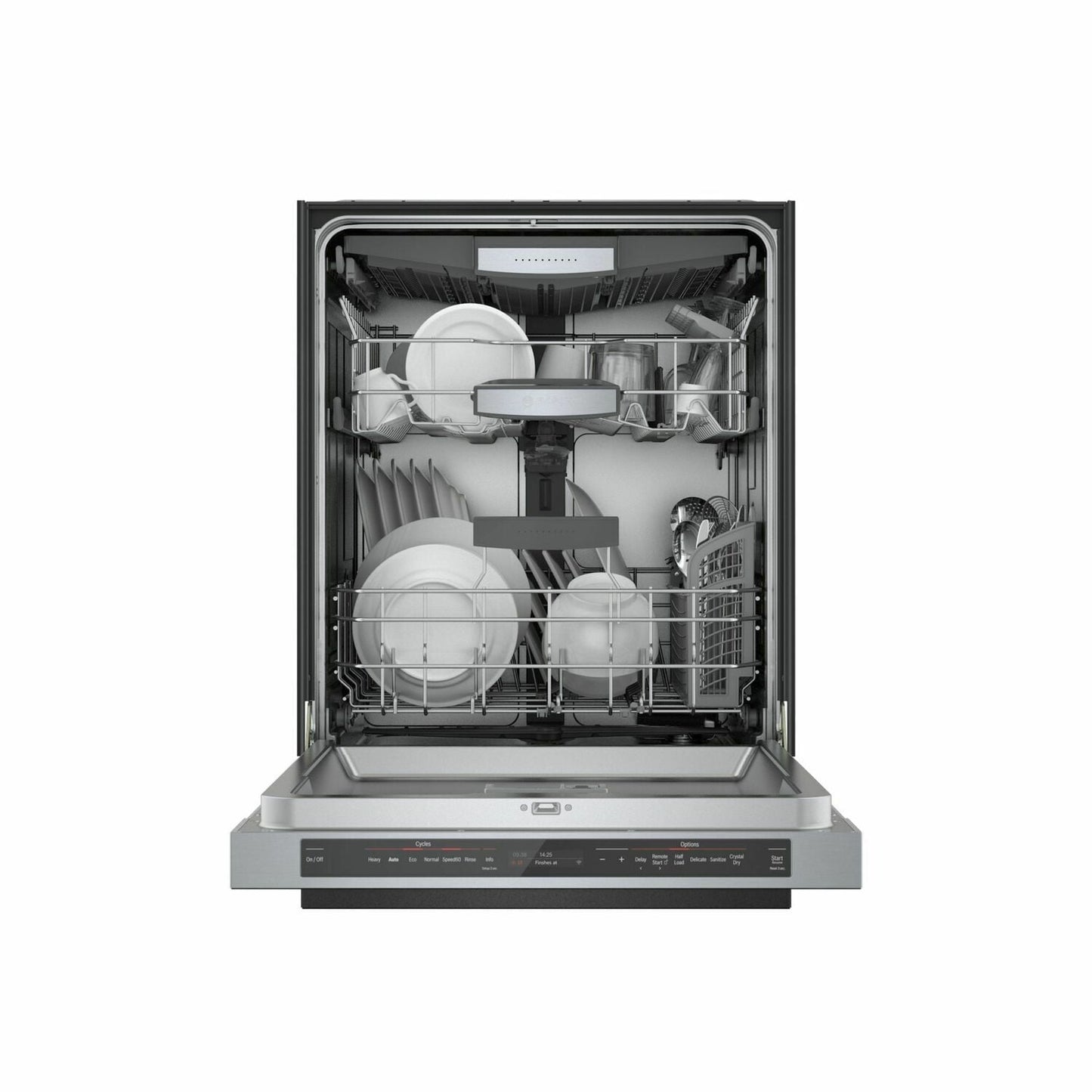

Bosch SHEM78ZH5N 800 Series Dishwasher 24'' Stainless Steel Shem78Zh5N
