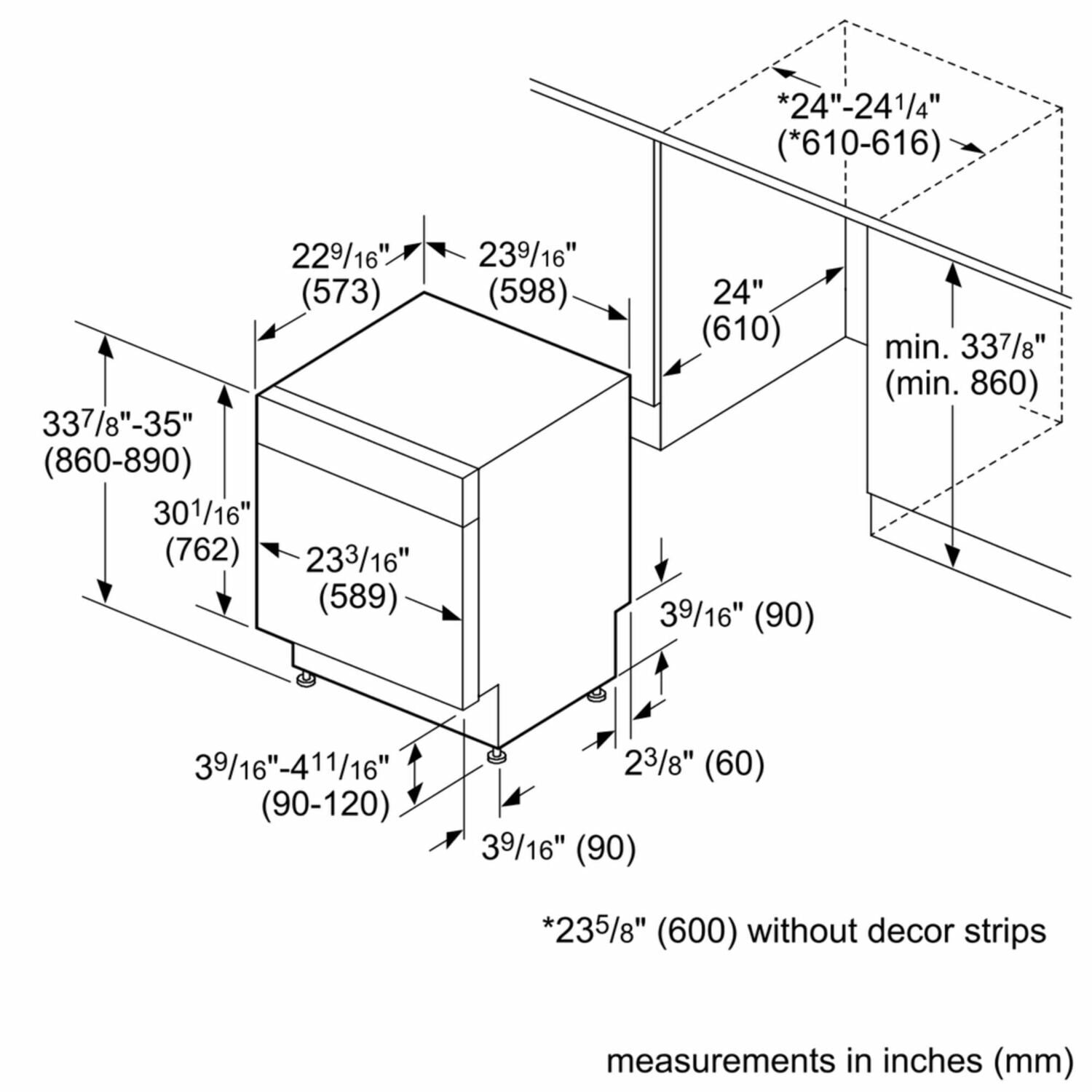

Dimensions
width
23.563"height
33.875"depth
22.563"When your dishes are done, so are you.

With Bosch PrecisionWash , intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
Quality is in the details.

Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.

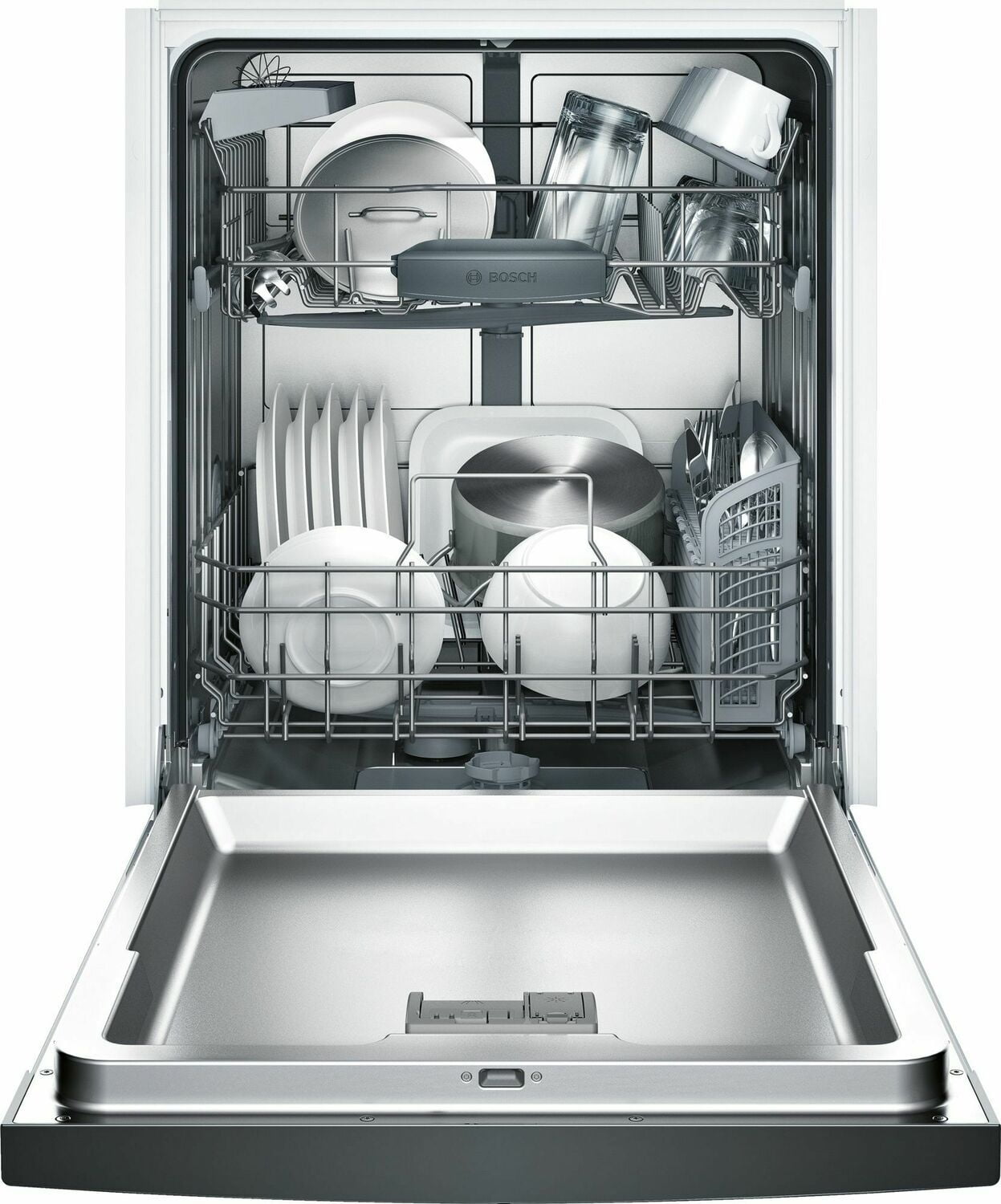

Standard Silverware Basket

The silverware basket is removable and is perfect for loading utensils and cutlery.
- Key Features
- Saves up to 280 gallons of water each year
- Self-Latching Door Stays Put and Latches
- Red Remaining Time Display
- Delicate Wash for Fine China
- Design
- Stainless Steel TallTub w/ *PP
- Silver Colored Fascia in Stainless Steel
- Performance
- 6 Wash Cycles and 2 Options
- Sanitize Option eliminates bacteria and enhances drying results
- Variable Spray Pressure
- Efficiency
- 269 kWh/yr - Energy Star(R)
- Exceeds ENERGY STAR Requirements for Water by 69%
- EcoSense Reduces Energy Usage by up to 20%
- Convenience
- Bosch Exclusive 24/7 Overflow Leak Protection
- 24 h Delay Start Timer
- Express Wash - In 30 Minutes or Less
- Capacity
- 14 Place Setting Capacity
- 300 Series Racks
- Manual Height Adjustment for Upper Rack
- Long Silverware Basket
Technical Specifications | |
General | |
Installation Type | Built-under |
Number of place settings | 14 |
List of programs | 1 Hour US, Auto, Delicate/Economy Wash US, Power Scrub Plus US, Regular US, Rinse & Hold US |
Cycle Options | Sanitation |
Display | |
Silence level (dBA) | 50 |
Third Rack | None |
Interior Light | |
Removable top | |
Power Cord Length | 67' |
Connectivity | |
Home Connect | |
Connectivity type | Not applicable |
Size and weight | |
Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 22 9/16'' |
Adjustable plinth | both horizontal and vertical |
Net weight (lbs) | 77.000 |
Programmes | |
Status indicator | sanitized LED US, Time remaining indicator front |
List of programs | 1 Hour US, Auto, Delicate/Economy Wash US, Power Scrub Plus US, Regular US, Rinse & Hold US |
Program 1 | Power Scrub Plus US |
Program 2 | Auto |
Program 3 | Regular US |
Program 4 | Delicate/Economy Wash US |
Program 6 | Rinse & Hold US |
Programme duration, programme1 (min.) | 110-130 |
Programme duration, programme2 (min.) | 115-130 |
Programme duration, programme3 (min.) | 130-135 |
Programme duration, programme4 (min.) | 80-85 |
Programme duration, programme5 (min.) | 60 |
Programme duration, programme6 (min.) | 9 |
Reference programme | Regular US |
Number of different wash temperatures | 6 |
Temperature program 1 | 150-160 |
Temperature program 2 | 125-130 |
Temperature program 3 | 122-131 |
Temperature program 4 | 113-122 |
Temperature program 5 | 127 |
Safety | |
Glass protection | |
Surge-back protect. installed | |
Leak protection system | Aqua Stop |
Consumption values | |
Glass protection | |
Water consumption program 1 | 5.7-7.3 |
Water consumption program 2 | 3.8-6.5 |
Water consumption program 3 | 3-5.7 |
Water consumption program 4 | 3-4.4 |
Water consumption program 5 | 4.5 |
Water consumption program 6 | 1.1 |
Total annual water consumption (g) | 688 |
Maximum temperature for water intake (°C) | 50 |
Connection | |
Watts (W) | 1,440 |
Power Cord Length | 67' |
Current (A) | 12 |
Plug type | Nema5-15P |
Construction type | |
Color / Material housing | Lacquered |
Color / Control Panel | Black |
Construction type | Built-in |
Panel ready | Not possible |
Drying system | Inherent heat |
Concealed heating element | |
Installation Type | Built-under |
Tub material | Plastic |
Water Softener |
Brand Quality Video

Brand Anthem Video
Bosch & Curtis Stone Intro Video

Curtis Stone Dinner and Dishes Dinner Party Video
Loading Flexibility Dishwasher Video
PrecisionWash/Wash Performance Video
Quiet Video
Leak protection Video
Dish Quality Video

Overview
When your dishes are done, so are you.

With Bosch PrecisionWash , intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
Quality is in the details.

Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.
Standard Silverware Basket

The silverware basket is removable and is perfect for loading utensils and cutlery.
Description
Features
- 50 dBA Quietest Dishwasher Brand.
- Speed60(R) gets your dishes from dirty to dry in about an hour.
- 24h Delay Start Timer lets you run your dishwasher at off-peak times.
- 24/7 Overflow Protection System(R) helps prevent water leaks.
Specifications
Technical Specifications | |
General | |
Installation Type | Built-under |
Number of place settings | 14 |
List of programs | 1 Hour US, Auto, Delicate/Economy Wash US, Power Scrub Plus US, Regular US, Rinse & Hold US |
Cycle Options | Sanitation |
Display | |
Silence level (dBA) | 50 |
Third Rack | None |
Interior Light | |
Removable top | |
Power Cord Length | 67' |
Connectivity | |
Home Connect | |
Connectivity type | Not applicable |
Size and weight | |
Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 22 9/16'' |
Adjustable plinth | both horizontal and vertical |
Net weight (lbs) | 77.000 |
Programmes | |
Status indicator | sanitized LED US, Time remaining indicator front |
List of programs | 1 Hour US, Auto, Delicate/Economy Wash US, Power Scrub Plus US, Regular US, Rinse & Hold US |
Program 1 | Power Scrub Plus US |
Program 2 | Auto |
Program 3 | Regular US |
Program 4 | Delicate/Economy Wash US |
Program 6 | Rinse & Hold US |
Programme duration, programme1 (min.) | 110-130 |
Programme duration, programme2 (min.) | 115-130 |
Programme duration, programme3 (min.) | 130-135 |
Programme duration, programme4 (min.) | 80-85 |
Programme duration, programme5 (min.) | 60 |
Programme duration, programme6 (min.) | 9 |
Reference programme | Regular US |
Number of different wash temperatures | 6 |
Temperature program 1 | 150-160 |
Temperature program 2 | 125-130 |
Temperature program 3 | 122-131 |
Temperature program 4 | 113-122 |
Temperature program 5 | 127 |
Safety | |
Glass protection | |
Surge-back protect. installed | |
Leak protection system | Aqua Stop |
Consumption values | |
Glass protection | |
Water consumption program 1 | 5.7-7.3 |
Water consumption program 2 | 3.8-6.5 |
Water consumption program 3 | 3-5.7 |
Water consumption program 4 | 3-4.4 |
Water consumption program 5 | 4.5 |
Water consumption program 6 | 1.1 |
Total annual water consumption (g) | 688 |
Maximum temperature for water intake (°C) | 50 |
Connection | |
Watts (W) | 1,440 |
Power Cord Length | 67' |
Current (A) | 12 |
Plug type | Nema5-15P |
Construction type | |
Color / Material housing | Lacquered |
Color / Control Panel | Black |
Construction type | Built-in |
Panel ready | Not possible |
Drying system | Inherent heat |
Concealed heating element | |
Installation Type | Built-under |
Tub material | Plastic |
Water Softener |
Videos
Brand Quality Video

Brand Anthem Video
Bosch & Curtis Stone Intro Video

Curtis Stone Dinner and Dishes Dinner Party Video
Loading Flexibility Dishwasher Video
PrecisionWash/Wash Performance Video
Quiet Video
Leak protection Video
Dish Quality Video
