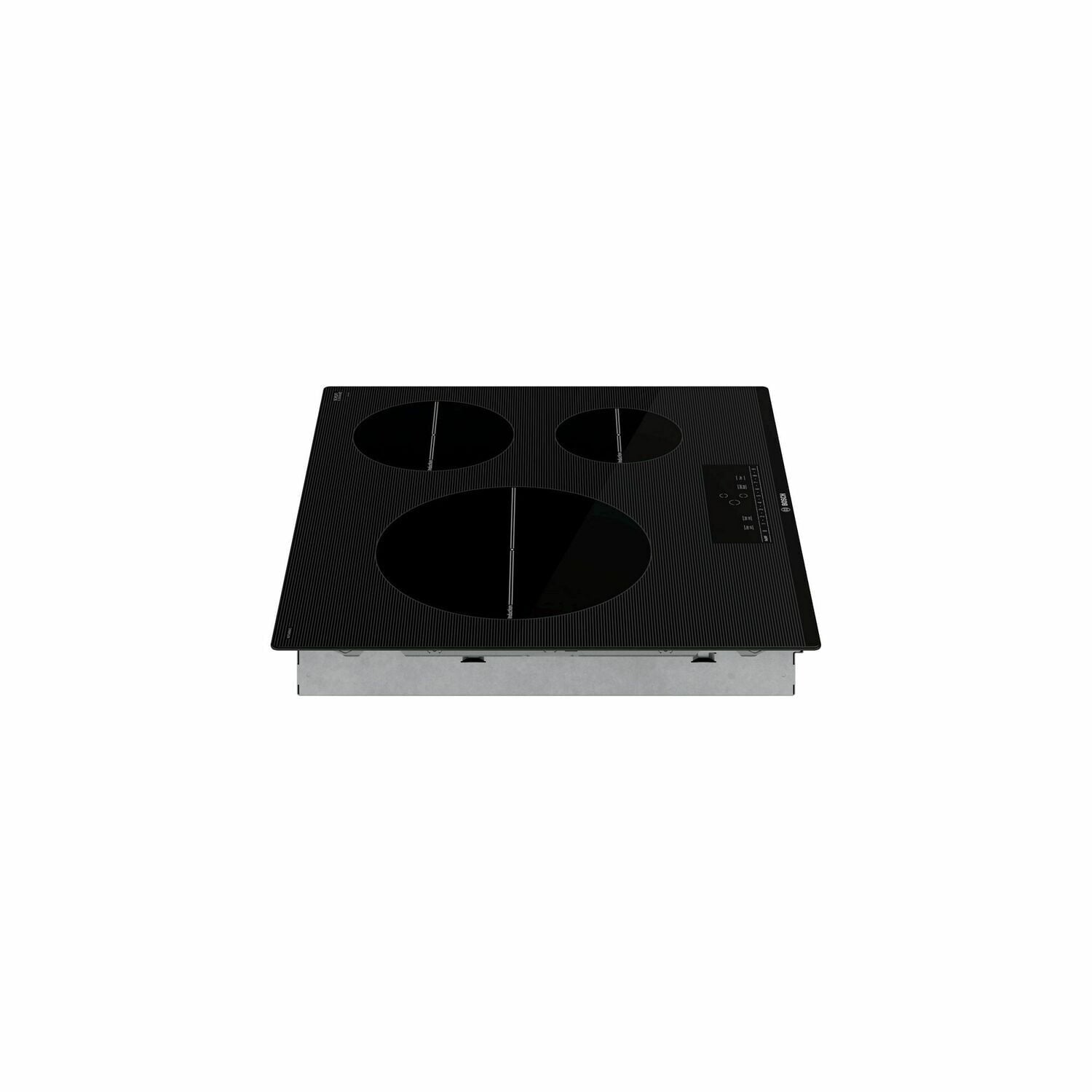

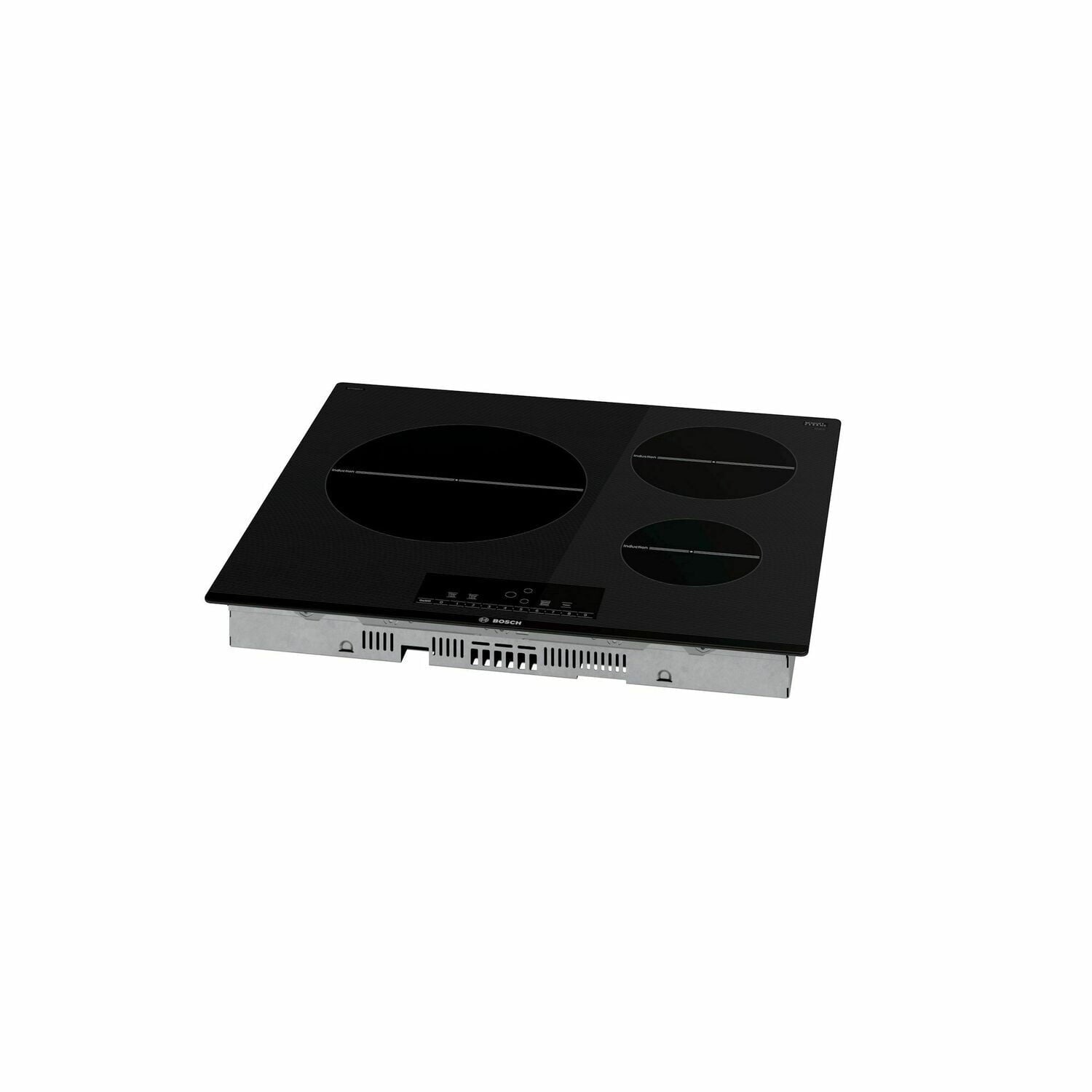

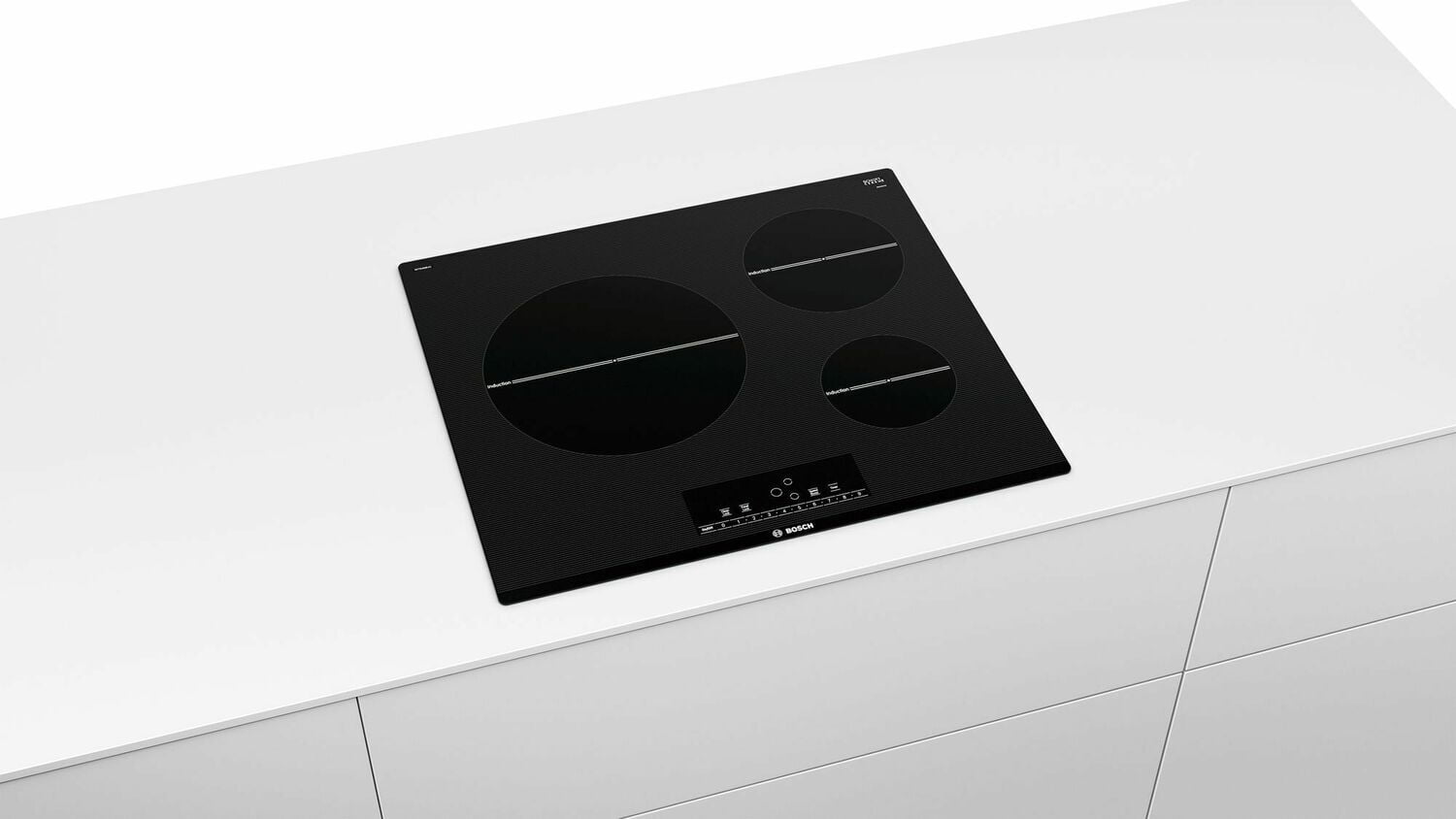

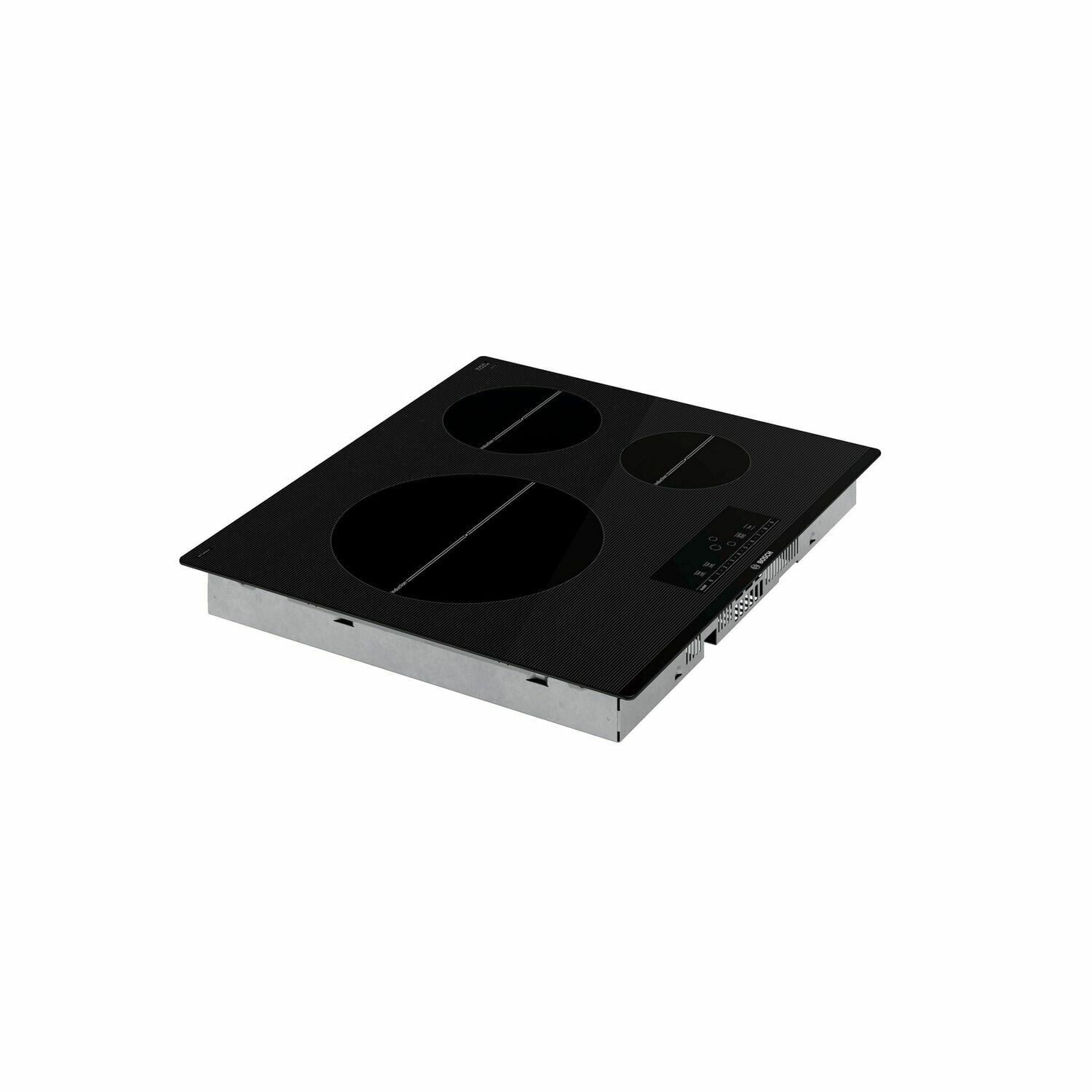

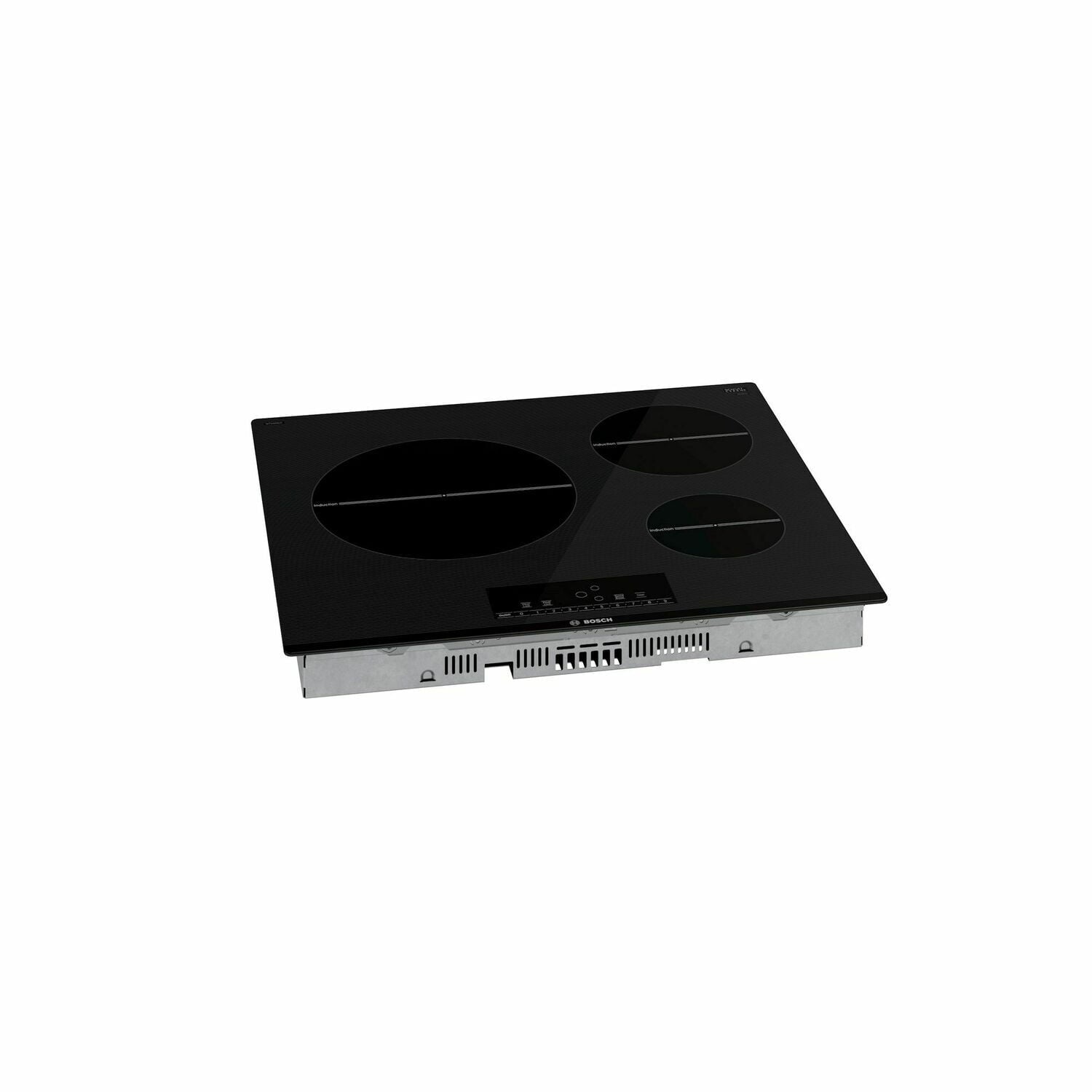

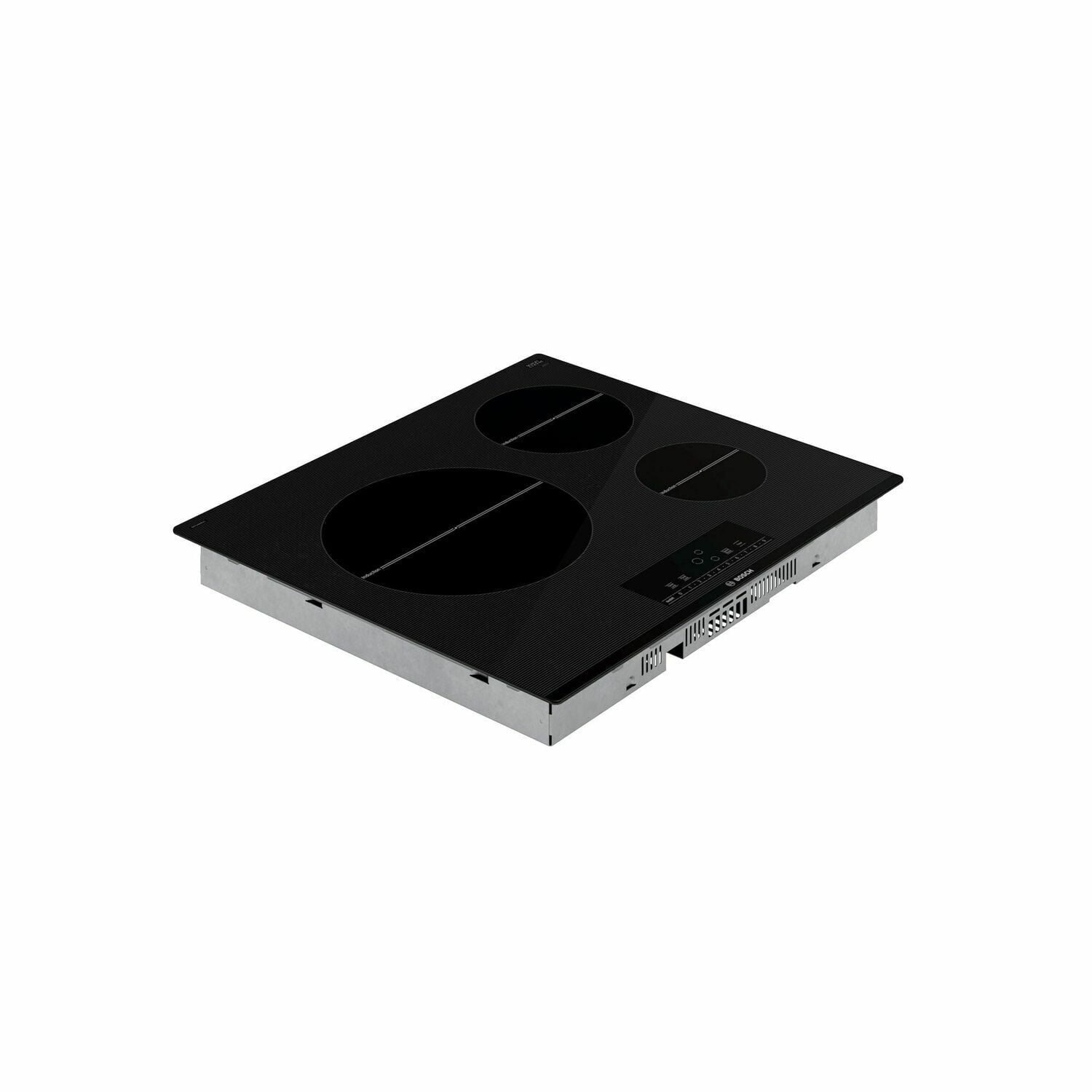

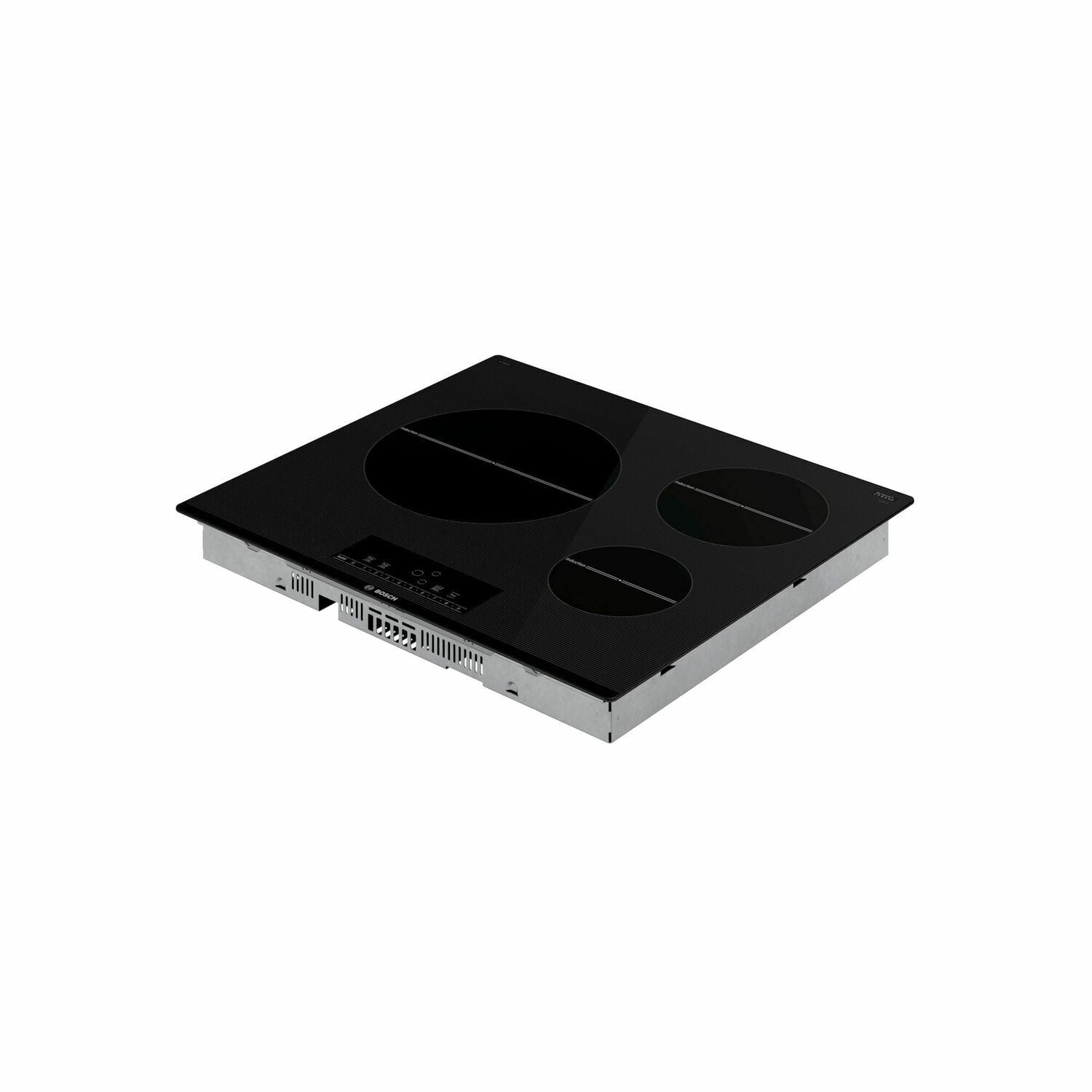

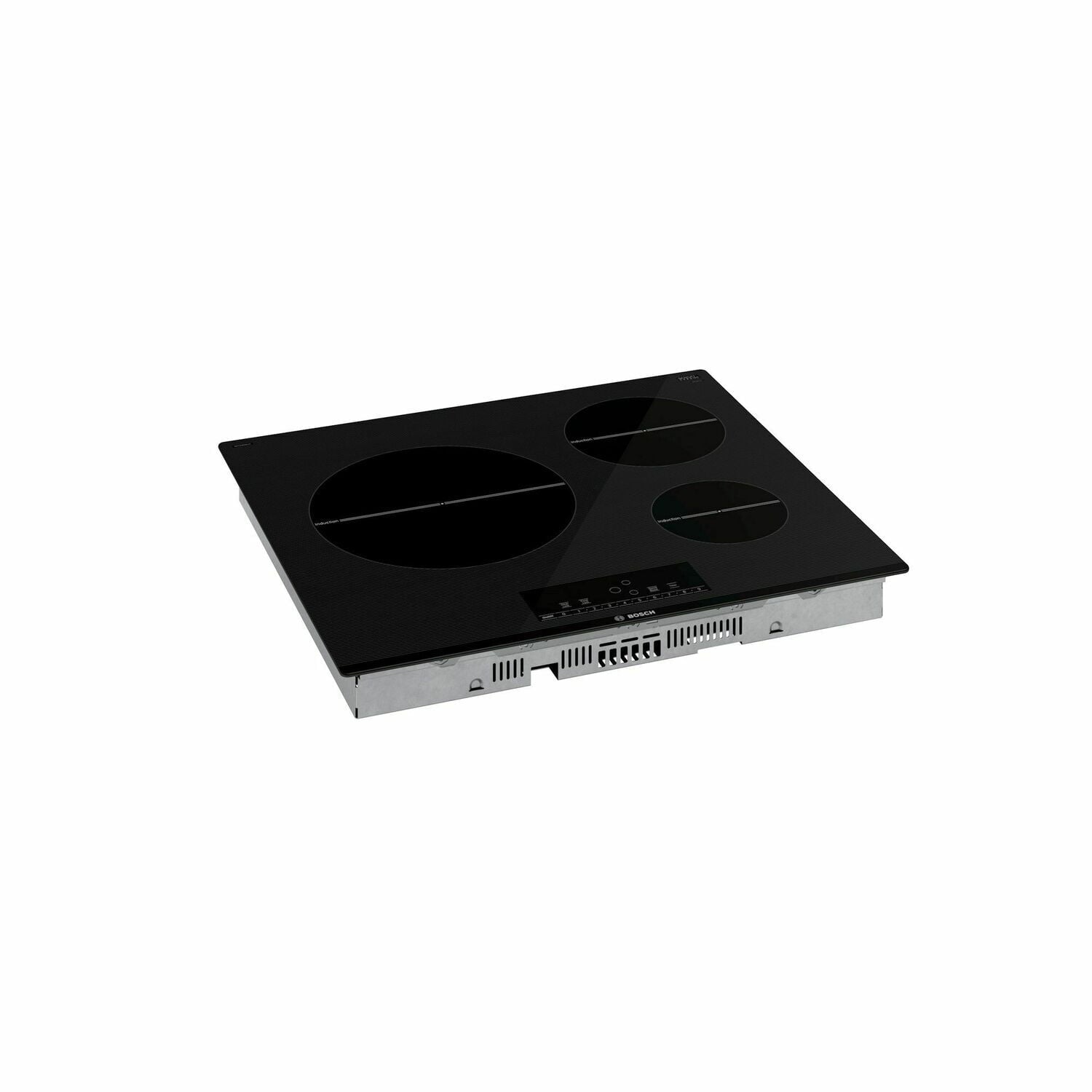

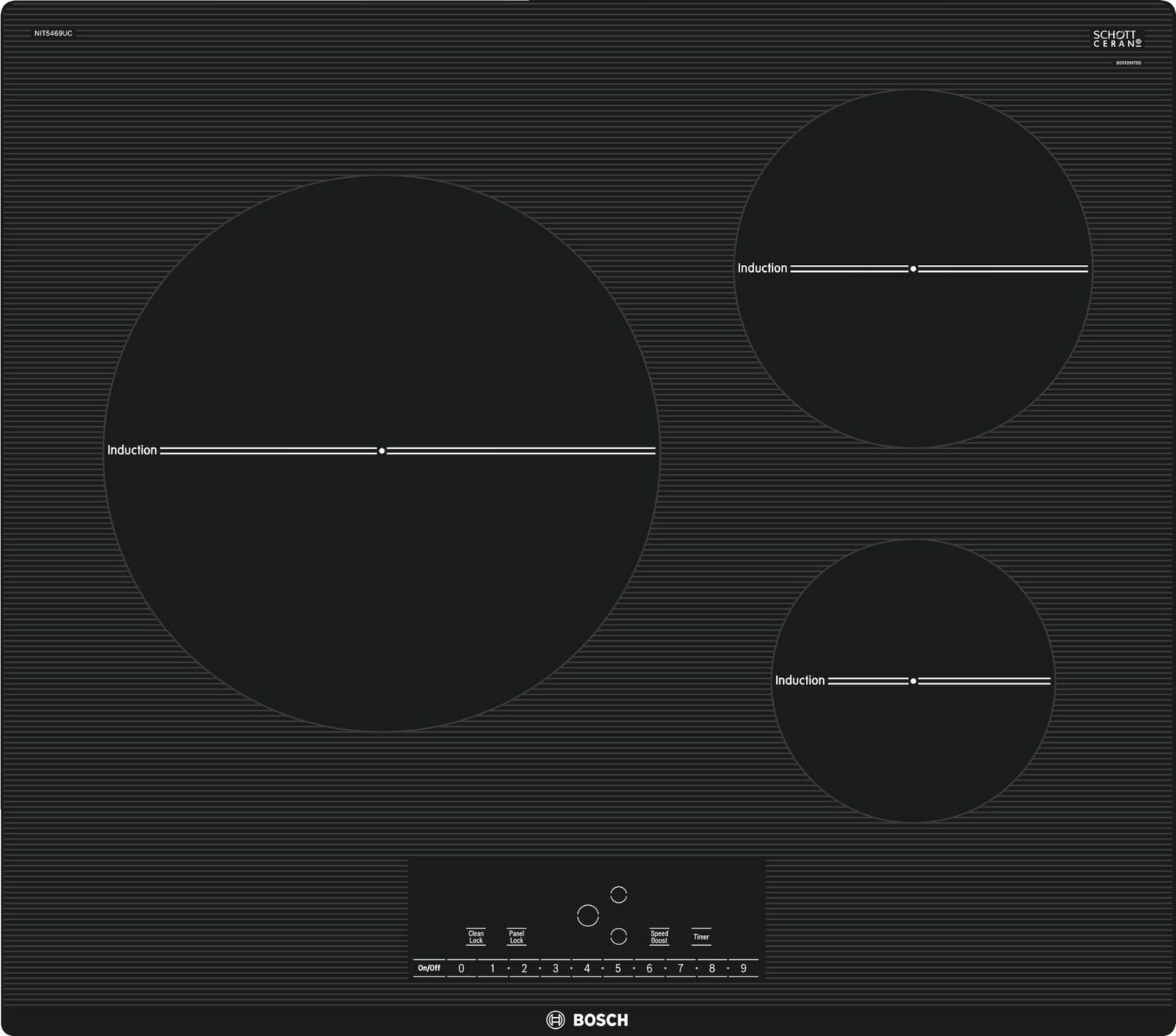

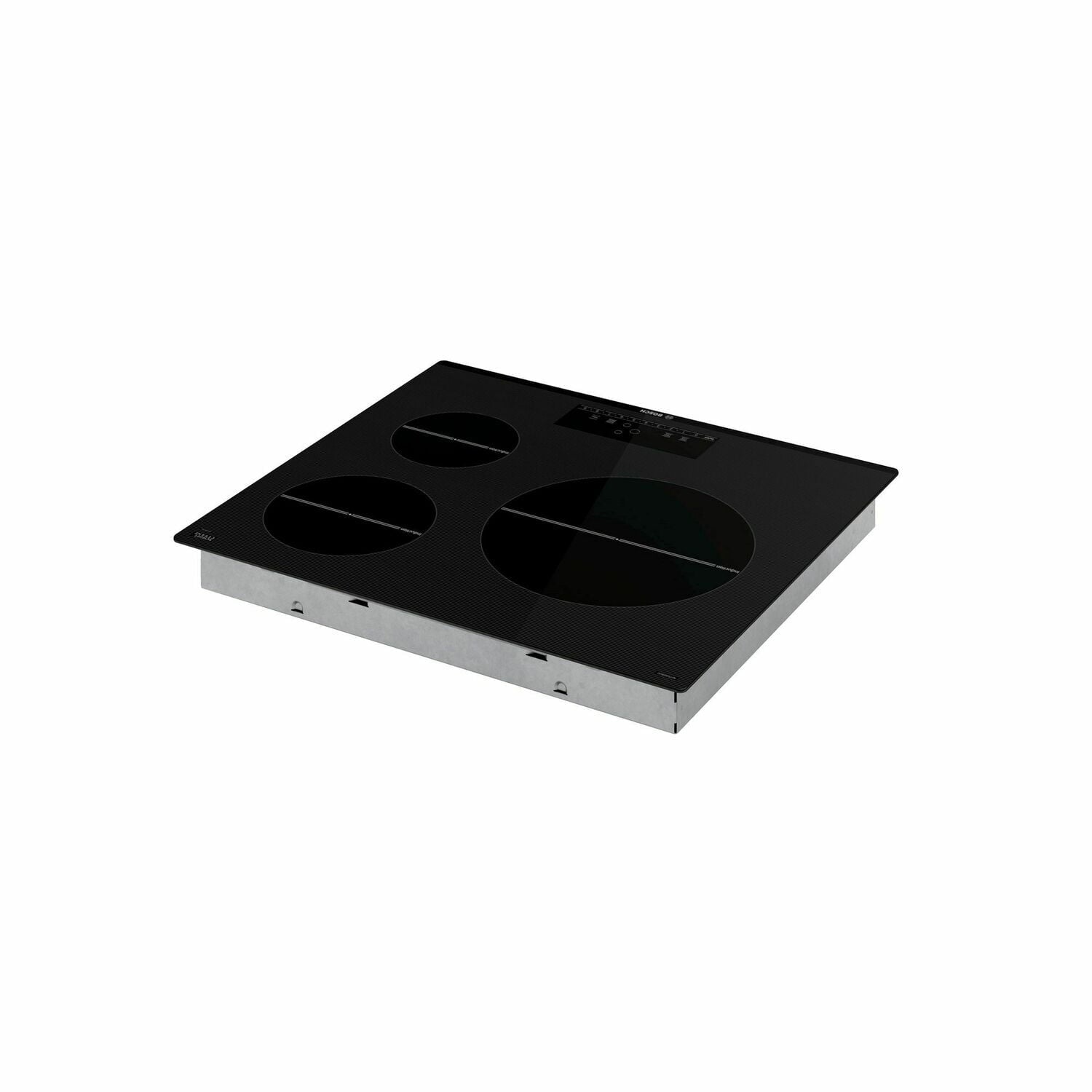

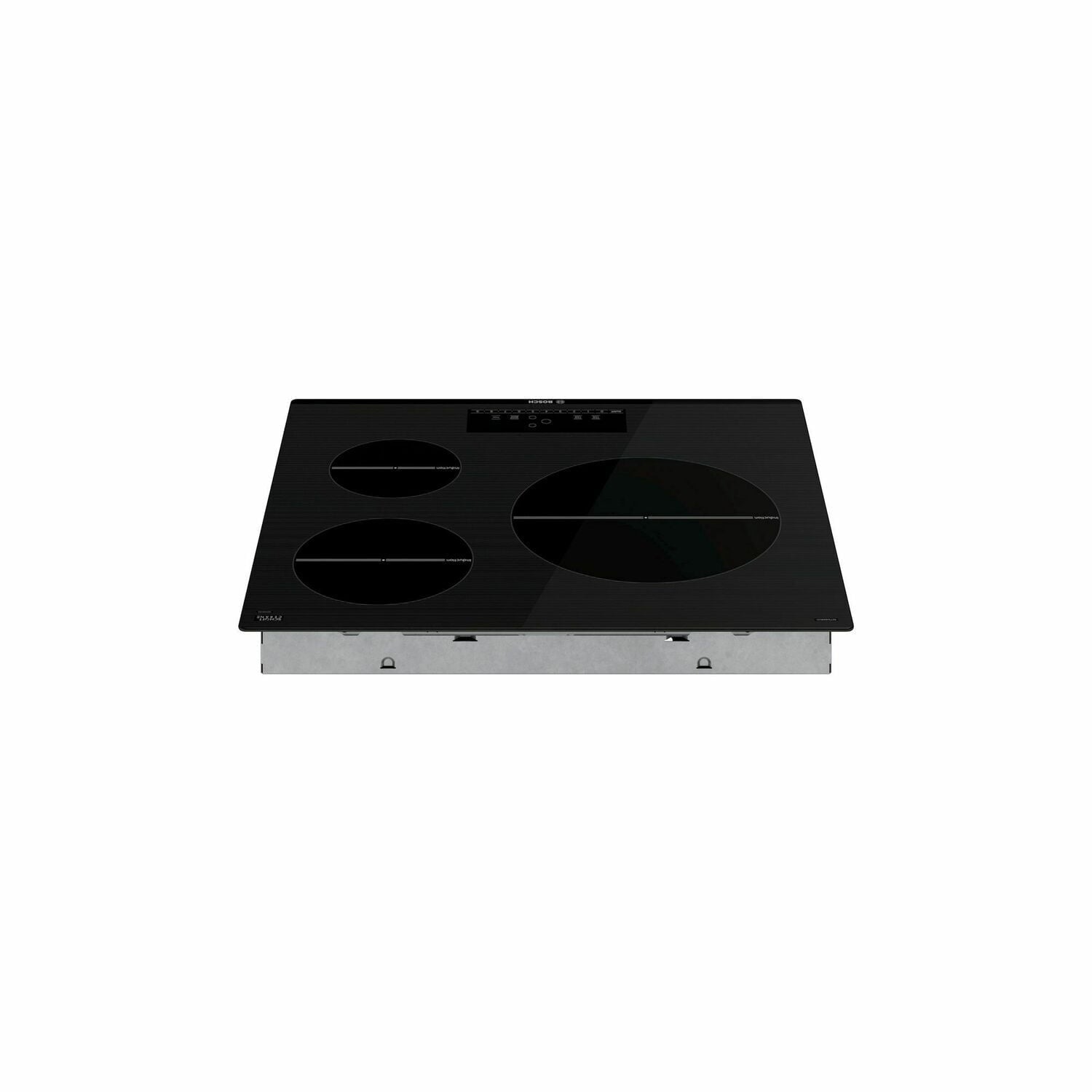

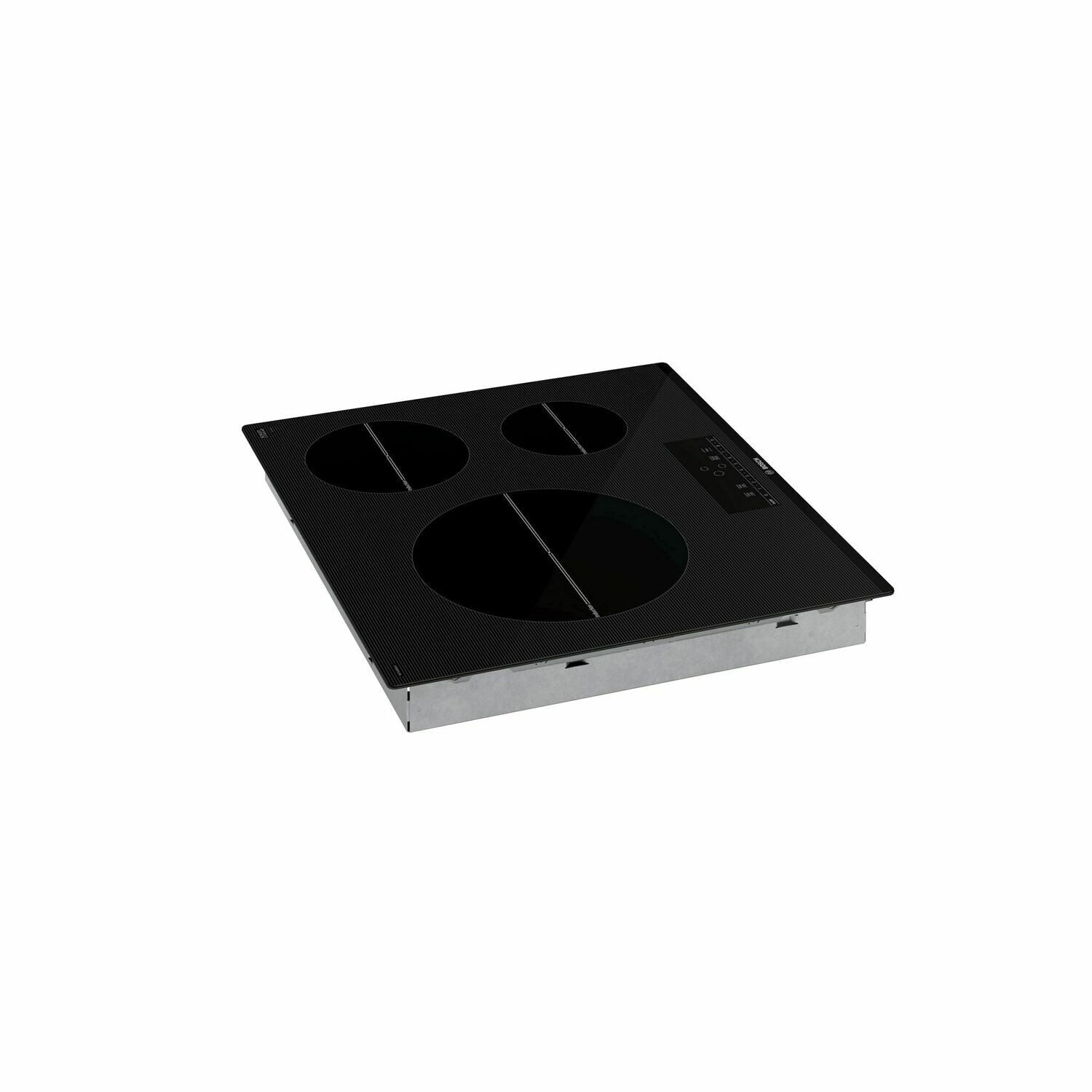

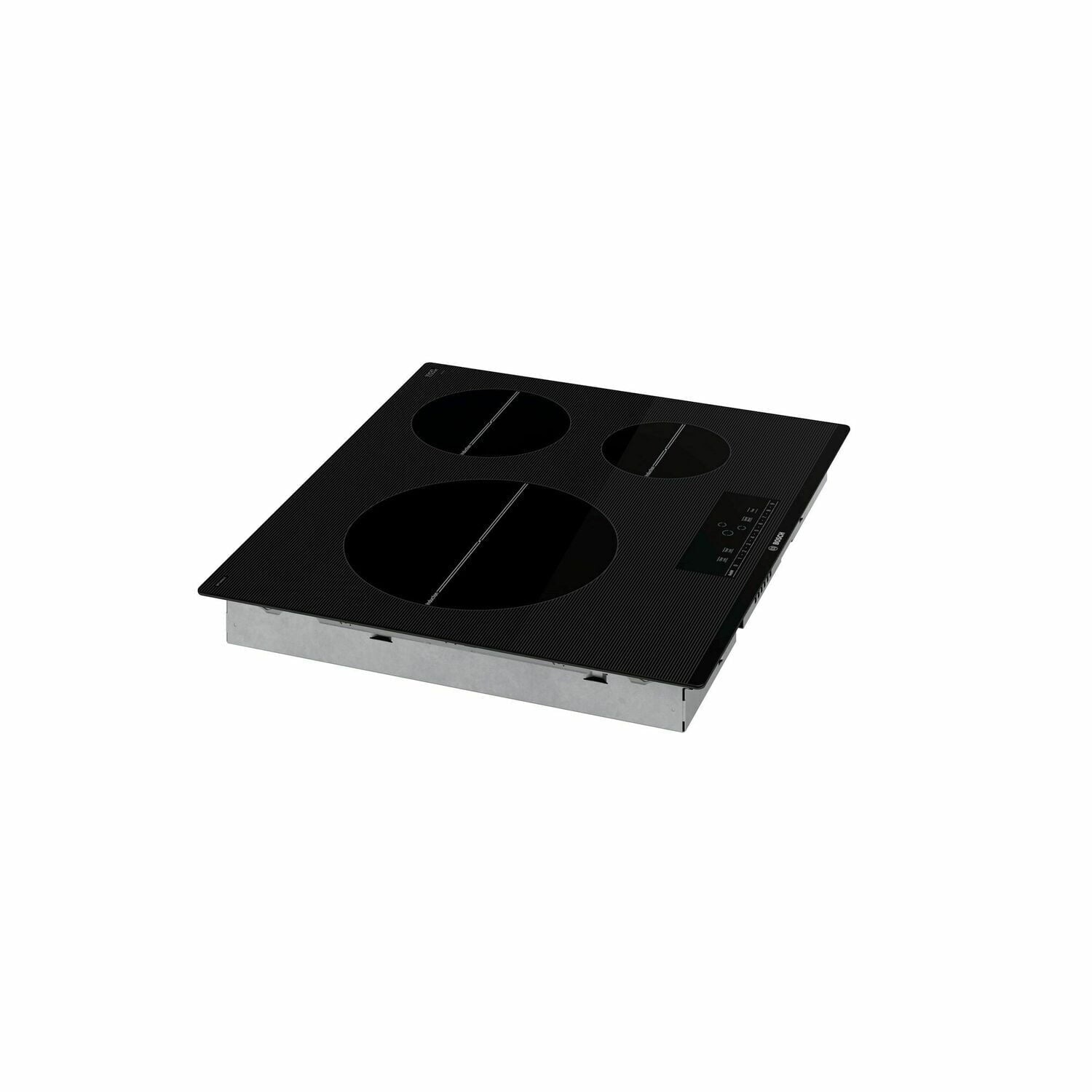

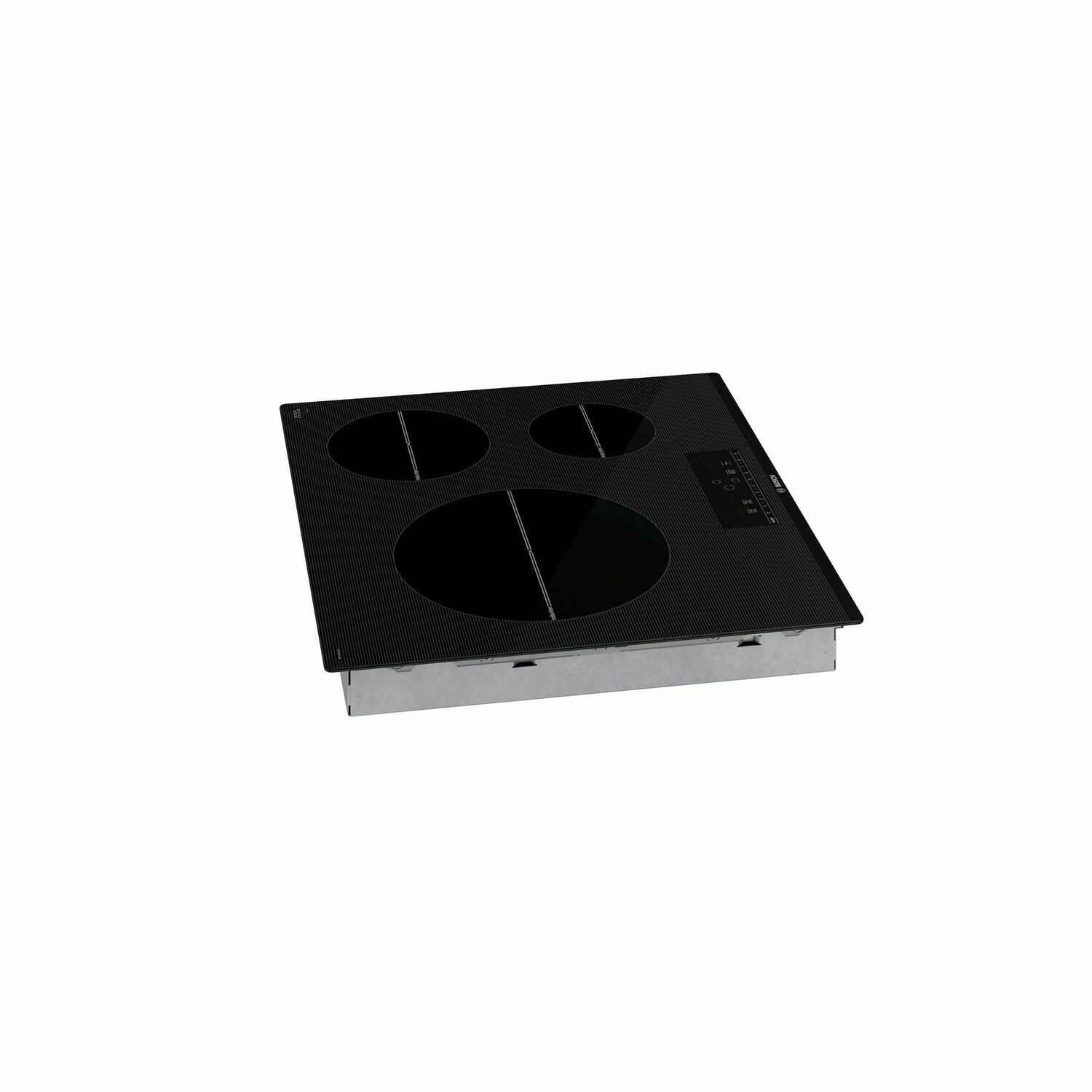

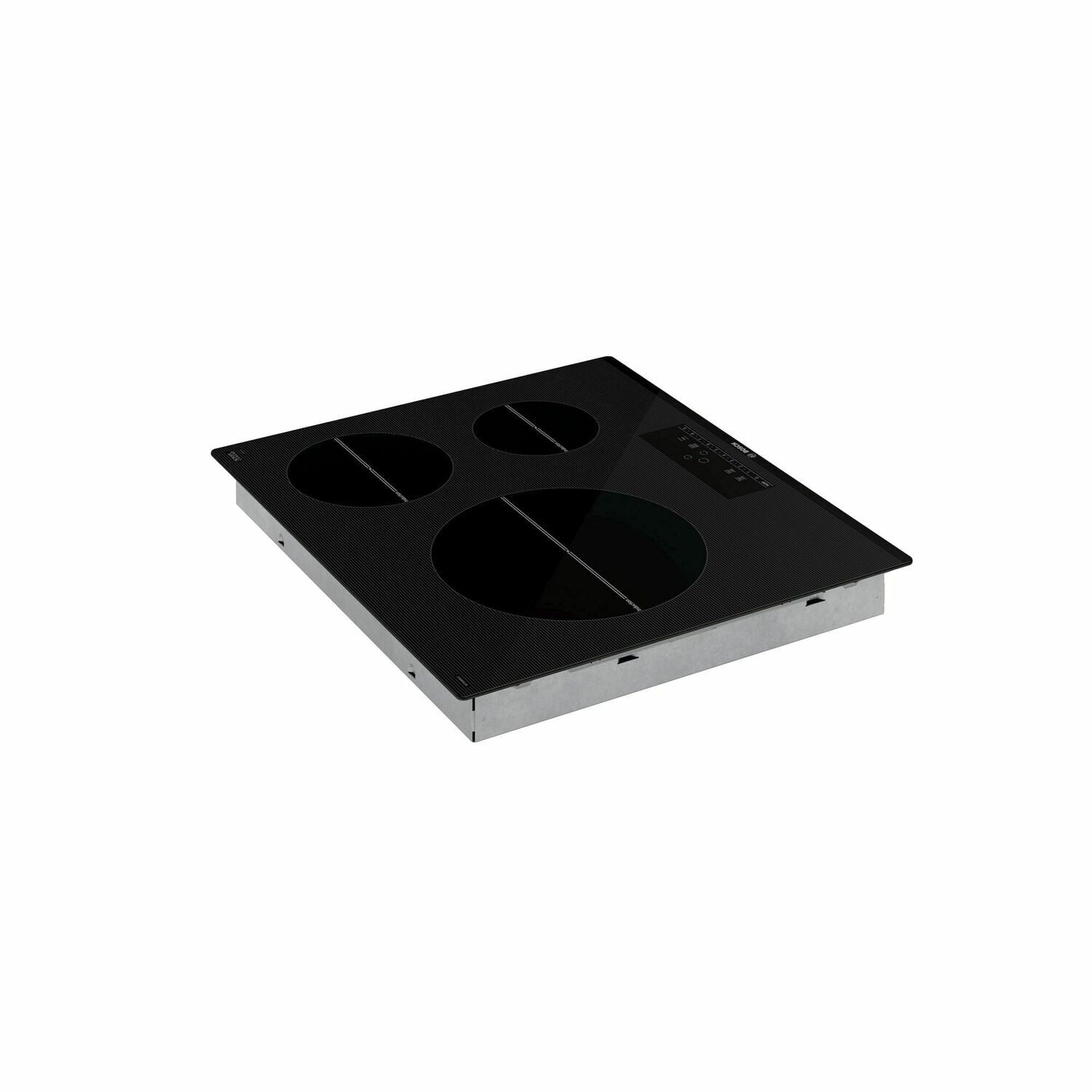

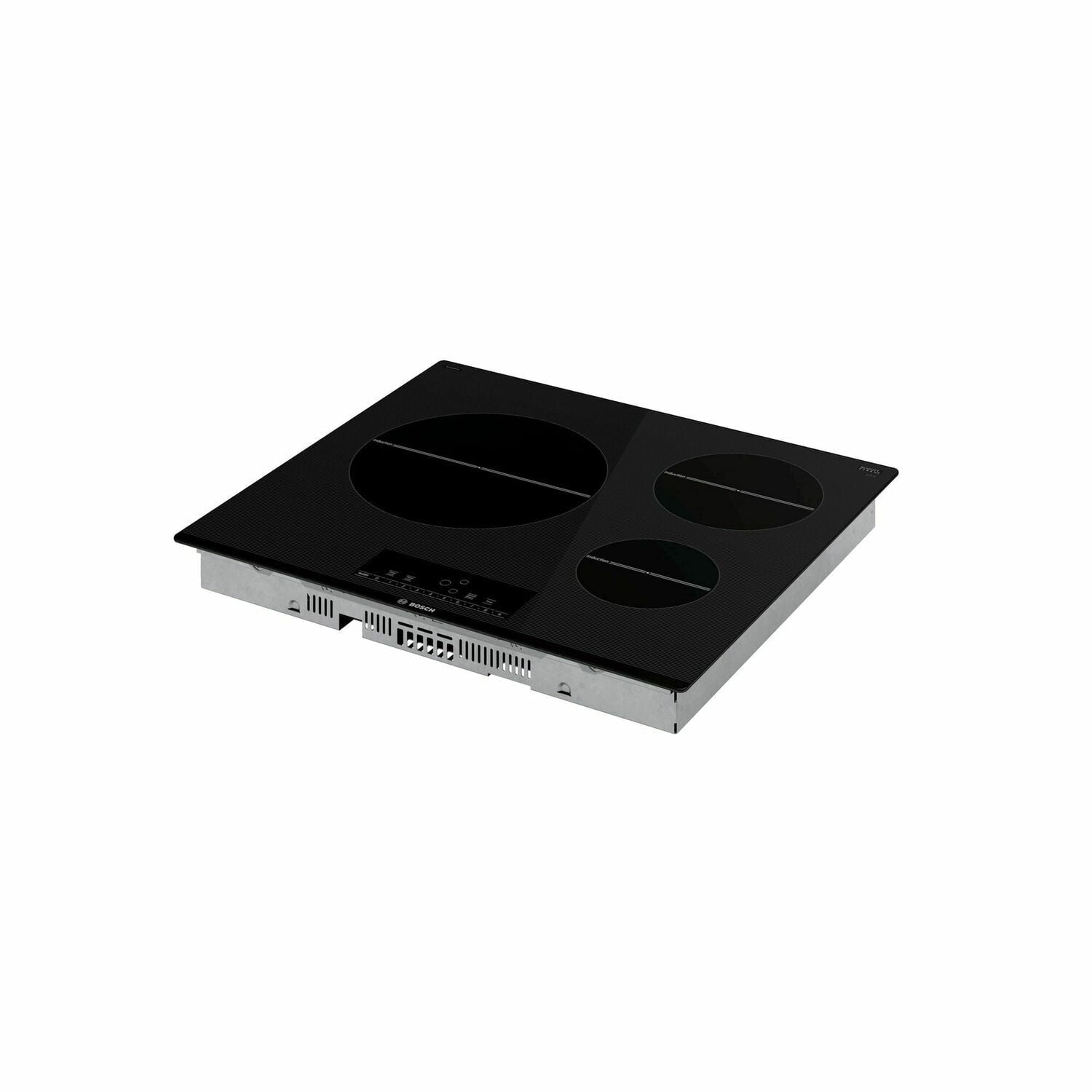

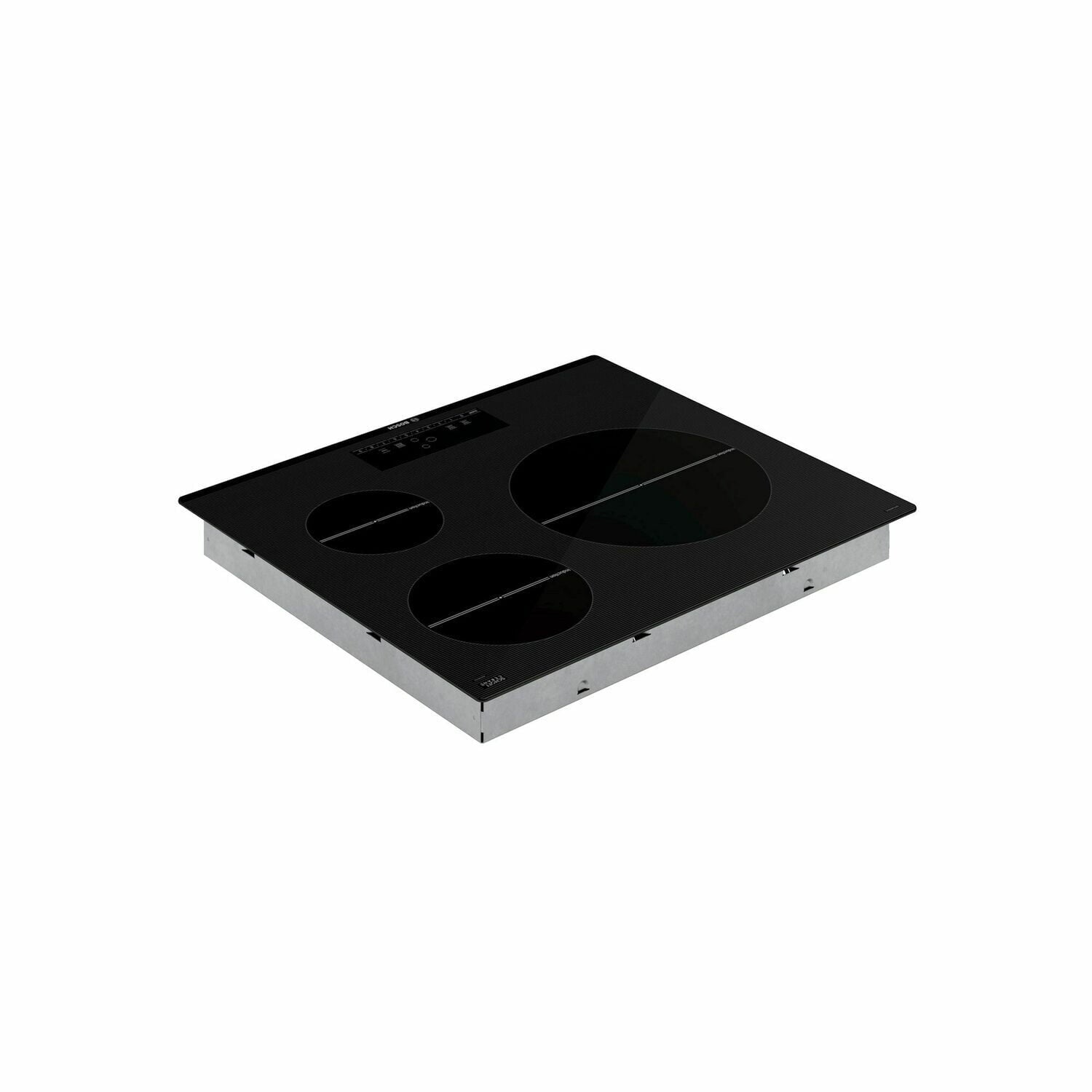

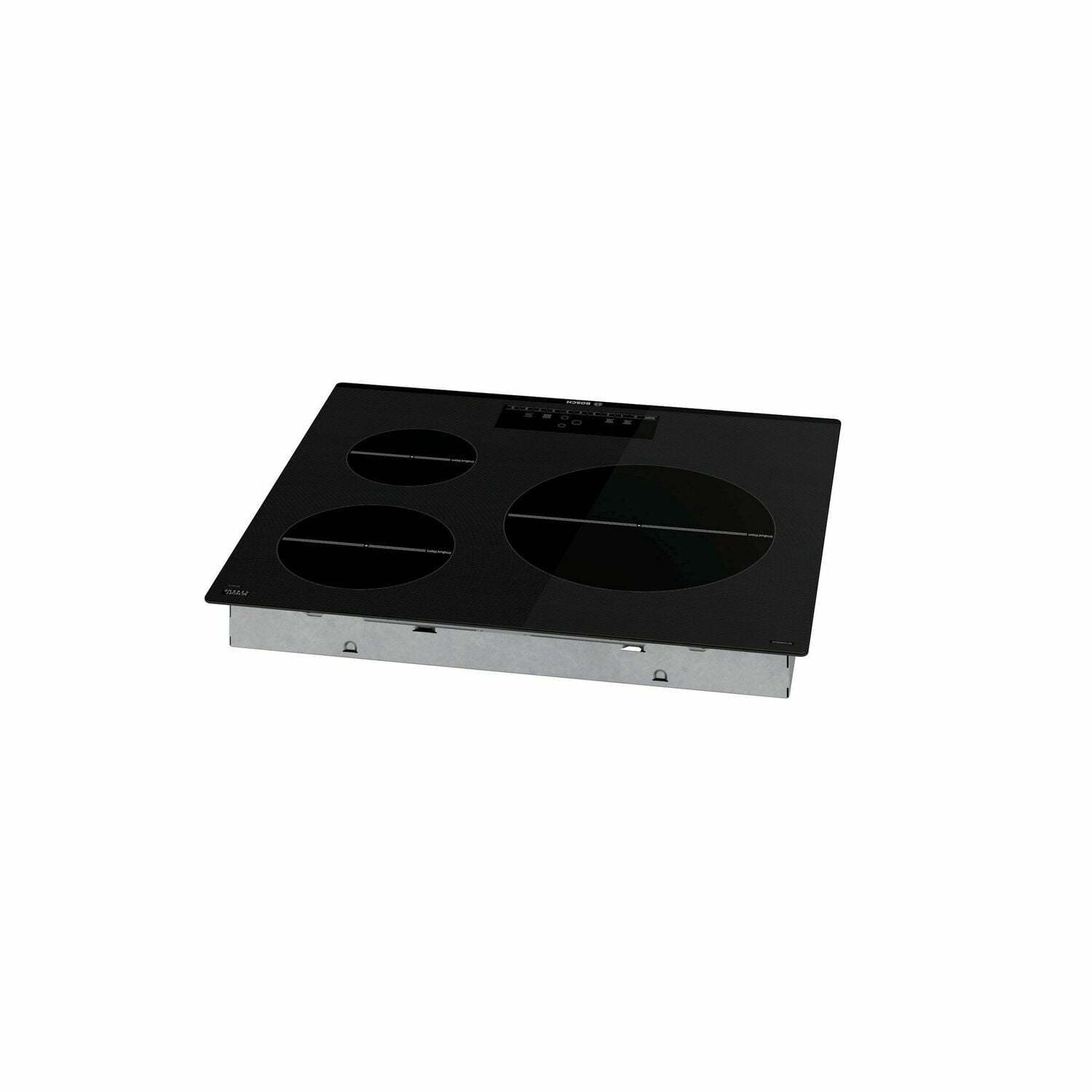

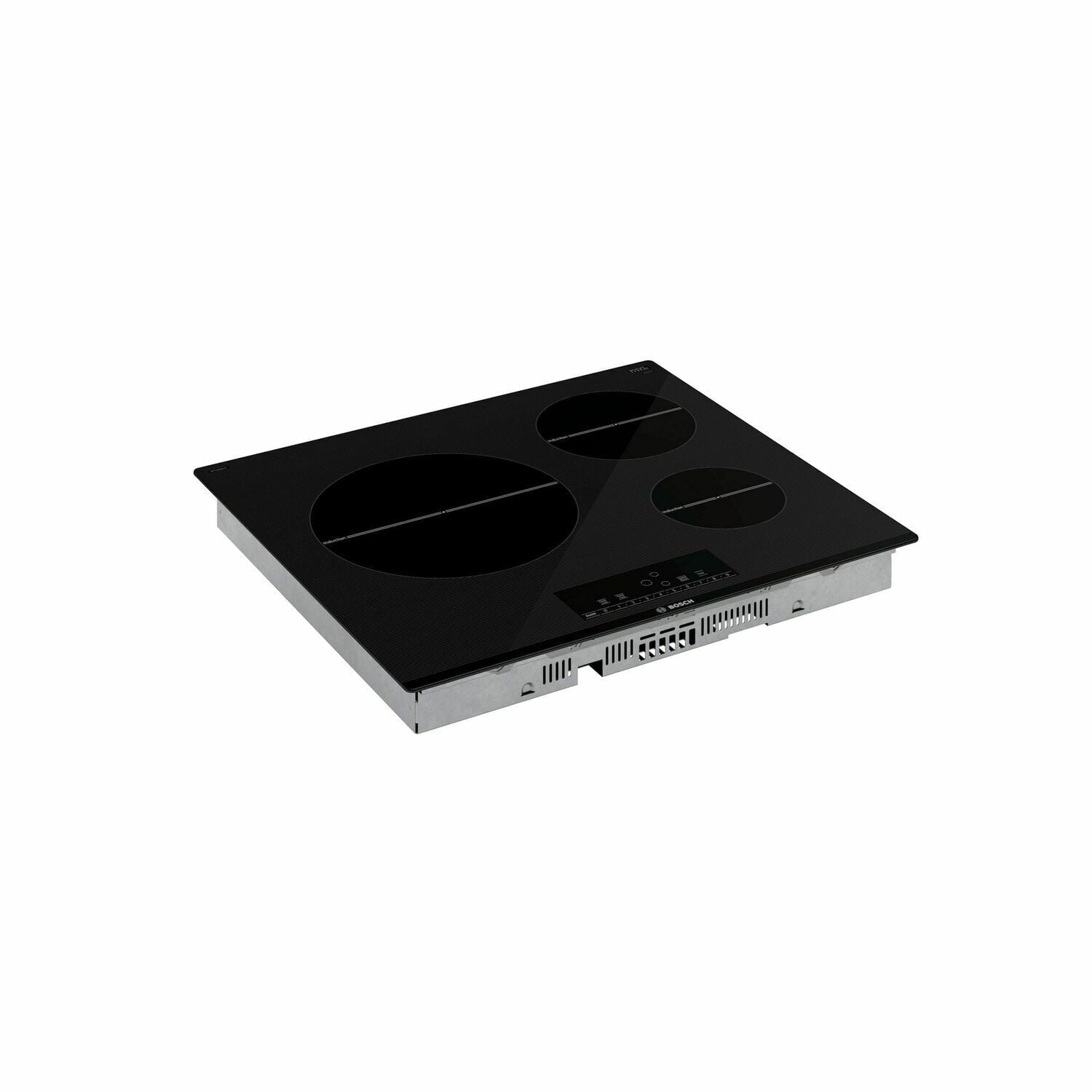

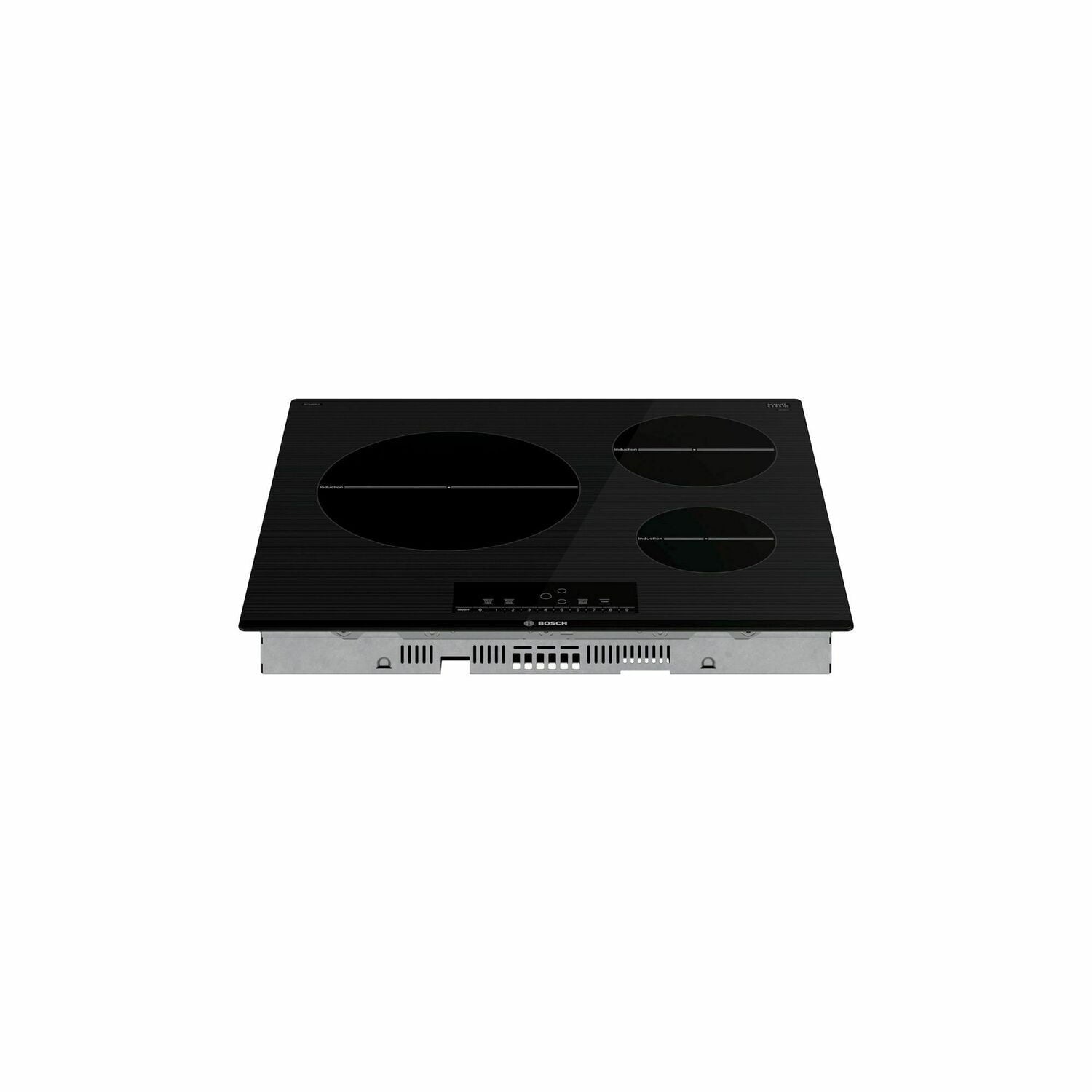

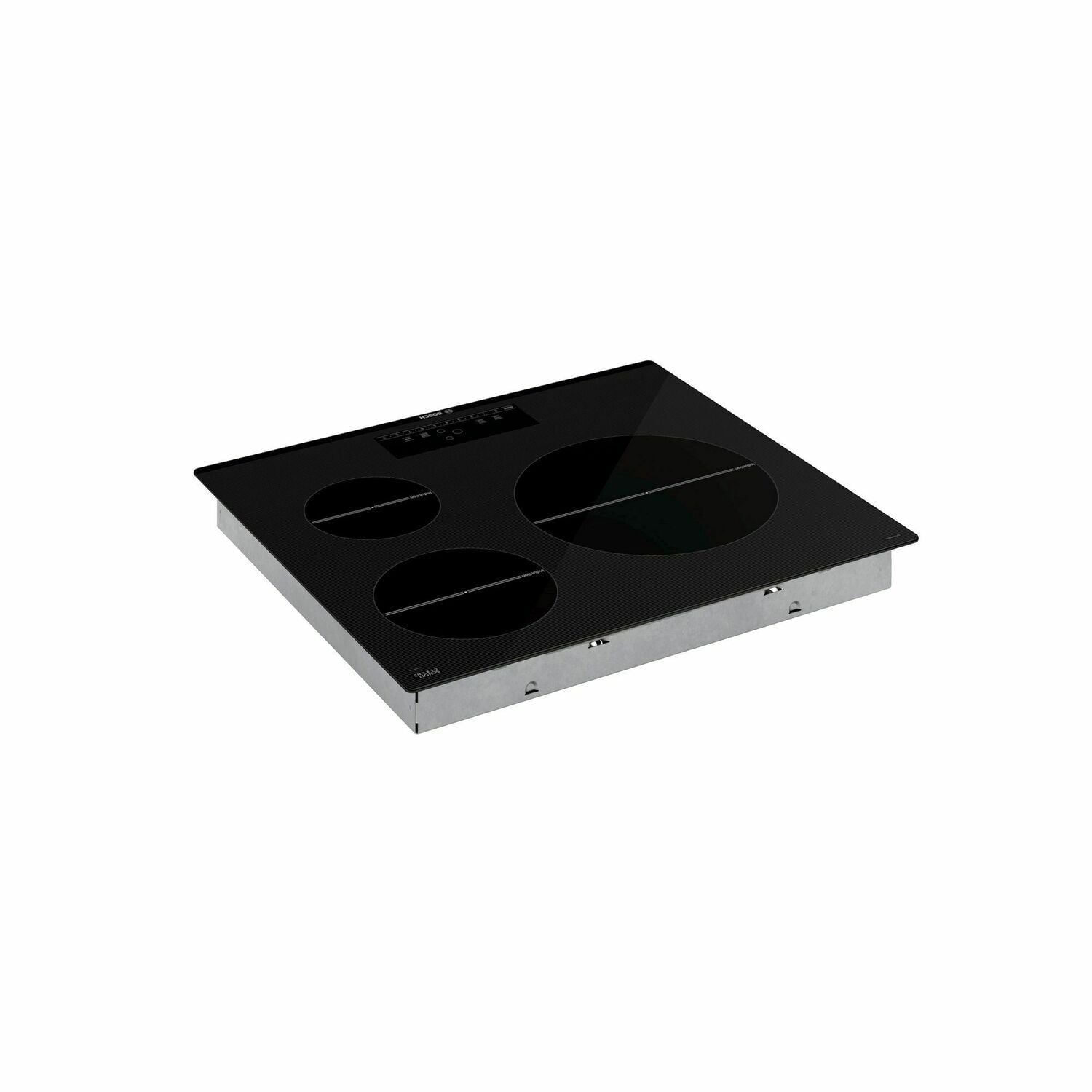

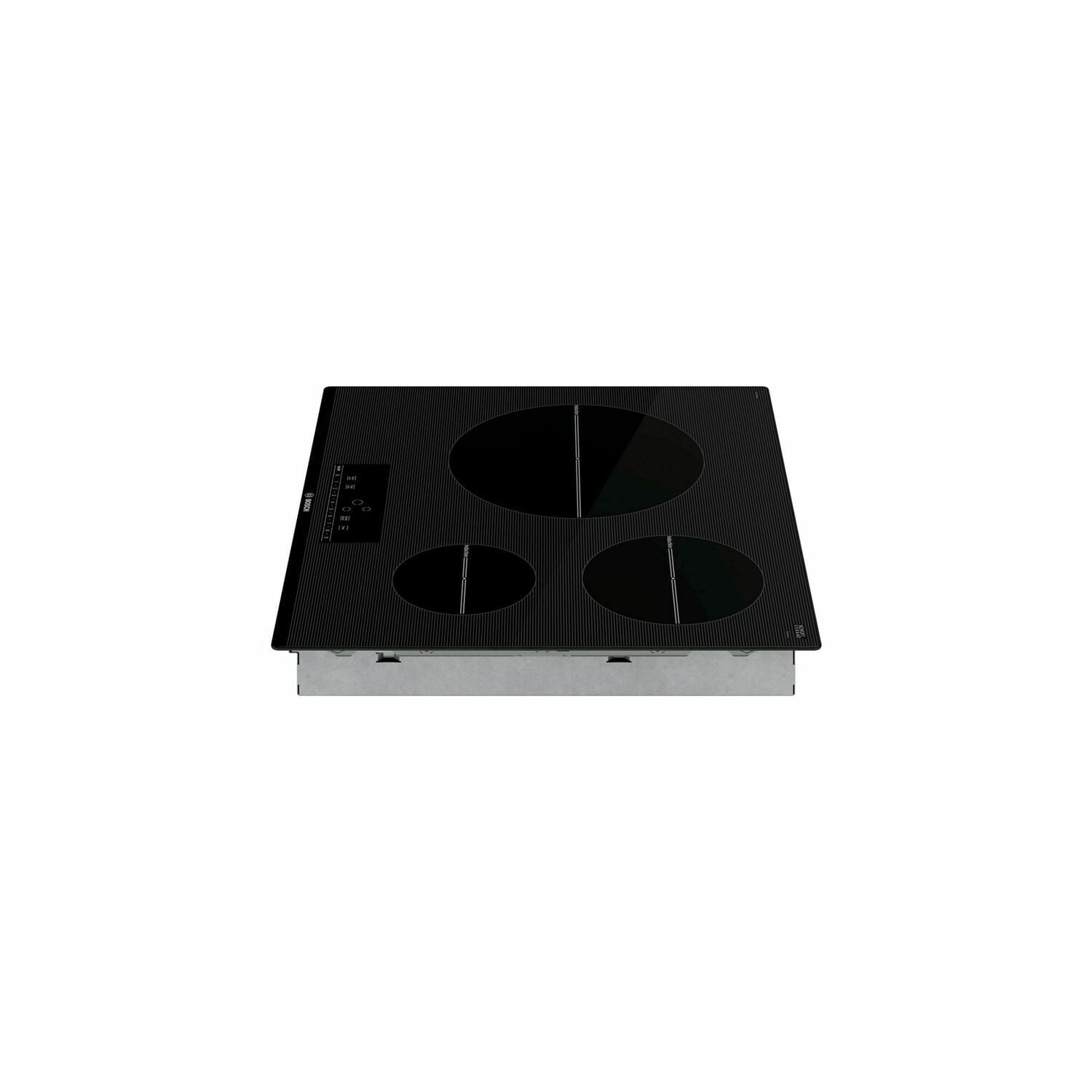

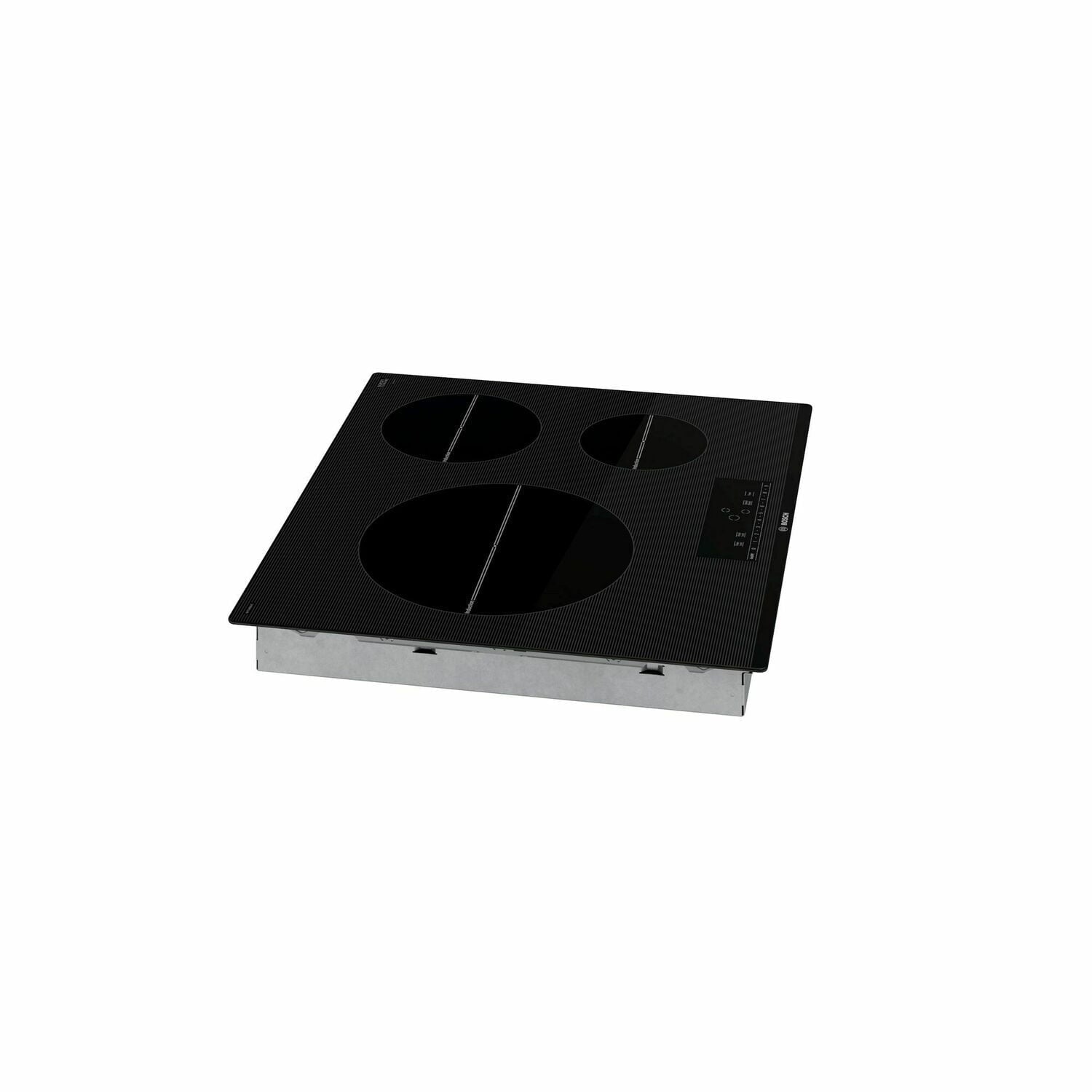

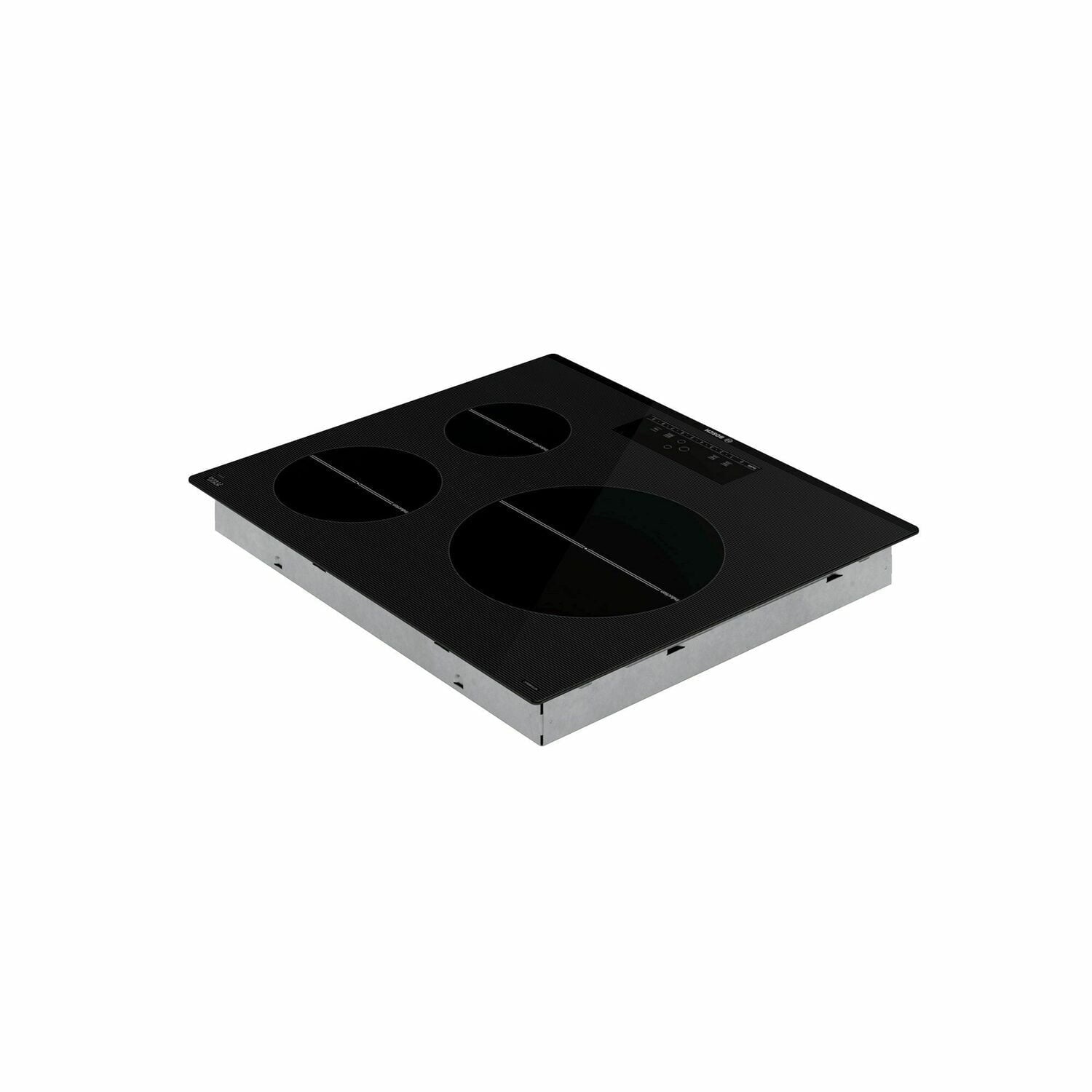

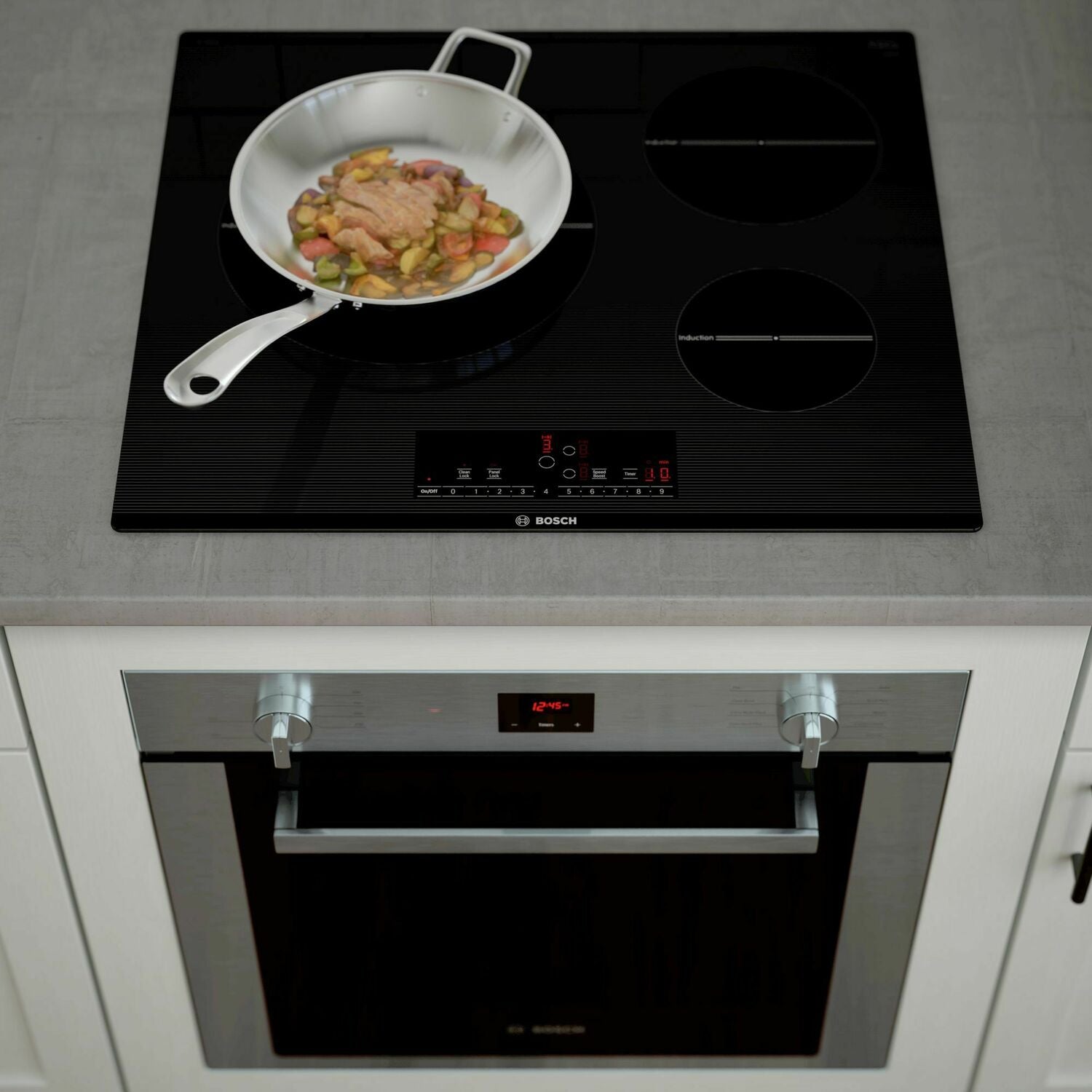

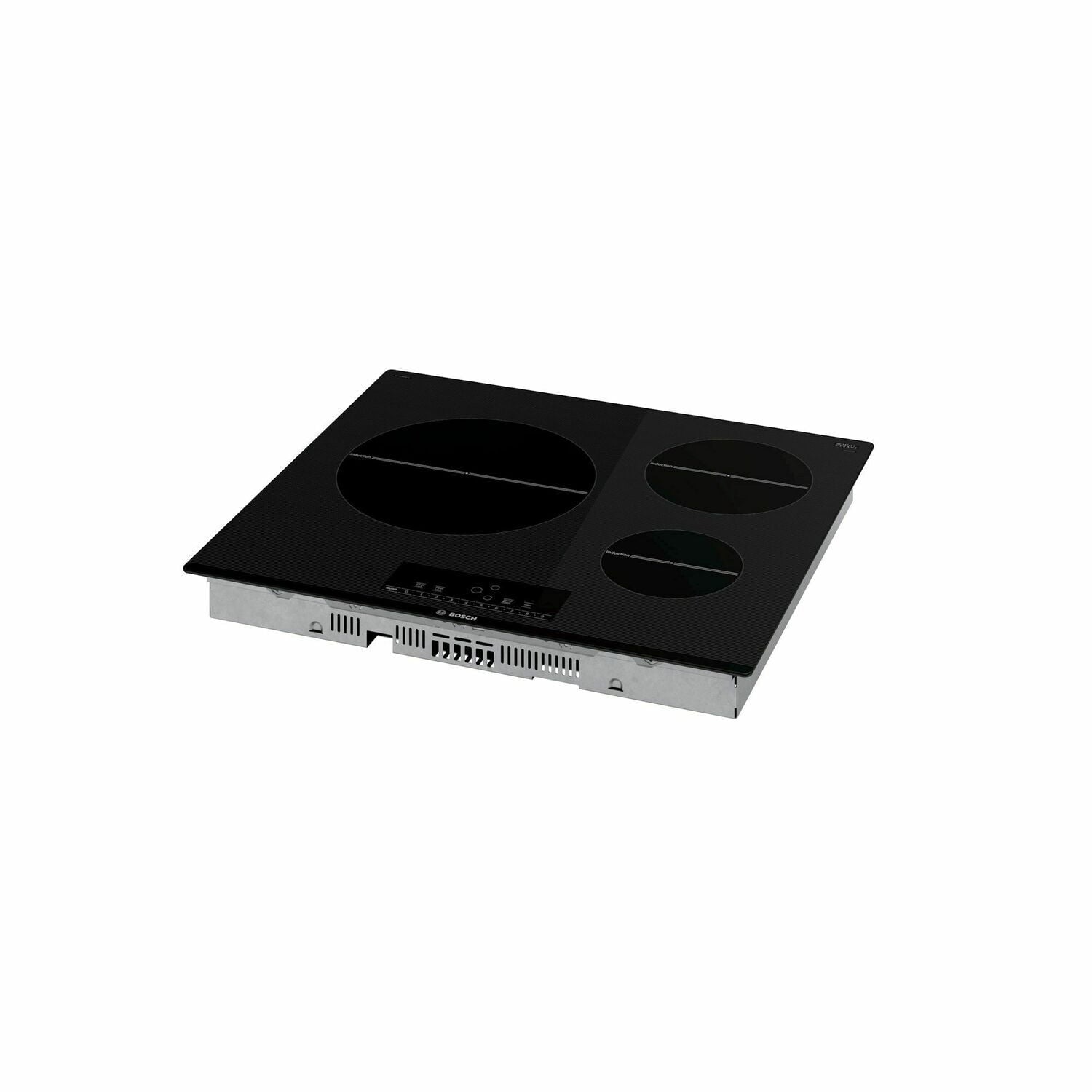

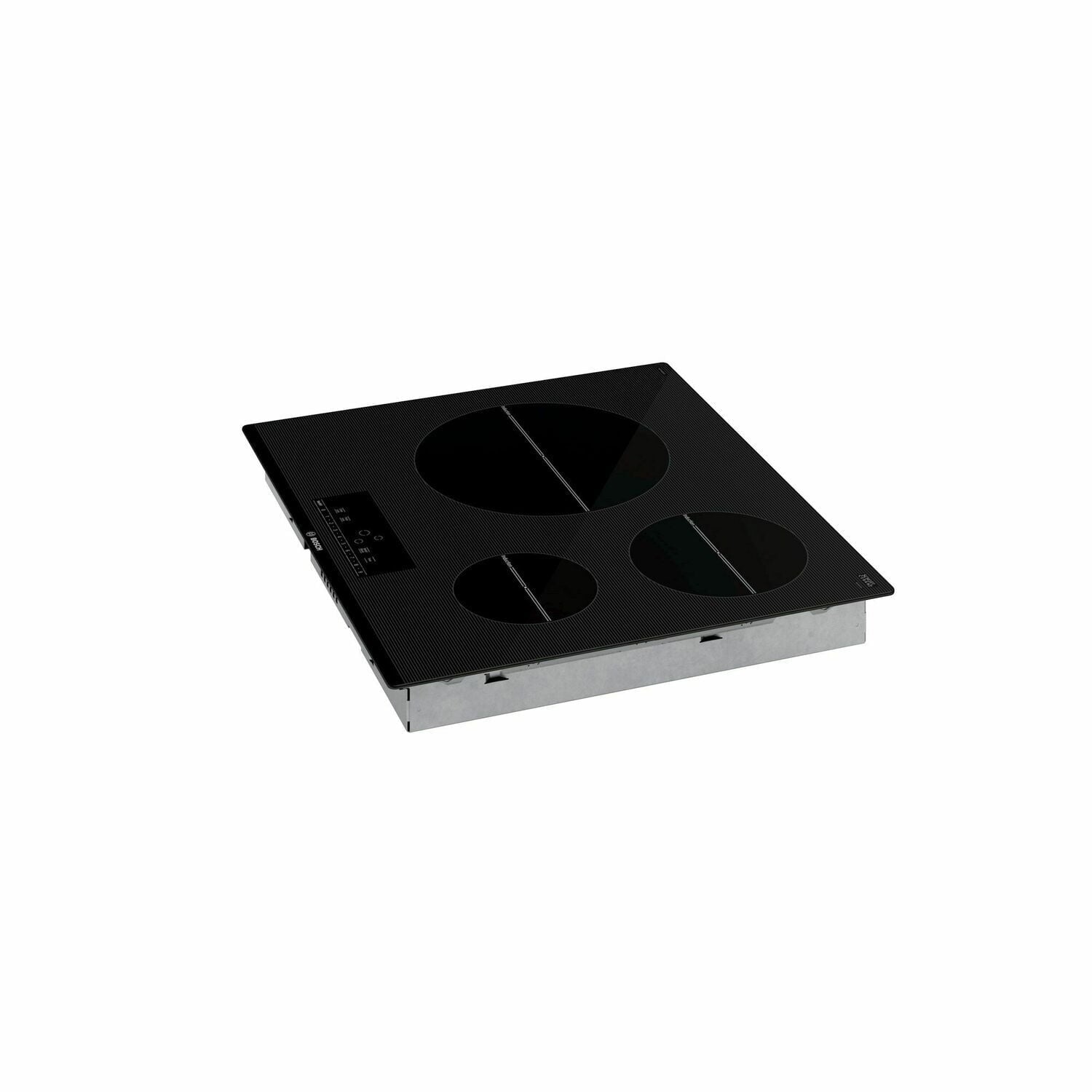

BlackThe 500 Series induction cooktop is sleek in design and offers quick and even cooking results.
- Induction: Faster than gas and electric cooktops. Precise cooking, easy cleaning, and more efficiency.
- 17 power levels: for each cooking zone.
- Each cooking zone: has an independent CountDown Timer.
- SpeedBoost(R): Adds even more power to speed up the cooking process.
- PreciseSelect(R): Direct cooking level selection.
Faster, efficient cooking with induction.
Induction technology directly heats your pots and pans instead of the cooktop itself for faster cooking and precise results.
Speed up dinner for more moments to savor.
Sometimes you don't want to wait for a pot of water to boil. The SpeedBoost(R) function on Bosch induction cooktops adds even more power to speed up the cooking process.
Your temperature, your way.

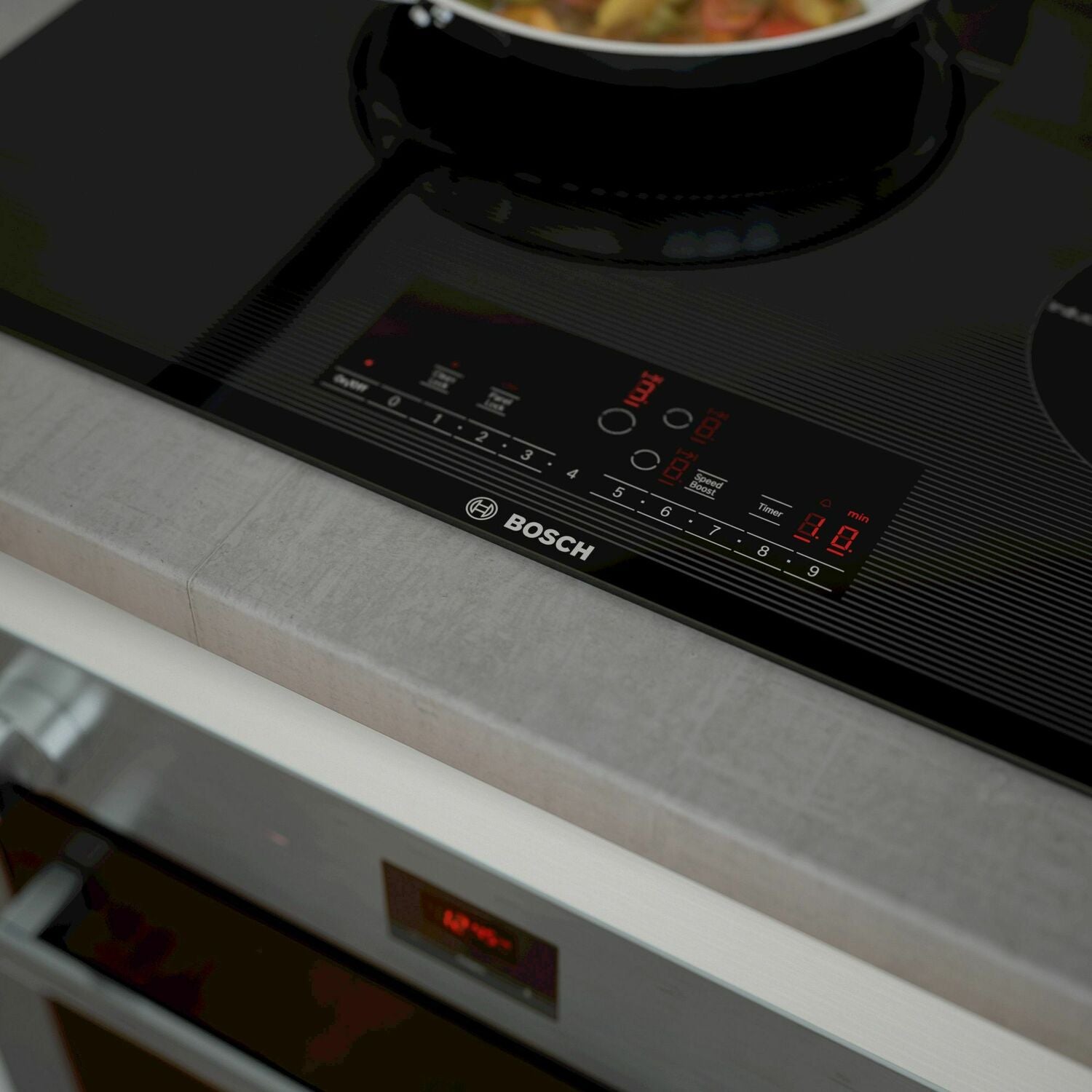

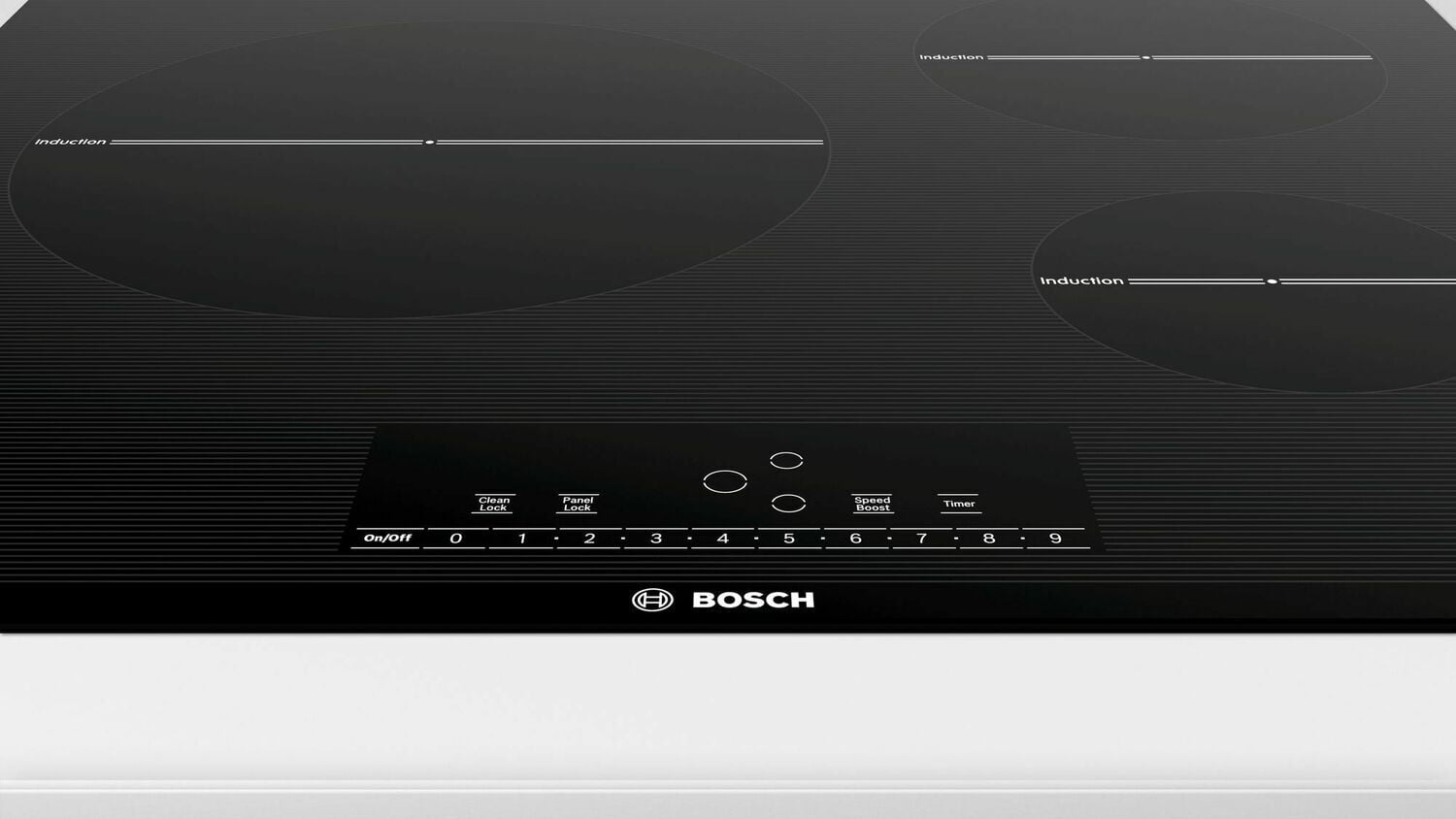

Juggling multiple pots and pans on different power levels can be confusing and frustrating. With PreciseSelect(R), an intuitively designed control panel allows you to select the cooking zones and set the specific power level you want - quickly and easily.
- Design
- Efficiency
- Convenience
- Safety
| Technical Specifications | |
| General | |
| Energy source | Electric |
| Type of control | DirectSelect 1.0 (Timer), front |
| Safety device | childproof lock, Key Lock, pan recognition, Power management function, Safety time-switch-off |
| Features | 17 power levels, powerBoost |
| Energy consumption of hob | 175.0 |
| Construction type | |
| Color of surface | Black |
| Construction type | Built-in |

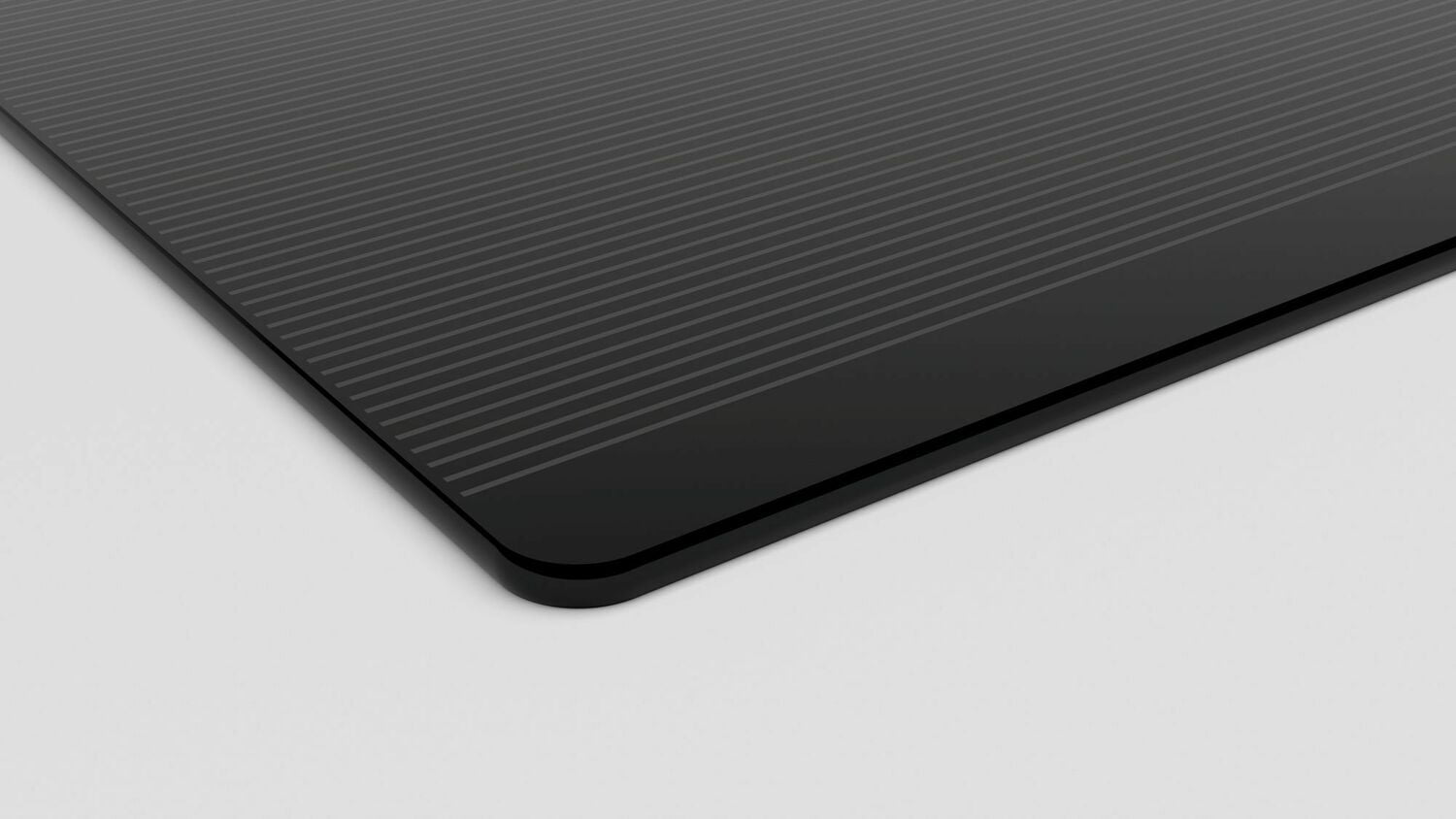

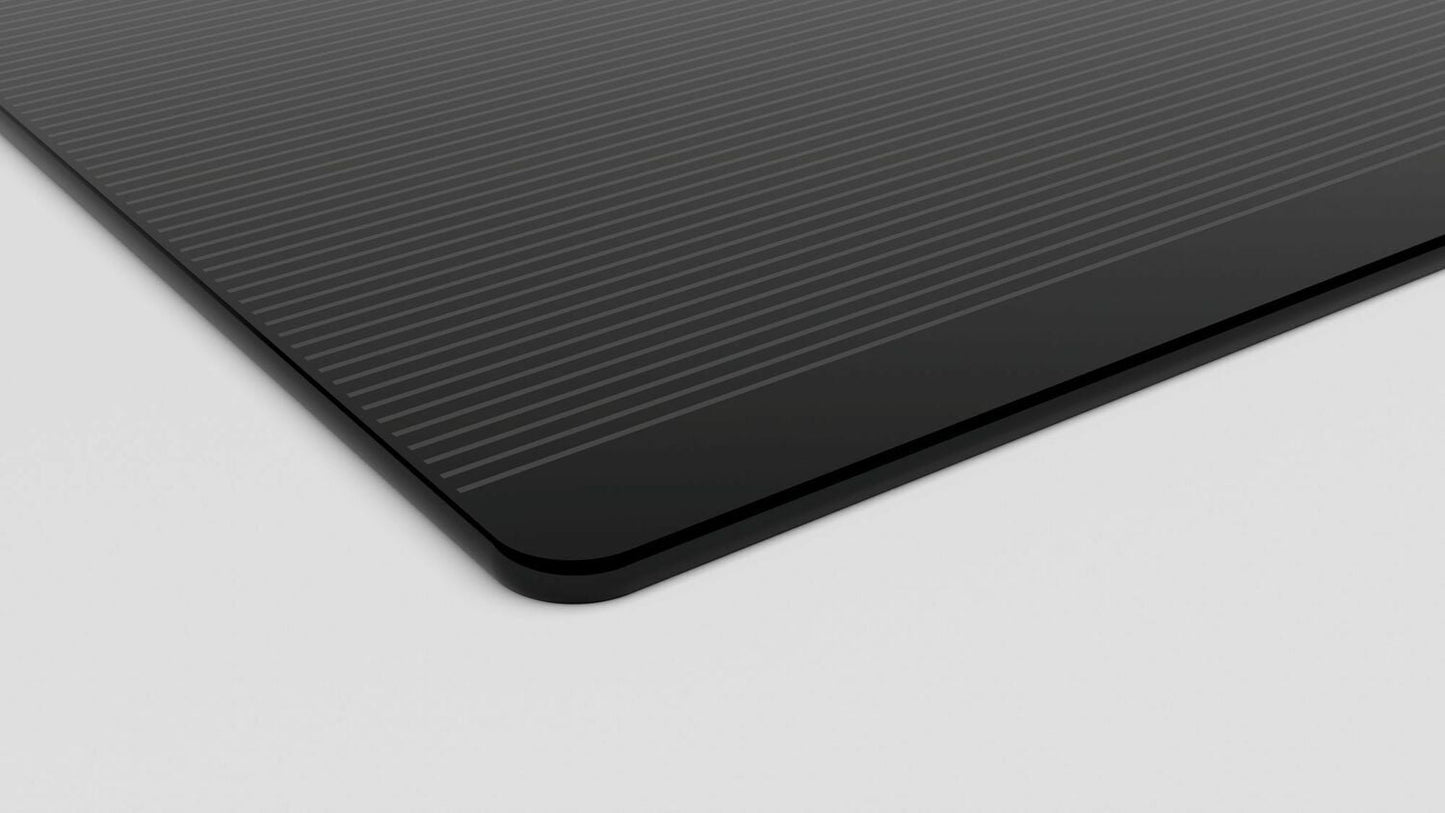

| Design - line | Frameless |
| Number of electric elements | 0 |
| Number of electric cooking zones | 3 |
| Type of frame | Frameless |
| Number of gas burners | 0 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Total number of cooktop burners | 3 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |

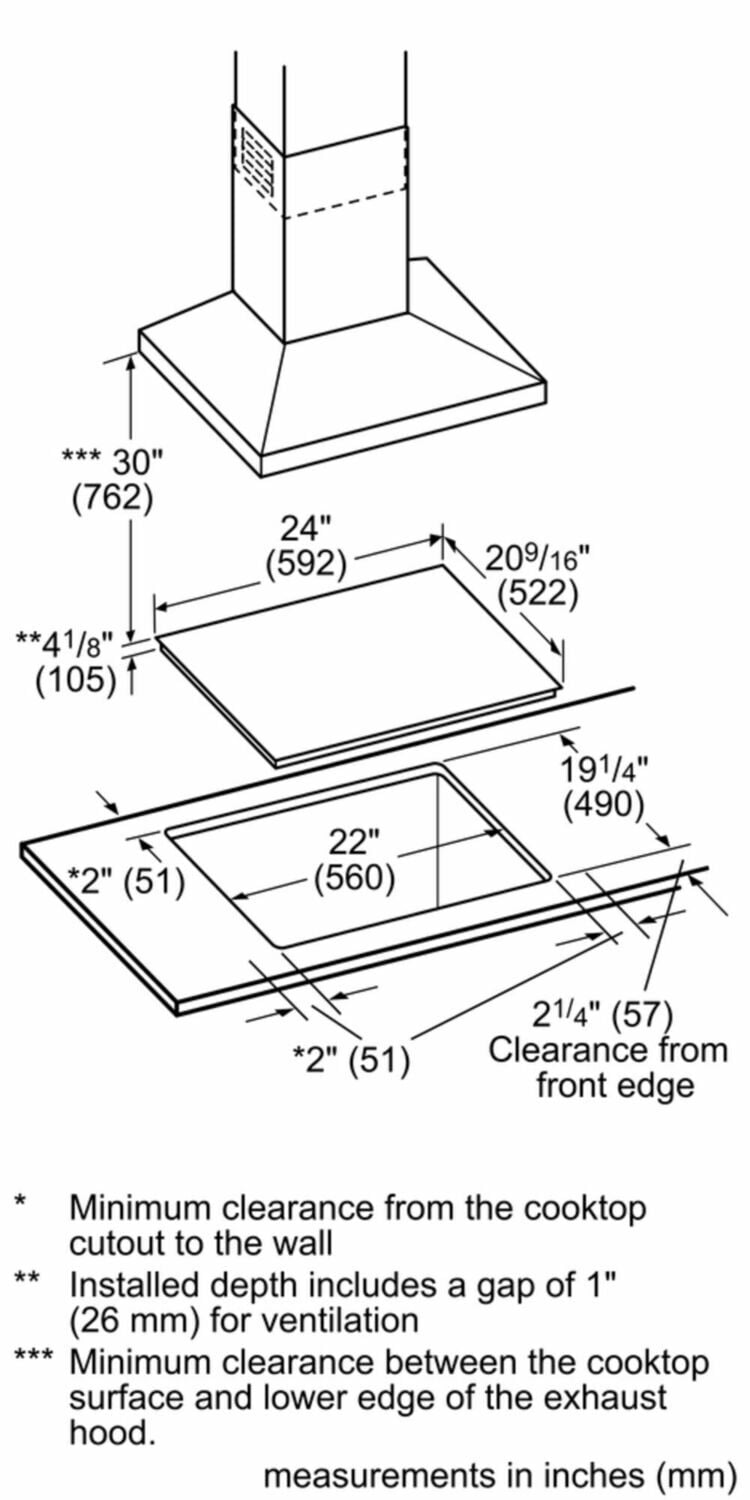

| Size and weight | |

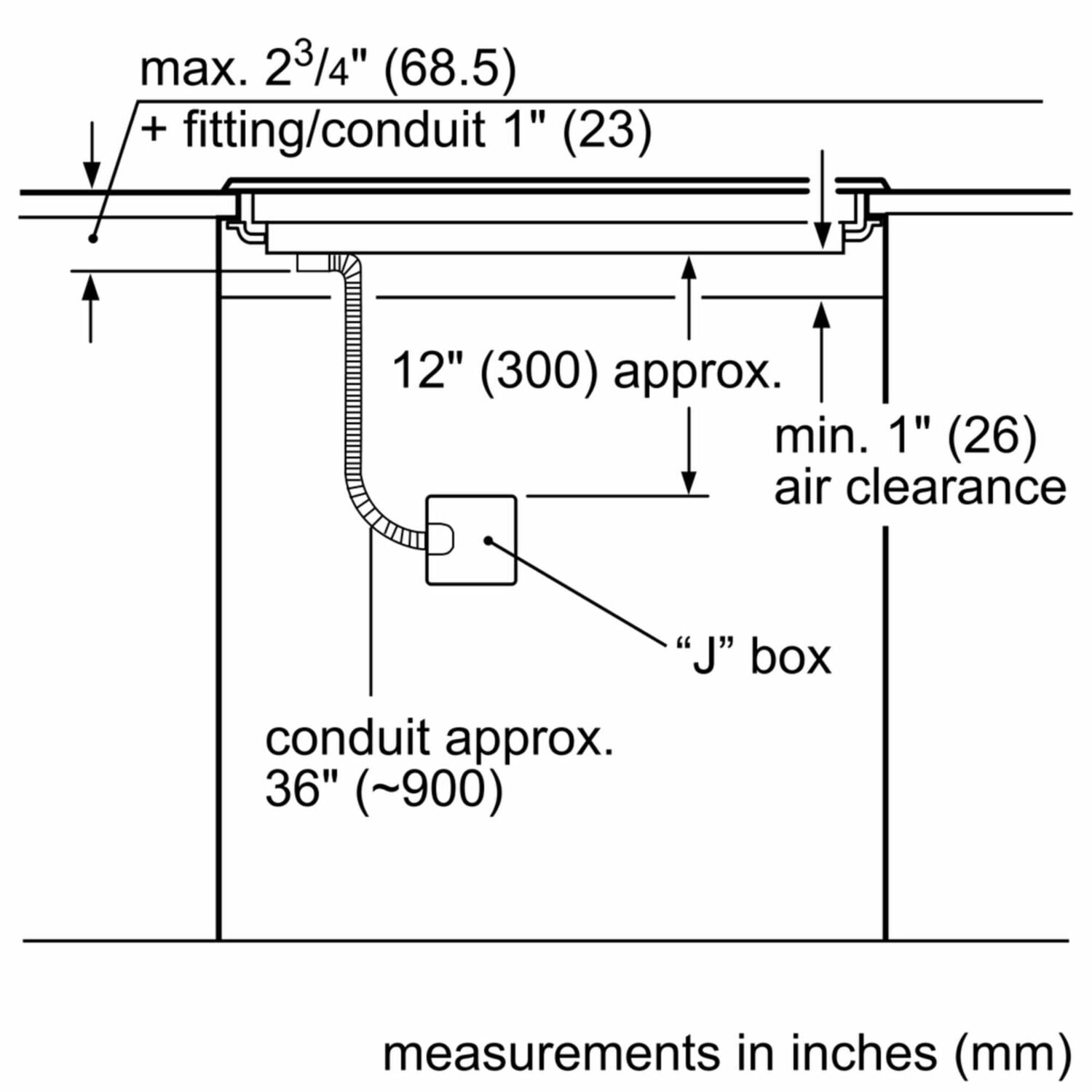

| Overall appliance dimensions (HxWxD) (in) | 1/4'' + 3 3/4'' x 24' x 20 9/16' |
| Net weight (lbs) | 32.000 |
| Minimum distance from counter front (in) | 2 1/4' |
| Minimum distance from rear wall (in) | 2' |
| Cooking zone 1 | |
| Location of 1st heating element | front left |
| Cooking zone 2 | |
| Dimension of 2nd heating element (in) | 11'' |
| Location of 2nd heating element | center left |
| Power of 2nd heating element (kW) | 2.6 |
| Type of 2nd heating element | Induction heating |
| Energy consumption of 2nd heating element | 175.0 |
| Cooking zone 3 | |
| Location of 3rd heating element | back left |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Dimension of 5th heating element (in) | 7'' |
| Location of 5th heating element | back right |
| Power of 5th heating element (kW) | 1.8 |
| Energy consumption of 5th heating element | 175.0 |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Dimension of 7th heating element (in) | 6'' |
| Location of 7th heating element | front right |
| Power of 7th heating element (kW) | 1.4 |
| Type of 7th heating element | Induction heating |
| Energy consumption of 7th heating element | 175.0 |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Safety | |
| Power on indicator | |
| Residual heat indicator | Separate |
| Safety device | childproof lock, Key Lock, pan recognition, Power management function, Safety time-switch-off |
| Main on/off switch | |
| Connection | |
| Frequency (Hz) | 60 |
| Energy source | Electric |
| Power Cord Length | 37' |
| Watts (W) | 6,240 |
