BlackThis 30-inch Bosch gas cooktop features an OptiSim burner, electronic re-ignition, 5 burners, and includes an LP conversion kit.
OptiSim Burner: OptiSim Burner – simmer delicate sauces and melt chocolate without scorching
Electronic Re-Ignition: Electronic re-ignition will automatically re-ignite the burner in case the flame goes out
Red Led Light: Distinctive red LED light indicates burners are on
Automatic re-ignition
The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.
Continuous cast iron grate design
The full width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.
LED indicator light safety feature
A burner indicator light on the cooktop illuminates when at least one burner is on.
- Performance
- Five Burner 30 Inch Cooktop--Same Versatility of 36 Inch Cooktop in Compact 30 Inch Format. For Kitchens Where Space is Limited
- Powerful 19,000 BTU Burner for Boiling, Searing and Stir-Frying
- STAR-K Sabbath compliant
- Convenience
- Sealed Burners Prevent Spills from Entering the Burner Box

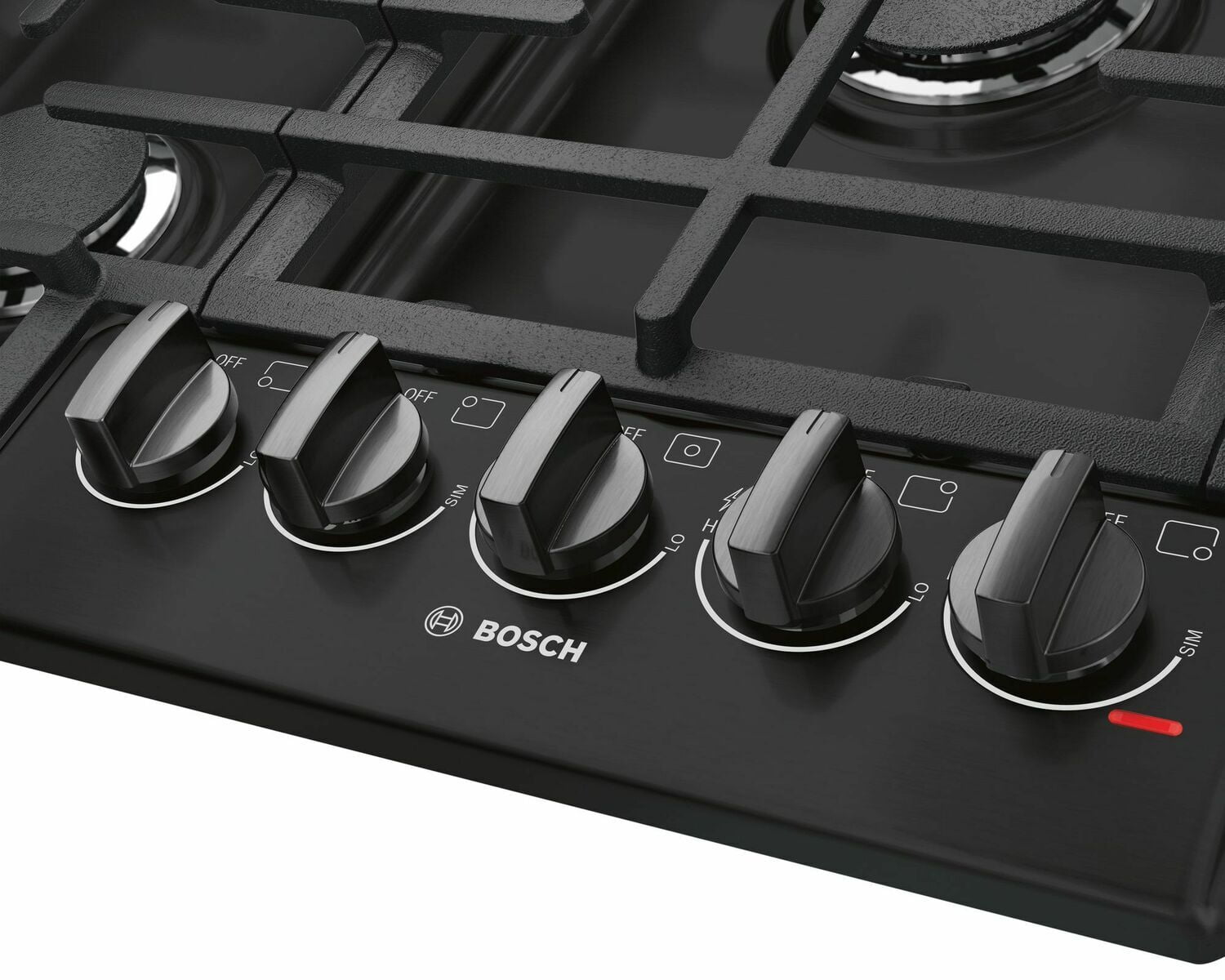

- Push-to-Turn Knobs
- Porcelain enamel on cast iron grates
- Automatic Electronic Re-Ignition - In Case Flame Goes Out, the Burner is Automatically Re-Ignited
- Distinctive Single Red LED Light Indicates Burners Are On
- LP Conversion Kit Included for Conversion from Natural Gas to Liquid Propane
- Design
- Seamless, one-piece black porcelain steel design
- Heavy-Duty Black Stainless Steel Finish Metal Knobs for a Premium Look and Feel
- Low-Profile Design for an Integrated Appearance
- Perfect Results are Within Reach With Up-Front Centralized Controls

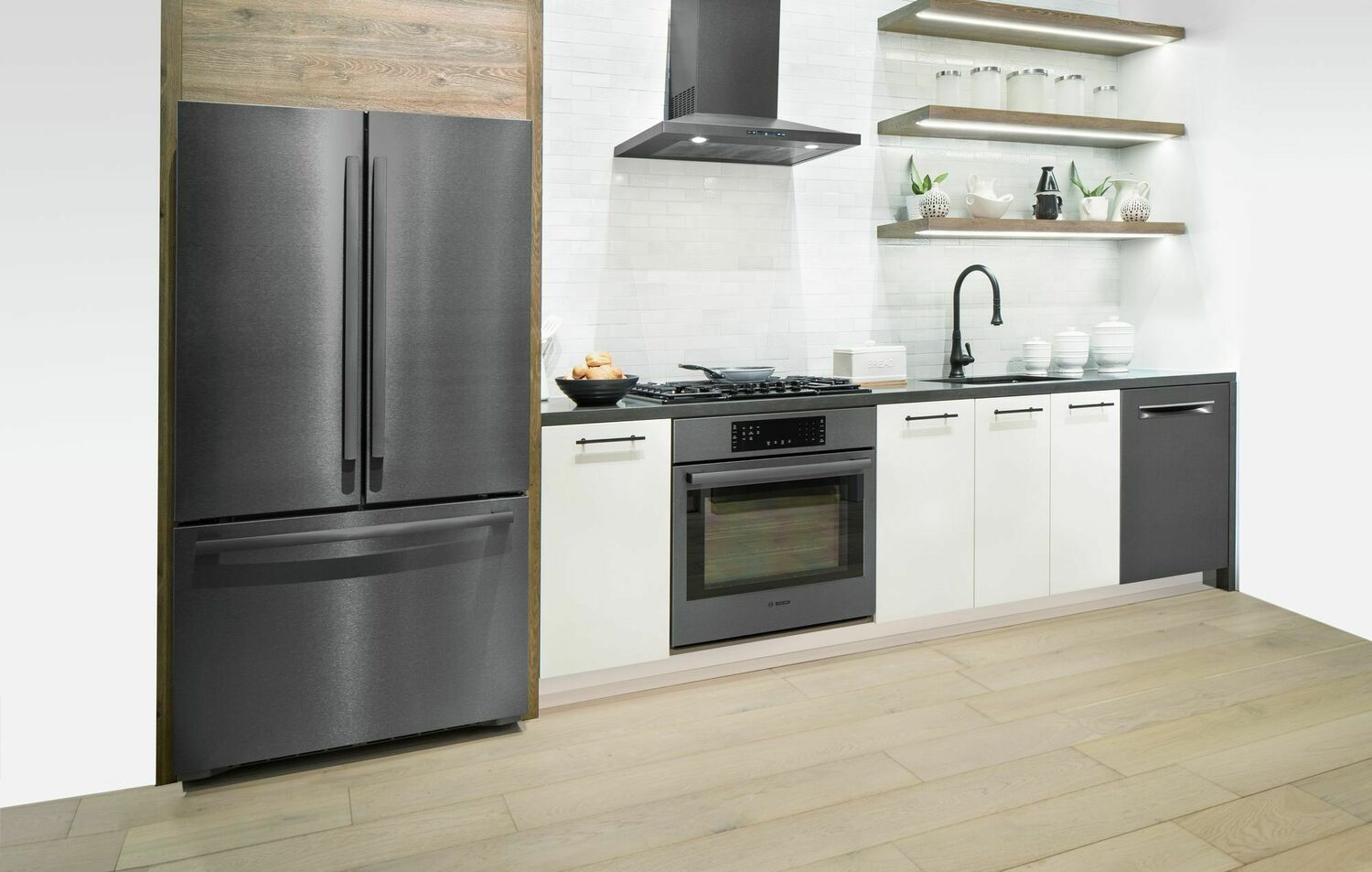

- Cooktop Design Coordinates with Bosch Black Stainless Steel Ovens and Ventilation
| Technical Specifications | |
| General | |
| Energy source | Gas |
| Type of control | sword knobs |
| Safety device | automatic reignition |
| Construction type | |
| Color of frame | Black |
| Color of surface | Black |
| Construction type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of gas burners | 5 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total number of cooktop burners | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Size and weight | |

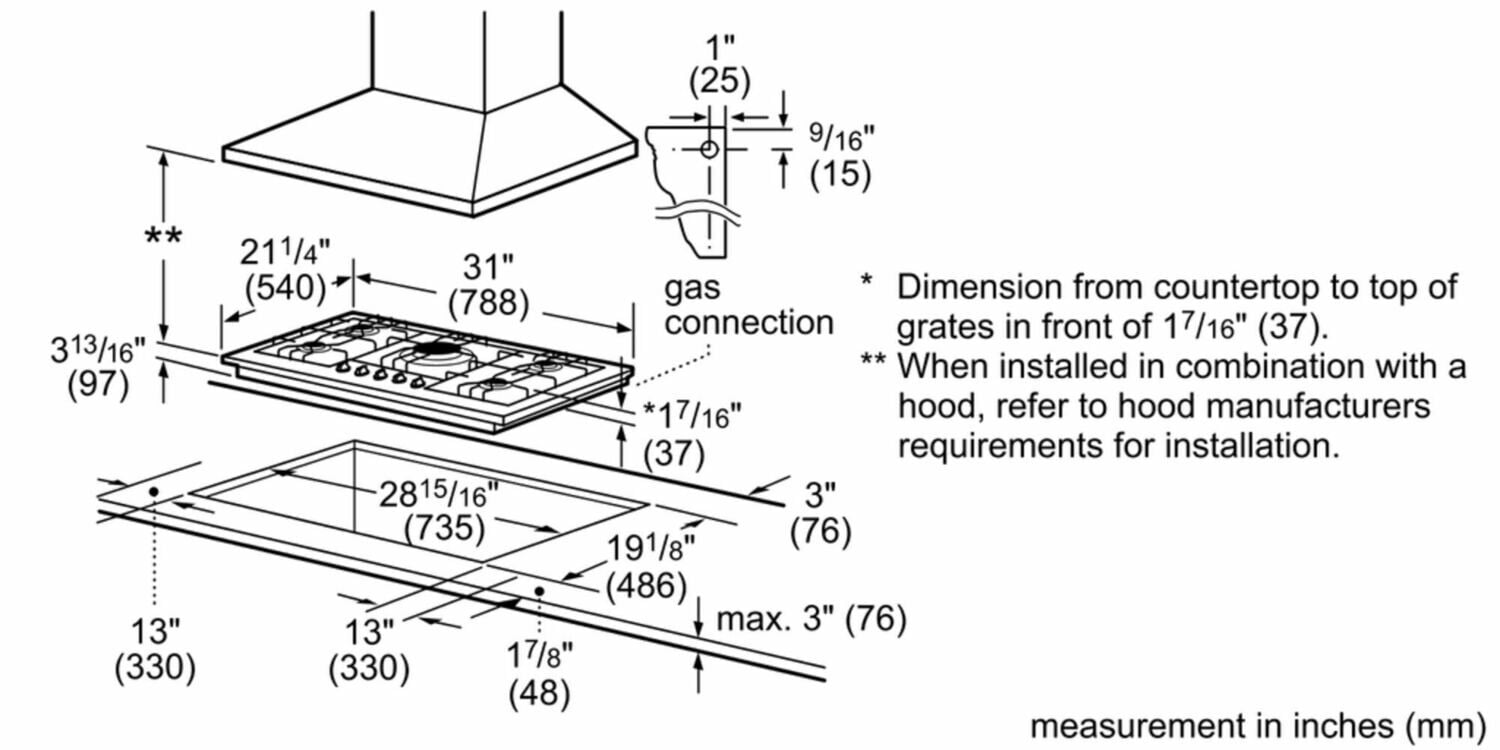

| Overall appliance dimensions (HxWxD) (in) | + 3 13/16'' x 31'' x 21 1/4'' |
| Net weight (lbs) | 41.000 |

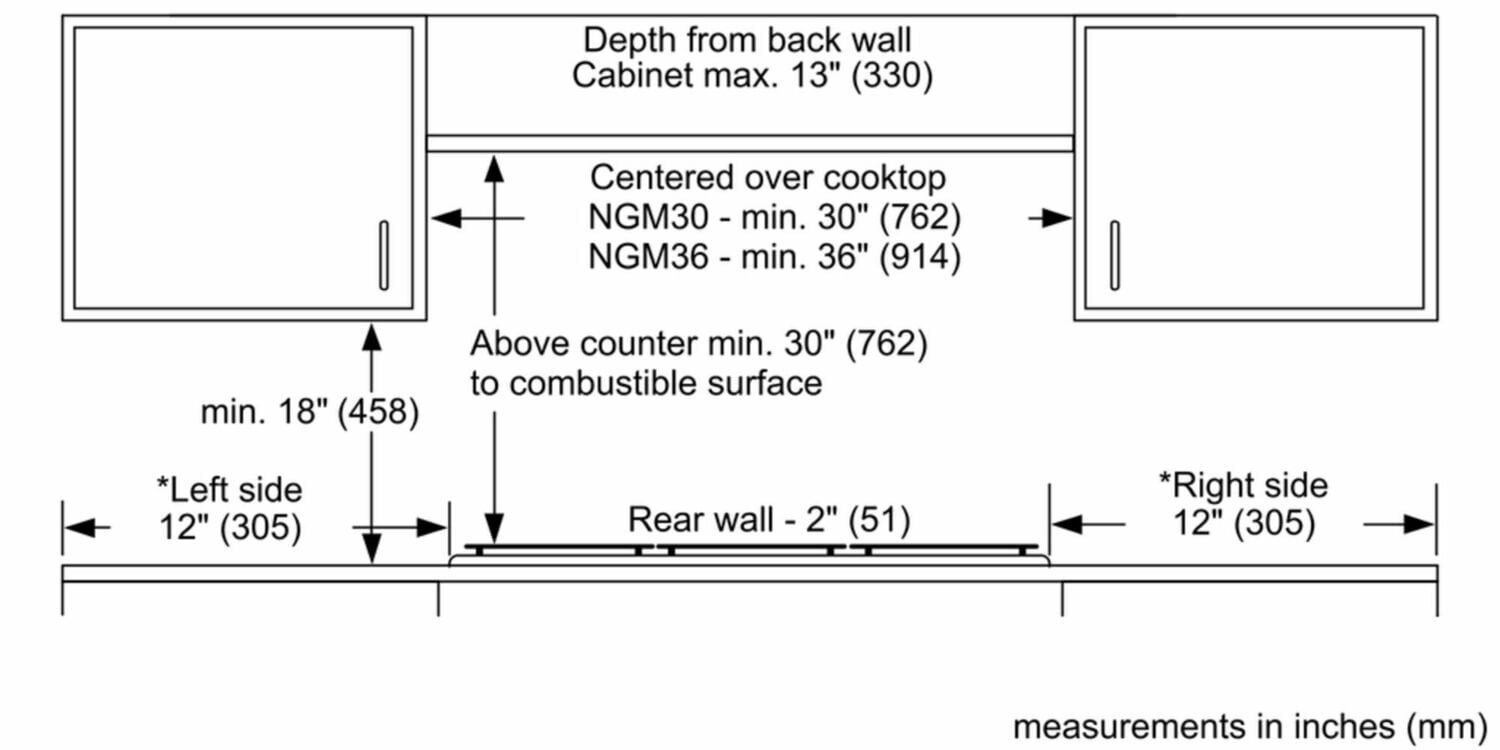

| Minimum distance from counter front (in) | 1 7/8'' |
| Minimum distance from rear wall (in) | 3'' |
| Cooking zone 1 | |
| Location of 1st heating element | front left |
| Type of heating element | Gas |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Location of 3rd heating element | back left |
| Type of 3rd heating element | Gas |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Location of 5th heating element | back right |
| Type of 5th heating element | Gas |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Location of 7th heating element | front right |
| Type of 7th heating element | Gas |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Safety | |
| Type of safety device for gas | Without |
| Power on indicator | |
| Residual heat indicator | without |
| Safety device | automatic reignition |
| Main on/off switch | |
| Connection | |
| Gas connection rating (W) | 10 |

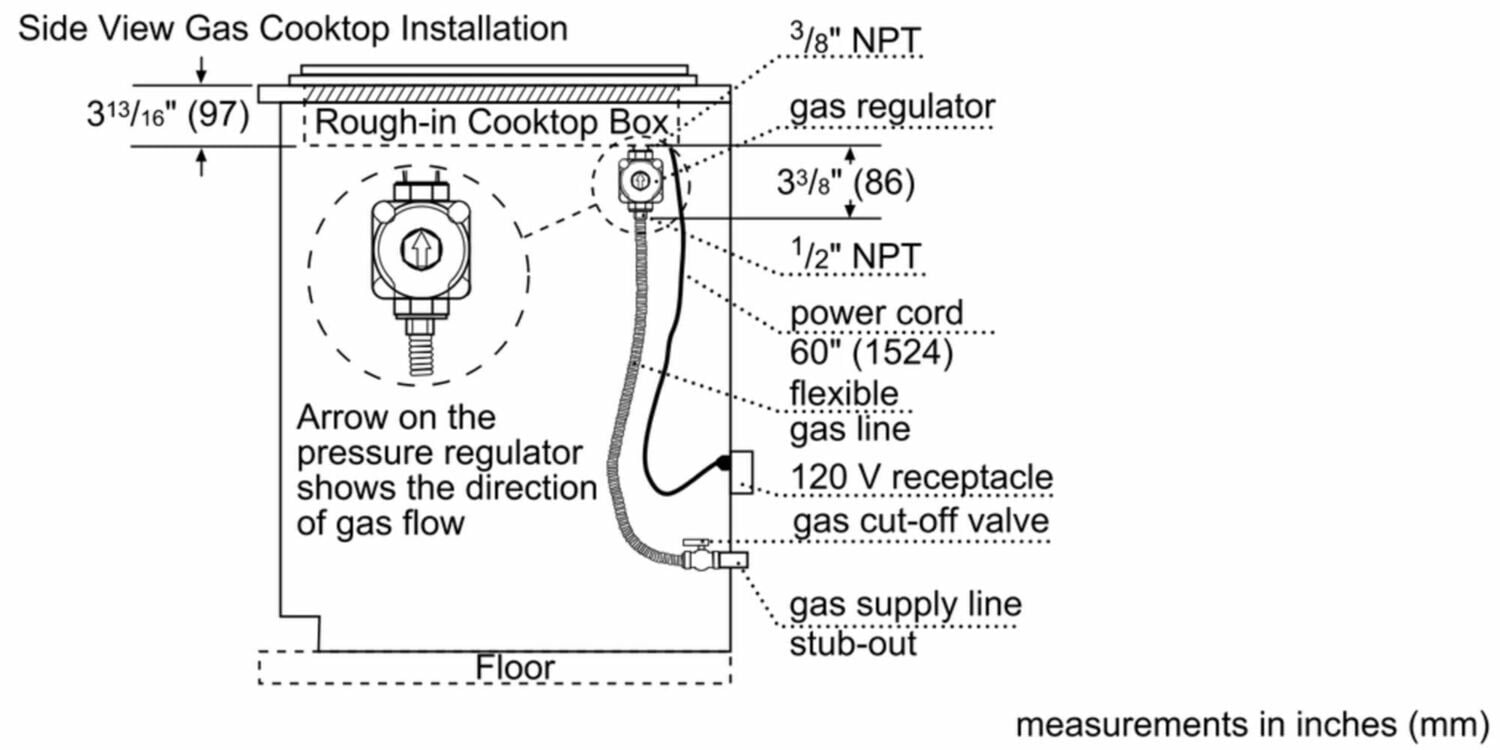

| Location of gas connection | bottom, rear, right |
| Frequency (Hz) | 60 |
| Energy source | Gas |
| Power Cord Length | 60'' |
| Watts (W) | 360 |
Black Stainless Video
Brand Quality Video
Brand Anthem Video
Bosch & Curtis Stone Intro Video
Cooking Quality Video
Overview
Automatic re-ignition
The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.
Continuous cast iron grate design
The full width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.
LED indicator light safety feature
A burner indicator light on the cooktop illuminates when at least one burner is on.
Description
This 30-inch Bosch gas cooktop features an OptiSim burner, electronic re-ignition, 5 burners, and includes an LP conversion kit.
OptiSim Burner: OptiSim Burner – simmer delicate sauces and melt chocolate without scorching
Electronic Re-Ignition: Electronic re-ignition will automatically re-ignite the burner in case the flame goes out
Red Led Light: Distinctive red LED light indicates burners are on
Specifications
| Technical Specifications | |
| General | |
| Energy source | Gas |
| Type of control | sword knobs |
| Safety device | automatic reignition |
| Construction type | |
| Color of frame | Black |
| Color of surface | Black |
| Construction type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of gas burners | 5 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total number of cooktop burners | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Size and weight | |
| Overall appliance dimensions (HxWxD) (in) | + 3 13/16'' x 31'' x 21 1/4'' |
| Net weight (lbs) | 41.000 |
| Minimum distance from counter front (in) | 1 7/8'' |
| Minimum distance from rear wall (in) | 3'' |
| Cooking zone 1 | |
| Location of 1st heating element | front left |
| Type of heating element | Gas |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Location of 3rd heating element | back left |
| Type of 3rd heating element | Gas |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Location of 5th heating element | back right |
| Type of 5th heating element | Gas |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Location of 7th heating element | front right |
| Type of 7th heating element | Gas |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Safety | |
| Type of safety device for gas | Without |
| Power on indicator | |
| Residual heat indicator | without |
| Safety device | automatic reignition |
| Main on/off switch | |
| Connection | |
| Gas connection rating (W) | 10 |
| Location of gas connection | bottom, rear, right |
| Frequency (Hz) | 60 |
| Energy source | Gas |
| Power Cord Length | 60'' |
| Watts (W) | 360 |
