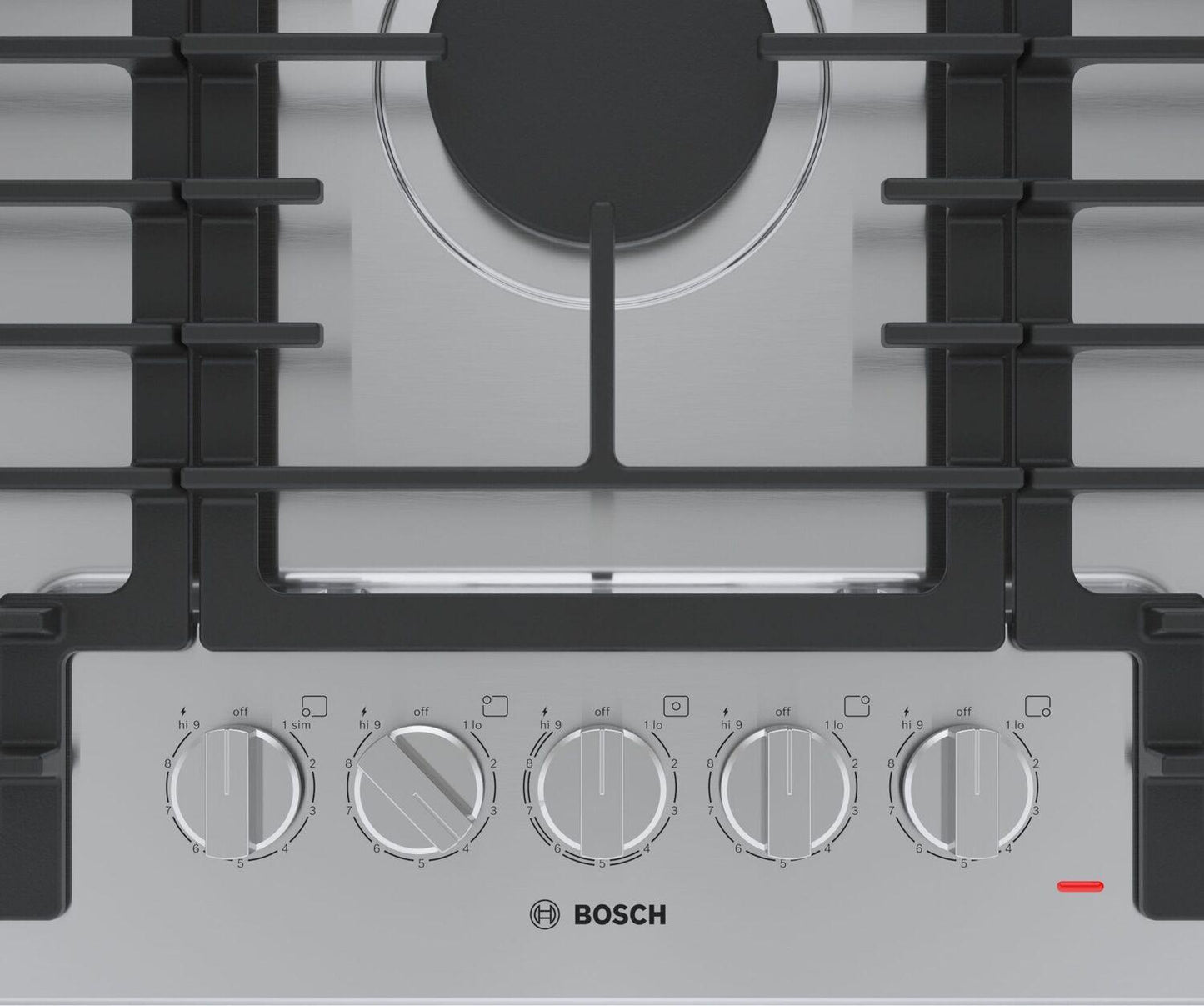

Bosch NGM5658UC 500 Series Gas Cooktop 36'' Stainless Steel Ngm5658Uc
The 500® Series stainless steel gas cooktop with continuous cast iron grates and OptiSim® burner. Read more...
SKU:NGM5658UC
UPC:825225963370
Colors:
Stainless Steel
This Item Qualifies for Free Delivery!
- Regular price
- Sale price
-
List Price: $1,349.00
You save: $150.00 (11%)Our Price: $1,199.00
- Regular price
- Unit price
- per
Extended protection
3 year plan
$120.995 year plan
$228.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?
Rebates
Bosch Kitchen Sales Event - Receive up to a $1000 rebate with purchase of qualifying Bosch Kitchen Appliances. Download Valid: 09/07/2023-12/31/2023
Bosch Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Bosch appliances. Download Valid: 09/29/2023-10/18/2023
Bosch Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Bosch appliances. Download Valid: 09/29/2023-10/18/2023
The 500® Series stainless steel gas cooktop with continuous cast iron grates and OptiSim® burner.

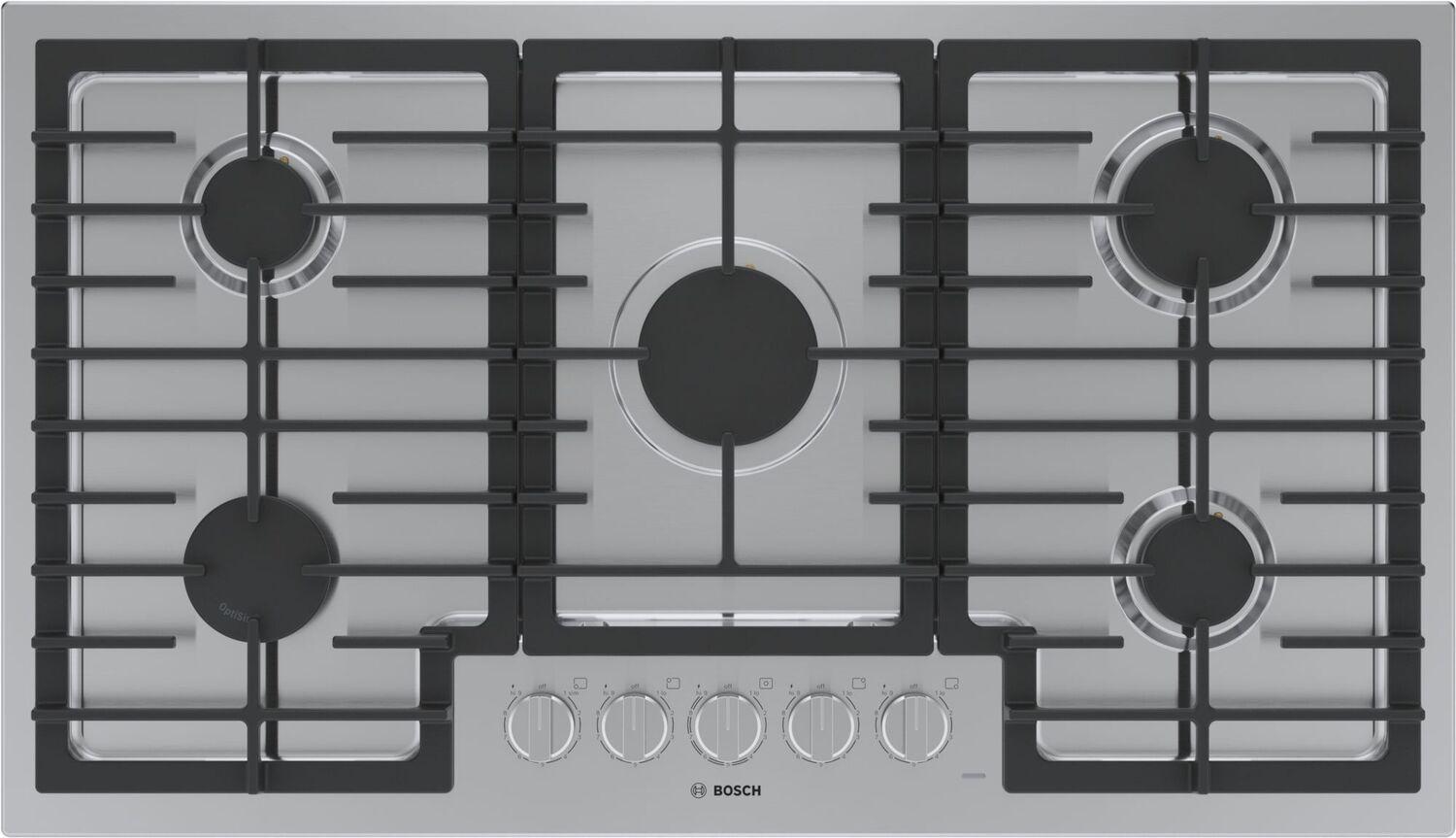

Features Five powerful high-efficiency gas burners allow you to cook multiple dishes with a full range of BTU performance.

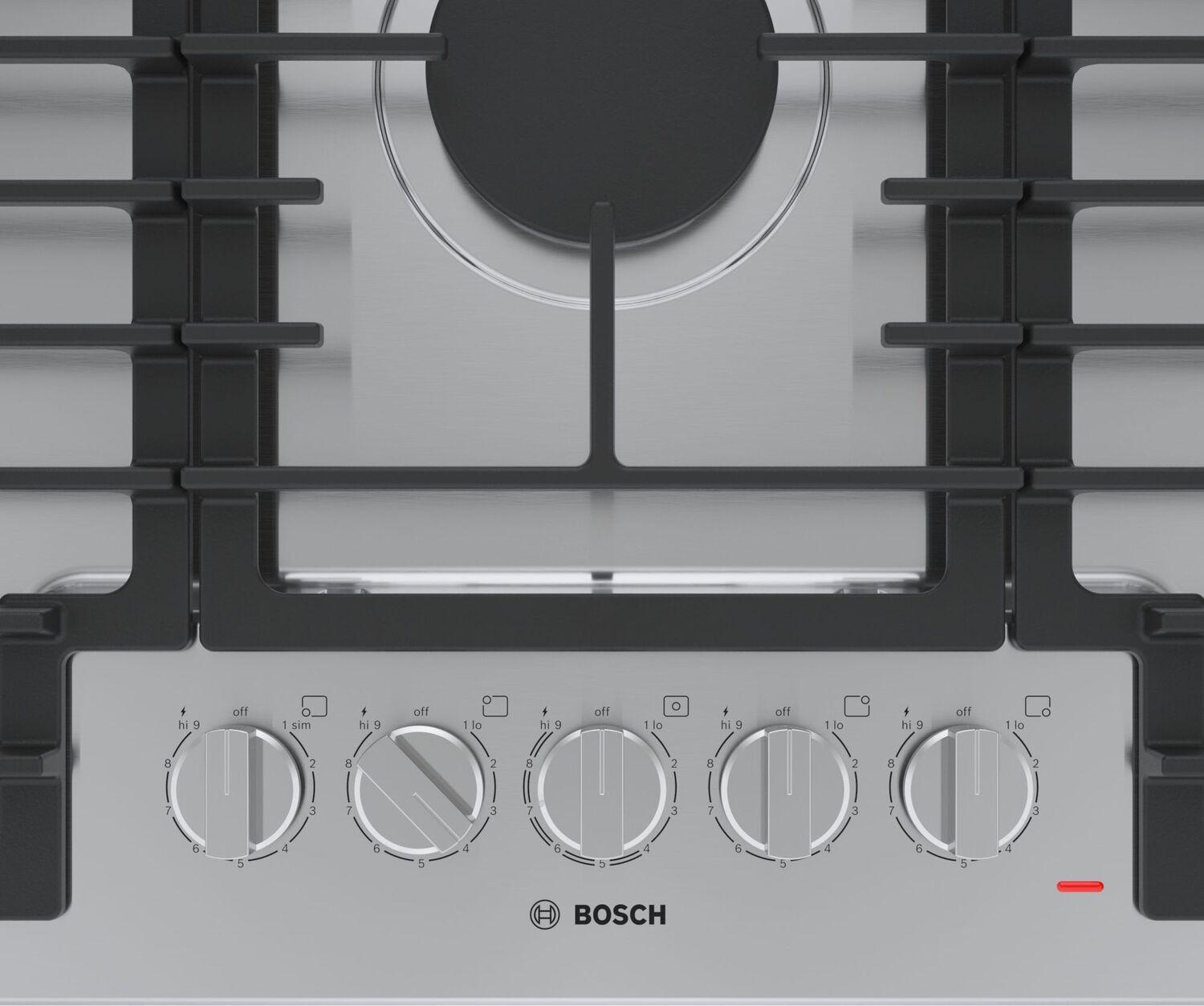

Distinctive red LED light indicates if burners are on.

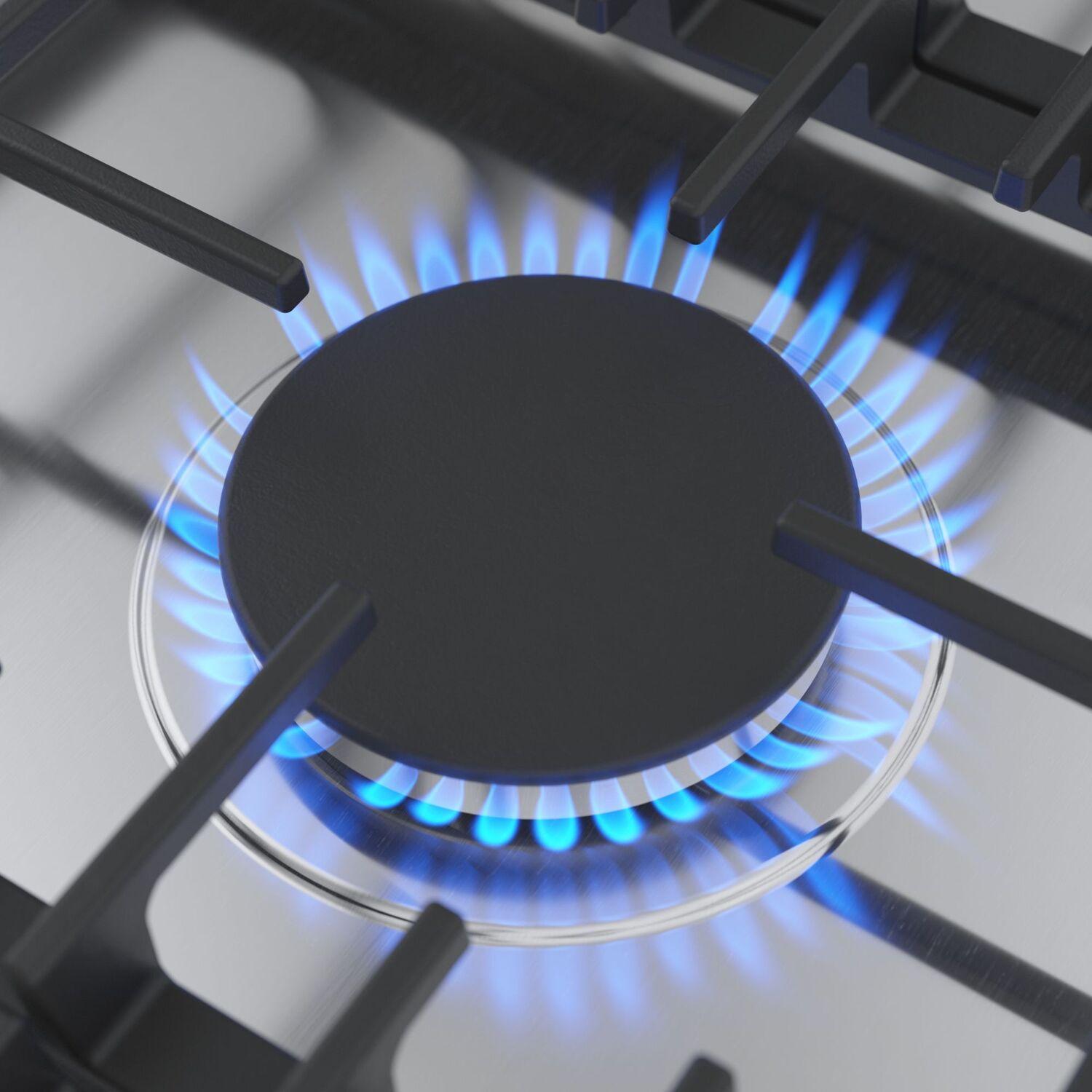

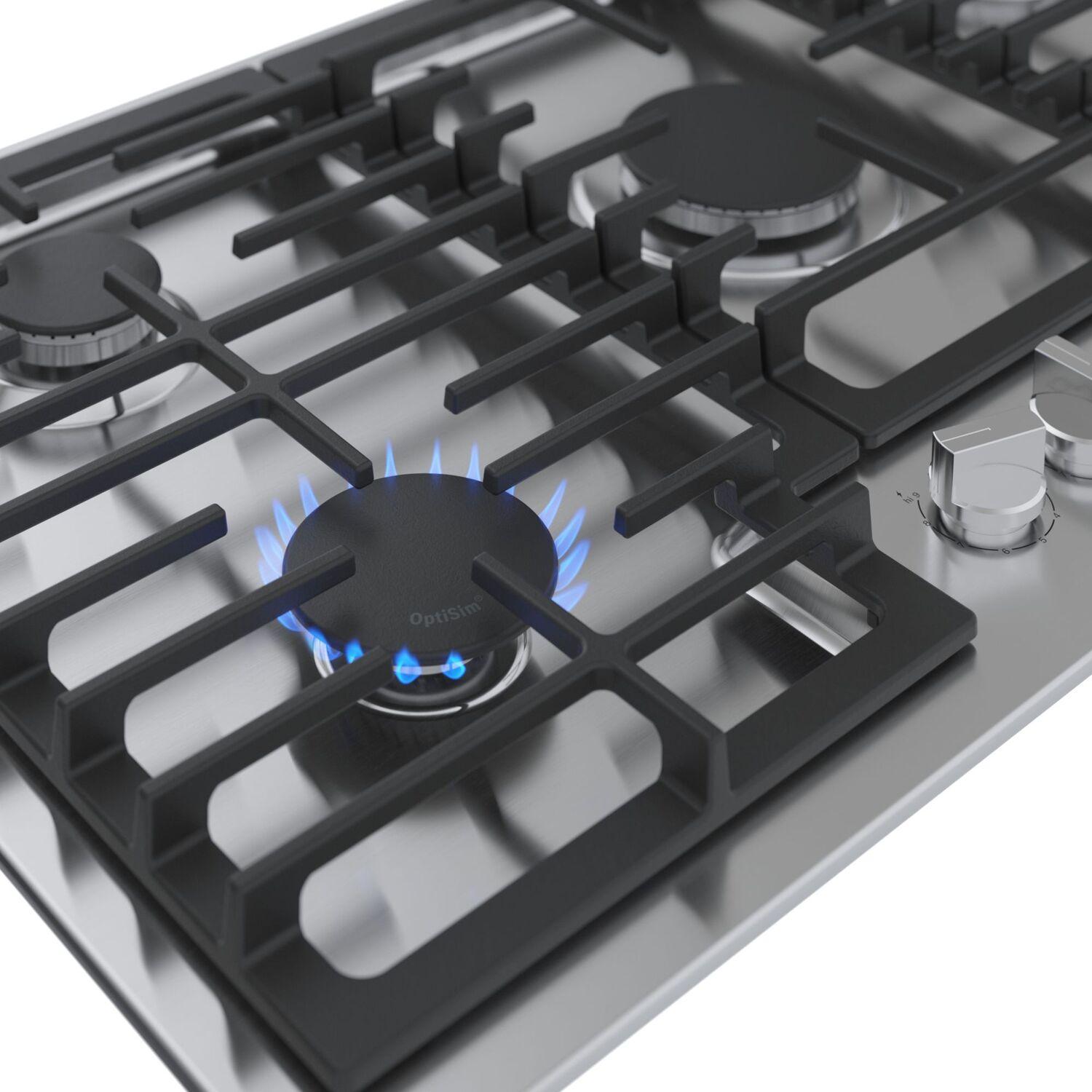

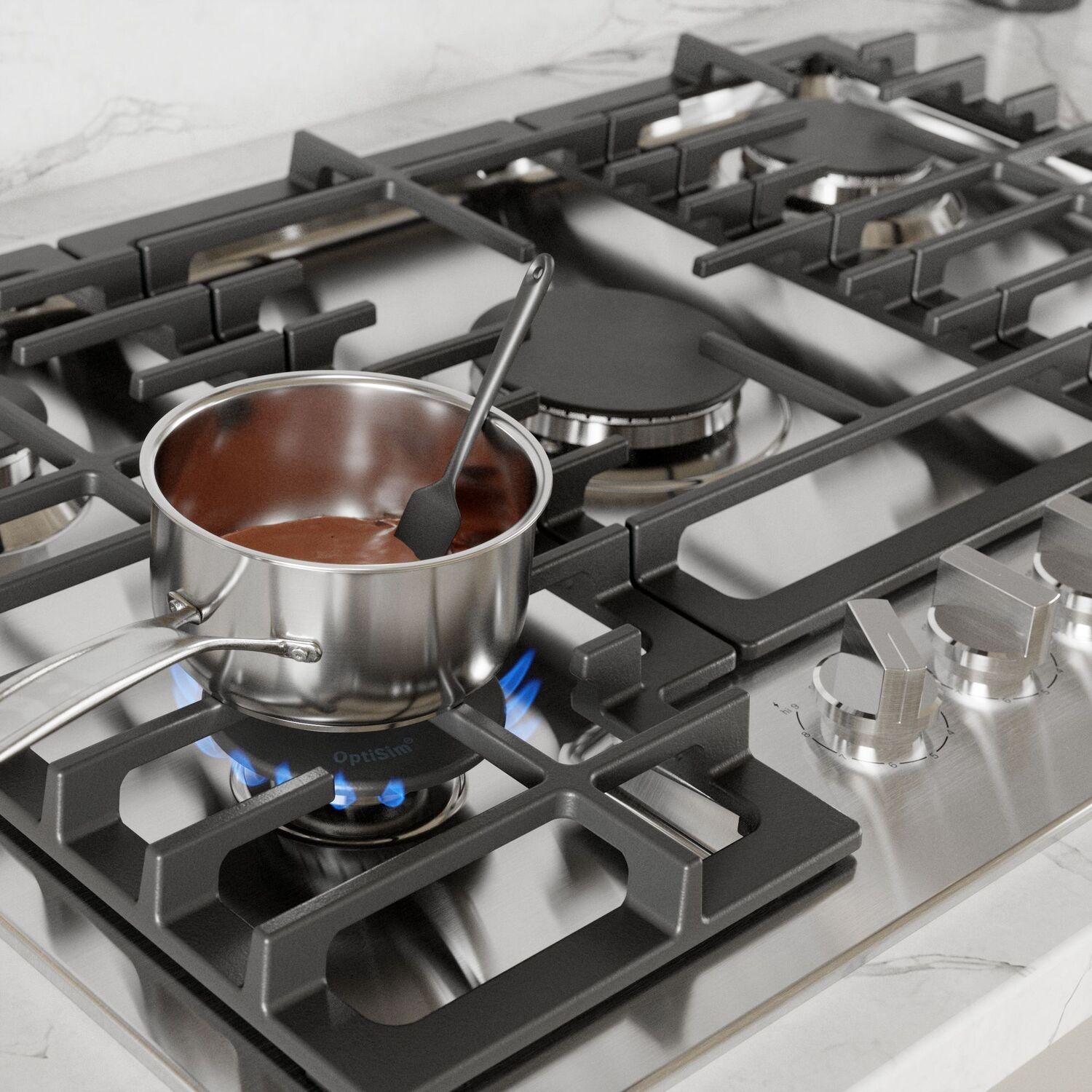

OptiSim® Burner - Simmer delicate sauces and melt chocolate without scorching OptiSim Burner for precise simmering Wider and thicker OptiSim burner design diffuses heat evenly for better flame control when simmering delicate sauces.
Continuous grates make moving heavy pots easier.
Seamless, one-piece stainless steel design makes clean-up simple. Easy to clean, low-profile design The seamless one-piece stainless steel design makes clean-up simple while the low profile design offers an integrated sleek look.
Dimensions & Capacity Width: 37"
Height: 3.75”
Depth: 21.25"
Features Five powerful high-efficiency gas burners allow you to cook multiple dishes with a full range of BTU performance.
Distinctive red LED light indicates if burners are on.
OptiSim® Burner - Simmer delicate sauces and melt chocolate without scorching OptiSim Burner for precise simmering Wider and thicker OptiSim burner design diffuses heat evenly for better flame control when simmering delicate sauces.
Continuous grates make moving heavy pots easier.
Seamless, one-piece stainless steel design makes clean-up simple. Easy to clean, low-profile design The seamless one-piece stainless steel design makes clean-up simple while the low profile design offers an integrated sleek look.
Dimensions & Capacity Width: 37"
Height: 3.75”
Depth: 21.25"
- LED light indicator
- Stainless steel design
- OptiSim®
- Five powerful highefficiency gas burners
| Features and Specifications | |
| General | |
| Energy source | Gas |
| Type of control | sword knobs |
| Safety device | SMARTFLAME |
| Construction type | |
| Color of frame | Stainless steel |
| Color of surface | Stainless steel |
| Construction type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of gas burners | 5 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total number of cooktop burners | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Size and weight | |

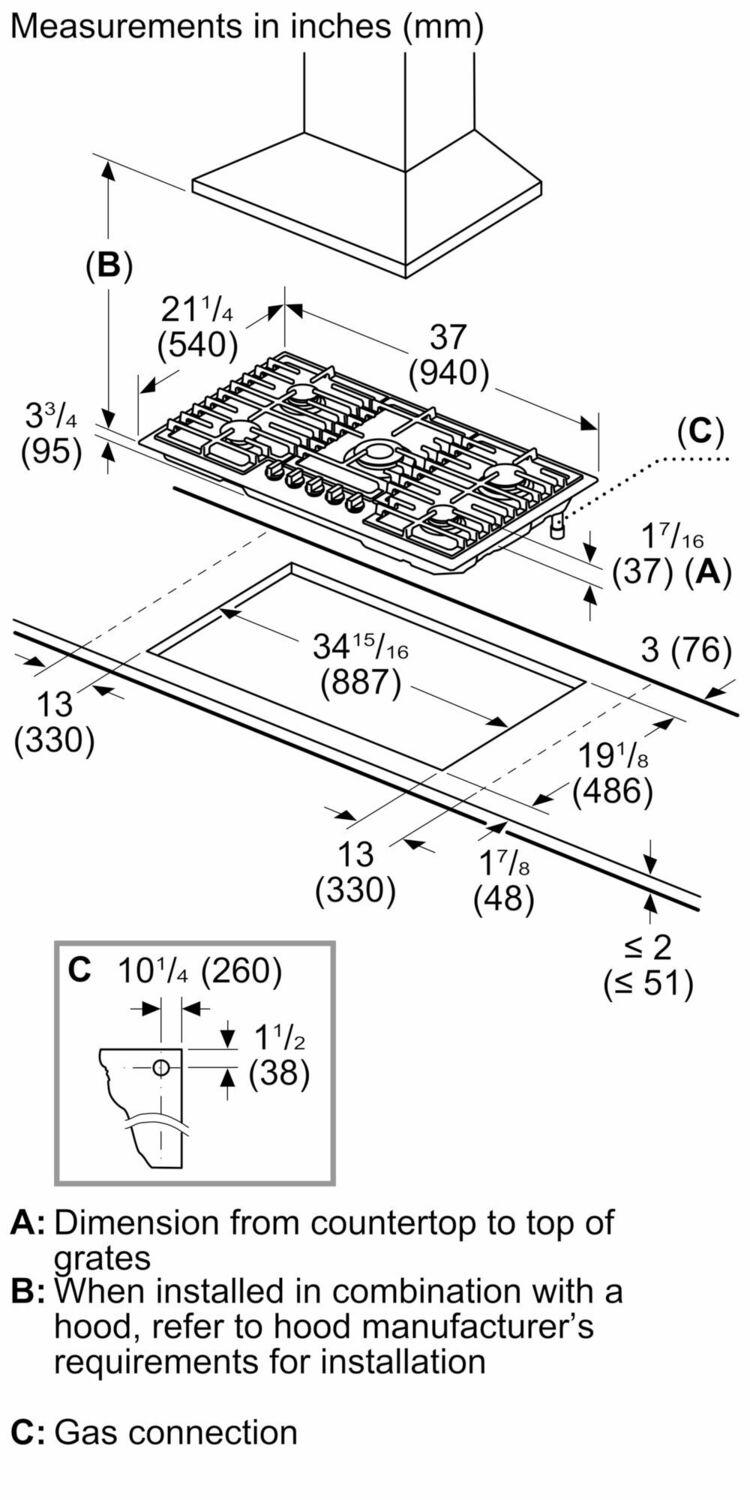

| Overall appliance dimensions (HxWxD) (in) | + 3 13/16'' x 37'' x 21 1/4'' |
| Net weight | 31.000 lbs |

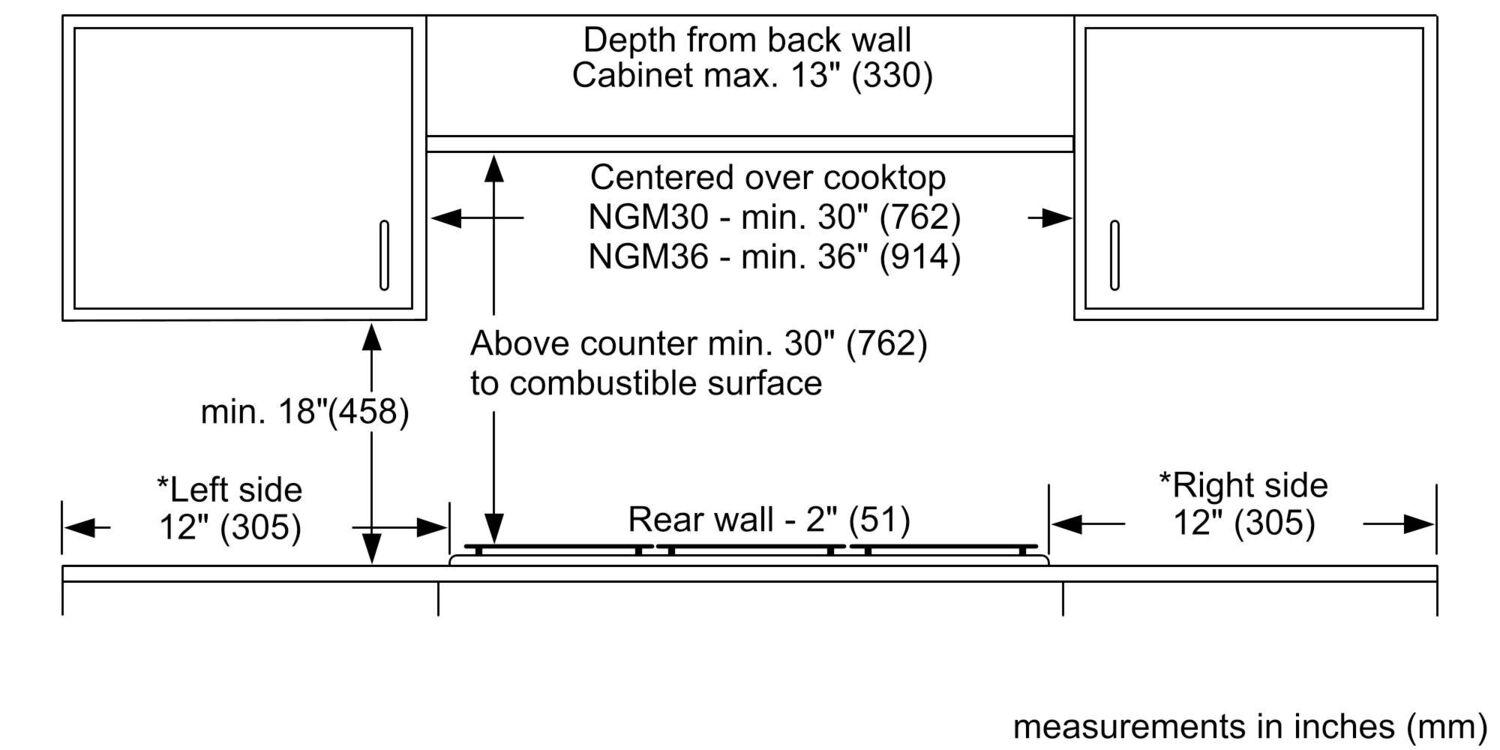

| Minimum distance from counter front (in) | 1 7/8'' |
| Minimum distance from rear wall (in) | 3'' |
| Cooking zone 1 | |
| Location of 1st heating element | front left |
| Power of heating element (kW) | 1 kW |
| Type of heating element | Gas |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Location of 3rd heating element | back left |
| Power of 3rd heating element (kW) | 1.75 kW |
| Type of 3rd heating element | Gas |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Location of 5th heating element | back right |
| Power of 5th heating element (kW) | 3 kW |
| Type of 5th heating element | Gas |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Location of 7th heating element | front right |
| Power of 7th heating element (kW) | 1.75 kW |
| Type of 7th heating element | Gas |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Safety | |
| Residual heat indicator | without |
| Type of safety device for gas | Electromagnetic for each burner |
| Connection | |
| Gas connection rating | 12,100 W |
| Location of gas connection | bottom, rear, right |
| Frequency | 60 Hz |
| Energy source | Gas |
| Power Cord Length | 40'' |
| Watts | 360 W |
| Accessories | |
| Included accessories | 1 x nozzle set for liquid gas, 1 x cast iron pan support |
Brand Quality Video
Brand Anthem Video
Bosch & Curtis
Cooking Quality
Description
The 500® Series stainless steel gas cooktop with continuous cast iron grates and OptiSim® burner.
Features Five powerful high-efficiency gas burners allow you to cook multiple dishes with a full range of BTU performance.
Distinctive red LED light indicates if burners are on.
OptiSim® Burner - Simmer delicate sauces and melt chocolate without scorching OptiSim Burner for precise simmering Wider and thicker OptiSim burner design diffuses heat evenly for better flame control when simmering delicate sauces.
Continuous grates make moving heavy pots easier.
Seamless, one-piece stainless steel design makes clean-up simple. Easy to clean, low-profile design The seamless one-piece stainless steel design makes clean-up simple while the low profile design offers an integrated sleek look.
Dimensions & Capacity Width: 37"
Height: 3.75”
Depth: 21.25"
Features Five powerful high-efficiency gas burners allow you to cook multiple dishes with a full range of BTU performance.
Distinctive red LED light indicates if burners are on.
OptiSim® Burner - Simmer delicate sauces and melt chocolate without scorching OptiSim Burner for precise simmering Wider and thicker OptiSim burner design diffuses heat evenly for better flame control when simmering delicate sauces.
Continuous grates make moving heavy pots easier.
Seamless, one-piece stainless steel design makes clean-up simple. Easy to clean, low-profile design The seamless one-piece stainless steel design makes clean-up simple while the low profile design offers an integrated sleek look.
Dimensions & Capacity Width: 37"
Height: 3.75”
Depth: 21.25"
Features
- LED light indicator
- Stainless steel design
- OptiSim®
- Five powerful highefficiency gas burners
Specifications
| Features and Specifications | |
| General | |
| Energy source | Gas |
| Type of control | sword knobs |
| Safety device | SMARTFLAME |
| Construction type | |
| Color of frame | Stainless steel |
| Color of surface | Stainless steel |
| Construction type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of gas burners | 5 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total number of cooktop burners | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Size and weight | |
| Overall appliance dimensions (HxWxD) (in) | + 3 13/16'' x 37'' x 21 1/4'' |
| Net weight | 31.000 lbs |
| Minimum distance from counter front (in) | 1 7/8'' |
| Minimum distance from rear wall (in) | 3'' |
| Cooking zone 1 | |
| Location of 1st heating element | front left |
| Power of heating element (kW) | 1 kW |
| Type of heating element | Gas |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Location of 3rd heating element | back left |
| Power of 3rd heating element (kW) | 1.75 kW |
| Type of 3rd heating element | Gas |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Location of 5th heating element | back right |
| Power of 5th heating element (kW) | 3 kW |
| Type of 5th heating element | Gas |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Location of 7th heating element | front right |
| Power of 7th heating element (kW) | 1.75 kW |
| Type of 7th heating element | Gas |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Safety | |
| Residual heat indicator | without |
| Type of safety device for gas | Electromagnetic for each burner |
| Connection | |
| Gas connection rating | 12,100 W |
| Location of gas connection | bottom, rear, right |
| Frequency | 60 Hz |
| Energy source | Gas |
| Power Cord Length | 40'' |
| Watts | 360 W |
| Accessories | |
| Included accessories | 1 x nozzle set for liquid gas, 1 x cast iron pan support |
