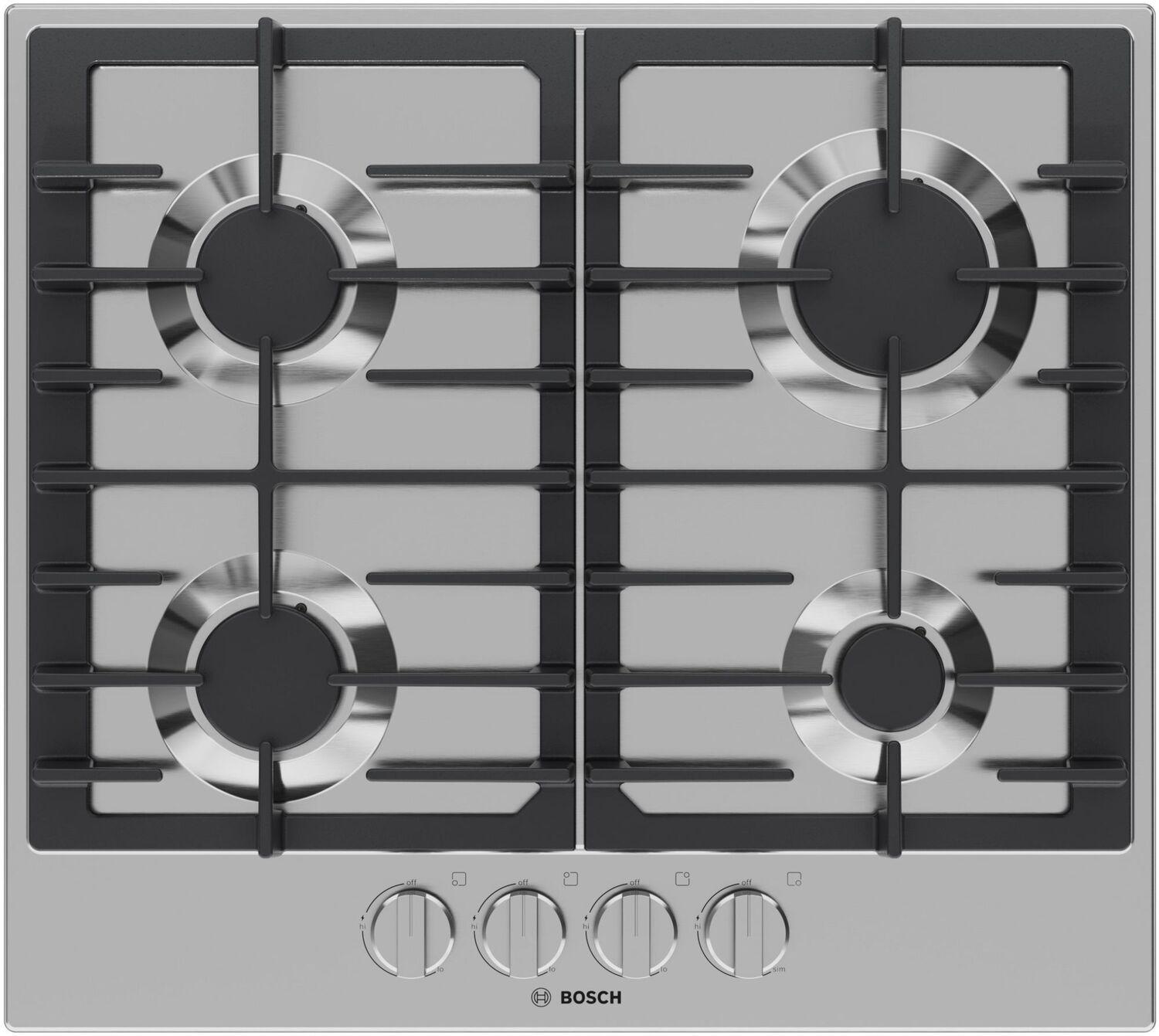

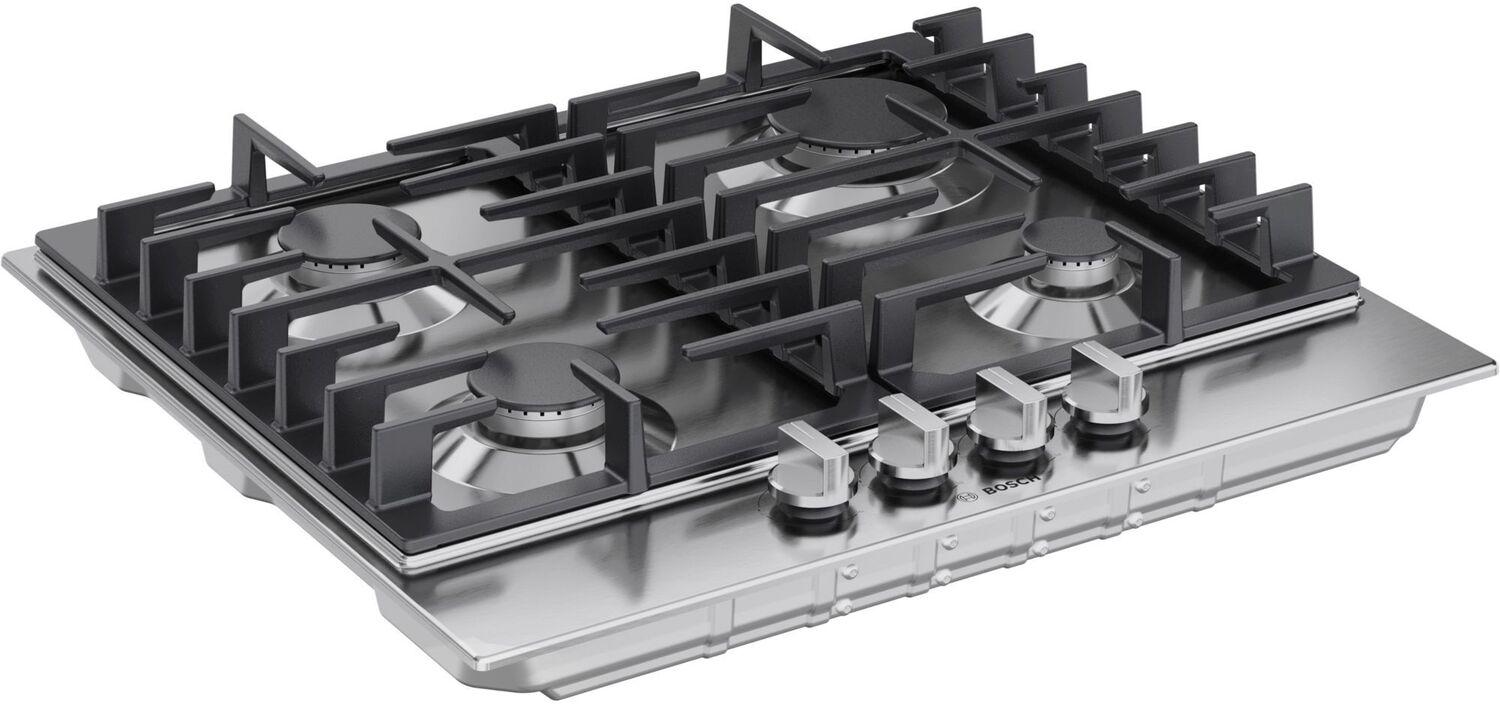

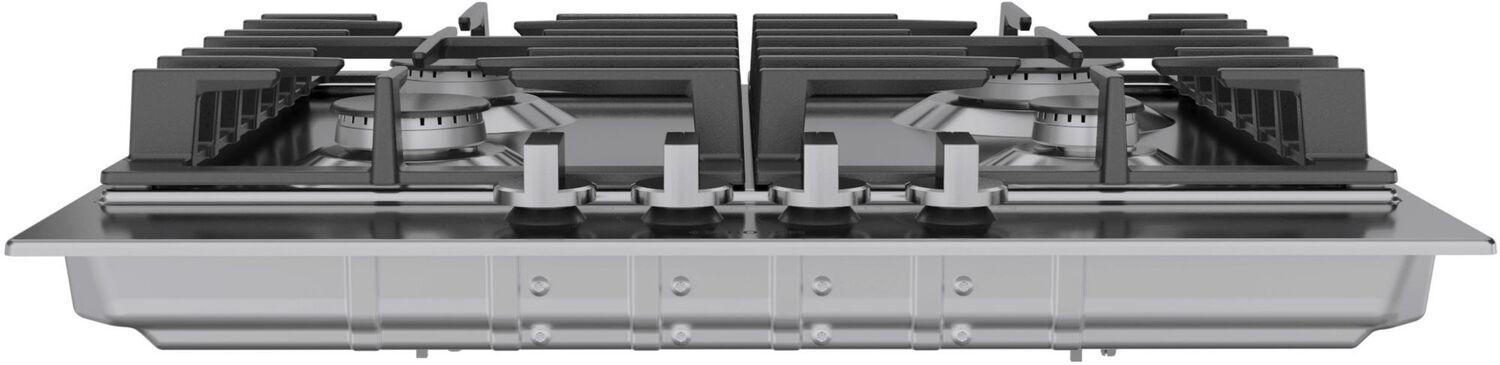

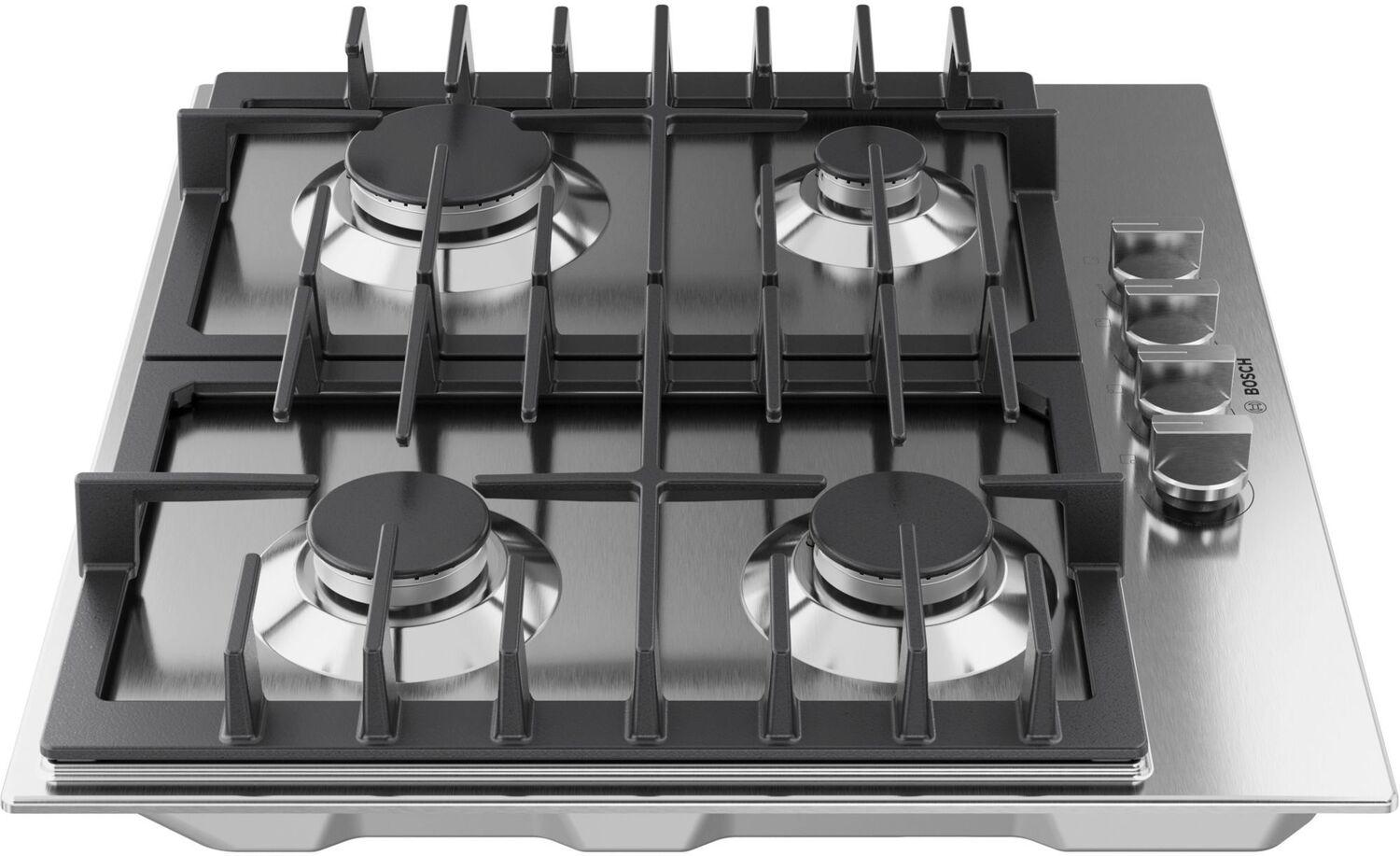

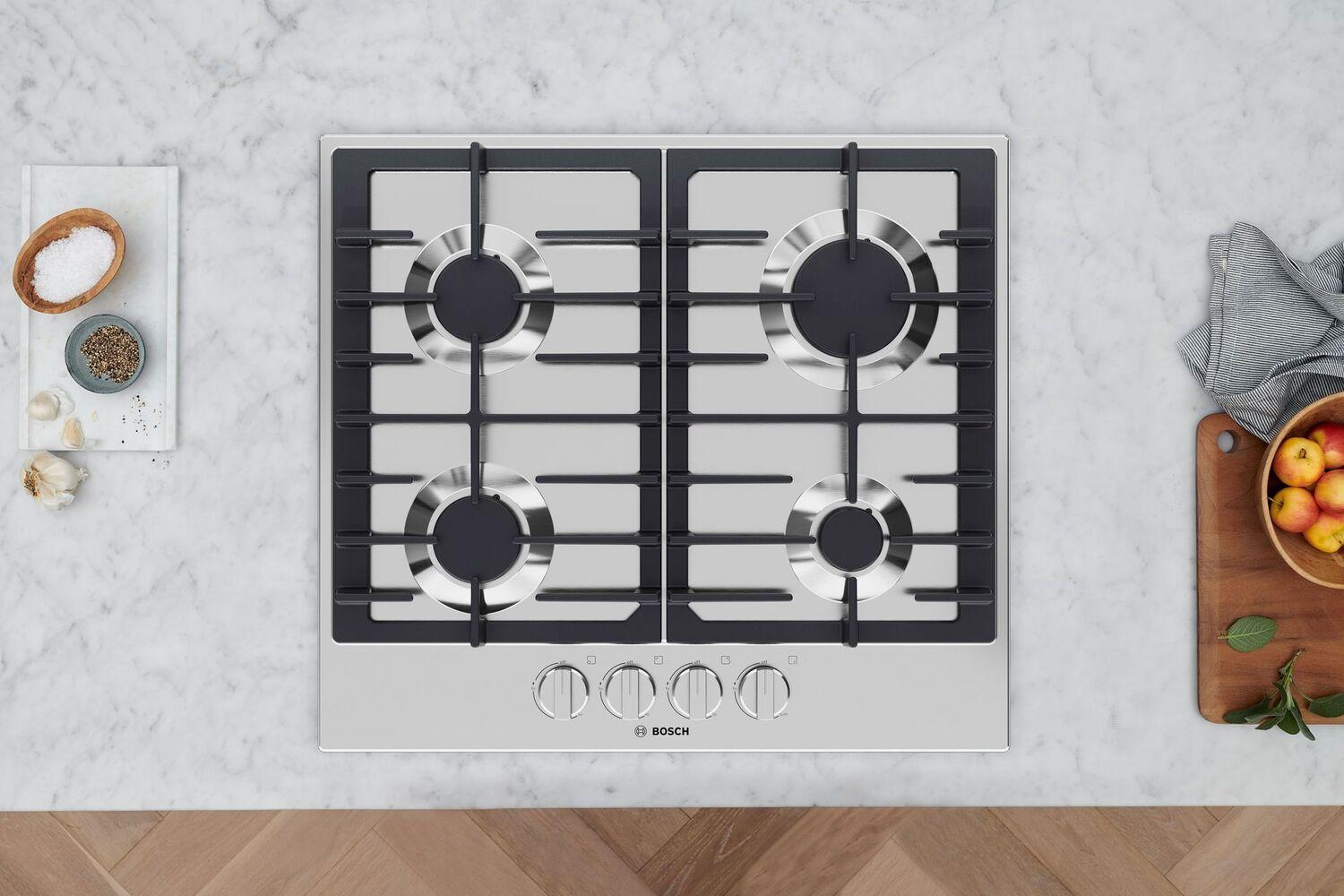

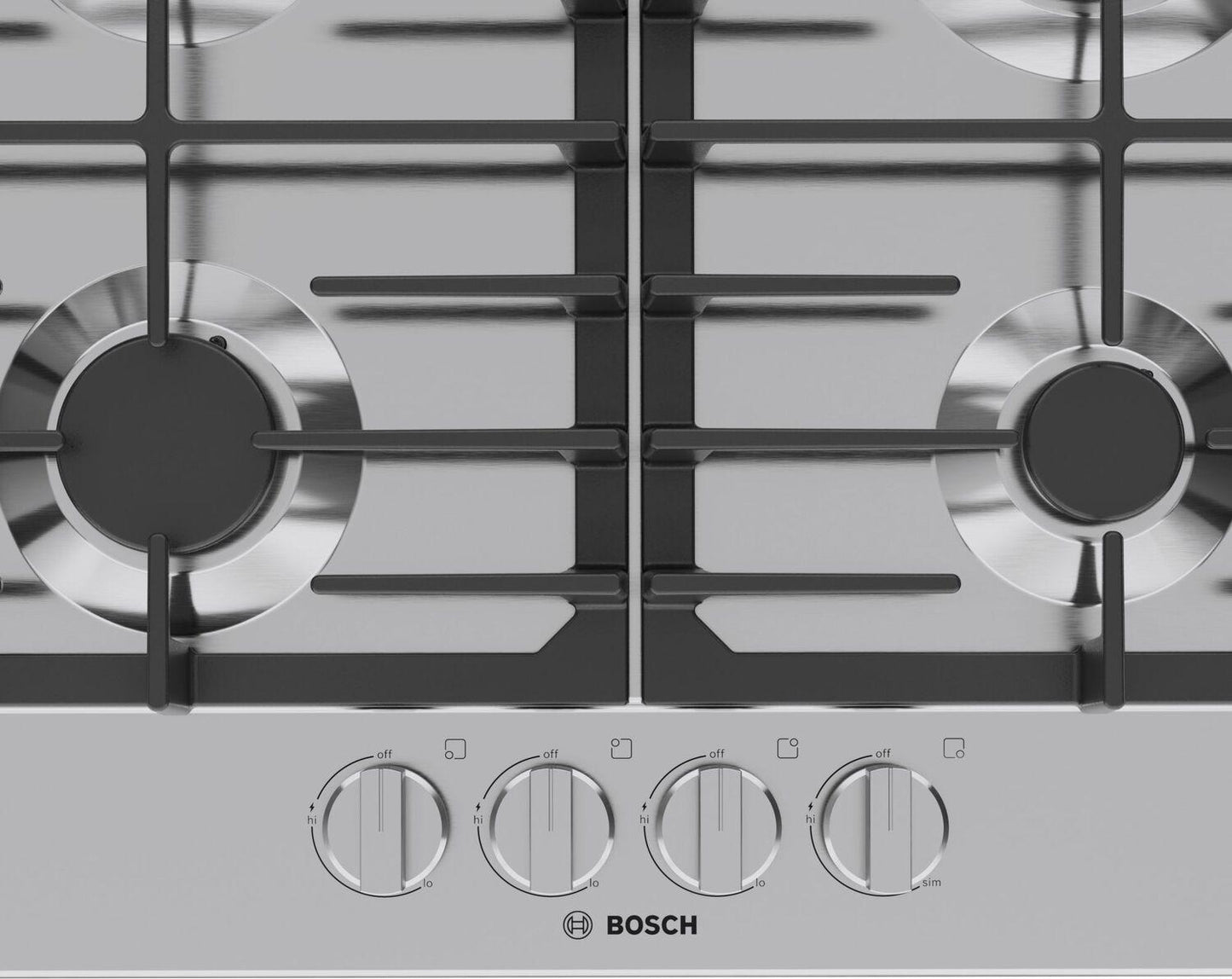

Bosch NGM3450UC 300 Series Gas Cooktop Stainless Steel
Rebates &
Promotions
Bosch Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Bosch appliances. Download Valid: 10/28/2024-12/09/2024

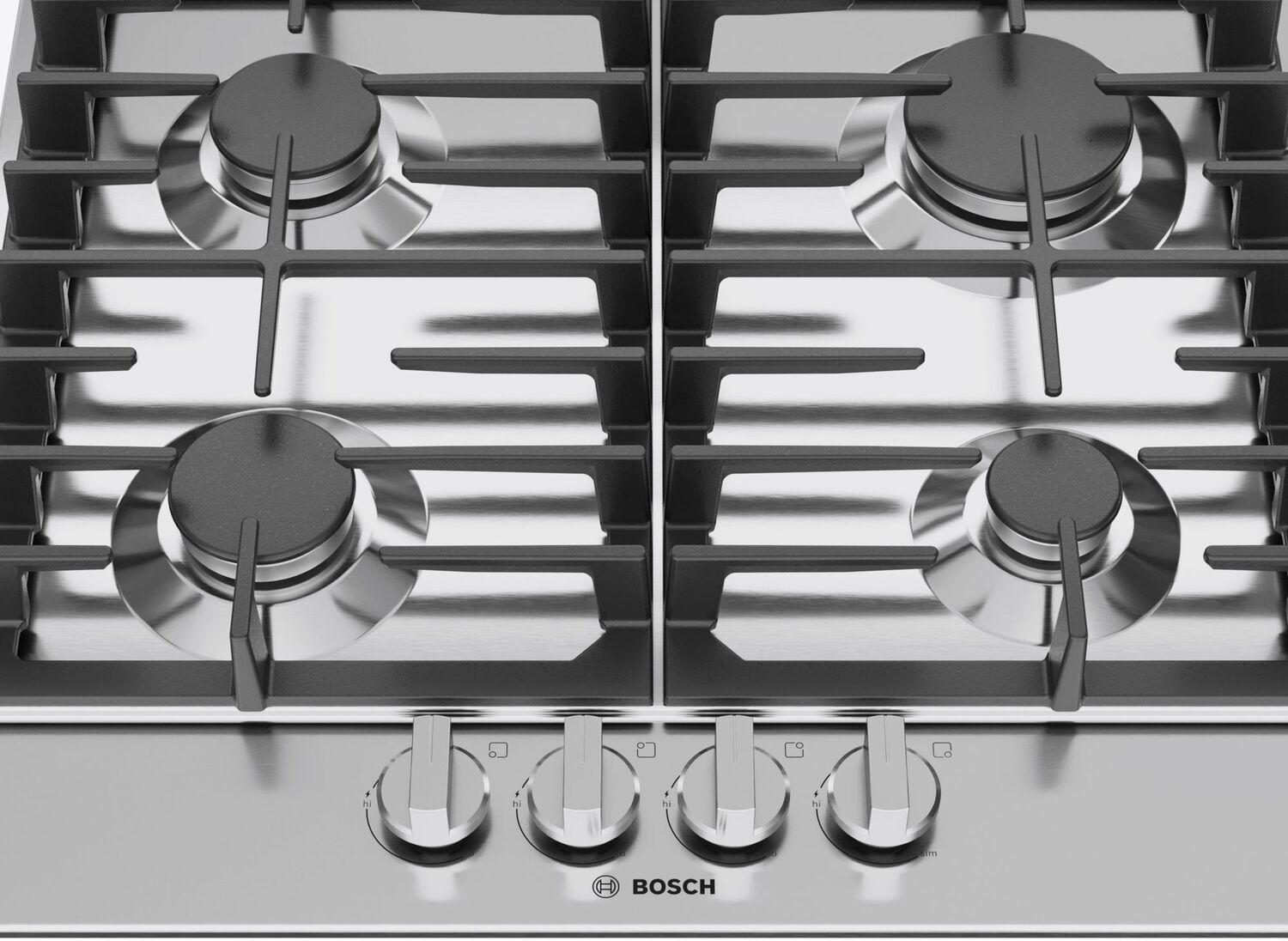

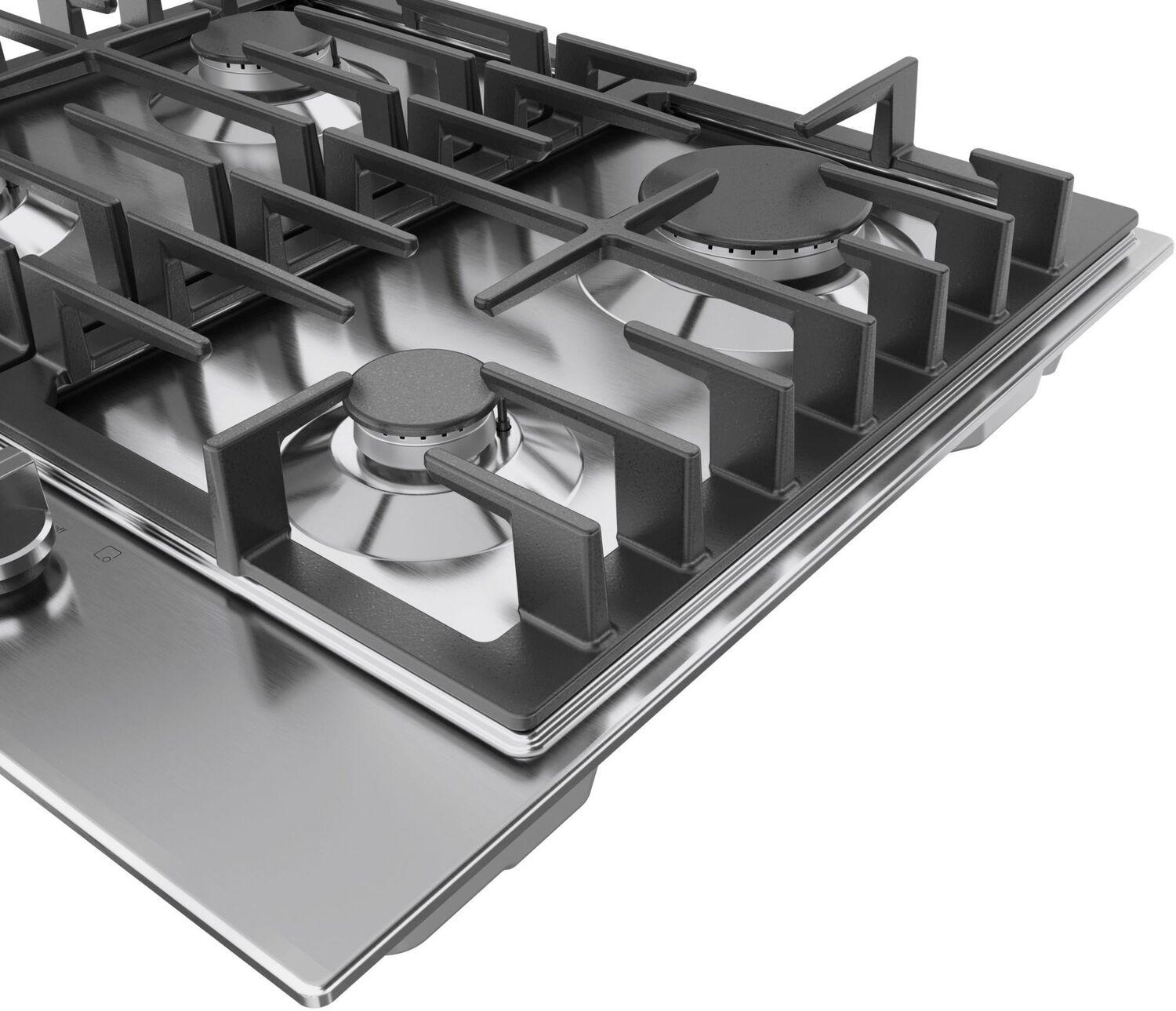

Easy to clean, low-profile design
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever

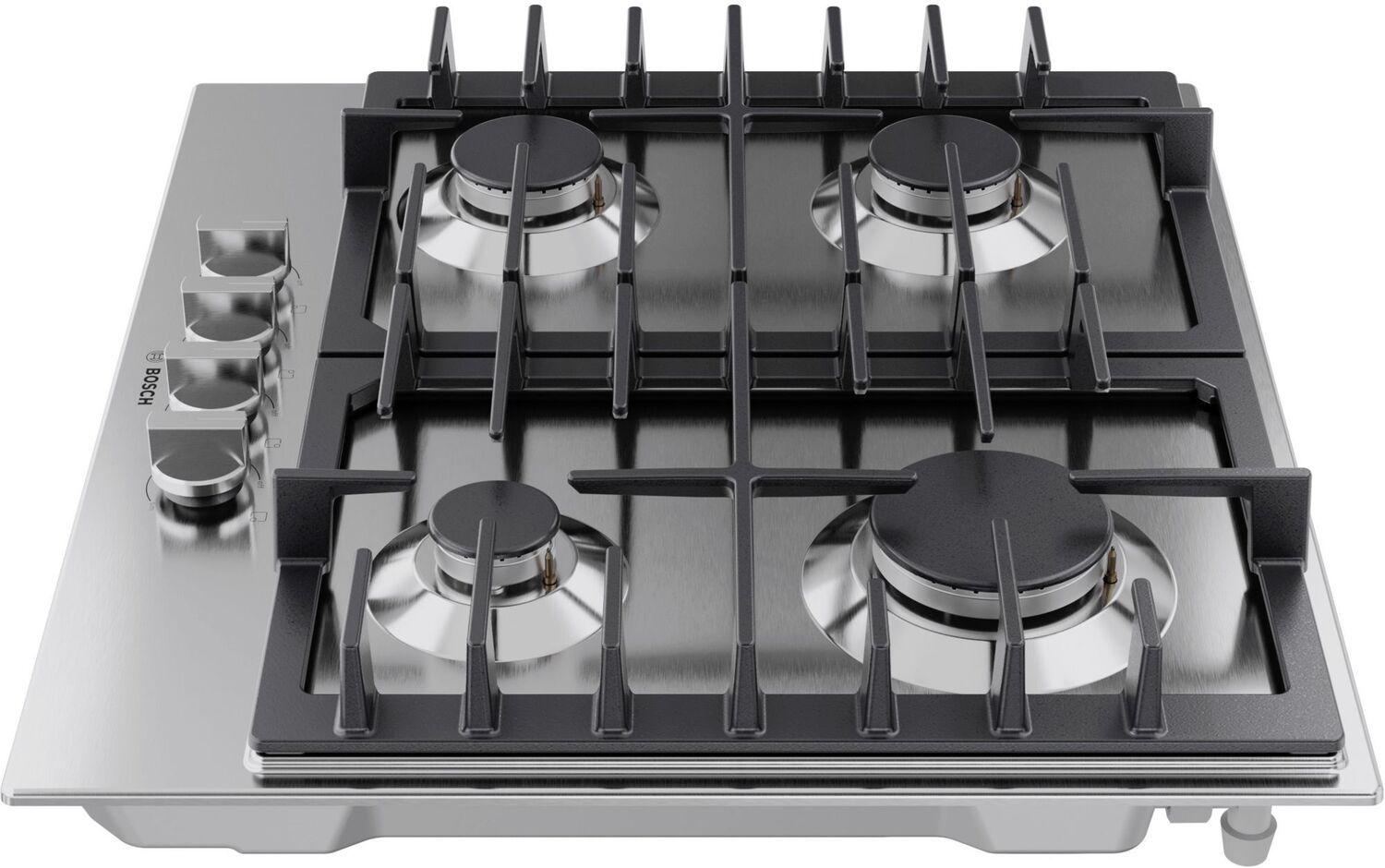

Fit multiple pans and cook with 4 burners
High efficiency burner technology requires less gas BTUs to achieve a faster boiling time, resulting in energy and time savings.
Simmer delicate sauces with the OptiSim® Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
Bosch Ngm3450Uc 300 Series Gas Cooktop
- Safety.
- Easy to clean, low-profile design
- Fit multiple pans and cook with 4 burners
- Compact for small spaces
- Simmer delicate sauces with the OptiSim® Burner
Features and Specifications | |
General | |
Energy source | Gas |
Type of control | sword knobs |
Safety Features | SMARTFLAME |
Construction type | |
Color of frame | Stainless steel |
Color of surface | Stainless steel |
Construction Type | Built-in |
Number of electric elements | 0 |
Number of electric cooking zones | 0 |
Number of gas burners | 4 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Type of grate | Cast iron |
Total number of cooktop burners | 4 |
Number of radiant elements | 0 |
Number of electric warming zones | 0 |
Size and weight | |

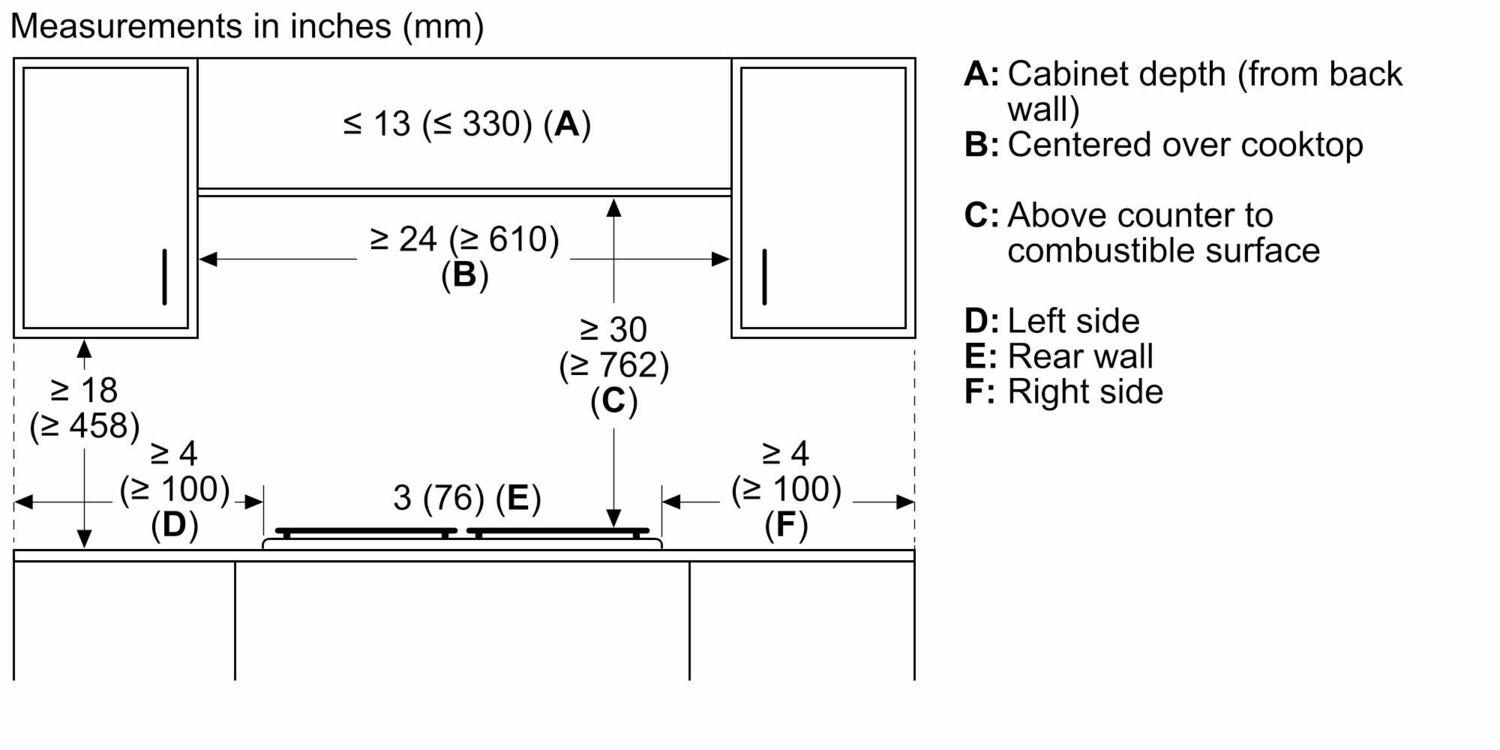

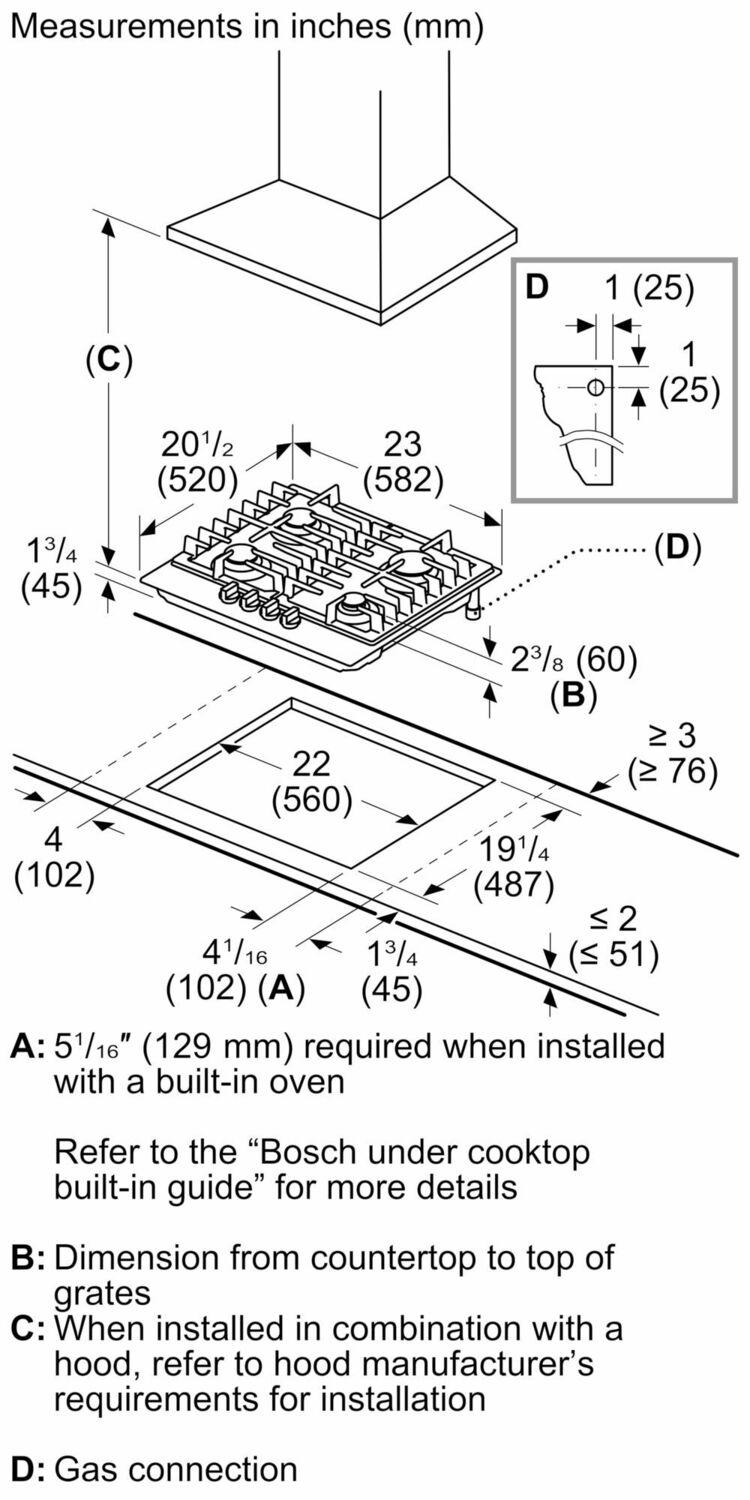

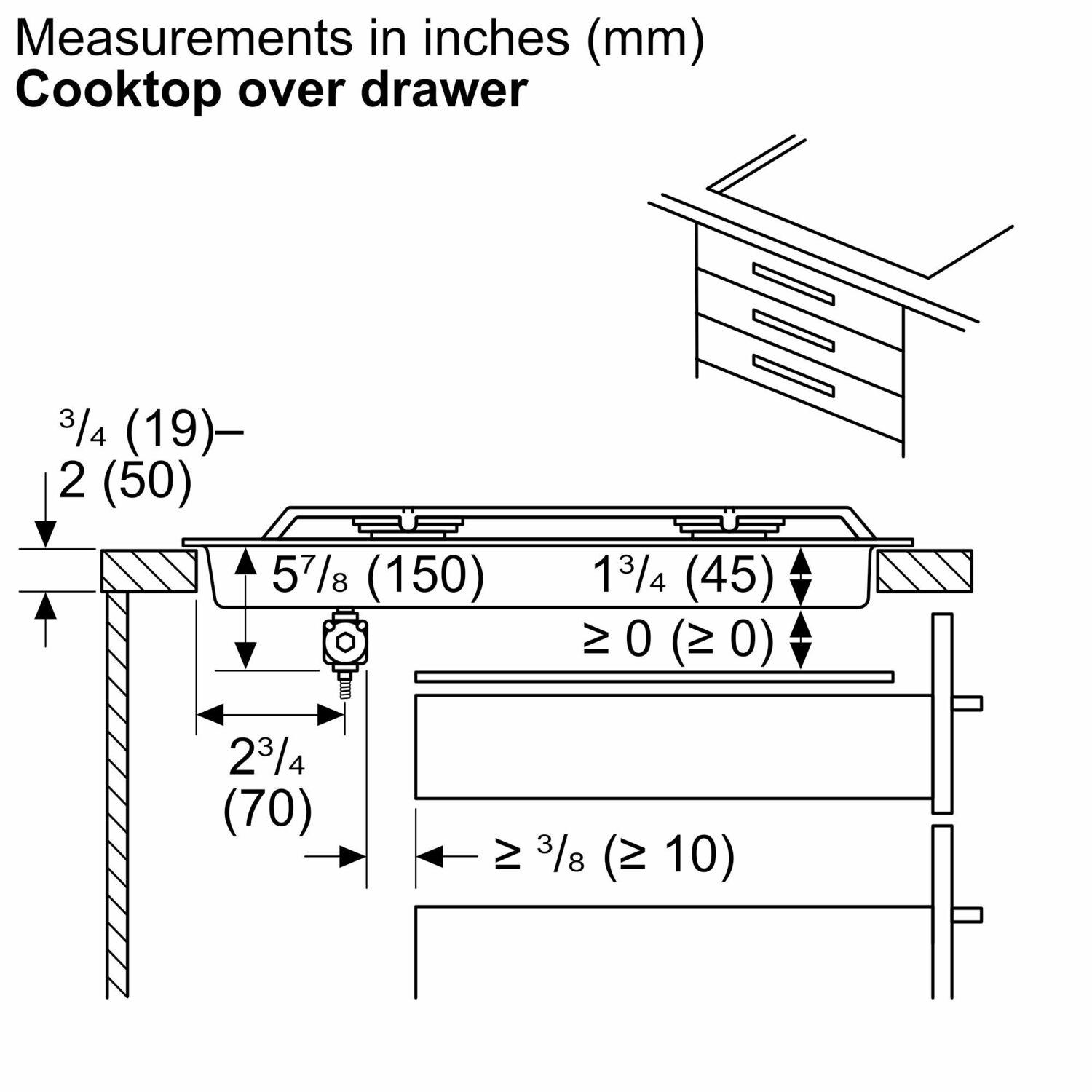

Overall Appliance Dimensions (HxWxD) (in) | 5' x 23' x 20 1/2' |
Net Weight | 27.000 lbs |
Cooking zone 1 | |
Location of heating element | front left |
Power of heating element (kW) | 1.75 kW |
Type of heating element | Gas |
Cooking zone 3 | |
Location of 3rd heating element | back left |
Power of 3rd heating element (kW) | 1.75 kW |
Type of 3rd heating element | Gas |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Location of 5th heating element | back right |
Power of 5th heating element (kW) | 3 kW |
Type of 5th heating element | Gas |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 7 | |
Location of 7th heating element | front right |
Power of 7th heating element (kW) | 1 kW |
Type of 7th heating element | Gas |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Safety | |
Residual heat indicator | without |
Type of safety device for gas | Electromagnetic for each burner |
Safety Features | SMARTFLAME |
Connection | |
Total connected gas load | 7,500 W |
Location of gas connection | bottom, right |
Frequency | 60 Hz |
Energy source | Gas |
Power Cord Length | 40' |
Watts | 400 W |
Accessories | |
Included accessories | 1 x nozzle set for liquid gas, 1 x Simmer cap |
