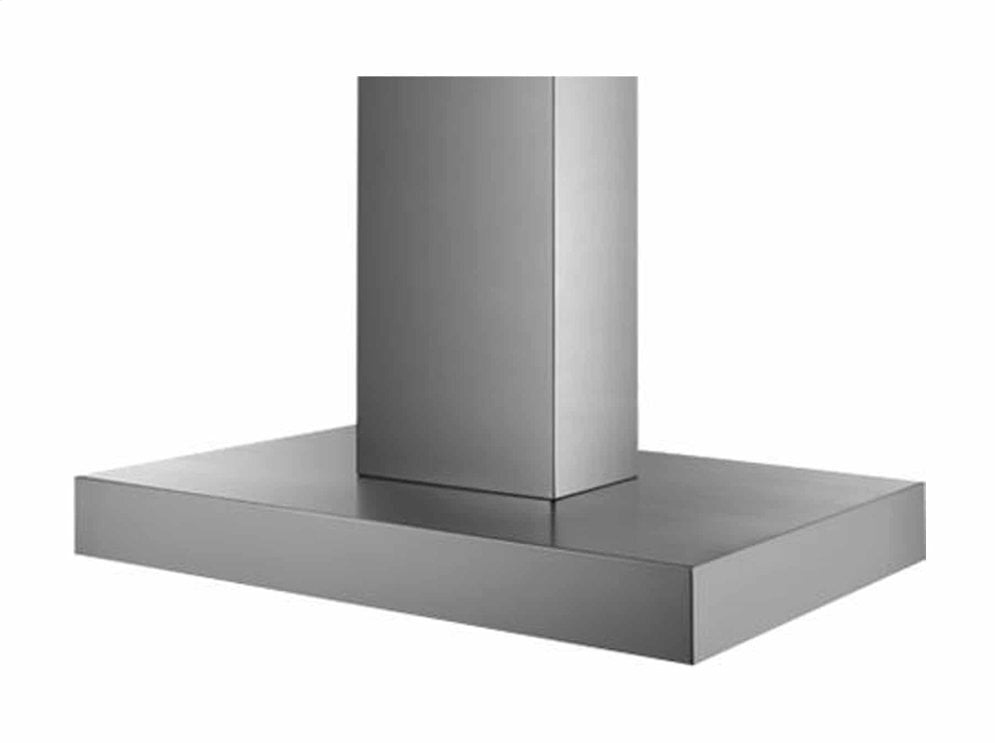

Bluestar Pro-Style Ventilation Hoods Combine Heavy Duty Construction With Seamless Design To Offer Uncompromised Durability, Functionality, And Beauty. Commercial Grade Construction: Bluestar® Hoods Combine Heavy-Duty, Handcrafted Construction With A Seamless Design For Unparalleled Durability, Form, And Function. Many Styles Also Offer The Option Of Top Or Rear Exhaust To Fit Perfectly Into Your Kitchen Design. Stainless Steel Baffle Filters: Durable, Dishwasher Safe Stainless Steel Baffle Filters Provide A Smooth, Even Air-Flow That Extracts Over 90% Of The Grease From The Air. Built With Commercial-Grade Construction, Baffle Filters Are Rugged And Efficient. Largest Filter Capture In The Industry: Bluestar® Hoods Feature The Largest Capture Area In The Industry To Remove Smoke, Odors And Grease From The Air. When Combined With The Ideal Blower, Your Hood Will Provide The Most Efficient Venting System Possible. Quiet Performance With Multiple Blower Options: Bluestar® Ventilation Hoods Provide Optimal Exhaust With Whisper-Quiet Operation. They Also Give You The Option Of Choosing Between Multiple Blower Options To Fit Any Kitchen Design. Internal Blowers Are Available In 600 And 1200Cfm S, In-Line Blowers Are Available In 600 And 1200Cfm S While Our Remote Blowers Are Available In 1000 And 1400Cfms. Color Options: Select From 1,000+ Colors Plus Textured Finishes To Turn Up The Heat On Discerning Kitchen Design. Or, Send Us A Sample Of Your Favorite Color And We Will Create A Custom Color For A Look That Is Uniquely Your Own. Blower Options: Bluestar® Ventilation Hoods Provide Optimal Exhaust With Whisper-Quiet Operation. They Also Give You The Option Of Choosing Between Multiple Blower Options To Fit Any Kitchen Design. Internal Blowers Are Available In 600 And 1200Cfm S, In-Line Blowers Are Available In 600 And 1200Cfm S While Our Remote Blowers Are Available In 1000 And 1400Cfms. Available In 1000+ Colors

• Commercial grade stainless steel construction
• Welded seamless corners
• Commercial style stainless steel baffle filter system
• 3-speed blower/variable light control
• Included duct cover heights: 18" & 24"
• Accommodates top discharge only
• Remote and In-line fans available
• Available in 1,000+ colors and finishes

Hood Dimensions:	66'W (+/- 1/16') x 34'D x 6'H
Discharge:	Top only
Available Duct Heights:	18'* 24'*, 30', 36', 42' & 48'
Blower:
Location:	Model Number	CFM
In-hood	PH-CFM-600	600
	PH-CFM-1200	1200
In-line	PH-INLB600	600
	PH-INLB1200	1200
Remote	PH-1000CFMR	1000
	PH-1400CFMR	1400

BlueStar Ventilation Installation Manual
Product Specs: BS-MANH-I-66
