    8 Steel™

    8 Steel™ - more steel less plastic No other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.

    Turbo Combi Drying™

    Turbo Combi Drying™ benefits from both the innovative Turbo Drying™ system and natural drying with dry indoor air. Our Turbo Drying™ system begins the drying process and is followed with the door automatically opens to finish the drying with indoor air.

    Aqua Safe™ system

    Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe™ system is an advanced safety system which ensures a leak-safe dishwasher day and night.

    XXL dishwashers

    Our XXL dishwashers have an loading height of 23". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.

    Crystal Glass

    Wash fragile items made of crystal/glass, such as crystal glass from Orrefors, using the gentle dishwashing program Crystal glass.

    Light Lock™

    Light plastic cans and bowls are easily flipped over and filled with water. The LightLock™ smart fixation helps them to retain their position throughout the program.

    Self Cleaning

    ASKO s dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned. Use a recommended cleaning agent and the program on a regular basis for best result.

    Vase/bottle holder

    Our special holder for tall, narrow objects like baby bottles, vases and bottles is combined with a special power zone that makes sure that the cleaning result is perfect.

    Time program

    When you need clean plates in a hurry, just tell the machine how dirty the dishes are and how much time you have. The program then adjusts washing and rinsing to match your needs.

    ECO wash

    Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes, cups, glasses and so on.

    Status Light™

    ASKO s new generation dishwashers have Status Light™ -a small light placed in the bottom right corner to let you know the actual status of the program.

    Brushless motor

    A brushless motor is not only quieter and more reliable. It also consumes less energy. You want your dishwasher to work forever. So do we.

    LED interior light

    The combination of outer and inner LED-lights is designed for best intensity and durability. It gives you a good overview of the door area as well as the inside of the dishwasher.

    Green mode

    The Green mode saves water and energy by lowering the temperature and extending the washing cycle. Still, the result is just as perfect as the Normal program. Let s go greener!

    Speed mode

    When you need to get things cleaned in a hurry, the Speed mode is useful. It saves up to 50% of the normal time, by using more water and increased heating.

    Night Mode

    Night mode reduces the noise by 2 dB thanks to lower pressure in the spray arm. Perfect at night or in a house with an open plan living area.

    Auto wash

    ASKO s Auto Wash with the SensiClean™ sensor ensures the right temperature, washing cycle and drying regardless of what you have put in the machine. Every time.

    Quick Pro Wash

    Sometimes you need to use the same kitchen ware with short intervals. The Quick Pro Wash program only takes half an hour - perfect at the dinner party or when you bake.

    Plastic wash

    The Plastic program washes and dries your plastic kitchen ware perfectly. And, if there s room left you can of course wash the ordinary porcelain and glass at the same time.

    Lower half wash

    The Lower half wash program only sprays the bottom half of the machine which means less water and energy is used. An more environmentally friendly way to clean your plates and cutlery.

    Upper half wash

    The Upper basket program sprays only the top part of the machine and uses less water and energy than a normal program. Saves both your time and the environment.

    Rinse & hold

    The Rinse and hold program allows for you to avoid dried leftovers while you wait for the dishwasher to get fully loaded. Saves time and energy over time.

    Aqua Level™ Sensor

    The Aqua Level™ Sensor ensures an optimized water level, even if a bowl turns over and is filled with water. It also keeps the machine from starting if the water is turned off.

    Aqua Detect™ Sensor

    The Aqua Detect™Sensor monitors the inlet valves and the water level while the machine operates. For safety reasons, the drain pump s capacity is five times the inlet valve s.

    Power Zone Cutlery™

    Power Zone Cutlery™ is a special nozzle spray zone for the cutlery basket that will make your cutlery dazzling clean. And, there is a similar nozzle for the knife basket.

    Kid Safe™

    To stop small fingers from starting the dishwasher the Kid Safe™ makes the control panel easy to lock. This also prevents altering any settings by mistake.

    Anti siphon

    For our fully integrated dishwashers, the Anti-siphon solution safely keeps the water inside the machine. This is especially important if the dishwasher is placed above floor level.

    Extra wide knife stand

    Our smart knife holders are found in the middle, upper, and the top basket. They are all are extra deep so that the blades remain steady. Cutting edge, not fingers.

    10 Spray™

    ASKO s spray system consists of up to 10 effective spray zones to ensure a totally clean load. In the lower rack there are three power zones to take care of the dirtiest parts.

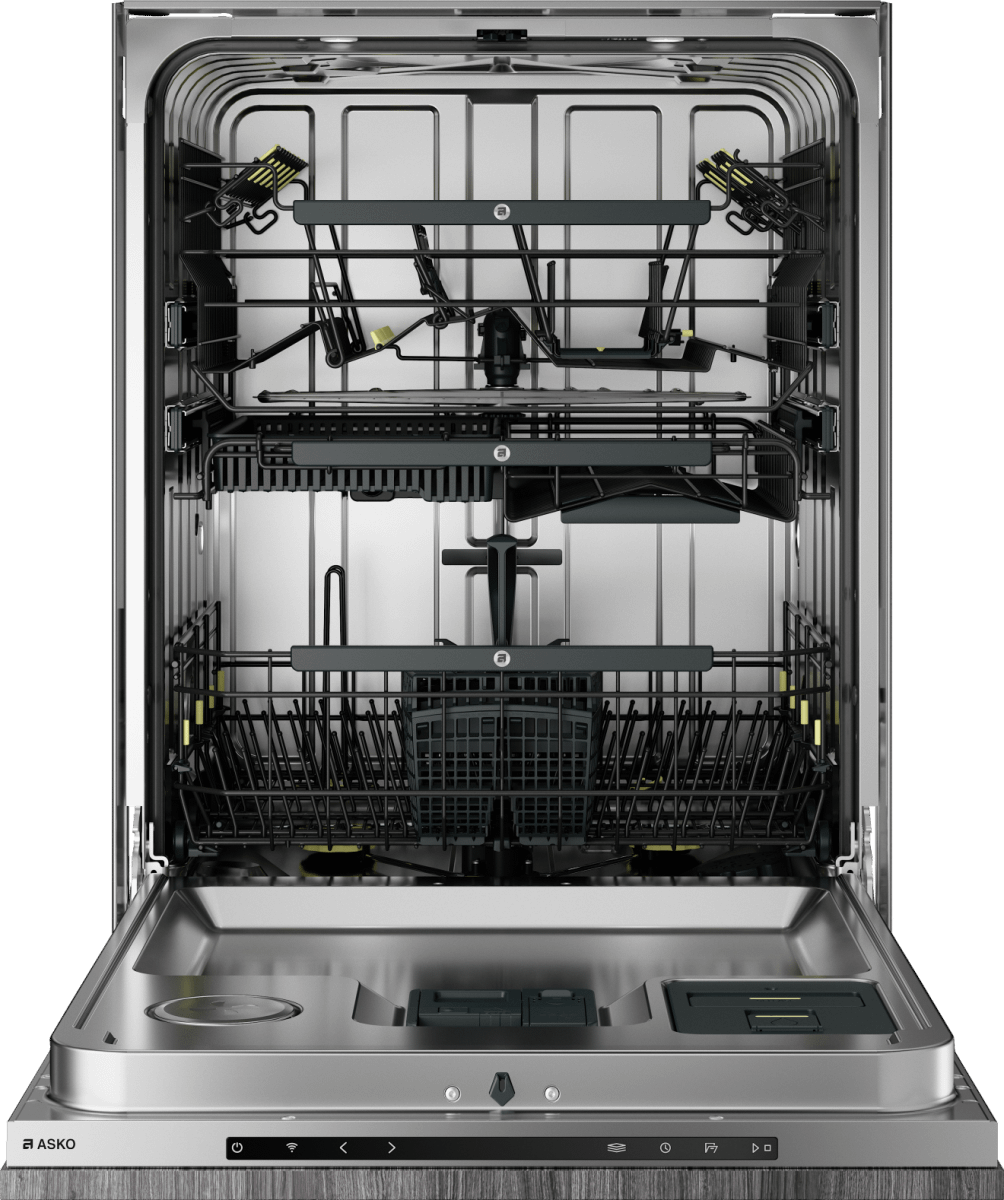

    3 Level rack

    ASKO s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.

    Folding tines

    The foldable tines in the lower tray makes it easy to load different sizes of pots and pans. Flexibility at its best.

    Foldable Glass support

    Sometimes you need the space of the upper rack for other items than glasses. Good thing that the tines are foldable here as well.

    Telescopic rails

    ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.

    Removable middle rack

    The Twin Tubes™ spray zone makes the middle rack perfect for lightly soiled glasses etc. Easy to remove if you need more space. Spray pressure is retained if the basket is removed.

    2 - Spray arms

    The 2 spray-arm technique reaches every corner and with up to 10 highly effective spray zones, no dirt can escape. Not even your lasagne baking dish.

    Touch Proof™

    The ultra-thin, transparent TouchProof™ coating protects your dishwasher stains and grease Easy to clean, scratch resistant it will keep your dishwasher looking brand new year after year.

    17 - Loading capacity

    Room for 17 place settings, fit larger pots and plates in the upper rack. Our XXL dishwasher have four level rack system including; Knife rack, Upper rack, Middle rack, Lower rack.

    China Guard

    Our china guard ensures secure rotation of the upper sprayarm.

    15-3/4" plates in lower rack

    Our XXL dishwashers have room for a 40 cm big plate in the lower rack when the middle rack is removed and the upper rack in the upmost position.

    Knife holders

    Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.

    Multi position glass rack

    The Multi position glass rack is a very practical rack that can be mounted in three different positions - all depending on your needs.

    Auto Dose

    Auto Dose - demands less of you Through years of research, we have identified the exact amount of detergent needed to deliver consistently perfect cleaning results. That s our job. Of course, we don t expect you to spend time thinking about this. That s why we designed Auto Dose. The auto dosing compartment in our dishwashers stores up to 30 days worth of detergent. This means you only need to fill it once a month. Just load your dishes, choose your program, and you re ready to go. Hassle-free, as it should be.

    Focus points

    Focus points - a hint of nature Opening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place - where it doesn t compete for space or attention - instead, it makes the room.

    Adjustable power zones

    Adjustable power zones To make an already powerful cleaning system even more powerful, we have created two adjustable power zones with two different spray patterns. The power zones either produce a concentrated highpressure hard jet for extra dishwashing power on tall, narrow objects like bottles and vases, or a wider spray for larger dishes, pots and pans. There s also a bridging function where both power zones are set to the wide spray mode for very large dishes or utensils. The power zones are operated manually, so when you don t need them simply switch them off

    Connected

    The ConnectLife app lets you control and monitor your ASKO dishwasher remotely via your smartphone or tablet. You can look up the online user manual, change settings, check the machine s status and more. You can even start, stop and pause programs on the move. The app includes a step-by-step guide to help you find the best programs for you depending on what you re washing and how you prefer to wash it.

    Push to open

    Push to open door Our fully integrated dishwashers with push-to-open mechanism are ideal for open minimalistic kitchens, where the subtle handleless door contribute to a contemporary feel to your home. You simply give the door s upper part a light push and the mechanism will then open the door for you. A function for your convenience that also offers the opportunity to integrate your dishwasher in a nice way in your kitchen.

    Style™

    For those with a sense of style, but who also appreciate the value of functional, user-friendly design. Our top-of-the-line Style models naturally combine functionality with clean lines and a stylish minimalism. They feature superior programs, endless flexibility and high quality, while the attractive and unique full colour/easy-to-read (TFT) display highlights the well thought-out and user-friendly design.

    20 years

    Dishwashers designed to last for 20 years Today, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better - for our customers and for the planet. We develop our dishwashers responsibly and design them to make a difference. To ensure that they can do so for a long time, we test them equivalent to 20 years of lifetime.

    Quick Pro

    A fast and effective program using variable water pressure to boost cleaning performance and that quickly takes care of slightly dried leftovers. When combined with Speed mode, the program cycle is even shorter - as fast as 39 minutes.

    Turbo Combi Drying™ with sensor control

    Turbo Combi Drying™ with sensor control This is our most advanced drying method. It is based on the same principles as Turbo Combi Drying, but the automatic door opening is regulated by a sensor that measures the temperature in your kitchen. If the kitchen is colder than normal, the door will open at a later stage. If it is warmer, the door opens earlier. This means that energy for drying is used more efficiently.

    • Number of place settings: 17 pcs
    • Number of racks: 3
    • Upper rack type: Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
    • Size: XXL
    • Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening
    • No
    • Automatic dosing system: Yes, integrated

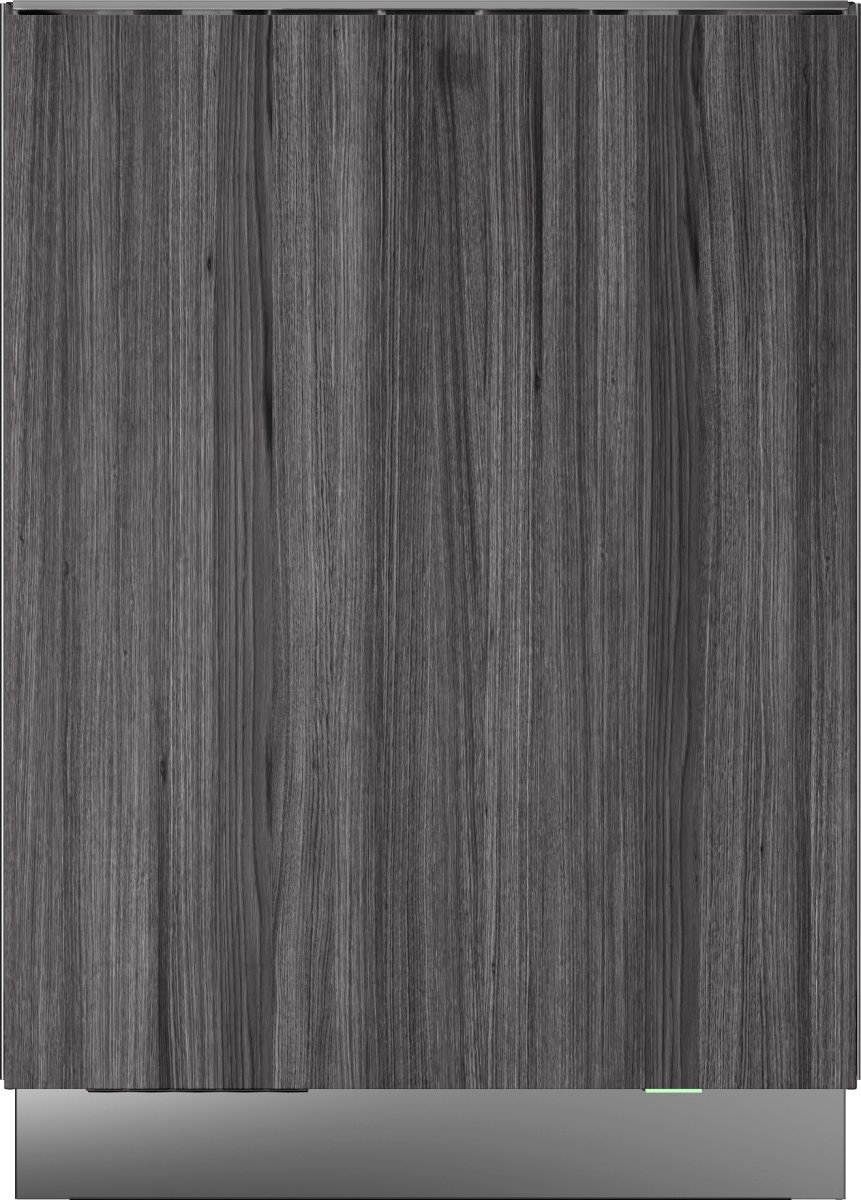

    • Installation: Panel ready
    • Series: Style
    Number of place settings 17 pcs
    Number of racks 3
    Upper rack type Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
    Size XXL
    Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening
    No No
    Automatic dosing system Yes, integrated
    Installation Panel ready
    Series Style
    Construction and performance
    8 Steel™ - Vital parts of the dishwasher made in stainless steel Yes
    No need to rinse the dishes thanks to Super Cleaning System™ Yes
    Automatic water-softener for better washing performance Yes
    Number of spray arms 2 pcs
    Number of spray zones 10
    Cleaning systems Twin Tubes™ - separate spray zone for the middle basket
    Cutlery Spray™ - Extra dishwashing power for the cutlery basket
    No need to rinse the dishes thanks to Super Cleaning System™
    Aqua Level™ Sensor
    Sensi Clean™ Sensor - measures dirtiness level
    Stainless steel spray arms
    Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off.
    The water pressure is adapted depending on program, type of dishes and dirtiness level.
    Use and flexibility
    Number of place settings 17 pcs
    Number of racks 3
    Top tray Without top tray
    Upper rack type Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
    Upper rack height adjustable Yes
    Upper basket Perfect ergonomy with easy sliding telescopic rails
    Small distance between the basket threads - makes loading easy and prevents small items to fall through
    Light Lock™ for fastening lightweight items
    China Guard - Protects fragile load from the rotating spray arm
    Extra wide knife stand
    Dividable pin rows
    Wine glass fixings in TPE
    Two foldable glass supports
    Handle with ASKO logo
    Sliding tines for easy adaptation to stone ware etc.
    Foldable wine shelves to right
    Divisble/foldable wine shelves to left
    Middle basket Perfect ergonomy with easy sliding telescopic rails
    Removable rack for bowls, cups and glasses
    Removable rack for large utensils
    Middle basket connection fitted with non-return valve
    Handle
    Lower rack type Exclusive
    Lower rack Foldable/divisible rear pin row
    Vase/bottle holder for cleaning vases/baby bottles
    Foldable/divisible front pin row
    Cutlery basket
    Small distance between the basket threads - makes loading easy and prevents small items to fall through.
    Handle with ASKO logo
    Sliding tines for easy adaptation to stone ware etc.
    Automatic dosing system Yes, integrated
    Interior light Yes, 4 LED lights
    Interaction and control
    Possible to control via Wi-Fi Yes, integrated
    Type of display Graphic TFT display
    Status Light™ - Visual indication of dishwashing progress Yes
    Remaining time indication Yes
    Wash end indication Displayed with sound and light
    Language settings Norwegian
    German
    Russian
    Finnish
    Swedish
    Portuguese
    Lithuanian
    English
    Latvian
    Croatian
    Italian
    French
    Chinese traditional
    Spanish
    Estonian
    Czech
    Ukrainian
    Japanese
    Slovak
    Slovenian
    Chinese simpified
    Polish
    Danish
    Dutch
    Functions, programs and modes
    Programs Rinse and hold programme
    Upper half
    Sanitize
    Lower half
    Crystal glass
    Time program
    Intensive program
    Auto wash
    Standard
    ECO wash
    Anti odour
    Quick Pro wash
    Self cleaning
    Light wash
    Plastic wash
    Delayed start Possible to delay up to 24 hours
    Options and modes Sensor controlled door opening - Optimizes the drying process according to the room temperature
    Time set
    Push to open - Handle-free door opening
    Heat Boost Mode
    Green mode - Less energy and water is used. The program time is extended
    Enable/disable automatic door opening
    Speed mode - The program time is shortened. More energy is used.
    Night mode - Lower noise level. The program time is extended.
    Super Rinse™ - Two extra rinses
    Design and integration
    From the front adjustable door spring Yes
    From front adjustable rear foot Yes
    Installation Velcro strips for easy mounting and adjustment of the separate custom door

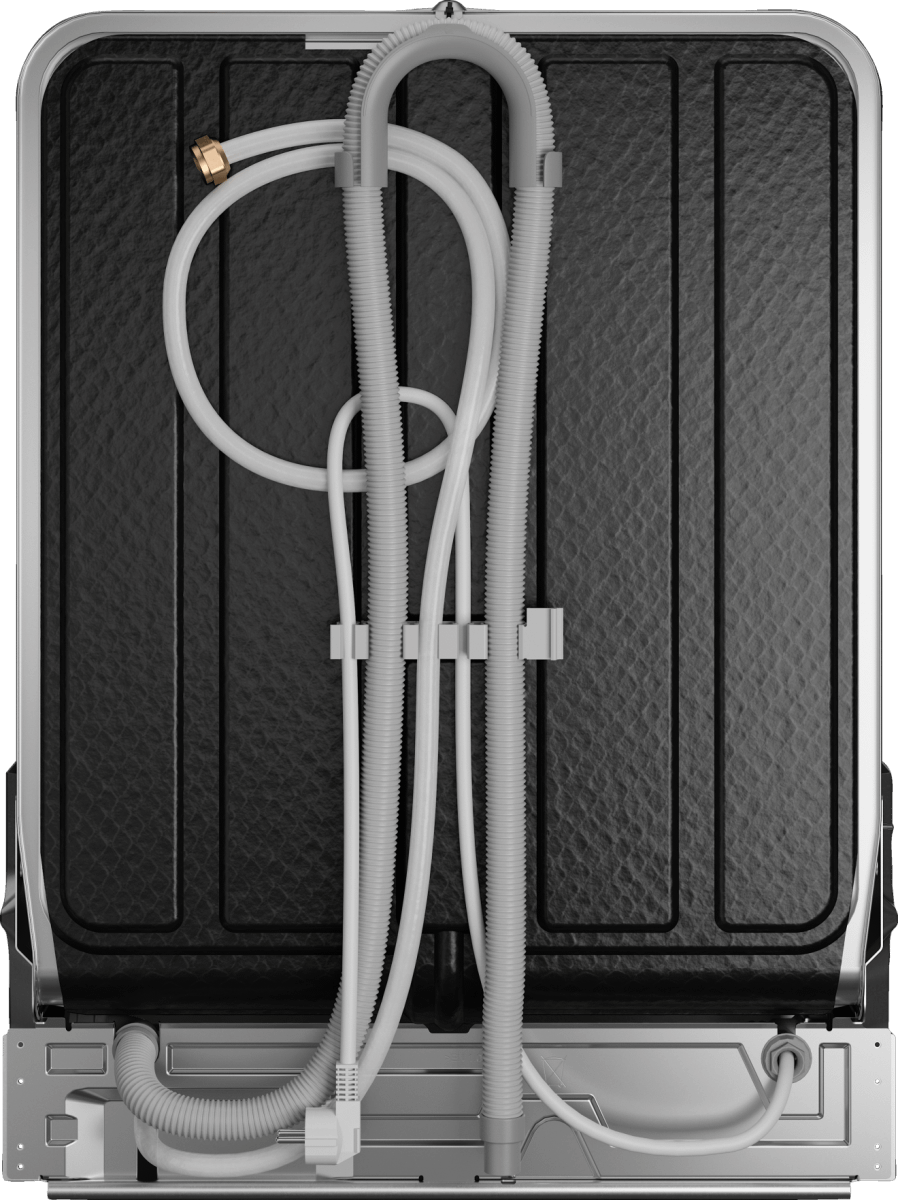

    Multi fit outlet hose
    Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation
    Trim kit
    Steam protection strip
    Sliding door No
    Possible to install elevated Yes
    Custom door size Custom door size 700-800
    Min. niche width 24 ''
    Min. niche height 33 7/8 ''
    Depth (incl. wall spacing) 21 7/8 ''
    Height setting 2 1/16 ''
    Adjustable kick plate 30-94/0
    Safety and maintenance
    Aqua Safe™ Sealing points outside container
    Extra durable stainless steel container
    Waterproof bottom plate
    Detection of water leakage on the bottom plate
    Aqua Detect™ - Instant recognition of any leakage in the motor compartment
    Aqua Level™ Sensor - Ensures an optimized water level
    Stand-by water protecion - Leakage detection when machine is off
    Extra durable PEX inlet hose
    Maximum time for water intake
    Light and sound alarm
    Anti Block™ - Self cleaning drain pump
    Aqua Safe™ system Yes
    Child safety Kid Safe™ - Lockable controls
    Indication of low level of rinse-aid Notification in display
    Salt refill indicator Notification in display
    Technical data
    Water connection Hot&cold water
    Adapter for water connection No
    Max. temperature of inflow water 140 °F
    Noise level (max) 39 dB(A)
    Reference programme 1
    Duration of standard programme 125 min
    Estimated yearly energy consumption 220 kWh
    Energy consumption - normal program 1 kWh
    Estimated annual water consumption 647.5 gal
    Water consumption 3 gal
    Power consumption in standby mode 0.5 W
    Plug type USA
    Connected load 1300 W
    Voltage (V) 120 V
    Number of phases 1
    Fuse 15 A
    Frequency 60 Hz
    Required inlet water pressure psi 0,03-1
    Net weight 99.2 lb
    Dimensions
    Width 23 15/16 ''
    Height 33 13/16 ''
    Depth 21 13/16 ''
    Maximum product height 35 7/8 ''
    Length of electrical cord 71 7/16 ''
    Depth with door open 48 7/16 ''
    Length inlet hose 64 3/16 ''
    Length outlet hose 90 9/16 ''
    Logistic information
    Packaging width 25 3/16 ''
    Packaging height 36 5/8 ''
    Packaging depth 26 3/4 ''
    Gross weight 106.5 lb
    Product code 740096
    EAN code 3838782634703

    Overview

    8 Steel™

    8 Steel™ - more steel less plastic No other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.

    Turbo Combi Drying™

    Turbo Combi Drying™ benefits from both the innovative Turbo Drying™ system and natural drying with dry indoor air. Our Turbo Drying™ system begins the drying process and is followed with the door automatically opens to finish the drying with indoor air.

    Aqua Safe™ system

    Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe™ system is an advanced safety system which ensures a leak-safe dishwasher day and night.

    XXL dishwashers

    Our XXL dishwashers have an loading height of 23". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.

    Crystal Glass

    Wash fragile items made of crystal/glass, such as crystal glass from Orrefors, using the gentle dishwashing program Crystal glass.

    Light Lock™

    Light plastic cans and bowls are easily flipped over and filled with water. The LightLock™ smart fixation helps them to retain their position throughout the program.

    Self Cleaning

    ASKO s dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned. Use a recommended cleaning agent and the program on a regular basis for best result.

    Vase/bottle holder

    Our special holder for tall, narrow objects like baby bottles, vases and bottles is combined with a special power zone that makes sure that the cleaning result is perfect.

    Time program

    When you need clean plates in a hurry, just tell the machine how dirty the dishes are and how much time you have. The program then adjusts washing and rinsing to match your needs.

    ECO wash

    Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes, cups, glasses and so on.

    Status Light™

    ASKO s new generation dishwashers have Status Light™ -a small light placed in the bottom right corner to let you know the actual status of the program.

    Brushless motor

    A brushless motor is not only quieter and more reliable. It also consumes less energy. You want your dishwasher to work forever. So do we.

    LED interior light

    The combination of outer and inner LED-lights is designed for best intensity and durability. It gives you a good overview of the door area as well as the inside of the dishwasher.

    Green mode

    The Green mode saves water and energy by lowering the temperature and extending the washing cycle. Still, the result is just as perfect as the Normal program. Let s go greener!

    Speed mode

    When you need to get things cleaned in a hurry, the Speed mode is useful. It saves up to 50% of the normal time, by using more water and increased heating.

    Night Mode

    Night mode reduces the noise by 2 dB thanks to lower pressure in the spray arm. Perfect at night or in a house with an open plan living area.

    Auto wash

    ASKO s Auto Wash with the SensiClean™ sensor ensures the right temperature, washing cycle and drying regardless of what you have put in the machine. Every time.

    Quick Pro Wash

    Sometimes you need to use the same kitchen ware with short intervals. The Quick Pro Wash program only takes half an hour - perfect at the dinner party or when you bake.

    Plastic wash

    The Plastic program washes and dries your plastic kitchen ware perfectly. And, if there s room left you can of course wash the ordinary porcelain and glass at the same time.

    Lower half wash

    The Lower half wash program only sprays the bottom half of the machine which means less water and energy is used. An more environmentally friendly way to clean your plates and cutlery.

    Upper half wash

    The Upper basket program sprays only the top part of the machine and uses less water and energy than a normal program. Saves both your time and the environment.

    Rinse & hold

    The Rinse and hold program allows for you to avoid dried leftovers while you wait for the dishwasher to get fully loaded. Saves time and energy over time.

    Aqua Level™ Sensor

    The Aqua Level™ Sensor ensures an optimized water level, even if a bowl turns over and is filled with water. It also keeps the machine from starting if the water is turned off.

    Aqua Detect™ Sensor

    The Aqua Detect™Sensor monitors the inlet valves and the water level while the machine operates. For safety reasons, the drain pump s capacity is five times the inlet valve s.

    Power Zone Cutlery™

    Power Zone Cutlery™ is a special nozzle spray zone for the cutlery basket that will make your cutlery dazzling clean. And, there is a similar nozzle for the knife basket.

    Kid Safe™

    To stop small fingers from starting the dishwasher the Kid Safe™ makes the control panel easy to lock. This also prevents altering any settings by mistake.

    Anti siphon

    For our fully integrated dishwashers, the Anti-siphon solution safely keeps the water inside the machine. This is especially important if the dishwasher is placed above floor level.

    Extra wide knife stand

    Our smart knife holders are found in the middle, upper, and the top basket. They are all are extra deep so that the blades remain steady. Cutting edge, not fingers.

    10 Spray™

    ASKO s spray system consists of up to 10 effective spray zones to ensure a totally clean load. In the lower rack there are three power zones to take care of the dirtiest parts.

    3 Level rack

    ASKO s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.

    Folding tines

    The foldable tines in the lower tray makes it easy to load different sizes of pots and pans. Flexibility at its best.

    Foldable Glass support

    Sometimes you need the space of the upper rack for other items than glasses. Good thing that the tines are foldable here as well.

    Telescopic rails

    ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.

    Removable middle rack

    The Twin Tubes™ spray zone makes the middle rack perfect for lightly soiled glasses etc. Easy to remove if you need more space. Spray pressure is retained if the basket is removed.

    2 - Spray arms

    The 2 spray-arm technique reaches every corner and with up to 10 highly effective spray zones, no dirt can escape. Not even your lasagne baking dish.

    Touch Proof™

    The ultra-thin, transparent TouchProof™ coating protects your dishwasher stains and grease Easy to clean, scratch resistant it will keep your dishwasher looking brand new year after year.

    17 - Loading capacity

    Room for 17 place settings, fit larger pots and plates in the upper rack. Our XXL dishwasher have four level rack system including; Knife rack, Upper rack, Middle rack, Lower rack.

    China Guard

    Our china guard ensures secure rotation of the upper sprayarm.

    15-3/4" plates in lower rack

    Our XXL dishwashers have room for a 40 cm big plate in the lower rack when the middle rack is removed and the upper rack in the upmost position.

    Knife holders

    Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.

    Multi position glass rack

    The Multi position glass rack is a very practical rack that can be mounted in three different positions - all depending on your needs.

    Auto Dose

    Auto Dose - demands less of you Through years of research, we have identified the exact amount of detergent needed to deliver consistently perfect cleaning results. That s our job. Of course, we don t expect you to spend time thinking about this. That s why we designed Auto Dose. The auto dosing compartment in our dishwashers stores up to 30 days worth of detergent. This means you only need to fill it once a month. Just load your dishes, choose your program, and you re ready to go. Hassle-free, as it should be.

    Focus points

    Focus points - a hint of nature Opening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place - where it doesn t compete for space or attention - instead, it makes the room.

    Adjustable power zones

    Adjustable power zones To make an already powerful cleaning system even more powerful, we have created two adjustable power zones with two different spray patterns. The power zones either produce a concentrated highpressure hard jet for extra dishwashing power on tall, narrow objects like bottles and vases, or a wider spray for larger dishes, pots and pans. There s also a bridging function where both power zones are set to the wide spray mode for very large dishes or utensils. The power zones are operated manually, so when you don t need them simply switch them off

    Connected

    The ConnectLife app lets you control and monitor your ASKO dishwasher remotely via your smartphone or tablet. You can look up the online user manual, change settings, check the machine s status and more. You can even start, stop and pause programs on the move. The app includes a step-by-step guide to help you find the best programs for you depending on what you re washing and how you prefer to wash it.

    Push to open

    Push to open door Our fully integrated dishwashers with push-to-open mechanism are ideal for open minimalistic kitchens, where the subtle handleless door contribute to a contemporary feel to your home. You simply give the door s upper part a light push and the mechanism will then open the door for you. A function for your convenience that also offers the opportunity to integrate your dishwasher in a nice way in your kitchen.

    Style™

    For those with a sense of style, but who also appreciate the value of functional, user-friendly design. Our top-of-the-line Style models naturally combine functionality with clean lines and a stylish minimalism. They feature superior programs, endless flexibility and high quality, while the attractive and unique full colour/easy-to-read (TFT) display highlights the well thought-out and user-friendly design.

    20 years

    Dishwashers designed to last for 20 years Today, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better - for our customers and for the planet. We develop our dishwashers responsibly and design them to make a difference. To ensure that they can do so for a long time, we test them equivalent to 20 years of lifetime.

    Quick Pro

    A fast and effective program using variable water pressure to boost cleaning performance and that quickly takes care of slightly dried leftovers. When combined with Speed mode, the program cycle is even shorter - as fast as 39 minutes.

    Turbo Combi Drying™ with sensor control

    Turbo Combi Drying™ with sensor control This is our most advanced drying method. It is based on the same principles as Turbo Combi Drying, but the automatic door opening is regulated by a sensor that measures the temperature in your kitchen. If the kitchen is colder than normal, the door will open at a later stage. If it is warmer, the door opens earlier. This means that energy for drying is used more efficiently.

    Features

    • Number of place settings: 17 pcs
    • Number of racks: 3
    • Upper rack type: Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
    • Size: XXL
    • Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening
    • No
    • Automatic dosing system: Yes, integrated
    • Installation: Panel ready
    • Series: Style

    Specifications

    Number of place settings 17 pcs
    Number of racks 3
    Upper rack type Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
    Size XXL
    Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening
    No No
    Automatic dosing system Yes, integrated
    Installation Panel ready
    Series Style
    Construction and performance
    8 Steel™ - Vital parts of the dishwasher made in stainless steel Yes
    No need to rinse the dishes thanks to Super Cleaning System™ Yes
    Automatic water-softener for better washing performance Yes
    Number of spray arms 2 pcs
    Number of spray zones 10
    Cleaning systems Twin Tubes™ - separate spray zone for the middle basket
    Cutlery Spray™ - Extra dishwashing power for the cutlery basket
    No need to rinse the dishes thanks to Super Cleaning System™
    Aqua Level™ Sensor
    Sensi Clean™ Sensor - measures dirtiness level
    Stainless steel spray arms
    Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off.
    The water pressure is adapted depending on program, type of dishes and dirtiness level.
    Use and flexibility
    Number of place settings 17 pcs
    Number of racks 3
    Top tray Without top tray
    Upper rack type Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
    Upper rack height adjustable Yes
    Upper basket Perfect ergonomy with easy sliding telescopic rails
    Small distance between the basket threads - makes loading easy and prevents small items to fall through
    Light Lock™ for fastening lightweight items
    China Guard - Protects fragile load from the rotating spray arm
    Extra wide knife stand
    Dividable pin rows
    Wine glass fixings in TPE
    Two foldable glass supports
    Handle with ASKO logo
    Sliding tines for easy adaptation to stone ware etc.
    Foldable wine shelves to right
    Divisble/foldable wine shelves to left
    Middle basket Perfect ergonomy with easy sliding telescopic rails
    Removable rack for bowls, cups and glasses
    Removable rack for large utensils
    Middle basket connection fitted with non-return valve
    Handle
    Lower rack type Exclusive
    Lower rack Foldable/divisible rear pin row
    Vase/bottle holder for cleaning vases/baby bottles
    Foldable/divisible front pin row
    Cutlery basket
    Small distance between the basket threads - makes loading easy and prevents small items to fall through.
    Handle with ASKO logo
    Sliding tines for easy adaptation to stone ware etc.
    Automatic dosing system Yes, integrated
    Interior light Yes, 4 LED lights
    Interaction and control
    Possible to control via Wi-Fi Yes, integrated
    Type of display Graphic TFT display
    Status Light™ - Visual indication of dishwashing progress Yes
    Remaining time indication Yes
    Wash end indication Displayed with sound and light
    Language settings Norwegian
    German
    Russian
    Finnish
    Swedish
    Portuguese
    Lithuanian
    English
    Latvian
    Croatian
    Italian
    French
    Chinese traditional
    Spanish
    Estonian
    Czech
    Ukrainian
    Japanese
    Slovak
    Slovenian
    Chinese simpified
    Polish
    Danish
    Dutch
    Functions, programs and modes
    Programs Rinse and hold programme
    Upper half
    Sanitize
    Lower half
    Crystal glass
    Time program
    Intensive program
    Auto wash
    Standard
    ECO wash
    Anti odour
    Quick Pro wash
    Self cleaning
    Light wash
    Plastic wash
    Delayed start Possible to delay up to 24 hours
    Options and modes Sensor controlled door opening - Optimizes the drying process according to the room temperature
    Time set
    Push to open - Handle-free door opening
    Heat Boost Mode
    Green mode - Less energy and water is used. The program time is extended
    Enable/disable automatic door opening
    Speed mode - The program time is shortened. More energy is used.
    Night mode - Lower noise level. The program time is extended.
    Super Rinse™ - Two extra rinses
    Design and integration
    From the front adjustable door spring Yes
    From front adjustable rear foot Yes
    Installation Velcro strips for easy mounting and adjustment of the separate custom door
    Multi fit outlet hose
    Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation
    Trim kit
    Steam protection strip
    Sliding door No
    Possible to install elevated Yes
    Custom door size Custom door size 700-800
    Min. niche width 24 ''
    Min. niche height 33 7/8 ''
    Depth (incl. wall spacing) 21 7/8 ''
    Height setting 2 1/16 ''
    Adjustable kick plate 30-94/0
    Safety and maintenance
    Aqua Safe™ Sealing points outside container
    Extra durable stainless steel container
    Waterproof bottom plate
    Detection of water leakage on the bottom plate
    Aqua Detect™ - Instant recognition of any leakage in the motor compartment
    Aqua Level™ Sensor - Ensures an optimized water level
    Stand-by water protecion - Leakage detection when machine is off
    Extra durable PEX inlet hose
    Maximum time for water intake
    Light and sound alarm
    Anti Block™ - Self cleaning drain pump
    Aqua Safe™ system Yes
    Child safety Kid Safe™ - Lockable controls
    Indication of low level of rinse-aid Notification in display
    Salt refill indicator Notification in display
    Technical data
    Water connection Hot&cold water
    Adapter for water connection No
    Max. temperature of inflow water 140 °F
    Noise level (max) 39 dB(A)
    Reference programme 1
    Duration of standard programme 125 min
    Estimated yearly energy consumption 220 kWh
    Energy consumption - normal program 1 kWh
    Estimated annual water consumption 647.5 gal
    Water consumption 3 gal
    Power consumption in standby mode 0.5 W
    Plug type USA
    Connected load 1300 W
    Voltage (V) 120 V
    Number of phases 1
    Fuse 15 A
    Frequency 60 Hz
    Required inlet water pressure psi 0,03-1
    Net weight 99.2 lb
    Dimensions
    Width 23 15/16 ''
    Height 33 13/16 ''
    Depth 21 13/16 ''
    Maximum product height 35 7/8 ''
    Length of electrical cord 71 7/16 ''
    Depth with door open 48 7/16 ''
    Length inlet hose 64 3/16 ''
    Length outlet hose 90 9/16 ''
    Logistic information
    Packaging width 25 3/16 ''
    Packaging height 36 5/8 ''
    Packaging depth 26 3/4 ''
    Gross weight 106.5 lb
    Product code 740096
    EAN code 3838782634703

    Reviews

    Your Selected Items

    Asko DFI776XXLSOF Dishwasher

    Asko DFI776XXLSOF Dishwasher

    X1

    $2,099.00
