Asko DBI786IXXLSSOF Dishwasher
Extended protection
5 year plan
$359.993 year plan
$188.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?
8 Steel™
8 Steel™ - more steel less plastic No other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.
Turbo Combi Drying™
Turbo Combi Drying™ benefits from both the innovative Turbo Drying™ system and natural drying with dry indoor air. Our Turbo Drying™ system begins the drying process and is followed with the door automatically opens to finish the drying with indoor air.
Aqua Safe™ system
Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe™ system is an advanced safety system which ensures a leak-safe dishwasher day and night.
XXL dishwashers
Our XXL dishwashers have an loading height of 23". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.
Crystal Glass
Wash fragile items made of crystal/glass, such as crystal glass from Orrefors, using the gentle dishwashing program Crystal glass.
Light Lock™
Light plastic cans and bowls are easily flipped over and filled with water. The LightLock™ smart fixation helps them to retain their position throughout the program.
Self Cleaning
ASKO s dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned. Use a recommended cleaning agent and the program on a regular basis for best result.
Vase/bottle holder
Our special holder for tall, narrow objects like baby bottles, vases and bottles is combined with a special power zone that makes sure that the cleaning result is perfect.
Top cutlery tray
The top tray for cutlery and kitchen utensils is easy to remove for easy unloading. With a width of 12-3/4" the centred tray leaves plenty of room for tall wine glasses in the upper rack on each side of the tray. And with the Instant Lift™ you have the freedom to adjust the upper rack to be 1-1/2" or 2-1/4".
Time program
When you need clean plates in a hurry, just tell the machine how dirty the dishes are and how much time you have. The program then adjusts washing and rinsing to match your needs.
ECO wash
Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes, cups, glasses and so on.
Status Light™
ASKO s new generation dishwashers have Status Light™ -a small light placed in the bottom right corner to let you know the actual status of the program.
Brushless motor
A brushless motor is not only quieter and more reliable. It also consumes less energy. You want your dishwasher to work forever. So do we.
LED interior light
The combination of outer and inner LED-lights is designed for best intensity and durability. It gives you a good overview of the door area as well as the inside of the dishwasher.
Green mode
The Green mode saves water and energy by lowering the temperature and extending the washing cycle. Still, the result is just as perfect as the Normal program. Let s go greener!
Speed mode
When you need to get things cleaned in a hurry, the Speed mode is useful. It saves up to 50% of the normal time, by using more water and increased heating.
Night Mode
Night mode reduces the noise by 2 dB thanks to lower pressure in the spray arm. Perfect at night or in a house with an open plan living area.
Auto wash
ASKO s Auto Wash with the SensiClean™ sensor ensures the right temperature, washing cycle and drying regardless of what you have put in the machine. Every time.
Quick Pro Wash
Sometimes you need to use the same kitchen ware with short intervals. The Quick Pro Wash program only takes half an hour - perfect at the dinner party or when you bake.
Plastic wash
The Plastic program washes and dries your plastic kitchen ware perfectly. And, if there s room left you can of course wash the ordinary porcelain and glass at the same time.
Lower half wash
The Lower half wash program only sprays the bottom half of the machine which means less water and energy is used. An more environmentally friendly way to clean your plates and cutlery.
Upper half wash
The Upper basket program sprays only the top part of the machine and uses less water and energy than a normal program. Saves both your time and the environment.
Rinse & hold
The Rinse and hold program allows for you to avoid dried leftovers while you wait for the dishwasher to get fully loaded. Saves time and energy over time.
Aqua Level™ Sensor
The Aqua Level™ Sensor ensures an optimized water level, even if a bowl turns over and is filled with water. It also keeps the machine from starting if the water is turned off.
Aqua Detect™ Sensor
The Aqua Detect™Sensor monitors the inlet valves and the water level while the machine operates. For safety reasons, the drain pump s capacity is five times the inlet valve s.
Power Zone Cutlery™
Power Zone Cutlery™ is a special nozzle spray zone for the cutlery basket that will make your cutlery dazzling clean. And, there is a similar nozzle for the knife basket.
Kid Safe™
To stop small fingers from starting the dishwasher the Kid Safe™ makes the control panel easy to lock. This also prevents altering any settings by mistake.
Anti siphon
For our fully integrated dishwashers, the Anti-siphon solution safely keeps the water inside the machine. This is especially important if the dishwasher is placed above floor level.
Extra wide knife stand
Our smart knife holders are found in the middle, upper, and the top basket. They are all are extra deep so that the blades remain steady. Cutting edge, not fingers.
Instant Lift™
Our InstantLift™ height adjustment system, allows for freeing up between 1-1/2" or 2-1/4" in the upper rack,. A simple and flexible way to make room for it all.
10 Spray™
ASKO s spray system consists of up to 10 effective spray zones to ensure a totally clean load. In the lower rack there are three power zones to take care of the dirtiest parts.
4 Level rack
ASKO s four level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.
Folding tines
The foldable tines in the lower tray makes it easy to load different sizes of pots and pans. Flexibility at its best.
Foldable Glass support
Sometimes you need the space of the upper rack for other items than glasses. Good thing that the tines are foldable here as well.
Telescopic rails
ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.

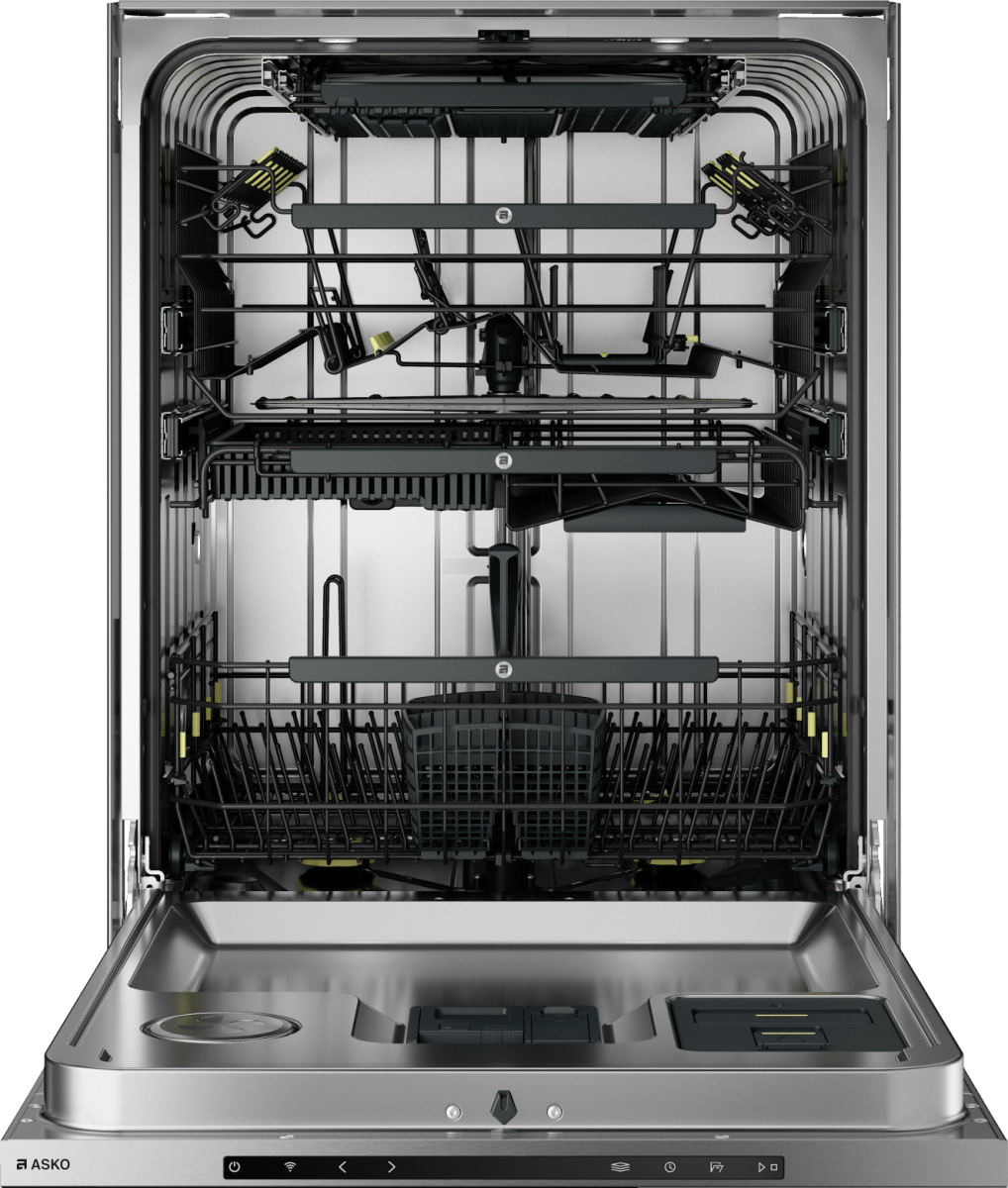

Removable middle rack
The Twin Tubes™ spray zone makes the middle rack perfect for lightly soiled glasses etc. Easy to remove if you need more space. Spray pressure is retained if the basket is removed.
3 - Spray arms
The 3 spray-arm technique reaches every corner and with up to 10 highly effective spray zones, no dirt can escape. Not even your lasagne baking dish.
Touch Proof™
The ultra-thin, transparent TouchProof™ coating protects your dishwasher stains and grease Easy to clean, scratch resistant it will keep your dishwasher looking brand new year after year.
18 - Loading capacity
Room for 18 place settings, fit larger pots and plates in the upper rack. Our XXL dishwasher have four level rack system including; Knife rack, Upper rack, Middle rack, Lower rack. Top cutlery tray: Upper rack, Middle rack and Lower rack. With 18 place settings you have a consumption of only 0,525 L / place setting!
China Guard
Our china guard ensures secure rotation of the upper sprayarm.
15-3/4" plates in lower rack
Our XXL dishwashers have room for a 40 cm big plate in the lower rack when the middle rack is removed and the upper rack in the upmost position.
Knife holders
Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.
Multi position glass rack
The Multi position glass rack is a very practical rack that can be mounted in three different positions - all depending on your needs.
Auto Dose
Auto Dose - demands less of you Through years of research, we have identified the exact amount of detergent needed to deliver consistently perfect cleaning results. That s our job. Of course, we don t expect you to spend time thinking about this. That s why we designed Auto Dose. The auto dosing compartment in our dishwashers stores up to 30 days worth of detergent. This means you only need to fill it once a month. Just load your dishes, choose your program, and you re ready to go. Hassle-free, as it should be.
Focus points
Focus points - a hint of nature Opening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place - where it doesn t compete for space or attention - instead, it makes the room.
UV Cleanse
UV Cleanse mode When it comes to getting dishes and cutlery really clean, there are four important ingredients: temperature, chemistry, mechanical action and time. When developing our new DW60 series of dishwashers, we wanted to take cleanliness and hygiene to the highest level. So, we added a fifth and unexpected ingredient - light. UV light, to be exact. For our bodies, moderate exposure to UV light is a good source of vitamin D. It improves our mood and boosts our energy. But what about our dishes? Well, UV light is also proven to kill bacteria. This is why we decided to build our latest dishwashing innovation around it, enabling up to 99,99999 % bacterial elimination.
Adjustable power zones
Adjustable power zones To make an already powerful cleaning system even more powerful, we have created two adjustable power zones with two different spray patterns. The power zones either produce a concentrated highpressure hard jet for extra dishwashing power on tall, narrow objects like bottles and vases, or a wider spray for larger dishes, pots and pans. There s also a bridging function where both power zones are set to the wide spray mode for very large dishes or utensils. The power zones are operated manually, so when you don t need them simply switch them off
Connected
The ConnectLife app lets you control and monitor your ASKO dishwasher remotely via your smartphone or tablet. You can look up the online user manual, change settings, check the machine s status and more. You can even start, stop and pause programs on the move. The app includes a step-by-step guide to help you find the best programs for you depending on what you re washing and how you prefer to wash it.
Style™
For those with a sense of style, but who also appreciate the value of functional, user-friendly design. Our top-of-the-line Style models naturally combine functionality with clean lines and a stylish minimalism. They feature superior programs, endless flexibility and high quality, while the attractive and unique full colour/easy-to-read (TFT) display highlights the well thought-out and user-friendly design.
20 years
Dishwashers designed to last for 20 years Today, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better - for our customers and for the planet. We develop our dishwashers responsibly and design them to make a difference. To ensure that they can do so for a long time, we test them equivalent to 20 years of lifetime.
Quick Pro
A fast and effective program using variable water pressure to boost cleaning performance and that quickly takes care of slightly dried leftovers. When combined with Speed mode, the program cycle is even shorter - as fast as 39 minutes.
Turbo Combi Drying™ with sensor control
Turbo Combi Drying™ with sensor control This is our most advanced drying method. It is based on the same principles as Turbo Combi Drying, but the automatic door opening is regulated by a sensor that measures the temperature in your kitchen. If the kitchen is colder than normal, the door will open at a later stage. If it is warmer, the door opens earlier. This means that energy for drying is used more efficiently.
- Number of place settings: 18 pcs
- Number of racks: 4
- Upper rack type: Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
- Size: XXL
- Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening
- No
- Automatic dosing system: Yes, integrated
- Installation: Built-in
- Series: Style
| Number of place settings | 18 pcs |
| Number of racks | 4 |
| Upper rack type | Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items |
| Size | XXL |
| Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening | Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening |
| No | No |
| Automatic dosing system | Yes, integrated |
| Installation | Built-in |
| Series | Style |
| Construction and performance | |
| 8 Steel™ - Vital parts of the dishwasher made in stainless steel | Yes |
| No need to rinse the dishes thanks to Super Cleaning System™ | Yes |
| Automatic water-softener for better washing performance | Yes |
| Number of spray arms | 3 pcs |
| Number of spray zones | 10 |
| Cleaning systems | Twin Tubes™ - separate spray zone for the middle basket Cutlery Spray™ - Extra dishwashing power for the cutlery basket No need to rinse the dishes thanks to Super Cleaning System™ Aqua Level™ Sensor Sensi Clean™ Sensor - measures dirtiness level Stainless steel spray arms Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off. The water pressure is adapted depending on program, type of dishes and dirtiness level. |
| Exterior handle | Integrated handle with soft closing |
| Use and flexibility | |
| Number of place settings | 18 pcs |
| Number of racks | 4 |
| Top tray | Easy height adjustment With telescopic rails Handle Guide rails with ball bearings Removable |
| Upper rack type | Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items |
| Upper rack height adjustable | Yes |
| Upper basket | Perfect ergonomy with easy sliding telescopic rails Small distance between the basket threads - makes loading easy and prevents small items to fall through Light Lock™ for fastening lightweight items China Guard - Protects fragile load from the rotating spray arm Extra wide knife stand Dividable pin rows Wine glass fixings in TPE Two foldable glass supports Handle with ASKO logo Sliding tines for easy adaptation to stone ware etc. Foldable wine shelves to right Divisble/foldable wine shelves to left |
| Middle basket | Perfect ergonomy with easy sliding telescopic rails Removable rack for bowls, cups and glasses Removable rack for large utensils Middle basket connection fitted with non-return valve Handle |
| Lower rack type | Exclusive |
| Lower rack | Foldable/divisible rear pin row Vase/bottle holder for cleaning vases/baby bottles Foldable/divisible front pin row Cutlery basket Small distance between the basket threads - makes loading easy and prevents small items to fall through. Handle with ASKO logo Sliding tines for easy adaptation to stone ware etc. |
| Automatic dosing system | Yes, integrated |
| Interior light | Yes, 4 LED lights |
| Interaction and control | |
| Possible to control via Wi-Fi | Yes, integrated |
| Type of display | Graphic TFT display |
| Status Light™ - Visual indication of dishwashing progress | Yes |
| Remaining time indication | Yes |
| Wash end indication | Displayed with sound and light |
| Language settings | Norwegian German Russian Finnish Swedish Portuguese Lithuanian English Latvian Croatian Italian French Chinese traditional Spanish Estonian Czech Ukrainian Japanese Slovak Slovenian Chinese simpified Polish Danish Dutch |
| Functions, programs and modes | |
| Programs | Rinse and hold programme Upper half Sanitize Lower half Crystal glass Time program Intensive program Auto wash Standard ECO wash Anti odour Quick Pro wash Self cleaning Light wash Plastic wash |
| Delayed start | Possible to delay up to 24 hours |
| Options and modes | Sensor controlled door opening - Optimizes the drying process according to the room temperature Time set Heat Boost Mode Green mode - Less energy and water is used. The program time is extended Enable/disable automatic door opening Speed mode - The program time is shortened. More energy is used. Night mode - Lower noise level. The program time is extended. Super Rinse™ - Two extra rinses ExtraHygiene with UV Technology |
| Design and integration | |
| From the front adjustable door spring | No |
| From front adjustable rear foot | Yes |

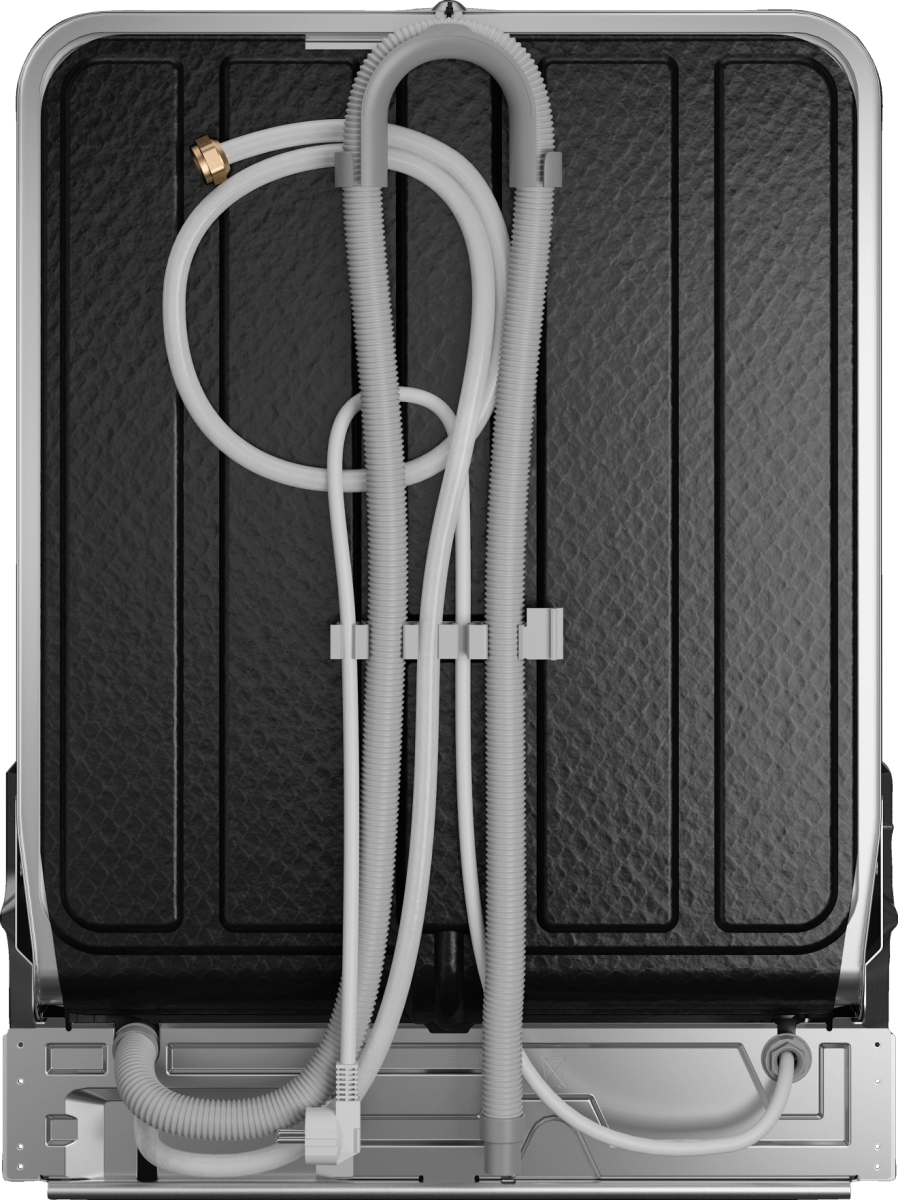

| Installation | Multi fit outlet hose Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Trim kit Steam protection strip |
| Sliding door | No |
| Possible to install elevated | Yes |
| Min. niche width | 24 '' |
| Min. niche height | 34 1/4 '' |
| Depth (incl. wall spacing) | 21 7/8 '' |
| Height setting | 2 1/16 '' |
| Adjustable kick plate | 30-94/0 |
| Safety and maintenance | |
| Aqua Safe™ | Sealing points outside container Extra durable stainless steel container Waterproof bottom plate Detection of water leakage on the bottom plate Aqua Detect™ - Instant recognition of any leakage in the motor compartment Aqua Level™ Sensor - Ensures an optimized water level Stand-by water protecion - Leakage detection when machine is off Extra durable PEX inlet hose Maximum time for water intake Light and sound alarm Anti Block™ - Self cleaning drain pump |
| Aqua Safe™ system | Yes |
| Child safety | Kid Safe™ - Lockable controls |
| Indication of low level of rinse-aid | Notification in display |
| Salt refill indicator | Notification in display |
| Technical data | |
| Water connection | Hot&cold water |
| Adapter for water connection | No |
| Max. temperature of inflow water | 140 °F |
| Noise level (max) | 39 dB(A) |
| Reference programme | 1 |
| Duration of standard programme | 125 min |
| Estimated yearly energy consumption | 230 kWh |
| Energy consumption - normal program | 1 kWh |
| Estimated annual water consumption | 687.4 gal |
| Water consumption | 3.2 gal |
| Power consumption in standby mode | 0.5 W |
| Plug type | USA |
| Connected load | 1300 W |
| Voltage (V) | 120 V |
| Number of phases | 1 |
| Fuse | 15 A |
| Frequency | 60 Hz |
| Required inlet water pressure psi | 0,03-1 |
| Net weight | 105.8 lb |
| Dimensions | |
| Width | 23 15/16 '' |
| Height | 34 5/16 '' |
| Depth | 21 13/16 '' |
| Maximum product height | 36 3/8 '' |
| Length of electrical cord | 71 7/16 '' |
| Depth with door open | 48 7/16 '' |
| Length inlet hose | 64 3/16 '' |
| Length outlet hose | 90 9/16 '' |
| Logistic information | |
| Packaging width | 25 3/16 '' |
| Packaging height | 36 5/8 '' |
| Packaging depth | 26 3/4 '' |
| Gross weight | 113.1 lb |
| Product code | 740095 |
| EAN code | 3838782650642 |
Overview
8 Steel™
8 Steel™ - more steel less plastic No other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.
Turbo Combi Drying™
Turbo Combi Drying™ benefits from both the innovative Turbo Drying™ system and natural drying with dry indoor air. Our Turbo Drying™ system begins the drying process and is followed with the door automatically opens to finish the drying with indoor air.
Aqua Safe™ system
Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe™ system is an advanced safety system which ensures a leak-safe dishwasher day and night.
XXL dishwashers
Our XXL dishwashers have an loading height of 23". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.
Crystal Glass
Wash fragile items made of crystal/glass, such as crystal glass from Orrefors, using the gentle dishwashing program Crystal glass.
Light Lock™
Light plastic cans and bowls are easily flipped over and filled with water. The LightLock™ smart fixation helps them to retain their position throughout the program.
Self Cleaning
ASKO s dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned. Use a recommended cleaning agent and the program on a regular basis for best result.
Vase/bottle holder
Our special holder for tall, narrow objects like baby bottles, vases and bottles is combined with a special power zone that makes sure that the cleaning result is perfect.
Top cutlery tray
The top tray for cutlery and kitchen utensils is easy to remove for easy unloading. With a width of 12-3/4" the centred tray leaves plenty of room for tall wine glasses in the upper rack on each side of the tray. And with the Instant Lift™ you have the freedom to adjust the upper rack to be 1-1/2" or 2-1/4".
Time program
When you need clean plates in a hurry, just tell the machine how dirty the dishes are and how much time you have. The program then adjusts washing and rinsing to match your needs.
ECO wash
Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes, cups, glasses and so on.
Status Light™
ASKO s new generation dishwashers have Status Light™ -a small light placed in the bottom right corner to let you know the actual status of the program.
Brushless motor
A brushless motor is not only quieter and more reliable. It also consumes less energy. You want your dishwasher to work forever. So do we.
LED interior light
The combination of outer and inner LED-lights is designed for best intensity and durability. It gives you a good overview of the door area as well as the inside of the dishwasher.
Green mode
The Green mode saves water and energy by lowering the temperature and extending the washing cycle. Still, the result is just as perfect as the Normal program. Let s go greener!
Speed mode
When you need to get things cleaned in a hurry, the Speed mode is useful. It saves up to 50% of the normal time, by using more water and increased heating.
Night Mode
Night mode reduces the noise by 2 dB thanks to lower pressure in the spray arm. Perfect at night or in a house with an open plan living area.
Auto wash
ASKO s Auto Wash with the SensiClean™ sensor ensures the right temperature, washing cycle and drying regardless of what you have put in the machine. Every time.
Quick Pro Wash
Sometimes you need to use the same kitchen ware with short intervals. The Quick Pro Wash program only takes half an hour - perfect at the dinner party or when you bake.
Plastic wash
The Plastic program washes and dries your plastic kitchen ware perfectly. And, if there s room left you can of course wash the ordinary porcelain and glass at the same time.
Lower half wash
The Lower half wash program only sprays the bottom half of the machine which means less water and energy is used. An more environmentally friendly way to clean your plates and cutlery.
Upper half wash
The Upper basket program sprays only the top part of the machine and uses less water and energy than a normal program. Saves both your time and the environment.
Rinse & hold
The Rinse and hold program allows for you to avoid dried leftovers while you wait for the dishwasher to get fully loaded. Saves time and energy over time.
Aqua Level™ Sensor
The Aqua Level™ Sensor ensures an optimized water level, even if a bowl turns over and is filled with water. It also keeps the machine from starting if the water is turned off.
Aqua Detect™ Sensor
The Aqua Detect™Sensor monitors the inlet valves and the water level while the machine operates. For safety reasons, the drain pump s capacity is five times the inlet valve s.
Power Zone Cutlery™
Power Zone Cutlery™ is a special nozzle spray zone for the cutlery basket that will make your cutlery dazzling clean. And, there is a similar nozzle for the knife basket.
Kid Safe™
To stop small fingers from starting the dishwasher the Kid Safe™ makes the control panel easy to lock. This also prevents altering any settings by mistake.
Anti siphon
For our fully integrated dishwashers, the Anti-siphon solution safely keeps the water inside the machine. This is especially important if the dishwasher is placed above floor level.
Extra wide knife stand
Our smart knife holders are found in the middle, upper, and the top basket. They are all are extra deep so that the blades remain steady. Cutting edge, not fingers.
Instant Lift™
Our InstantLift™ height adjustment system, allows for freeing up between 1-1/2" or 2-1/4" in the upper rack,. A simple and flexible way to make room for it all.
10 Spray™
ASKO s spray system consists of up to 10 effective spray zones to ensure a totally clean load. In the lower rack there are three power zones to take care of the dirtiest parts.
4 Level rack
ASKO s four level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.
Folding tines
The foldable tines in the lower tray makes it easy to load different sizes of pots and pans. Flexibility at its best.
Foldable Glass support
Sometimes you need the space of the upper rack for other items than glasses. Good thing that the tines are foldable here as well.
Telescopic rails
ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.
Removable middle rack
The Twin Tubes™ spray zone makes the middle rack perfect for lightly soiled glasses etc. Easy to remove if you need more space. Spray pressure is retained if the basket is removed.
3 - Spray arms
The 3 spray-arm technique reaches every corner and with up to 10 highly effective spray zones, no dirt can escape. Not even your lasagne baking dish.
Touch Proof™
The ultra-thin, transparent TouchProof™ coating protects your dishwasher stains and grease Easy to clean, scratch resistant it will keep your dishwasher looking brand new year after year.
18 - Loading capacity
Room for 18 place settings, fit larger pots and plates in the upper rack. Our XXL dishwasher have four level rack system including; Knife rack, Upper rack, Middle rack, Lower rack. Top cutlery tray: Upper rack, Middle rack and Lower rack. With 18 place settings you have a consumption of only 0,525 L / place setting!
China Guard
Our china guard ensures secure rotation of the upper sprayarm.
15-3/4" plates in lower rack
Our XXL dishwashers have room for a 40 cm big plate in the lower rack when the middle rack is removed and the upper rack in the upmost position.
Knife holders
Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.
Multi position glass rack
The Multi position glass rack is a very practical rack that can be mounted in three different positions - all depending on your needs.
Auto Dose
Auto Dose - demands less of you Through years of research, we have identified the exact amount of detergent needed to deliver consistently perfect cleaning results. That s our job. Of course, we don t expect you to spend time thinking about this. That s why we designed Auto Dose. The auto dosing compartment in our dishwashers stores up to 30 days worth of detergent. This means you only need to fill it once a month. Just load your dishes, choose your program, and you re ready to go. Hassle-free, as it should be.
Focus points
Focus points - a hint of nature Opening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place - where it doesn t compete for space or attention - instead, it makes the room.
UV Cleanse
UV Cleanse mode When it comes to getting dishes and cutlery really clean, there are four important ingredients: temperature, chemistry, mechanical action and time. When developing our new DW60 series of dishwashers, we wanted to take cleanliness and hygiene to the highest level. So, we added a fifth and unexpected ingredient - light. UV light, to be exact. For our bodies, moderate exposure to UV light is a good source of vitamin D. It improves our mood and boosts our energy. But what about our dishes? Well, UV light is also proven to kill bacteria. This is why we decided to build our latest dishwashing innovation around it, enabling up to 99,99999 % bacterial elimination.
Adjustable power zones
Adjustable power zones To make an already powerful cleaning system even more powerful, we have created two adjustable power zones with two different spray patterns. The power zones either produce a concentrated highpressure hard jet for extra dishwashing power on tall, narrow objects like bottles and vases, or a wider spray for larger dishes, pots and pans. There s also a bridging function where both power zones are set to the wide spray mode for very large dishes or utensils. The power zones are operated manually, so when you don t need them simply switch them off
Connected
The ConnectLife app lets you control and monitor your ASKO dishwasher remotely via your smartphone or tablet. You can look up the online user manual, change settings, check the machine s status and more. You can even start, stop and pause programs on the move. The app includes a step-by-step guide to help you find the best programs for you depending on what you re washing and how you prefer to wash it.
Style™
For those with a sense of style, but who also appreciate the value of functional, user-friendly design. Our top-of-the-line Style models naturally combine functionality with clean lines and a stylish minimalism. They feature superior programs, endless flexibility and high quality, while the attractive and unique full colour/easy-to-read (TFT) display highlights the well thought-out and user-friendly design.
20 years
Dishwashers designed to last for 20 years Today, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better - for our customers and for the planet. We develop our dishwashers responsibly and design them to make a difference. To ensure that they can do so for a long time, we test them equivalent to 20 years of lifetime.
Quick Pro
A fast and effective program using variable water pressure to boost cleaning performance and that quickly takes care of slightly dried leftovers. When combined with Speed mode, the program cycle is even shorter - as fast as 39 minutes.
Turbo Combi Drying™ with sensor control
Turbo Combi Drying™ with sensor control This is our most advanced drying method. It is based on the same principles as Turbo Combi Drying, but the automatic door opening is regulated by a sensor that measures the temperature in your kitchen. If the kitchen is colder than normal, the door will open at a later stage. If it is warmer, the door opens earlier. This means that energy for drying is used more efficiently.
Features
- Number of place settings: 18 pcs
- Number of racks: 4
- Upper rack type: Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
- Size: XXL
- Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening
- No
- Automatic dosing system: Yes, integrated
- Installation: Built-in
- Series: Style
Specifications
| Number of place settings | 18 pcs |
| Number of racks | 4 |
| Upper rack type | Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items |
| Size | XXL |
| Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening | Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening |
| No | No |
| Automatic dosing system | Yes, integrated |
| Installation | Built-in |
| Series | Style |
| Construction and performance | |
| 8 Steel™ - Vital parts of the dishwasher made in stainless steel | Yes |
| No need to rinse the dishes thanks to Super Cleaning System™ | Yes |
| Automatic water-softener for better washing performance | Yes |
| Number of spray arms | 3 pcs |
| Number of spray zones | 10 |
| Cleaning systems | Twin Tubes™ - separate spray zone for the middle basket Cutlery Spray™ - Extra dishwashing power for the cutlery basket No need to rinse the dishes thanks to Super Cleaning System™ Aqua Level™ Sensor Sensi Clean™ Sensor - measures dirtiness level Stainless steel spray arms Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off. The water pressure is adapted depending on program, type of dishes and dirtiness level. |
| Exterior handle | Integrated handle with soft closing |
| Use and flexibility | |
| Number of place settings | 18 pcs |
| Number of racks | 4 |
| Top tray | Easy height adjustment With telescopic rails Handle Guide rails with ball bearings Removable |
| Upper rack type | Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items |
| Upper rack height adjustable | Yes |
| Upper basket | Perfect ergonomy with easy sliding telescopic rails Small distance between the basket threads - makes loading easy and prevents small items to fall through Light Lock™ for fastening lightweight items China Guard - Protects fragile load from the rotating spray arm Extra wide knife stand Dividable pin rows Wine glass fixings in TPE Two foldable glass supports Handle with ASKO logo Sliding tines for easy adaptation to stone ware etc. Foldable wine shelves to right Divisble/foldable wine shelves to left |
| Middle basket | Perfect ergonomy with easy sliding telescopic rails Removable rack for bowls, cups and glasses Removable rack for large utensils Middle basket connection fitted with non-return valve Handle |
| Lower rack type | Exclusive |
| Lower rack | Foldable/divisible rear pin row Vase/bottle holder for cleaning vases/baby bottles Foldable/divisible front pin row Cutlery basket Small distance between the basket threads - makes loading easy and prevents small items to fall through. Handle with ASKO logo Sliding tines for easy adaptation to stone ware etc. |
| Automatic dosing system | Yes, integrated |
| Interior light | Yes, 4 LED lights |
| Interaction and control | |
| Possible to control via Wi-Fi | Yes, integrated |
| Type of display | Graphic TFT display |
| Status Light™ - Visual indication of dishwashing progress | Yes |
| Remaining time indication | Yes |
| Wash end indication | Displayed with sound and light |
| Language settings | Norwegian German Russian Finnish Swedish Portuguese Lithuanian English Latvian Croatian Italian French Chinese traditional Spanish Estonian Czech Ukrainian Japanese Slovak Slovenian Chinese simpified Polish Danish Dutch |
| Functions, programs and modes | |
| Programs | Rinse and hold programme Upper half Sanitize Lower half Crystal glass Time program Intensive program Auto wash Standard ECO wash Anti odour Quick Pro wash Self cleaning Light wash Plastic wash |
| Delayed start | Possible to delay up to 24 hours |
| Options and modes | Sensor controlled door opening - Optimizes the drying process according to the room temperature Time set Heat Boost Mode Green mode - Less energy and water is used. The program time is extended Enable/disable automatic door opening Speed mode - The program time is shortened. More energy is used. Night mode - Lower noise level. The program time is extended. Super Rinse™ - Two extra rinses ExtraHygiene with UV Technology |
| Design and integration | |
| From the front adjustable door spring | No |
| From front adjustable rear foot | Yes |
| Installation | Multi fit outlet hose Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Trim kit Steam protection strip |
| Sliding door | No |
| Possible to install elevated | Yes |
| Min. niche width | 24 '' |
| Min. niche height | 34 1/4 '' |
| Depth (incl. wall spacing) | 21 7/8 '' |
| Height setting | 2 1/16 '' |
| Adjustable kick plate | 30-94/0 |
| Safety and maintenance | |
| Aqua Safe™ | Sealing points outside container Extra durable stainless steel container Waterproof bottom plate Detection of water leakage on the bottom plate Aqua Detect™ - Instant recognition of any leakage in the motor compartment Aqua Level™ Sensor - Ensures an optimized water level Stand-by water protecion - Leakage detection when machine is off Extra durable PEX inlet hose Maximum time for water intake Light and sound alarm Anti Block™ - Self cleaning drain pump |
| Aqua Safe™ system | Yes |
| Child safety | Kid Safe™ - Lockable controls |
| Indication of low level of rinse-aid | Notification in display |
| Salt refill indicator | Notification in display |
| Technical data | |
| Water connection | Hot&cold water |
| Adapter for water connection | No |
| Max. temperature of inflow water | 140 °F |
| Noise level (max) | 39 dB(A) |
| Reference programme | 1 |
| Duration of standard programme | 125 min |
| Estimated yearly energy consumption | 230 kWh |
| Energy consumption - normal program | 1 kWh |
| Estimated annual water consumption | 687.4 gal |
| Water consumption | 3.2 gal |
| Power consumption in standby mode | 0.5 W |
| Plug type | USA |
| Connected load | 1300 W |
| Voltage (V) | 120 V |
| Number of phases | 1 |
| Fuse | 15 A |
| Frequency | 60 Hz |
| Required inlet water pressure psi | 0,03-1 |
| Net weight | 105.8 lb |
| Dimensions | |
| Width | 23 15/16 '' |
| Height | 34 5/16 '' |
| Depth | 21 13/16 '' |
| Maximum product height | 36 3/8 '' |
| Length of electrical cord | 71 7/16 '' |
| Depth with door open | 48 7/16 '' |
| Length inlet hose | 64 3/16 '' |
| Length outlet hose | 90 9/16 '' |
| Logistic information | |
| Packaging width | 25 3/16 '' |
| Packaging height | 36 5/8 '' |
| Packaging depth | 26 3/4 '' |
| Gross weight | 113.1 lb |
| Product code | 740095 |
| EAN code | 3838782650642 |
Manuals / Guides
Reviews
Your Selected Items
Asko DBI786IXXLSSOF Dishwasher
X1
$2,399.00
