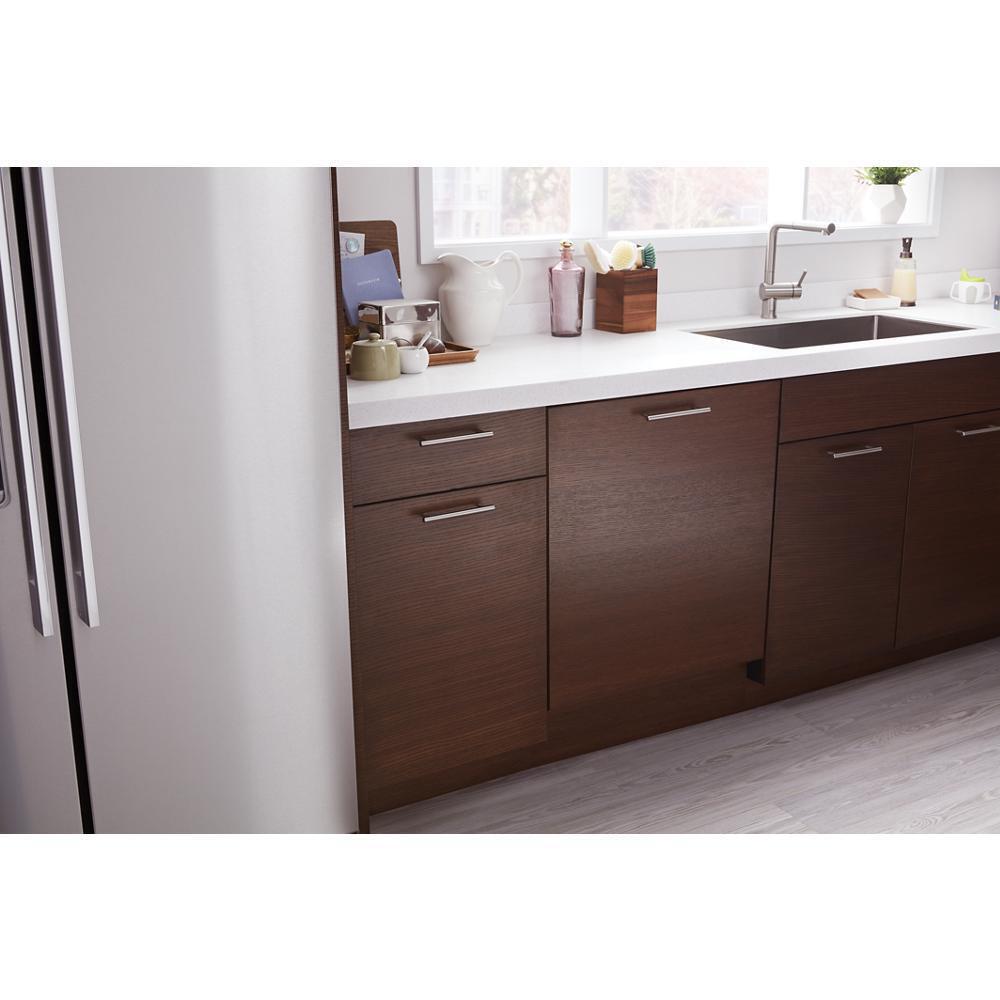

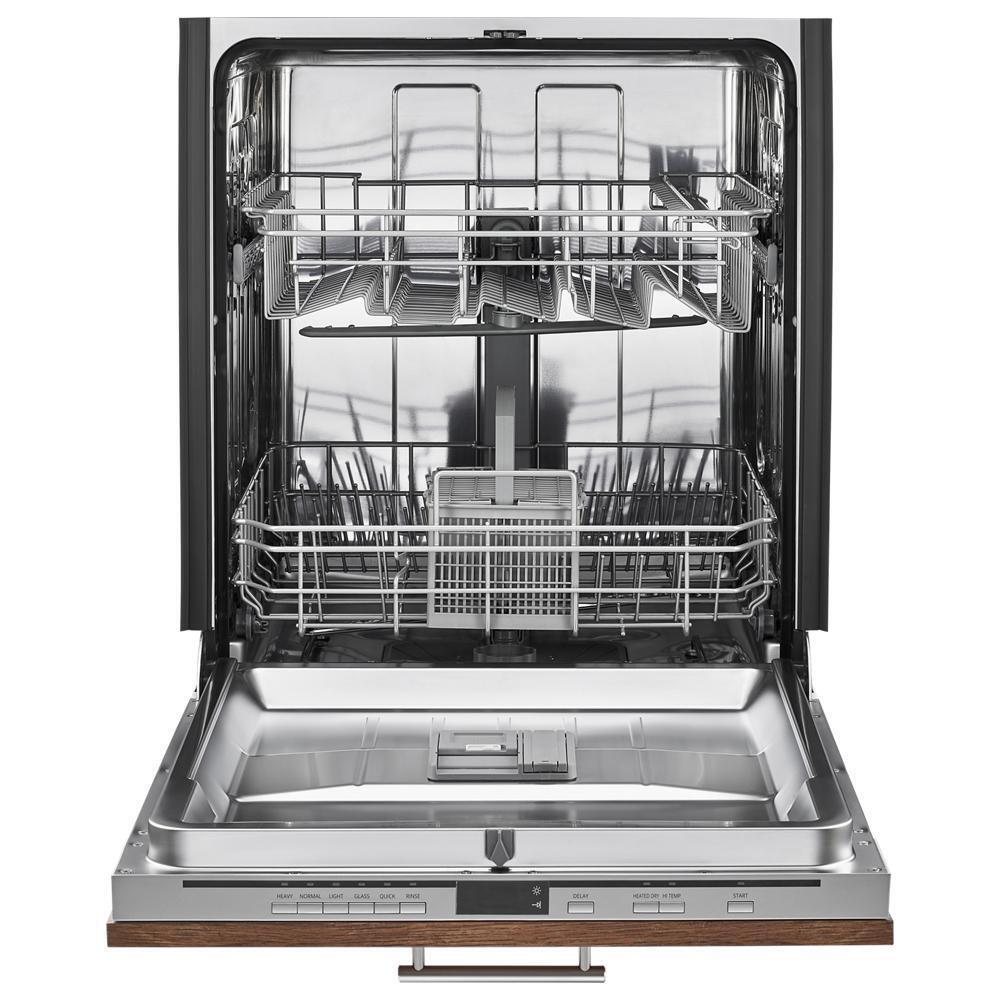

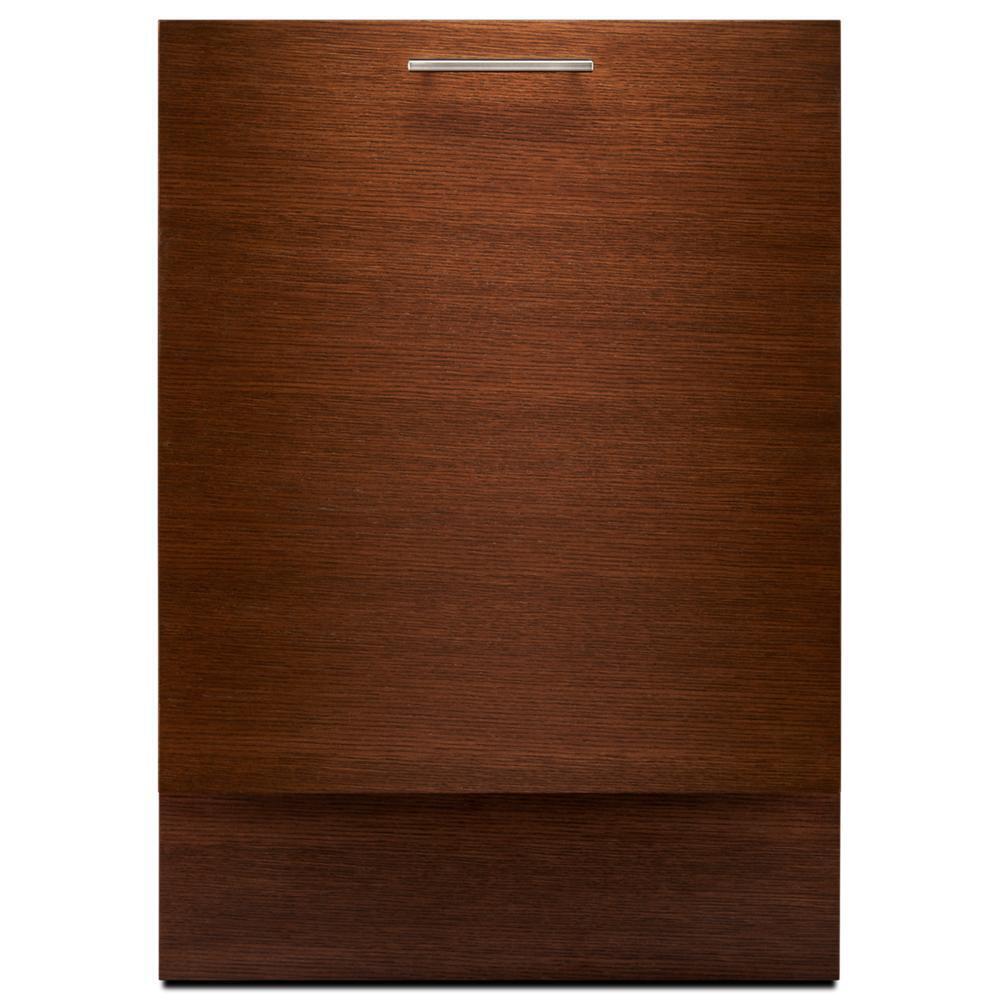

Features Get a thorough clean with a quiet dishwasher that matches the rest of your kitchen when you add on a dishwasher panel kit. This dishwasher with an adjustable upper rack is both ADA compliant and ENERGY STAR® certified. Plus, the cycle memory feature remembers the last cycle you ran and starts it with the push of a button. Panel-Ready Design Match the look of your dishwasher to your kitchen. Choose a Whirlpool®, KitchenAid® or Jenn-Air® panel kit (not included) that coordinates with the rest of your appliances or add a custom front panel and handle for a seamless fit with your cabinetry. High Temperature Wash Option Get a more thorough clean with a high-temperature wash. Heated Dry Option Add heat to dry dishes better. Dual Spray Arm Get a complete clean with two spray arms: one in the bottom and one in the middle of the dishwasher. Glass Cycle Give glassware the right clean with this cycle. ENERGY STAR® Certified ENERGY STAR® certified models exceed government standards to help save money on your utility bills. Cycle Memory This dishwasher remembers the last cycle you picked and automatically chooses it for you the next time. Adjustable Upper Rack Manually raise or lower the upper rack two inches to better fit tall items. ADA compliant This dishwasher meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. Flush Installation Get an integrated look with a dishwasher that installs flush with your kitchen cabinetry. Quiet Cleaning Performance Keep your kitchen quiet during cleanup with a dishwasher sound level of just 49 dBA. Stainless Steel Tub The stainless steel tub promotes drying by retaining heat from wash and rinse cycles. Plus, it cools faster than the dishes so moisture can condense on the interior walls and not the dishes. Normal Cycle Use this cycle for normal amounts of food soil. Heavy Cycle Take care of hard-to-clean dishes by adding extra time with the Heavy cycle. Dimensions & Capacity Width: 23 9/16"
Height: 34 1/2"
Depth: 24"

• Panel-Ready Design
• Cycle Memory
• Adjustable Upper Rack
• ADA compliant

2nd Level Rack
Extras	1-Fold Down Wire Cup Shelf
Adjustable	Yes
Style	Straight
Cushion-Tip Tines	Yes
Options
Dishwasher Option Selections	1-24 Hour Delay,Heated Dry,Hi Temp Wash
Details
Drying System Type	Recessed Heating Element
Built-In Water Softener	No
Wash System	Filter
Wash System Type	Removable Filter
Number of Racks	2
Number of Washarms	2
Interior Light	No
Water Filtration	Yes
Rack Material	Nylon
Tub Material	Stainless Steel
Certifications
Energy Star® Qualified	ENERGY STAR® Qualified
Kosher Consumer Friendly	Yes
ADA Compliant	Yes
Prop 65	Standard
CEE Tier	Tier I
NSF® Certified	No
UL	Yes
Design Type
Design Expression	Panel-Ready
General
Accessory Relationships	Yes
Width Doors Open 90 Degrees	44.500
Dimensions
Depth Closed Excluding Handles(IN,inches)	24
Carton Width(IN,inches)	26
Gross Weight(LB,pounds)	105
Carton Depth(IN,inches)	26 1/2
Carton Height(IN,inches)	35
Electrical
Volts	120
Hz	60
Amps	6.75
Silverware Basket
Location	Bottom Rack
Covers	Yes
Lower Rack
Utility Basket	Yes
Style	Extended
Compatibility
Connectivity	No
Works With	No
