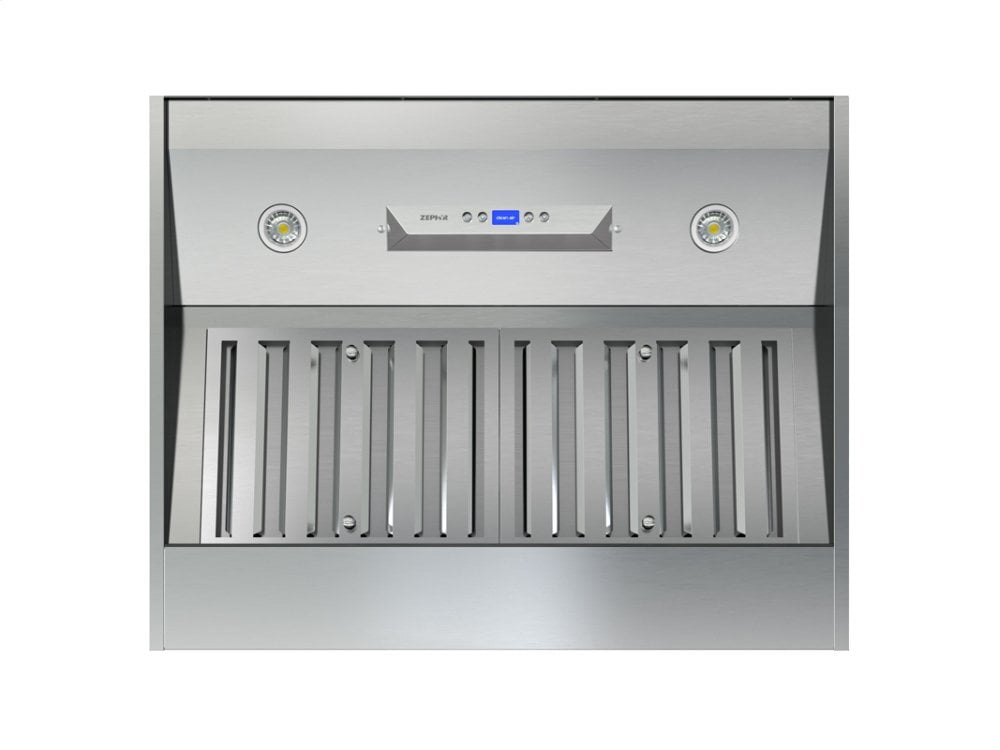

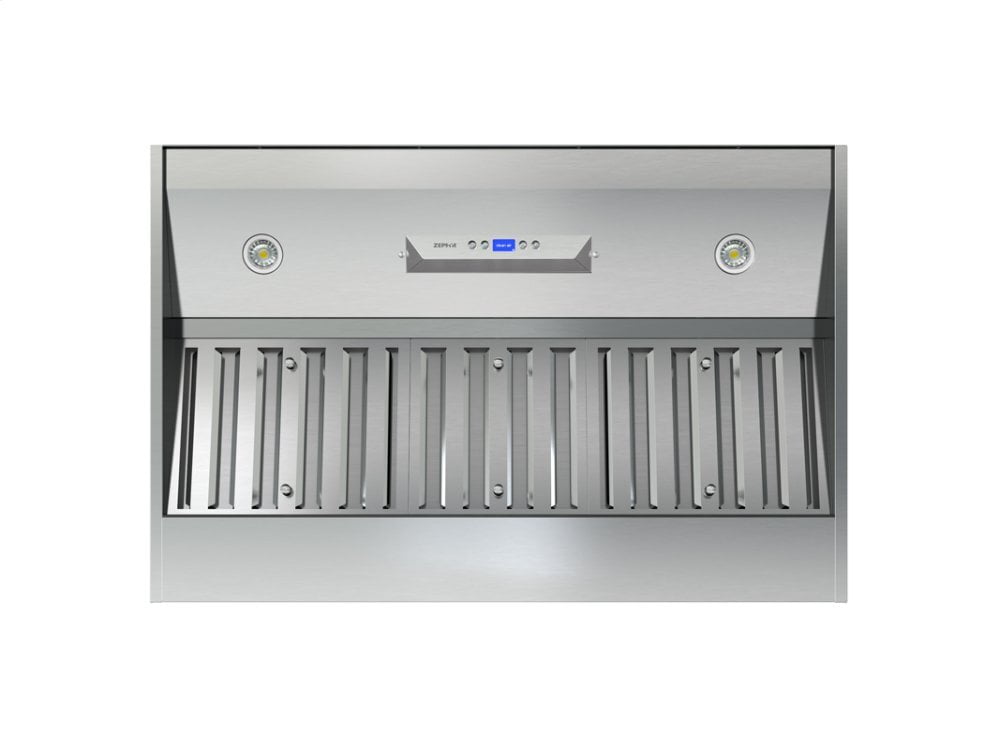

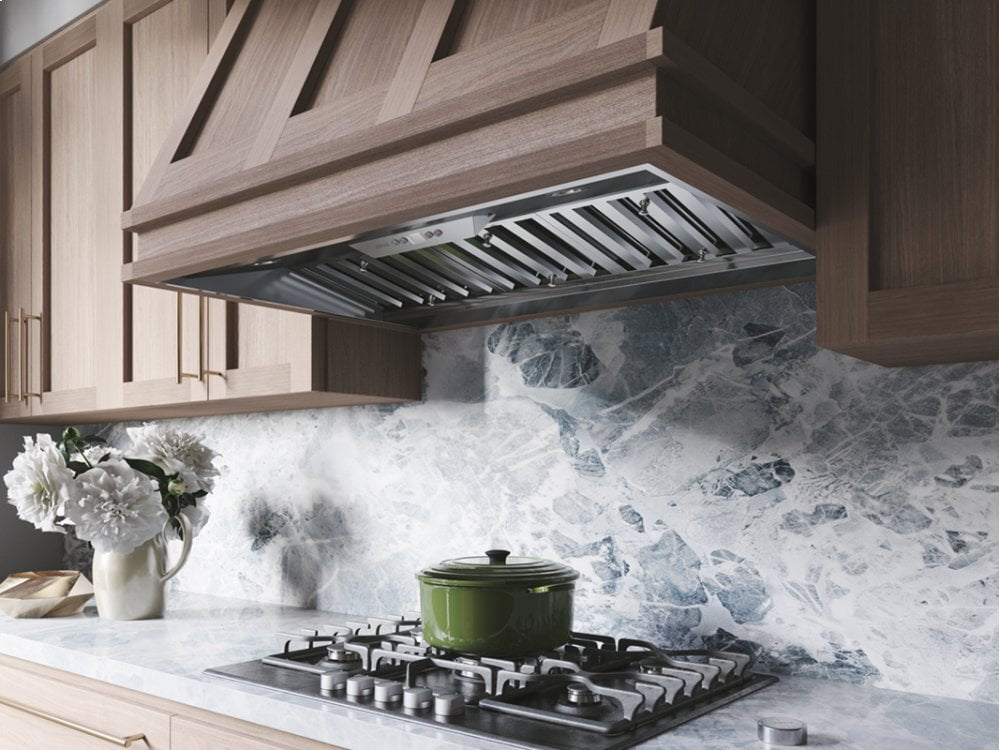

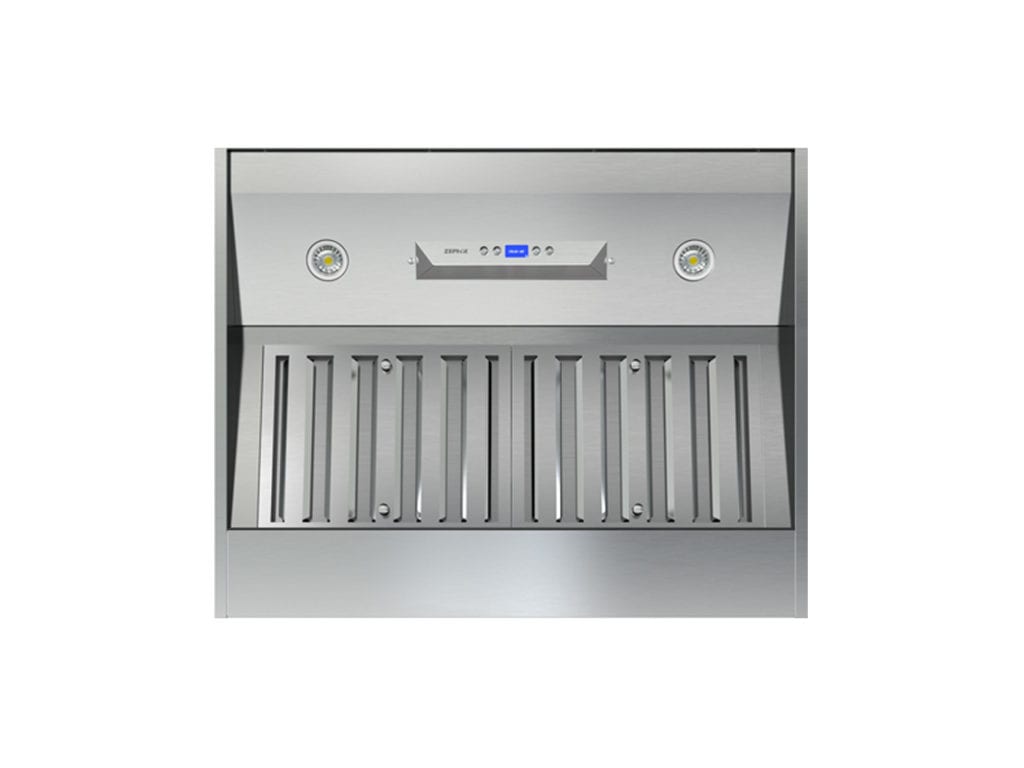

Zephyr AK9428AS 30" Monsoon Dcbl Insert
Monsoon Dcbl Is Unique In The Marketplace. We Started With A 715-Cfm Dc Motor And Added Stainless Steel Baffle Filters With A Removable Grease Tray For Easy Cleaning. Then We Introduced Vertical And Horizontal Ducting Along With A Wireless Remote Control, And Finally, We Added The Proprietary Dcbl Suppression System® That Makes Monsoon Dcbl The Most Quiet And Energy Efficient One-Piece Liner Available Today.
- 290, 390, 590, 715 CFM
- Not Recirculating
- Pro Baffle Filter
- Stainless Steel
- Vertical and Horizontal Ducting
- Max Sones 5.8
- 22 1/2" Depth
- Dual-Level Lighting
- Bloom(TM) HD LED Light Bulbs
- Airflow Control Technology(TM) (ACT(TM))
- CleanAir Function
- DCBL Suppression System(R)
- Electronic LCD Controls
- Includes Wireless Remote Control
- Optional Make-Up Air Kit
- Professional Baffle Filters
- Ultra-Quiet Performance
- Vertical or Horizontal Ducting
| UPC | 646328002809 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 715 |
| BLOWER CFM w/ACT | 590, 390, 290 |
| INTERNAL BLOWER 1 SONES | 5.8 |
| CONTROLS TYPE | Electronic LCD |
| BLOWER SPEEDS | 6 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | Bloom™ HD LED |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 6 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | pro baffle |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 8 |
| DUCT SIZE, HORIZONTAL, INCHES | 8, 3.25 x 10 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 36 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 4 |
| NOMINAL WIDTH, INCHES | 30 |
| NET WIDTH, INCHES | 28.375 |
| DEPTH, INCHES | 22.5 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 12 |
| WEIGHT, LBS | 40 |
| SHIPPING HEIGHT, INCHES | 28.54 |
| SHIPPING WIDTH, INCHES | 31.89 |
| SHIPPING LENGTH, INCHES | 17.48 |
| SHIPPING WEIGHT, LBS | 50.2 |
