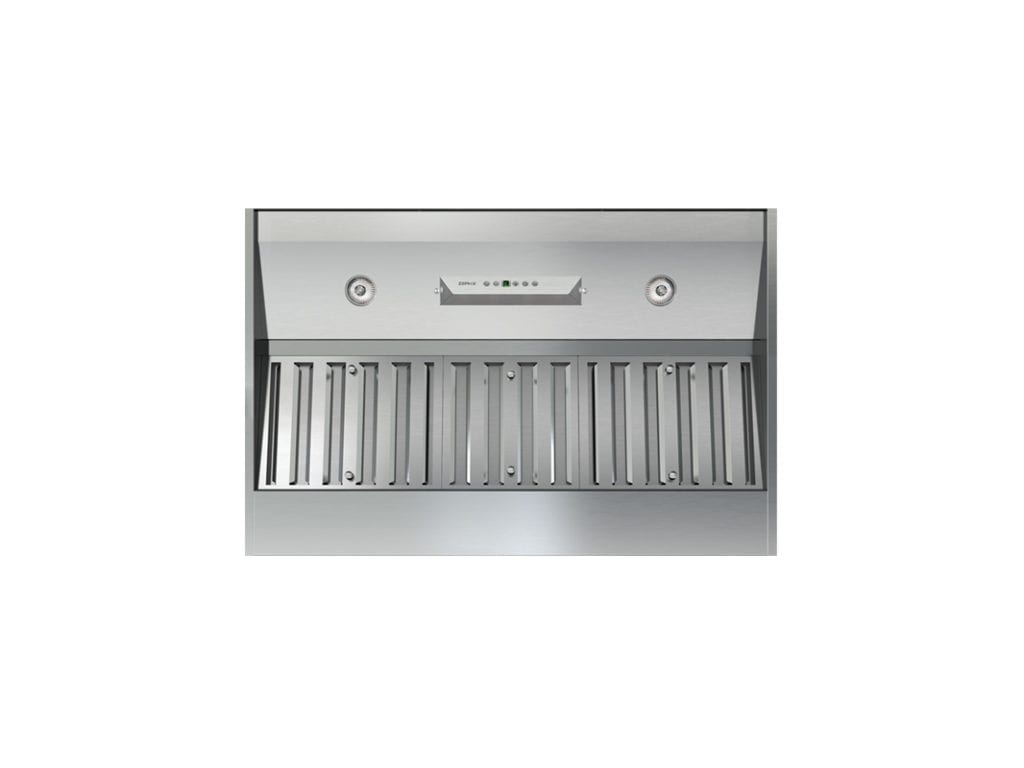

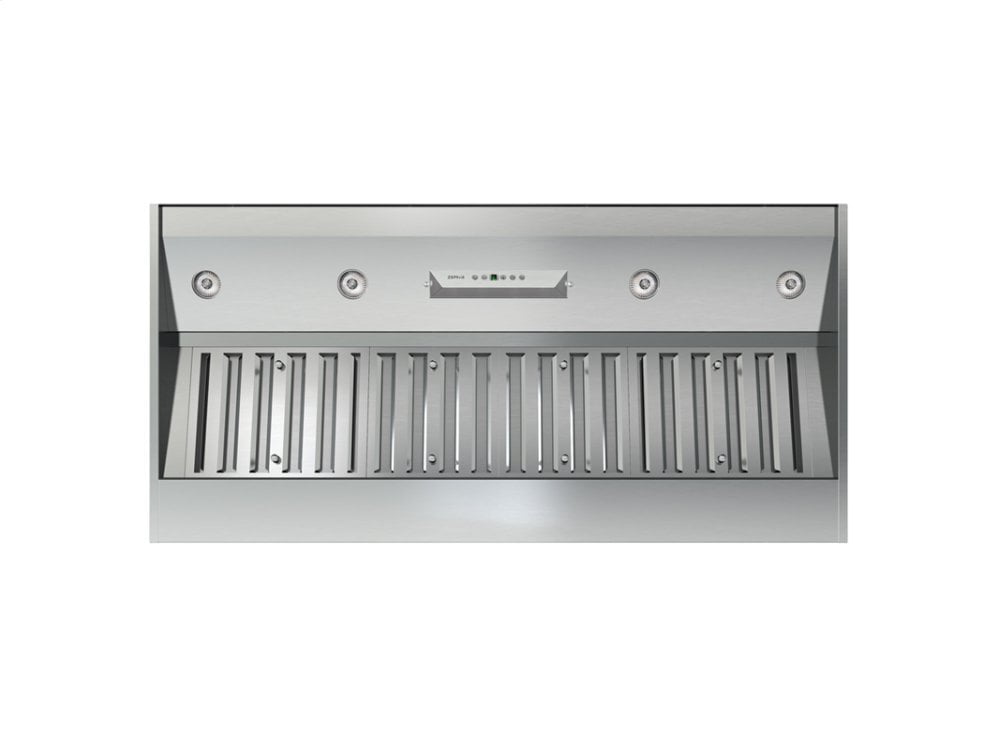

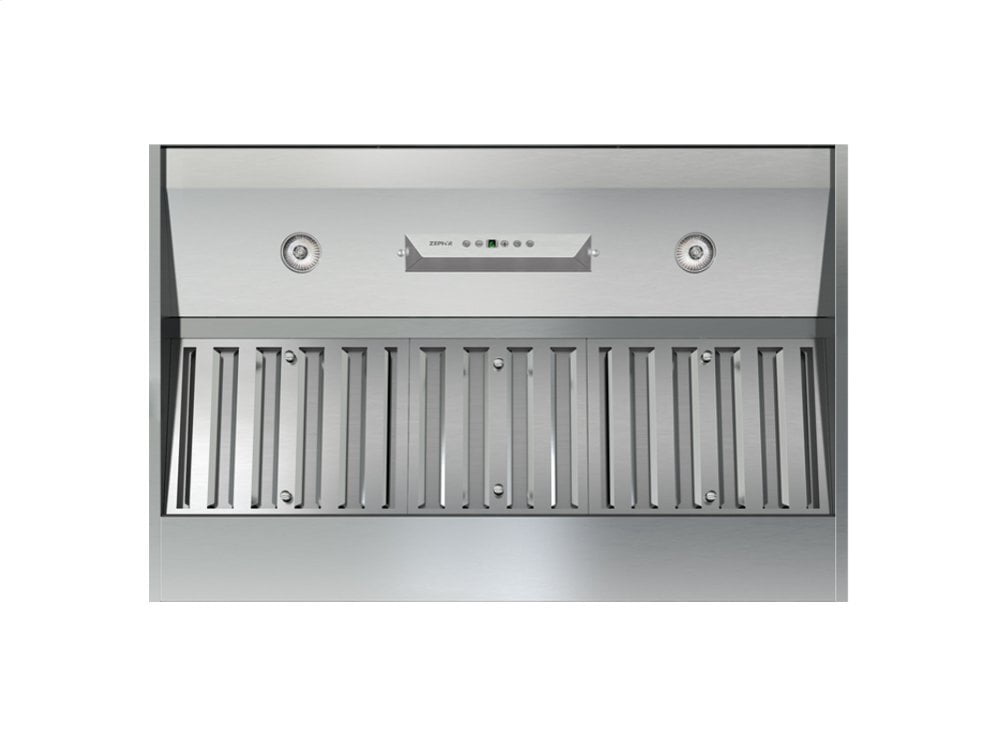

Zephyr AK9340AS 42" Monsoon Ii Insert
Now Available With Our Exclusive Act™ Technology, Monsoon Ii Delivers And Then More. Starting Wit... Read more...
SKU:AK9340AS
UPC:646328002625
Now Available With Our Exclusive Act™ Technology, Monsoon Ii Delivers And Then More. Starting With Recognized Conventional Installation Dimensions, Monsoon Ii Fits Into Any Custom Cabinetry Or Enclosure. Its Stainless Steel Baffle Filters With Removable Grease Tray Make It Easy To Maintain Its Pro-Style Look While The 6-Speed Electronic Controls And Wireless Remote Control Give The Homeowner More Than They Expected.
- 390, 590, 1200 CFM
- Not Recirculating
- Pro Baffle Filter
- Stainless Steel
- Vertical Ducting
- Max Sones 9
- 22 1/2" Depth
- Dual-Level Lighting
- Halogen Lighting
- Airflow Control Technology(TM) (ACT(TM))
- Electronic Touch Controls
- Includes Wireless Remote Control
- Optional Make-Up Air Kit
- Professional Baffle Filters
| UPC | 646328002625 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 1200 |
| INTERNAL BLOWER 1 SONES | 9 |
| CONTROLS TYPE | Electronic |
| BLOWER SPEEDS | 6 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 35 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | pro baffle |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 10 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 36 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 7 |
| NOMINAL WIDTH, INCHES | 42 |
| NET WIDTH, INCHES | 40.375 |
| DEPTH, INCHES | 22.5 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 12 |
| WEIGHT, LBS | 60.2 |
| SHIPPING HEIGHT, INCHES | 28.82 |
| SHIPPING WIDTH, INCHES | 43.94 |
| SHIPPING LENGTH, INCHES | 17.09 |
| SHIPPING WEIGHT, LBS | 73.8 |
Description
Now Available With Our Exclusive Act™ Technology, Monsoon Ii Delivers And Then More. Starting With Recognized Conventional Installation Dimensions, Monsoon Ii Fits Into Any Custom Cabinetry Or Enclosure. Its Stainless Steel Baffle Filters With Removable Grease Tray Make It Easy To Maintain Its Pro-Style Look While The 6-Speed Electronic Controls And Wireless Remote Control Give The Homeowner More Than They Expected.
Features
- 390, 590, 1200 CFM
- Not Recirculating
- Pro Baffle Filter
- Stainless Steel
- Vertical Ducting
- Max Sones 9
- 22 1/2" Depth
- Dual-Level Lighting
- Halogen Lighting
- Airflow Control Technology(TM) (ACT(TM))
- Electronic Touch Controls
- Includes Wireless Remote Control
- Optional Make-Up Air Kit
- Professional Baffle Filters
Specifications
| UPC | 646328002625 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 1200 |
| INTERNAL BLOWER 1 SONES | 9 |
| CONTROLS TYPE | Electronic |
| BLOWER SPEEDS | 6 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 35 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | pro baffle |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 10 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 36 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 7 |
| NOMINAL WIDTH, INCHES | 42 |
| NET WIDTH, INCHES | 40.375 |
| DEPTH, INCHES | 22.5 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 12 |
| WEIGHT, LBS | 60.2 |
| SHIPPING HEIGHT, INCHES | 28.82 |
| SHIPPING WIDTH, INCHES | 43.94 |
| SHIPPING LENGTH, INCHES | 17.09 |
| SHIPPING WEIGHT, LBS | 73.8 |
