Zephyr AK9234AS 36" Monsoon I One-Piece Liner With 600 Cfm Blower, 6 Speed Levels, Act

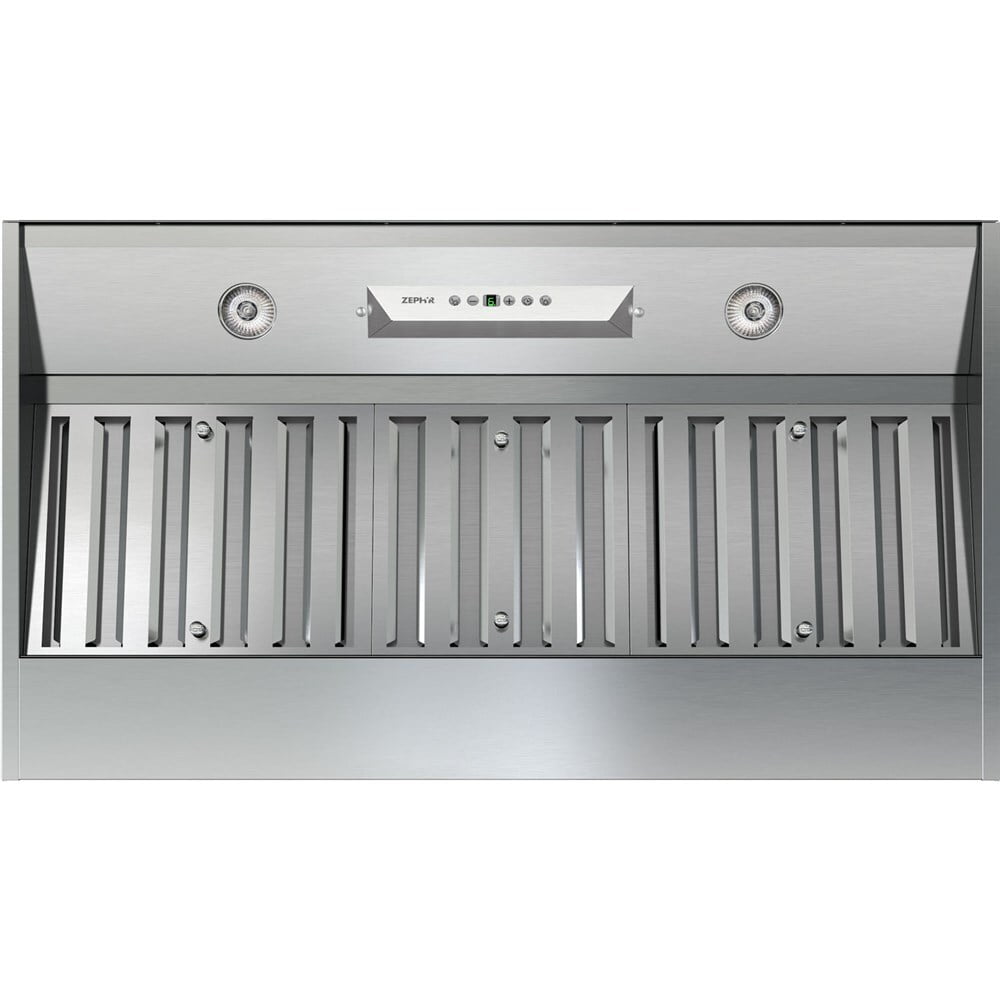

Zephyr'S Essentials Power Series Ak9234As Monsoon I One-Piece Liner Has Taken The One-Piece Liner To The Next Level. Including Dual-Level Halogen Lights And An Ada-Compliant Rf Remote Control, You Can Easily Control The Monsoon I Without Ever Reaching Over A Hot, Dangerous Cooking Surface.
  • Essential Power series Monsoon I one-piece liner
  • ACT Airflow Control Technology (allows you to limit max. CFM to meet local code requirements)
  • 34-3/8" width is perfect for 36 in. cooktops
  • Mounting height: 26" - 36"
  • Six powerful speed levels
  • 200-600 CFM internal blower
  • Internal blower sones: 1.2-6
  • Stainless steel pro-baffle
  • Electronic touch integrated controls
  • Dual-level lighting
  • Removable grease tray
  • Two 35W halogen bulbs
  • Includes wireless RF remote control
  • Internal blower - vertical: 8" round
  • Internal blower - horizontal: 8" round or 3-1/4" x 10"
UPC 646328002618
BLOWER INCLUDED YES/NO yes
INTERNAL BLOWER 1 CFM 600
BLOWER CFM w/ACT 390, 290
INTERNAL BLOWER 1 SONES 6
CONTROLS TYPE Electronic
BLOWER SPEEDS 6
AUTOMATIC DELAY-OFF yes
CLEANAIR FUNCTION yes
LIGHTS TYPE (INCLUDED) halogen
LIGHTS QUANTITY 2
WATTS PER BULB 35
LIGHTS LEVELS 2
FILTER TYPE pro baffle
DUCT DISCHARGE vertical or horizontal
DUCT SIZE, VERTICAL, INCHES 8
DUCT SIZE, HORIZONTAL, INCHES 8, 3.25 x 10
MOUNTING HEIGHT ABOVE COOKTOP, INCHES 26 - 36
INPUT VOLTAGE 120
MAXIMUM AMPERAGE 5
NOMINAL WIDTH, INCHES 36
NET WIDTH, INCHES 34.375
DEPTH, INCHES 19.25
HEIGHT, INCHES (for chimney hoods, heights include duct covers) 12
WEIGHT, LBS 42.2
SHIPPING HEIGHT, INCHES 25.87
SHIPPING WIDTH, INCHES 37.99
SHIPPING LENGTH, INCHES 17.32
SHIPPING WEIGHT, LBS 53

Monsoon I, One-Piece Liner 34-3/8", SS, 600 CFM, ACT
