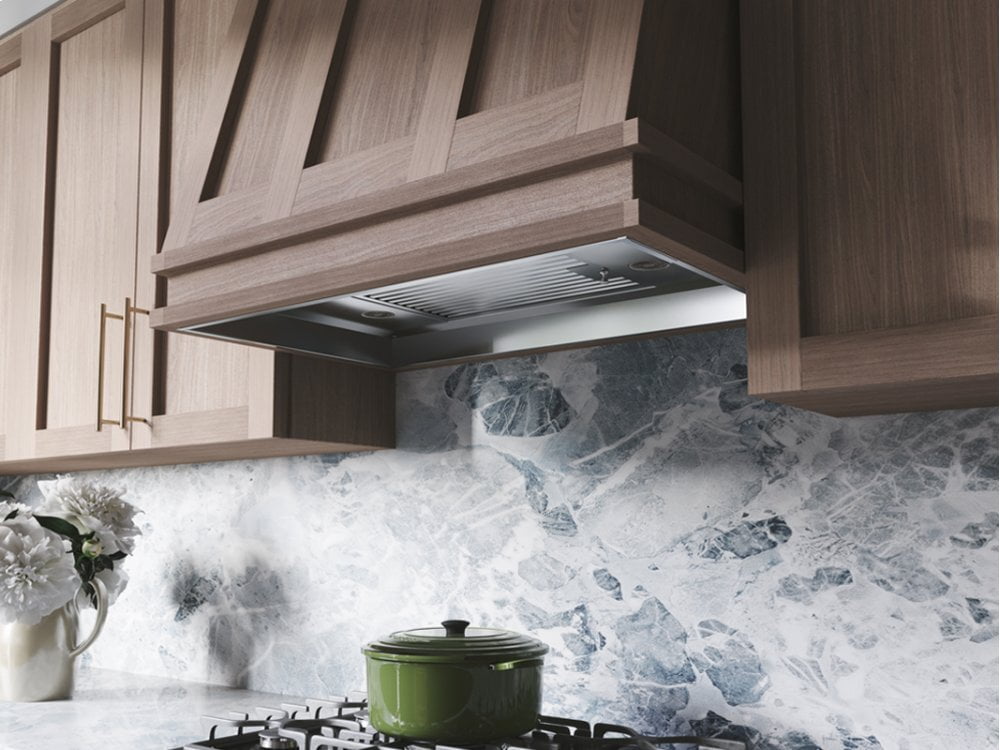

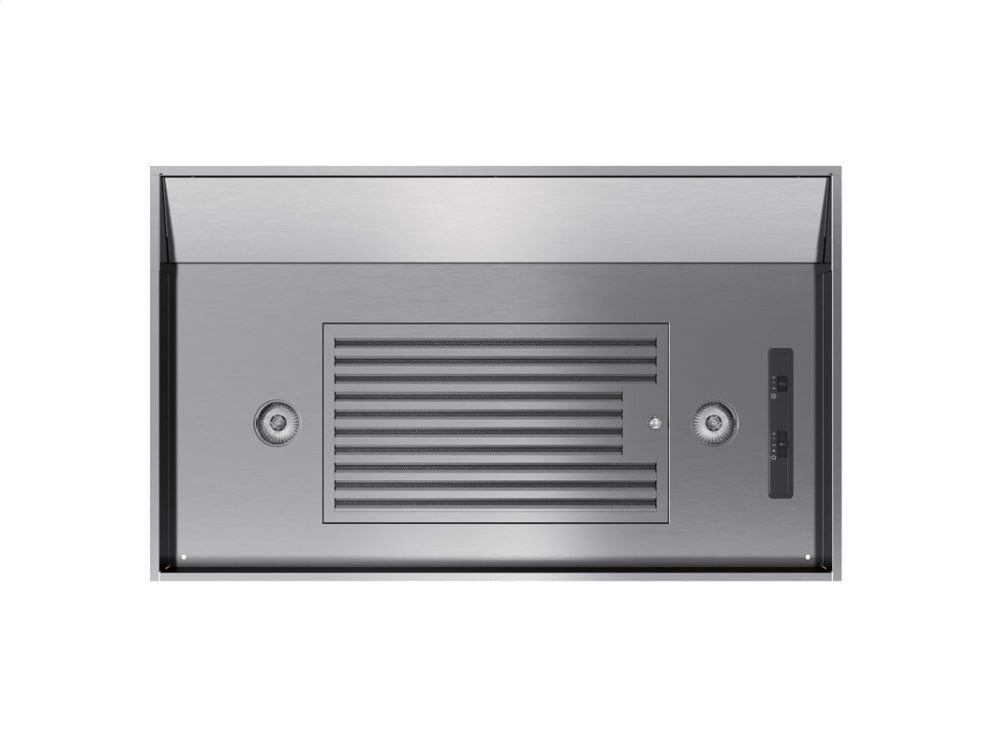

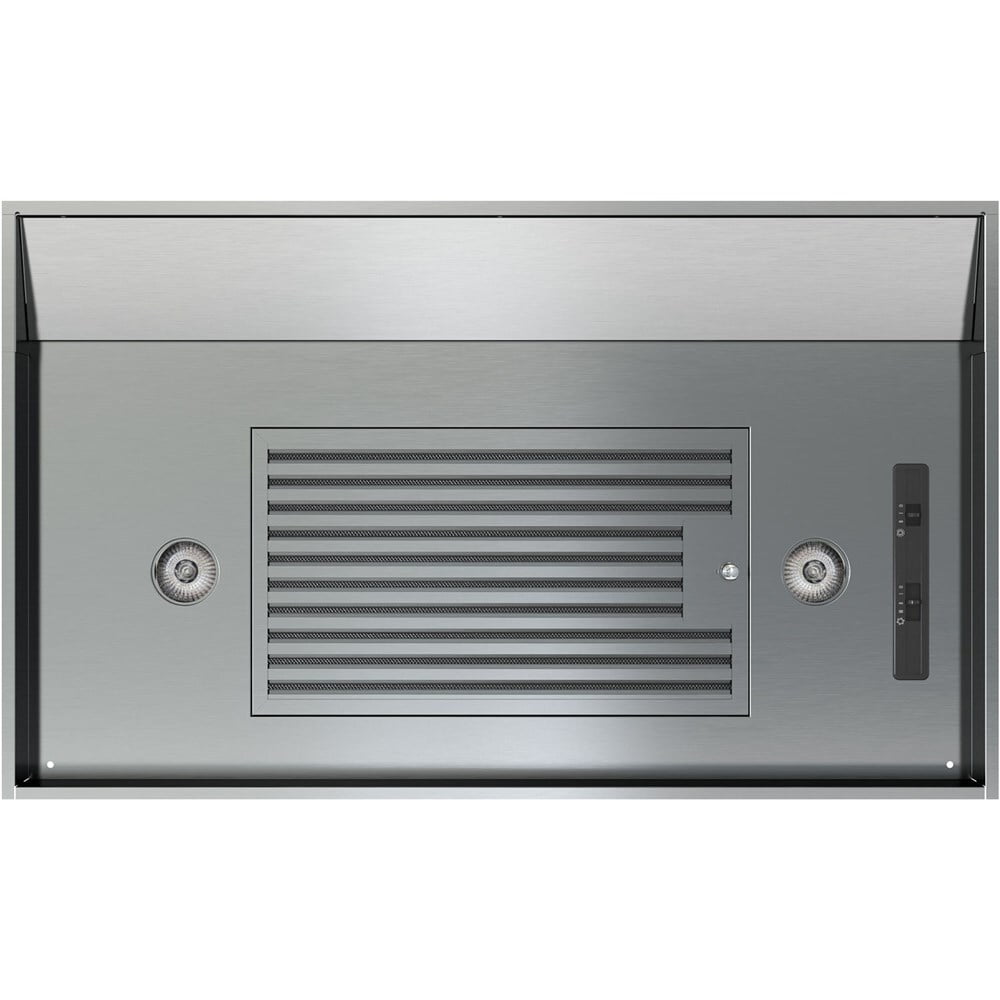

Zephyr AK9028AS 30" Vortex Insert
The Vortex One-Piece Liner Leads The Way With The Industry S Only Adjustable-Depth Installation. Vortex Is Designed To Extend Up To 3-Inches Towards The Front Of The Custom Hood Canopy So You Can Install It In Spaces Up To 20-1/2" Deep. Add To This Its Category-Leading 390 Cfm, Optional Recirculation Kit And Its 36-Inch Mounting Height Maximum; Vortex Stands Tall Among The Rest.
- 390 CFM
- Recirculating
- Hybrid Baffle Filter
- Stainless Steel
- Vertical Ducting
- Max Sones 5
- Dual-Level Lighting
- Halogen Lighting
- Hybrid Baffle Filters
- Mechanical Slide Controls
- Optional Recirculating Kit
UPC | 646328002588 |
BLOWER INCLUDED YES/NO | yes |
INTERNAL BLOWER 1 CFM | 390 |
INTERNAL BLOWER 1 SONES | 5 |
CONTROLS TYPE | Mechanical slide |
BLOWER SPEEDS | 3 |
AUTOMATIC DELAY-OFF | no |
CLEANAIR FUNCTION | no |
LIGHTS TYPE (INCLUDED) | halogen |
LIGHTS QUANTITY | 2 |
WATTS PER BULB | 35 |
LIGHTS LEVELS | 2 |
FILTER TYPE | hybrid baffle |
DUCT DISCHARGE | vertical |
DUCT SIZE, VERTICAL, INCHES | 6 |
DUCT SIZE, HORIZONTAL, INCHES | NA |
MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 36 |
INPUT VOLTAGE | 120 |
MAXIMUM AMPERAGE | 3 |
NOMINAL WIDTH, INCHES | 30 |
NET WIDTH, INCHES | 28.375 |
DEPTH, INCHES | 17.5 - 20.5 |
HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 12.3125 |
WEIGHT, LBS | 24.4 |
SHIPPING HEIGHT, INCHES | 19.06 |
SHIPPING WIDTH, INCHES | 35.91 |
SHIPPING LENGTH, INCHES | 22.64 |
SHIPPING WEIGHT, LBS | 36.6 |
Vortex, One-Piece Liner, 28-3/8", SS, 390 CFM
