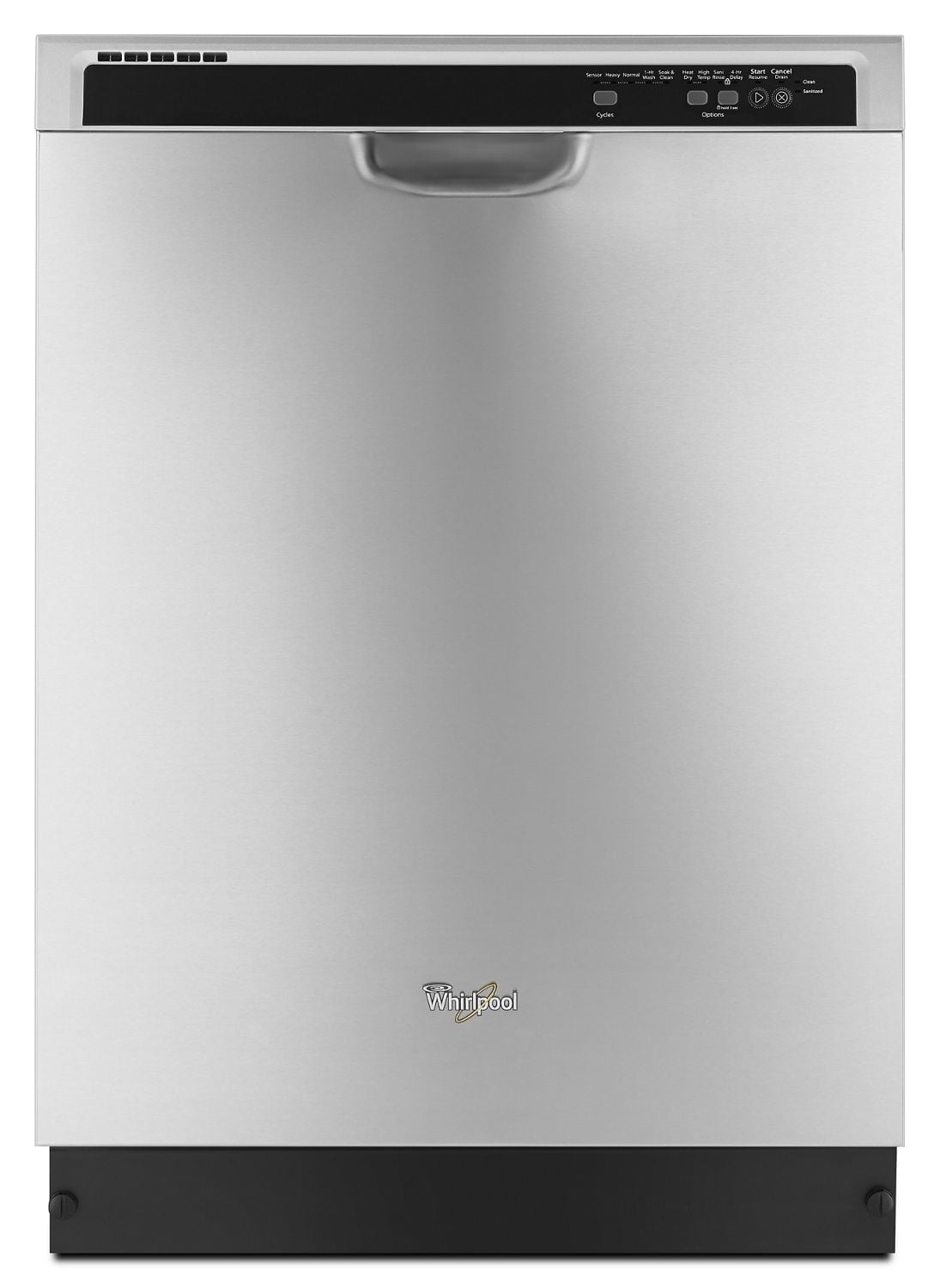

> Whirlpool WDF540PADM Energy Star® Certified Dishwasher With Sensor Cycle Monochromatic Stainless Steel
Clean Dishes With An Energy Star® Certified Dishwasher Your Family Can Count On. This Dishwasher Automatically Selects The Right Settings With The Sensor Cycle, And Cycle Memory Remembers The Last Cycle You Picked So It'S Ready To Go. The 1-Hour Wash Cycle On This Efficient Dishwasher Cleans Plates, Pans And Glasses Fast.
- Sensor cycle
- Automatically get the right wash and dry settings for each load with two sensors that measure temperature, soil level and load size during prewash and the wash cycle.
- 1-Hour Wash cycle
- Clean the dishes you need fast with a cycle that thoroughly takes care of plates, pans and glasses in just an hour.
- Cycle memory
- Quickly start your dishwasher with one button. It automatically remembers the last cycle you picked so it's stored and ready to go.
- Soil sensor
- Determines how dirty dishes are and adjusts the Normal cycle as needed to make sure dishes come out clean.

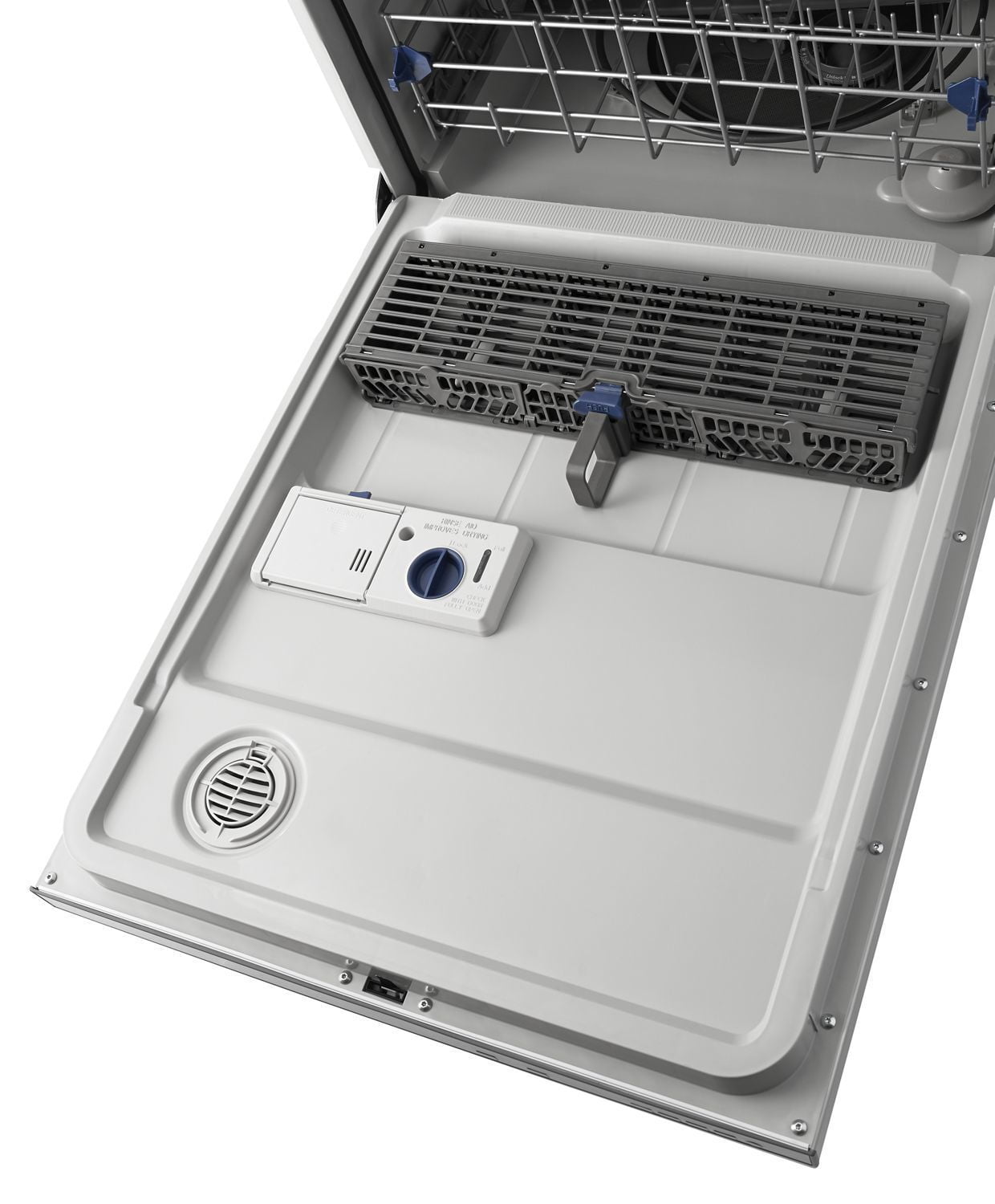

- In-door silverware basket
- Frees up rack space by easily fitting on the front of the lower rack or in the door to make room for more dishes.
- Sani Rinse option
- Sanitizes dishes by eliminating 99.999% of food soil bacteria.
- Normal cycle
- Use for normal amounts of food soil to clean up leftover messes from your day-to-day meals.
- Heavy cycle
- Takes care of heavily soiled messes and other hard-to-clean dishes without the extra elbow grease by adding extra time to the cycle.
- High Temperature Wash option
- Get thorough cleaning with the High Temperature Wash option.
- Heated Dry option
- Use a clean, dry dish straight from the dishwasher thanks to added heat for drying. For optimal drying results, use this option with rinse aid.
- ENERGY STAR(R) Certified
- ENERGY STAR(R) certified models exceed government standards to help save money on your utility bills.
- Industry's best selling dishwasher brand
- An American Company for over 100 years
- Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
Certifications | |
Energy Star® Qualified | ENERGY STAR® Certified |
CEE Tier | Tier I |
Kosher Consumer Friendly | Yes |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
NSF® Certified | Yes |
Energy Rating | 260 |
Details | |
Tub Material | Plastic |
Wash System Type | Removable Filter |
Number of Racks | 2 |
Dispenser | Detergent and Rinse Aid |
Rinse Aid Dispenser Level Indicator | Yes |
Tub Style | Built-in Tall Tub 24' |
Number of Wash Levels | 5.0 |
Rack Material | Nylon |
Number of Washarms | 3 |
Upper Rack | |
Adjustable | No |
Cushion-Tip Tines | Yes |
Extras | 1-11' Cup Shelf , 2-No Flip Clips |
Fold-Down Tines | No |
Style | Straight |
Utility Basket | No |
Controls | |
Control Type | Electronic |
Sensor | Yes |
Location of Controls | Front |
Control Location | Front |
Status Light | Blue |
Third Level Rack | |
Removable | NA |
Appearance | |
Window | No |
Handle Color | Stainless Steel |
Handle Type | Pocket Handle |
Configuration and Overview | |
Dishwasher Type | Built-In |
CEE Tier | Tier I |
UL | UL |
Decibel Level dBA | 53 |
Decibel Level | 53 |
Silverware Basket | |
Type | AnyWare Basket |
Location | Rack or Door |
Exterior | |
Handle Color | Stainless Steel |
Control Panel Color | Black |
Window | No |
Cycles | |
Number of Wash Cycles | 5 |
Dimensions | |
Gross Weight | 67.000 lbs |
Refinements | |
Features | 1-Hour Wash , Kosher Consumer Friendly , Sensor Cycle , Energy Star® Certified |
Options | |
Dishwasher Option Selections | 4 Hour Delay , Heated Dry , Hi Temp Wash , Sani Rinse® , Control Lock |
Lower Rack | |
Style | Straight |
Fold-Down Tines | No |
Glides | Rollers |
Cushion-Tip Tines | No |
Utility Basket | No |
Features | |
Sound Package | Yes |
Number of Wash Levels | 5.0 |
Rinse Aid Dispenser Level Indicator | Yes |
2nd Level Rack | |
Adjustable | No |
Cushion-Tip Tines | Yes |
Extras | 1-11' Cup Shelf , 2-No Flip Clips |
Fold-Down Tines | No |
Glides | Single Channel Rails |
Style | Straight |
Utility Basket | No |
Cycles and Options | |
Number of Wash Cycles | 5 |
Dishwasher Cycle Selections | 1-Hour Wash , Sensor Wash , Heavy , Normal , Soak & Clean |
Description | |
Dishwasher Type | Built-In |
Compatibility | |
Works With | No |
Connectivity | No |
Dimensions | |
Depth With Door Open 90 Degree | 49-1/2 in |
Number of Place Settings | 15 |
Cutout Height | 33-7/8 in |
Width | 23-7/8 in |
Height | 34-1/2 in |
Depth | 24-1/2 in |
Maximum Height | 34-1/2 in |
Minimum Height | 33-1/2 in |
Cutout Depth | 24.0 in |
Cutout Width | 24.0 in |
Electrical Requirements | |
Amps | |
Volts |
Soil Sensor
Sensor Cycle
Silverware Spray
TargetClean(TM) Option
TotalCoverage Spray Arm
Adjustable Upper Rack
Description
Clean Dishes With An Energy Star® Certified Dishwasher Your Family Can Count On. This Dishwasher Automatically Selects The Right Settings With The Sensor Cycle, And Cycle Memory Remembers The Last Cycle You Picked So It'S Ready To Go. The 1-Hour Wash Cycle On This Efficient Dishwasher Cleans Plates, Pans And Glasses Fast.
Features
- Sensor cycle
- 1-Hour Wash cycle
- Cycle memory
- Soil sensor
- In-door silverware basket
- Sani Rinse option
- Normal cycle
- Heavy cycle
- High Temperature Wash option
- Heated Dry option
- ENERGY STAR(R) Certified
- Industry's best selling dishwasher brand
- An American Company for over 100 years
Specifications
Certifications | |
Energy Star® Qualified | ENERGY STAR® Certified |
CEE Tier | Tier I |
Kosher Consumer Friendly | Yes |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
NSF® Certified | Yes |
Energy Rating | 260 |
Details | |
Tub Material | Plastic |
Wash System Type | Removable Filter |
Number of Racks | 2 |
Dispenser | Detergent and Rinse Aid |
Rinse Aid Dispenser Level Indicator | Yes |
Tub Style | Built-in Tall Tub 24' |
Number of Wash Levels | 5.0 |
Rack Material | Nylon |
Number of Washarms | 3 |
Upper Rack | |
Adjustable | No |
Cushion-Tip Tines | Yes |
Extras | 1-11' Cup Shelf , 2-No Flip Clips |
Fold-Down Tines | No |
Style | Straight |
Utility Basket | No |
Controls | |
Control Type | Electronic |
Sensor | Yes |
Location of Controls | Front |
Control Location | Front |
Status Light | Blue |
Third Level Rack | |
Removable | NA |
Appearance | |
Window | No |
Handle Color | Stainless Steel |
Handle Type | Pocket Handle |
Configuration and Overview | |
Dishwasher Type | Built-In |
CEE Tier | Tier I |
UL | UL |
Decibel Level dBA | 53 |
Decibel Level | 53 |
Silverware Basket | |
Type | AnyWare Basket |
Location | Rack or Door |
Exterior | |
Handle Color | Stainless Steel |
Control Panel Color | Black |
Window | No |
Cycles | |
Number of Wash Cycles | 5 |
Dimensions | |
Gross Weight | 67.000 lbs |
Refinements | |
Features | 1-Hour Wash , Kosher Consumer Friendly , Sensor Cycle , Energy Star® Certified |
Options | |
Dishwasher Option Selections | 4 Hour Delay , Heated Dry , Hi Temp Wash , Sani Rinse® , Control Lock |
Lower Rack | |
Style | Straight |
Fold-Down Tines | No |
Glides | Rollers |
Cushion-Tip Tines | No |
Utility Basket | No |
Features | |
Sound Package | Yes |
Number of Wash Levels | 5.0 |
Rinse Aid Dispenser Level Indicator | Yes |
2nd Level Rack | |
Adjustable | No |
Cushion-Tip Tines | Yes |
Extras | 1-11' Cup Shelf , 2-No Flip Clips |
Fold-Down Tines | No |
Glides | Single Channel Rails |
Style | Straight |
Utility Basket | No |
Cycles and Options | |
Number of Wash Cycles | 5 |
Dishwasher Cycle Selections | 1-Hour Wash , Sensor Wash , Heavy , Normal , Soak & Clean |
Description | |
Dishwasher Type | Built-In |
Compatibility | |
Works With | No |
Connectivity | No |
Dimensions | |
Depth With Door Open 90 Degree | 49-1/2 in |
Number of Place Settings | 15 |
Cutout Height | 33-7/8 in |
Width | 23-7/8 in |
Height | 34-1/2 in |
Depth | 24-1/2 in |
Maximum Height | 34-1/2 in |
Minimum Height | 33-1/2 in |
Cutout Depth | 24.0 in |
Cutout Width | 24.0 in |
Electrical Requirements | |
Amps | |
Volts |
