Whirlpool WCC31430AB 30" Electric Cooktop With Dishwasher-Safe Knobs
Whirlpool WCC31430AB 30" Electric Cooktop With Dishwasher-Safe Knobs
AUTHORIZED DEALER
Meet all your cooking needs with the 30-inch electric cooktop. Two... Read more...
x
Installation and Removal
x
When Will I Get My Order?
x
EXTENDED PROTECTION
3 year plan
$120.995 year plan
$228.99x
Installation and Removal
x
When Will I Get My Order?
x
Whirlpool WCC31430AB 30" Electric Cooktop With Dishwasher-Safe Knobs
Rebates &
Promotions
Dishwasher-Safe Knobs
Our cooktops feature easy-to-clean knobs that are dishwasher-safe to keep your cooktop looking like new.
Hot Surface Indicator Light
A hot surface indicator light illuminates when the cooktop surface is still hot to the touch even after the heating element has been turned off.
Chrome Drip Bowls
Helps catch spills and wipe up easily.
Meet all your cooking needs with the 30-inch electric cooktop. Two 8-inch and two 6-inch coil elements offer the heat you need to quickly boil, fry or sear your favorite dishes. Use the infinite heat controls to select a heat output ranging from low to high for more convenience as you cook. A porcelain SpillGuard™ cooktop also helps contain messes and makes cleanup easier with a raised-ridge design.
- Dishwasher-Safe Knobs: Our cooktops feature easy-to-clean knobs that are dishwasher-safe to keep your cooktop looking like new.
- Hot Surface Indicator Light: A hot surface indicator light illuminates when the cooktop surface is still hot to the touch even after the heating element has been turned off.
- Chrome Drip Bowls: Helps catch spills and wipe up easily.

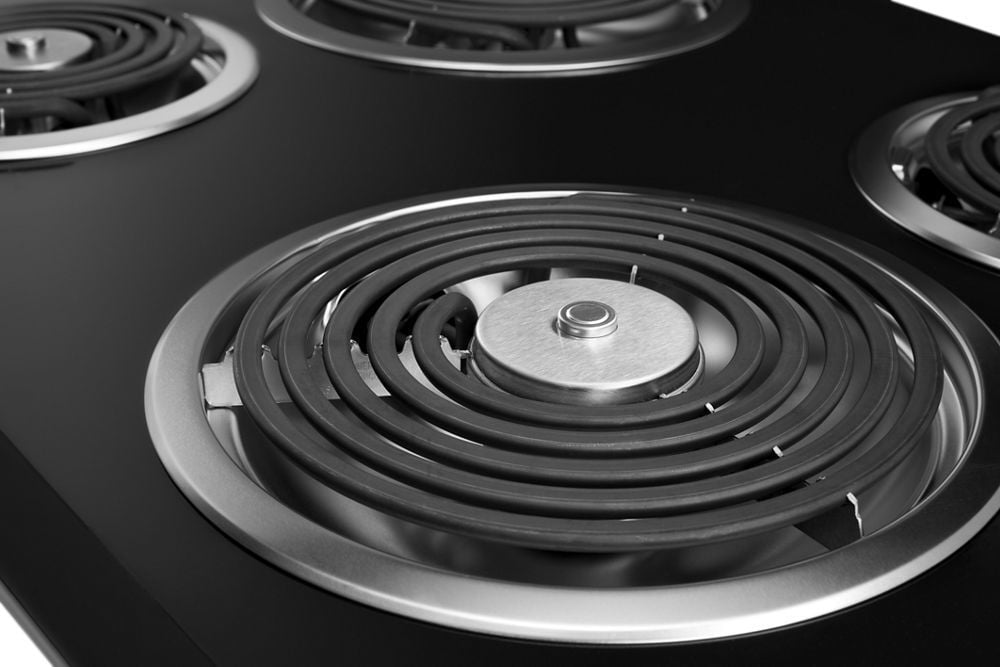

- High-Speed Coil Elements: High-speed coil elements heat fast, providing high temperatures for boiling and frying.

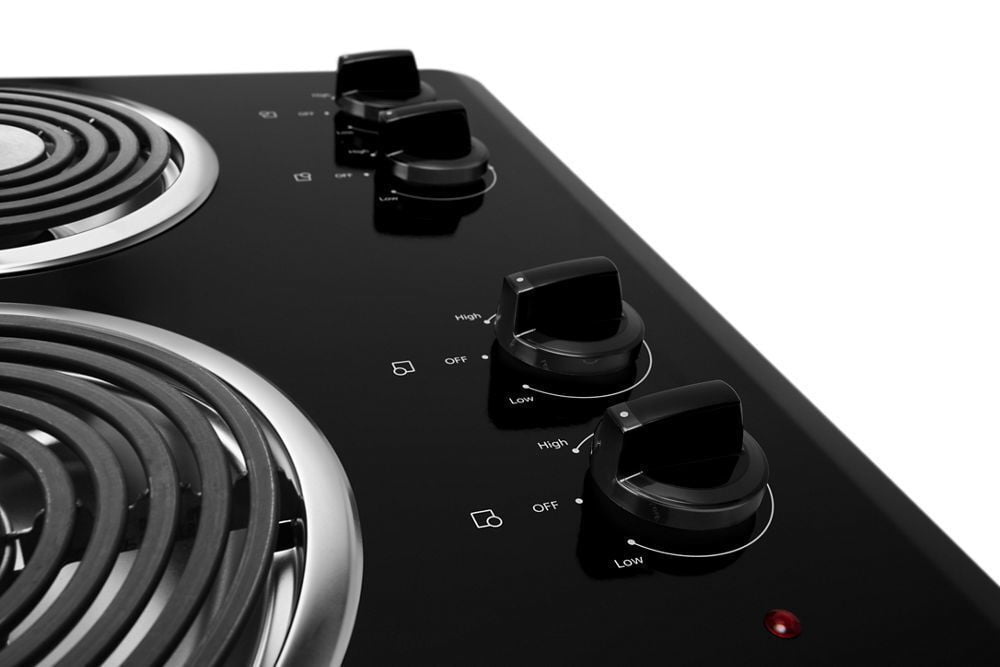

- Push-to-Turn Infinite-Heat Controls: Cooktop controls allow you to select a heat output ranging from low to high with many intermediate settings.
Dimensions | |
Cutout Depth | 19-13/16 in |
Cutout Height | 4-3/4 in |
Cutout Width | 28-5/16 in |
Cutout Width Max | 28-7/8 in |
Cutout Width Min | 28-5/16 in |
Depth | 21.0 in |
Height | 3-1/4 in |
Width | 30.0 in |
Cooktop Type | Standard |
Fuel Type | Electric |
Installs Over Built-In Oven | Yes |
Size | 30 in |
Infinite Heat Controls | Yes |
Knob Color | Color Coordinated |
Knob Type | Dishwasher-Safe Plastic |
Location of Controls | Right Side |
Digital Display | No |
Cooktop Element Style | Coil |
Cooktop Surface Color | Black |
Downdraft Vent | No |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | No |
Left Front Element-Burner Size | 6'' |
Left Rear Element-Burner Size | 8'' |
Left Rear Element-Burner Type | Coil |
Number of Cooking Element-Burners | 4 |
Right Front Element-Burner Size | 8'' |
Right Front Element-Burner Type | Coil |
Right Rear Element-Burner Size | 6'' |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Power Cord Included | No |
Power Outage Compatible | No |
GPC Code | 10001951 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100400623 |
isBaseUnit | true |
isConsumerUnit | true |
Cooktop Surface Material | Stainless Steel |
Installation Instructions - W10458811 - Rev A
owners-manual-W10458809-RevB.pdf
W10458809B.fm
Dimension Guide
Parts List
Care Guide
Installation Instructions
Owners Manual Full Manual
Warranty Page
