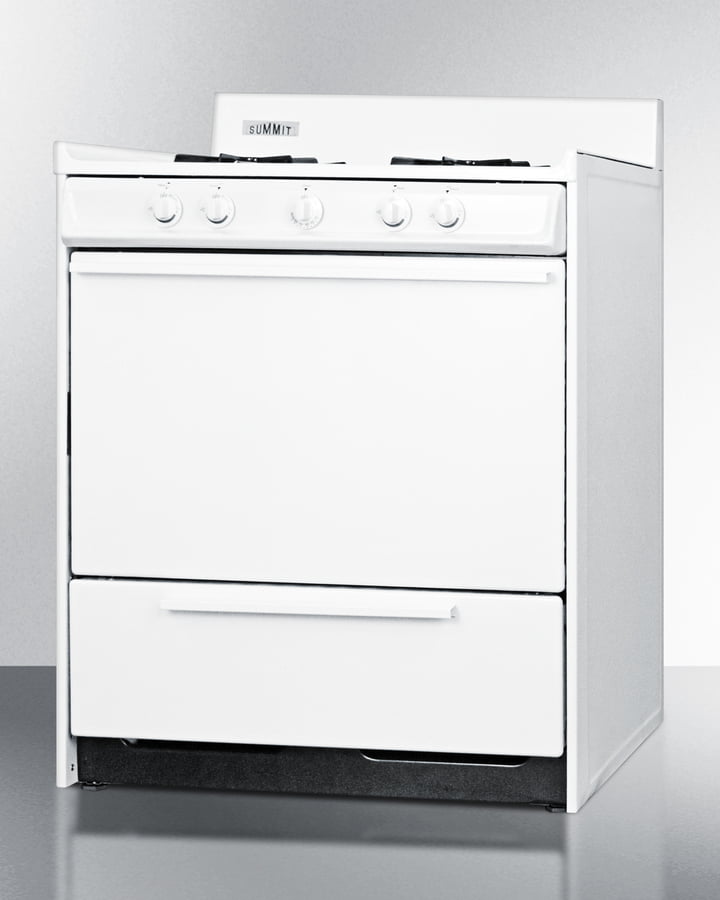

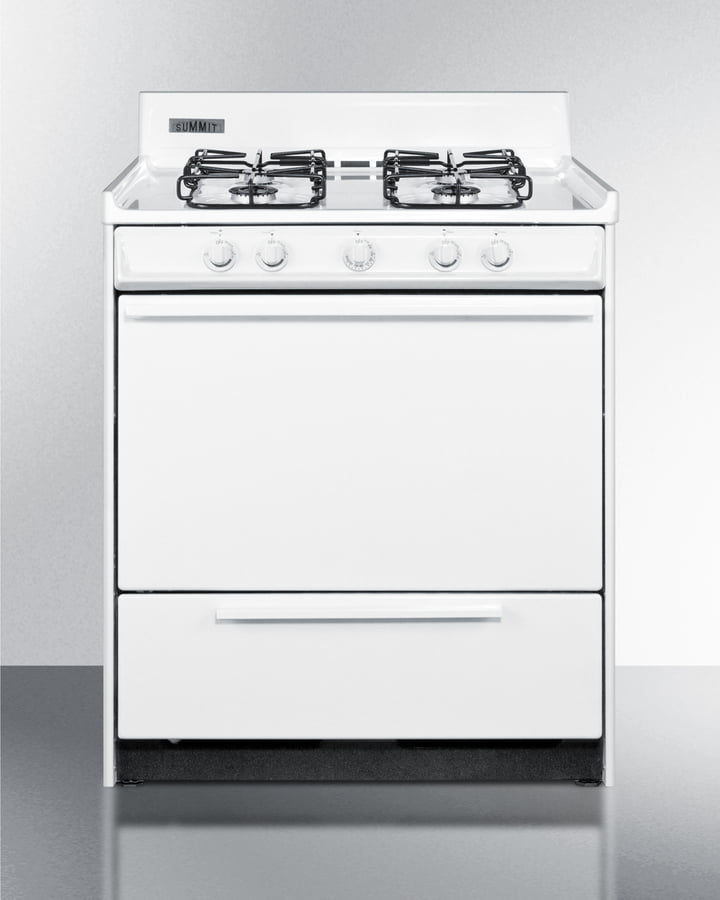

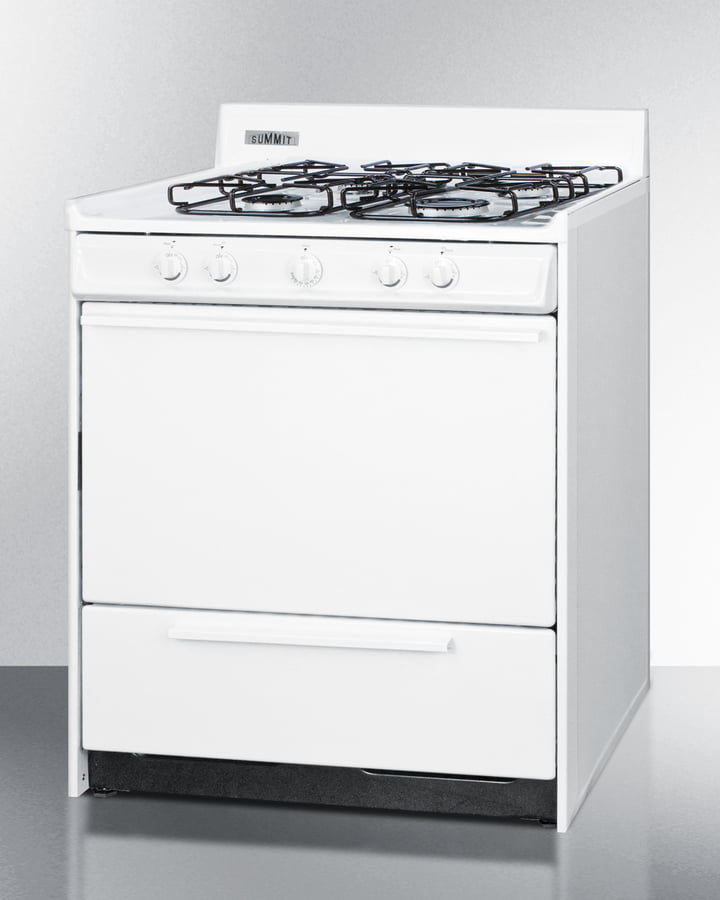

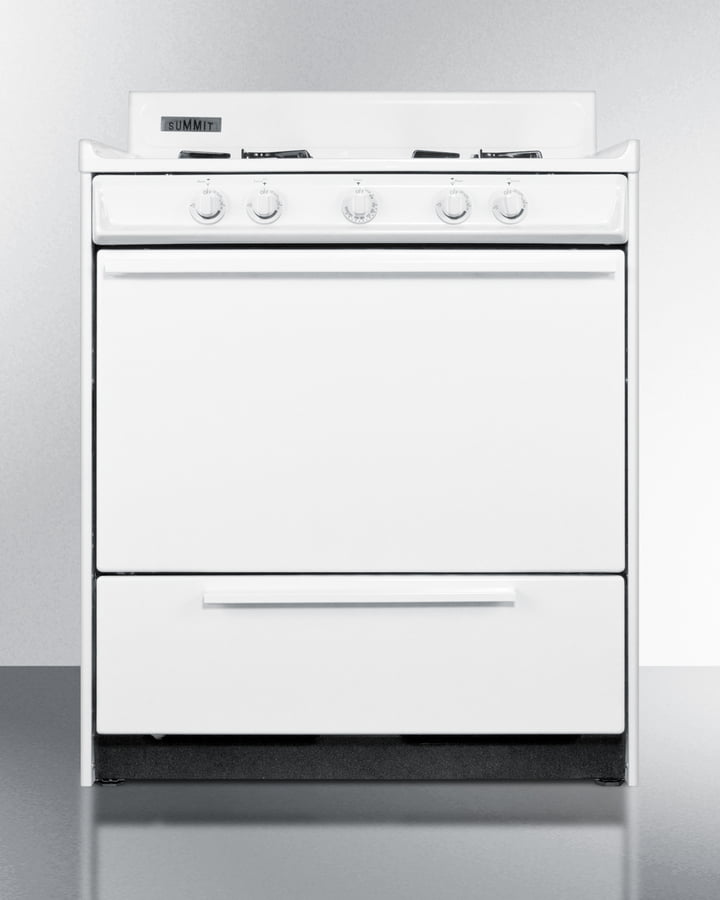

Summit WTM2107S 30" Wide Gas Range
Sealed Burners For Added Safety And Cleaning Convenience (Bull)Porcelain Construction On Range Top And Oven For True Durability (Bull)Gas Spark Ignition Adds Convenience And Safety (Bull)Lower Broiler Compartment Provides Even Heat Distribution (Bull)Made In The U.S.A. Summit Offers A Wide Selection Of American-Made Household Ranges Built For Long-Lasting Durability In Space-Challenged Kitchens. The Wtm2107S Is A Residential Gas Range Sized At 30" Wide, With A Generous 3.7 Cu.Ft Oven Interior That Still Can Accommodate Large Trays. The Broiler Is Located Below The Oven In A Drop-Down Compartment. Four Sealed Gas Burners Offer Safer Cleaning And Cleaner Cooking, Including One 12000 Btu Burner For Faster Heating. This Unit Has A Drop-Down Compartment For Broiling And Utilizes An Electronic Ignition System For Added Safety. The Wtm2107S Comes In An All-White Exterior Finish. Fully Constructed From Steel And Porcelain, Summit'S American-Made Cooking Line Offers Long-Lasting Quality For The Home. Additional Choices Are Available In 20" And 24" Wide Fits.
- 30" wide gas range : Natural gas range; can be converted to LP Gas in our shop or ordered with KIT LP S2 for conversion
- Four sealed burners : Easy cleanup on boil-overs and accidental spills
- High output burner : Right front burner features 12,000 BTU output for powerful cooking
- Removable burner caps : Burners include a removable cap for easy cleaning
- Electronic ignition : Gas spark ignition for automatic lighting of burners
- Broiler compartment : Lower compartment for separate broiling with even heat distribution
- Porcelain construction : White porcelain removable oven top and door
- Broiler pan included : Two-piece porcelain broiler tray with grease well
- Push-to-turn burner knobs : To prevent accidents, knobs require a small amount of force when turning
- Recessed oven door : Smart design limits the depth and protects adjacent cabinets

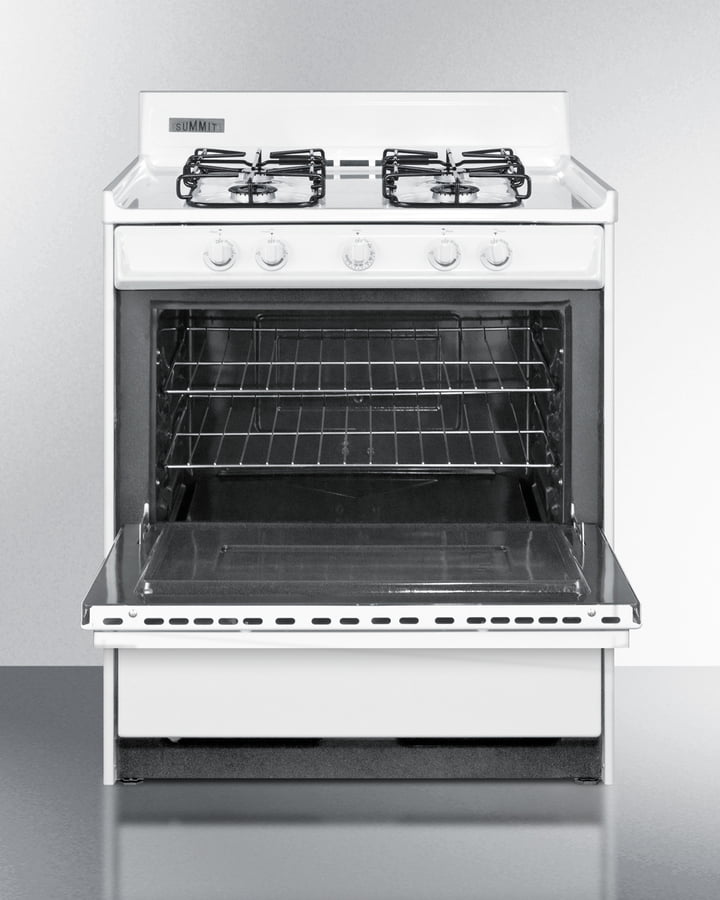

- Oven racks : Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- ADA compliant design : Upfront controls and easy-to-operate knobs offer easier accessibility
Overview | |
Height of Cabinet | 40.0' (102 cm) |
Width | 30.0' (76 cm) |
Depth | 24.0' (61 cm) |
Door | White |
Cabinet | White |
US Electrical Safety | CSA |
Weight | 165.0 lbs. (75 kg) |
Shipping Weight | 172.0 lbs. (78 kg) |
Parts & Labor Warranty | 1 Year |
Gas Range | |
Ignition | Spark |
LP Convertible | With Kit LP S2 Accessory |
Oven Capacity | 3.7 cu.ft |
Cooktop Surface | Porcelain |
Burner Type | Sealed |
Number of Burners | 4 |
Burner #1 BTU | 12000.0 |
Burner #2 BTU | 9100.0 |
Burner #3 BTU | 9100.0 |
Burner #4 BTU | 5000.0 |
Burner Controls | Dial |
Oven Controls | Dial |
Backguard | Yes |
Cleaning Type | Manual |
Oven Rack Qty | 2 |
Oven Interior Height | 14.0' (36 cm) |
Oven Interior Width | 24.0' (61 cm) |
Oven Interior Depth | 19.0' (48 cm) |
Broiler Location | Below Oven |
Broiler Door | White |
Oven Door | White |
Exterior | |
LP Conversion | - |
Interior | |
Canadian Range Conversion | - |
