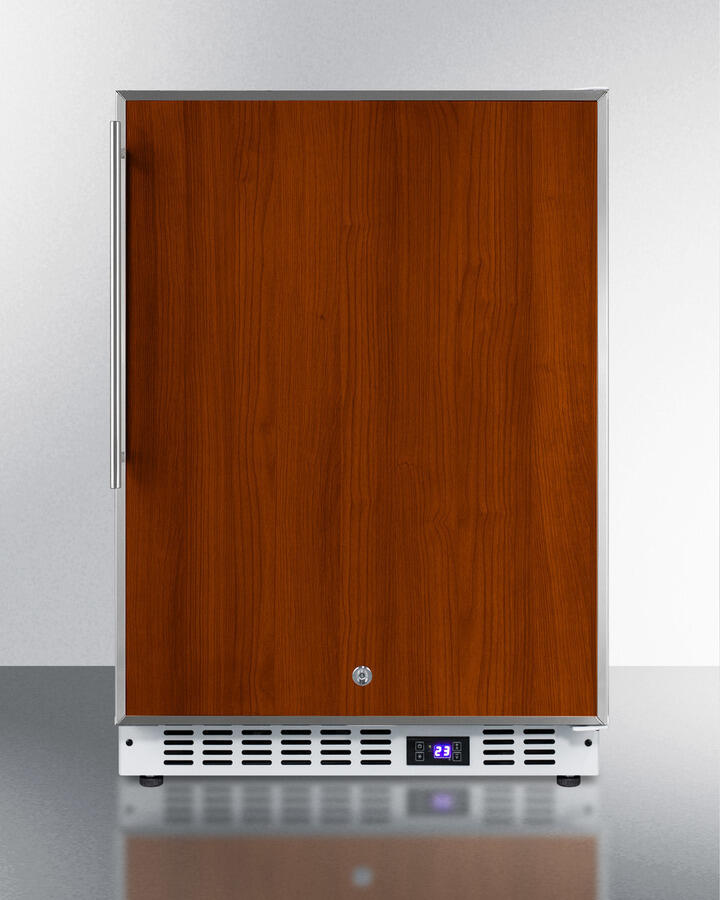

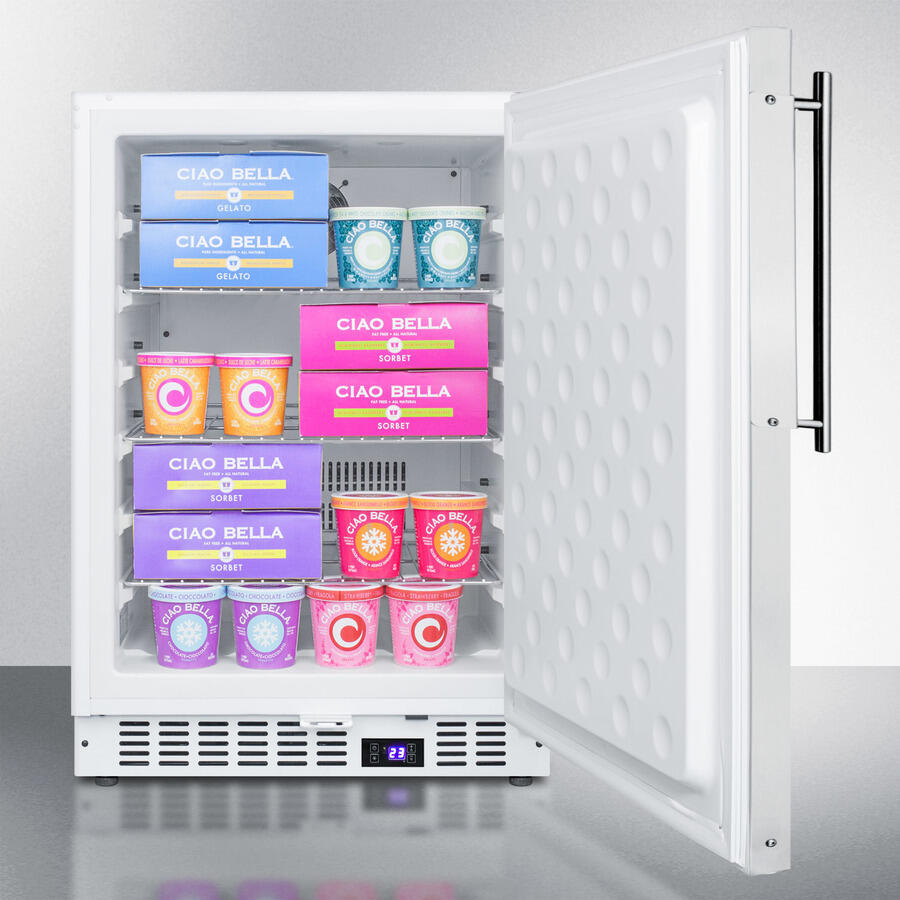

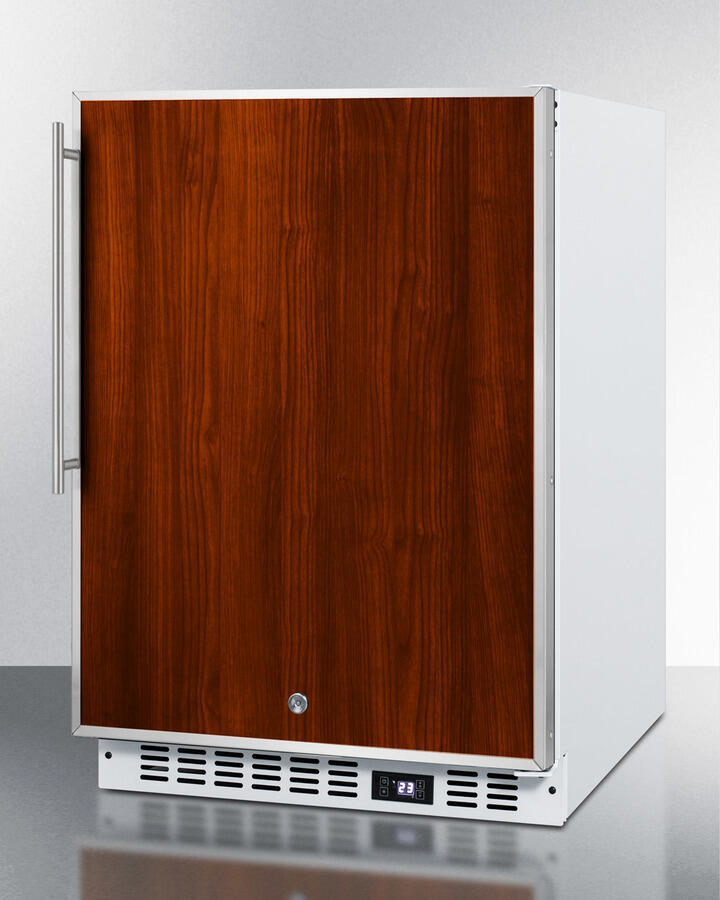

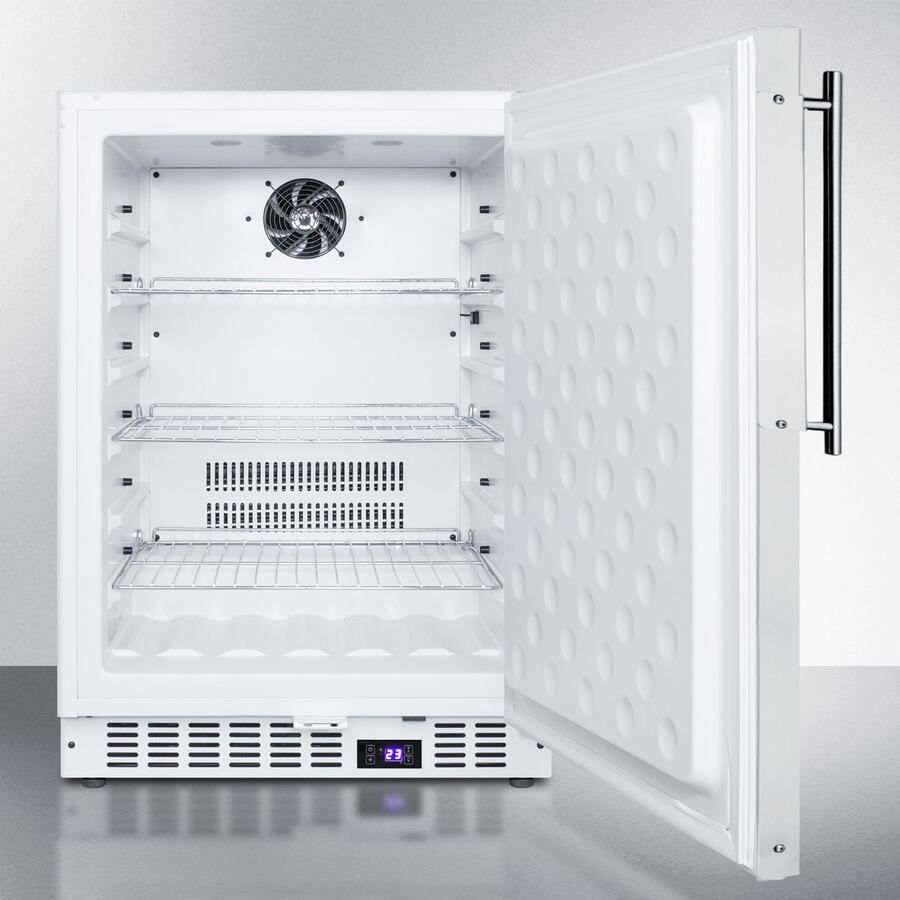

Summit SCFF52WFR Frost-Free Built-In Undercounter All-Freezer For Residential Or Commercial Use, With Stainless Steel Door Frame For Slide-In Panels And White Cabine
True Frost-Free Operation Saves You Maintenance By Preventing Icy Buildup Flexible Design Allows Built-In Or Freestanding Use In 24" Wide Spaces Stainless Steel Door Frame Accepts Slide-In Panels For A Custom Look Digital Thermostat Allows Easy Temperature Management Factory-Installed Lock Offers Security You Can Count On Commercially Listed To Nsf-7 Standards Summit's Scff52W Series Brings Quality And Convenience Under The Counter With A Fully Featured Lineup Of Built-In Frost-Free All-Freezers. Sized With A Convenient 24" Footprint, The Scff52Wfr Freezer Can Be Used Built-In Or Freestanding. It Has A White Cabinet With A Sealed Back For Easy Cleaning. The Door Features A Two-Piece Stainless Steel Door Frame Designed To Accept Slide-In Panels. A Stainless Steel Handle Completes The Look. Inside, The Scff52Wfr Utilizes Frost-Free Operation With Fan-Forced Cooling To Ensure Low Maintenance And Even Temperature Distribution. Recessed Led Lighting Offers An Attractive Yet Efficient Look. The Digital Thermostat Makes It Easy To Manage The Interior Temperature. This Unit Includes Adjustable Chrome Shelves For Flexible Storage. Additional Features Include An Open Door Alarm, High Temperature Alarm, And Sabbath Mode Setting That Lets You Disable Some Of The Electrical Elements During Periods Of Observance. The Scff52Wfr Freezer Is Etl-S Listed To Nsf-7 Commercial Standards. With Its Deluxe Style And User-Friendly Features, This Unit Is The Perfect Choice For Home Or Commercial Kitchens.
- Frost-free operation: No-frost convenience eliminates the need to manually defrost the unit
- Built-in capable: Make the best use of space by installing your freezer under the counter and flush with other cabinets
- Panel-ready door: Two-piece U-shaped door frame in stainless steel accepts slide-in panels, allowing users to create a custom look to match or complement adjacent cabinetry (panel size: 29 3/4" H x 23" W at up to 1/4" thick)
- Digital thermostat: Electronic controls offer easy and intuitive temperature management
- Recessed LED light: Elegant lighting with an on/off switch located on the control panel
- Reversible door: User reversible door swing for added placement flexibility
- Adjustable shelves: Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Factory installed lock: Keyed lock for a secure interior
- Professional handle: Stainless steel handle adds an attractive touch
- Sabbath mode setting: Optional setting lets you disable the lighting and alarms for up to 96 hours
- High temperature alarm: High temperature alarm sounds if the unit's interior goes out of the recommended range
- Open door alarm: Audible alarm will sound if the door is left open longer than one minute
- Temperature memory function: Unit will retain its last settings when power is restored in the event of power loss
- Fully finished cabinet: Allows the freezer to be used as a freestanding model
- Commercially approved: ETL-S listed to NSF-7 Standards for use in commercial establishments
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 34.0' (86 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Depth with Handle | 25.35' (64 cm) |
Depth with door at 90° | 45.63' (116 cm) |
Capacity | 4.72 cu.ft. (134 L) |
Defrost Type | Frost-Free |
Door | Panel-Ready |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 390.0kWh/year |
Amps | 0.8 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 88.0 lbs. (40 kg) |
Shipping Weight | 91.0 lbs. (41 kg) |
Estimated Time to Ship | 2 to 4 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Freezer | |
Door Swing | RHD |
Reversible | Yes |
Interior Height | 26.0' (66 cm) |
Interior Width | 19.0' (48 cm) |
Interior Depth | 16.0' (41 cm) |
Shelf Type | Chrome |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.24 oz. |
High Side PSI | 270.0 |
Low Side PSI | 106.0 |
Exterior | |
DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac | Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
LHD - Left hand door swing Door reversal to left hand swing | Extra key Extra keys available for purchase |
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
SSK Stainless steel kickplate factory installed | DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
