Summit SBC635MBINKFR 24" Wide Built-In Kegerator
Allows You To Install Your Own Custom Tap Equipment (Bull)Full-Sized Capacity To Hold Half, Quarter, 1/6 Or Mini Kegs (Bull)Designed For Built-In Installation Under The Counter (Bull)Stainless Steel Door Frame Accepts Slide-In Panels For A Custom Look (Bull)Digital Thermostat Lets You Set The Perfect Temperature For Any Brew (Bull)Automatic Defrost Ensures Minimum User Maintenance (Bull)Note: If Installing This Unit Flush Against A Wall Or Under The Counter, Cutout Width Is 25-25 1/4" Summit Appliance Offers A Versatile Line Of Full-Sized Built-In Beer Dispensers Designed For Low Maintenance Storage In The Style Of Your Choice. The Sbc635Mbinkfr Features A Large Interior That Can Hold A Full Half, Quarter, 1/6 Or Mini Keg. No Tapping Equipment Is Included, Allowing 'Do-It-Yourselfers' To Customize The Unit With Their Own System. It Features A Front-Breathing Design For Built-In Installation Under Counters. The Door Includes A Two-Piece Stainless Steel Frame Designed To Accept Slide-In Panels, With A Stainless Steel Handle To Complete The Look. The Surface Includes A Removable Drip Tray To Collect Spills And A Chrome Guard Rail To Help Keep Glasses And Mugs In Place. The User-Reversible Door Swing Makes It Easy To Accommodate Any Location'S Setup. This Unit Is Height Adjustable From 33 1/2" To 34" To Best Fit Your Undercounter Space. Please Note That The Door Does Not Open In Its Own Radius. When Planning Your Cutout, If The Unit Is Mounted Against A Wall Or Flush Under Cabinetry, You Will Need Between 25 And 25 1/4" Width For Proper Ventilation. Automatic Defrost Operation Ensures Minimum User Maintenance Inside The 5.7 Cu.Ft. Interior. A Digital Thermostat Makes It Easy To Manage The Temperature At The Touch Of A Button. The External Digital Display Shows The Temperature In Celsius Or Fahrenheit To Ensure Your Beer Is Stored Exactly How You Like It. The Floor Is Reinforced With A Steel Cover For Added Durability When Loading Kegs. For More Style Options, Browse The Full Sbc635Mbi Series.

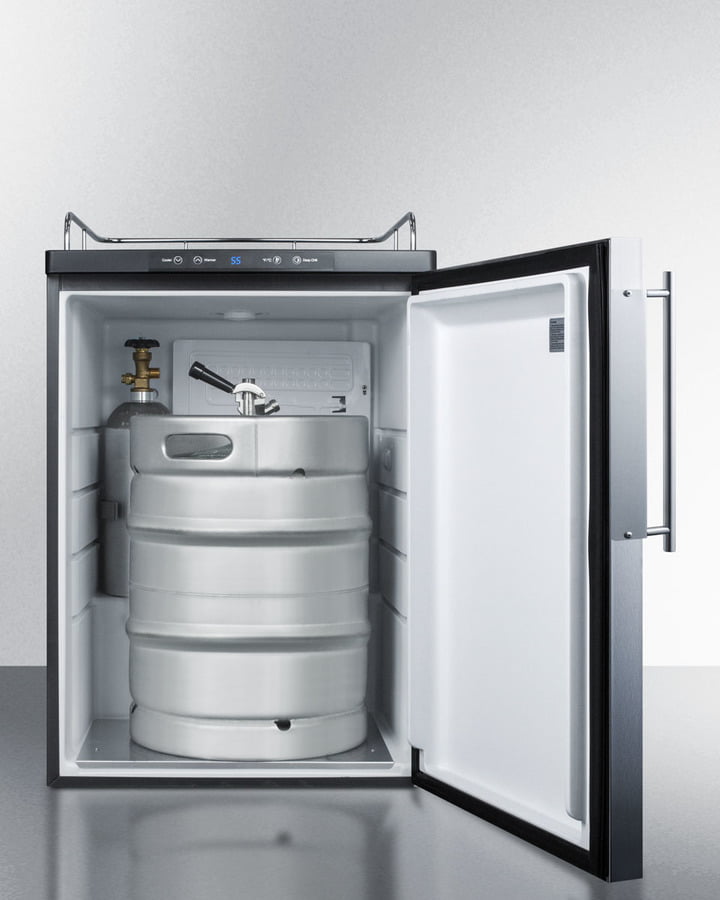

- Full-sized beer dispenser : Large 5.6 cu.ft. interior can accept a full half barrel keg, two 1/6 barrel kegs, or a pony keg
- Built-in capable : Make the best use of space by installing your appliance under the counter; NOTE: if installing flush with wall or cabinets, unit will require extra space due to the door design. Width should be 25" to 25 1/4". For more information, see the user manual
- NO TAP KIT : Install your own tapping equipment for a customized beer cooler
- Digital thermostat : Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
- Automatic defrost : Reduced maintenance with auto defrost system
- Ideal beer temperature : Operates between 33 and 50 F to keep a variety of beers stored at just the right serving temperature

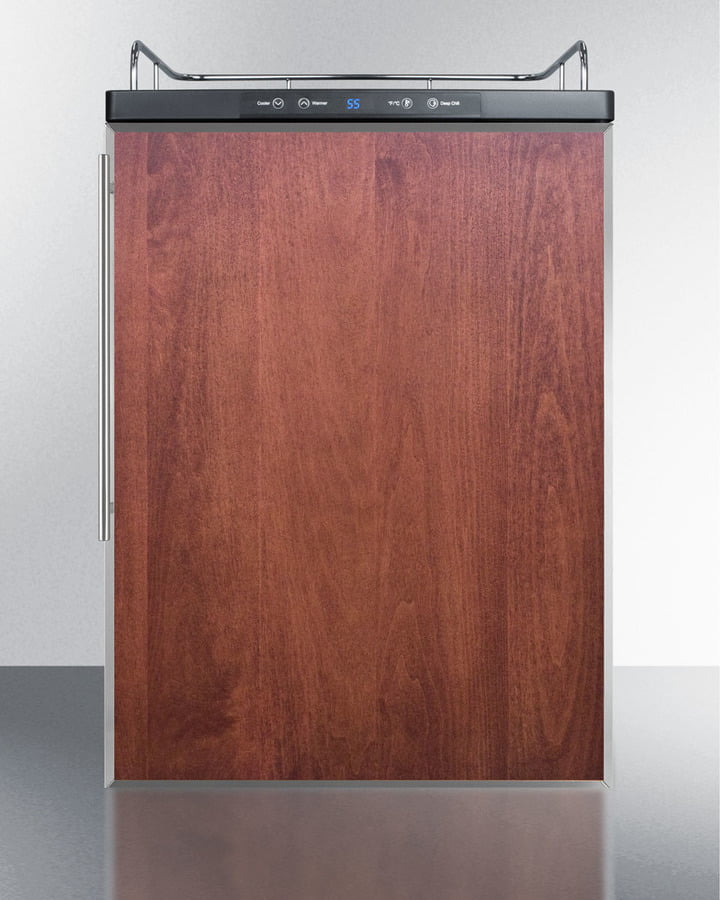

- Stainless steel door frame : Slide a panel into this two-piece exposed stainless steel door frame to match the unit to other cabinetry (panel dimensions: 23 1/2" W x 30 5/8" H at up to 1/4" thick)
- Pro style handle : Stainless steel handle adds an attractive touch
- Reversible door : User-reversible door swing for added flexibility
- Fully finished black cabinet : Allows the unit to be used freestanding
- Casters included (ship unassembled) : To make the beer dispenser portable, install this set of 2 1/2" high locking casters
- Top guard rail (ships unassembled) : Attractive chrome guard rail helps to reduce spills and neaten service
- Stainless steel floor cover : Interior includes steel cover to protect the floor when loading kegs
- Drip tray : Removable drip tray catches spills to help contain the mess
- Deep Chill function : Great for getting faster cooling results when loading your first keg
- 100% CFC Free : Environmentally friendly design with no ozone-damaging chemicals
| Overview | |
| Height of Cabinet | 33.5' (85 cm) |
| Width | 24.0' (61 cm) |
| Width with Door Open | 25.25' (64 cm) |
| Depth | 25.88' (66 cm) |
| Depth with door at 90° | 47.5' (121 cm) |
| Capacity | 5.6 cu.ft. (159 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 310.0kWh/year |
| Amps | 0.86 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Shipping Weight | 115.0 lbs. (52 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Kegerator | |
| Door Swing | RHD |
| Reversible | Yes |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 1.13 oz. |
| High Side PSI | 250.0 |
| Low Side PSI | 110.0 |
| Inter Height | 28.0' (71 cm) |
| Interior Width | 20.5' (52 cm) |
| Interior Depth | 19.0' (48 cm) |
| Compressor Step Height | 8.25' (21 cm) |
| Level Legs Qty | 4 |
| Wheel Qty | 4 |
| Temperature Range | 33 to 50 F |
| Exterior | |
| Latch for door | LHD - Left hand door swing |
