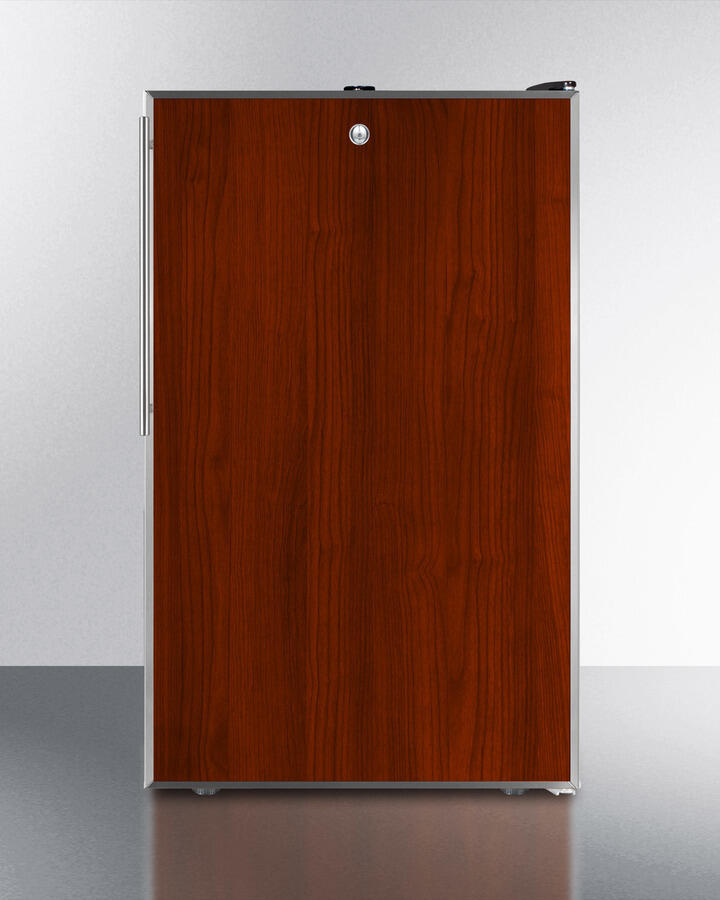

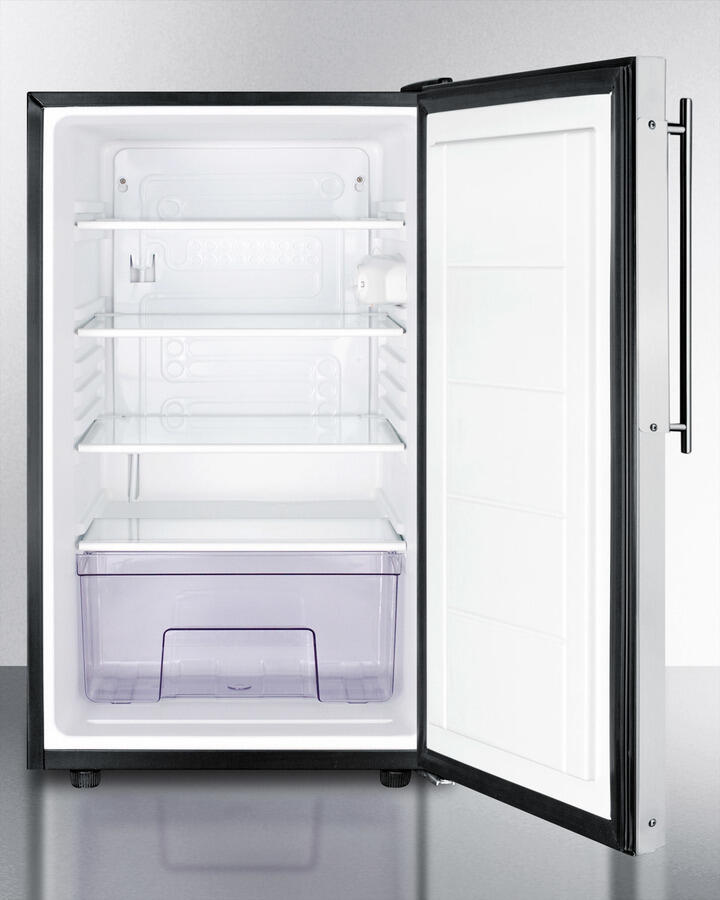

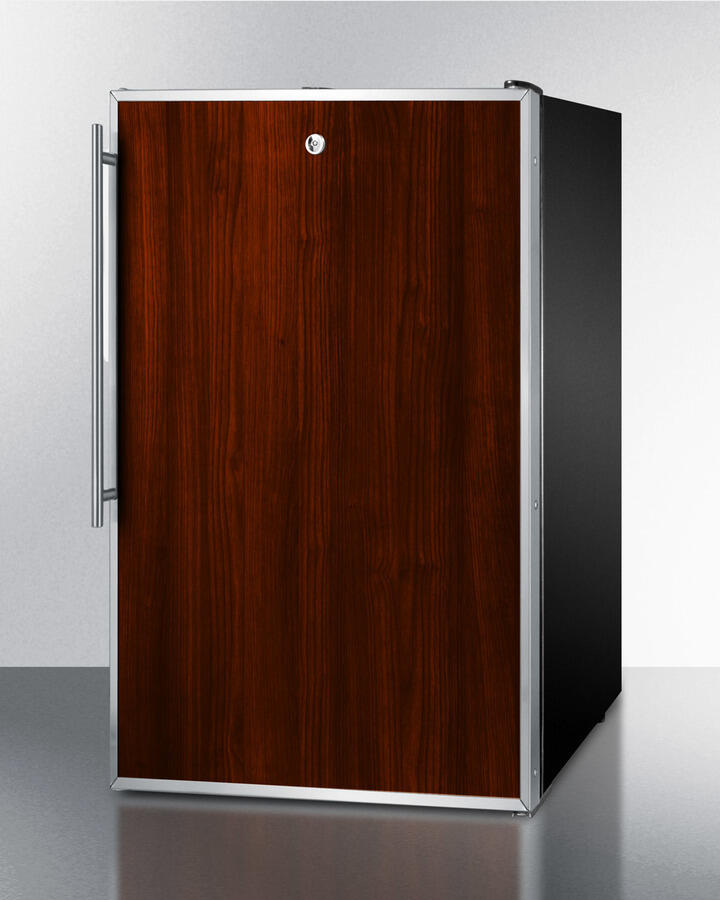

Summit FF521BLBIFRADA Ada Compliant 20" Wide Built-In Undercounter All-Refrigerator For General Purpose Use, Auto Defrost With A Lock And Ss Door Frame For Slide-In Custom Panels
32" Height Fits Under Lower Ada Compliant Counters Flexible Design Allows Built-In Or Freestanding Use In 20" Wide Spaces Factory Installed Lock Provides Security You Can Count On Slide Your Own Panel Into The Door Frame For An Easy Custom Look Save Time And Energy With Low Maintenance Automatic Defrost Jet Black Exterior With Adjustable Glass Shelves Included Accucold By Summit Appliance Offers A Wide Range Of Ada Compliant All-Refrigerators For General Purpose Storage. The Ff521Blbiada Series Features High Performing 20" Wide All-Refrigerators Designed For Built-In Use Under Lower Ada Compliant Counters. The Ff521Blbifrada Features A Full 4.1 Cu.Ft. Capacity. This Jet Black Refrigerator Includes A Reversible Door With An Easy-To-Clean Flat Interior Liner. A Two-Piece Stainless Steel Door Frame Lets You Easily Slide In Custom Panels Over The Front, Allowing You To Get A Look That Matches Other Cabinetry. A Factory Installed Lock Is Located At The Top Of The Door For Convenient Security. Inside, This Auto Defrost Refrigerator Includes Three Adjustable Glass Shelves. A Bottom Crisper Drawer Offers Added Storage Options. Additional Features Include An Adjustable Thermostat And A Switchable Interior Light. At Just 20" Wide, The Ada Compliant Ff521Blbifrada Is Ideal For Any Space In Need Of Reliable Refrigeration And Can Be Perfectly Matched With Our Fs408Blbifrada All-Freezer.
- ADA compliant: 32" high to fit under lower ADA compliant counters
- Slim 20" width: Full 4.1 cu.ft. capacity inside conveniently slim footprint
- Built-in capable: Make the best use of space by installing your appliance under the counter
- Fully finished black cabinet: Allows the unit to be used freestanding
- Stainless steel door frame: Two-piece "U"-shaped door frame accepts slide-in custom panels (panel size: 19 1/4" W x 31 1/4" H at up to 1/4" thick)
- Reversible door: Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
- Automatic defrost: Reduced maintenance with auto defrost system
- Adjustable glass shelves: Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Crisper drawer: Get the longest life and best taste out of produce by storing greens in a bottom crisper
- Interior light: Turn the light on and off with a convenient rocker switch
- Flat door liner: Easy to clean, with more depth for storage
- Adjustable thermostat: Manage the temperature with ease and accuracy
- Matching freezer available: Pair with FS408BLBIFRADA for a complete undercounter set
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.5' (83 cm) |
Width | 19.25' (49 cm) |
Depth | 21.38' (54 cm) |
Depth with door at 90° | 39.5' (100 cm) |
Capacity | 4.1 cu.ft. (116 L) |
Defrost Type | Automatic |
Door | Panel-Ready |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 64.0 lbs. (29 kg) |
Shipping Weight | 67.0 lbs. (30 kg) |
Estimated Time to Ship | 2 to 4 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Yes |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Shelf Type | Glass |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Dial |
Refrigerant Type | R134a |
Refrigerant Amount | 1.75oz. |
High Side PSI | 205.0 |
Low Side PSI | 103.0 |
Level Legs Qty | 2 |
Interior Light | Yes |
Dimensions | |
Interior Height | 28.5' (72 cm) |
Interior Width | 15.75' (40 cm) |
Interior Depth | 18.0' (46 cm) |
Compressor Step Height | 8.0' (20 cm) |
Compressor Step Width | 17.0' (43 cm) |
Compressor Step Depth | 6.75' (17 cm) |
Exterior | |
DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac | Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
LHD - Left hand door swing Door reversal to left hand swing | SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
Extra key Extra keys available for purchase | Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations |
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user | set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
Interior | |
FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior | FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior |
Lock | |
AC Keypad Keypad door lock powered by appliance power cord for keyless security | KEYPAD Battery-powered keypad door lock installed for keyless security |
