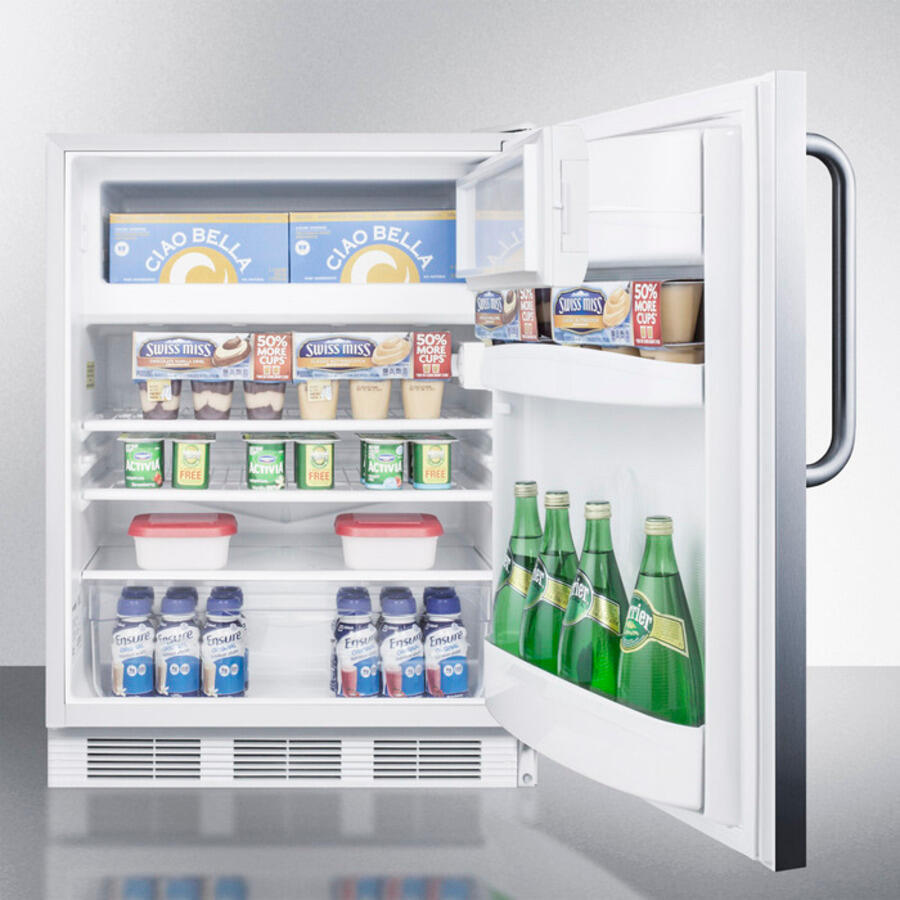

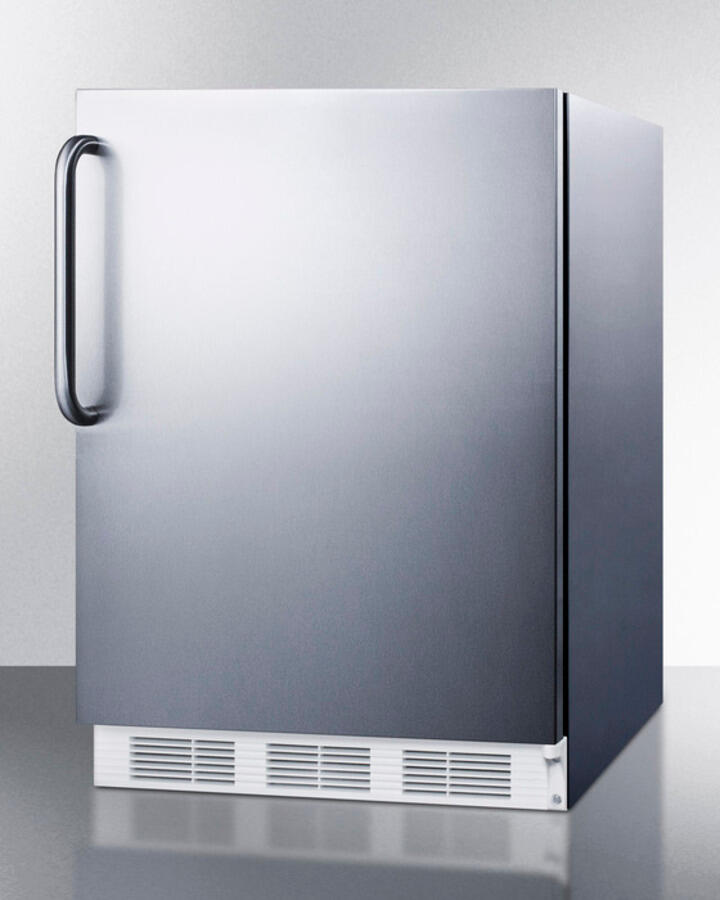

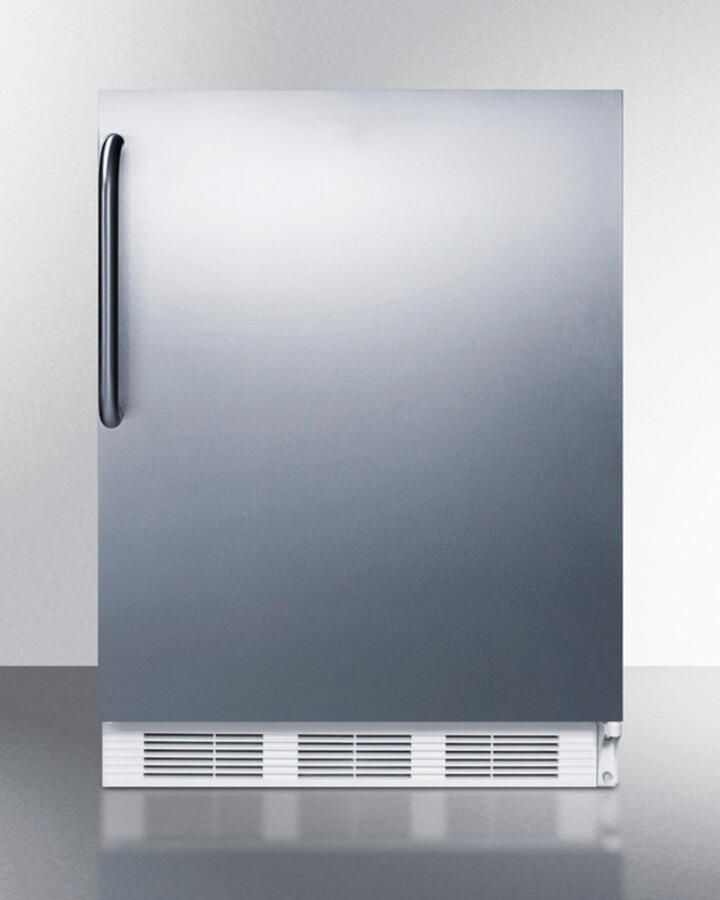

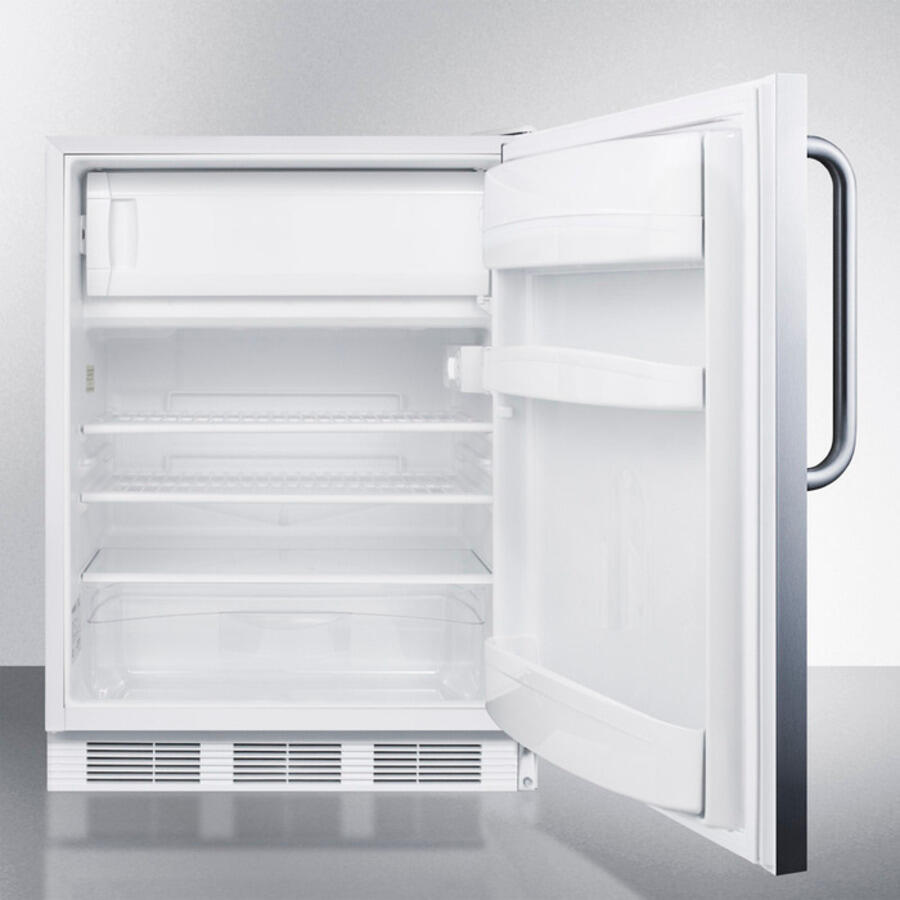

Summit CT66JCSSADA Built-In Undercounter Ada Compliant Refrigerator-Freezer For General Purpose Use, W/Dual Evaporator Cooling, Cycle Defrost, And Fully Wrapped Ss Exterior
32" Height Fits Under Lower Ada Compliant Counters Flexible Design Allows Built-In Or Freestanding Use Under Counters In 24 Inch Wide Spaces Complete Stainless Steel Exterior Improved Temperature Performance With Our Unique Dual Evaporator Cooling Made In Europe Accucold By Summit Appliance Offers A Wide Range Of Undercounter Refrigeration For General Purpose Storage. The Ct66Jbiada Series Includes Refrigerator-Freezers Designed For Optimum Storage Conditions In Built-In Applications Under Lower Ada Compliant Counters. At 32" High, The Ct66Jcssada Can Be Used Built-In Or Freestanding In Ada Compliant Settings. The 24" Footprint Fits Many Popular Cutouts While Offering Over 5 Cu.Ft. Of Storage Capacity. This Model Has A Fully Wrapped Stainless Steel Cabinet And Door. A Curved Towel Bar Handle Completes The Professional Look. Inside, Our Unique Dual Evaporator System Separately Cools The Refrigerator And Freezer Section To Ensure Proper Storage Temperature. Cycle Defrost Operation Reduces User Maintenance In The Automatic Defrost Fresh Food Section, With Static Manual Defrost Operation In The Freezer Compartment. Door Storage Provides Easy Access For Tall Bottles And Small Condiments. Additional Features Include Adjustable Shelves, A Clear Crisper, And Automatic Interior Lighting. The Ct66Jcssada Has Long Proven Itself To Have One Of The Best Temperature Performance Records In The Industry. To See Additional Finish Options On This Unit, Browse The Full Ct66Jbiada Series. Note: This Unit Is Designed For General Purpose Applications And Does Not Meet Doe Energy Standards For Residential Use.
- ADA compliant: 32" high to fit under lower ADA compliant counters
- Built-in capable: Make the best use of space by installing your appliance under the counter
- Fully finished cabinet: Allows the unit to be used freestanding
- Slim undercounter dimensions: Less than 24" wide with a generous storage capacity
- Complete stainless steel exterior: Fully wrapped in 304 grade stainless steel
- Professional towel bar handle: Curved handle in brushed stainless steel offers a sturdy grip with professional elegance
- Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Dual evaporator: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Adjustable shelves: Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Door storage: Store tall bottles and condiments right on the door for convenient access
- Clear crisper drawer: Get the longest life and best taste out of produce by storing greens in a bottom crisper
- Interior light: Automatically illuminates when you open the door
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.38' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Capacity | 5.1 cu.ft. (144 L) |
Defrost Type | Cycle |
Door | Stainless Steel |
Cabinet | Stainless Steel |
US Electrical Safety | UL |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Estimated Time to Ship | 2 to 4 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Factory Reversible |
Adjustable Shelves | Yes |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Interior Light | Yes |
Refrigerator - Interior Height | 19.5' (50 cm) |
Refrigerator - Interior Width | 20.5' (52 cm) |
Refrigerator - Interior Depth | 17.0' (43 cm) |
Refrigerator - Shelf Type | Wire |
Refrigerator - Shelf Qty | 2 |
Refrigerator - Full Door Shelves | 3 |
Freezer - Interior Height | 5.0' (13 cm) |
Freezer - Interior Width | 19.0' (48 cm) |
Freezer - Interior Depth | 11.5' (29 cm) |
Thermostat Type | Dial |
Refrigerant Type | R134a |
Refrigerant Amount | 2.6 oz. |
High Side PSI | 285.0 |
Low Side PSI | 70.0 |
Compressor Step Height | 7.0' (18 cm) |
Compressor Step Width | 20.5' (52 cm) |
Compressor Step Depth | 5.0' (13 cm) |
Exterior | |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order |
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations |
SS Hinges Stainless steel top and bottom hinges | SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | LHD - Left hand door swing Door reversal to left hand swing |
Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | SSK Stainless steel kickplate factory installed |
HUM - Humidity sensor Humidity sensor with min/max readout | HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix |
DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac | Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface |
Lock | |
L-Installed Lock Add a single key lock to the door with the L option | KEYPAD Battery-powered keypad door lock installed for keyless security |
AC Keypad Keypad door lock powered by appliance power cord for keyless security | AC Keypad Keypad door lock powered by appliance power cord for keyless security |
Interior | |
FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior | FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior |
