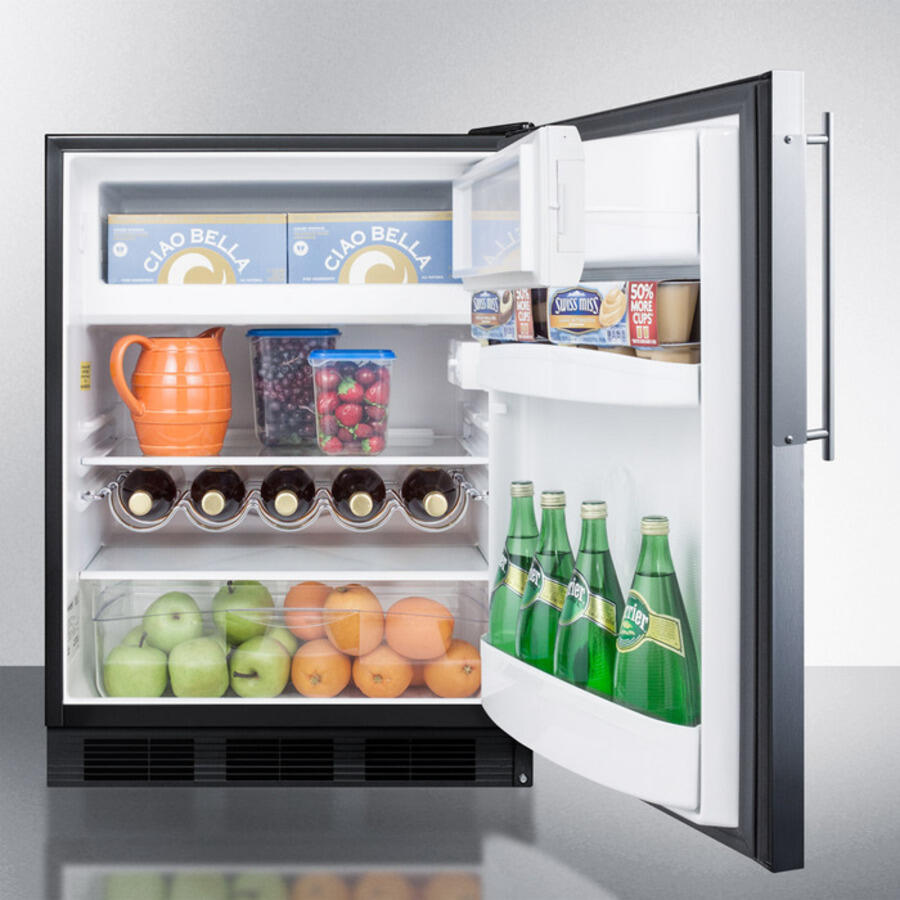

Summit CT663BBIFR Built-In Undercounter Refrigerator-Freezer For Residential Use, Cycle Defrost With A Deluxe Interior, Ss Door Frame For Slide-In Panels, And Black Cabinet
Flexible Design Allows Built-In Or Freestanding Use In 24" Spaces Stainless Steel Door Frame Accepts Slide-In Panels For A Custom Look Deluxe Interior With Glass Shelves, Door Storage, And A Scalloped Wine Shelf Improved Temperature Performance With Our Unique Dual Evaporator Cooling Made In Europe Summit Brings Quality And Value Under The Counter With The Industry'S Largest Collection Of Built-In Refrigeration. The Ct663Bbi Series Features Residential Refrigerator-Freezers Made In Europe And Designed For Reliable Cold Storage In Any Home Kitchen. Sized With A 24" Footprint, Ct663Bbifr Refrigerator-Freezer Offers A Generous 5.1 Cu.Ft. Storage Capacity, A Larger Interior Than Many Units In This Size Class. The Front-Breathing Design Allows Built-In Installation Under Counters, While The Fully Finished Cabinet Also Enables Freestanding Use. This Model Features A Black Exterior Finish With A User-Reversible Door Swing. A Two-Piece Stainless Steel Door Frame Allows You To Customize The Front With A Slide-In Panel (Sized 23" W X 28" H At Up To 1/4" Thick). We Include A Stainless Steel Handle To Complete The Look. Inside, The Ct663Bbifr Features A Dual Evaporator To Allow Separated Cooling Of The Fresh And Frozen Food Sections. The Refrigerated Compartment Utilizes Low Maintenance Automatic Defrost, While The Interior Freezer Compartment Is Manual Defrost To Achieve Lower Storage Temperatures Ideal For Ice Cream And Other Frozen Food. The Deluxe Interior Includes Adjustable Glass Shelves For Spill-Proof Storage And Easier Cleaning, As Well As A Scalloped Wine Shelf To Hold Wine And Champagne Bottles Safely In Place. Door Racks Offer Additional Convenience For Tall Bottles And Condiments And A Clear Crisper Drawer Ensures Your Produce Is Stored Under The Ideal Conditions. This Model Includes Automatic Interior Lighting And An Adjustable Dial Thermostat. With Its Ideal Dimensions And User-Friendly Features, The Ct663Bbifr Is The Perfect Refrigerator-Freezer For Any Home In Need Of Versatile Storage Under The Counter.
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinetry
- Slim undercounter dimensions: Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit

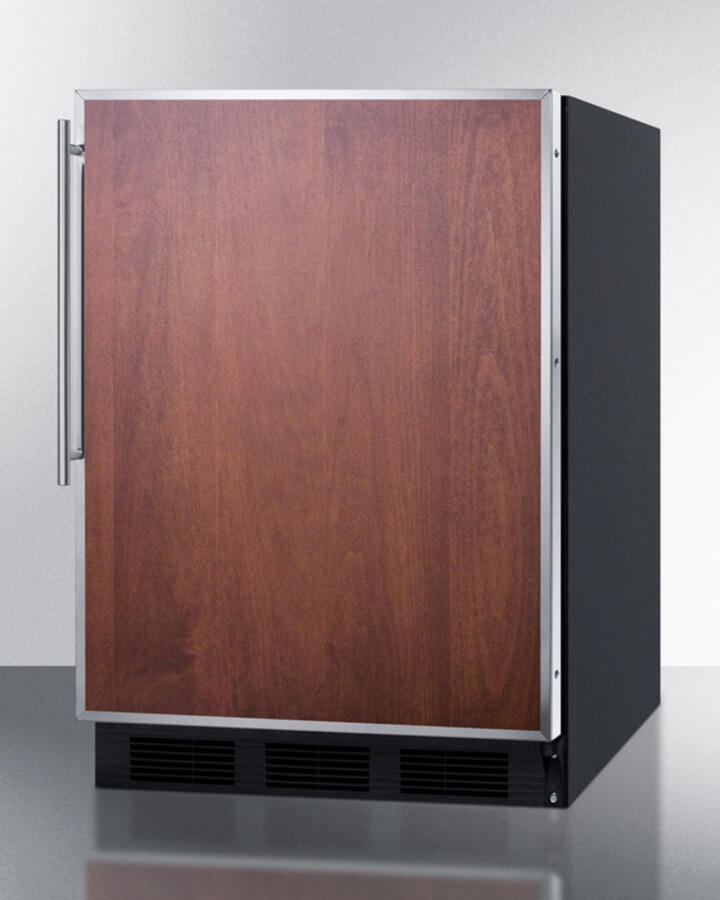

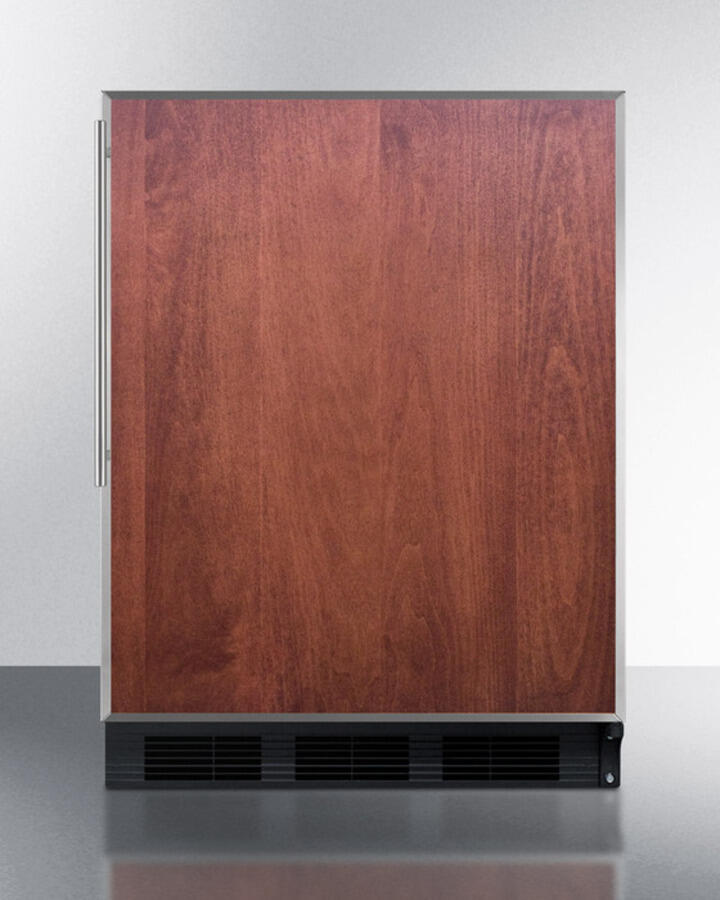

- Stainless steel door frame: Two-piece U-shaped door frame in stainless steel accepts slide-in panels (sized 23" W x 28" H at up to 1/4" thick), allowing users to create a custom look to match or complement adjacent cabinetry
- Pro style handle: Stainless steel handle adds an attractive touch
- Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Dual evaporator cooling: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

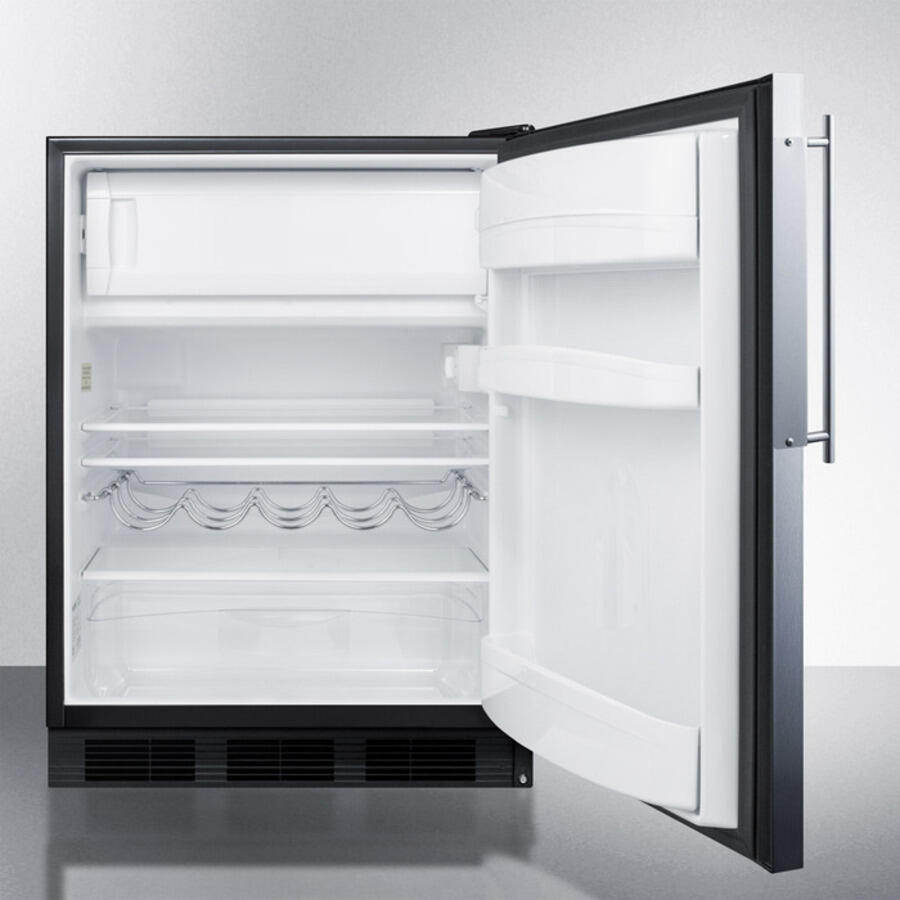

- Adjustable glass shelves: Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
- Door shelves: Store tall bottles and condiments right on the door for convenient access
- Wine shelf: Removable scalloped wine shelf is included to store champagne and wine bottles
- Crisper drawer: Get the longest life and best taste out of produce by storing greens in lower slide drawer
- Interior light: Automatically illuminates when the door is opened
- Hidden evaporator: Cold wall design with hidden evaporator creates a seamless, easy to clean interior
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Reversible door: User-reversible door swing for added flexibility
- Fully finished black cabinet: Allows the unit to be used freestanding
- Height Adjustable: Adjustable legs allow the unit to be sized from 32 1/2" to 34" high
- 100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals
Overview | |
Height of Cabinet | 33.25' (84 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Depth with door at 90° | 45.38' (115 cm) |
Capacity | 5.1 cu.ft. (144 L) |
Defrost Type | Cycle |
Door | Panel-Ready |
Cabinet | Black |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Energy Usage/Year | 365.0kWh/year |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Estimated Time to Ship | 2 to 4 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Yes |
Adjustable Shelves | Yes |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Wine Bottle Shelving | Yes |
Interior Light | Yes |
Refrigerator - Interior Height | 18.0' (46 cm) |
Refrigerator - Interior Width | 21.0' (53 cm) |
Refrigerator - Interior Depth | 18.0' (46 cm) |
Refrigerator - Capacity | 4.5 cu.ft |
Refrigerator - Shelf Type | Glass |
Refrigerator - Shelf Qty | 2 |
Refrigerator - Full Door Shelves | 3 |
Freezer - Interior Height | 5.25' (13 cm) |
Freezer - Interior Width | 19.0' (48 cm) |
Freezer - Interior Depth | 11.5' (29 cm) |
Freezer - Capacity | 0.6 cu.ft |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 2.33 oz. |
High Side PSI | 285.0 |
Low Side PSI | 70.0 |
Level Legs | 4 |
Compressor Step Height | 5.5' (14 cm) |
Compressor Step Width | 21.0' (53 cm) |
Compressor Step Depth | 6.0' (15 cm) |
Exterior | |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order |
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | Legs to raise unit height 6' high leveling legs |
CAS6 6' casters 6' high NSF listed casters | CAS3 3' casters 3' high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish |
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations | SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | LHD - Left hand door swing Door reversal to left hand swing |
Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | SSK Stainless steel kickplate factory installed |
HUM - Humidity sensor Humidity sensor with min/max readout | HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix |
DL1 | Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
Lock | |
AC Keypad Keypad door lock powered by appliance power cord for keyless security | KEYPAD Battery-powered keypad door lock installed for keyless security |
Interior | |
FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior | FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior |
