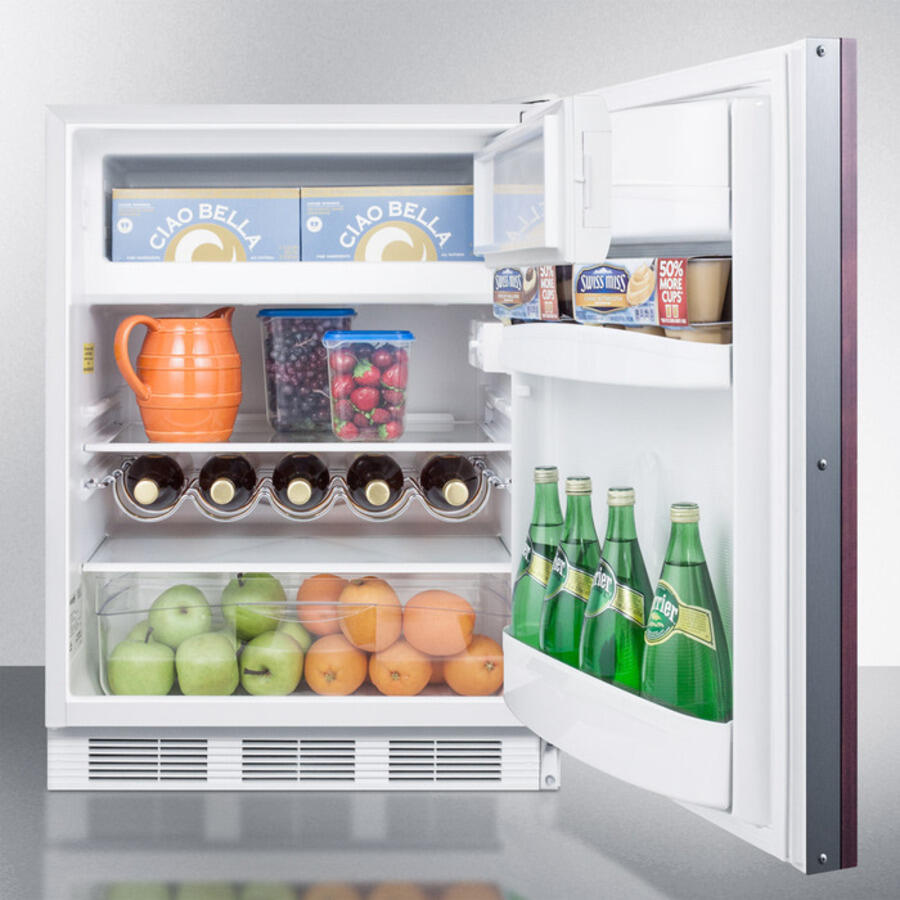

Summit CT661BIIFADA Ada Compliant Built-In Undercounter Refrigerator-Freezer For Residential Use, Cycle Defrost With Deluxe Interior, Panel-Ready Door, And White Cabinet
32" Height Fits Under Lower Ada Compliant Counters Flexible Design Allows Built-In Or Freestanding Use In 24" Wide Spaces Customizable Door Front Accepts Full Overlay Panels For A Seamless Look That Can Blend Into Cabinetry Deluxe Interior With Glass Shelves, Door Storage, And A Scalloped Wine Shelf Improved Temperature Performance With Our Unique Dual Evaporator Cooling Made In Europe Summit Brings Quality And Value Under The Counter With The Industry's Largest Collection Of Ada Compliant Built-In Refrigeration. The Ct661Biada Series Features Residential Refrigerator-Freezers Made In Europe And Designed For Reliable Cold Storage Under Lower Ada Counters. Sized With A 24" Footprint, The Ct661Biifada Refrigerator-Freezer Offers A Generous 5.1 Cu.Ft. Storage Capacity, Larger Than Many Units In This Size Class. The 32" Height And Front-Breathing Design Makes It Ideal For Installation Under Lower Counters Complying With Ada Guidelines For Height Restriction. The Fully Finished Cabinet Also Enables Freestanding Use. This Unit Comes In A White Exterior Finish. The Integrated Stainless Steel Door Frame Is Designed To Accept Overlay Panels (Sized 23 5/16" W X 28 1/4" H), Allowing You To Customize The Front To Seamlessly Match Your Own Cabinetry Style. Customers Provide Their Own Handle. Inside, The Ct661Biifada Features A Dual Evaporator To Allow Separated Cooling Of The Fresh And Frozen Food Sections. The Refrigerated Compartment Utilizes Low Maintenance Automatic Defrost, While The Interior Freezer Compartment Is Manual Defrost To Achieve Lower Storage Temperatures Ideal For Ice Cream And Other Frozen Food. The Deluxe Interior Includes Adjustable Glass Shelves For Spill-Proof Storage And Easier Cleaning, As Well As A Scalloped Wine Shelf To Hold Wine And Champagne Bottles Safely In Place. Door Racks Offer Additional Convenience For Tall Bottles And Condiments And A Clear Crisper Drawer Ensures Your Produce Is Stored Under The Ideal Conditions. These Models Include Automatic Interior Lighting And An Adjustable Dial Thermostat. With Its Ideal Dimensions And User-Friendly Features, The Ct661Biifada Is The Perfect Refrigerator-Freezer For Any Ada Compliant Setting In Need Of Versatile Storage Under The Counter. For This Unit In A Black Finish, See The Ct663Bbiifada.
- ADA compliant : 32" high to fit under lower ADA compliant counters
- Slim undercounter dimensions : Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
- Built-in capable : Make the best use of space by installing your appliance under the counter

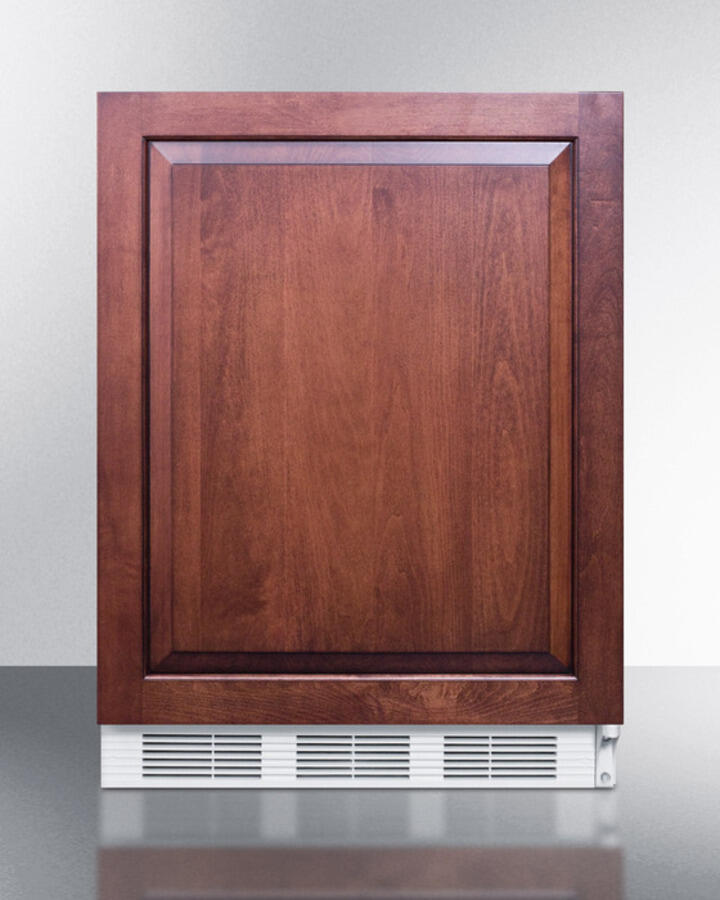

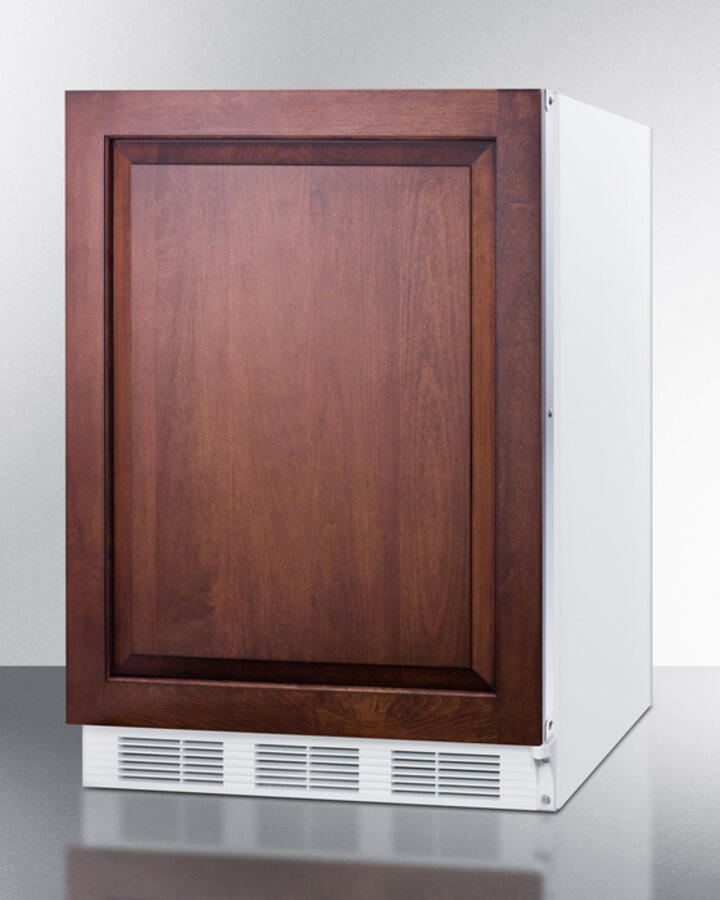

- Panel-ready door : Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Cycle defrost : This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Dual evaporator : Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Adjustable glass shelves : Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Clear crisper drawer : Get the longest life and best taste out of produce by storing greens in a bottom crisper
- Door storage : Store tall bottles and condiments right on the door for convenient access
- Wine shelf : Removable scalloped wine shelf is included to store champagne and wine bottles
- Interior light : Automatically illuminates when you open the door
- Hidden evaporator : Cold wall design with hidden evaporator creates a seamless, easy to clean interior
- Adjustable thermostat : Dial thermostat located inside for easy temperature management
- Fully finished white cabinet : Allows the unit to be used freestanding
- 100% CFC Free : Environmentally friendly design with no ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.38' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 23.0' (58 cm) |
Depth with door at 90° | 45.38' (115 cm) |
Capacity | 5.1 cu.ft. (144 L) |
Defrost Type | Cycle |
Door | Panel-Ready |
Cabinet | White |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Energy Usage/Year | 365.0kWh/year |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Estimated Time to Ship | 2 to 4 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Factory Reversible |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Wine Bottle Shelving | Yes |
Interior Light | Yes |
Refrigerator - Interior Height | 18.0' (46 cm) |
Refrigerator - Interior Width | 21.0' (53 cm) |
Refrigerator - Interior Depth | 18.0' (46 cm) |
Refrigerator - Capacity | 4.5 cu.ft |
Refrigerator - Shelf Type | Glass |
Refrigerator - Shelf Qty | 2 |
Refrigerator - Full Door Shelves | 3 |
Freezer - Interior Height | 5.25' (13 cm) |
Freezer - Interior Width | 19.0' (48 cm) |
Freezer - Interior Depth | 11.5' (29 cm) |
Freezer - Capacity | 0.6 cu.ft |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 2.33 oz. |
High Side PSI | 285.0 |
Low Side PSI | 70.0 |
Compressor Step Height | 5.5' (14 cm) |
Compressor Step Width | 21.0' (53 cm) |
Compressor Step Depth | 6.0' (15 cm) |
Exterior | |
DL2B - Factory installed NIST calibrated digital data logger (DDL) | TT - Installed thermometer |
PH - Probe Hole | Alarm |
SCD - Self-closing door | ODA - Open door alarm |
LHD - Left hand door swing | Latch for door |
SSK | HUM - Humidity sensor |
HG - Hospital grade cord | DL1 - Factory installed data logger |
Lock | |
L-Installed Lock | KEYPAD |
AC Keypad | - |
Interior | |
FCGP internal fan with gel packs | FC - Internal Fan |
