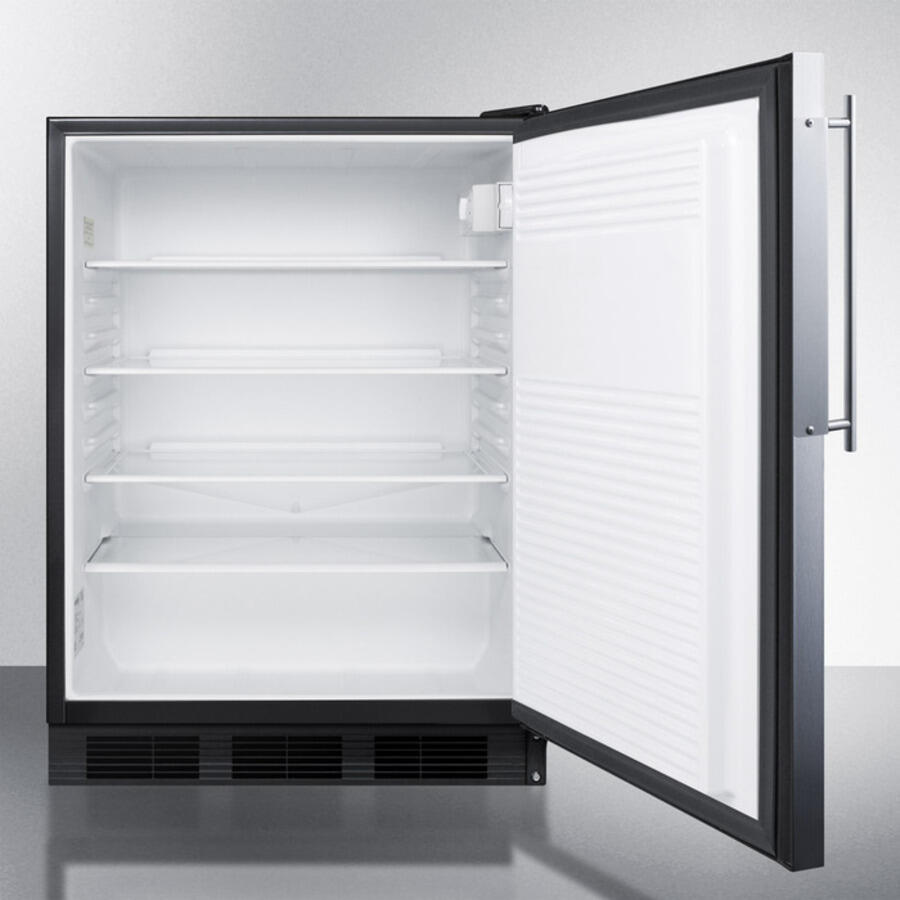

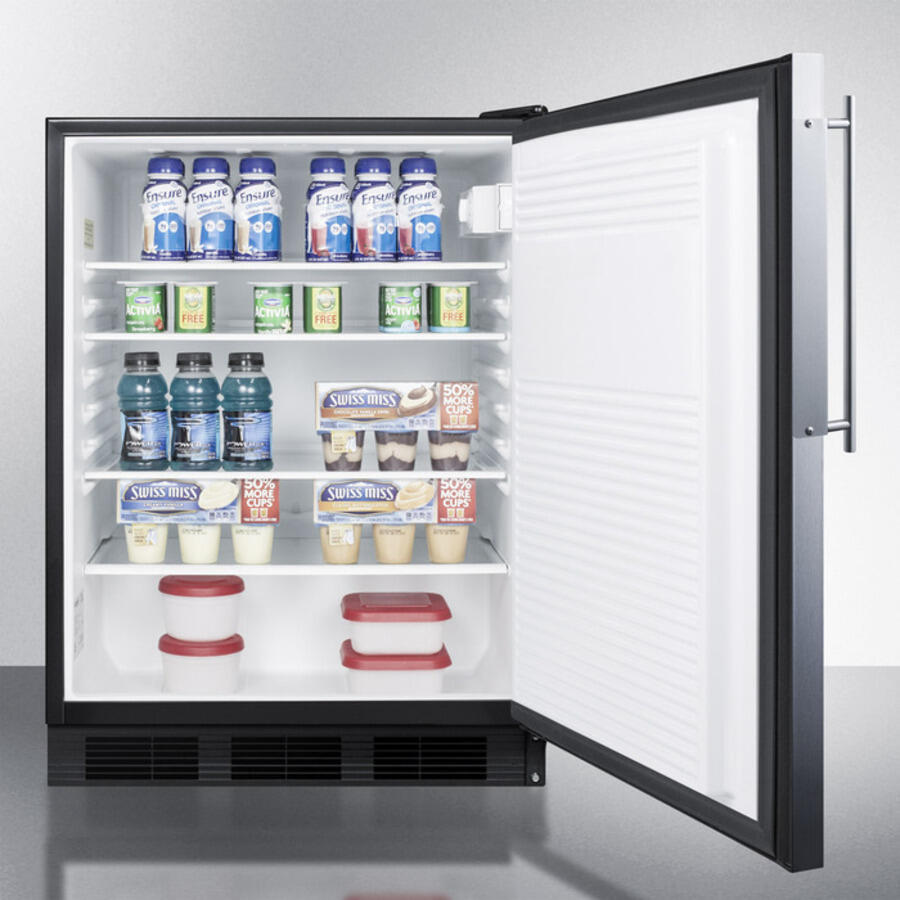

Summit AL752LBLBIFR Ada Compliant Built-In Undercounter All-Refrigerator For General Purpose Use, Auto Defrost W/Ss Door Frame For Panel Inserts, Lock, And Black Cabinet
32" Height For Use Under Lower Ada Compliant Counters Flexible Design Allows Built-In Or Freestanding Use In 24" Spaces Factory Installed Front Lock Offers Convenient Security For Stored Items Stainless Steel Door Frame Accepts Slide-In Panels For A Custom Look Automatic Defrost Ensures Minimum User Maintenance Made In Europe Accucold By Summit Appliance Offers A Wide Range Of All-Refrigerators For General Purpose Storage. The Al750Bi Series Features 24" Wide All-Refrigerators Designed For Built-In Installation Under Lower Ada Compliant Counters. The Al752Lblbifr Is A 32" High All-Refrigerator With A Full 5.5 Cu.Ft. Capacity Inside A Slim 24" Footprint. The Front-Breathing Design Allows Built-In Use Under Counters, While The Fully Finished Cabinet Also Lets This Unit Be Used Freestanding. This Model Has A Black Cabinet. The Reversible Door Includes A Lock And Two-Piece Stainless Steel Frame Designed To Accept Slide-In Panel Inserts For A Custom Look (Panel Size: 23" W X 28" H At Up To 1/4" Thick). A Stainless Steel Handle Is Included. Inside, The Al752Lblbifr Utilizes Low Maintenance Automatic Defrost Operation. Our Unique "Hidden" Evaporator Is Set Behind The Rear Wall To Create A Seamless, Easy-To-Clean Interior That Also Maximizes Shelf Space. This Unit Has A Flat Door Liner That Allows It To Accept Larger Trays (Up To 19 1/2" X 16"). Adjustable Glass Shelves Allow Users To Reconfigure The Interior To Accommodate A Variety Of Sizes. The Interior Light Is Controlled By An On/Off Rocker Switch Located Behind The Thermostat Dial. For More Finish Options, Browse The Entire Al750Bi Series. Note: This Unit Is Designed For General Purpose, Medical, Or Commercial Applications And Does Not Meet Doe Energy Standards For Residential Use.
- ADA compliant: 32 inch height fits under standard ADA counters
- Slim undercounter dimensions: Less than 24 inches wide with a full 5.5 c.f. capacity
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Fully finished black cabinet: Allows the unit to be used freestanding
- Factory installed lock: Keyed lock offers added security

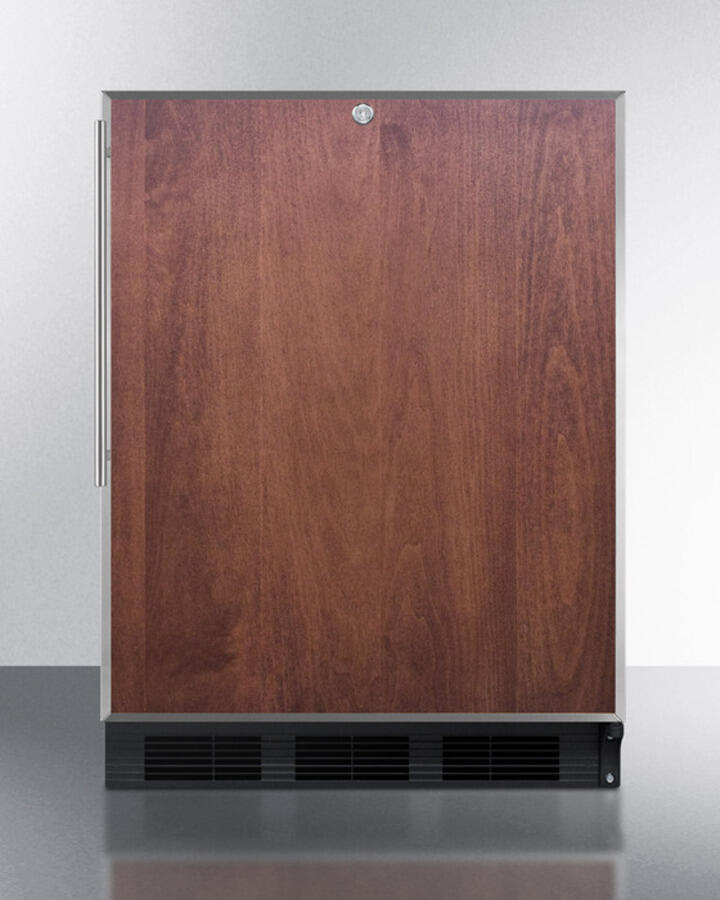

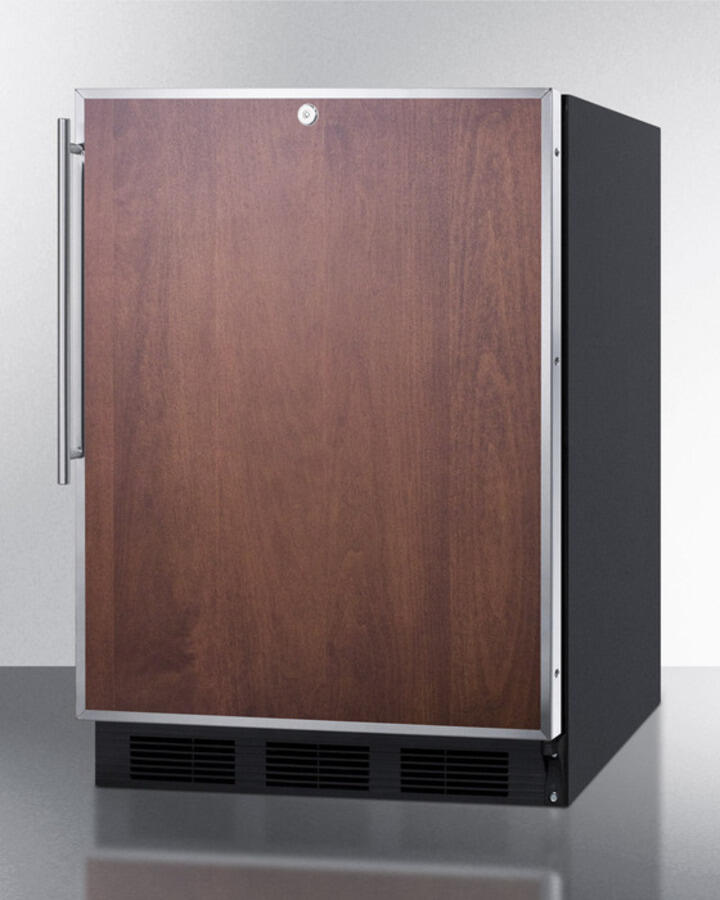

- Stainless steel door frame: Slide a panel into this two-piece U-shaped frame to match your unit to other cabinets (panel size: 23" W x 28" H at up to 1/4" thick)
- Professional handle: Stainless steel handle can be reversed with door swing
- Reversible door: User-reversible door swing for added flexibility
- Automatic defrost: Reduced user maintenance with automatic defrost operation
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
- One piece interior liner: Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Adjustable glass shelves: Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Flat door liner: An easy-to-clean flat liner accepts large trays
- Deep shelf space: Interior accommodates large trays up to 19 1/2" x 15 1/2"
- Interior light on rocker switch: Turn the light on when you need it and off when you're done with a convenient rocker switch
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
| Overview | |
| Height of Cabinet | 32.0' (81 cm) |
| Height to Hinge Cap | 32.25' (82 cm) |
| Width | 23.63' (60 cm) |
| Depth | 23.5' (60 cm) |
| Depth with Handle | 24.63' (63 cm) |
| Depth with door at 90° | 45.13' (115 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 105.0 lbs. (48 kg) |
| Estimated Time to Ship | 2 to 4 days |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Refrigerator Features | |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Dial |
| Refrigerant Type | R134a |
| Refrigerant Amount | 1.8oz. |
| High Side PSI | 285.0 |
| Low Side PSI | 70.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Dimensions | |
| Interior Height | 27.75' (70 cm) |
| Interior Width | 20.0' (51 cm) |
| Interior Depth | 17.5' (44 cm) |
| Compressor Step Height | 7.0' (18 cm) |
| Compressor Step Width | 20.0' (51 cm) |
| Compressor Step Depth | 6.0' (15 cm) |
| Exterior | |
| DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac | HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix |
| HUM - Humidity sensor Humidity sensor with min/max readout | SSK Stainless steel kickplate factory installed |
| Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | LHD - Left hand door swing Door reversal to left hand swing |
| ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
| Extra key Extra keys available for purchase | Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations |
| DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management | PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices |
| TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order | DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
| Interior | |
| FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior | FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior |
