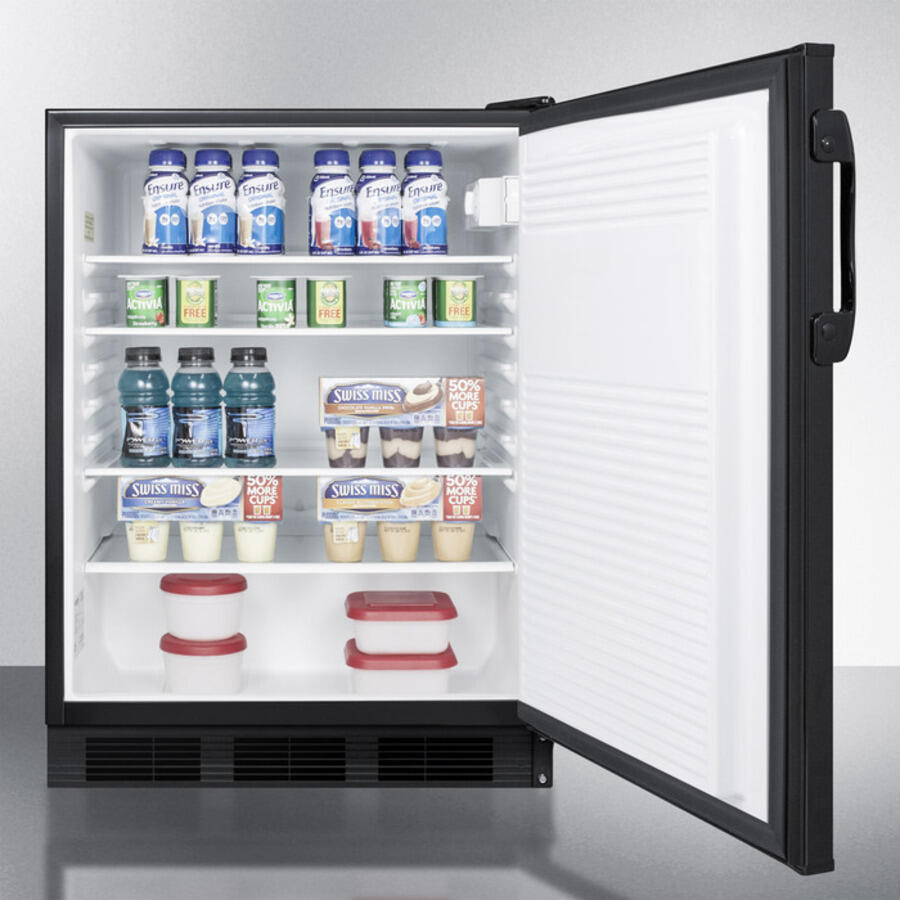

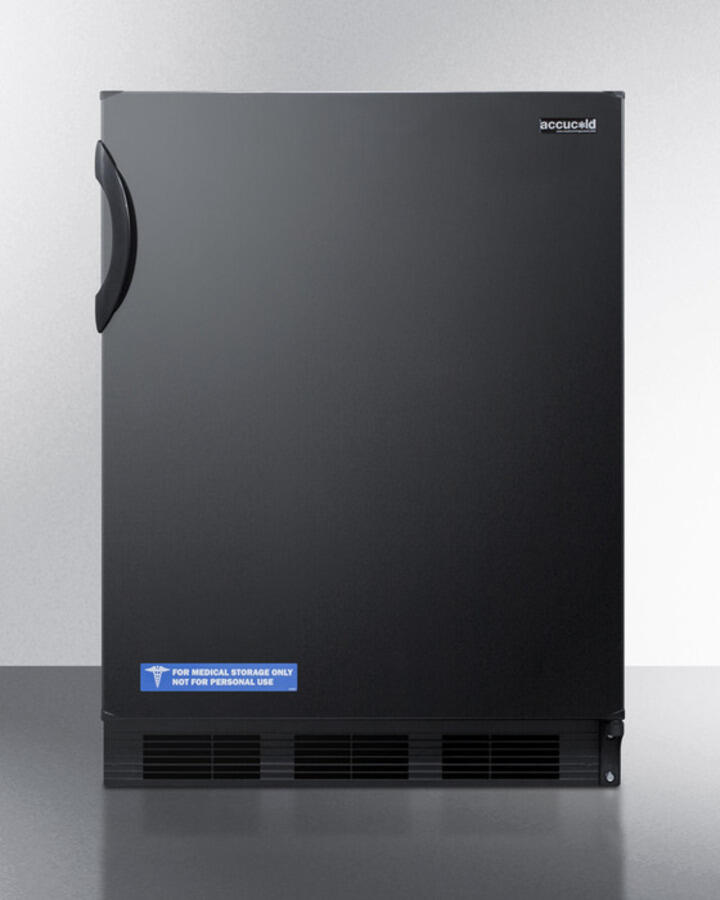

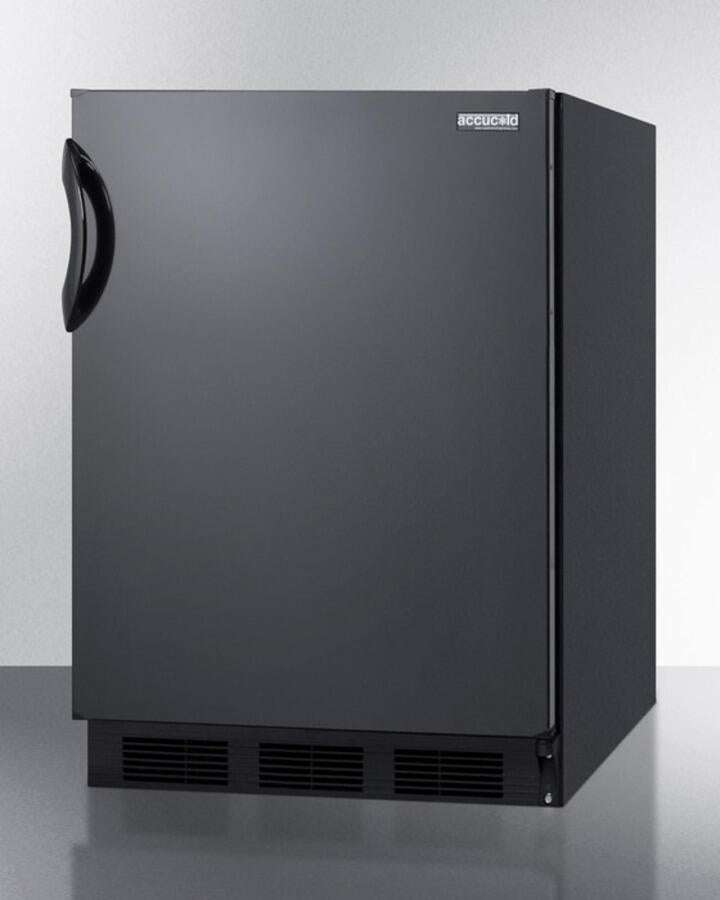

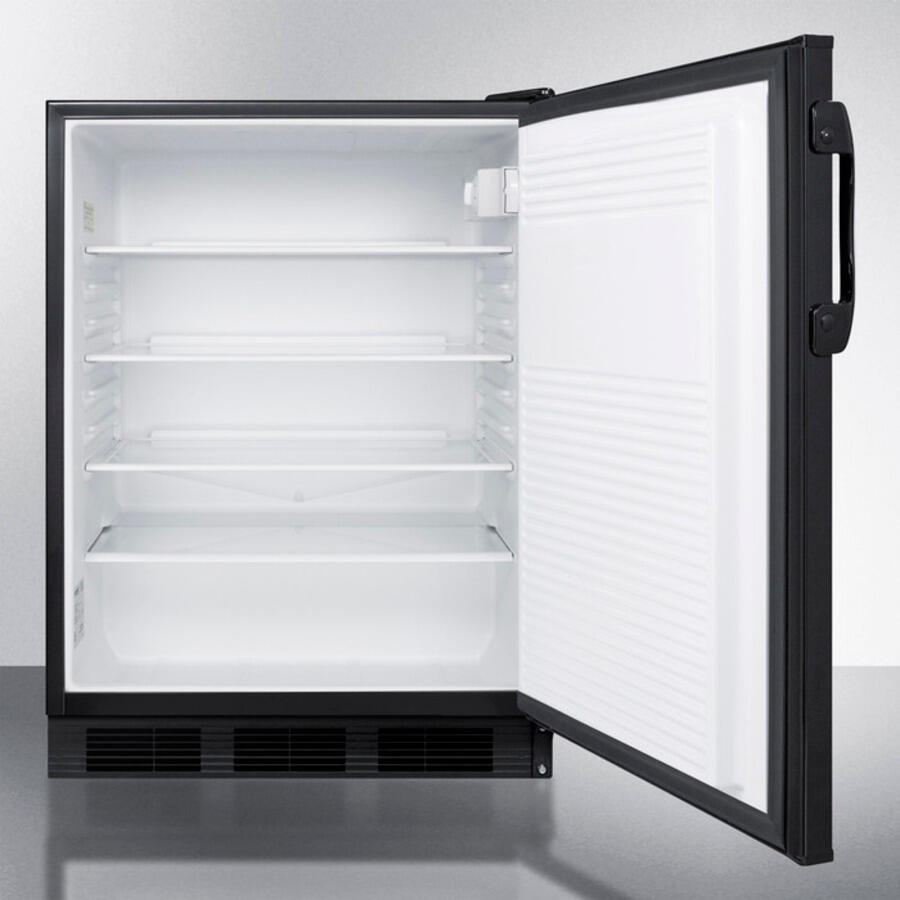

Summit AL752BBI Ada Compliant Built-In Undercounter All-Refrigerator For General Purpose Use, With Flat Door Liner, Auto Defrost Operation And Black Exterior
32 Inch Height Fits Under Lower Ada Compliant Counters Flexible Design Allows Built-In Or Freestanding Use In 24" Spaces Black Cabinet With Adjustable Glass Shelves Inside Automatic Defrost Ensures Minimum User Maintenance Made In Europe Deep Shelf Space Accommodates Large Trays Accucold By Summit Appliance Offers A Wide Range Of All-Refrigerators For General Purpose Storage. The Al750Bi Series Features 24" Wide All-Refrigerators Designed For Built-In Installation Under Lower Ada Compliant Counters. The Al752Bbi Is A 32" High All-Refrigerator With A Full 5.5 Cu.Ft. Capacity Inside A Slim 24" Footprint. The Front-Breathing Design Allows Built-In Use Under Counters, While The Fully Finished Cabinet Also Lets This Unit Be Used Freestanding. This Model Has A Black Exterior And User-Reversible Door Swing. Inside, The Al752Bbi Utilizes Low Maintenance Automatic Defrost Operation. Our Unique "Hidden" Evaporator Is Set Behind The Rear Wall To Create A Seamless, Easy-To-Clean Interior That Also Maximizes Shelf Space. This Unit Has A Flat Door Liner That Allows It To Accept Larger Trays (Up To 19 1/2" X 16"). Adjustable Wire Shelves Allow Users To Reconfigure The Interior To Accommodate A Variety Of Sizes. The Interior Light Is Controlled By An On/Off Rocker Switch Located Behind The Thermostat Dial. For More Finish Options, Browse The Entire Al750Bi Series. Note: This Unit Is Designed For General Purpose, Medical, Or Commercial Applications And Does Not Meet Doe Energy Standards For Residential Use.
- ADA compliant: 32" height to fit under lower ADA compliant counters
- Slim undercounter dimensions: Less than 24 inches wide with a full 5.5 c.f. capacity
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Fully finished black cabinet: Allows the unit to be used freestanding
- Reversible door: User-reversible door swing for added flexibility
- Automatic defrost: Reduced user maintenance with automatic defrost operation
- One piece interior liner: Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
- Adjustable glass shelves: Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Flat door liner: An easy-to-clean flat liner accepts large trays
- Deep shelf space: Interior accommodates large trays up to 19 1/2" x 15 1/2"
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Interior light on rocker switch: Turn the light on when you need it and off when you're done with a convenient rocker switch
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
| Overview | |
| Height of Cabinet | 32.0' (81 cm) |
| Height to Hinge Cap | 32.25' (82 cm) |
| Width | 23.63' (60 cm) |
| Depth | 23.5' (60 cm) |
| Depth with Handle | 24.0' (61 cm) |
| Depth with door at 90° | 45.13' (115 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 105.0 lbs. (48 kg) |
| Estimated Time to Ship | 2 to 4 days |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Refrigerator Features | |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 1.8oz. |
| High Side PSI | 285.0 |
| Low Side PSI | 88.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Dimensions | |
| Interior Height | 26.25' (67 cm) |
| Interior Width | 21.0' (53 cm) |
| Interior Depth | 17.75' (45 cm) |
| Compressor Step Height | 5.5' (14 cm) |
| Compressor Step Width | 21.0' (53 cm) |
| Compressor Step Depth | 5.5' (14 cm) |
| Exterior | |
| DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac | HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix |
| HUM - Humidity sensor Humidity sensor with min/max readout | SSK Stainless steel kickplate factory installed |
| Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | LHD - Left hand door swing Door reversal to left hand swing |
| SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option | SS Hinges Stainless steel top and bottom hinges |
| Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations | DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management |
| PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order |
| ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
| Interior | |
| FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior | FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior |
| Lock | |
| AC Keypad Keypad door lock powered by appliance power cord for keyless security | KEYPAD Battery-powered keypad door lock installed for keyless security |
| L | Installed Lock Add a single key lock to the door with the L option |
