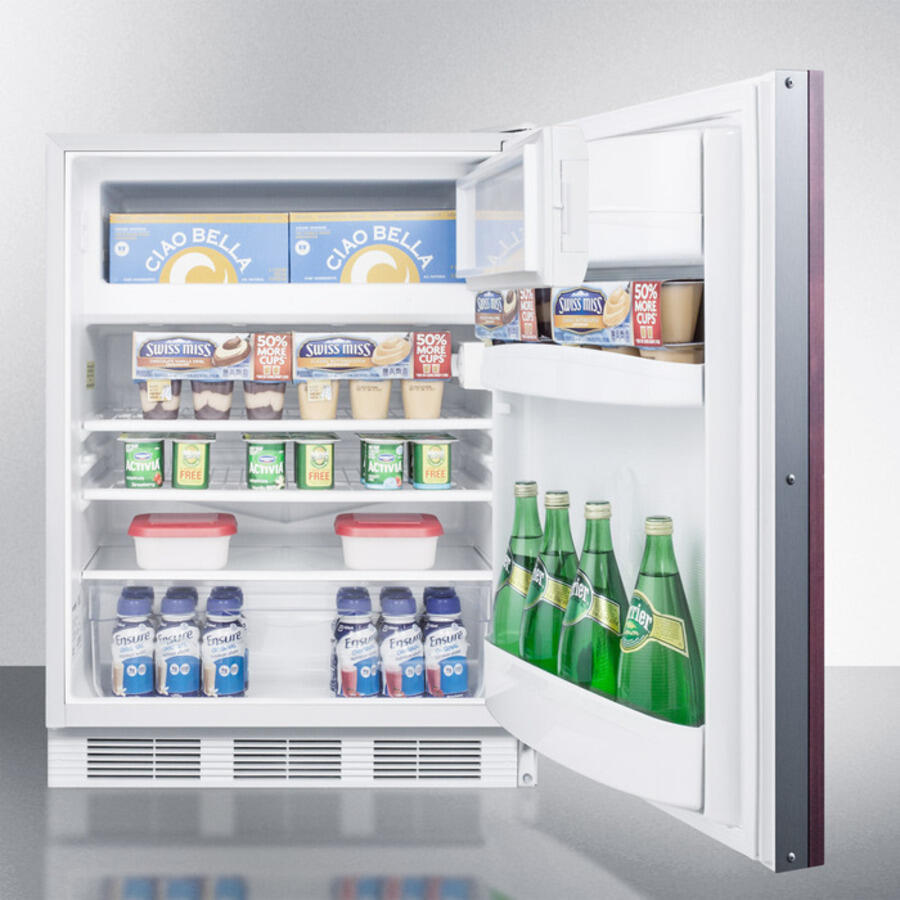

Summit AL650BIIF Built-In Undercounter Ada Compliant Refrigerator-Freezer For General Purpose Use, Cycle Defrost W/Dual Evaporator Cooling, Panel-Ready Door, And White Cabinet
32" Height For Use Under Lower Ada Compliant Counters Flexible Design Allows Built-In Or Freestanding Use In 24" Spaces Customizable Door Front Accepts Full Overlay Panels For A Seamless Look That Can Blend Into Cabinetry Improved Temperature Performance With Our Unique Dual Evaporator Cooling r Refrigeration For General Purpose Storage. The Al650Bi Series Includes Refrigerator-Freezers Designed For Optimum Storage Conditions In Built-In Applications Under Lower Ada Compliant Counters. At 32" High, The Al650Biif Can Be Used Built-In Or Freestanding In Ada Compliant Settings. The 24" Footprint Fits Many Popular Cutouts While Offering Over 5 Cu.Ft. Of Storage Capacity. This Model Has A White Cabinet. The Door Includes An Integrated Stainless Steel Frame Designed To Accept Full Overlay Panels For A Custom Look. Users Provide Their Own Handle. Inside, Our Unique Dual Evaporator System Separately Cools The Refrigerator And Freezer Sections To Ensure Proper Storage Temperature. Cycle Defrost Operation Reduces User Maintenance In The Automatic Defrost Fresh Food Section, With Static Manual Defrost Operation In The Freezer Compartment. Door Storage Provides Easy Access For Tall Bottles And Small Condiments. Additional Features Include Adjustable Shelves, A Clear Crisper, And Automatic Interior Lighting. The Al650Biif Has Long Proven Itself To Have One Of The Best Temperature Performance Records In The Industry. To See Additional Finish Options On This Unit, Browse The Full Al650Bi Series. Note: This Unit Is Designed For General Purpose, Medical, Or Commercial Applications And Does Not Meet Doe Energy Standards For Residential Use.
- ADA compliant: 32" height to fit under lower ADA compliant counters
- Slim undercounter dimensions: Less than 24 inches wide to fit tight spaces
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Fully finished white cabinet: Allows the unit to be used freestanding

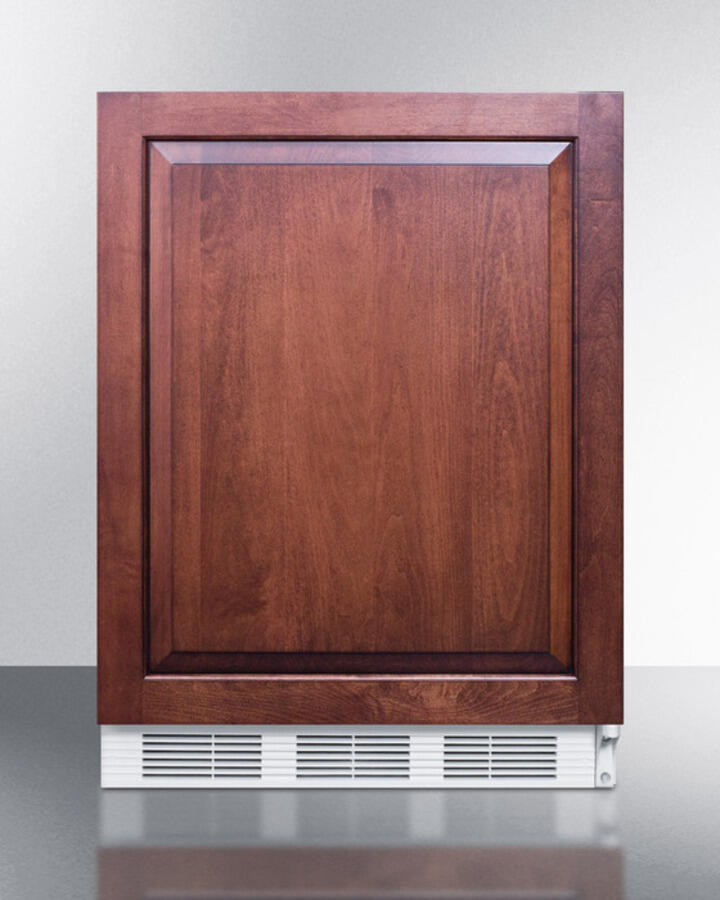

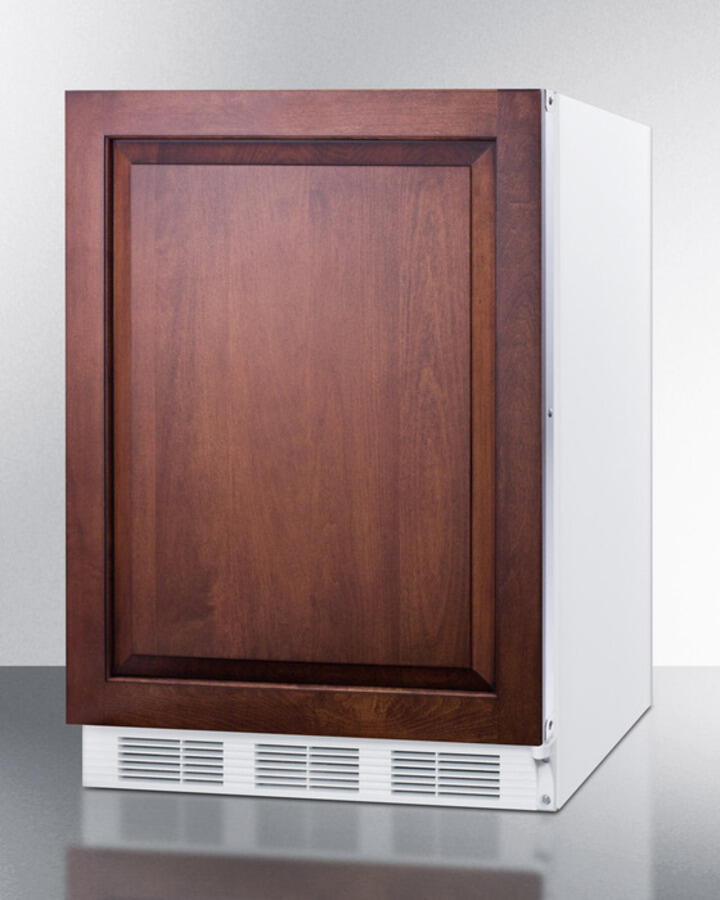

- Integrated door frame: Customize the front by mounting an overlay panel over the door; seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Dual evaporator: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

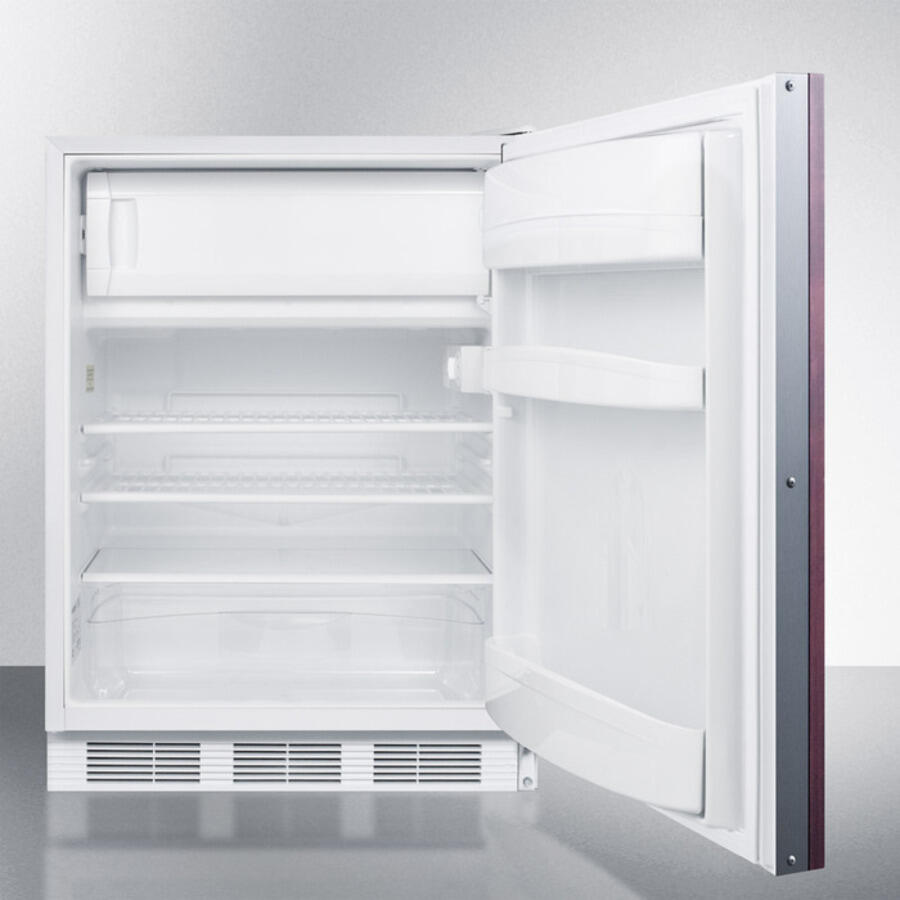

- Adjustable shelves: Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Clear crisper: Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- Door shelves: Store tall bottles and condiments right on the door for convenient access
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Interior light: Automatically illuminates when you open the door
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Height to Hinge Cap | 32.25' (82 cm) |
Width | 23.63' (60 cm) |
Depth | 23.5' (60 cm) |
Capacity | 5.1 cu.ft. (144 L) |
Defrost Type | Cycle |
Door | Panel-Ready |
Cabinet | White |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Estimated Time to Ship | 2 to 4 days |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Factory Reversible |
Adjustable Shelves | Yes |
Crisper Qty | 1 |
Crisper Finish | Opaque |
Crisper Cover | Glass |
Interior Light | Yes |
Refrigerator - Interior Height | 19.5' (50 cm) |
Refrigerator - Interior Width | 20.5' (52 cm) |
Refrigerator - Interior Depth | 17.0' (43 cm) |
Refrigerator - Shelf Type | Wire |
Refrigerator - Shelf Qty | 2 |
Refrigerator - Full Door Shelves | 3 |
Freezer - Interior Height | 5.0' (13 cm) |
Freezer - Interior Width | 19.0' (48 cm) |
Freezer - Interior Depth | 11.0' (28 cm) |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 2.6 oz. |
High Side PSI | 285.0 |
Low Side PSI | 70.0 |
Compressor Step Height | 7.0' (18 cm) |
Compressor Step Width | 20.5' (52 cm) |
Compressor Step Depth | 5.0' (13 cm) |
Exterior | |
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order |
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices | Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations |
SS Hinges Stainless steel top and bottom hinges | SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. | LHD - Left hand door swing Door reversal to left hand swing |
Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | SSK Stainless steel kickplate factory installed |
HUM - Humidity sensor Humidity sensor with min/max readout | HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix |
DL1 | Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac |
Lock | |
L-Installed Lock Add a single key lock to the door with the L option | KEYPAD Battery-powered keypad door lock installed for keyless security |
AC Keypad Keypad door lock powered by appliance power cord for keyless security | AC Keypad Keypad door lock powered by appliance power cord for keyless security |
Interior | |
FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior | FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior |
