Kitchenaid KUIX535HPA Kitchenaid® 15'' Automatic Ice Maker - Panel Ready Pa
Rebates &
Promotions
KitchenAid Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying KitchenAid appliances. Download Valid: 02/06/2025-02/28/2025
Fully Flush Installation with Articulating Hinge

allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.
Self-Cleaning Cycle

makes routine maintenance easy using a "clean cycle" and Affresh(R) ice maker cleaner.
Filter-Ready

provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.

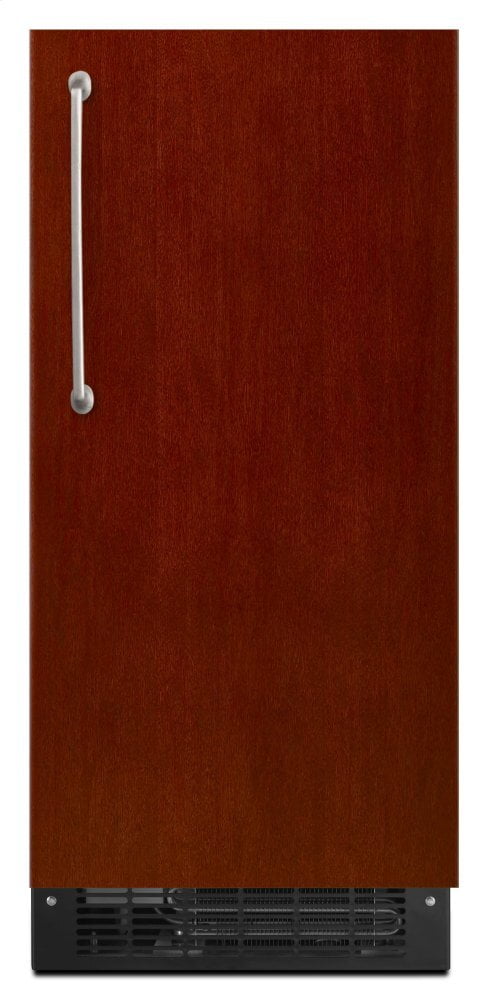

Enjoy An Ample Supply Of Clear, Uniformly Shaped Ice Cubes Ideal For A Variety Of Everyday Applications. This 15-Inch Ice Maker Accepts An Overlay-Style Front Panel (Requires Custom Panel And Handle, Not Included) That Adds An Elegant Finishing Touch To Your Kitchen Or Bar Area. Fully Flush Installation Blends With Surrounding Cabinetry For A Refined Built-In Look.
- Clear Ice Technology - provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.
- Factory Installed Drain Pump
- Holds 25 Pounds of Ice - ensures a generous supply of fresh ice is conveniently at your fingertips.
- Max Ice
- Reversible Door - offers flexible installation options by allowing hinge installation on either side of the door.
- Panel-Ready - allows the ice maker to accept a custom front panel (not included) to complement or match surrounding cabinets.
Specifications | |
Dimensions | |
Cabinet Width | 14-7/8 in |
Cutout Depth | 25.0 in |
Cutout Height | 34-1/2 in |
Cutout Width | 15.0 in |
Depth Closed Excluding Handles | 24-5/8 in |
Depth Closed Including Handles | 26-1/16 in |
Depth Excluding Doors | 22-1/16 in |
Depth With Door Open 90 Degree | 39-9/16 in |
Height To Top Of Cabinet | 33-5/8 in |
Height To Top Of Door Hinge | 34-1/16 in |
Appearance | |
Cabinet Finish | Textured |
Reversible Door | Yes |
Controls | |
Defrost Type | Automatic Defrost |
Ice Maker On/Off | Yes |
Location of Controls | Interior Up Front |
Filter Details | |
Water Filter Indicator/Reset | Yes |
Water Filter Location | Interior |
Details | |
Ambient Temperature Range | 55F to 110F |
Drain Connection | Rear Access 5/8'' OD |
Drain Pump | Pump Included |
Ice Capacity Storage | 25 |
Interior Light | LED |
Certifications | |
Energy Star® Qualified | No |
Ice Maker Features | |
Selections | Ice Scoop, Max Ice, Articulating Hinge, Clear Ice Technology, True Flush Installable, Easy Access Filter Install |
Filters | |
Water Filter Part Number | F2WC9I1 |
