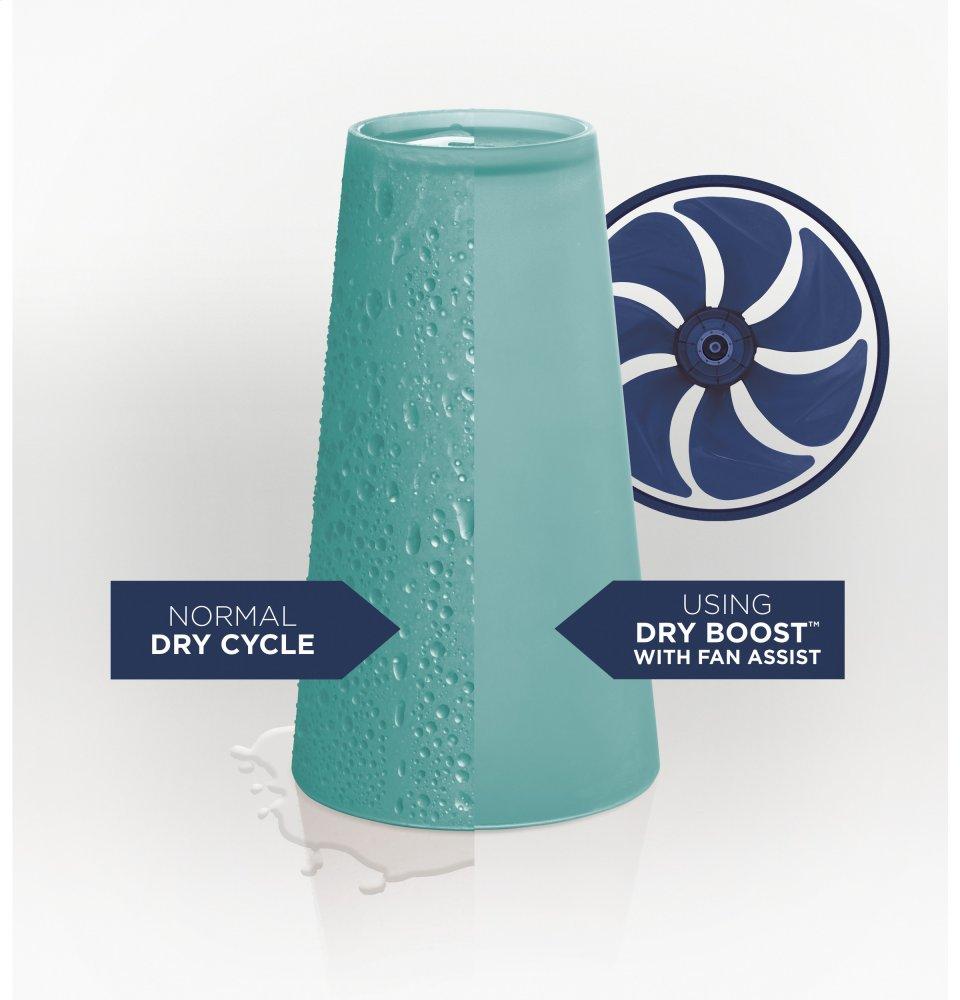

Dry Boost(TM) with Fan Assist
Gets hard-to-dry items up to 3 times drier than heated dry cycles *Compared to heated dry option

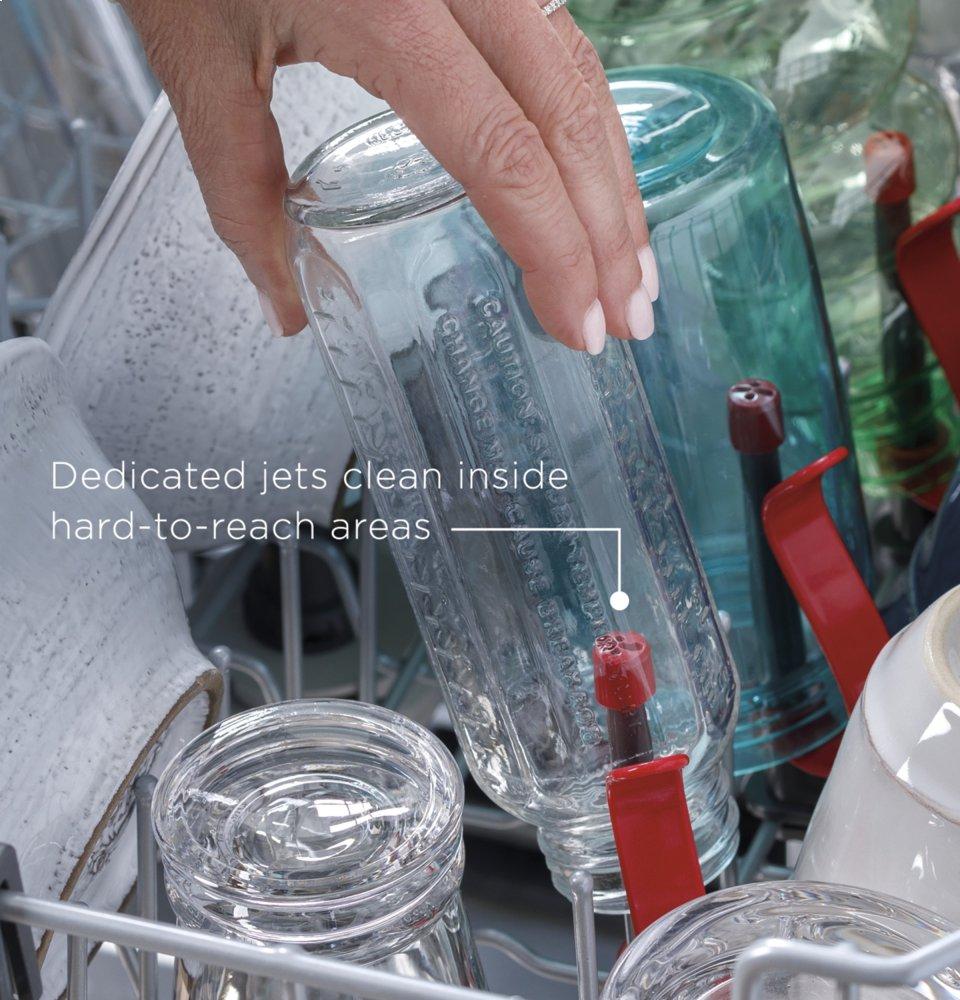

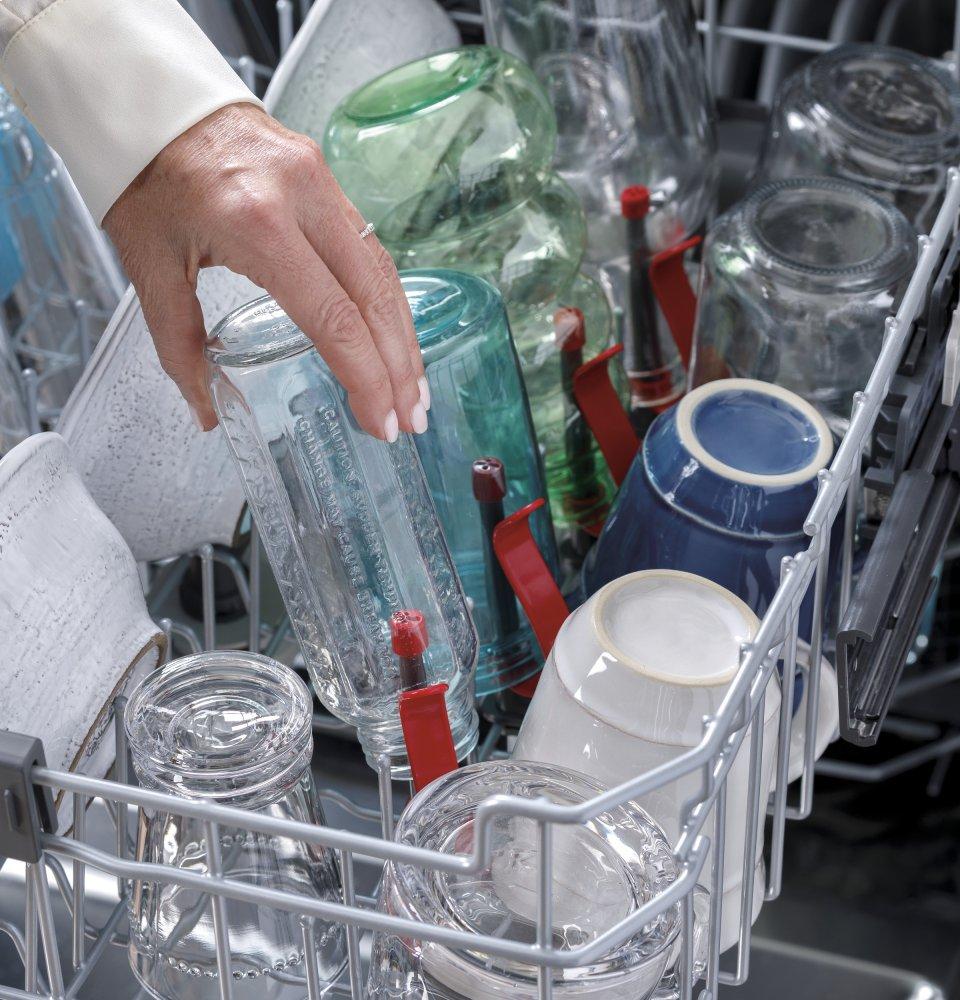

Bottle Jets
Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean

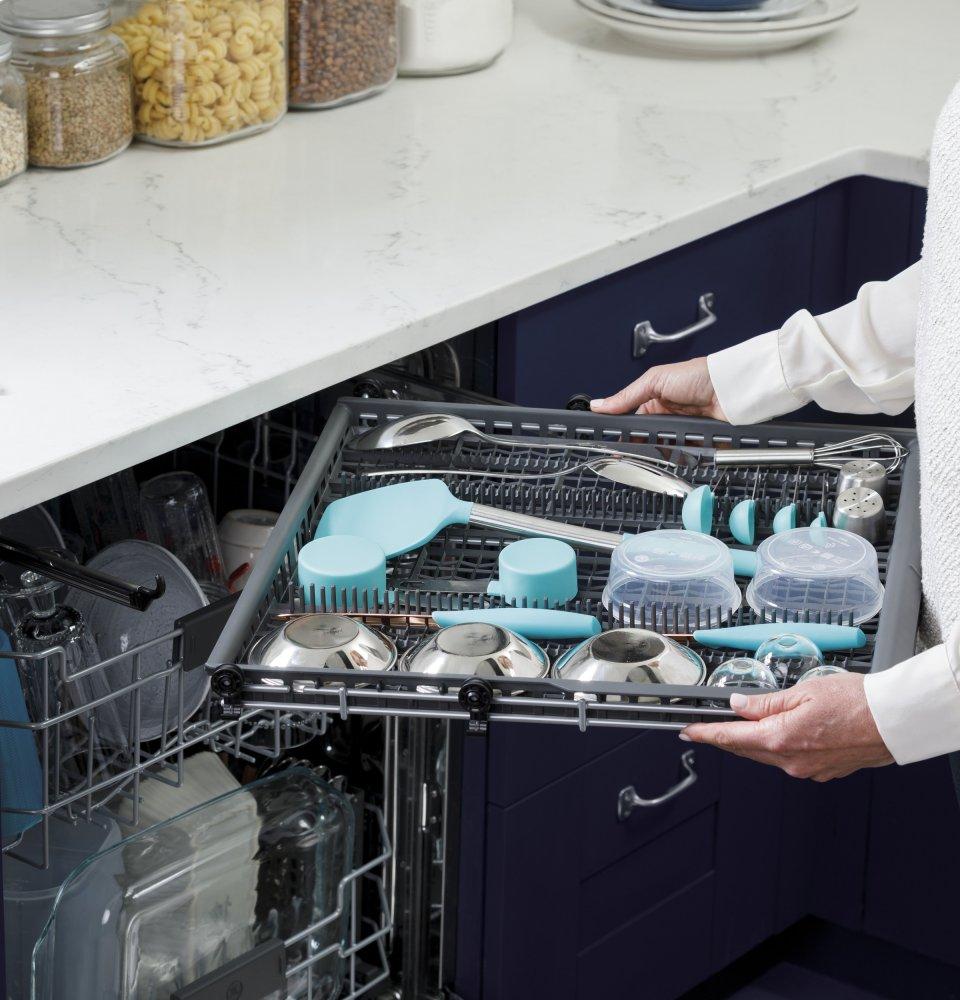

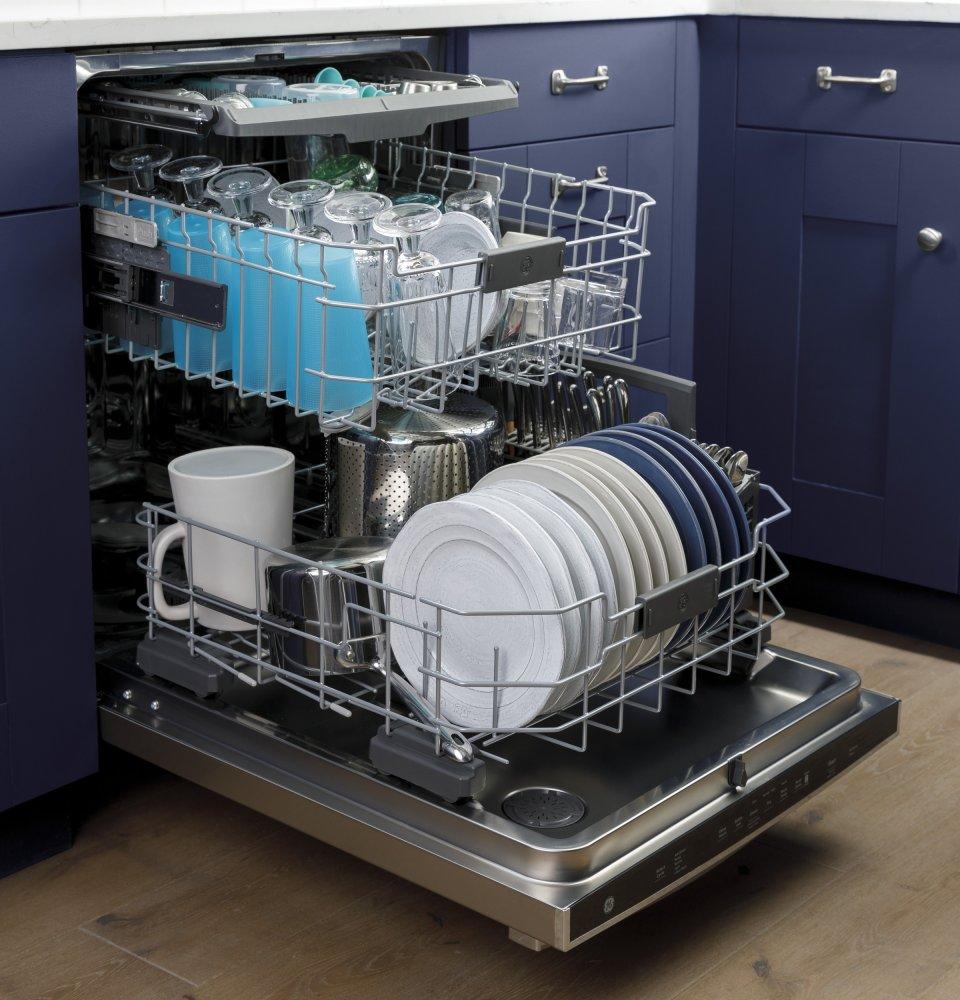

3rd Rack

Easily clean an entire flatware collection, knives and small utensils with an additional rack across the top of the dishwasher

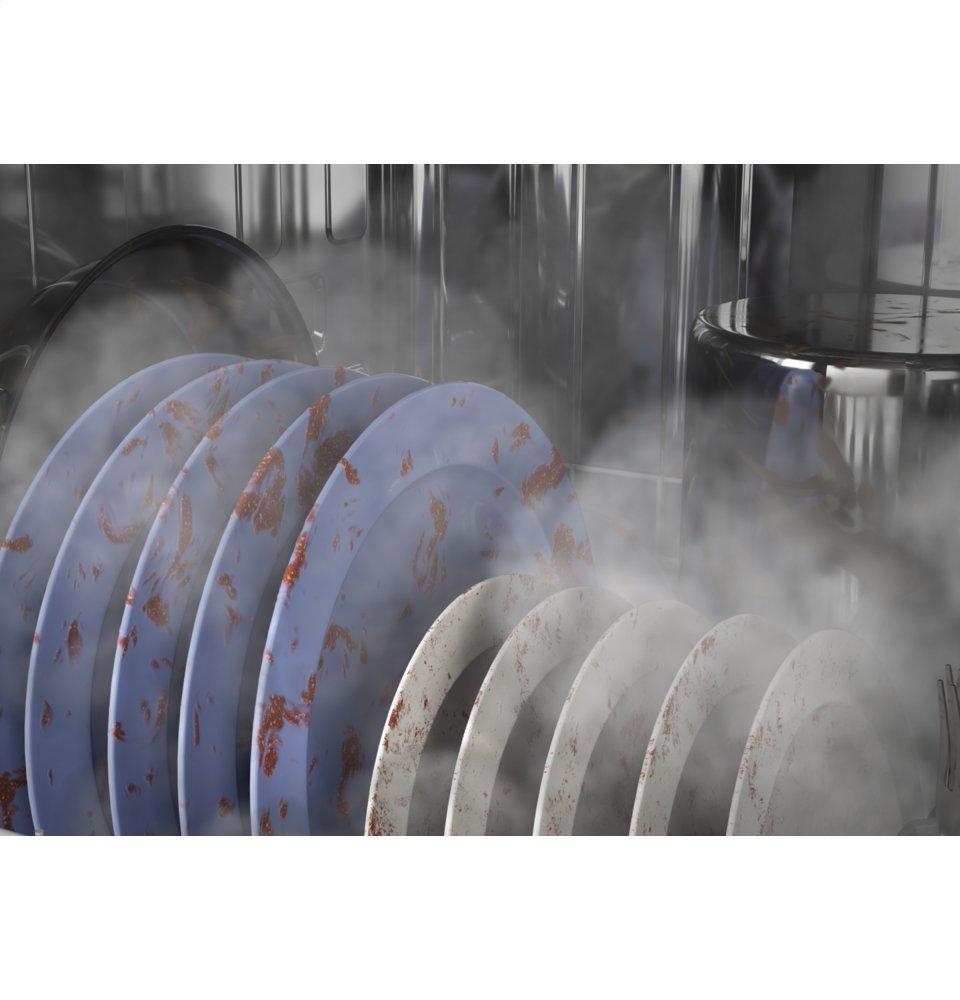

Steam + Sani

Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes. Plus a High-temperature rinse sanitizes and reduces 99.999% of bacteria found on dishes
1 Hour Wash

Enjoy a quality clean when you're short on time
Piranha Hard Food Disposer
To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms

- Dry Boost(TM) with Fan Assist
- Gets hard-to-dry items up to 3 times drier than heated dry cycles *Compared to heated dry option
- Bottle Jets
- Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean
- 3rd Rack
- Easily clean an entire flatware collection, knives and small utensils with an additional rack across the top of the dishwasher
- Steam + Sani
- Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes. Plus a High-temperature rinse sanitizes and reduces 99.999% of bacteria found on dishes
- 1 Hour Wash
- Enjoy a quality clean when you're short on time

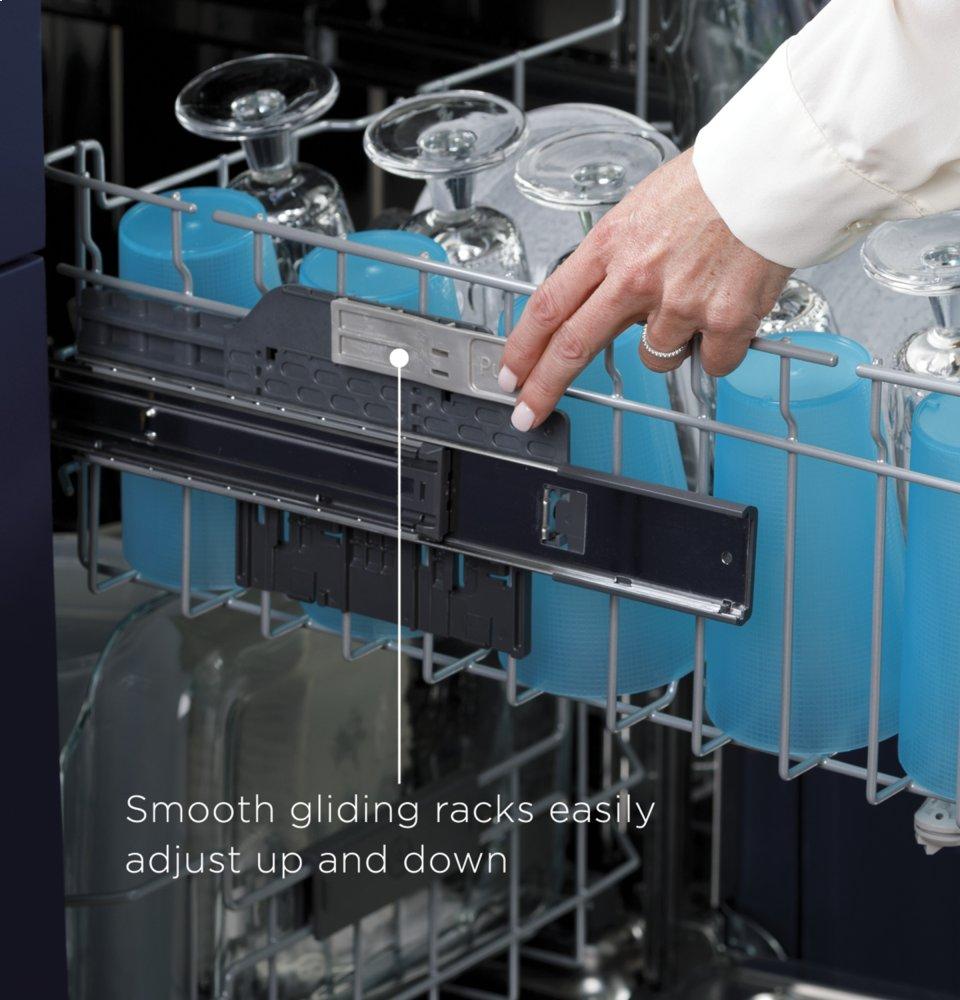

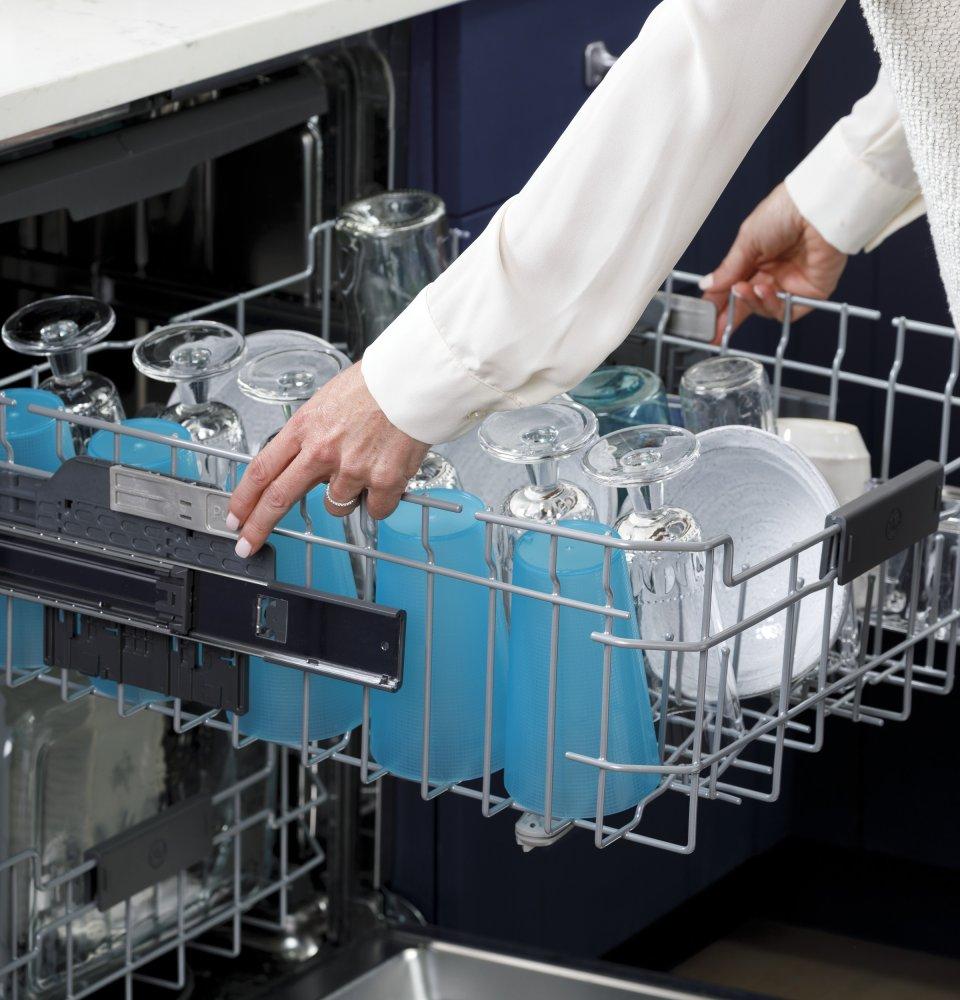

- Adjustable Full-extension smooth-glide upper rack
- Loading and unloading is smooth and simple with a durable rack that fully extends on ball bearings
- Piranha Hard Food Disposer
- To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms
- AutoSense cycle
- Automatically adjusts to soil level to maximize energy savings and ensure clean dishes

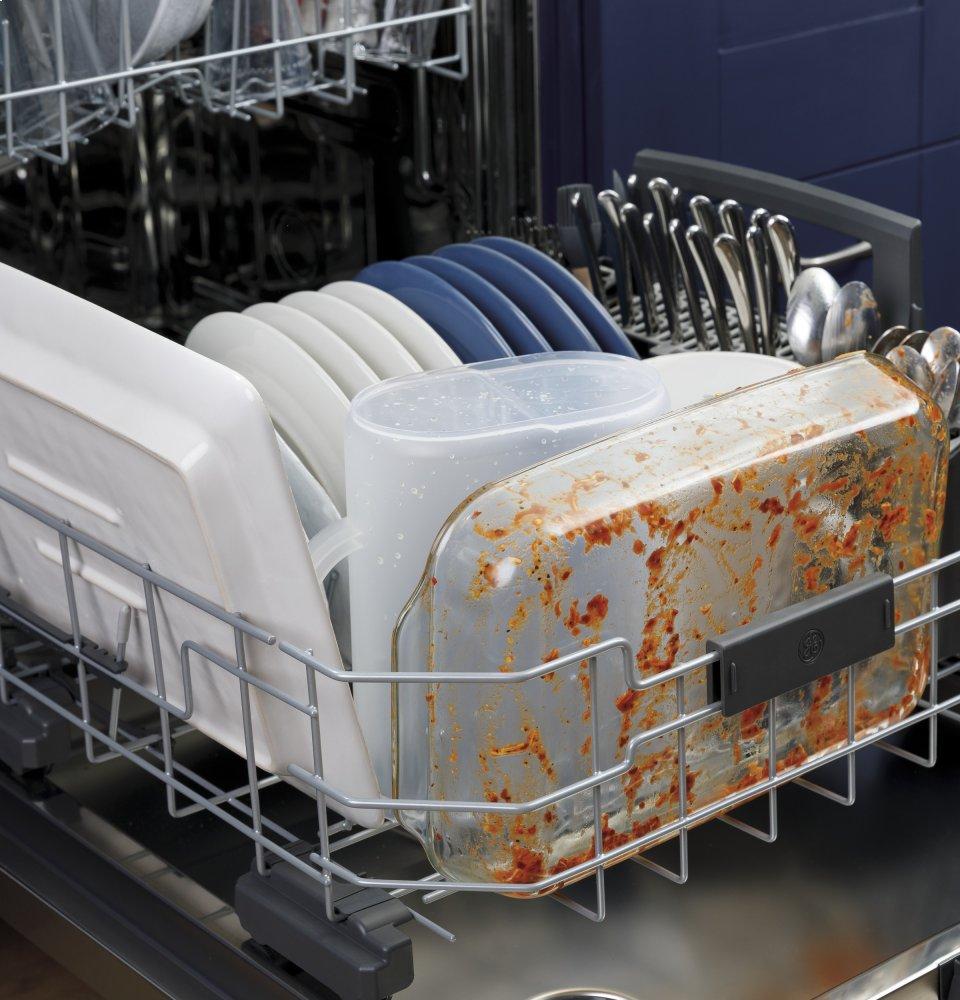

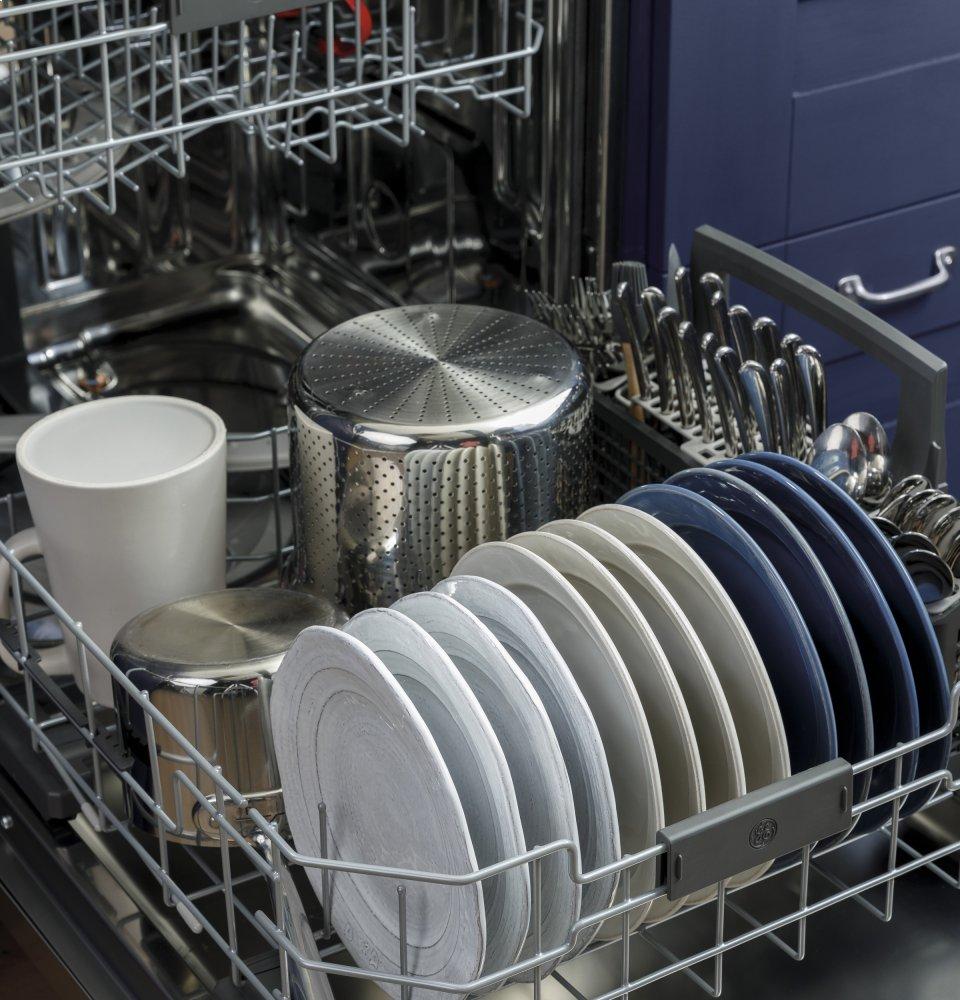

- 16 Place Setting Capacity
- Easily clean dishes after large gatherings thanks to extra capacity that holds up to 16 place settings
- 46 dBA
- Ultra-quiet operation creates a peaceful kitchen environment even as it delivers powerful wash performance
- Active Flood Protect
- An internal sensor prevents the dishwasher from potentially overflowing, so you have peace of mind with every cycle
FILTER | |
App Filter - Bottle Wash | Yes |
App Filter - Food Disposer | Yes |
App Filter - Stainless Steel Interior | Yes |
App Filter - Cabinet Width | Dish Traditional 24 in. |
App Filter - Product Type | Dish Built-In Top Control |
App Filter - WiFi Connect | Optional |
APPEARANCE | |
Handle | Rounded Handle - Color Matched |
Installation | Built-Up Floor Capable Flush Cabinet Installation Side or Top Mount Install Brackets Included |
Handle Color | Color-Matched |
Door Appearance | Full-length door |
Door Style | Long Door with Top Controls |
Color Appearance | Black |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
POWER / RATINGS | |
Calrod Heater Watts | 800/500 |
Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
Volts/Hertz/Amps | 120V; 60Hz; 6.6A |
ECONOMICAL / QUIET | |
Quiet Features | Quiet Water Valve Sealed Toe Kick Tub Collar Trim |
Quiet Package | 46 dBA |
Outer Wrap | Bitumen Full-wrap Blanket |
Motor Type | Single Speed |
Door Insulation | Insulation Mastic |
WEIGHTS & DIMENSIONS | |
Net Weight | 99.0 |
Overall Depth | 24.0 |
Overall Depth with Handle | 25.6 |
Height w/Legs Extended - Maximum Height | 34.625 |
Overall Width | 23.75 |
Overall Height | 34.0 |
Approximate Shipping Weight | 112.0 |
Cabinet Width | 24.0 |
Height w/ Legs Retracted - Minimum Height | 33.375 |
FEATURES | |
Wash System Features | Automatic HotStart Automatic Temperature Control Bottle Jets (4) Drain Pump Dual Pumps and Motors Piranha™ Hard Food Disposer with removable filter |
Style | Built-In Top Control |
Upper Rack | 1 Rack handle Ball-Tip Tines Premium Height Adjustable |
Racking Material | Nylon |
Rack Features | 1 Piece Silverware Basket with 3 Cell Covers Adjustable Upper Rack Ball-Tipped Tines Fold-Down Tines - Lower |
Dishwasher Control Features | 1 'Clean' Light, 1 'Sanitized' Light Cycle Progress Indicators 3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door Audible End-of-Cycle Signal Last Cycle Memory |
WiFi Connect | Optional (Requires part no. PBX23W00Y0) |
Showroom Power Mode | Yes |
Dishwasher Drying Features | Dry Boost™ Fan Assist Dry Heated Dry - On/Off Multi-Wattage Wash & Dry Element |
Leveling System | 4 Leveling Legs |

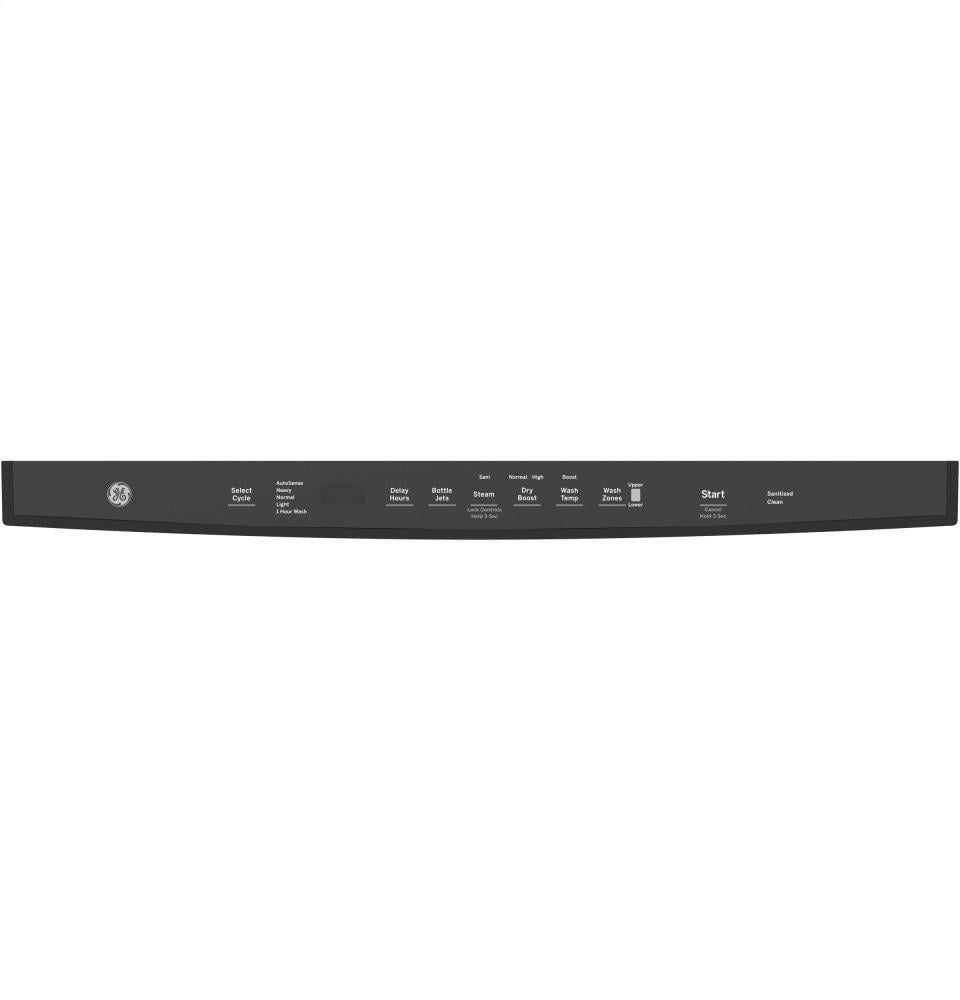

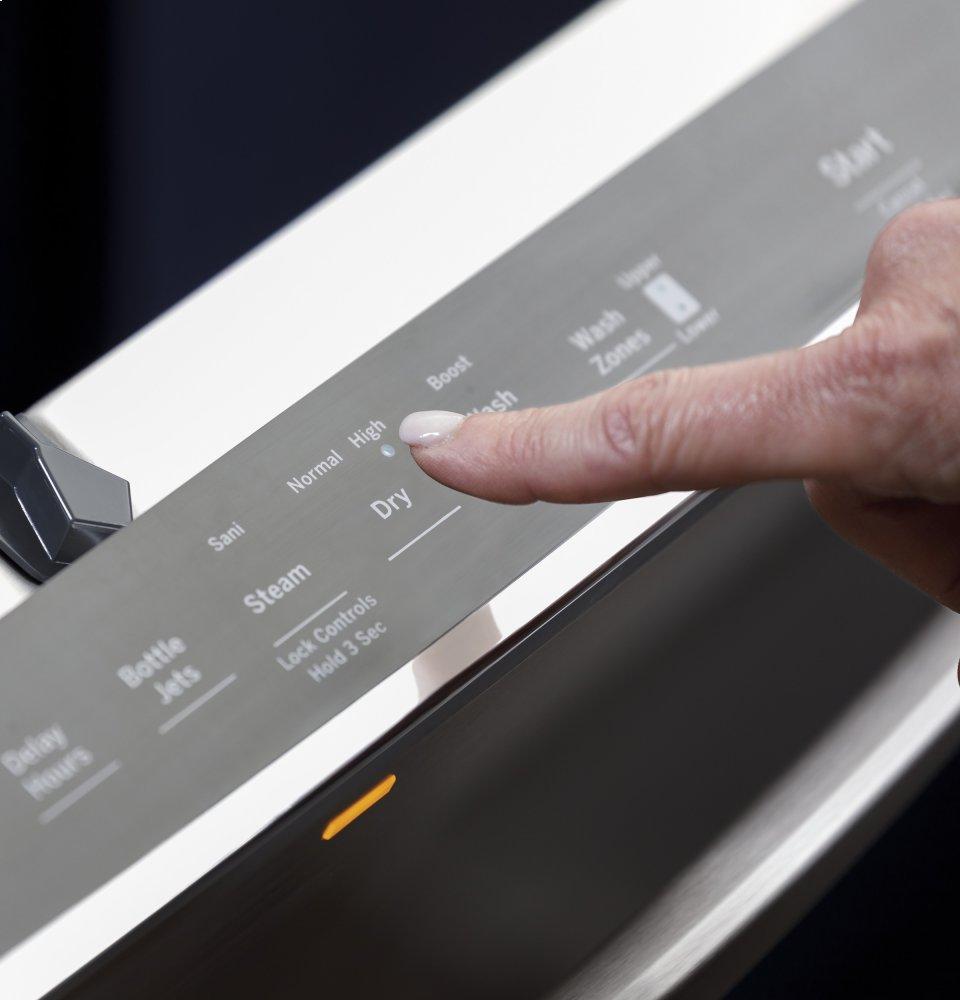

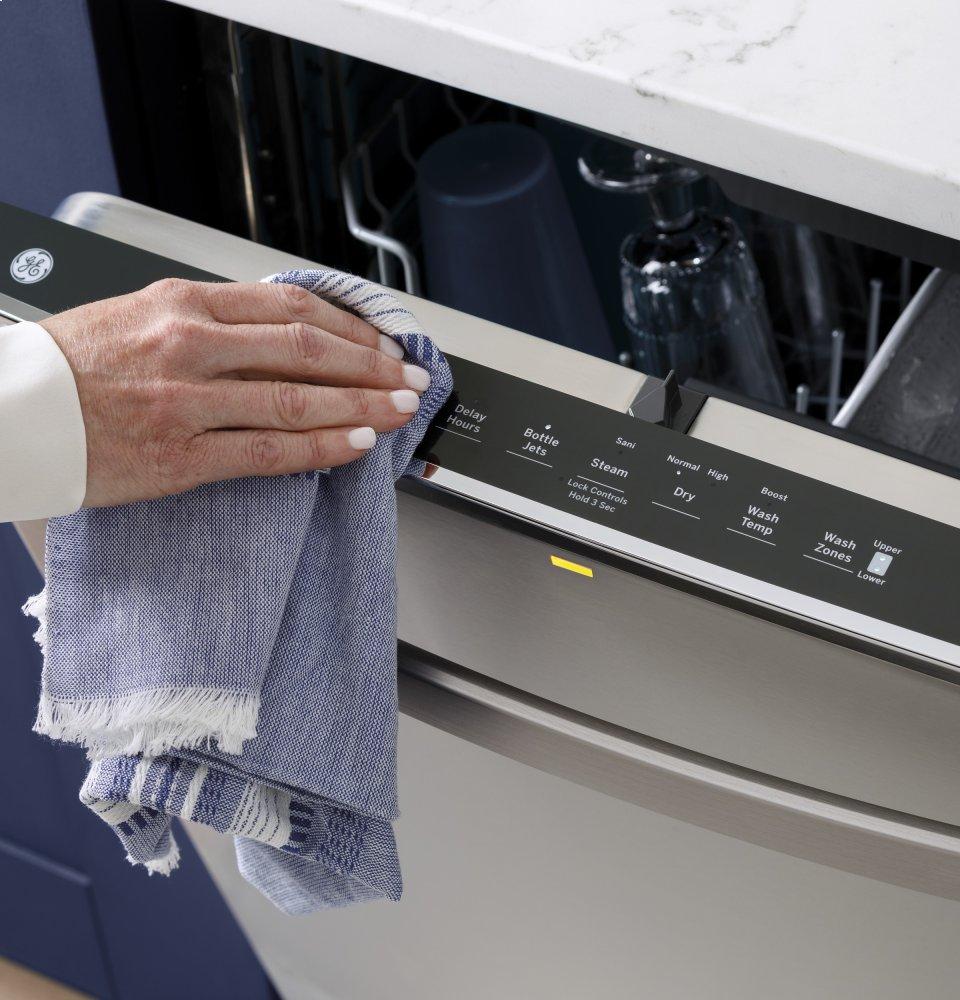

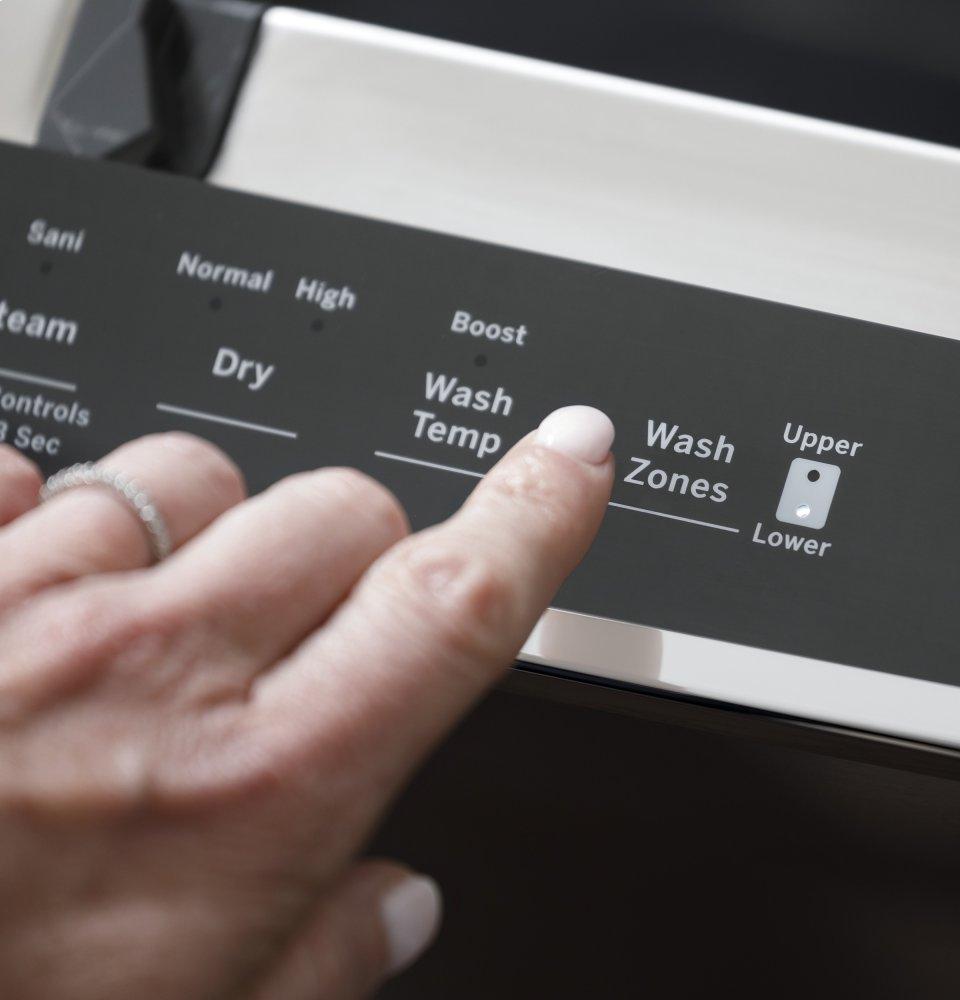

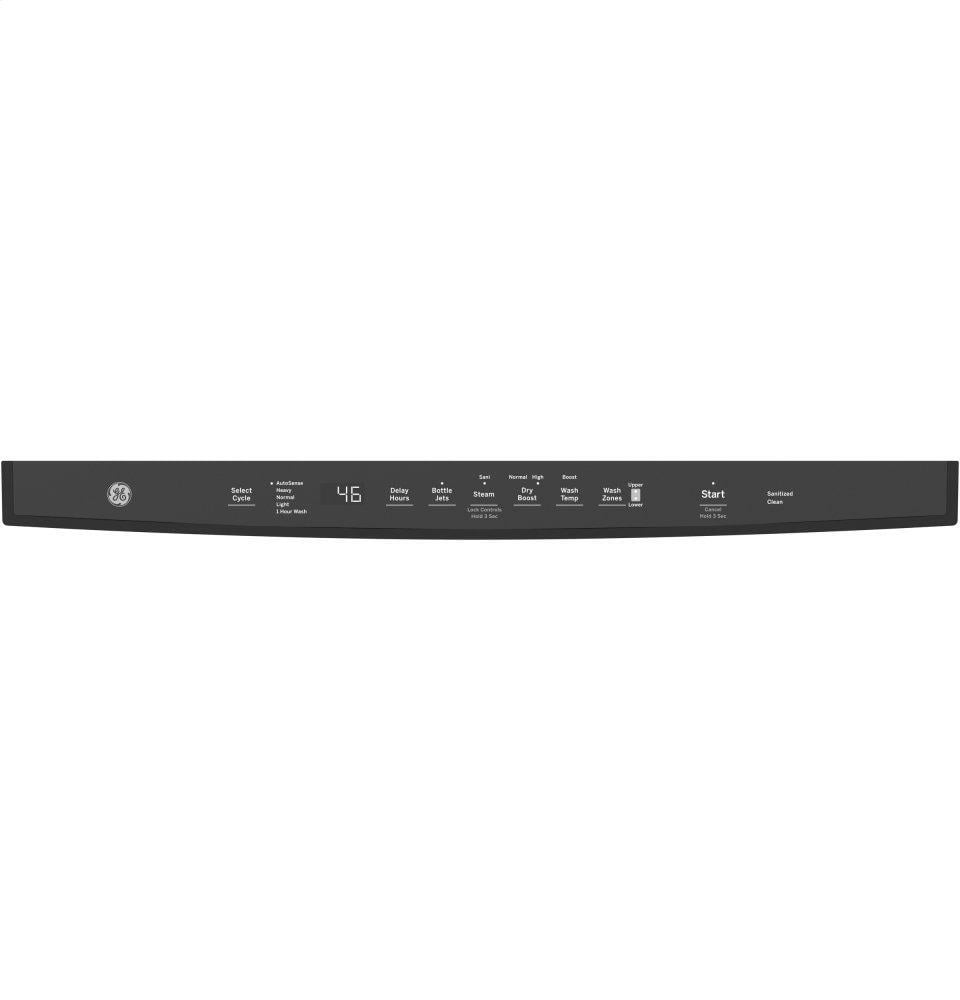

Control Type | 8 Touchpads Clean Touch Controls Top Controls |
Number of Place Settings | Up to 16 |
Tub Type | Tall Tub |
Rack Color | Silver |
Exterior Style | Traditional |
Number of Cycles | 5 |
Wash System | 3-Level 600 Series |
Racking System | Full 3rd rack |
Dishwasher Cycles | 1 Hour Wash Auto Sense Heavy Wash Light Wash Normal Wash |
Number of Options | 11 |
Dishwasher Options | Bottle Jets Child Lock Delay Start 1-12 Hr. Dry Boost™ Heated Dry Sani (Certified to NSF Standard 184) Start/Reset Steam PreWash Wash TempBoost Wash Zone Lower Only Wash Zone Upper Only |
Tub and Door Liner | Stainless Steel |
Latch | Pull with Handle |

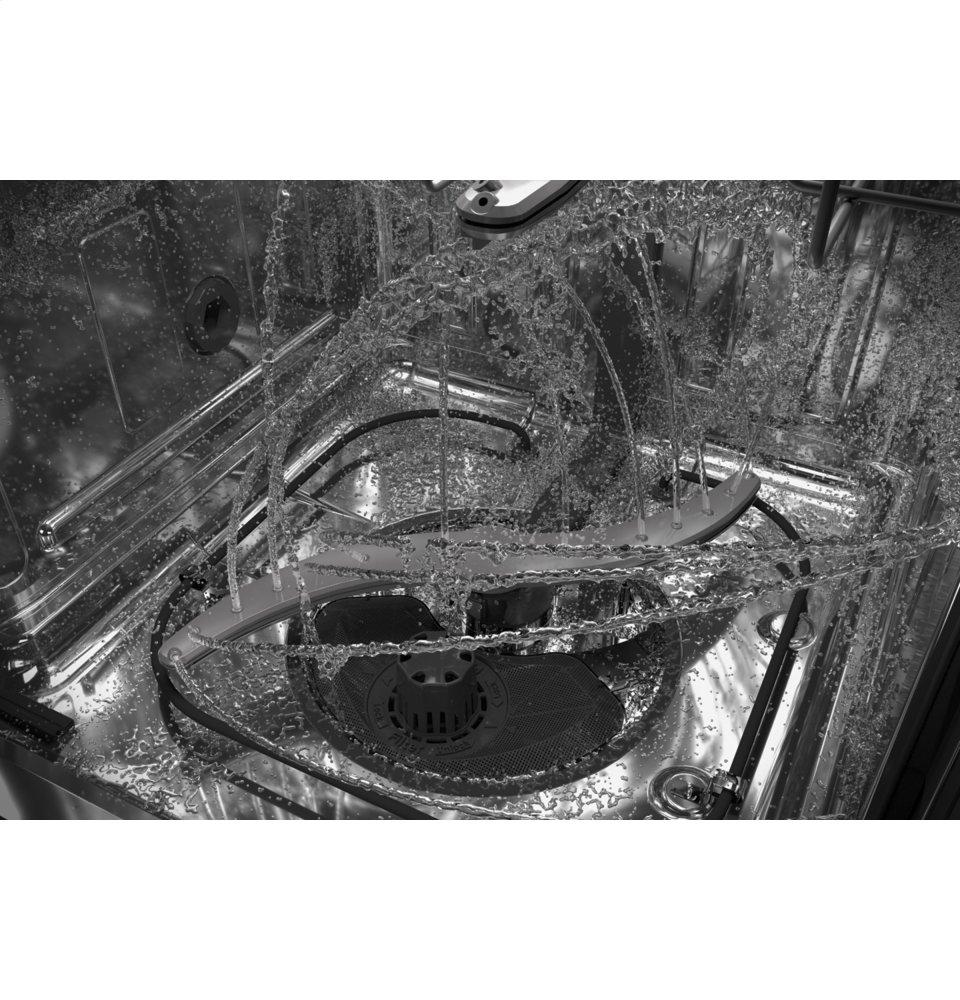

Wash Arms | 3 Wash Levels Lower Middle Upper |
Lower Rack | 1 Rack handle Ball-Tip Tines Multi-Position Fold Down Tines |
Additional Protection | Active Flood Protect |
Water Filtration System | 100% Filtration with Piranha Hard Food Disposer and Removable Filter |
Sensor | Clean Sensor |
Dispenser | Rinse Aid with Indicator and Adjustment |
Overview
Dry Boost(TM) with Fan Assist
Gets hard-to-dry items up to 3 times drier than heated dry cycles *Compared to heated dry option

Bottle Jets
Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean

3rd Rack

Easily clean an entire flatware collection, knives and small utensils with an additional rack across the top of the dishwasher
Steam + Sani

Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes. Plus a High-temperature rinse sanitizes and reduces 99.999% of bacteria found on dishes
1 Hour Wash

Enjoy a quality clean when you're short on time
Piranha Hard Food Disposer
To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms

Description
Features
- Dry Boost(TM) with Fan Assist
- Bottle Jets
- 3rd Rack
- Steam + Sani
- 1 Hour Wash
- Adjustable Full-extension smooth-glide upper rack
- Piranha Hard Food Disposer
- AutoSense cycle
- 16 Place Setting Capacity
- 46 dBA
- Active Flood Protect
Specifications
FILTER | |
App Filter - Bottle Wash | Yes |
App Filter - Food Disposer | Yes |
App Filter - Stainless Steel Interior | Yes |
App Filter - Cabinet Width | Dish Traditional 24 in. |
App Filter - Product Type | Dish Built-In Top Control |
App Filter - WiFi Connect | Optional |
APPEARANCE | |
Handle | Rounded Handle - Color Matched |
Installation | Built-Up Floor Capable Flush Cabinet Installation Side or Top Mount Install Brackets Included |
Handle Color | Color-Matched |
Door Appearance | Full-length door |
Door Style | Long Door with Top Controls |
Color Appearance | Black |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
POWER / RATINGS | |
Calrod Heater Watts | 800/500 |
Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
Volts/Hertz/Amps | 120V; 60Hz; 6.6A |
ECONOMICAL / QUIET | |
Quiet Features | Quiet Water Valve Sealed Toe Kick Tub Collar Trim |
Quiet Package | 46 dBA |
Outer Wrap | Bitumen Full-wrap Blanket |
Motor Type | Single Speed |
Door Insulation | Insulation Mastic |
WEIGHTS & DIMENSIONS | |
Net Weight | 99.0 |
Overall Depth | 24.0 |
Overall Depth with Handle | 25.6 |
Height w/Legs Extended - Maximum Height | 34.625 |
Overall Width | 23.75 |
Overall Height | 34.0 |
Approximate Shipping Weight | 112.0 |
Cabinet Width | 24.0 |
Height w/ Legs Retracted - Minimum Height | 33.375 |
FEATURES | |
Wash System Features | Automatic HotStart Automatic Temperature Control Bottle Jets (4) Drain Pump Dual Pumps and Motors Piranha™ Hard Food Disposer with removable filter |
Style | Built-In Top Control |
Upper Rack | 1 Rack handle Ball-Tip Tines Premium Height Adjustable |
Racking Material | Nylon |
Rack Features | 1 Piece Silverware Basket with 3 Cell Covers Adjustable Upper Rack Ball-Tipped Tines Fold-Down Tines - Lower |
Dishwasher Control Features | 1 'Clean' Light, 1 'Sanitized' Light Cycle Progress Indicators 3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door Audible End-of-Cycle Signal Last Cycle Memory |
WiFi Connect | Optional (Requires part no. PBX23W00Y0) |
Showroom Power Mode | Yes |
Dishwasher Drying Features | Dry Boost™ Fan Assist Dry Heated Dry - On/Off Multi-Wattage Wash & Dry Element |
Leveling System | 4 Leveling Legs |
Control Type | 8 Touchpads Clean Touch Controls Top Controls |
Number of Place Settings | Up to 16 |
Tub Type | Tall Tub |
Rack Color | Silver |
Exterior Style | Traditional |
Number of Cycles | 5 |
Wash System | 3-Level 600 Series |
Racking System | Full 3rd rack |
Dishwasher Cycles | 1 Hour Wash Auto Sense Heavy Wash Light Wash Normal Wash |
Number of Options | 11 |
Dishwasher Options | Bottle Jets Child Lock Delay Start 1-12 Hr. Dry Boost™ Heated Dry Sani (Certified to NSF Standard 184) Start/Reset Steam PreWash Wash TempBoost Wash Zone Lower Only Wash Zone Upper Only |
Tub and Door Liner | Stainless Steel |
Latch | Pull with Handle |
Wash Arms | 3 Wash Levels Lower Middle Upper |
Lower Rack | 1 Rack handle Ball-Tip Tines Multi-Position Fold Down Tines |
Additional Protection | Active Flood Protect |
Water Filtration System | 100% Filtration with Piranha Hard Food Disposer and Removable Filter |
Sensor | Clean Sensor |
Dispenser | Rinse Aid with Indicator and Adjustment |
Rebates
Manuals / Guides
Reviews
Your Selected Items

Ge Appliances GDT665SGNBB Ge® Top Control With Stainless Steel Interior Dishwasher With Sanitize Cycle & Dry Boost With Fan Assist
X1
$851.24
