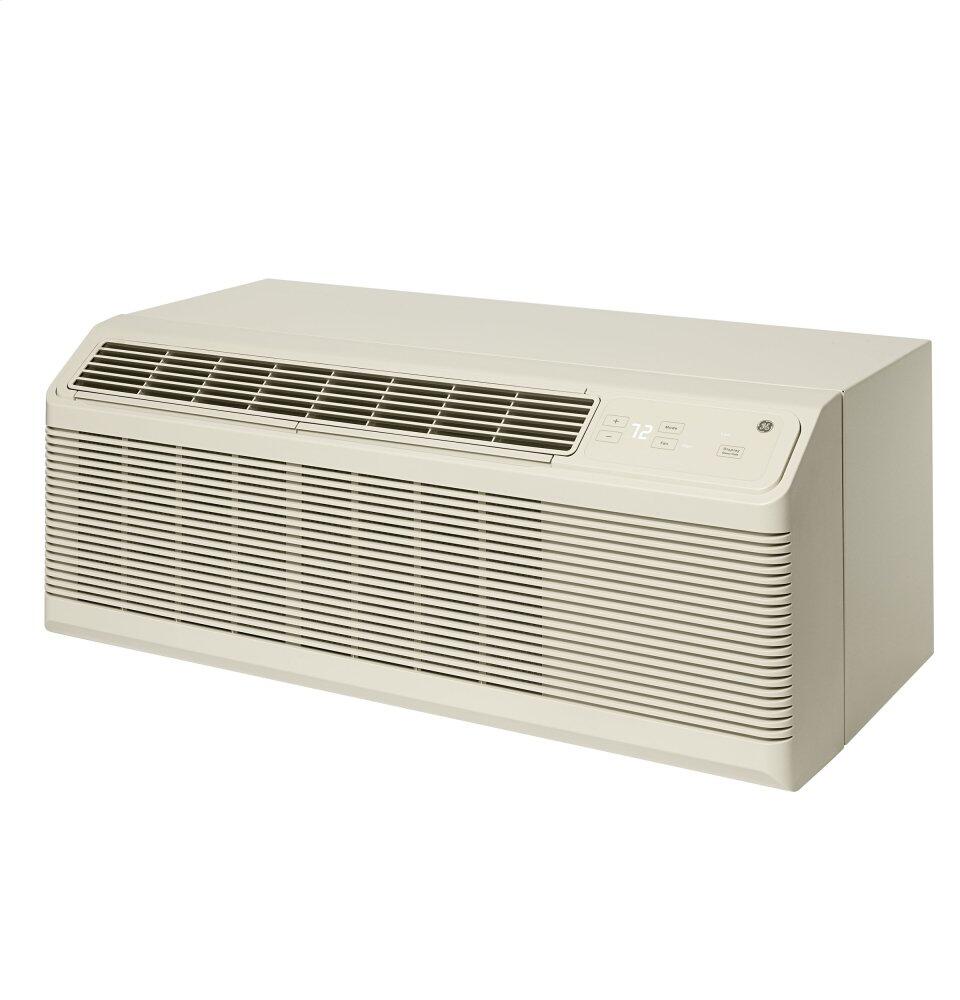

Ge Appliances AZ45E09DBM Ge Zoneline® Cooling And Electric Heat Unit With Makeup Air, 230/208 Volt
Smc Base Pan Simplified StructureEasy To Maintain And Service Product Built To O... Read more...
SKU:AZ45E09DBM
UPC:084691822097
This Item Qualifies for Free Delivery!
- Regular price
- Sale price
-
List Price: $2,209.00
See Lower Price in Cart
?As retailers we are entitled to the right for setting our own price. However, some manufacturers place restrictions on pricing. Our price on this item is lower than the manufacturer's minimum advertised price. To see our price, simply, place the item in your cart or proceed with the checkout process. This enables us to provide the lowest possible prices for a vast selection of appliances.Our Price: $1,982.10
- Regular price
- Unit price
- per
Extended protection
5 year plan
$359.993 year plan
$188.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?
Smc Base Pan Simplified StructureEasy To Maintain And Service Product Built To Order, Lead Times May Vary Makeup AirDelivers 25-50 Cfm Of Continuous Makeup Air Whenever The Room Is Occupied Energy EfficiencyWhen Paired With Occupancy Sensing Hardware, Ventilation Can Be Halted During Vacancy DehumidificationDehumidifies At A Rate Of 5-6 Pints Per 24 Hours (Based On Cfm Level) Heat & Freeze SentinelsKeeps The Room From Overheating Or Freezing Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room Electronic Touch Controls With Led Display May Reduce The Need For Individually Ducted Rooftop Systems Because Makeup Air Increases Room Btu Load Requirements And Requires Additional Ptac Cooling Or Heating, The Building'S Electrical Needs May Be Impacted Makeup Air Models Are Not Recommended For Installation Within Two Miles Of Coastal Areas It Is Strongly Recommended To Install Makeup Air With Wall Thermostats
Simplified structure
Easy to maintain and service
Makeup air
Delivers 25-50 CFM of continuous makeup air whenever the room is occupied
- SMC base pan
- Simplified structure
- Easy to maintain and service
- Product built to order, lead times may vary
- Makeup air
- Delivers 25-50 CFM of continuous makeup air whenever the room is occupied
- Energy efficiency
- When paired with occupancy sensing hardware, ventilation can be halted during vacancy
- Dehumidification
- Dehumidifies at a rate of 5-6 pints per 24 hours (based on CFM level)
- Heat & Freeze Sentinels
- Keeps the room from overheating or freezing
- Electronic temperature limiting
- Prevents expensive over-cooling or over-heating of the room
- Electronic touch controls with LED display
- May reduce the need for individually ducted rooftop systems
- Because makeup air increases room BTU load requirements and requires additional PTAC cooling or heating, the building's electrical needs may be impacted
- Makeup air models are not recommended for installation within two miles of coastal areas
- It is strongly recommended to install makeup air with wall thermostats
| CAPACITY | |
| Cooling BTUH (MIN) | 9100.0 Btu |
| Cooling BTUH (MAX) | 9100.0 Btu |
| Cooling EER (BTUH / Watt) | 11.5/11.5 |
| CFM Indoor Fan High | 409 |
| CFM Indoor Fan Low | 280 |
| Dehumidification (pts./hr.) | 2.4 |
| Vent CFM (high fan at zero ESP) | 25-50 |
| FEATURES | |
| Control Type | Coverless Backlit White LED Touch Controls |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Louver Style | Reversible |
| Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step |
| Zoneline Features | Remote Thermostat Compatibility Universal Heaters Weather Protected Electrical Components Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel Power Cord (LDCI) included Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower |
| Heating System | Electric Resistance |
| Product Type | Makeup Air Conditioners |
| Temperature Range | 60 - 85 F |
| Sensible Heat Ratio | 75% |
| Chassis Type | Slide-In |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 5.1/5.2 |
| Cooling - Amperes; L.R. | 21.0 |
| Cooling - Watts | 790/790 |
| Power Factor | 98 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 135.0 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16.0 in |
| Overall Width | 42.0 in |
Overview
Simplified structure
Easy to maintain and service
Makeup air
Delivers 25-50 CFM of continuous makeup air whenever the room is occupied
Description
Smc Base Pan Simplified StructureEasy To Maintain And Service Product Built To Order, Lead Times May Vary Makeup AirDelivers 25-50 Cfm Of Continuous Makeup Air Whenever The Room Is Occupied Energy EfficiencyWhen Paired With Occupancy Sensing Hardware, Ventilation Can Be Halted During Vacancy DehumidificationDehumidifies At A Rate Of 5-6 Pints Per 24 Hours (Based On Cfm Level) Heat & Freeze SentinelsKeeps The Room From Overheating Or Freezing Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room Electronic Touch Controls With Led Display May Reduce The Need For Individually Ducted Rooftop Systems Because Makeup Air Increases Room Btu Load Requirements And Requires Additional Ptac Cooling Or Heating, The Building'S Electrical Needs May Be Impacted Makeup Air Models Are Not Recommended For Installation Within Two Miles Of Coastal Areas It Is Strongly Recommended To Install Makeup Air With Wall Thermostats
Features
- SMC base pan
- Simplified structure
- Product built to order, lead times may vary
- Makeup air
- Energy efficiency
- Dehumidification
- Heat & Freeze Sentinels
- Electronic temperature limiting
- Electronic touch controls with LED display
- May reduce the need for individually ducted rooftop systems
- Because makeup air increases room BTU load requirements and requires additional PTAC cooling or heating, the building's electrical needs may be impacted
- Makeup air models are not recommended for installation within two miles of coastal areas
- It is strongly recommended to install makeup air with wall thermostats
Specifications
| CAPACITY | |
| Cooling BTUH (MIN) | 9100.0 Btu |
| Cooling BTUH (MAX) | 9100.0 Btu |
| Cooling EER (BTUH / Watt) | 11.5/11.5 |
| CFM Indoor Fan High | 409 |
| CFM Indoor Fan Low | 280 |
| Dehumidification (pts./hr.) | 2.4 |
| Vent CFM (high fan at zero ESP) | 25-50 |
| FEATURES | |
| Control Type | Coverless Backlit White LED Touch Controls |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Louver Style | Reversible |
| Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step |
| Zoneline Features | Remote Thermostat Compatibility Universal Heaters Weather Protected Electrical Components Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel Power Cord (LDCI) included Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower |
| Heating System | Electric Resistance |
| Product Type | Makeup Air Conditioners |
| Temperature Range | 60 - 85 F |
| Sensible Heat Ratio | 75% |
| Chassis Type | Slide-In |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 5.1/5.2 |
| Cooling - Amperes; L.R. | 21.0 |
| Cooling - Watts | 790/790 |
| Power Factor | 98 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 135.0 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16.0 in |
| Overall Width | 42.0 in |
