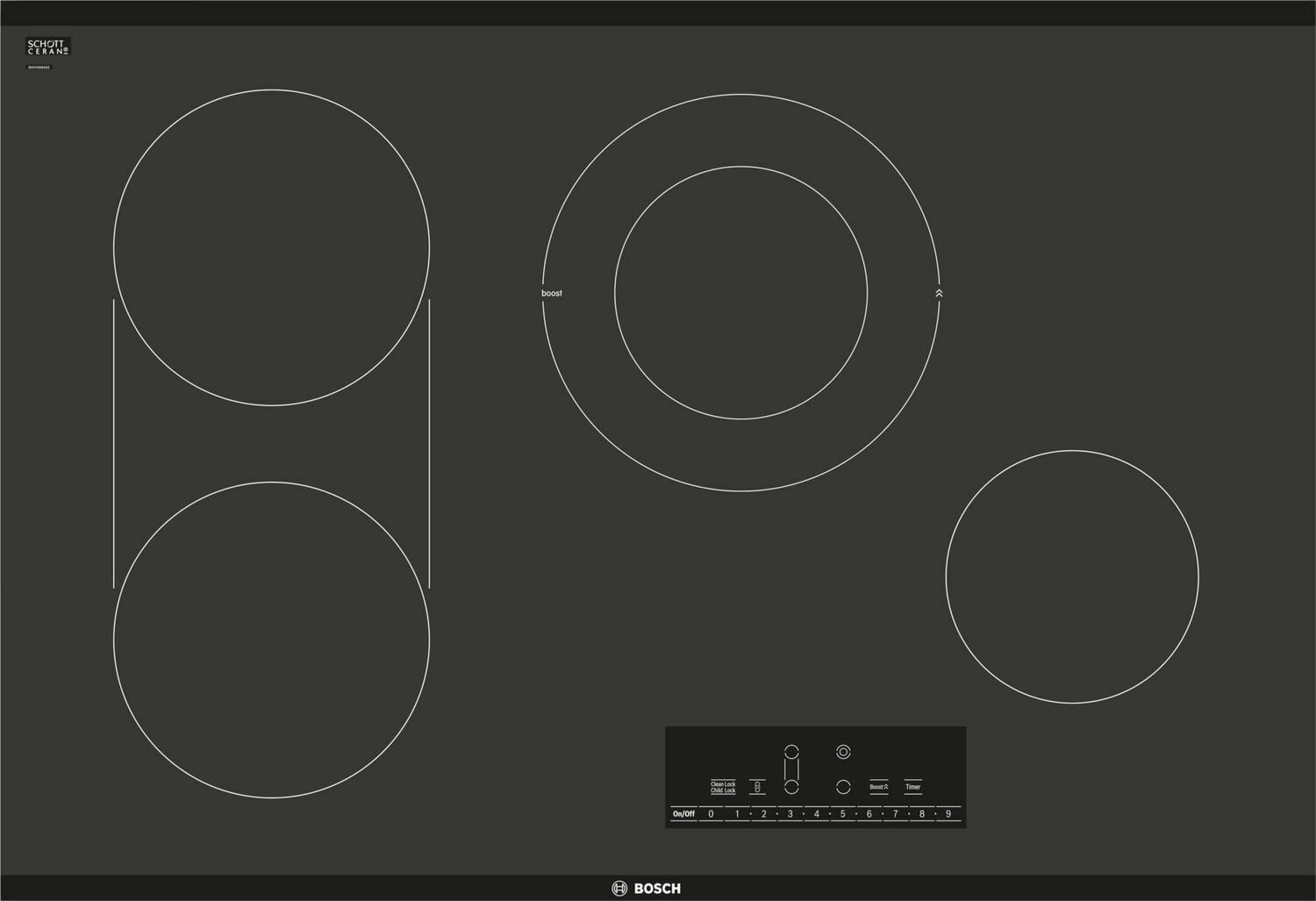

Bosch NET8068UC 800 Series 30" Electric Cooktop
Your temperature, your way.
Juggling multiple pots and pans on different power levels can be confusing and frustrating. With PreciseSelect(R), an intuitively designed control panel allows you to select the cooking zones and set the specific power level you want - quickly and easily.
Sleek in design, and features speedboost® which adds even more power to the cooking process.
- Bridge element: accommodates oblong pans and many diameters of cookware.
- The smooth ceramic glass: surface makes cooking and cleaning especially easy.
- SpeedBoost: offers shorter heat-up times for liquids.
- PreciseSelect: - direct cooking level selection.
- Each zone's timer: automatically shuts off when cooking is done.
Technical Specifications | |
General | |
Energy source | Electric |
Type of control | DirectSelect 1.0 (Timer), front |
Safety device | childproof lock, Key Lock, Safety time-switch-off |
Features | 17 power levels |
Construction type | |
Color of surface | Black |
Construction type | Built-in |
Design - line | Frameless |
Number of electric elements | 0 |
Number of electric cooking zones | 4 |
Type of frame | Frameless |
Number of gas burners | 0 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Total number of cooktop burners | 4 |
Number of radiant elements | 4 |
Number of electric warming zones | 0 |
Size and weight | |

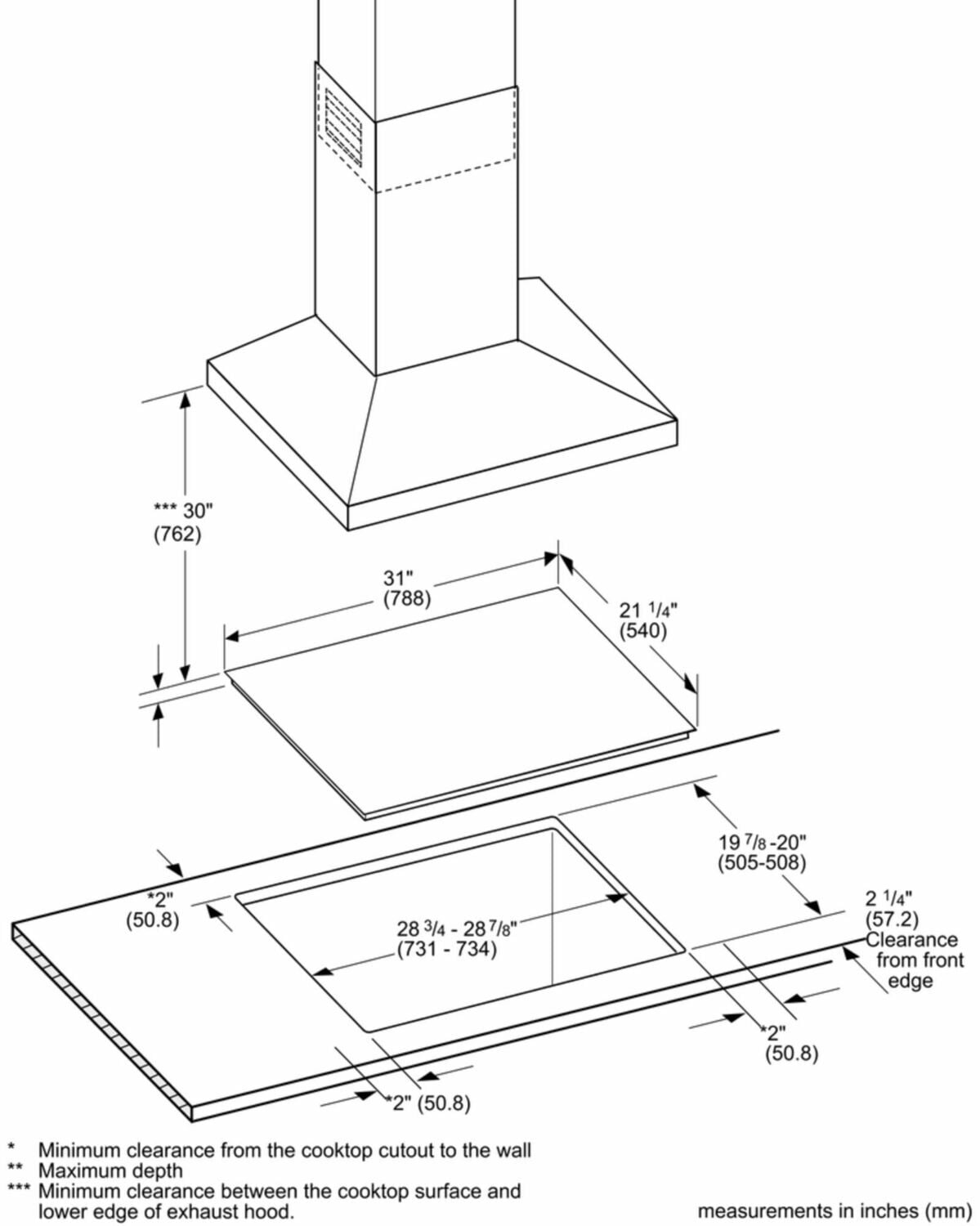

Overall appliance dimensions (HxWxD) (in) | 1/4' + 4' x 31' x 21 1/4' |
Net weight (lbs) | 26.000 |

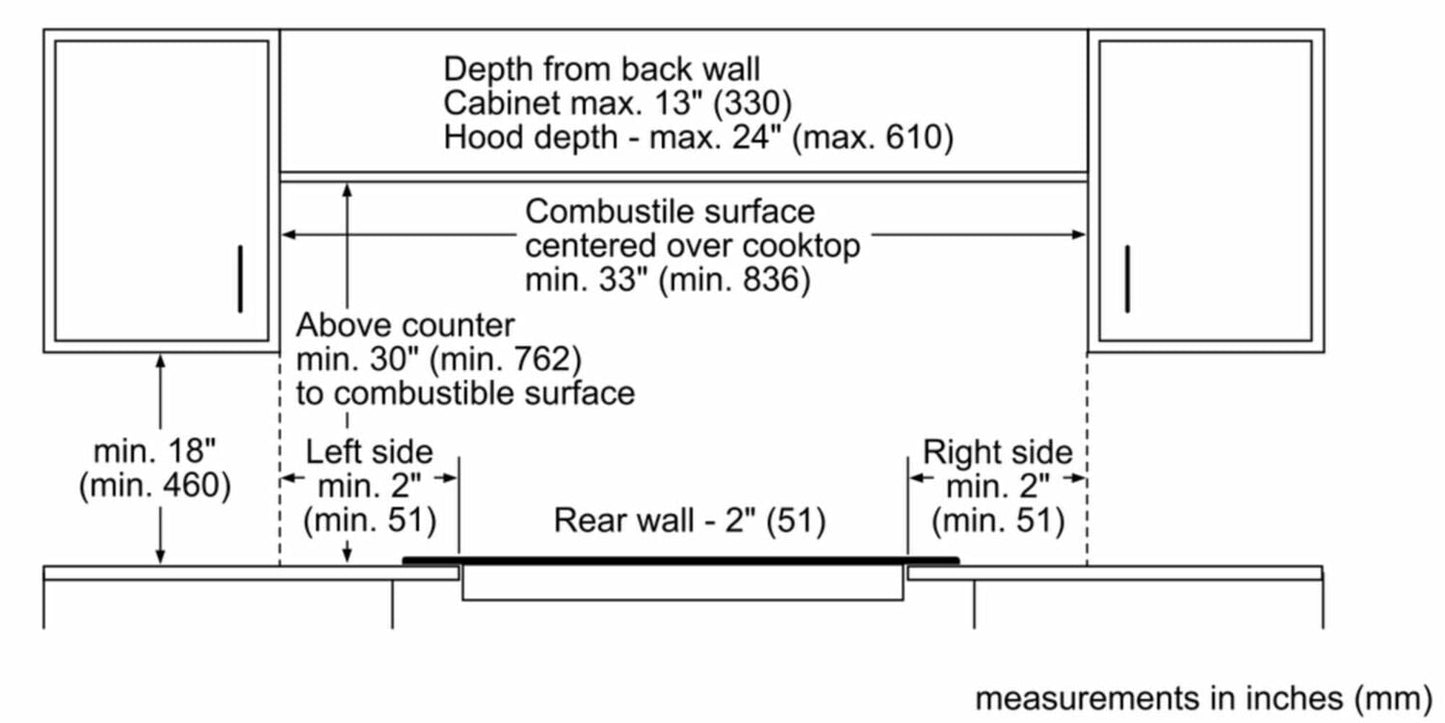

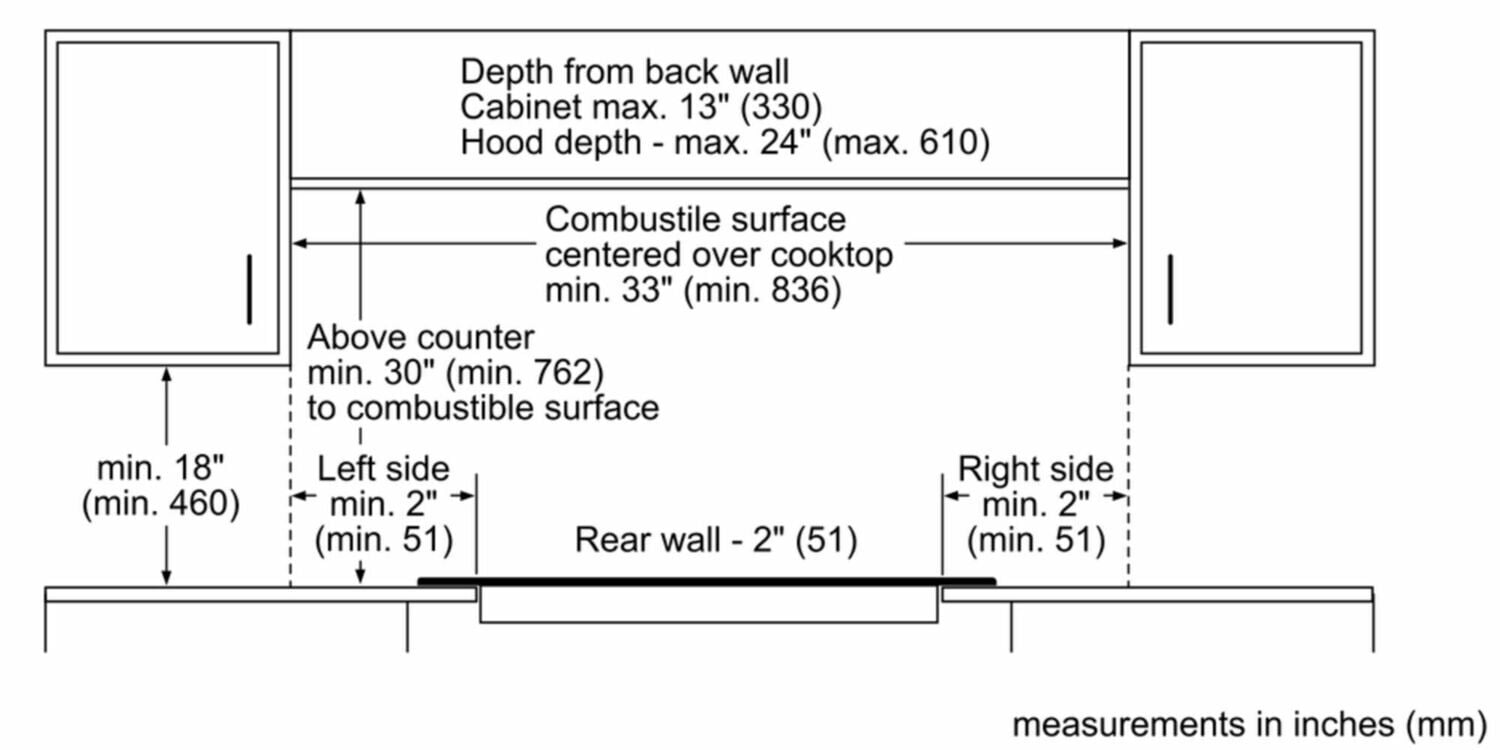

Minimum distance from counter front (in) | 2 1/4' |
Minimum distance from rear wall (in) | 2' |

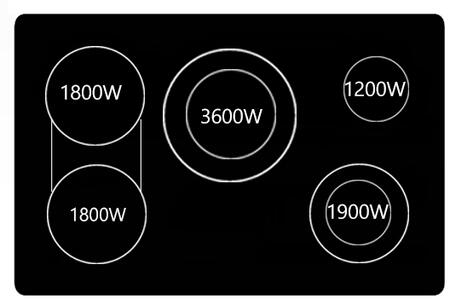

Cooking zone 1 | |
Dimension of 1st heating element (in) | 7' |
Location of 1st heating element | front left |
Power of heating element (kW) | 1.8 |
Type of heating element | Radiant heating |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Cooking zone 3 | |
Dimension of 3rd heating element (in) | 7' |
Location of 3rd heating element | back left |
Power of 3rd heating element (kW) | 1.8 |
Type of 3rd heating element | Radiant heating |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Dimension of 5th heating element (in) | 6' ; 9' |
Location of 5th heating element | back right |
Power of 5th heating element (kW) | 1.4 ; 3.6 |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 7 | |
Dimension of 7th heating element (in) | 6' |
Location of 7th heating element | front right |
Power of 7th heating element (kW) | 1.2 |
Type of 7th heating element | Radiant heating |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Safety | |
Power on indicator | |
Residual heat indicator | Separate |
Safety device | childproof lock, Key Lock, Safety time-switch-off |
Main on/off switch | |
Connection | |
Frequency (Hz) | 60 |
Energy source | Electric |
Watts (W) | 8,300 |
