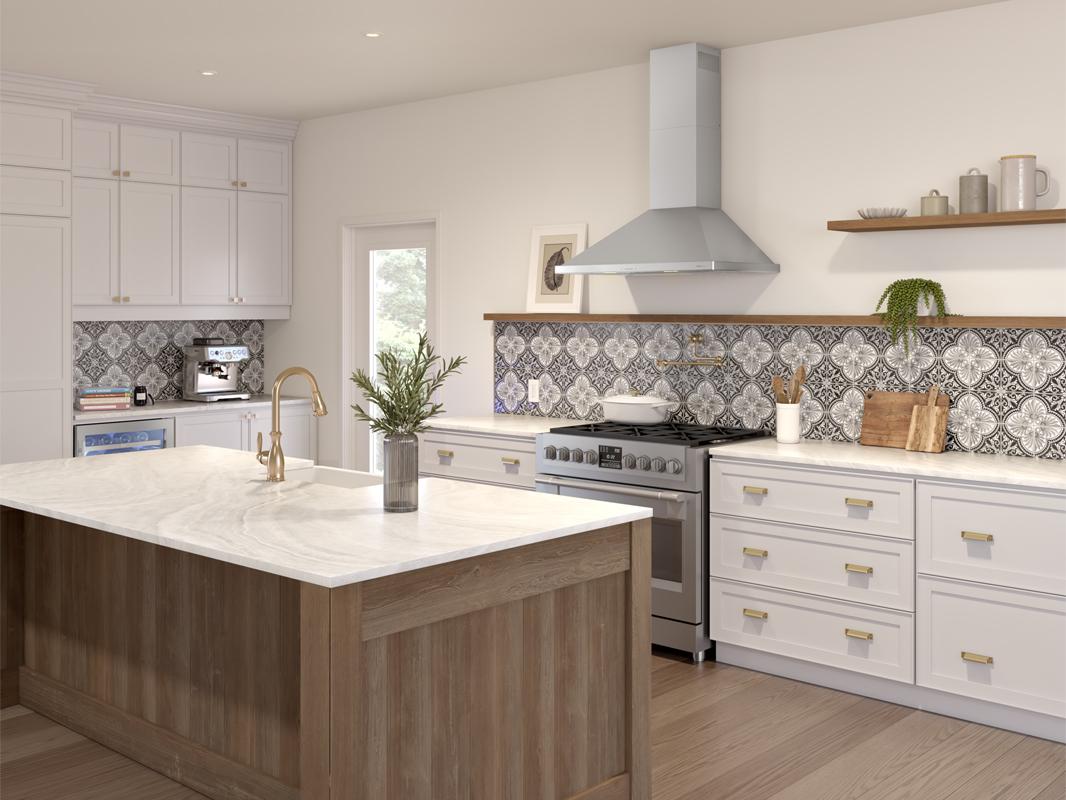

Zephyr ZSIE36BSES 36" Siena Wall Energy Star®
The Siena Wall ENERGY STAR® range hood is packed with power.
With a 400-CFM blower and Airflow Control Technology™ (ACT™), this ENERGY STAR-certified hood has a versatile range of features perfect for any kitchen.
Featuring LumiLight LED lights, ICON Touch® controls, and an optional extension duct cover accessory, clearing the air is as simple as the touch of a button.
Dimensions & Capacity Width: 35.87"
Height: 27.5"
Depth: 21.93"
- 290, 400 CFM
- Not Recirculating
- Hybrid Baffle Filter
- Stainless Steel
- Vertical and Horizontal Ducting
- LumiLight LED Lighting
- ENERGY STAR® Certified
- ICON Touch® Controls
- Airflow Control Technology™ (ACT™)
- Optional Duct Cover Extension Kit
.
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Ducted |
| UPC | 646328011610 |
| GTIN | 00646328011610 |
| Country of Origin | Taiwan |
| Model Group | ZSI-ES-B |
| Model Name | Siena ENERGY STAR |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 290 |
| Internal Blower 1 CFM | 400 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | ICON Touch® |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number | 50200050 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 26 - 34 |
| Voltage | 120 |
| Maximum Amperage | 1.2 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | Z1C-00SI, MUA006A, AK1716 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | Yes |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 144 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.875 |
| Net Depth; IN | 21.9375 |
| Net Height; IN | 27.5 - 42 |
| Weight; LBS | 41.8 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9 ft. |
| Chimney Height in. | 15 |
| Chimney Width in. | 10.5 |
| Chimney Depth in. | 8.43 |
| Shipping Length; IN | 41.65 |
| Shipping Width; IN | 18.5 |
| Shipping Height; IN | 29.06 |
| Shipping Weight; LBS | 55 |
| Shipping Method | Small Parcel |
| Freight Class | 300 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
