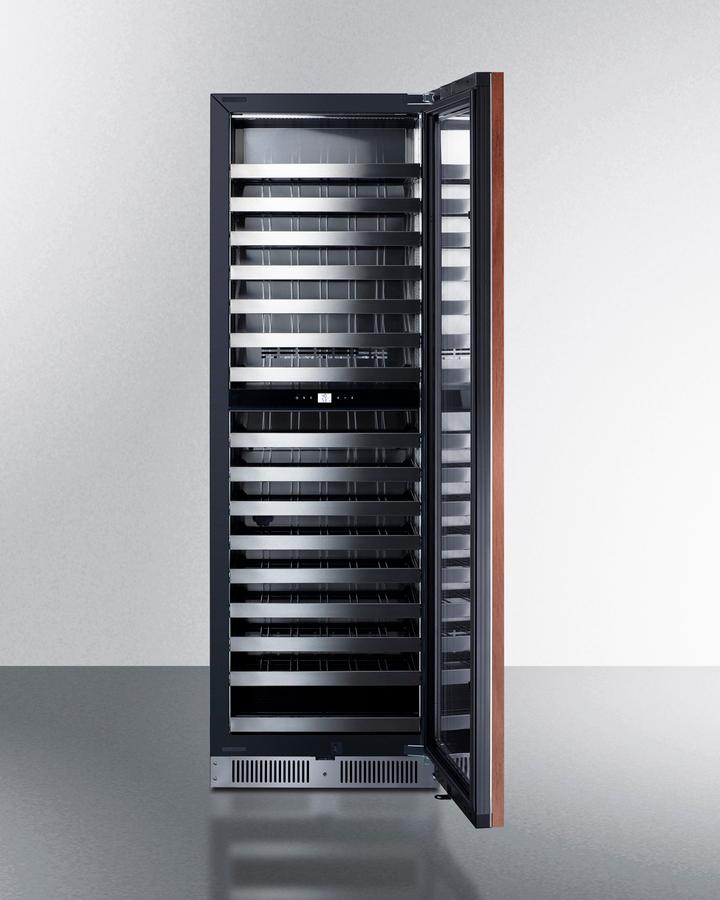

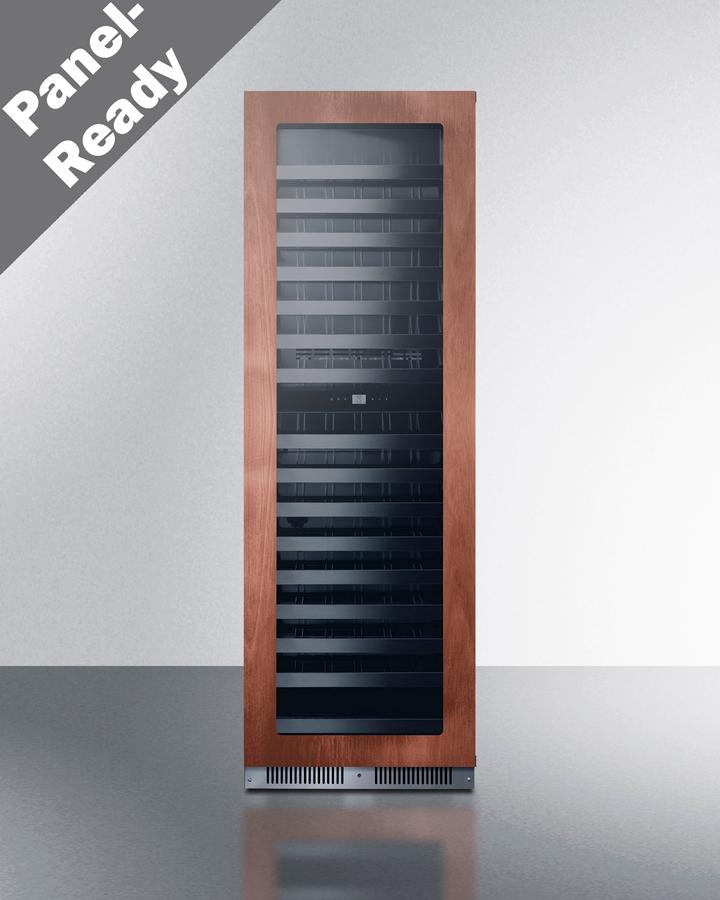

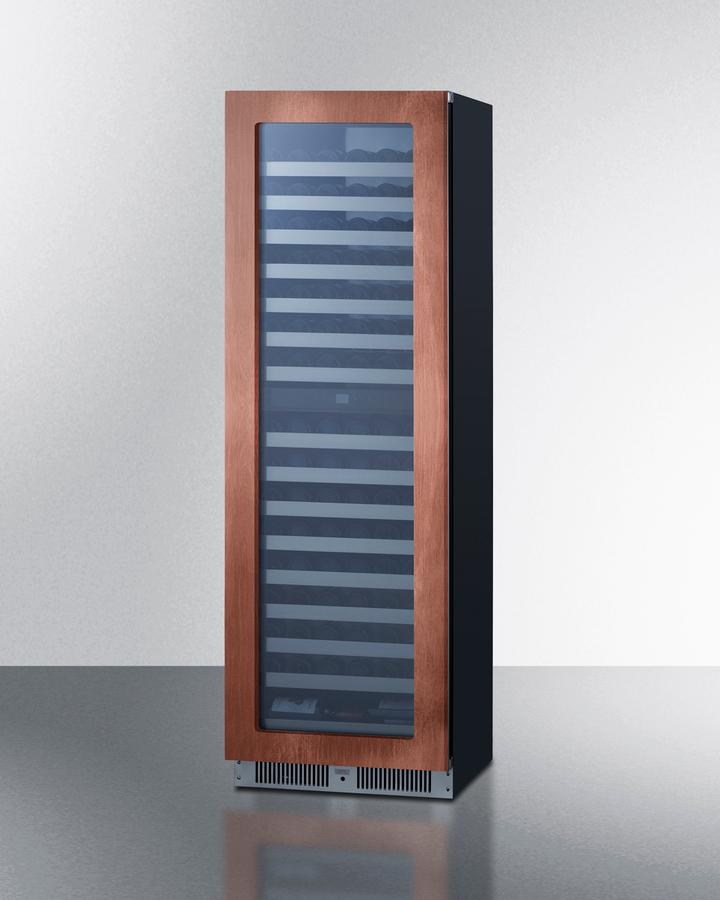

Summit SDHWC98PNRLHD 24" Wide Dual Zone Wine Cellar (Panel Not Included)

Summit'S Collection Of Premium Wine Cellars Brings Full Functionality, Convenience, And Elevated Style To Kitchens And Home Bars With Unique Space Limitations. The Sdhwc98Pnrlhd Is A 24" Wide Dual Zone Wine Cellar That Features A Front-Breathing Design For Built-In Installation. Sized At Just 18" Deep, This Wine Cellar Offers Slim-Fitting Elegance, Perfect For Narrow Home Bars And Kitchen Corners, Converted Spaces, Restaurants With Limited Real Estate, Or Other Spots Where You Can'T Fit A Full-Depth Unit. The Double Pane Tempered Glass Door Features A Fully Articulating European-Style Hinge Design To Ensure A Smoother Opening. We Include A 2-Piece Bracket Kit That Allows Easy Installation Of Your Own Custom Door Trim To Match Or Complement Adjacent Cabinetry. This Unit Has A Sealed Rear And Right-Angle Cord For A Better Fit. A Lock Is Located In The Kickplate For Added Convenience And Security. Inside, Model Sdhwc98Pnrlhd Includes A Stainless Steel Rear Wall For Improved Durability And Sanitation. Tri-Colored Led Lighting Featuring Amber, Blue, And White Options Offers Elegant Display Conditions With Dimmable Levels That Let You Create The Perfect Presentation. The Easy-To-Use Digital Control Panel Allows You To Manage The Upper Temperature Chamber Between 41 And 50 F For White Or Sparkling Wine, While The Lower Zone Is Designed To Store Red Wine Between 50 And 64 F. Fan-Forced Cooling Ensures Even Temperature Distribution And Fast Temperature Recovery. This Unit Features Premium Shelving In A Black Wire Finish With Stainless Steel Front Trim. The Shelves Are Full-Extension And Set On Ball-Bearing Glides For Smooth Loading. Optimal Storage Capacity Accommodates Up To 98 Standard 750Ml Bordeaux Or Burgundy Style Bottles (Note: Your Capacity May Vary Depending On The Bottle Style). Model Sdhwc98Pnrlhd Has Two Different Running Modes: Silent Mode, Which Minimizes Vibrations To Lower Noise Emissions And Creates A More Stable Storage Environment, Ideal For Preserving Your Wine'S Quality. The Second, Dynaclima Mode, Optimizes Both Temperature And Humidity Distribution For Long-Term Wine Storage, Mimicking The Conditions Of A Traditional Wine Storage Cabinet. Additional Features Include A Temperature Memory Function To Restore Set Temperature In The Case Of Power Loss And Sabbath Mode, Which Disables Certain Functions During Periods Of Religious Observance. A Built-In Alarm Audibly Warns If The Door Is Left Ajar Or If The Unit Rises Or Falls Out Of The Recommended Temperature Range. With Its Uniquely Shallow Depth, Elegant Design, And Premium Features, The Sdhwc98Pnrlhd Brings True Luxury To The Home. This Unit Comes With A Left Hand Door Swing. For This Model With A Right-Hand Door, See Model Sdhwc98Pnr. Explore Summit'S Extensive Catalog Of Wine Cellars And Beverage Centers At Summitappliance.Com Note: Due To Its Unique Size, This Unit Should Not Be Used Freestanding. To Prevent Tipping, Install The Anti-Tip Bracket Included In Your Packaging When Setting Up The Product.

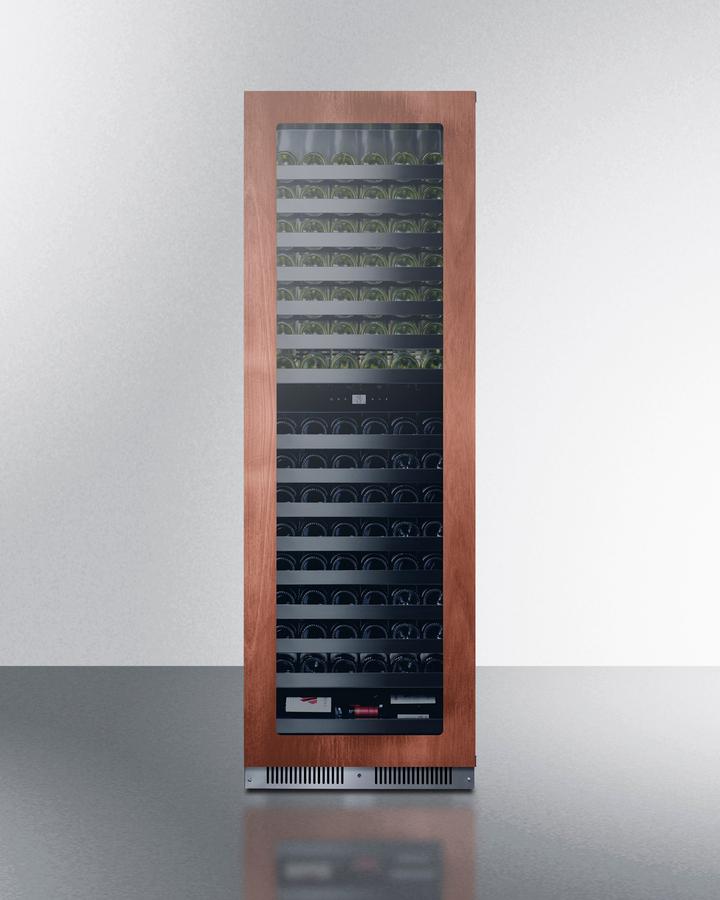

• Built-in 98-bottle wine cooler for dual zone storage in shallow cutouts

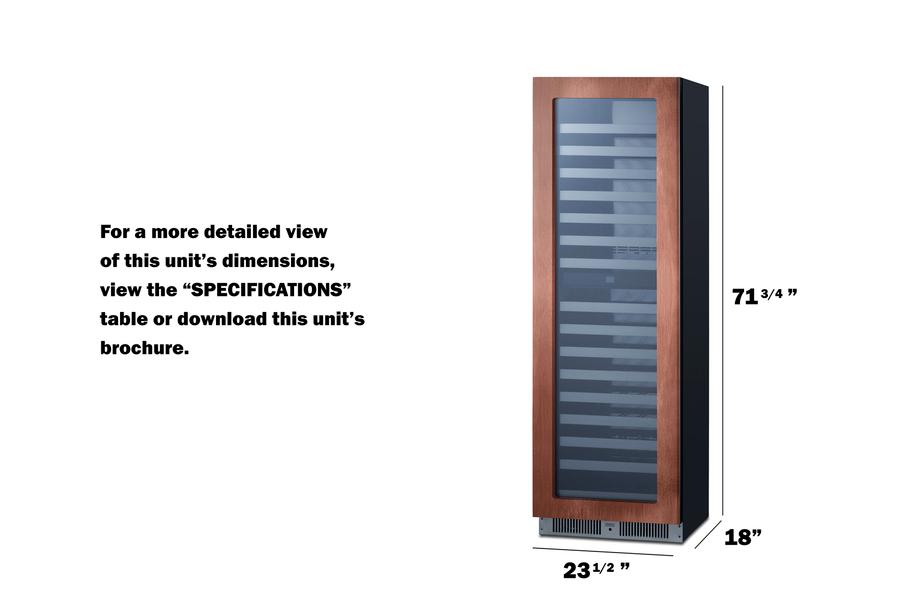

• 18" depth offers slim-fitting elegance, perfect for narrow home bars and kitchen corners, converted spaces, or other spots where you can't fit a full-depth unit
• Front-breathing cooling system to allow seamless integration inside cabinetry (recommended opening: 72" H x 24" W x 20" D)
• Upper zone operates between 41 and 50 F for chilled white and sparkling wine storage, while the lower zone can be set between 50 and 64 F to best preserve red wine

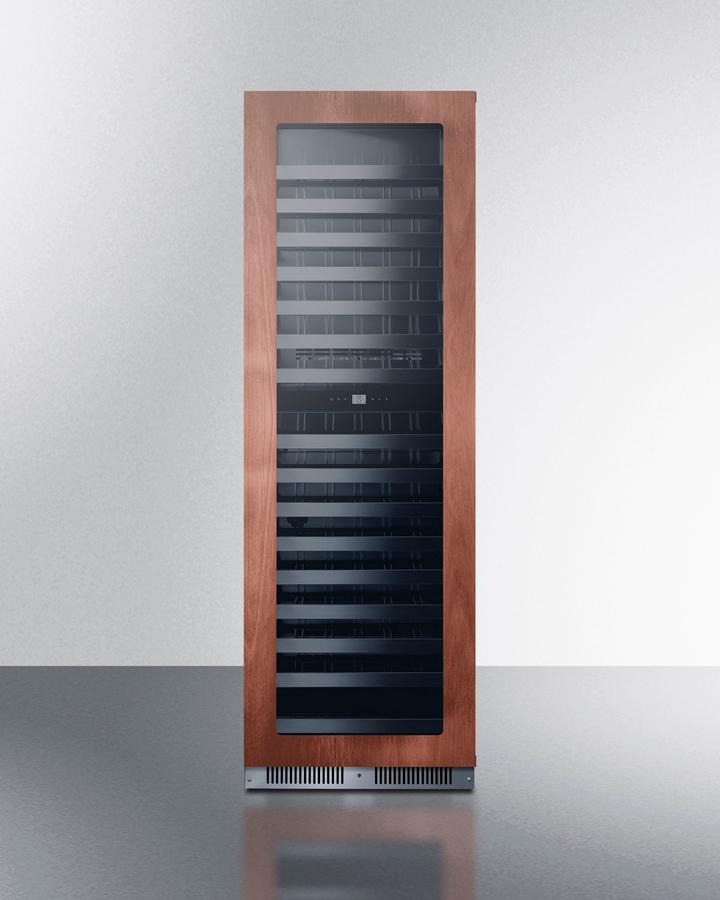

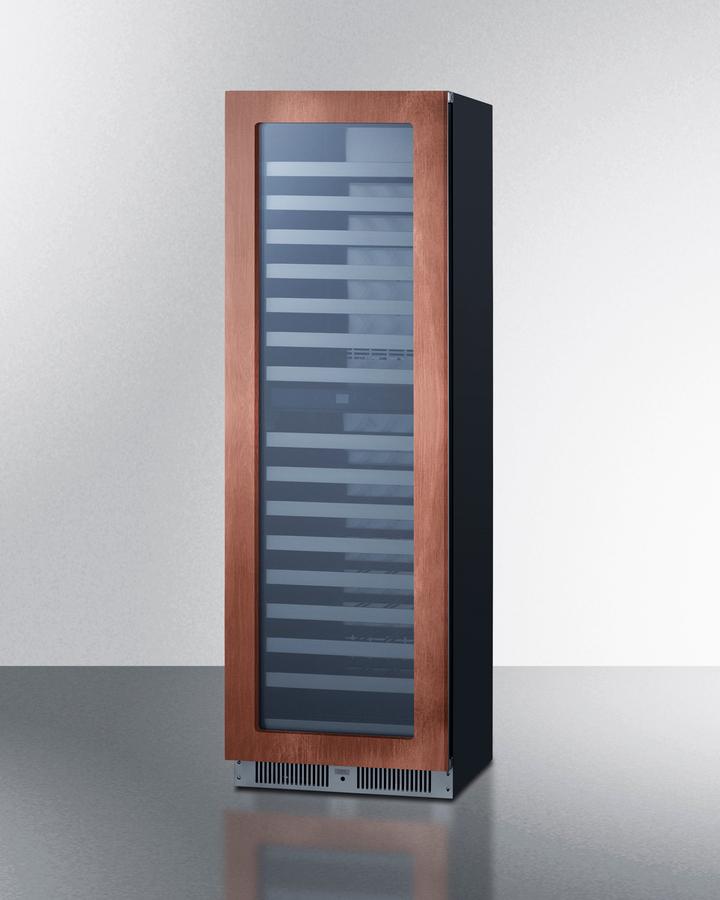

• Customize your wine cellar to blend into your cabinetry; recommended panel dimensions: 3/4" thickness at 67 3/4" H x 23 3/4" W with a 3 1/4" H x 3 1/4" W inner frame
• Enhanced panel execution allows the unit to be flush with cabinets
• European style hinge design ensures a flush fit and allows for a smoother opening
• Allows for seamless integration with other appliances
• Attractive glass door provides a complete but protected display of stored contents
• Stainless steel look for added elegance
• No-frost operation for minimum user maintenance
• Removable wire shelving in black with stainless steel from trim for an elegant, modern look

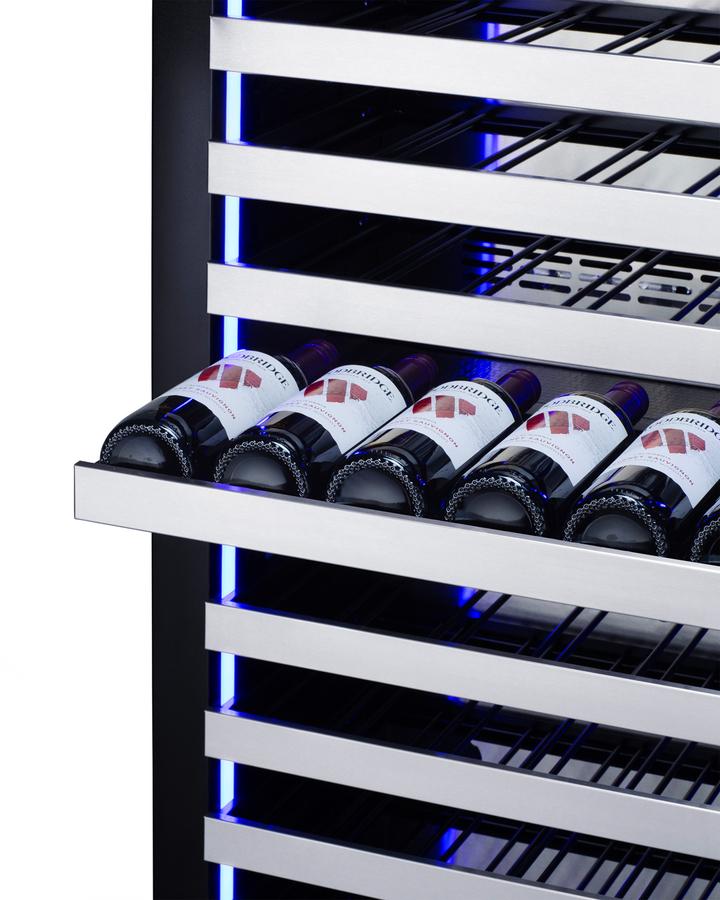

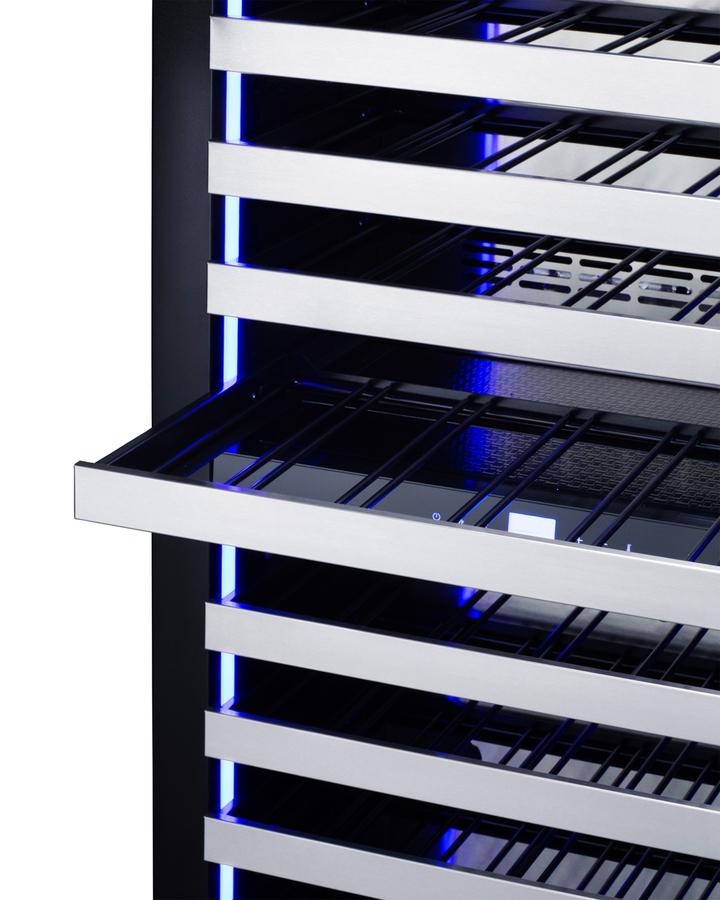

• 16 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
• Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle

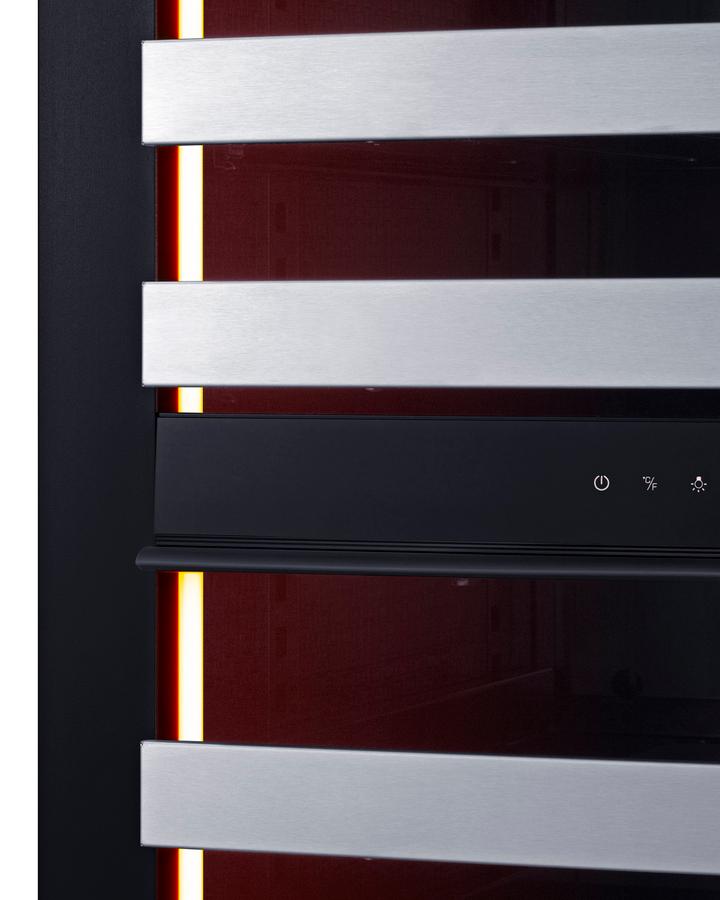

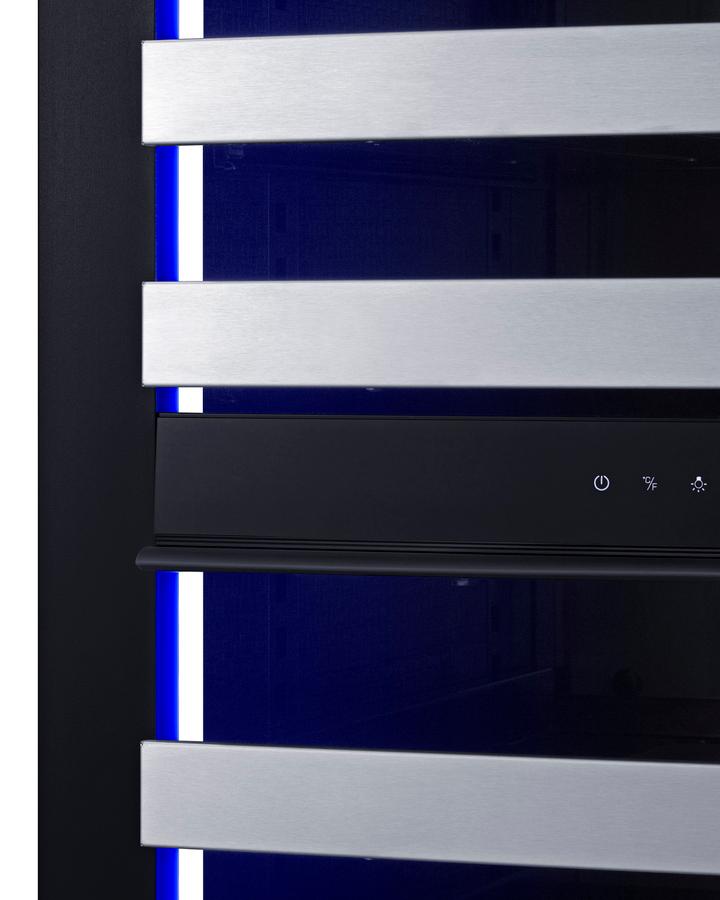

• Rotate your presentation style with a choice of blue, white, or amber LED lighting

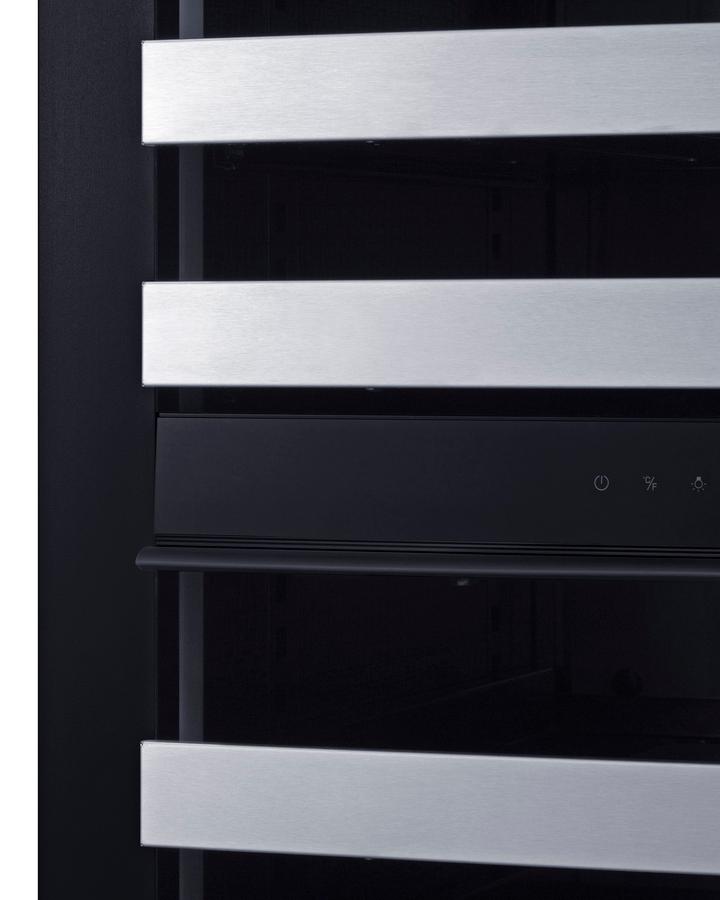

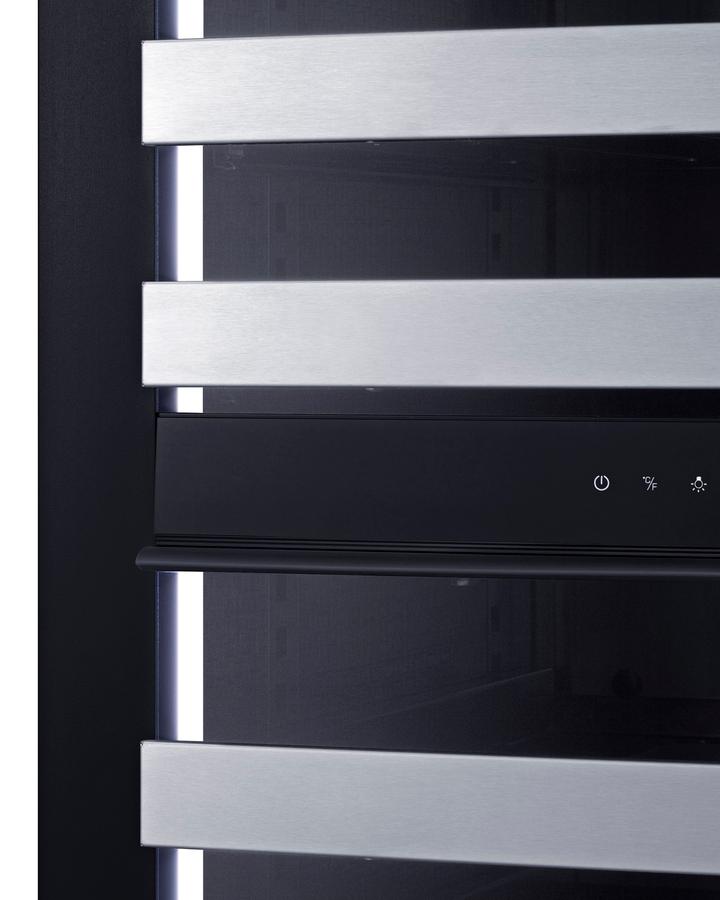

• Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
• Temperature readout can be shown in Celsius or Fahrenheit
• Optional setting lets you disable the lighting and alarm for up to 96 hours
• Stainless steel rear wall protects the unit's integrity and is easier to clean
• Keyed lock located in the kickplate for added security as needed
• Space-saving design with no exposed coils that offers easier cleanability
• Complete luxury down to the toe kick
• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Bracket included and must be installed to prevent tipping
• Inverter compressor ensures a whisper quiet operation, measured in our testing facilities at just 32.2 dB
• For this unit with the door opening from the other side, see model SDHWC98PNR
• Environmentally friendly design with no ozone-damaging chemicals
• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
