Thermador DWHD660EPR Dishwasher 24'' Custom Panel Ready
Thermador DWHD660EPR Dishwasher 24'' Custom Panel Ready
Free Delivery Available
EXTENDED PROTECTION
5 year plan
$369.00Shipping to
Couldn't load pickup availability
Thermador DWHD660EPR Dishwasher 24'' Custom Panel Ready
Rebates &
Promotions

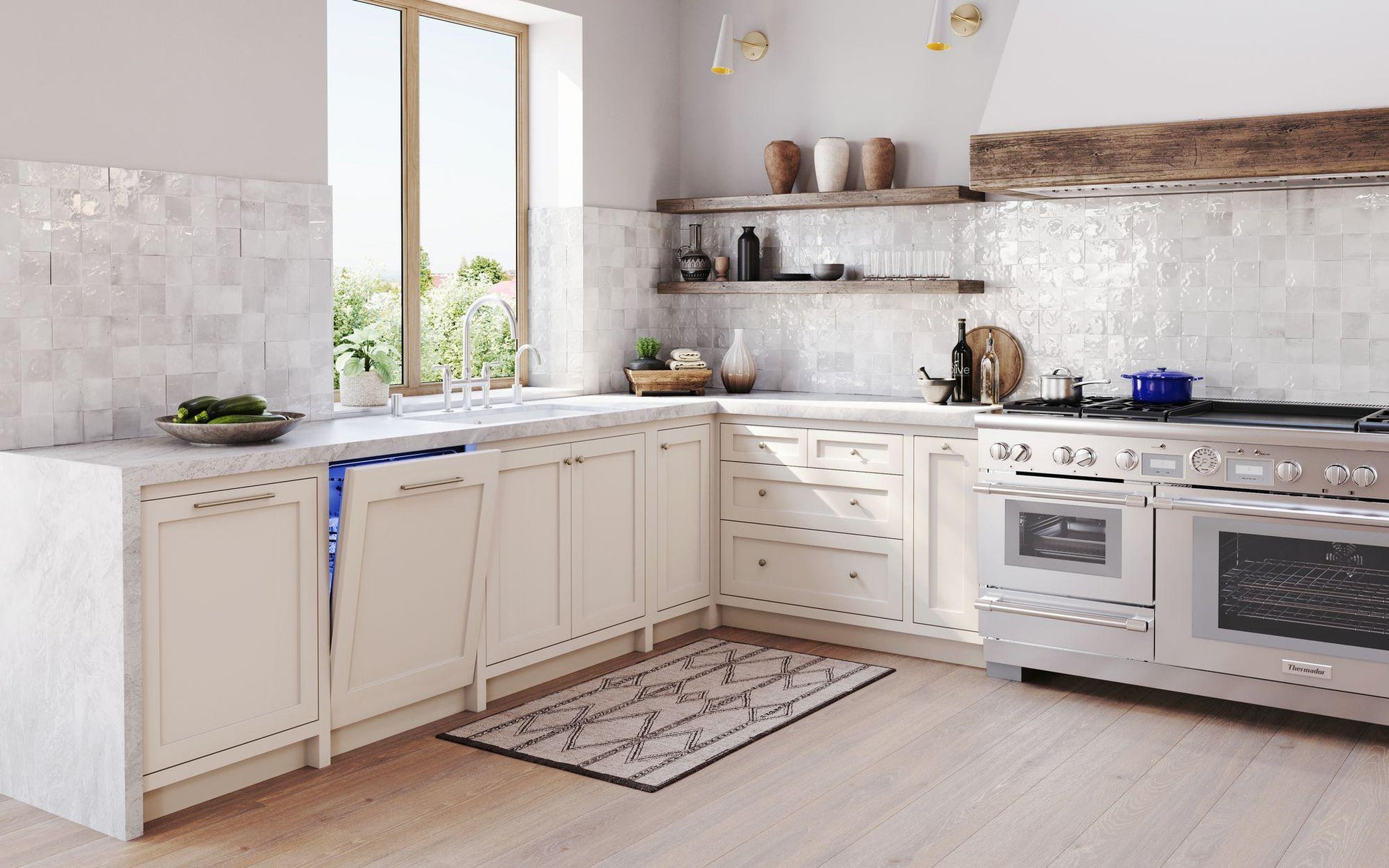

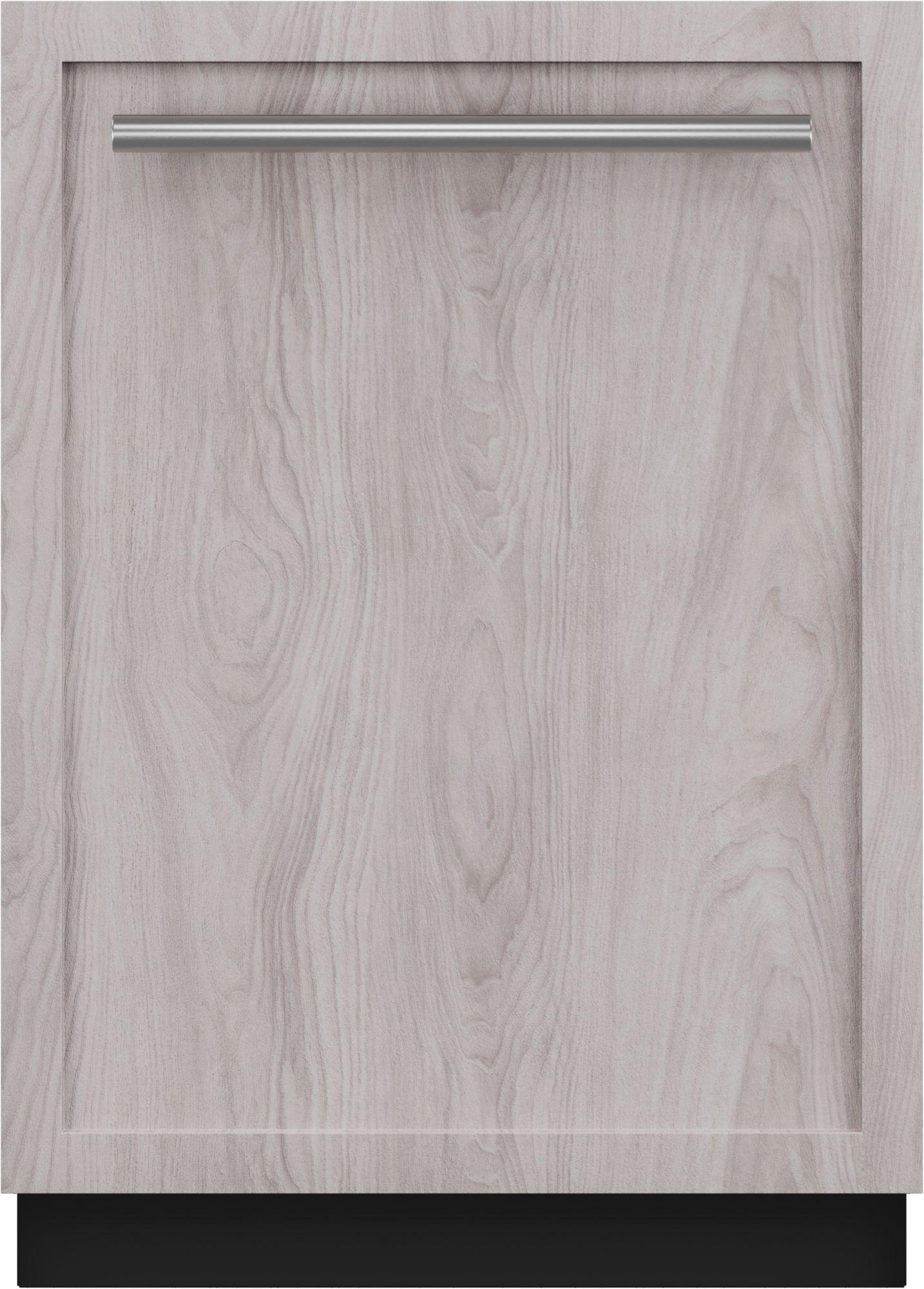

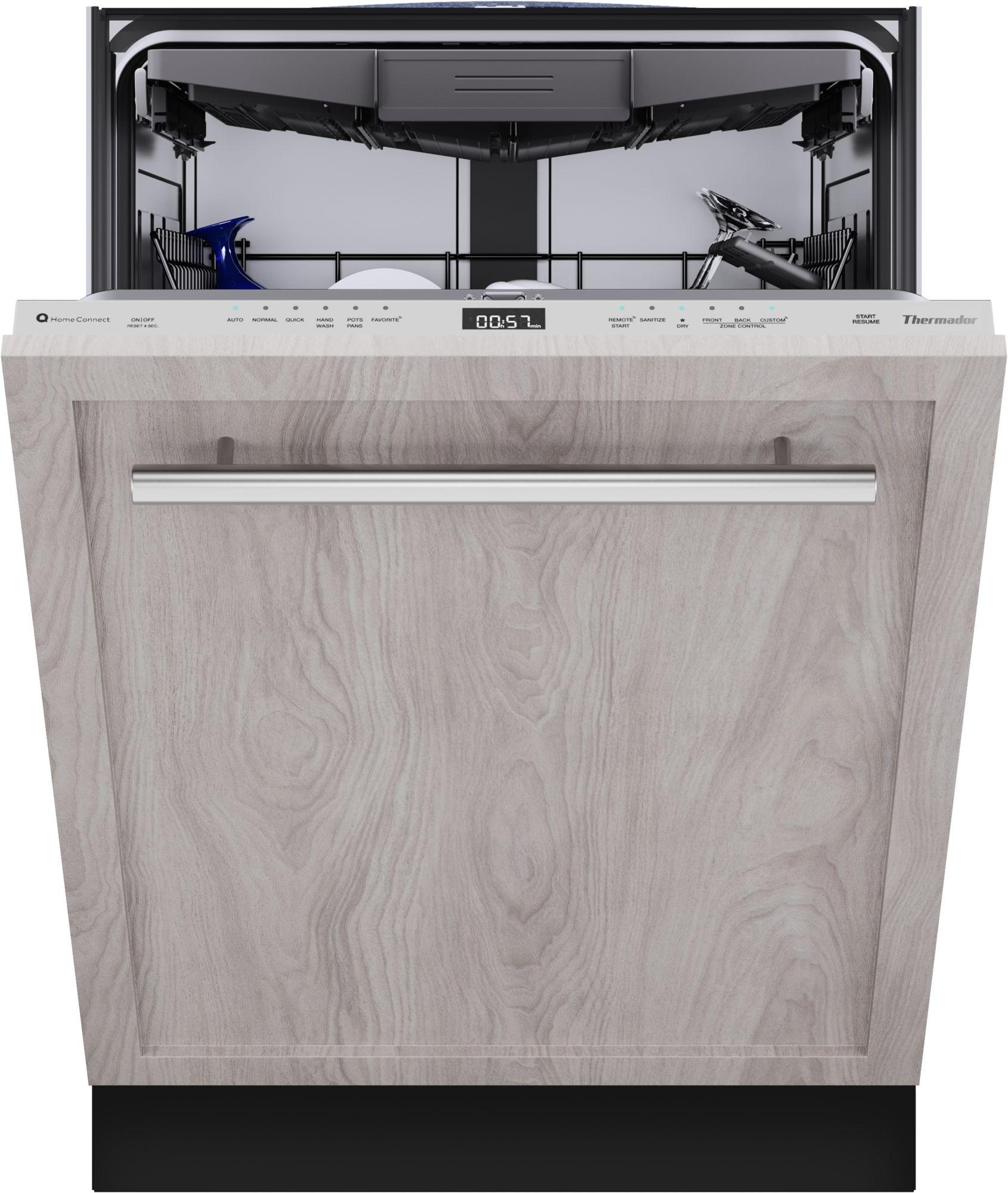

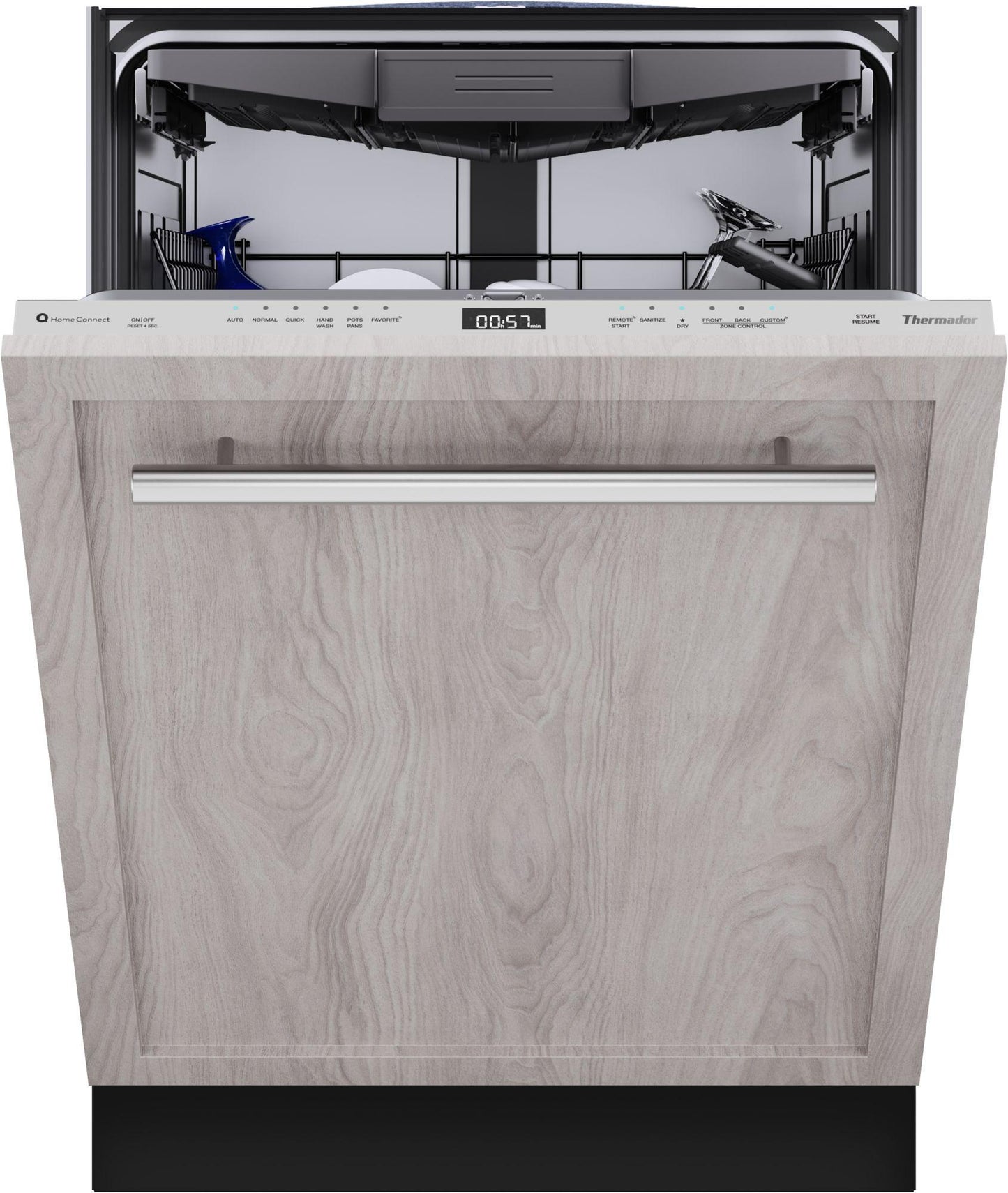

Custom Panel Ready
Matches your kitchen s custom cabinetry to our dishwasher for complete integration.

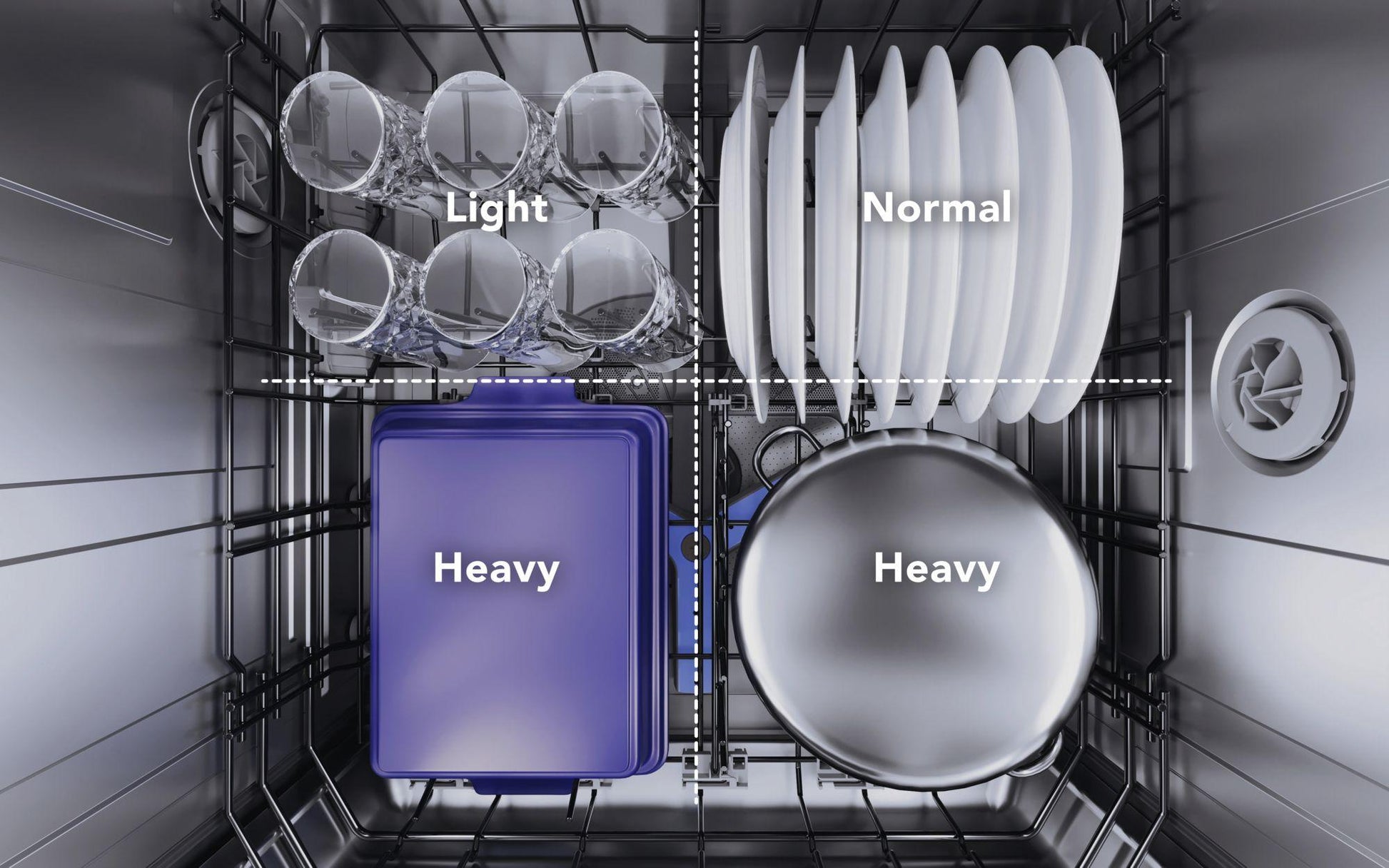

Customize Your Cleaning Power with Zone Control™
Design the ideal clean with Zone Control™ where you can specify up to 4 customized lower rack cleaning zones, ensuring the most challenging pieces emerge immaculate and the most delicate are protected.
StarDry™ with Zeolite
Introducing StarDry™ with Zeolite, an exclusive Thermador drying solution. Zeolite is a natural substance that dries without the use of chemicals. This unique feature helps dry hard to reach crevices, and does not need to be replenished over time.

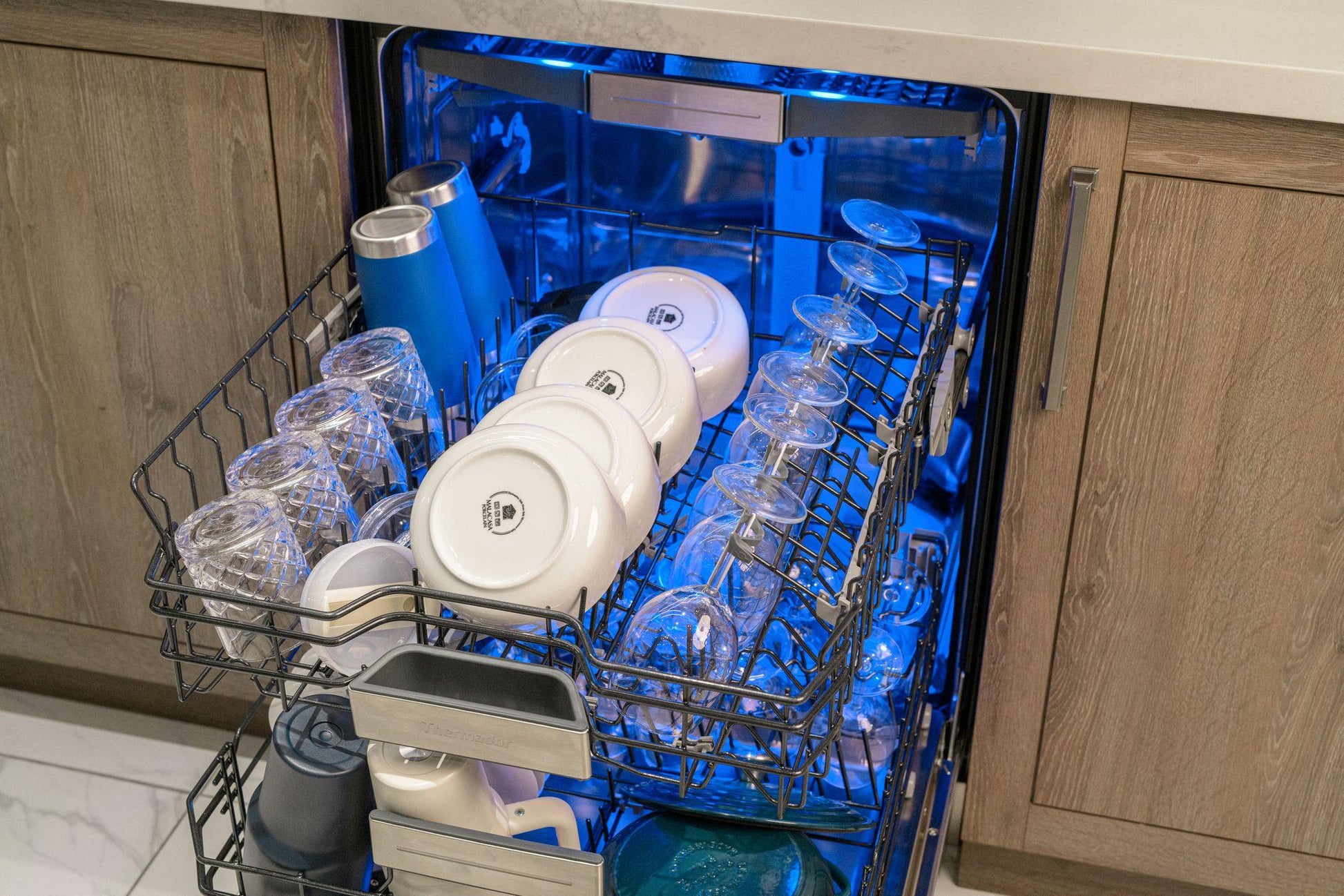

Sapphire Glow™ illuminates a brilliant blue light
Sapphire Glow™ illuminates dishes and glassware with an internal brilliant blue light.

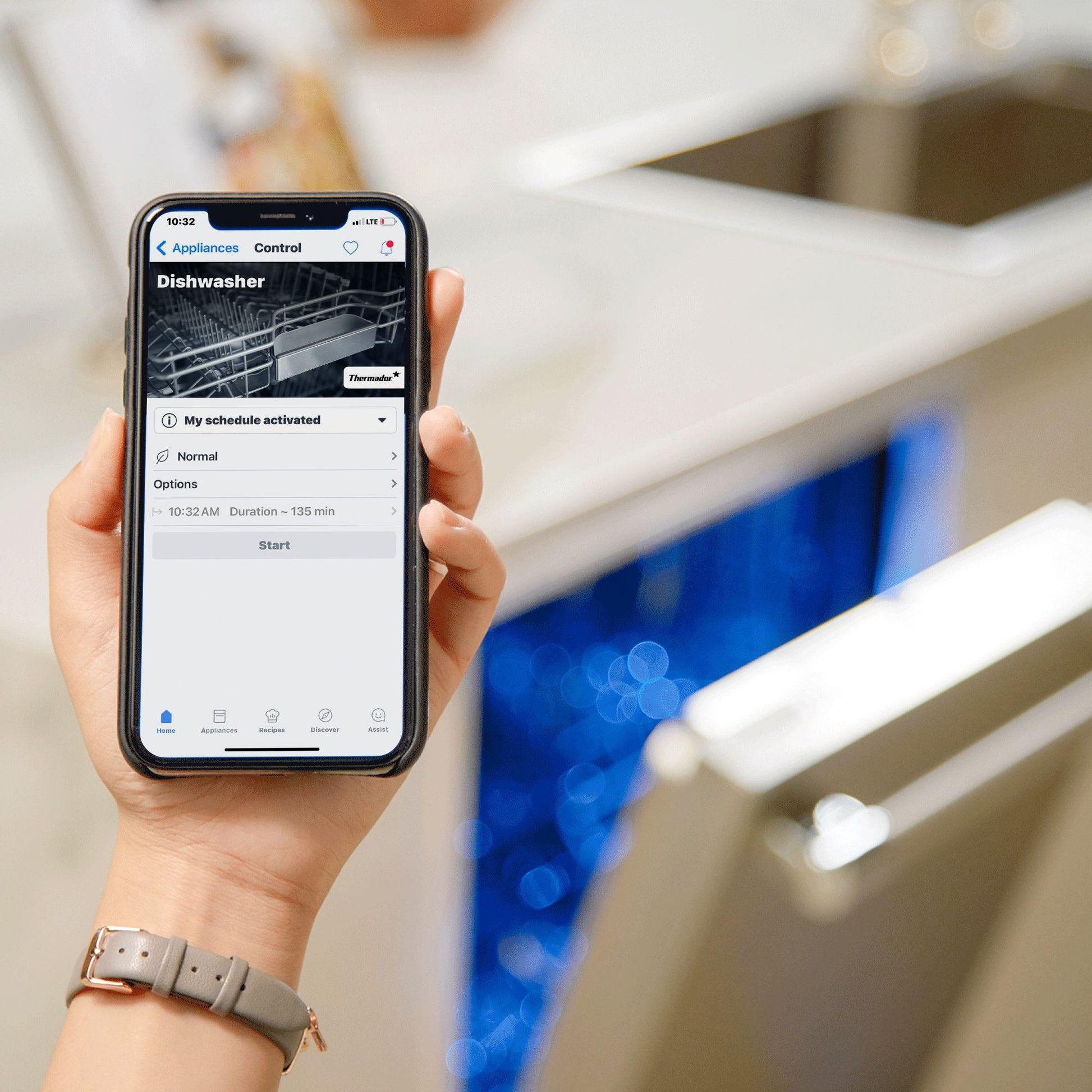

Wifi Smart Appliance via Home Connect App
Control smart Dishwashers with the Home Connect® App to refine cleanup from start to finish with features like Remote Start and timely notifications that keep track of every dish tab so you never run out. Access exclusive ZoneControl™ settings in the app to create custom wash settings.

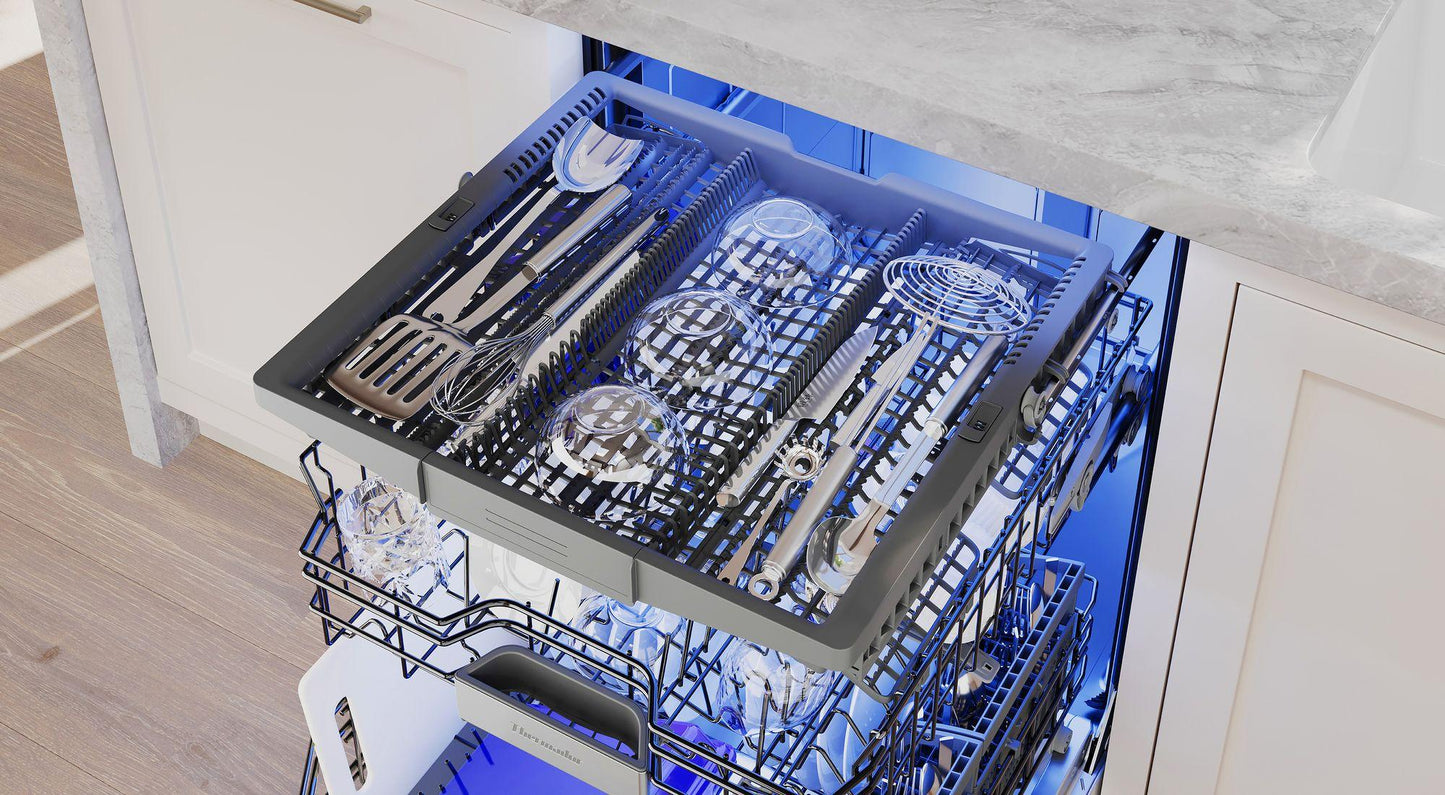

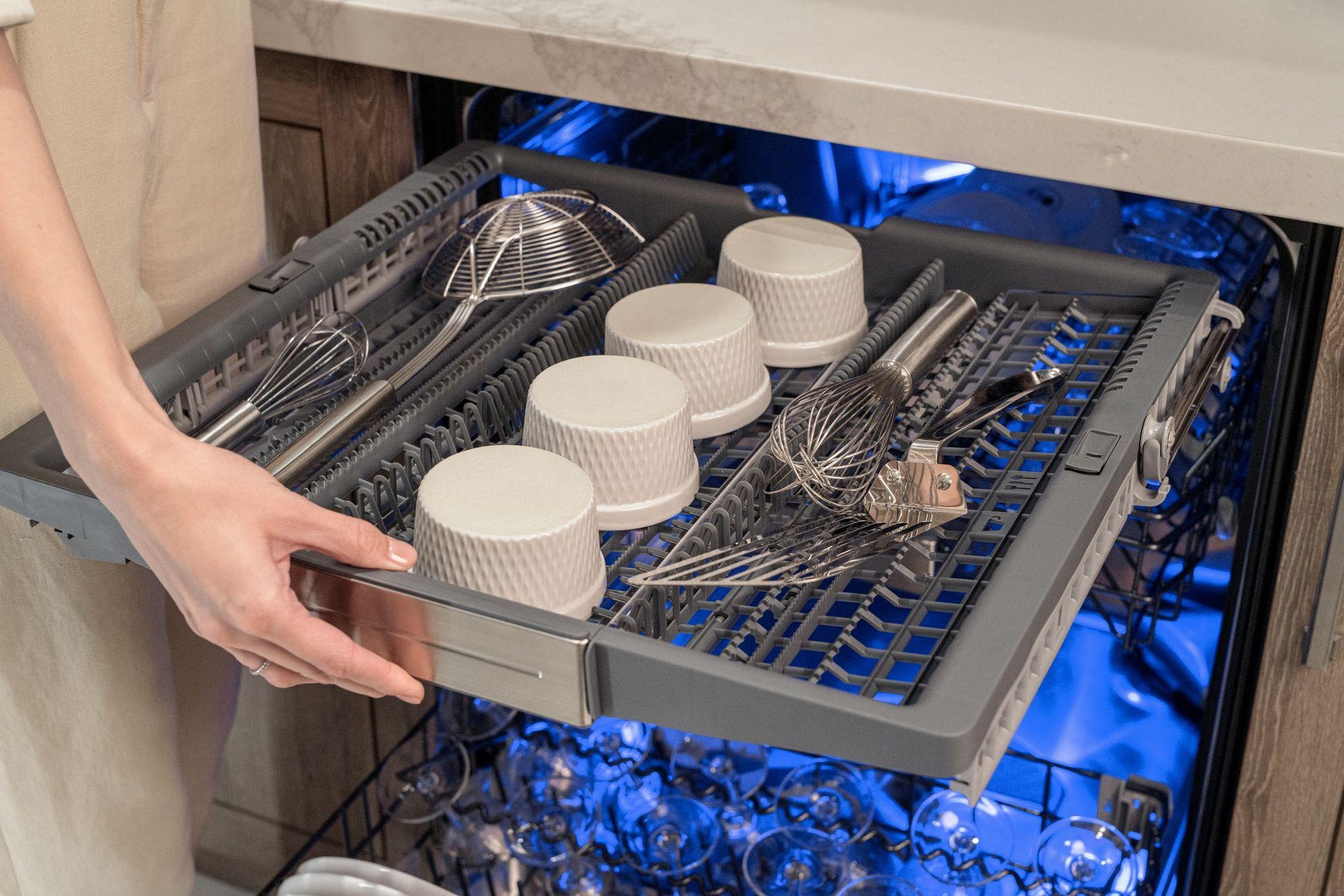

Spacious Adjustable Chef s Tool Drawer
Adjustable Chef s Tool Drawer® delivers added loading capacity as well as flexibility to accommodate larger or smaller items in this additional third rack.

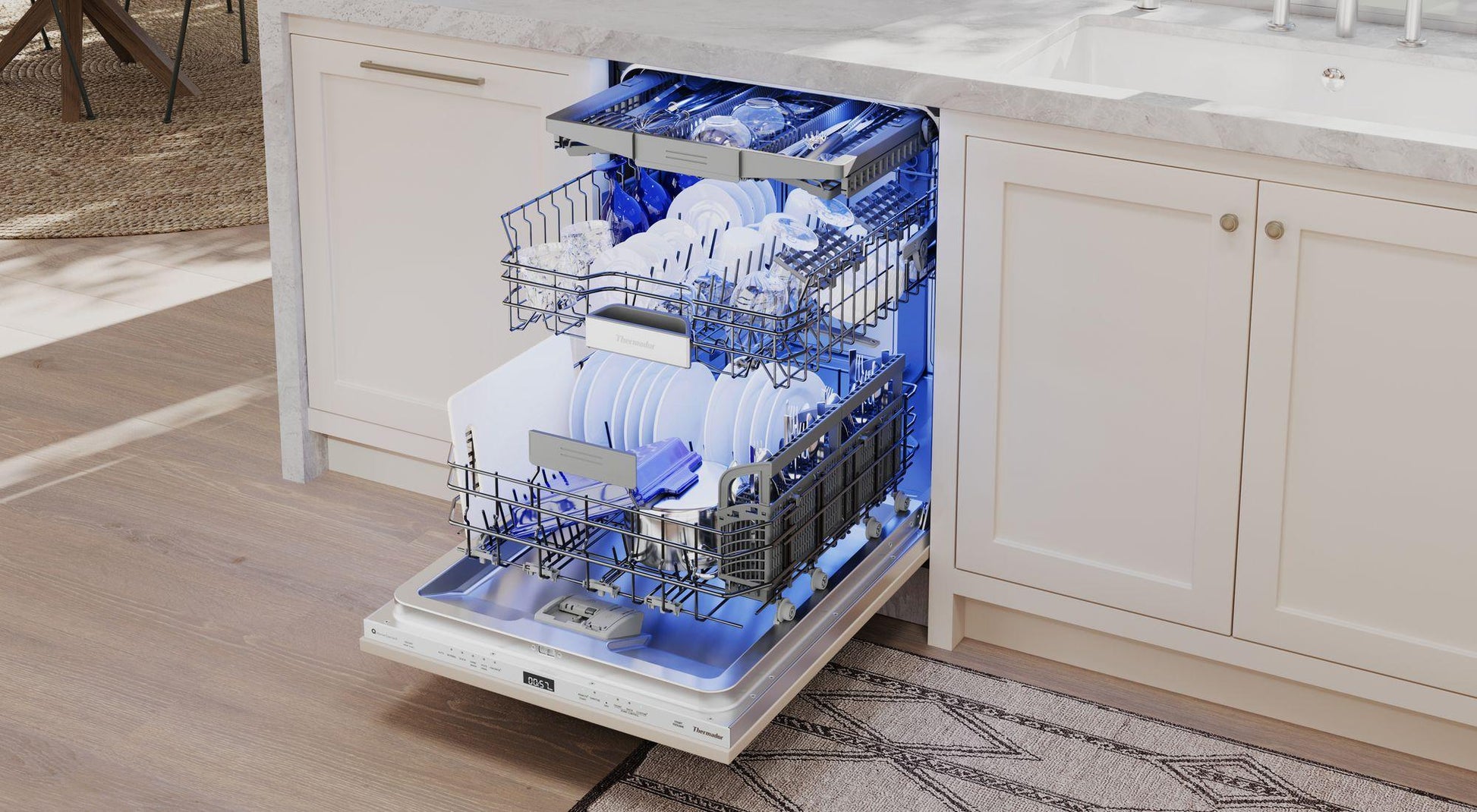

Blue PowerBeam® indicates when appliance is in use
Blue PowerBeam® shines a blue light on the floor when running.

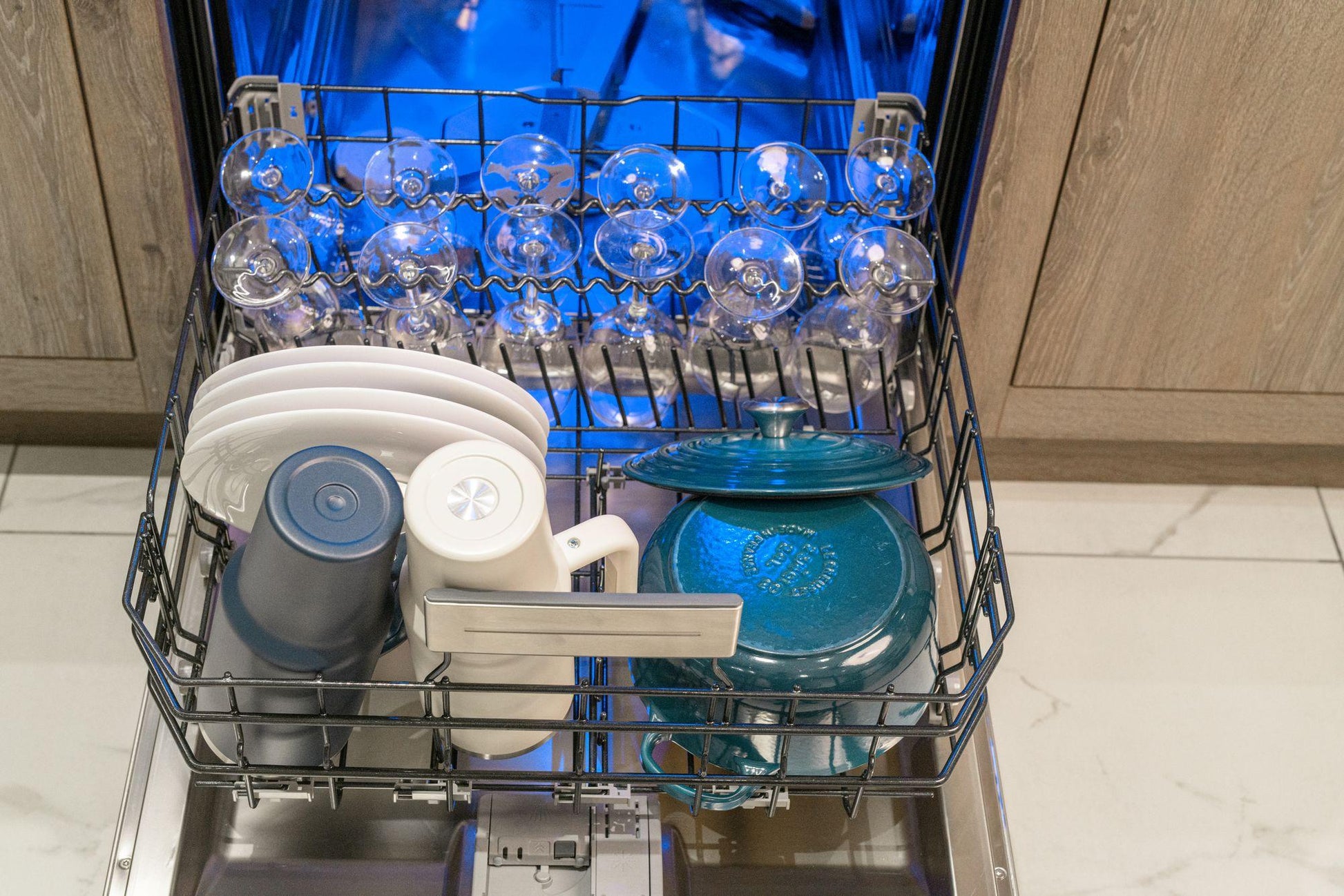

Flexible Folding Tines accommodate larger items.
Flexible Folding Tines folds down to accommodate larger pots, pans, and dishes.

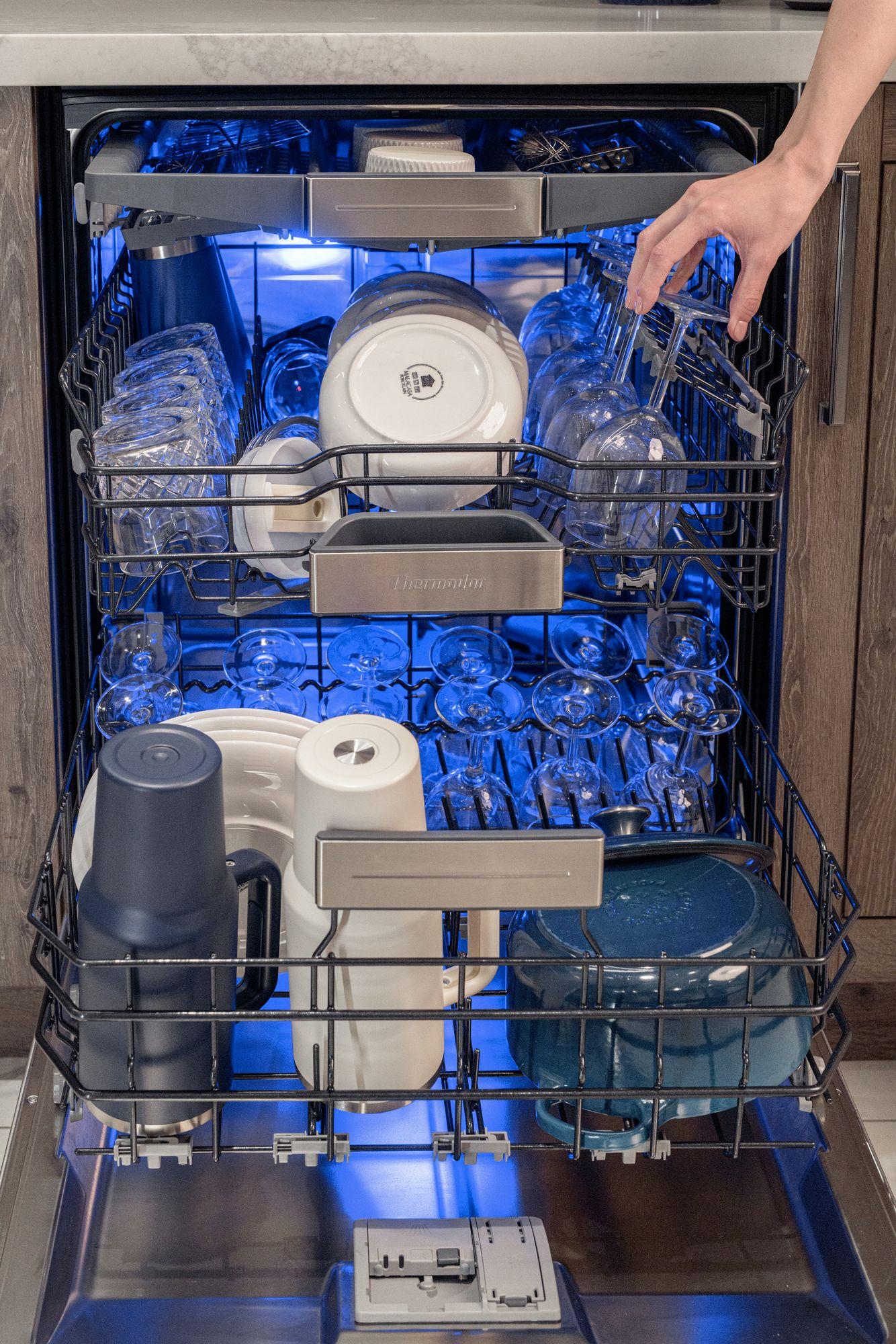

Ball Bearing Wheels provide an ultra-smooth glide
Racks glide in and out of the dishwasher with ease.
- Exceptionally Quiet: cleanup has never been so effortless at 44 dBA.
| General | |
| Appliance Width (in) | 23 9/16 |
| Height | 33 7/8 |
| Installation Type | Full-integrated |
| Number of Place Settings | 16 |
| List of Programs | Auto, Favorite, Hand Wash, Normal, Pots & Pans, Quick |
| Cycle Options | Remote Start, Sanitize, StarDry™, ZoneControl™ Back, ZoneControl™ Custom, ZoneControl™ Front |
| Display | Yes |
| Silence Level | 44 dB(A) re 1pW |
| 3rd Rack | Adjustable Chef s Tool Drawer® |
| Interior Light | Yes |
| Removable top | No |
| Power Cord Length | 67'' |
| Connectivity | |
| Home Connect® WiFi-enabled | Yes |
| Home Connect® Features | Remote Monitoring and Control |
| Size and weight | |
| Overall Appliance Dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 1/16' |
| Adjustable plinth | No |
| Net Weight | 101.000 lbs |
| Weight furniture front (min - max) | 3 - 10 kg |
| Programmes | |
| Status Indicator | End of program audible, Time remaining indic. internal, Water inlet |
| List of Programs | Auto, Favorite, Hand Wash, Normal, Pots & Pans, Quick |
| Program 1 | Auto |
| Program 2 | Normal |
| Program 3 | Quick |
| Program 4 | Hand Wash |
| Program 5 | Pots & Pans |
| Program 6 | Favorite |
| Reference program | Eco |
| Number of different wash temperatures | 7 |
| Temperature program 1 | 127-140 °F |
| Temperature program 2 | 127-136 °F |
| Temperature program 3 | 113 °F |
| Temperature program 4 | 113-122 °F |
| Temperature program 5 | 151-160 °F |
| Temperature program 6 | 127-140 °F |
| Safety | |
| ChildLock | Yes |
| Consumption values | |
| Crystal Protect® | No |
| Water consumption program 1 | 3.4-5.4 gal |
| Water consumption program 2 | 2.3-5.5 gal |
| Water consumption program 3 | 2.8 gal |
| Water consumption program 4 | 2.5-3.9 gal |
| Water consumption program 5 | 4.9-6.4 gal |
| Water consumption program 6 | 3.4-5.4 gal |
| Water consumption program 7 | 1.1 gal |
| Total Annual Water Consumption | 624 gal |
| Maximum temperature for water intake (°C) | 60 °C |
| Connection | |
| Watts | 1,440 W |
| Power Cord Length | 67'' |
| Amps | 12 A |
| Plug Type | Nema5-15P |
| Construction type | |
| Design | Built-in |
| Drying System | Condensation Dry , StarDry™ with Zeolite |
| Height | 33 7/8 |
| Concealed heating element | Yes |
| Installation Type | Full-integrated |
| Tub Material | Stainless Steel |
| Water Softener | No |
| Appliance Width (in) | 23 9/16 |
