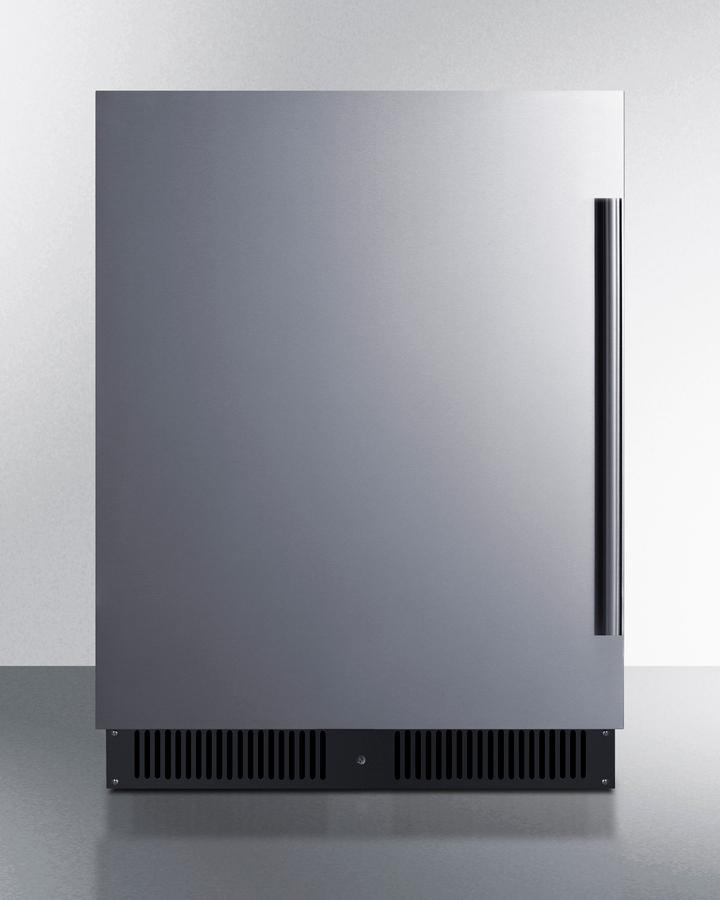

Summit ALFZ53CSSLHD 24" Wide Built-In All-Freezer, Ada Compliant
Summit ALFZ53CSSLHD 24" Wide Built-In All-Freezer, Ada Compliant
THIS ITEM QUALIFIES FOR FREE DELIVERY!
EXTENDED PROTECTION
3 year plan
$188.995 year plan
$399.00Available to Order
Couldn't load pickup availability
Summit ALFZ53CSSLHD 24" Wide Built-In All-Freezer, Ada Compliant
Summit Manufactures The Industry's Largest Selection Of Built-In Appliances Sized For Use Under Lower Ada Compliant Counters, Including Frost-Free Freezers Specially Designed To Match Our Popular Ada Compliant Refrigerators. Model Alfz53Csslhd Is A 24" Wide All-Freezer. Sized At Just 32" High, It Can Easily Be Installed Under An Ada Compliant Counter. This Freezer Features A Stainless Steel Wrapped Cabinet And Stainless Steel Door With A Pro Style Handle. A Factory-Installed Lock Offers Added Security With Two Keys Included. This Unit Comes With A Front-Breathing System That Enables Recessed Built-In Installation, While The Fully Finished Exterior Also Allows Freestanding Use As Needed. A Right Angle Plug And Sealed Back Design Offers Added Space Savings. Inside, The Alfz53Csslhd Utilizes Frost-Free Operation With Fan-Forced Cooling To Ensure Low Maintenance And Even Temperature Distribution. Recessed Led Lighting Offers An Attractive Yet Efficient Look Inside The Black Interior. Three Adjustable Chrome Shelves Can Be Set At Five Different Positions To Best Accommodate Your Storage Needs. Additional User-Friendly Features Include An Open Door Alarm, High Temperature Alarm, And Sabbath Mode Setting That Lets You Disable Some Of The Electrical Elements During Periods Of Observance. This Unit Features Intuitive Digital Controls For Easy Temperature Management. With Its Deluxe Style And User-Friendly Features, This Unit Is The Perfect Choice For Ada Compliant Kitchens. Additional Door Finishes Are Available, Including Panel-Ready, Black Stainless Steel, And Our New Vibrant Colors. Browse The Full Selection To Explore Your Options.
Dimensions & Capacity Width: 23.63"
Height: 32.0"
Depth: 22.63"
Freezer Size: 3.7 cu. ft.
- Undercounter All-Freezer
- ADA compliant design
- Built-in capable
- Frost-free operation
- Stainless steel door
- Digital thermostat
- Recessed LED light
- Left-hand door swing
- Adjustable shelves
- Factory installed lock
- Professional handle
- Open door alarm
- Sabbath mode setting
- High temperature alarm
- Temperature Memory Function
- Right angle plug
- Sealed back
- Stainless steel wrapped cabinet
- 100% CFC free
- CARB Compliant
| Overview | |
| Nominal Height | 32.0' (81 cm) |
| Height of Cabinet | 32.0' (81 cm) |
| Nominal Width | 24.0' (61 cm) |
| Width | 23.63' (60 cm) |
| Nominal Depth | 23.0' (58 cm) |
| Depth | 22.63' (57 cm) |
| Depth with Handle | 24.63' (63 cm) |
| Depth with door at 90° | 45.0' (114 cm) |
| Capacity | 3.7 cu.ft. (105 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 345.0kWh/year |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 102.0 lbs. (46 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101091723 |
| Freezer | |
| Door Swing | LHD |
| Reversible | No |
| Interior Height | 23.5' (60 cm) |
| Interior Width | 18.75' (48 cm) |
| Interior Depth | 15.5' (39 cm) |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.31 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs | 4 |
| Compressor Step Height | 3.75' (10 cm) |
| Compressor Step Width | 18.75' (48 cm) |
| Compressor Step Depth | 4.5' (11 cm) |
| Temperature Range | -11°F to 11°F |
| Sabbath Mode | Yes |
| Sound Level | 33.7 dB |
