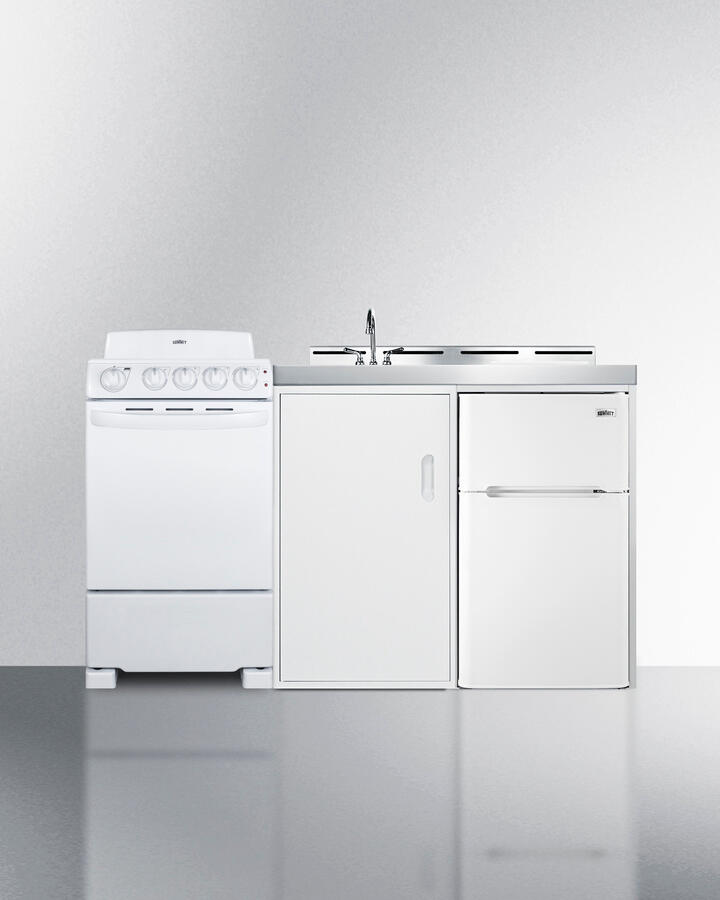

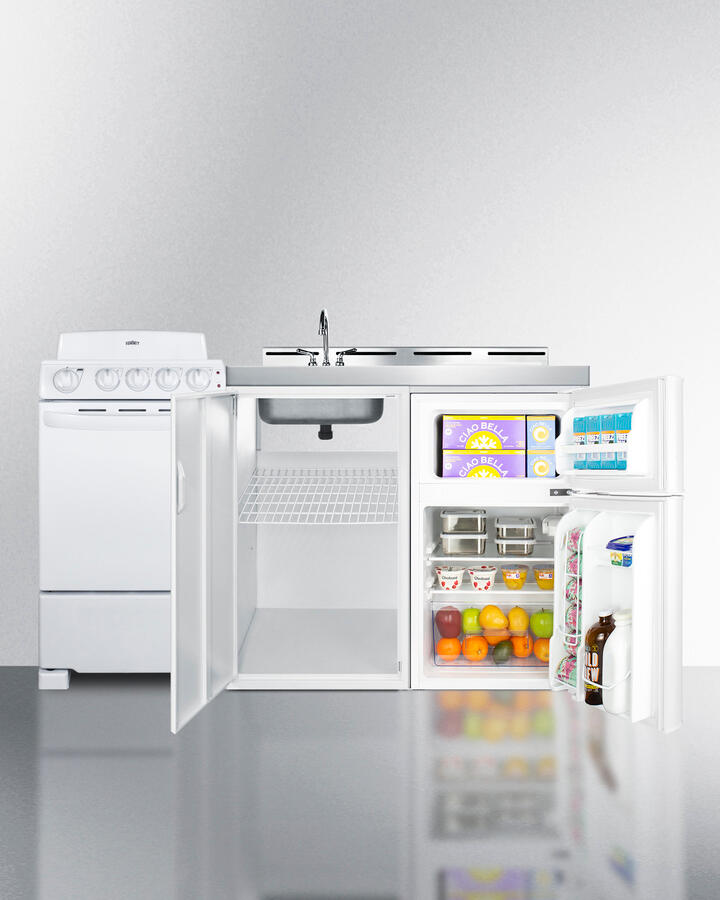

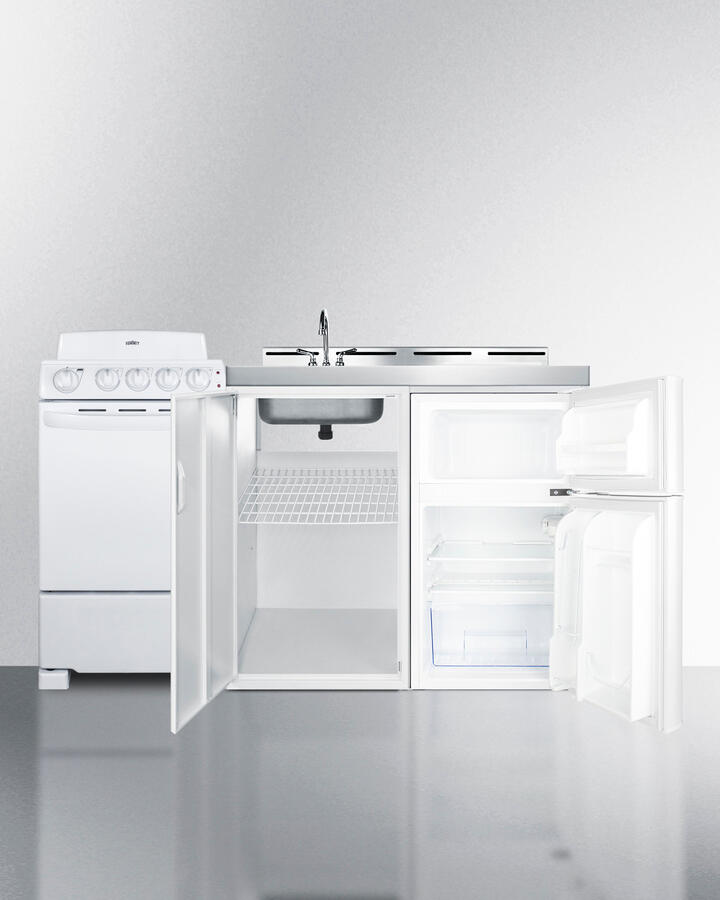

Summit ACK60COILW 60" Wide All-In-One Kitchenette With Electric Coil Range
In Stock September 8Th, 2020; Call Our Sales Team To Pre-Order At 718-893-3900 Ext. 507 Complete All-In-One Convenience With A Refrigerator-Freezer, Electric Range, Sink, And Storage Compartment In Just 60" Includes Re203W 4-Element Coil Electric Range (Bull)Includes Cm406W Refrigerator-Freezer Under-The-Sink Cabinet Offers Added Convenience For Dry Storage Perfect For Small Kitchen Spaces Or As A Temporary Kitchen Summit's Line Of All-In-One Combination Kitchenettes Brings Complete Kitchen Convenience In A Slim-Fitting Design. These Units Come Fully Featured With Everything You Need For The Home Foodservice Experience, Including A Refrigerator With A Freezer Compartment, 4-Element Electric Coil Cooktop With Oven, Sink With Faucet, Cutlery Bin With A Removable Cutting Board Cover, And Storage Cabinet For Dry Goods. The Ack60Coilw Is A 60" Wide Kitchenette With An Easy-Fitting 24" Depth. This Unit Comes With A Stainless Steel Countertop Offering Durability In A Professional Look. The Surface Includes A Small Cutlery Bin, With A Removable Cutting Board Cover To Ensure Easy Food Prep. The Compact Sink Features A Ready-To-Use Faucet. Underneath The Sink Is A Large Cabinet With A Removable Shelf For Added Storage Convenience. Unlike Many Other Brands' Kitchenettes, All Summit Units Include A Refrigerator With A Freezer Compartment To Cover All Of Your Cold Storage Needs. This Model (Cm406W) Includes Adjustable Glass Shelves, Door Racks, And A Crisper. The Ack60Coilw Also Ships With Summit Re203W, A 20" Wide 220V Electric Range Complete With A 4-Element Coil Cooking Surface, And A Full Oven Compartment With A Bake And Broil Function. This Range Includes Sensors On Each Element That Cycle Off If The Temperature Nears Flashpoint For Safer Cooking, Adjustable Slide-Out Oven Racks, And Indicator Lights That Illuminate When The Elements And Oven Are In Use. The Range Can Be Installed On The Left Or Right Side Of The Kitchenette. The Ack60Coilw Is Shipped On One Pallet, With The Kitchenette And Refrigerator Fully Assembled And The Range Packaged Separately. Perfect For Studio Apartments, Hotel Rooms, Dormitories, Assisted Living Facilities, Temporary Kitchen Facilities, And Any Other Location In Need Of A Low Maintenance, Fully-Featured Compact Kitchenette. Note: This Unit Is Expected To Be In-Stock On September 8, 2020. To Pre-Order, Contact Our Sales Team At 718-893-3900 Ext. 507.
- Complete one-piece kitchenette : All-in-one kitchen is built with virtually everything you need for meal preparation
- 2-door refrigerator-freezer included : CP34W is packaged inside the kitchenette. This 3.2 cu.ft. ENERGY STAR certified refrigerator includes adjustable glass shelves, door storage, and a freezer compartment

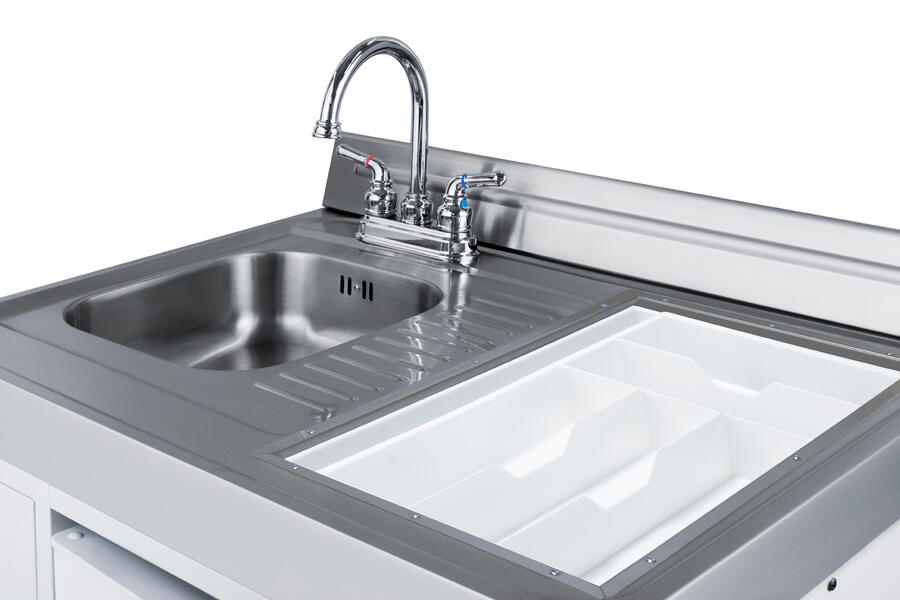

- Sink and faucet : Stainless steel sink with ready-to-use faucet included

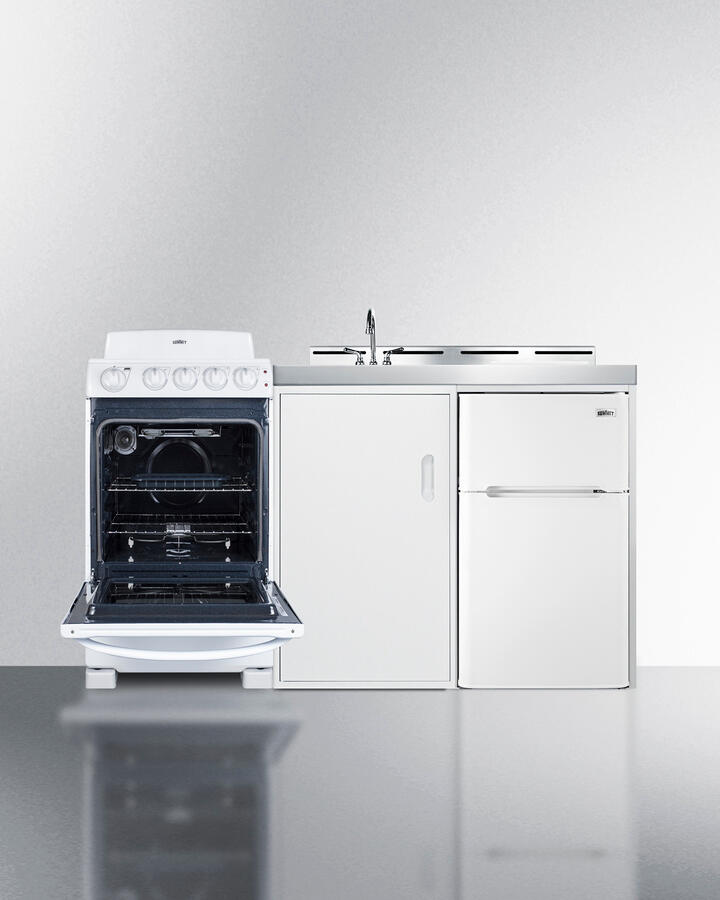

- Electric coil range included : RE203W is packed with the kitchenette. This 220V electric coil range includes three 6" 1250 elements and a larger 8" 2400 element for larger cooking vessels, 2.3 cu.ft. oven with adjustable racks and indicator lights when oven is in use
- Push-to-turn knobs : Range knobs require a small amount of force to turn the elements on, helping to prevent accidents
- Indicator lights : Operating indicators light up to show when elements and/or the oven is in use for added safety
- One piece stainless steel countertop : Easy-to-clean surface with a professional look

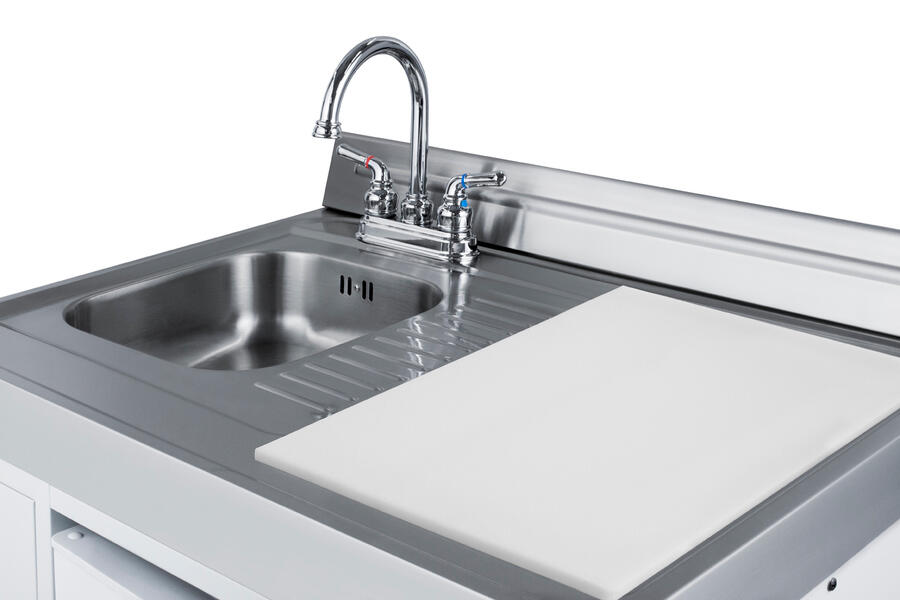

- Removable cutting board surface : Plastic cutting board provides a durable, easy-to-clean space for food preparation

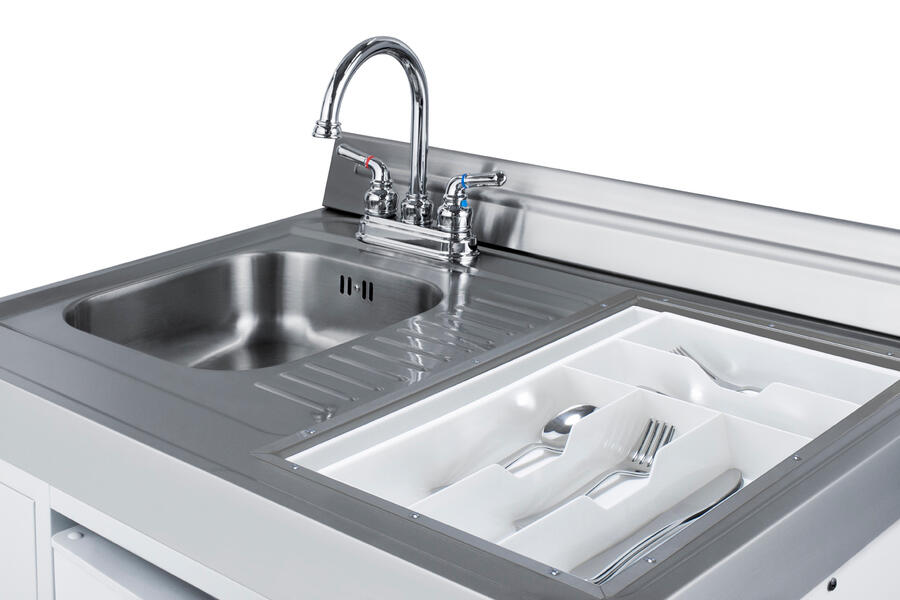

- Cutlery bin : Located under the cutting board, allows for easy storage of cutlery and utensils
- Storage compartment : Convenient lower cabinet with adjustable shelf lets you store dry goods
- Stainless steel backguard : Includes a 4" high backguard to complete the look and offer added protection to your walls
- Reversible door : User-reversible door swing on the refrigerator for added flexibility
- Optional storage shelf : Add more storage convenience with the APSS39 Appliance Station, a stainless steel shelving system designed for easy installation on this unit
- Ships on one pallet : Kitchenette and range ship together on one oversized pallet for easier shipping, with reinforced packaging for added protection
- 100% CFC free : Environmentally friendly design without ozone-damaging chemicals
| Overview | |
| Height of Cabinet | 42.0' (107 cm) |
| Width | 58.63' (149 cm) |
| Depth | 23.5' (60 cm) |
| Depth with door at 90° | 43.25' (110 cm) |
| Capacity | 3.2 cu.ft. (91 L) |
| Defrost Type | Cycle |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Other Energy Info | 40 amp range/1.1 amp refrigerator |
| Weight | 275.0 lbs. (125 kg) |
| Shipping Weight | 315.0 lbs. (143 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101075495 |
| Kitchenette | |
| Refrigerator Included | CP34W |
| Refrigerator Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 1 |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Full Door Shelves | 2 |
| Can Storage | Yes |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.16 oz. |
| High Side PSI | 250.0 |
| Low Side PSI | 88.0 |
| Cooking Type | Coil Range |
| Number of Burners | 4 |
| Cooktop Controls | Dial |
| Range Included | RE203W |
| Oven Included | Yes |
| Exterior | |
| RangeCord3P - Installed 3-pronged cord | RangeCord4P - Installed 4-pronged cord |
| LHD - Left hand door swing | - |
| Overview | |
| Height of Cabinet | 42.0' (107 cm) |
| Width | 58.63' (149 cm) |
| Depth | 23.5' (60 cm) |
| Depth with door at 90° | 43.25' (110 cm) |
| Capacity | 3.2 cu.ft. (91 L) |
| Defrost Type | Cycle |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Other Energy Info | 40 amp range/1.1 amp refrigerator |
| Weight | 275.0 lbs. (125 kg) |
| Shipping Weight | 315.0 lbs. (143 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101075495 |
| Kitchenette | |
| Refrigerator Included | CP34W |
| Refrigerator Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 1 |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Full Door Shelves | 2 |
| Can Storage | Yes |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.16 oz. |
| High Side PSI | 250.0 |
| Low Side PSI | 88.0 |
| Cooking Type | Coil Range |
| Number of Burners | 4 |
| Cooktop Controls | Dial |
| Range Included | RE203W |
| Oven Included | Yes |
| Exterior | |
| RangeCord3P - Installed 3-pronged cord | RangeCord4P - Installed 4-pronged cord |
| LHD - Left hand door swing | - |
