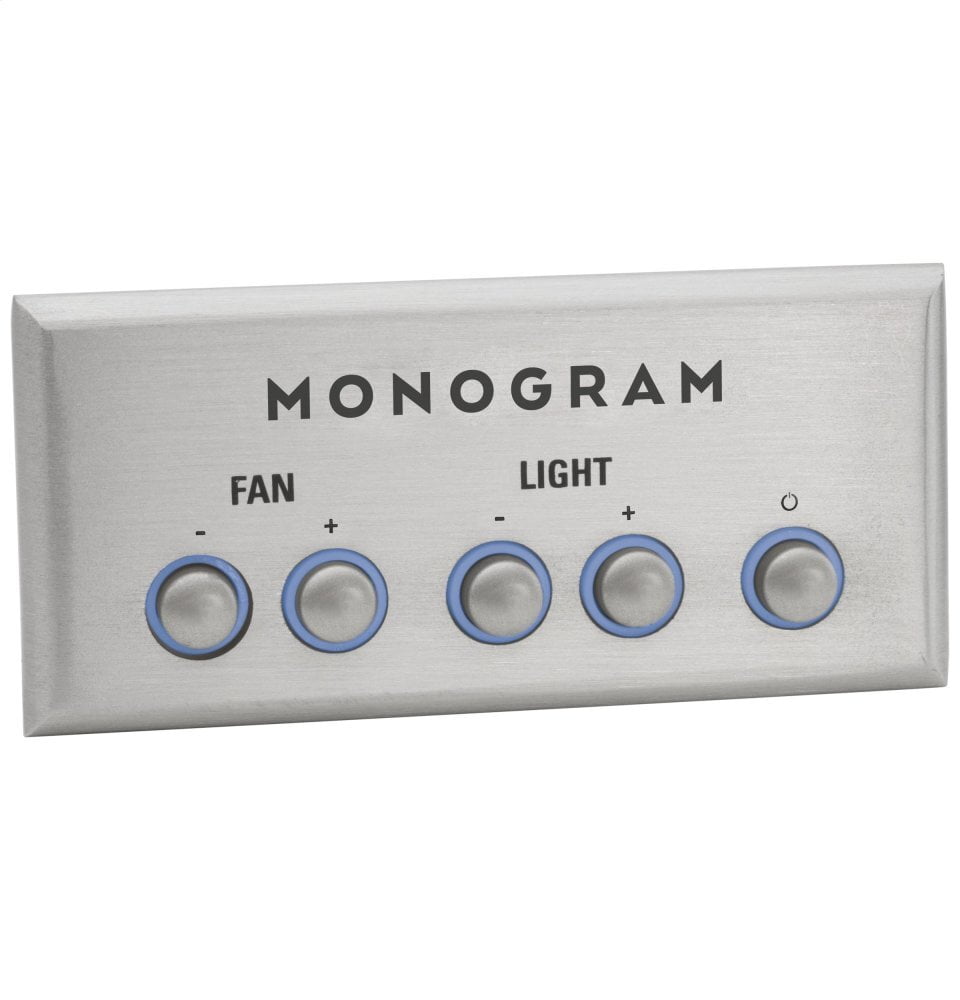

Monogram ZVC30LSS Monogram 30" Custom Hood Insert
550-CFM blower
Helps effectively remove smoke, grease, odors and moisture
550-Cfm BlowerHelps Effectively Remove Smoke, Grease, Odors And Moisture 4 Lighting LevelsAdjust To Fit Your Everyday Needs Controls Can Be Wired Remotely Variable Speed Fan ControlHelps Draw Smoke, Grease, Odors And Moisture Out Of The Kitchen Air
- 550-CFM blower
- 4 Lighting Levels
- Controls can be wired remotely
- Variable speed fan control
| APPEARANCE | |
| Custom Insert | Yes |
| Design Style | Custom Panel |
| Color Appearance | Stainless Steel |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| Labor Warranty | Limited 2-year entire appliance |
| POWER / RATINGS | |
| Amps at 110V | 4.90 |
| Amp Rating at 120V | 5.33 |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 51.0 |
| Overall Depth | 21.25 |
| Overall Width | 28.5 |
| Overall Height | 18.0 |
| Approximate Shipping Weight | 68.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Sones Rating : Top Exhaust-Round | 9.0 |
| Welded / Finished Seams | Yes |
| Removable Filter | Yes |
| Vertical Exhaust Blower Rating (CFM) | 550 |
| Recirculating Capable | No |
| Indicator Lights | 'ON' |
| Lighting Levels | 4 |
| Blower Levels | 4 |
| Variable Speed Fan | Yes |
| Exhaust Options | 8' Round Duct |
| Cooktop Lighting | 2 Halogen |
| Control Type | Electronic Pushbutton |
| Removable Stainless Steel Filters | 2 |
| Required Duct Size | 8-in. Round |
