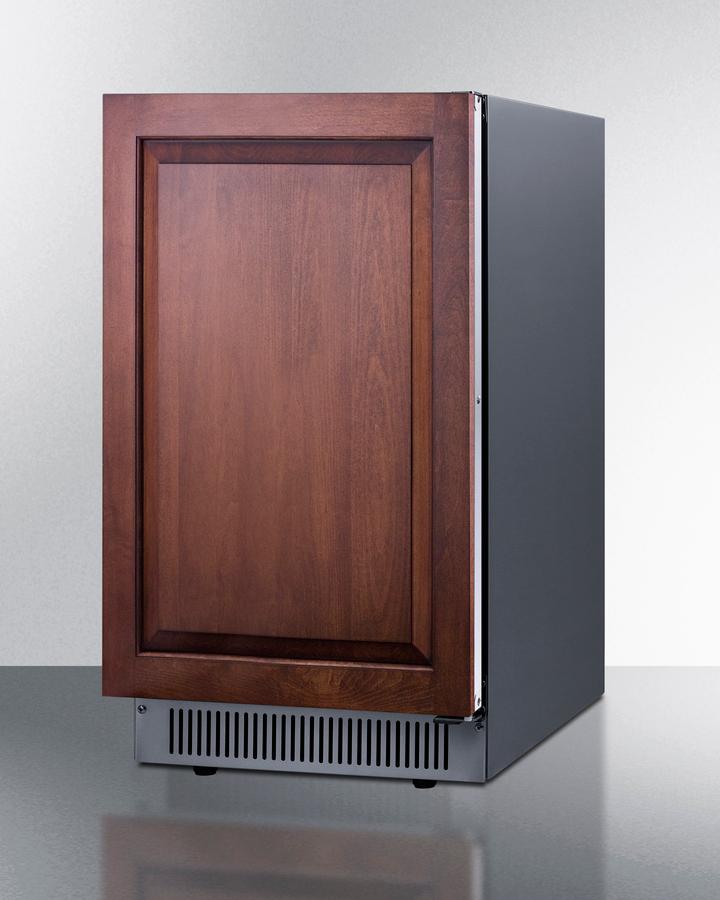

Summit BIM182OSADAIF 18" Wide Clear Outdoor Icemaker, Ada Compliant (Panel Not Included)

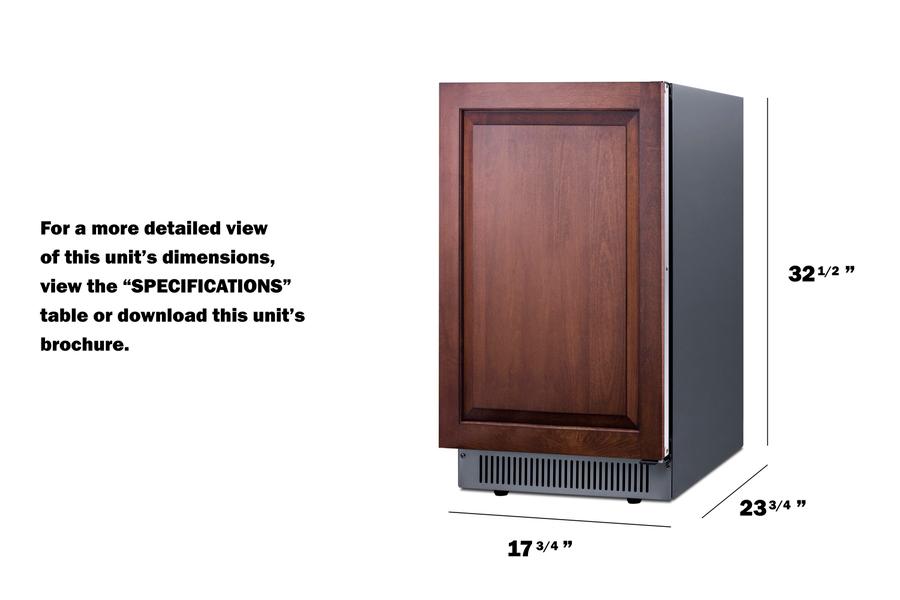

Summit Lets You Transform Your Outdoor Space Into Luxury Kitchens With Weatherproof Appliances Designed To Maximize Your Entertaining., Including Uniquely Sized 18 Inch Wide Built-In Clear Icemakers. Sized Just Under 18 Inches Wide And 32.5 Inches High, Model Bim182Osadaif Features Weatherproof Construction For Safe Installation In Outdoor Kitchens. The Front-Breathing Design Allows For Built-In Installation Underneath Ada-Compliant Counters. The Height Can Also Be Raised Up To 34.75 Inches To Accommodate More Standard Counters. We Include A Stainless Steel Kickplate Extender To Fill The Gap. The Door Includes An Integrated Stainless Steel Frame That Allows It To Accept Overlay Panels, Creating A Custom Look To Match Or Complement The Rest Of You Cabinetry (Recommended Panel Dimensions: 28 1/16" H X 17 11/16" W At 3/4" Thickness). This Unit Features A Sealed Back For Protection From The Elements And Right Angle Cord For Added Space Savings. Inside, The Bim182Osadaif Can Produce 60 Lbs. Of Clear Ice Cubes Ice Daily. The Intuitive Control Panel Ensures Ease Of Use. An Indicator Light Alerts Users To Each Step In The Production Process And When The Bin Is Full. The Interior Features Uv Lighting For Easy Visibility And Added Protection Against Bacteria. The Automatic Defrost System Minimizes User Maintenance. This Model Has An Internal Pump And Ships With The Drain Hose, Water Hose, A Removable Ice Bucket, And Ice Scoop. The Interior Wall Includes A Hook To Hang The Scoop For Added Convenience. With Its Unique Size, User-Friendly Design, And Large Capacity, The Bim182Osadaif Is A Great Way To Complete Any Outdoor Kitchen With Style And Convenience. In Addition To This Icemaker, Summit Manufactures Drain-Free Choices, As Well As Traditional 15 Inch Wide Icemakers And A Full Assortment Of Matching 18 Inch Wide Refrigerators, Beverage Centers, And Wine Cellars. Browse The Complete Lineup To Complete Any Residential Or Commercial Undercounter Space.

• Built-in undercounter icemaker ideal for installation in outdoor kitchens
• Durable stainless steel construction for safe installation in outdoor spaces
• 32.5" height allows easy installation under lower ADA compliant counters

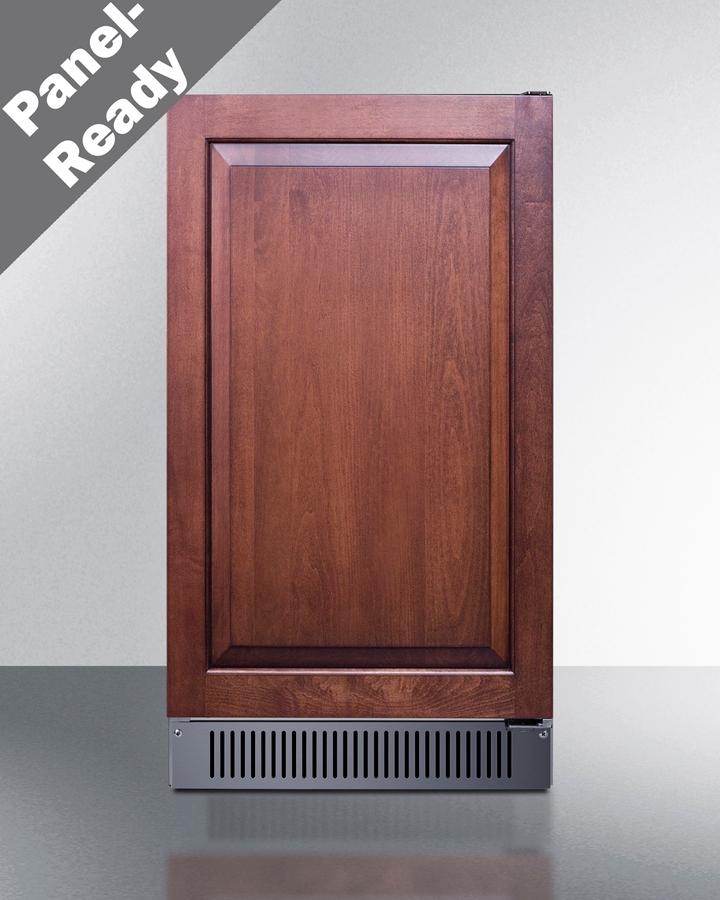

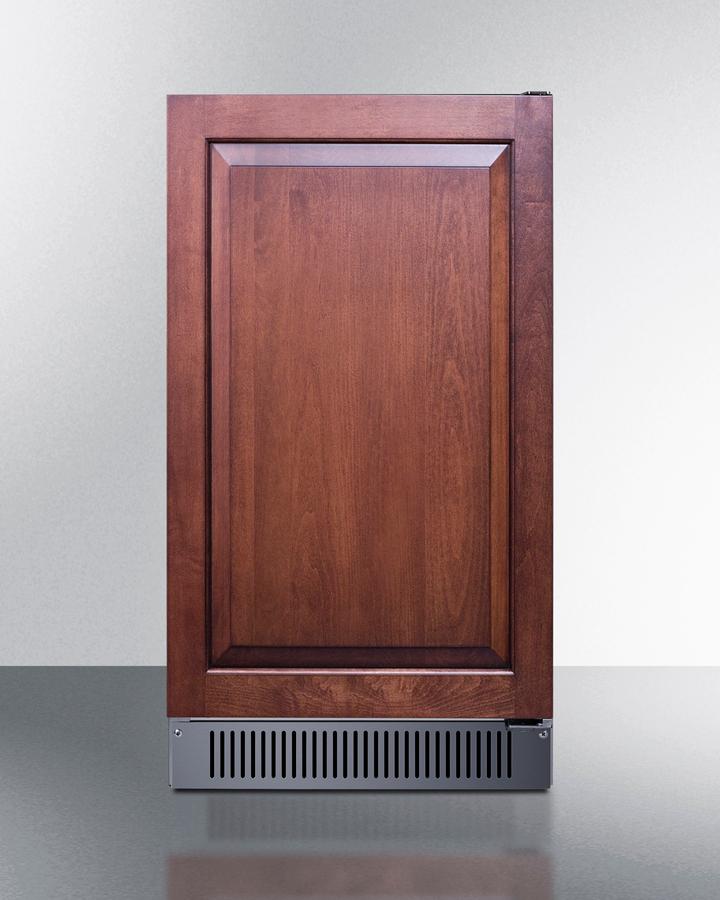

• Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)
• Make the best use of space by installing your icemaker under the counter
• Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs.
• This unit can be raised to 34.75", with a taller kickplate included for a seamless aesthetic
• Internal pump affords more flexibility in placing the unit

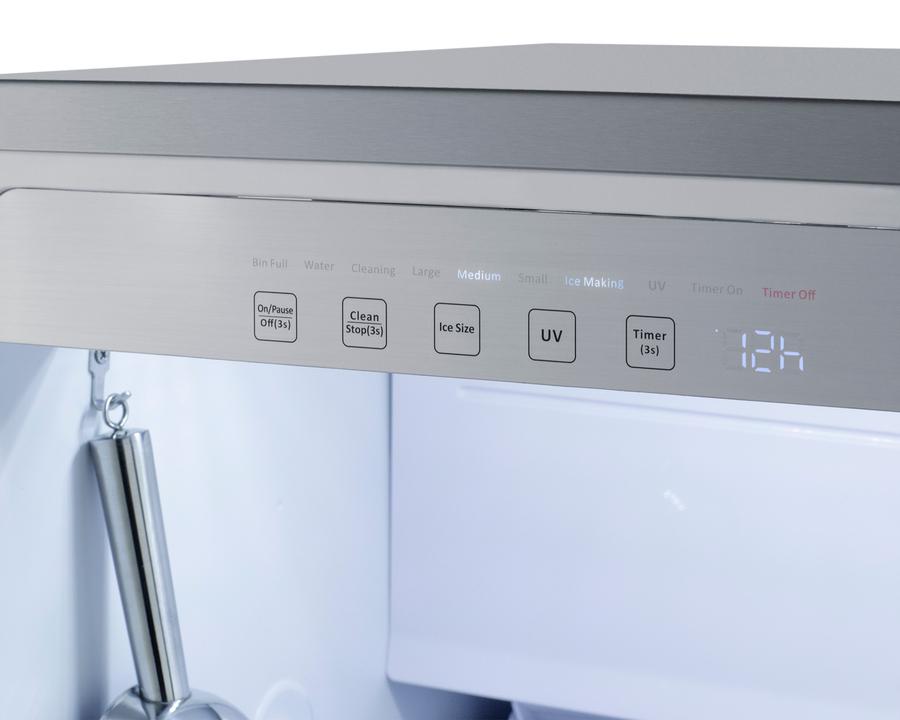

• Provides easy operation of the unit with indicator lights for each stage of the production process
• Unit allows users to choose from small, medium, or large clear ice cubes
• Reduced maintenance with auto defrost system

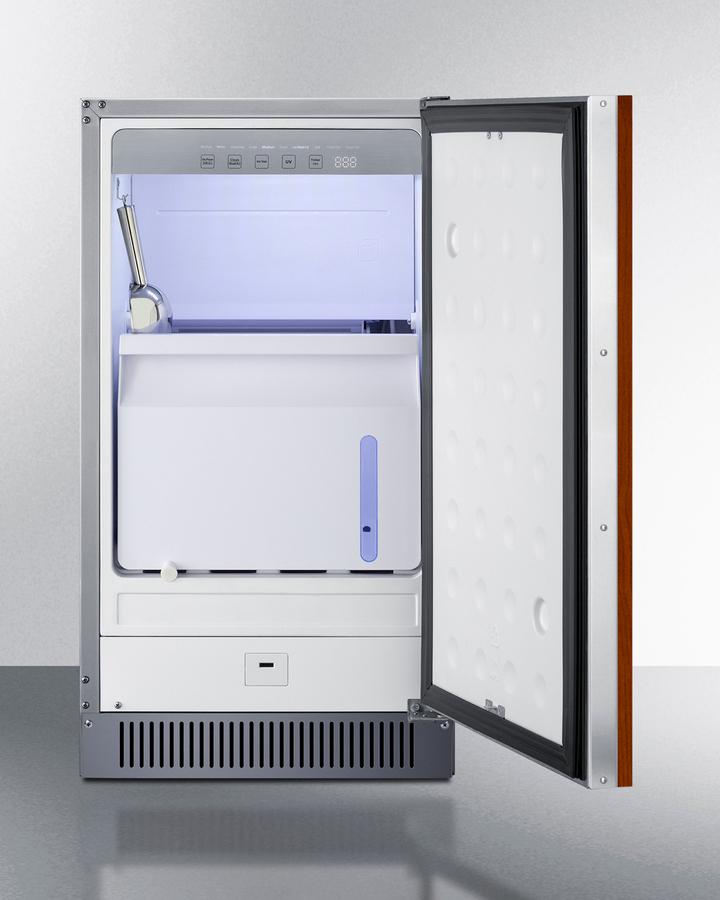

• LED lighting automatically illuminates when the door is opened
• Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes

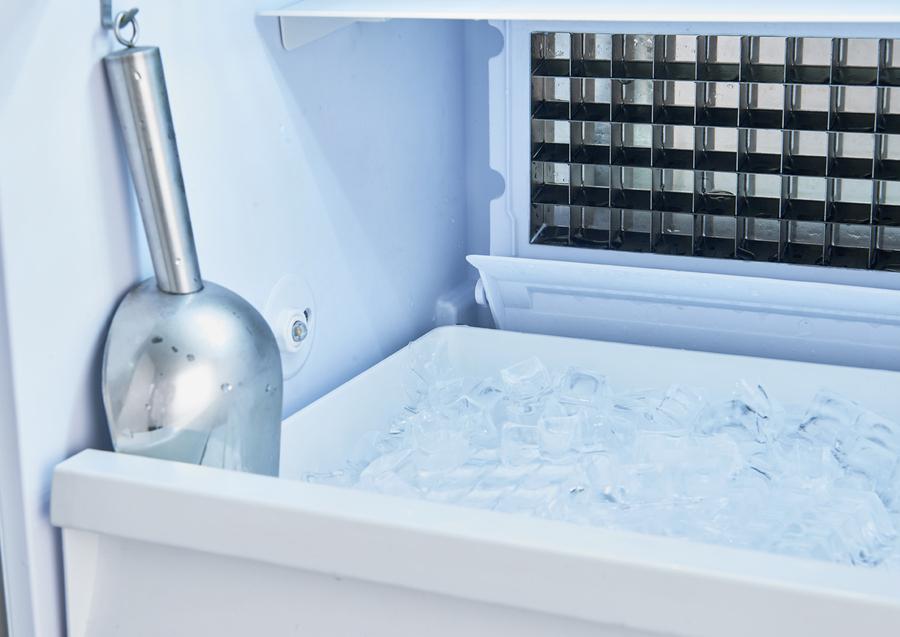

• Interior wall includes brackets to hang for easy storage
• Users can remove the ice bucket for fast and easy cleaning
• Ice stays solid longer in this cold-protected bin
• Allows the unit to be used freestanding
• Space-saving design with easier cleanability
• Flat design offers added space savings by requiring no extra depth to plug the unit in
• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
• Environmentally friendly design without ozone-damaging chemicals
• Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
